1-board Cedar Desk Accessory Set

Build a 1-board Cedar Desk Accessory Set.

1-board Cedar Desk Accessory Set

Specifications

Project typeOther Projects
Roomoffice
StyleCottage Style Furniture Plans
DifficultyBeginner Projects
Estimated costUnder $20

Dimensions

Use the size-specific shopping and cut lists below.

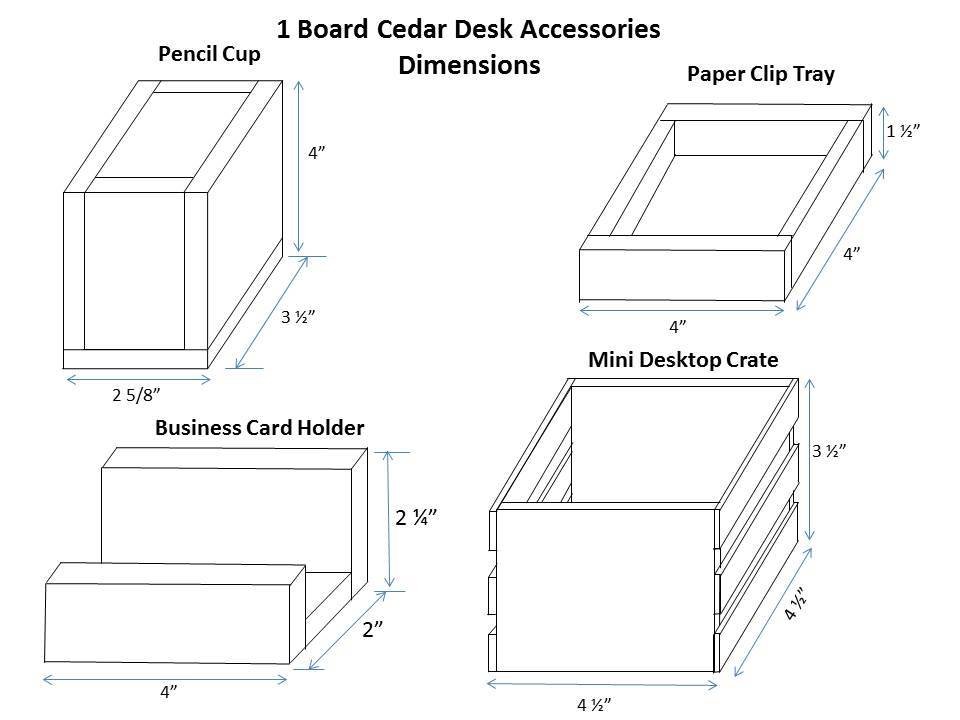

1-board Cedar Desk Accessory Set dimension diagram 1

Shopping List

1 cedar fence picket, 1/2" x 5 1/2" x 6'

wood glue

1" finish nails

Finishing materials for desired finish

Cut List

Cut List from ½” x 5 ½” Cedar Fence Picket

Pencil Cup:

2 pc @ 3 ½”, then cut to 3 ½” (front/back, then cut remaining

part down to 1 5/8” for sides)

1 pc @ 3 ½”, then cut to 2 5/8” (bottom, cut to fit, should be

~2 5/8” x 3 ½”)

Total board length needed (includes blade widths): 10 7/8”

Business Card Holder:

1 pc @ 1 ¼”, then cut to 4” (front, 1 ¼” x 4”)

1 pc @ 1”, then cut to 4” (bottom, 1” x 4”)

1 pc @ 2 ¼”, then cut to 4” (back, 2 ¼” x 4”)

Total board length needed (includes blade widths): 4 7/8”

Mini Desktop Crate:

3 pc @ 3 ½” then cut to 3 ½” wide

6 pc @ 1” then cut to 4 ½” wide (cut to length after step 1b)

Total board length needed (includes blade widths): 17 5/8”

Paper Clip Tray:

2 pc @ 1 ½”, then cut to 4” (front/back, 1 ½” x 4”)

2 pc @ 1 ½”, then cut to 3” (sides, 1 ½” x 3”)

1 pc @ 3”, then cut to 3” (bottom, 3” x 3”)

Total board length needed (includes blade widths): 9 5/8”

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

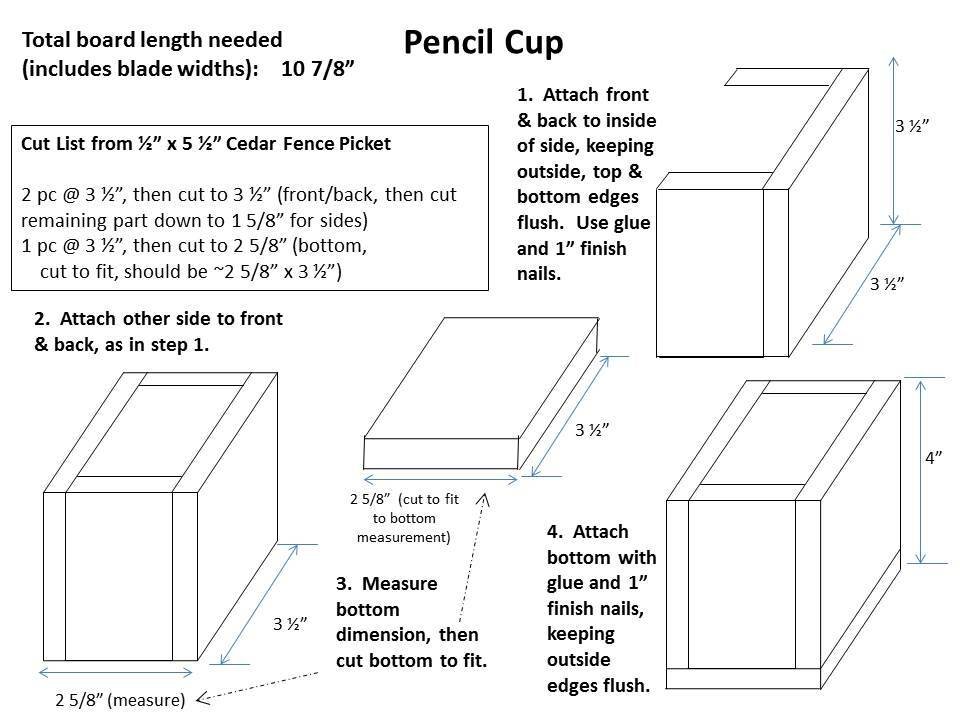

This diagram shows the cut list, and steps for assembly for the Pencil Cup.

1-board Cedar Desk Accessory Set — step 1
2

Step 2

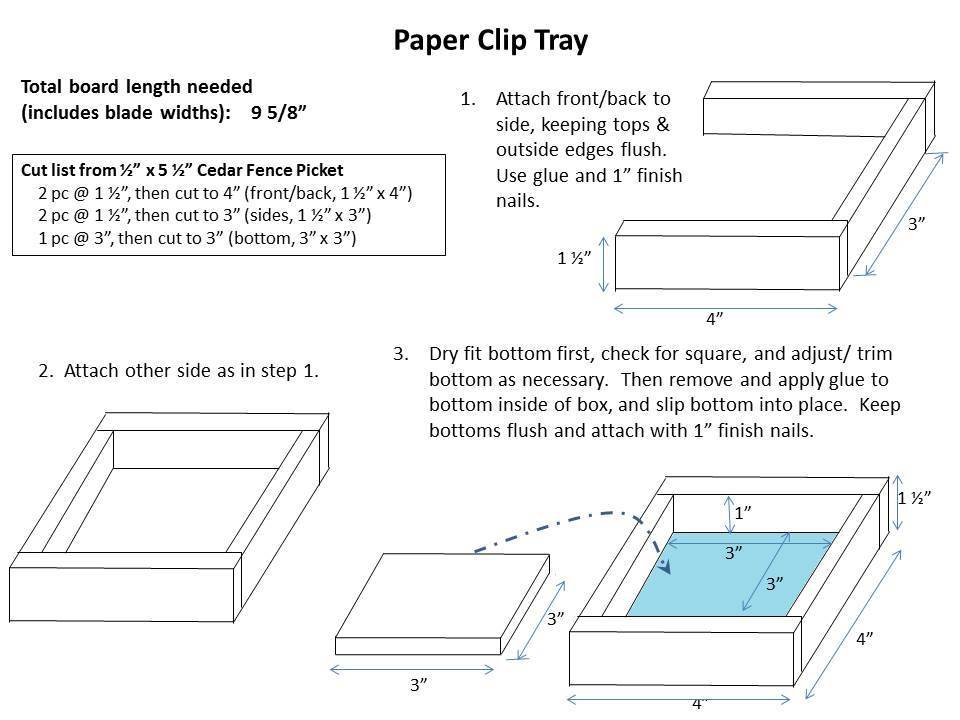

This diagram shows the cut list, and steps for assembly for the Paper Clip Tray.

1-board Cedar Desk Accessory Set — step 2
3

Step 3

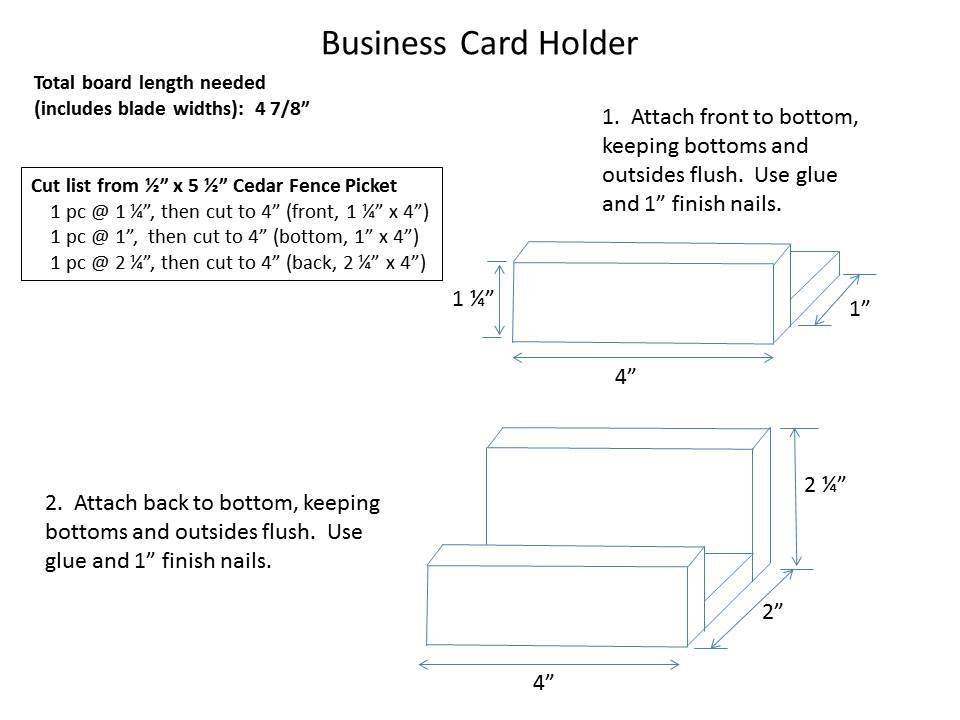

This diagram shows the cut list, and steps for assembly for the Business Card Holder.

1-board Cedar Desk Accessory Set — step 3
4

Step 4

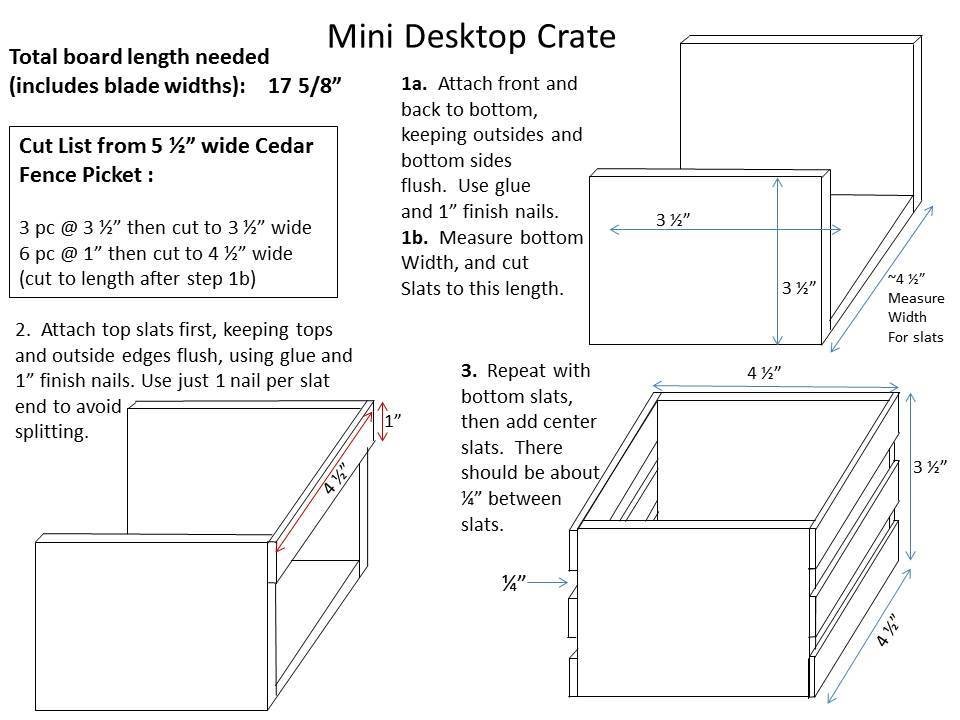

This diagram shows the cut list, and steps for assembly for the Mini Desktop Crate.

1-board Cedar Desk Accessory Set — step 4
5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
