11 Foot Barn Door Entertainment Center
to build your own barn door entertainment center. This beauty stores and kids and displays! Save thousands and get exactly what you want by doing it yourself. Free
Specifications
| Project type | Media and Entertainment Centers |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

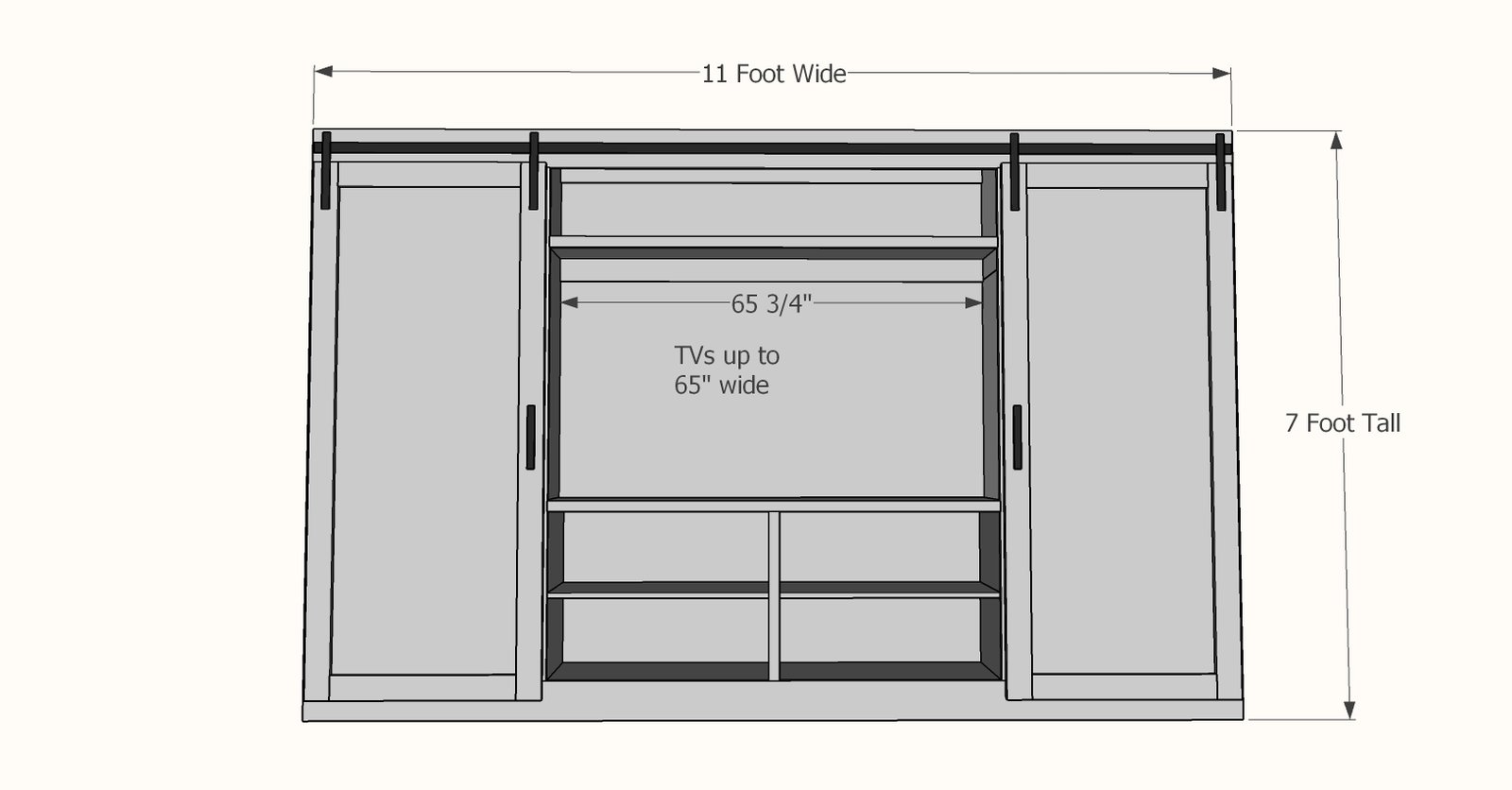

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 4 sheets of 3/4" plywood, ripped into strips 15-1/4" wide
- 2 - 1x6 @ 12 feet long
- 4 - 1x2 @ 8 feet long
- 2 - 1x2 @ 6 feet long
- 4 - 1x3 @ 8 feet long
- 4 - 1x4 @ 10 feet long (recommend MDF for paint grade)
- 2 sheets of 1/4" paneling for backs of doors
- 1-1/4" pocket hole scews
- 1-1/4" brad nails
- 11' barn door kit ( I used this one, affiliate link to Amazon )
Cut List
Rip plywood into strips 15-1/4" wide, then cut each strip as follows:
- 84" | scrap - tower side
- 84" | scrap - tower side
- 84" | scrap - tower side
- 84" | scrap - tower side
- 31.75" | 31.75" | 31.75" - tower shelves
- 31.75" | 31.75" | 31.75" - tower shelves
- 31.75" | 31.75" | 31.75" - tower shelves
- 31.75" | 31.75" | 31.75" - tower shelves
- 31.75" | 31.75" | 31.75" - center console shelves
- 31.75" | scrap - center console shelves
- 65.75" | 29" - center console top and side
- 65.75" | 29" - center shelf and center console side
- 65.75" | 29" - center shelf and center console side
Bay Supports
- 2 - 1x3 @ 65-3/4" - center bay supports
- 4 - 1x3 @ 31-3/4" - tower bay supports
Doors
- 2 - 1x4 @ 76"
- 2 - 1x4 @ 26"
- 2 - 1/4" plywood @ 76" x 33"
Face Frame - should be cut to fit
Tools
- measuring tape
- square
- safety glasses
- kreg-jig
- drill
- circular saw
- compound miter saw
- table saw
- nailer
- sander
- Iron
Step-by-step Instructions

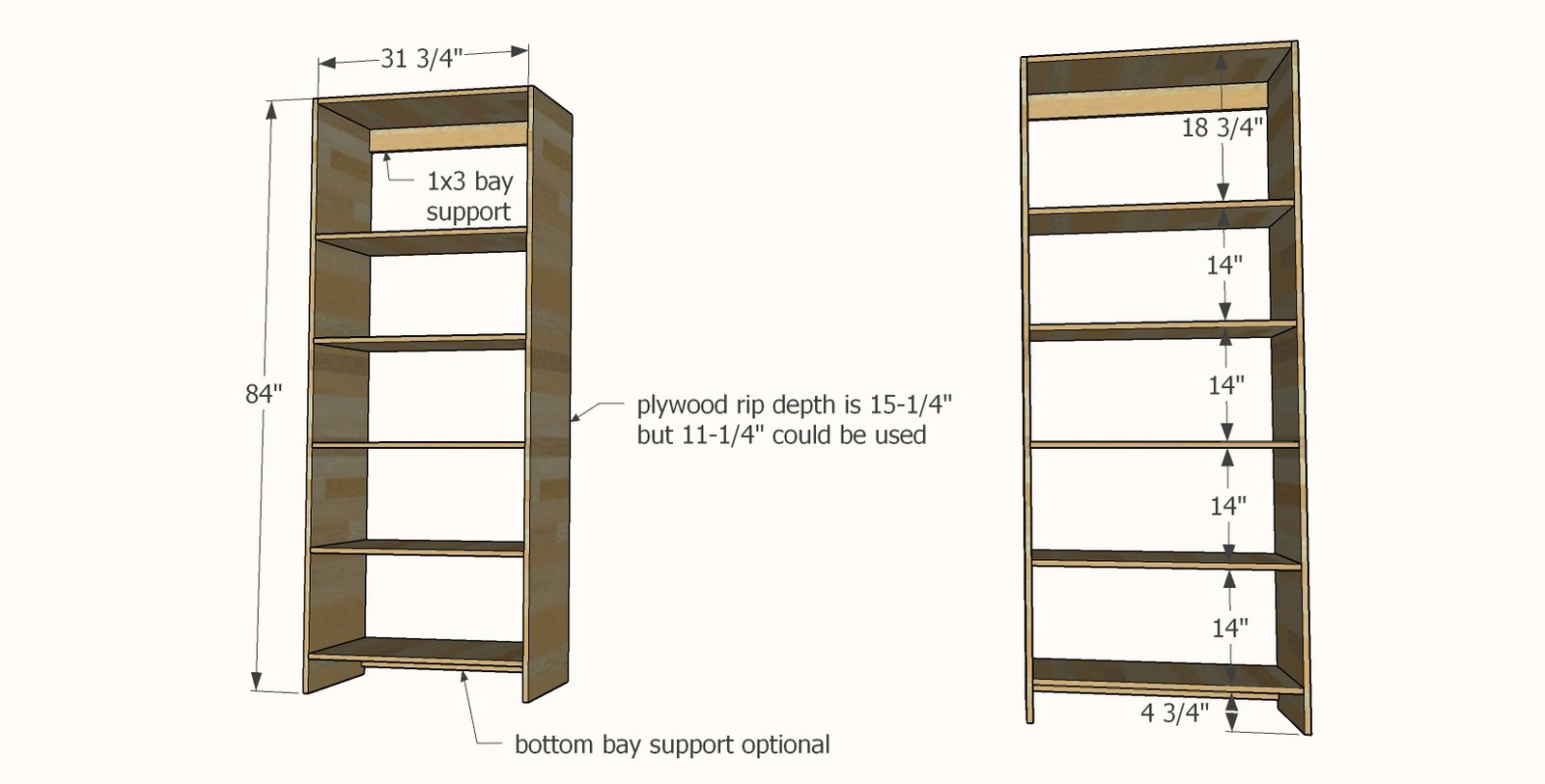

Start by building two identical towers.
On each shelf board (31.75"), drill three 3/4" pocket holes on each end. Attach to the sides, spaced as shown in the diagram, using 1-1/4" pocket hole screws. It helps to cut a 14" block to use a a spacing guide. For the top shelf, I placed my pocket holes facing upward. All other shelves I faced pocket holes downward. Add 1x3 bay support inside, flush to back, at top, with pocket holes on side and top. A bottom bay support can be added under the bottom shelf if desired (consider baseboard cut out if not removing baseboard).
Step 2

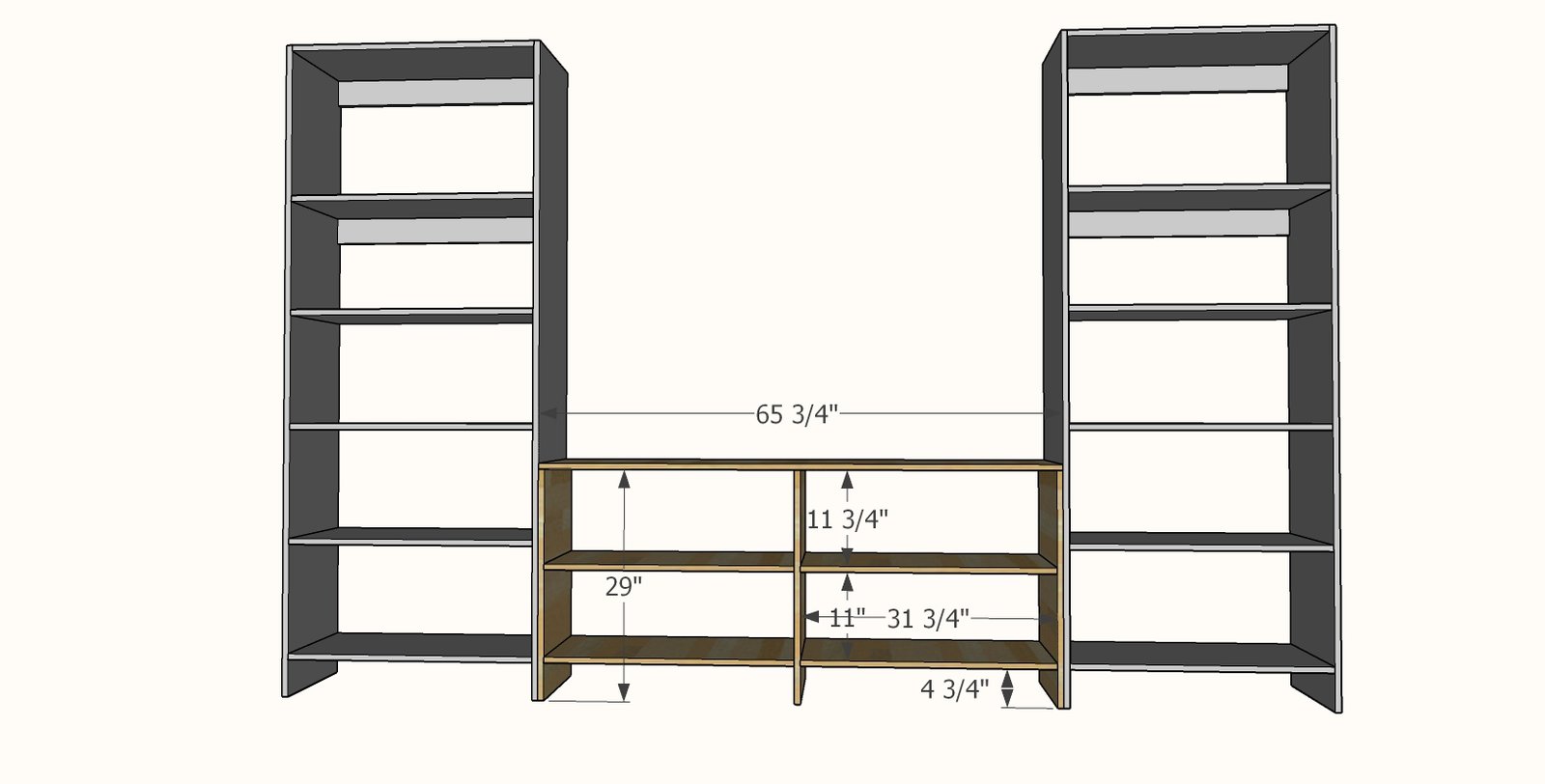

Build the center console using the same construction methods as the towers, but also drill pocket holes on the sides for attaching the top. For attaching the top, place pocket holes on the outside, as they will be hidden by the towers on final install. For the center vertical piece, the pocket holes will be visible, if you can, opt for the side that is NOT facing the main room or entrance. I filled mine with wood filler and finished and you can't see them on completion.

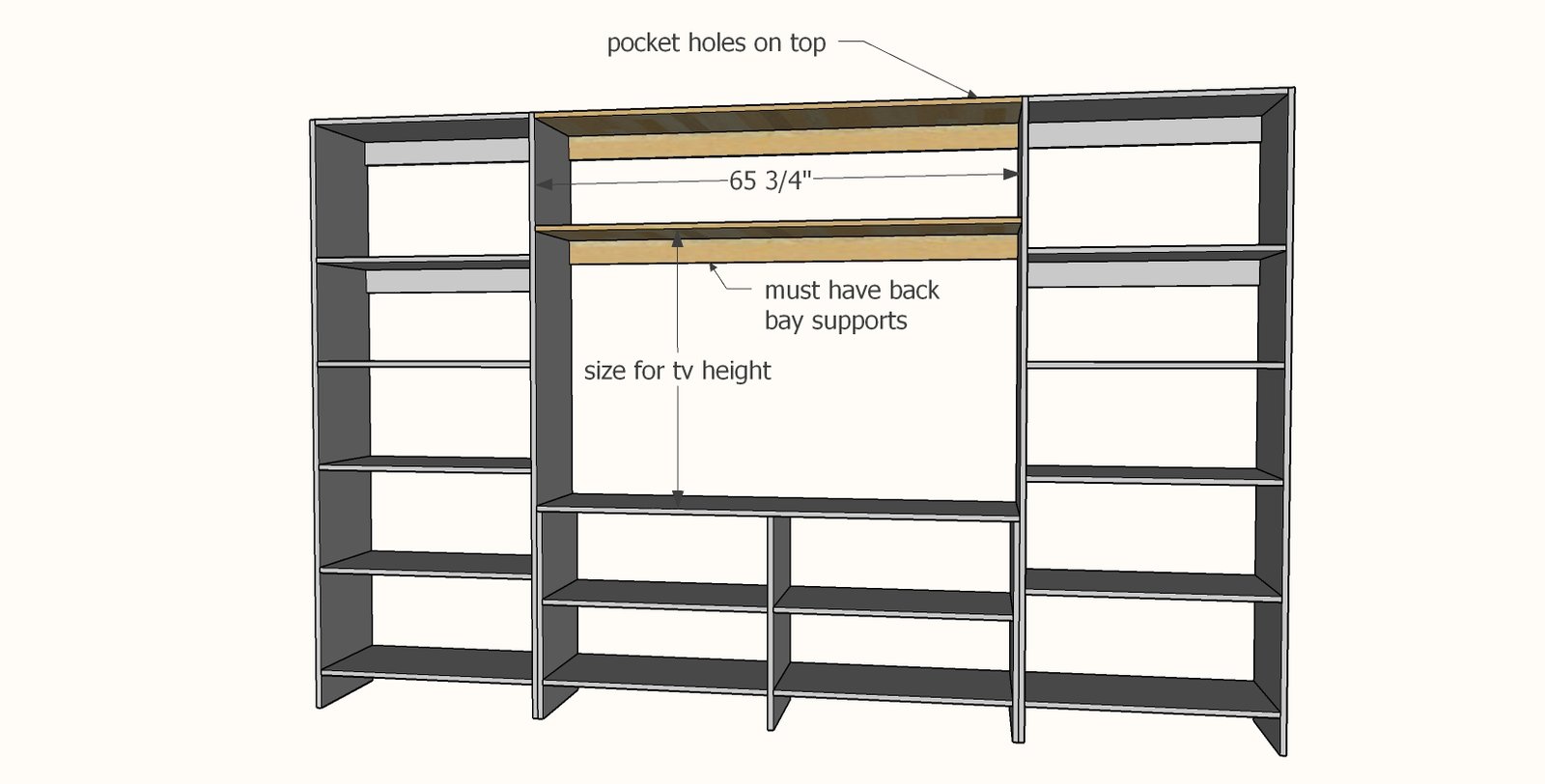

Drill three pocket holes on each end of the center shelves.
Then drill two pocket holes on each end of the 1x3 bay supports, and three along the top edge, evenly spaced. Attach the bay support to the center shelves on the underside. Keep the center shelf pocket holes on the top side for attaching to the towers. Now attach the center shelf and bay supports to the towers. All pocket holes are 3/4" setting and 1-1/4" pocket hole screws. The media wall can now be attached to studs in the wall to secure. TIP: The face frame will cover up alot of imperfections, so don't stress too much about getting everything perfect. This step was for us the hardest step.

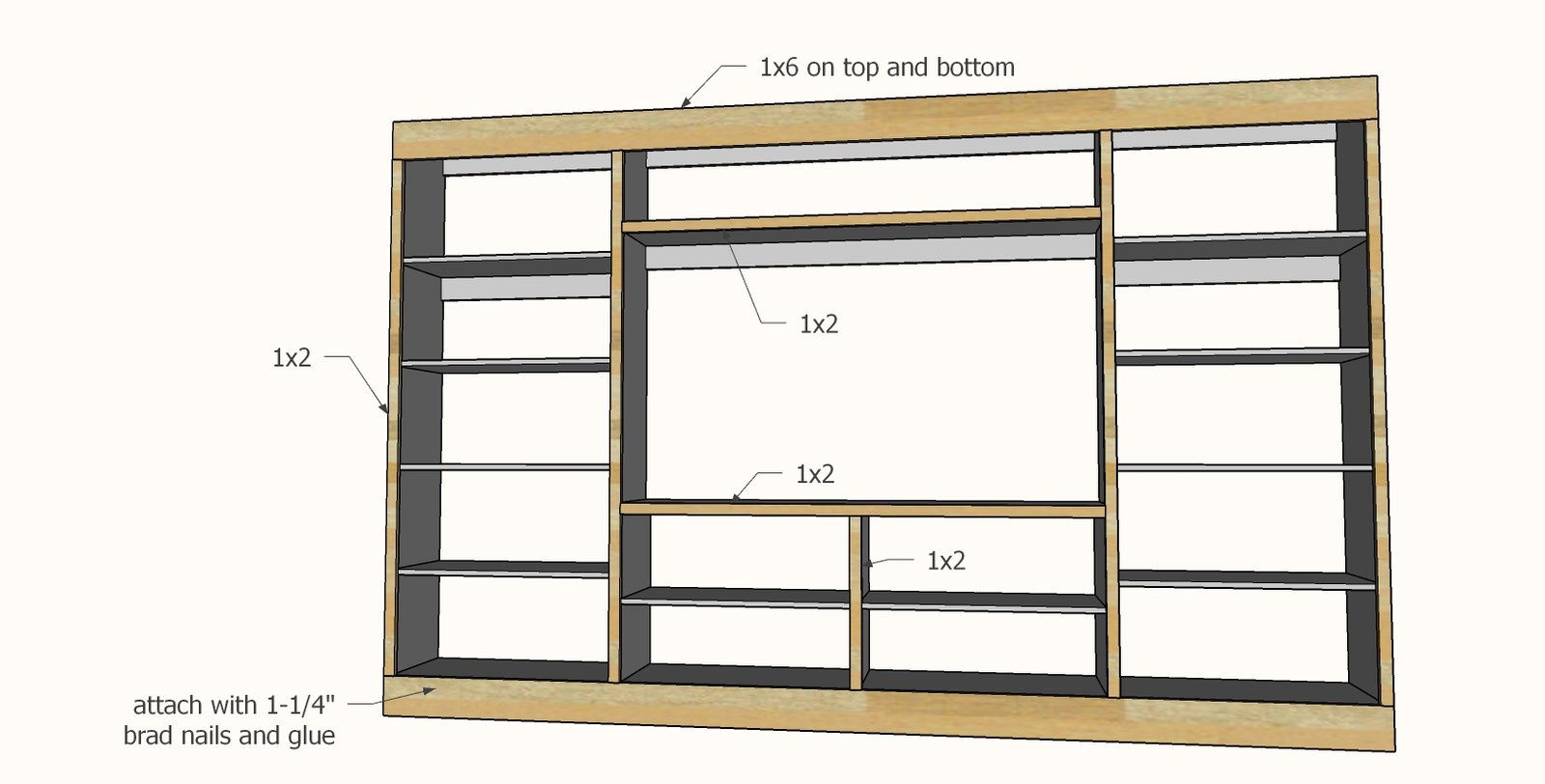

Face frames cover up joints and hide any errors.
Measure and cut the 1x6 face frame boards to fit. Attach to the top and bottom with 1-1/4" brad nails and wood glue. Next, measure and cut each 1x2 stile (vertical trim) and attach to the front edges of the plywood. Next, trim the top shelf with a 1x2. Finally, trim the center divider on the center console. Fill nail holes with wood filler and let dry. Lightly sand. NOTE: Depending on your barn door hardware rail attachment bolts/lags, you may need to add additional blocking behind the top 1x6. I recommend either a 2x4 or a 1x4. The cut lengths are the same as the shelves (two at 31-3/4" and one at 65-3/4")
Step 5

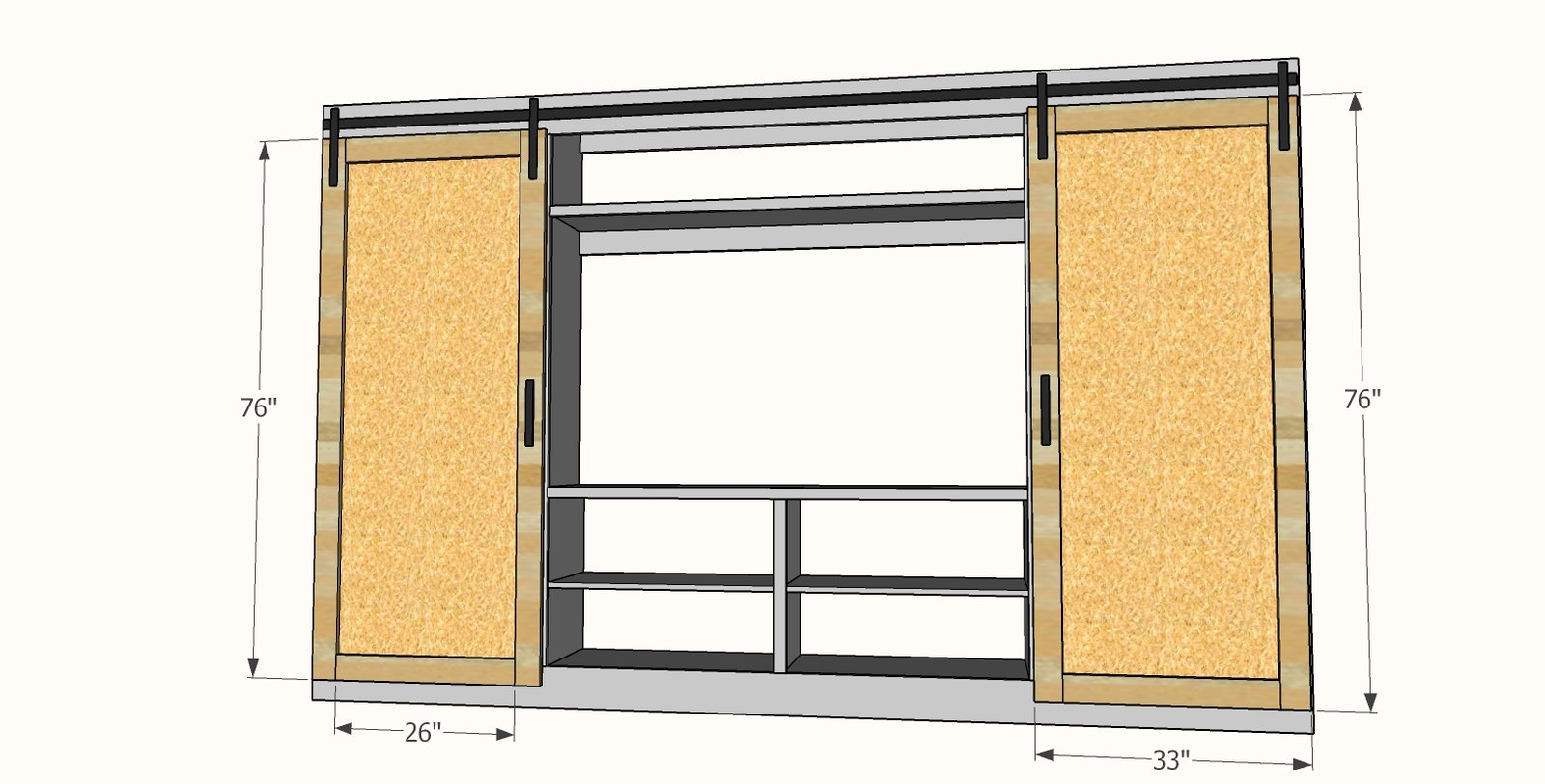

Cut the 1x4 MDF boards and drill two pocket holes on each end of the shorter pieces. Attach to the longer pieces with 1-1/4" pocket hole screws. Cut 1/4" plywood with a circular saw, elevating the plywood with wood scraps or styrofoam so the blade doesn't cut into the worksurface. Fully support the plywood so the saw blade doesn't get pinched as the plywood is cut. Nail plywood to the back of the frames with 3/4" brad nails and glue. Attach the door hanger hardware to the doors as recommended in the instructions. Then hold the doors up in place and mark where the rail should be located. Install the rail. Use a level to make sure the rail is installed level (so the doors don't slide to one side).
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
