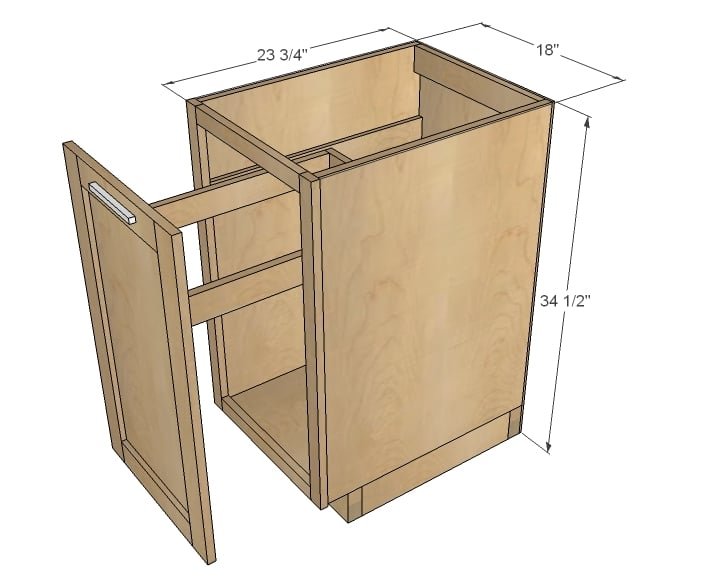

18" Kitchen Base Cabinet (Face Frame) Trash Pull Out or Storage Cupboard with Door

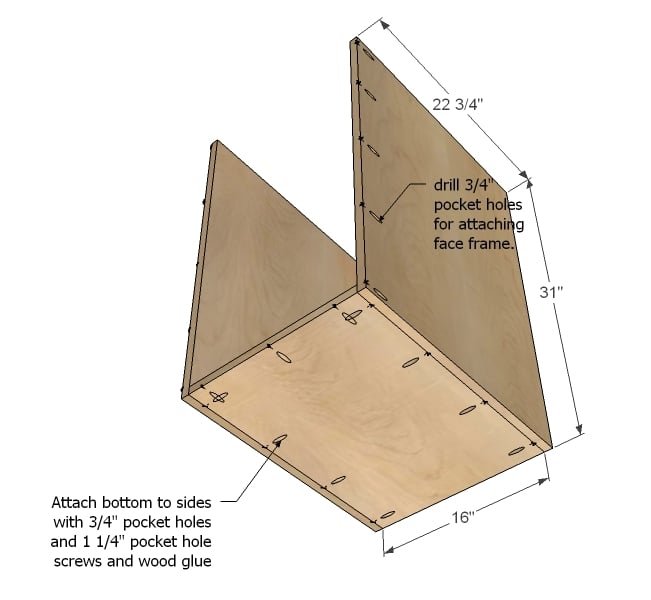

Step 1

Make sure you go through and drill all pocket holes before assembling. It's much easier to drill pocket holes on boards than on trash bins! Attach bottom to sides with glue and 1 1/4" pocket hole screws.

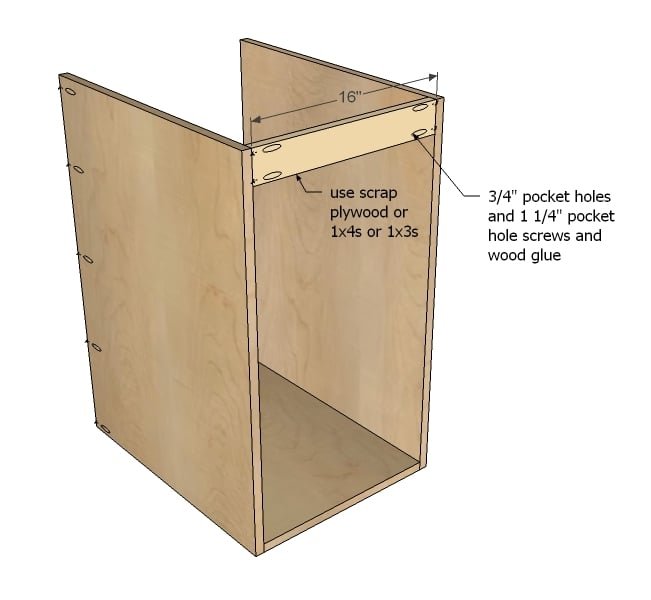

Step 2

Now the back support. We used the scraps from cutting the plywood for supports but you can use 1x4s or 1x3s.

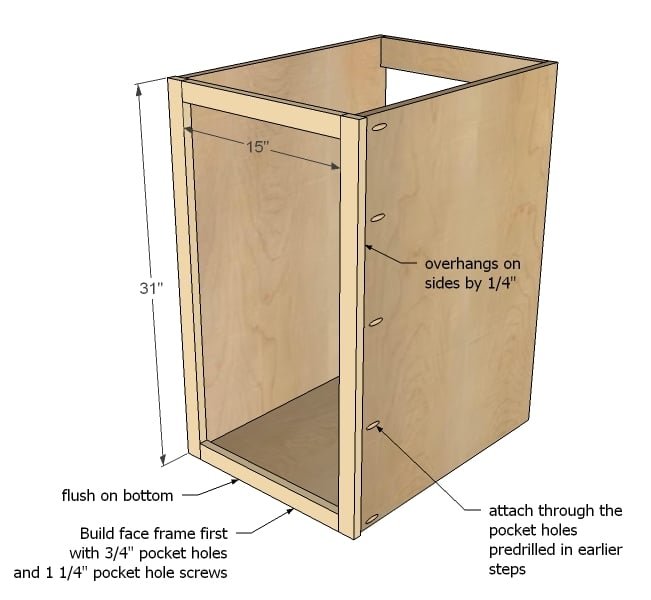

Step 3

Build the face frame on a flat, smooth table with clamps. Make sure it's square, joining joints with 3/4" pocket holes and 1 1/4" pocket hole screws and glue. Mark sides at 1/4" for side overhang and attach to face of cabinet through predrilled pocket holes.

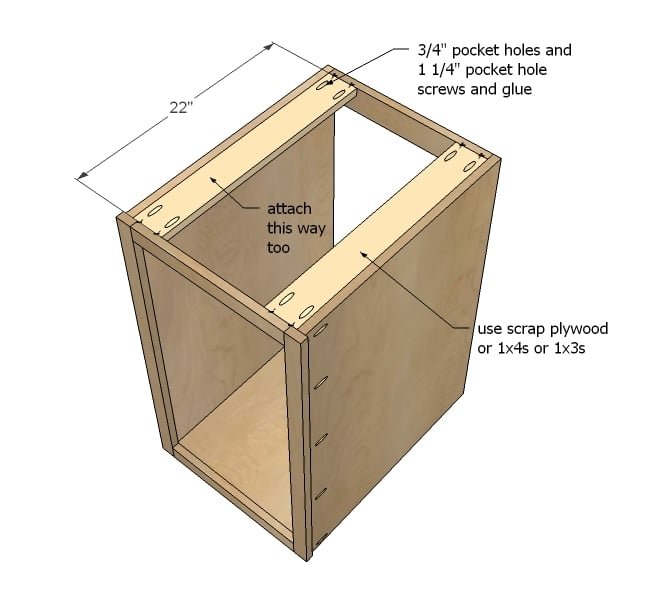

Step 4

These guys are for attaching the countertop plywood. Also attach to sides (not shown in diagram) for further lateral support.

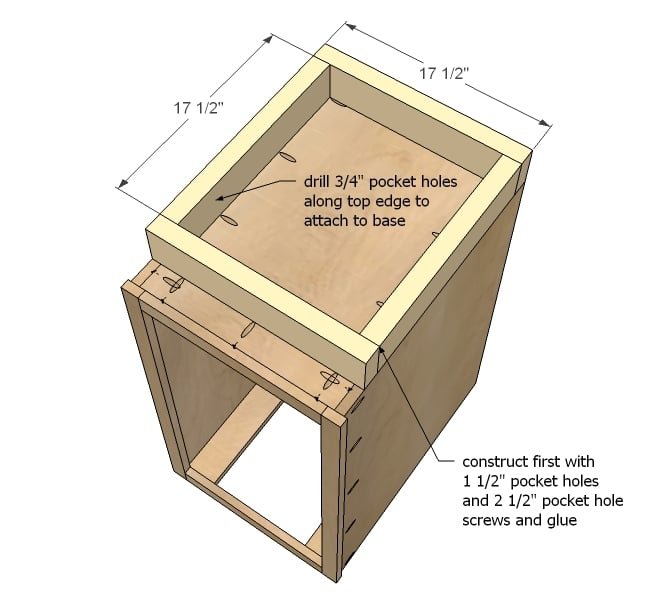

Step 5

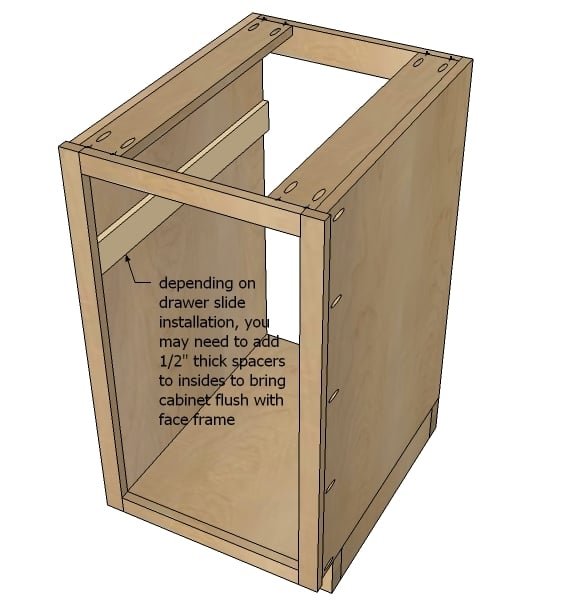

Step 6

Now most steps from here on out are dependent on how your drawer slides work. For standard side mount slides, you will most likely need to add a spacer to bring the slides flush with the inside of the face frame. 1/2" plywood does the trick nicely. You will want to mount at the height of your trash can - see next step.

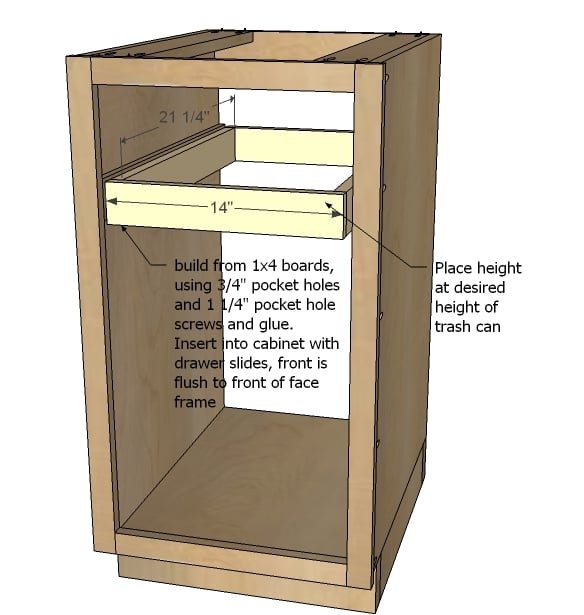

Step 7

For the trash pullout, this is also dependant on the type of trash can you use. We've got this plan set up to fit two, side by side. You can easily add more compartments or even place the trash pullout on the bottom - with a bottom of course - to just act as a pull out platform for your trash can. Note: if you do this, I recommend adding cross supports for extra strength.

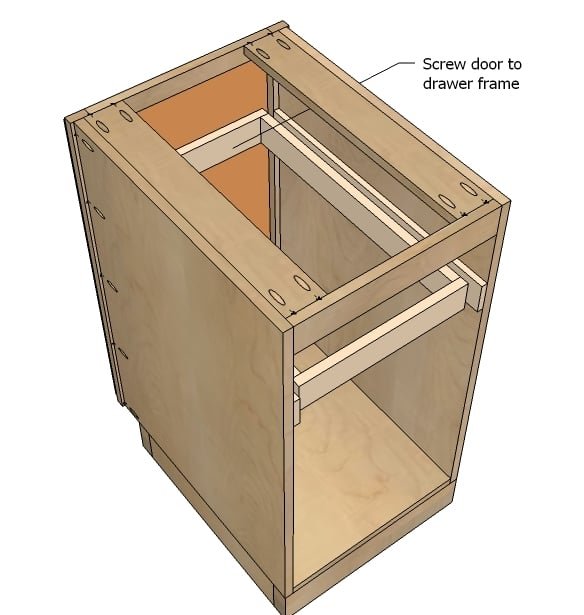

Step 8

Attach trash pullout assembly to door, with door flush to bottom and a 1/4" gap on each side. Use screws.

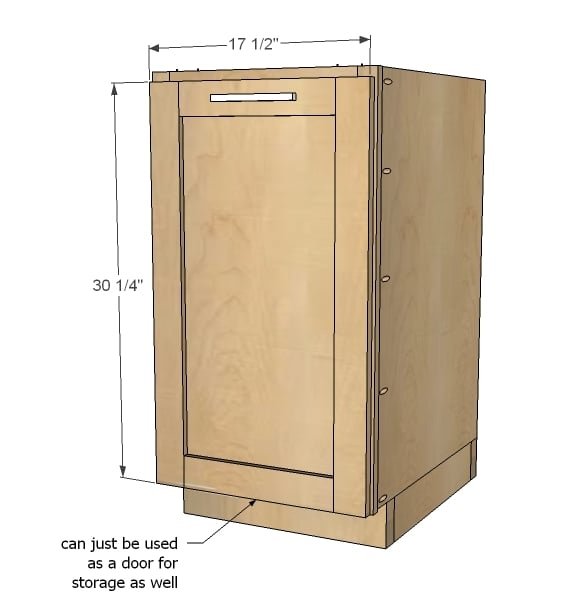

Step 9

A view of the door. You can order doors, use wood slabs, make doors, and I will be posting tutes for the doors we made.

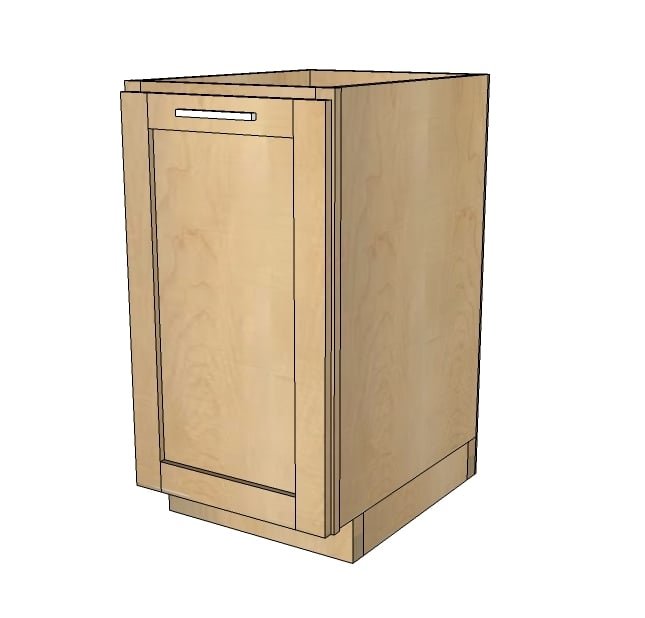

Step 10

Finally, add the back. I like to add backs after installing drawer slides just because it's easier to reach in and work on things without a back. use glue and 1 1/4" finish nails.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
