1x12 Coffee Table with Storage and Shelves
Build your own storage coffee table with easy, using only 1x12 boards! This is a beginner DIY project that you can build with basic tools and materials. from
Specifications
| Project type | Coffee Tables |
|---|---|
| Room | Storage Solutions |
| Difficulty | Beginner Projects |

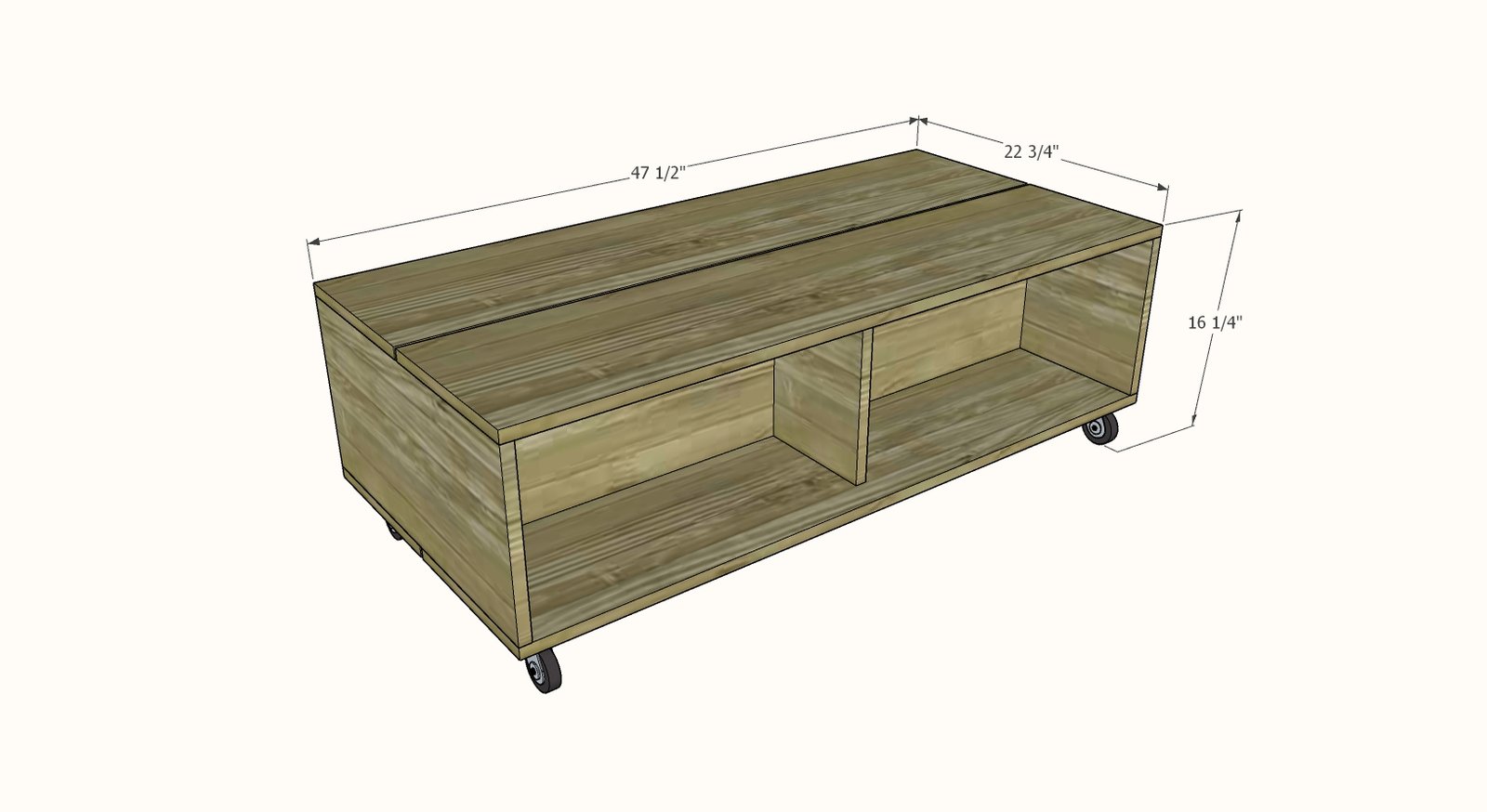

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 4 - 1x12 @ 8 feet long *
- 50 - 1-5/8" long self tapping wood screws with Star bit (SPAX or similar)
- 1 - set of 3" butt hinges
- 4 - 3" caster wheels
- 16 - 1/2" long screws for attaching caster wheels (make sure the screw head is big enough to not pass throuh the caster holes)
*IMPORTANT: Make sure all 1x12 boards are the same width
Cut List
- 4 - 1x12 @ 47-1/2" - top and bottom pieces
- 1 - 1x12 @ 8" - divider
- 2 - 1x12 @ 46" - uprights
- Measure and cut sides to fit in step 1 (about 22-1/2")
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- compound miter saw
- sander
Step-by-step Instructions

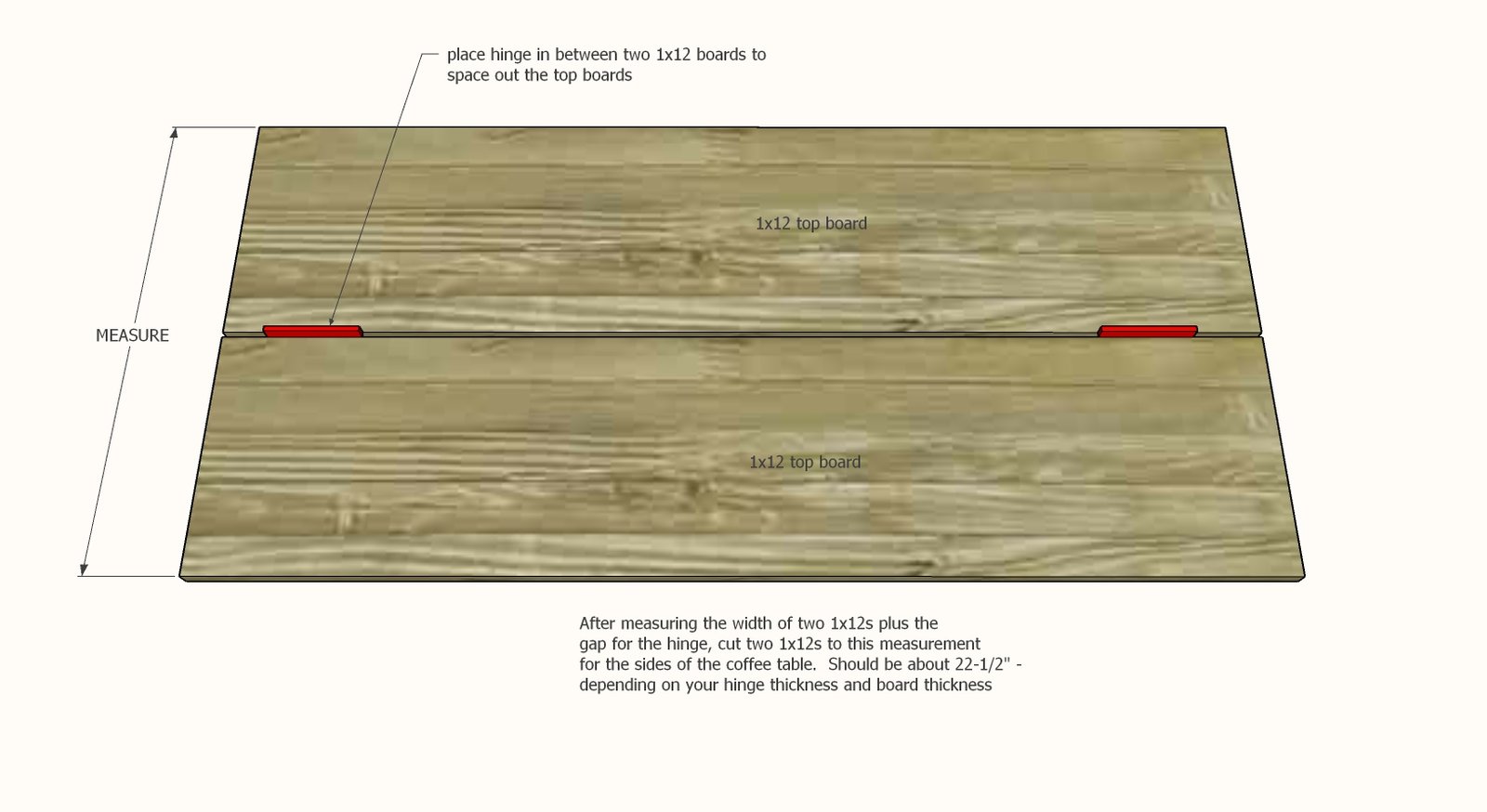

Step 1
Since 1x12 boards can vary slightly in overall width, I recommend cutting the side pieces of the coffee table to fit. To do this, lay out two 1x12 @ 47-1/2" on a flat surface. Place your hinge in the gap, with only the pin visible on the top. Then measure the width of the two 1x12s plus the gap for the hinges. It should be about 22-1/2" - give or take 1/4". Cut two 1x12s to match this measurement. These will be your side pieces.

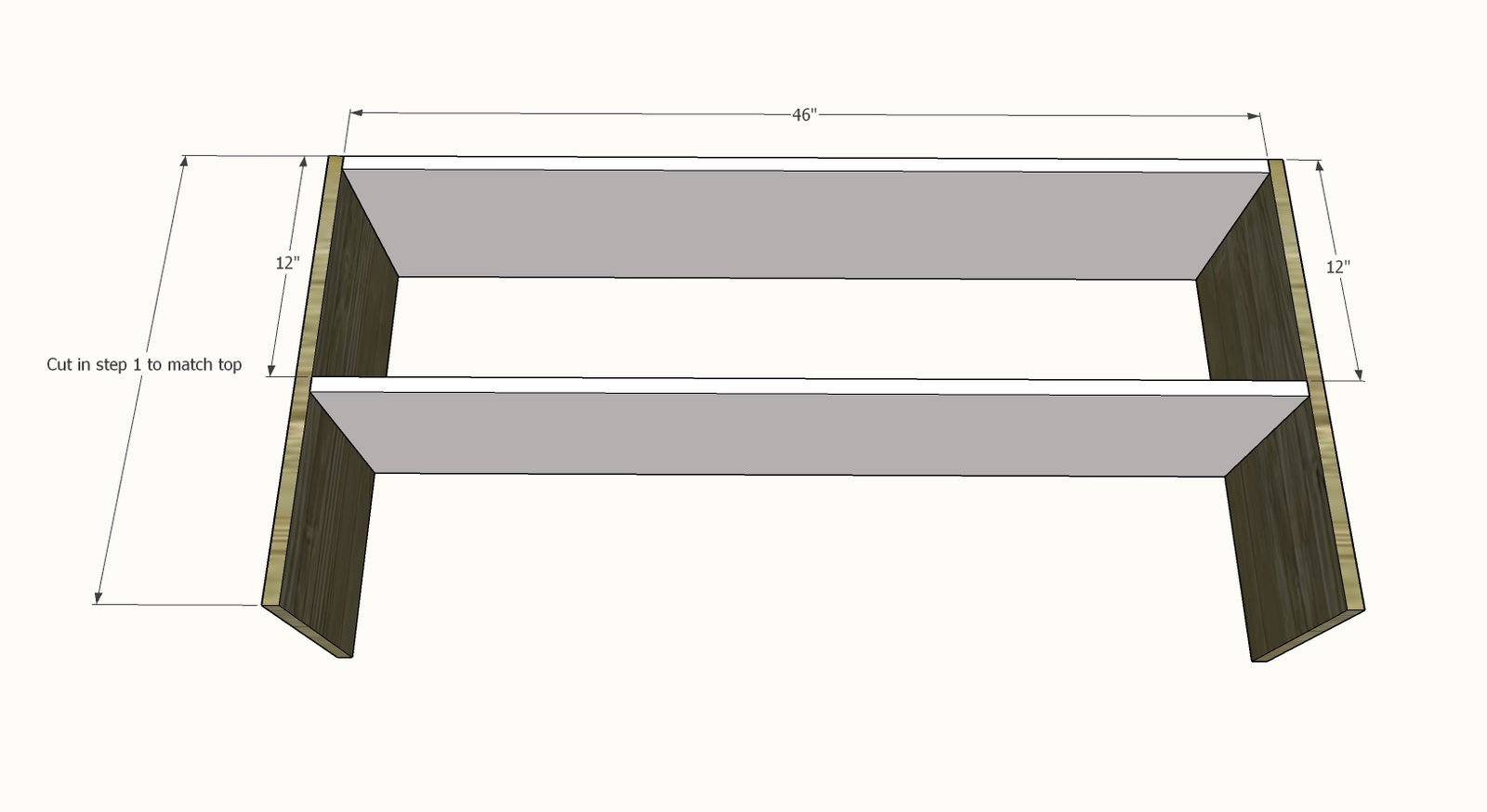

Step 2
Attach the two side pieces with screws (4 per joint) to the 1x12s @ 46" long.

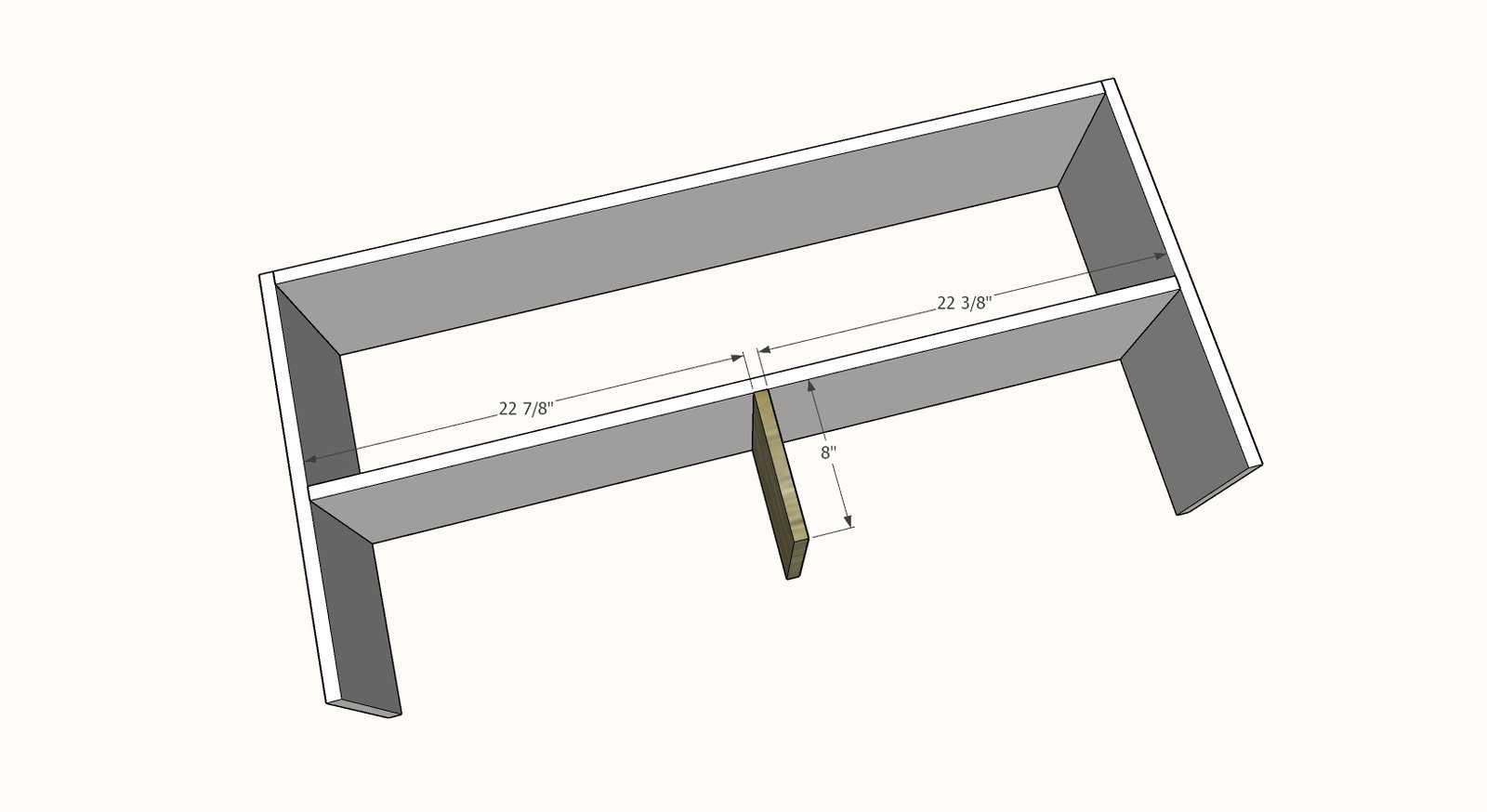

Step 3
Attach the divider with screws to the center of the open area.

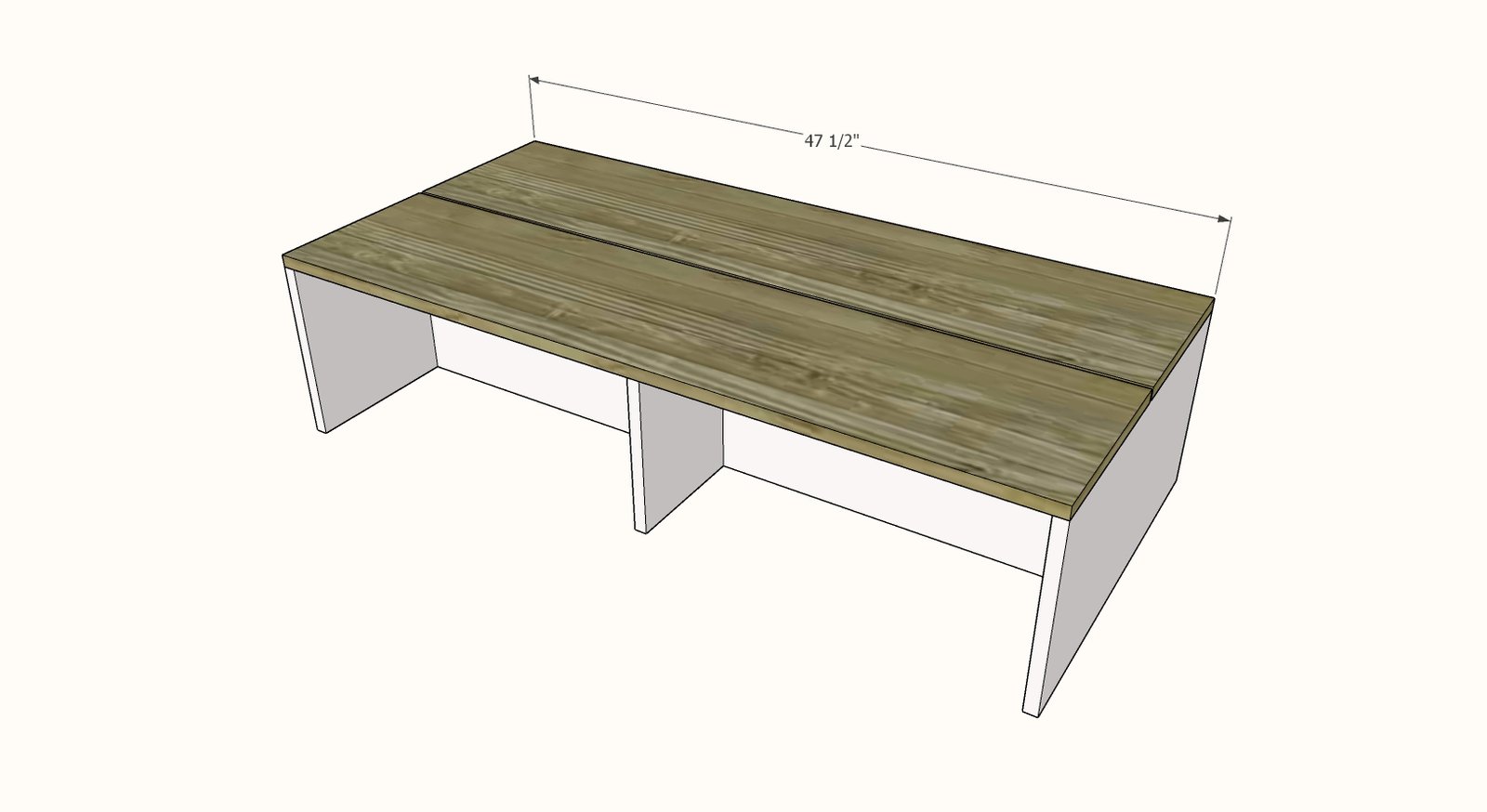

Step 4
Attach bottom 1x12s to the bottom, all outside edges are flush. Use the 1x12s to square up the coffee table. Screw to all available edges.

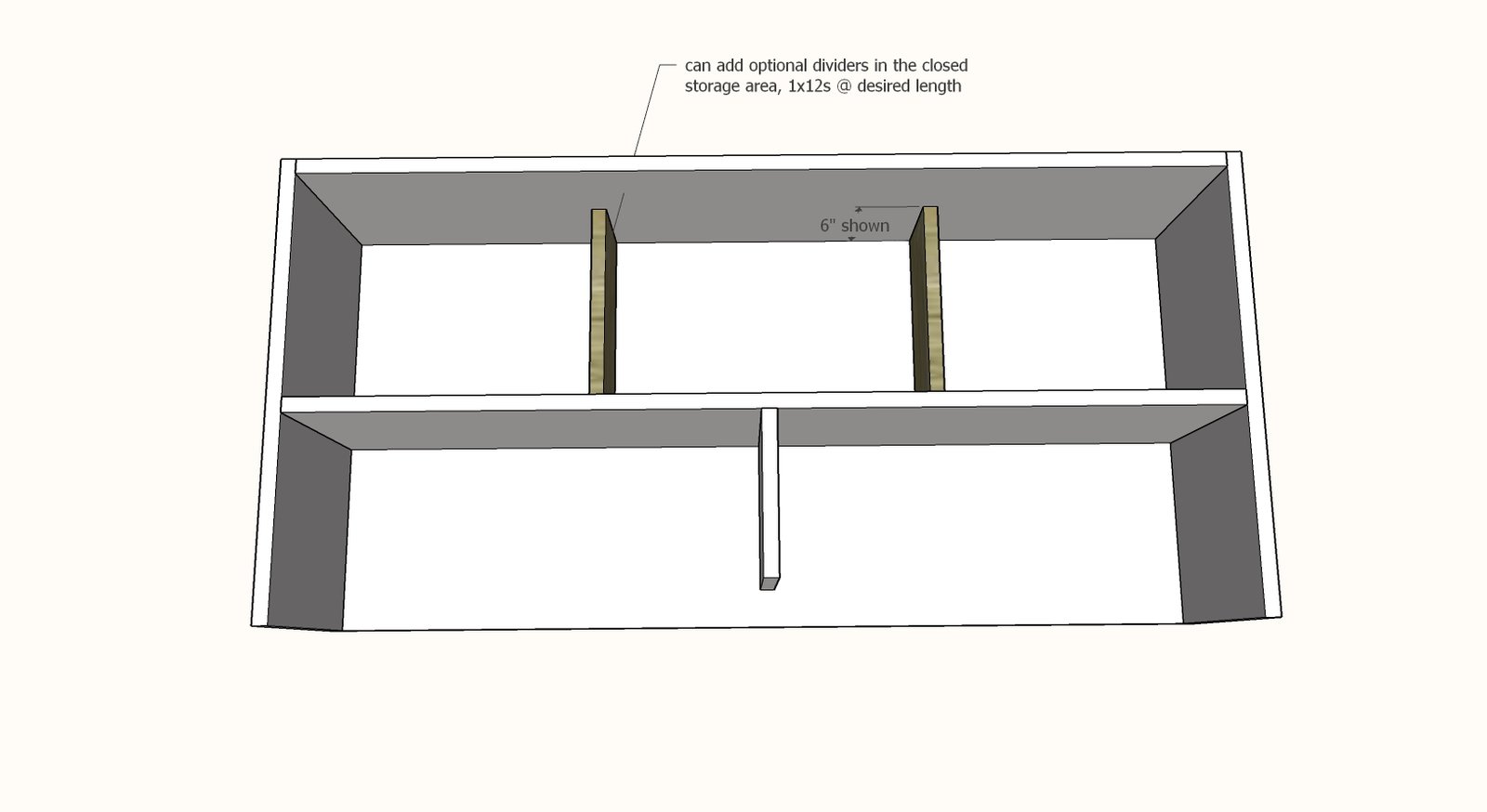

Step 5
Optional dividers can be added to the hidden storage area.

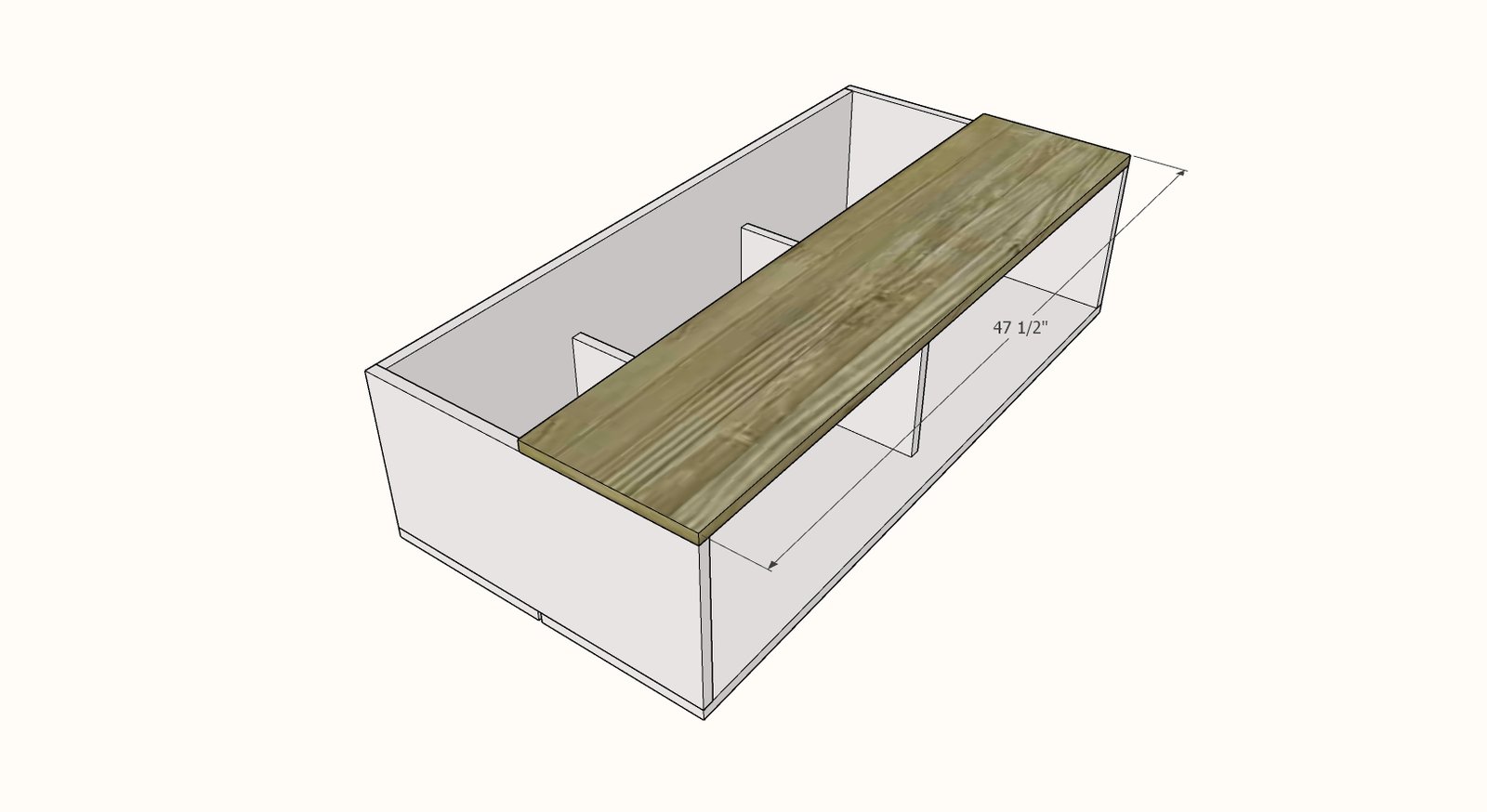

Step 6
On the top, attach one of the 1x12s to the top with screws to all available edges.

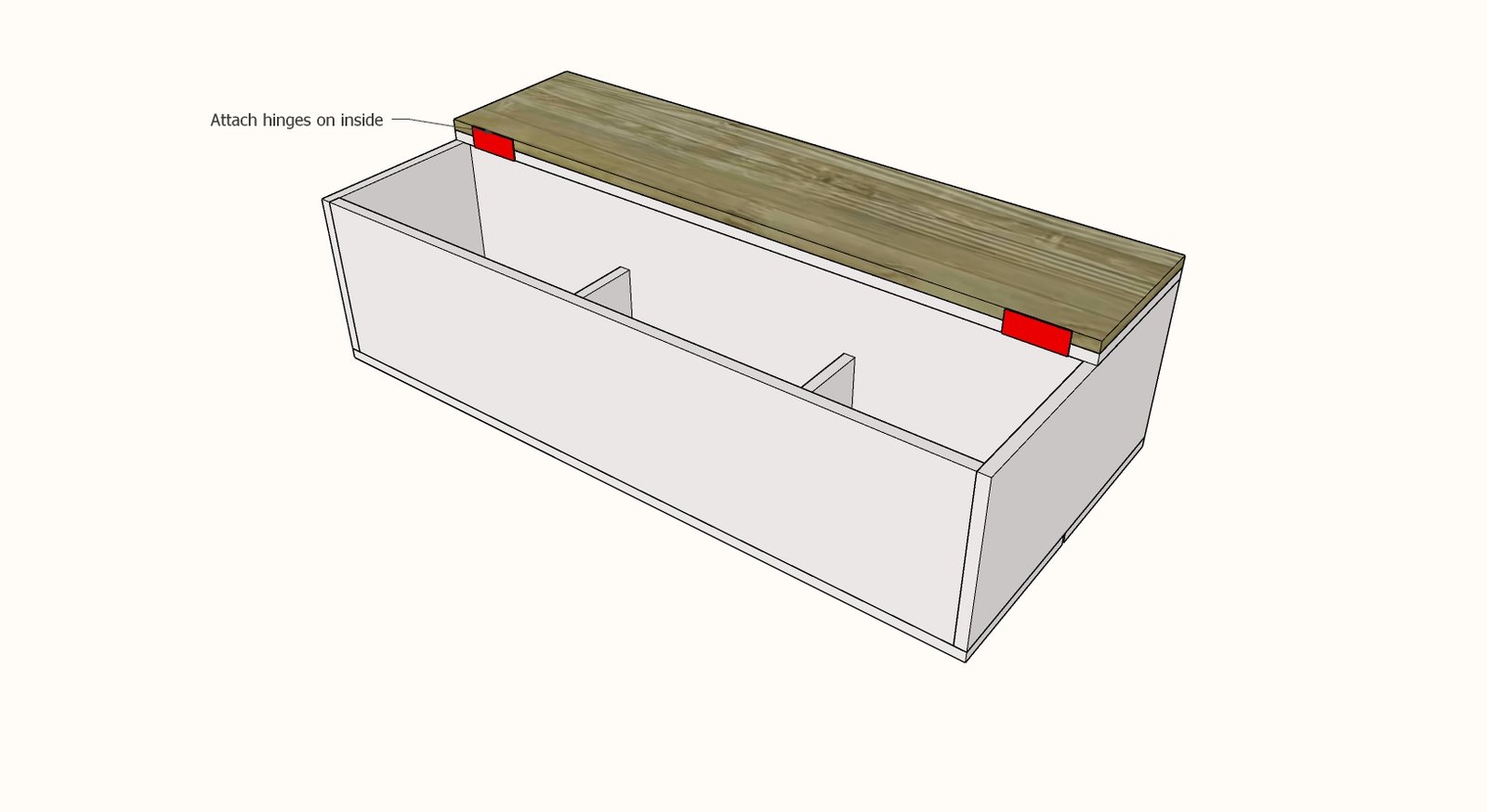

Step 7
Attach the remaining 1x12 to the top 1x12 with the hinge. Orientate so when closed, any board cupping is facing downward. NOTE: Before attaching any hardware, it's a good time to paint or stain.

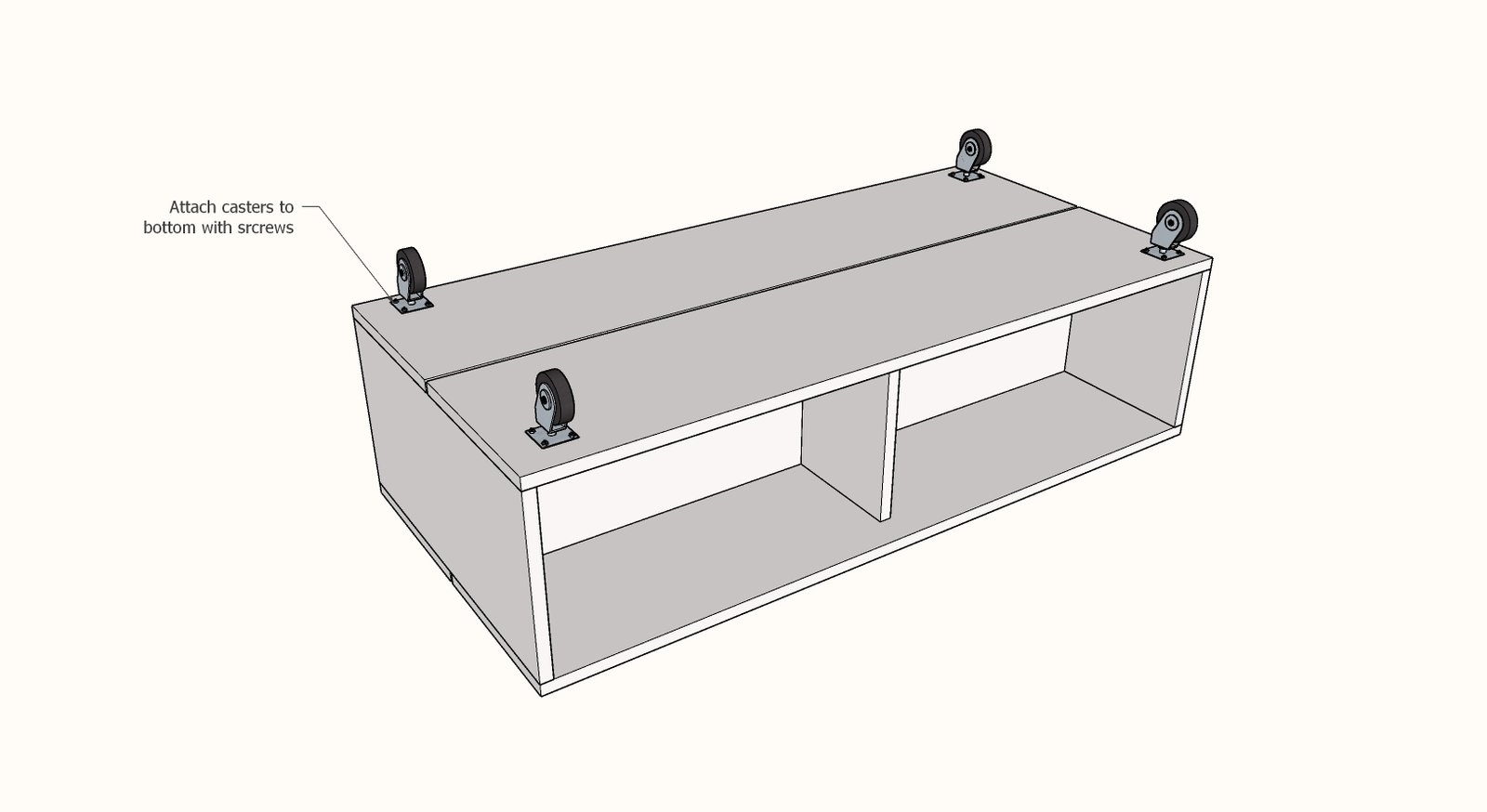

Step 8
Attach caster wheels to bottom with caster wheel screws.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
