2x4 Easy Build Garage Shelves [Freestanding]

to build freestanding garage shelving using only 2x4s. Easy and inexpensive, but sturdy and functional. Includes video tutorial from RELATED: Garage shelving attached to wall

Specifications

Project type	Garage Storage
Room	Garage and Workshop
Difficulty	Beginner Projects

Dimensions

Use the size-specific shopping and cut lists below.

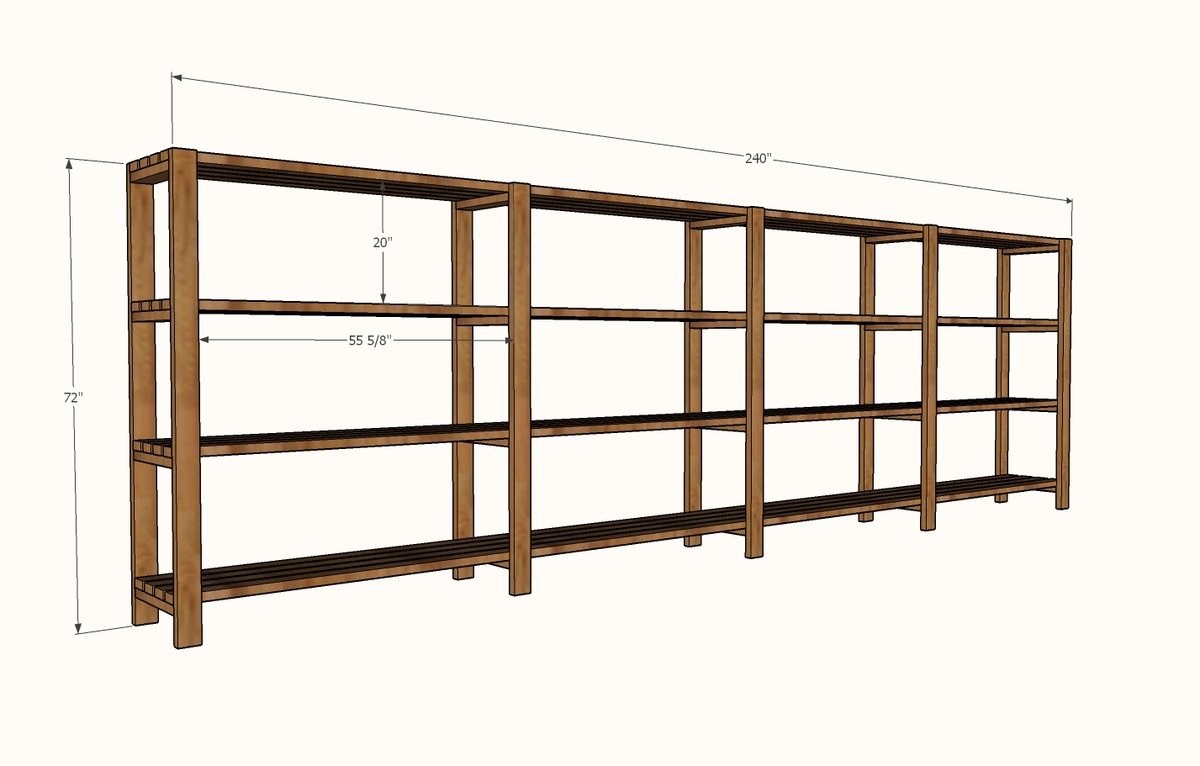

2x4 Easy Build Garage Shelves [Freestanding] dimension diagram 1

Shopping List

2 - 10' long 2x4s PER Leg Support (I had 5 leg supports, so I bought 10)
4 - 2x4 - length of shelf PER SHELF (I bought 16 2x4 @ 20' long because I had 4 shelves, 20' long each)
2-1/2" self tapping wood screws (star bit don't strip), two per leg/per shelf board
Additional screws for anchoring to wall to prevent forward tipping or racking

Cut List

PER LEG SUPPORT

2 - 2x4 @ 72"

4 - 2x4 @ 17"

Tools

measuring tape
square
pencil
safety glasses
hearing protection
drill
circular saw
sander

Step-by-step Instructions

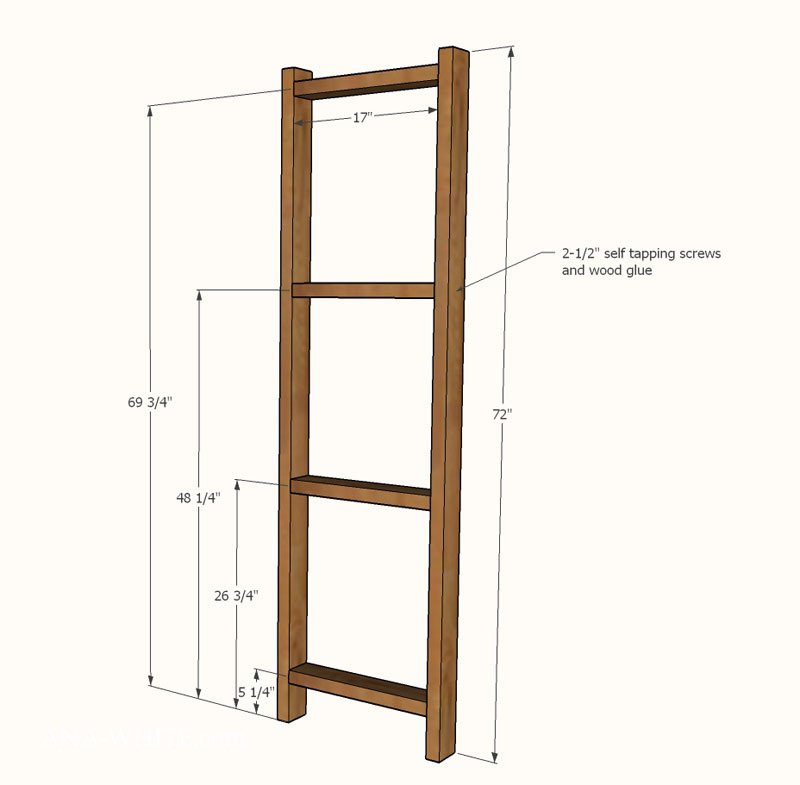

Step 1

Mark out placement of shelf supports on each of the legs. Attach legs to shelf supports with 2-1/2" self tapping screws and glue.

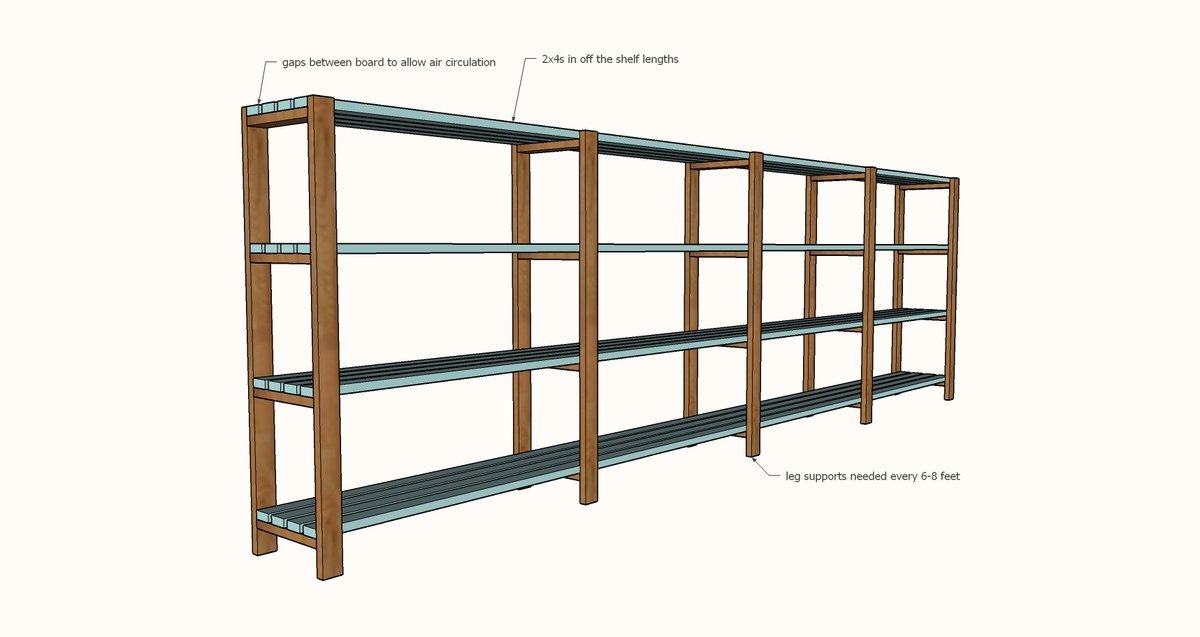

Step 2

Mark out on 4 of the shelf boards the placement of the leg supports. Attach 2 to top shelf and 2 to bottom shelf with screws. I attached the outer boards first, flush to the inside of the leg boards. This will create the basic shape of your shelving unit. Adjust for square. Then add remaining shelf boards and screw down. Attach securely to wall to prevent forward tipping or racking.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
