2x4 Leaning Hall Tree

Build your own leaning hall tree! with step by step diagrams, cut list, shopping list and video tutorial from

2x4 Leaning Hall Tree

Specifications

Project typeEntryway Furniture
RoomStorage Solutions
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

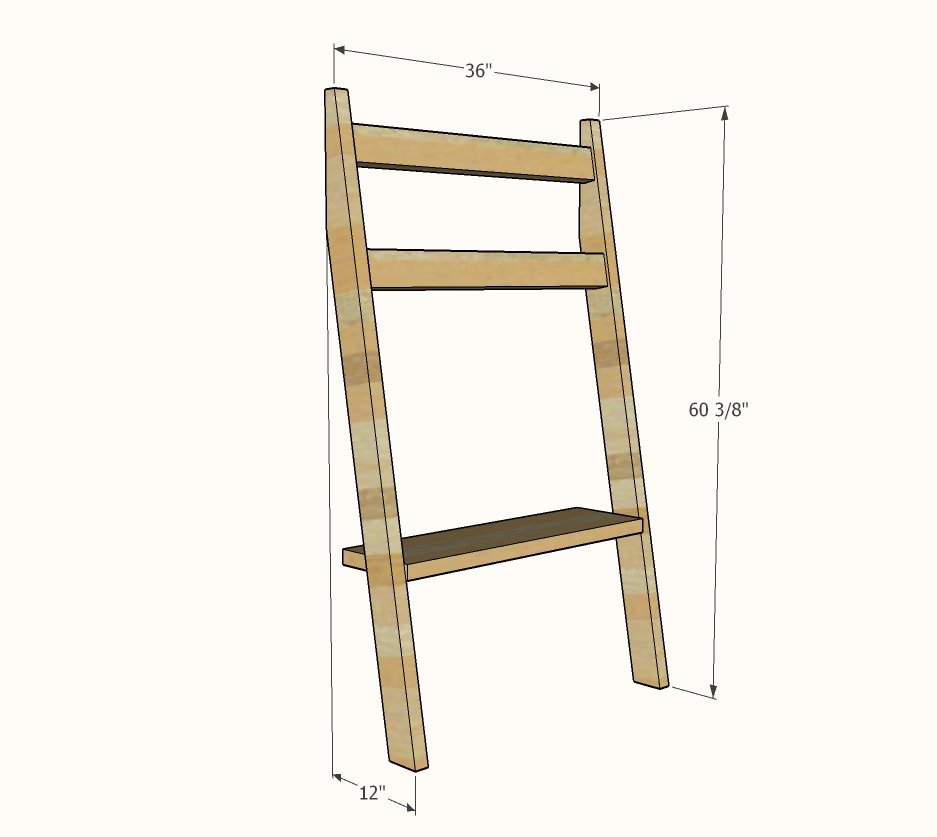

2x4 Leaning Hall Tree dimension diagram 1

Shopping List

  • 2 - 2x4 @ 8 feet long
  • 1 - 2x10 or 2x12 @ 33" long
  • 12 - 2-1/2" or longer self tapping star bit screws
  • 6 hooks

NOTE: In the video the 2x10 is used for the bottom shelf. You can also use a 2x12 for a wider width shelf, as noted in this plan.

Cut List

  • 2 - 2x4 @ 61-1/4" - both ends cut at 10 degrees off square, ends ARE parallel - long point to short point measurement
  • 2 - 2x4 @ 33"
  • 1 - 2x10 or 2x12 @ 33"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • drill
  • circular saw
  • compound miter saw

Step-by-step Instructions

1

Step 1

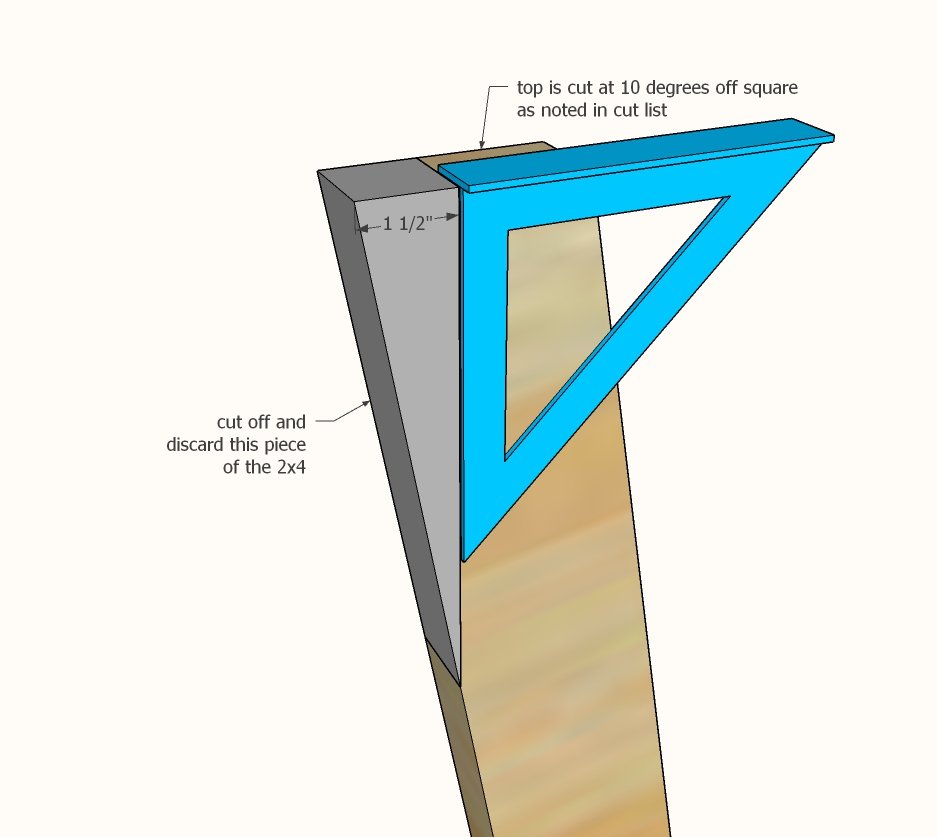

After cutting the 2x4 sides with the 10 degree off square angles on tops and bottoms, on just the top of both legs, mark as shown in the diagram and cut off the gray area with a circular saw. This will make the legs flat on the back, so the project sits flat against the wall.

2x4 Leaning Hall Tree — step 1
2

Step 2

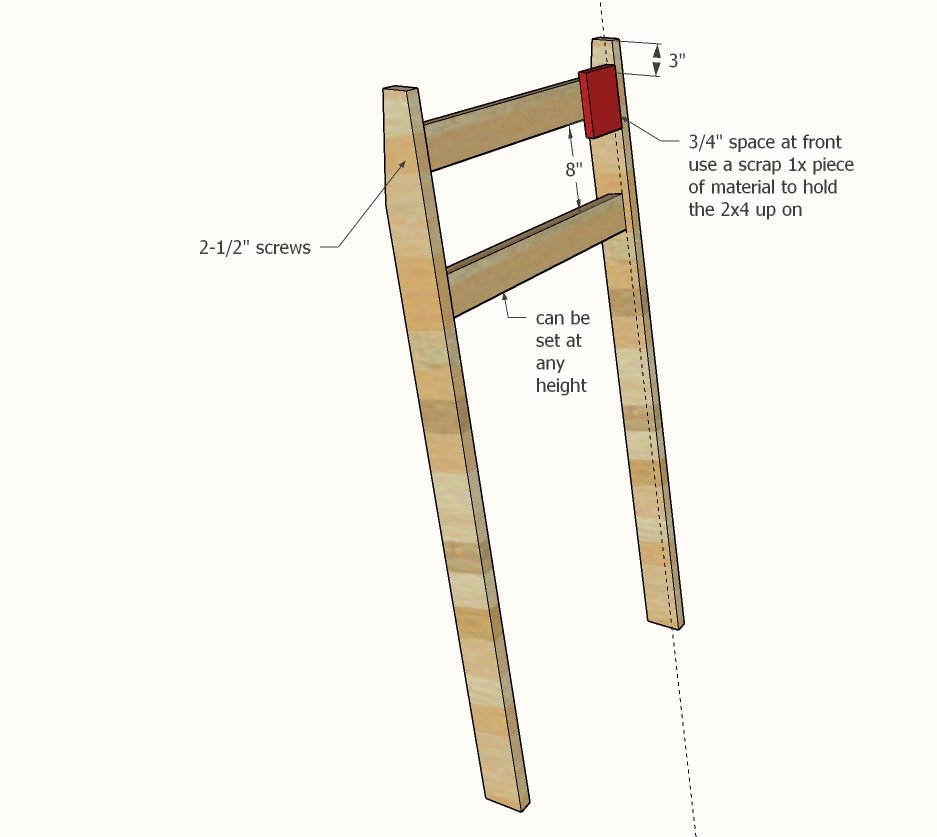

Now lay both legs flat, front edge on the floor or on a flat surface. Use two 1x scrap pieces of wood (3/4" thick) as spacers to hold up the 33" long 2x4s and attach to the legs as shown in the diagram with screws.

2x4 Leaning Hall Tree — step 2
3

Step 3

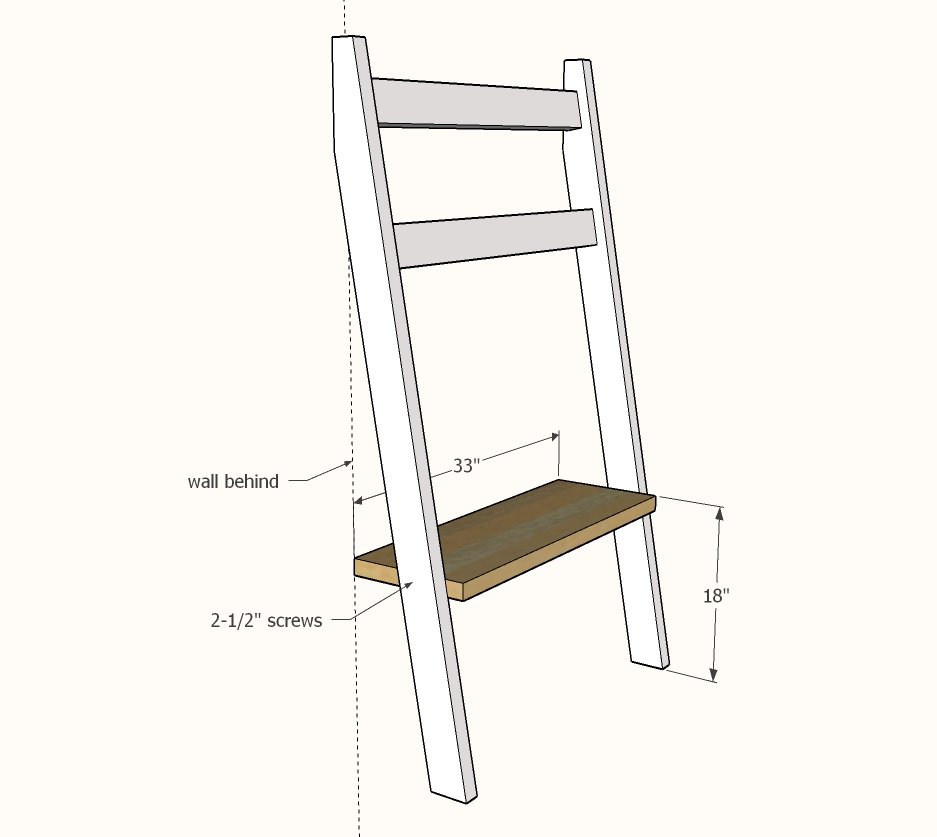

Position the project up against a flat wall, on a level floor, and make sure the legs are plumb vertically (not leaning one way or another). Set the 2x12 shelf where desired and attach with the screws. Shown is 18" bench height.

2x4 Leaning Hall Tree — step 3
4

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
