2x4 Truss Style Farm Table
This indoor or outdoor farm table has beautiful truss styling and a solid wood construction. You'll love the step by step plans. Average cost to build is $100. You can also build matching benches.
Specifications
| Project type | Dining Table Plans |
|---|---|
| Room | dining room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

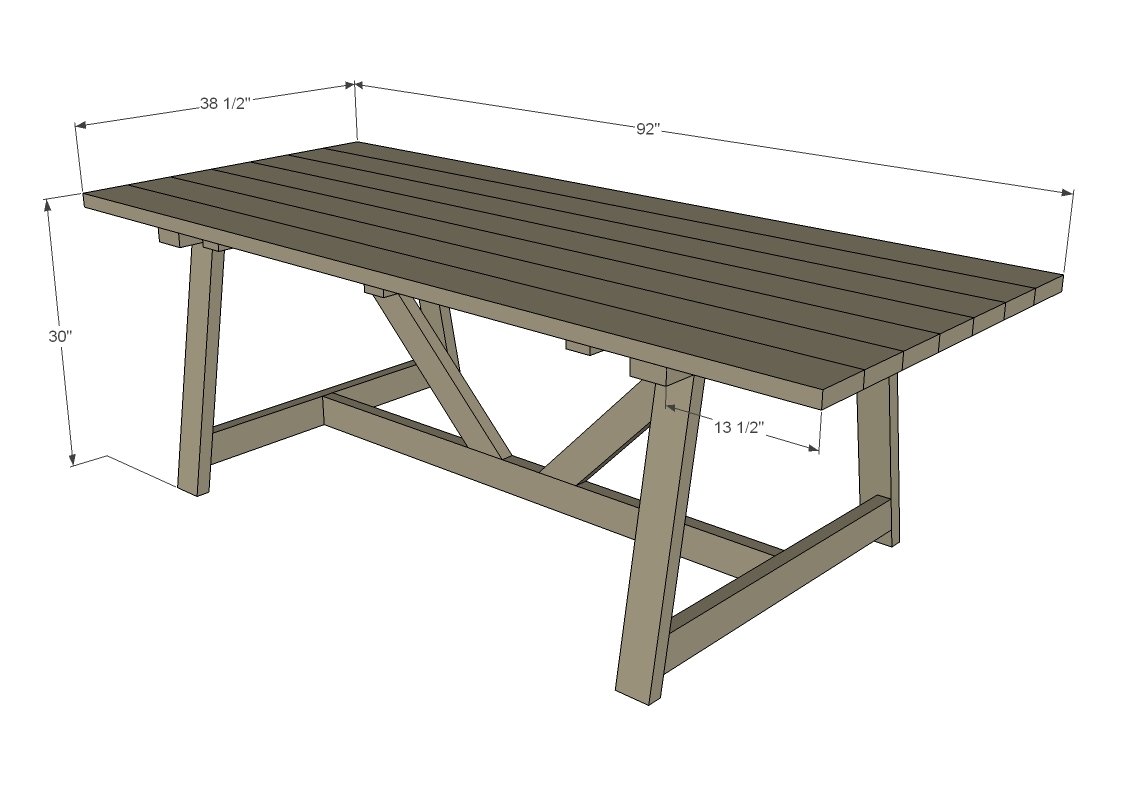

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
5 – 2x4 @ 8 feet long
7 – 2x6 @ stud length (92 5/8” long)
2 – 1x3 8 feet long
2 ½” self tapping wood screws
2” self tapping wood screws
Wood glue
Finishing supplies
Cut List
- 2 – 2x4 @ 38 1/2"
- 4 – 2x4 @ 27 3/8” – both ends beveled at 10 degrees off square, ends are parallel
- 2 – 2x4 @ 36 ¼” – long point to long point, ends NOT parallel, cut at 10 degrees off square
- 1 – 2x4 @ 62”
- 1 – 2x4 @ 58”
- 2 – 2x4 @ 30 3/8” - both ends cut at 45 degrees off square, ends ARE parallel to each other
- 7 – 2x6 @ 92” long
- 6 – 1x3 @ 17 1/2"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- level
- countersink drill bit
Step-by-step Instructions

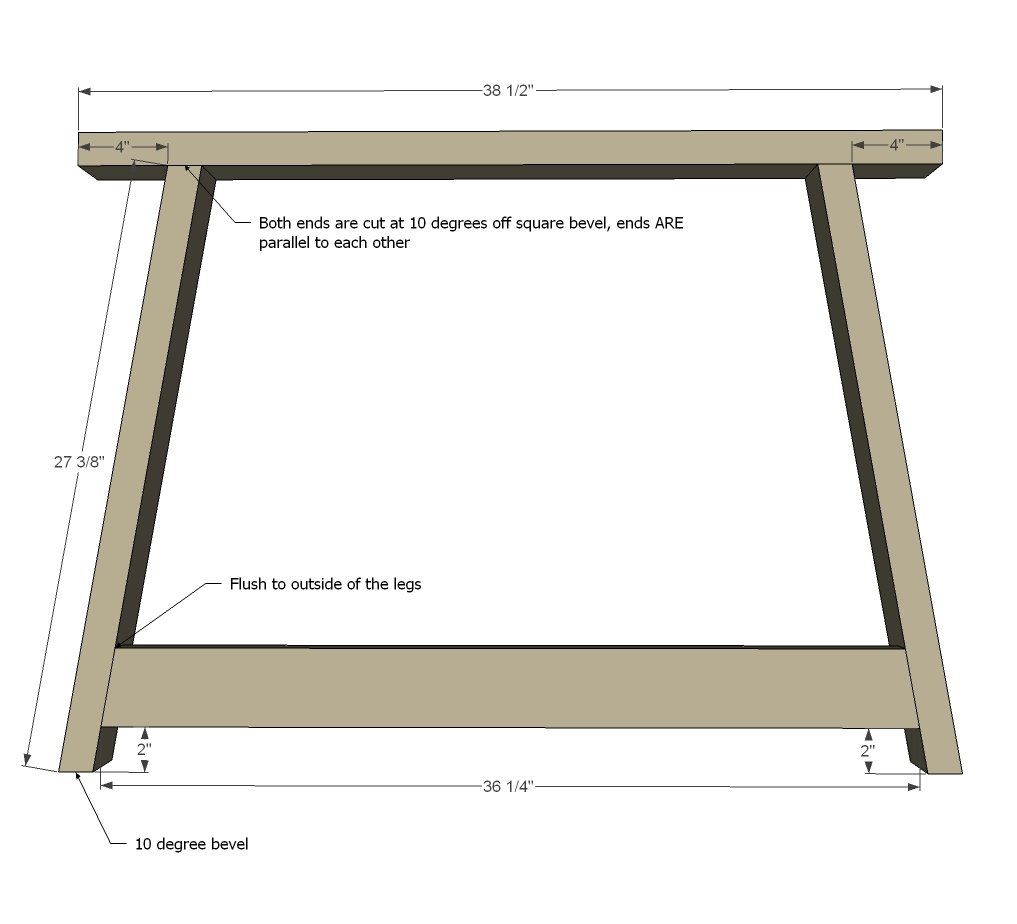

Step 1
Build two ends as shown above, exactly the same.

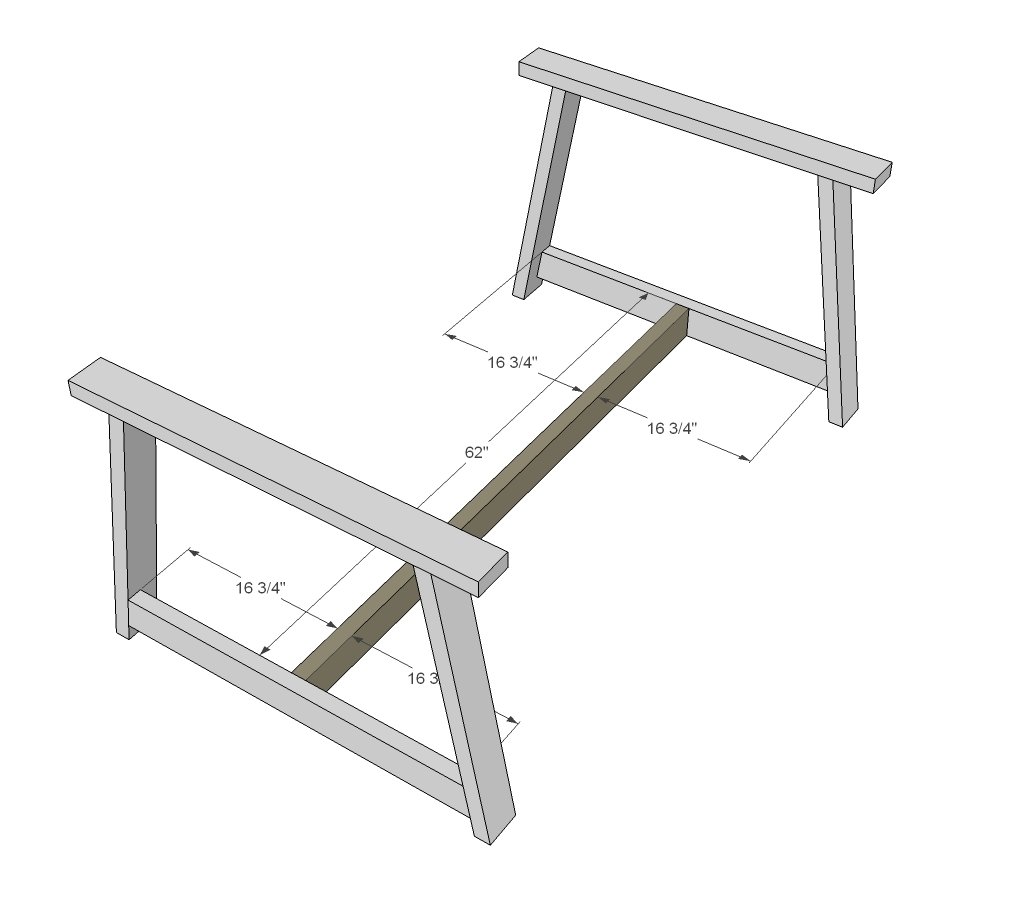

Step 2
The add stretcher.

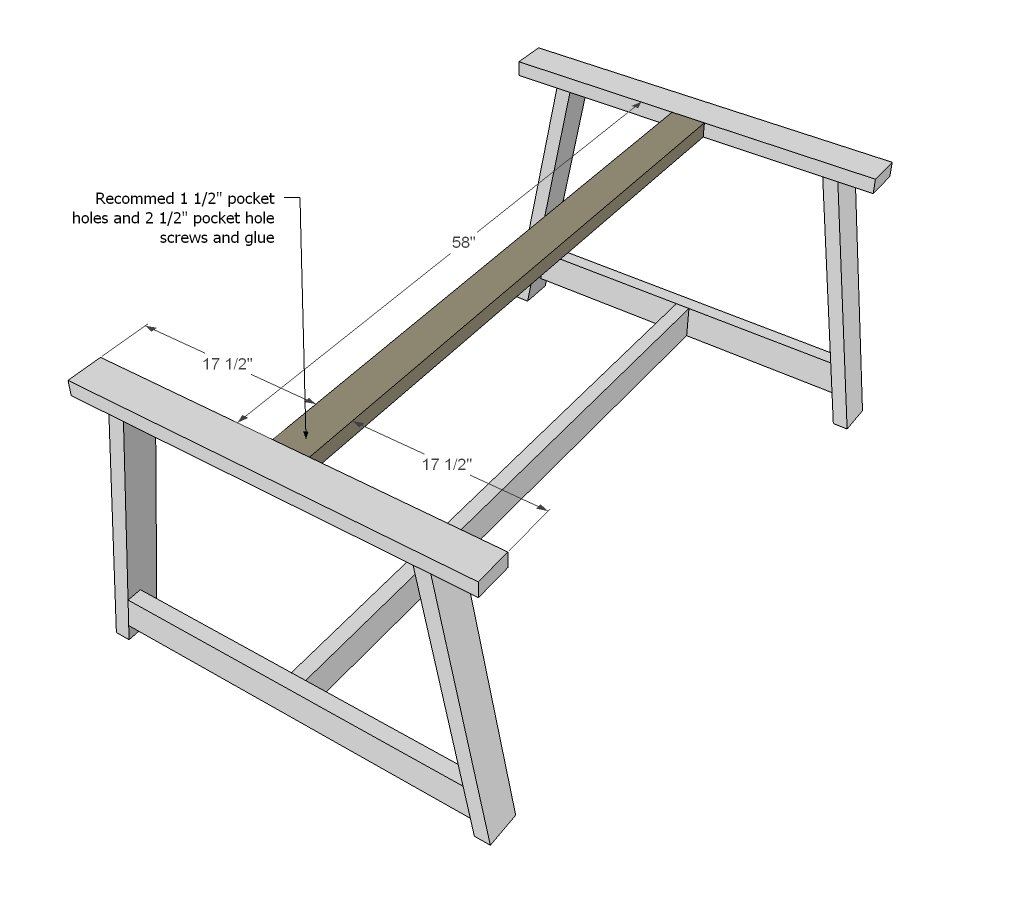

Step 3
Followed by center support.

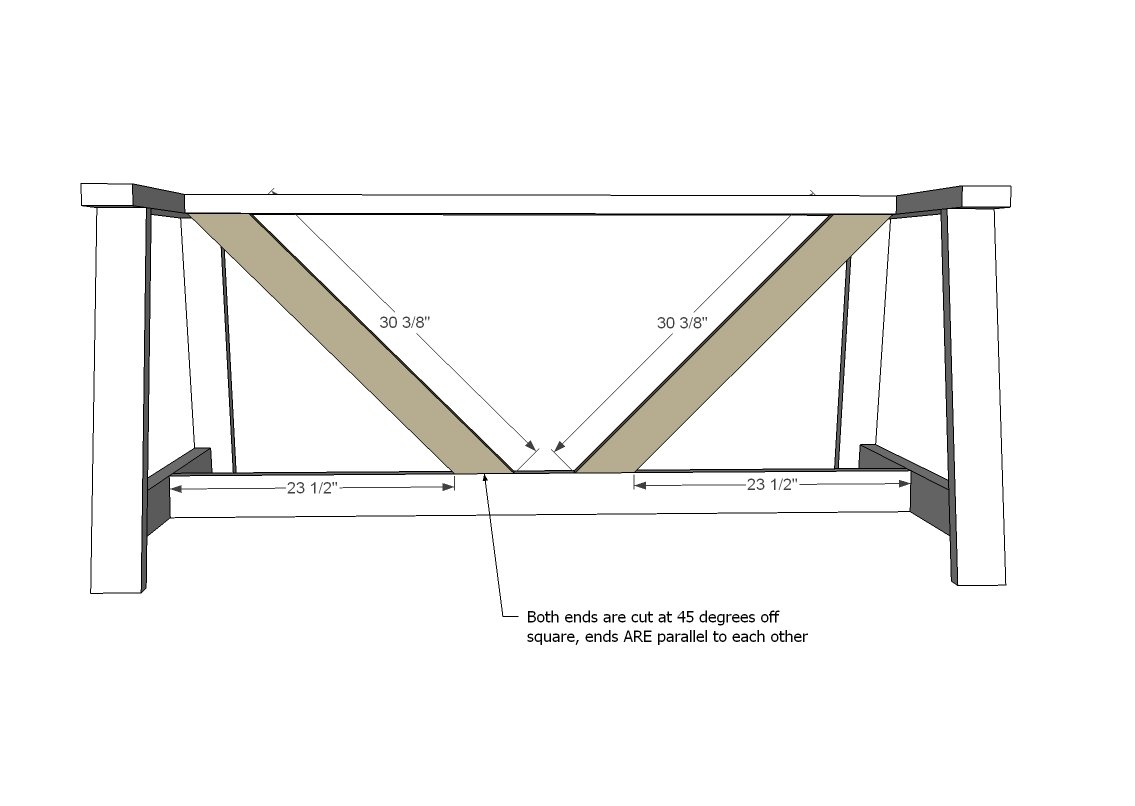

Step 4
And then the cross supports.

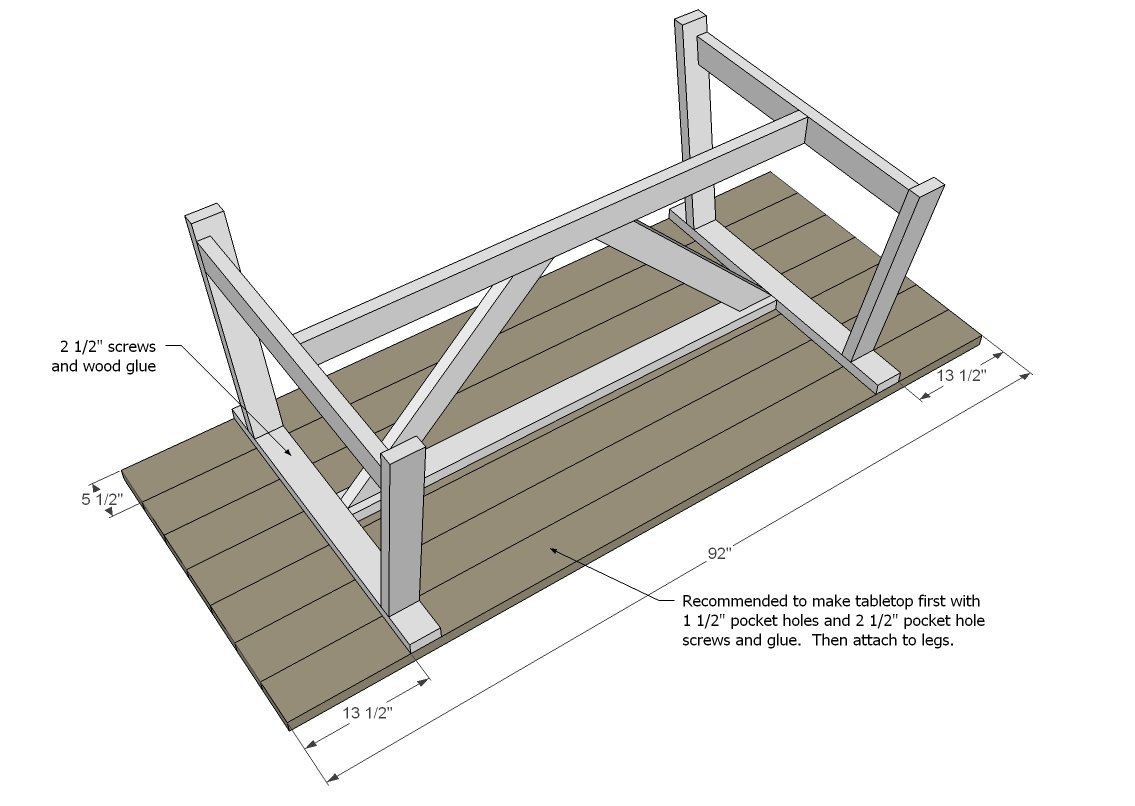

Step 5

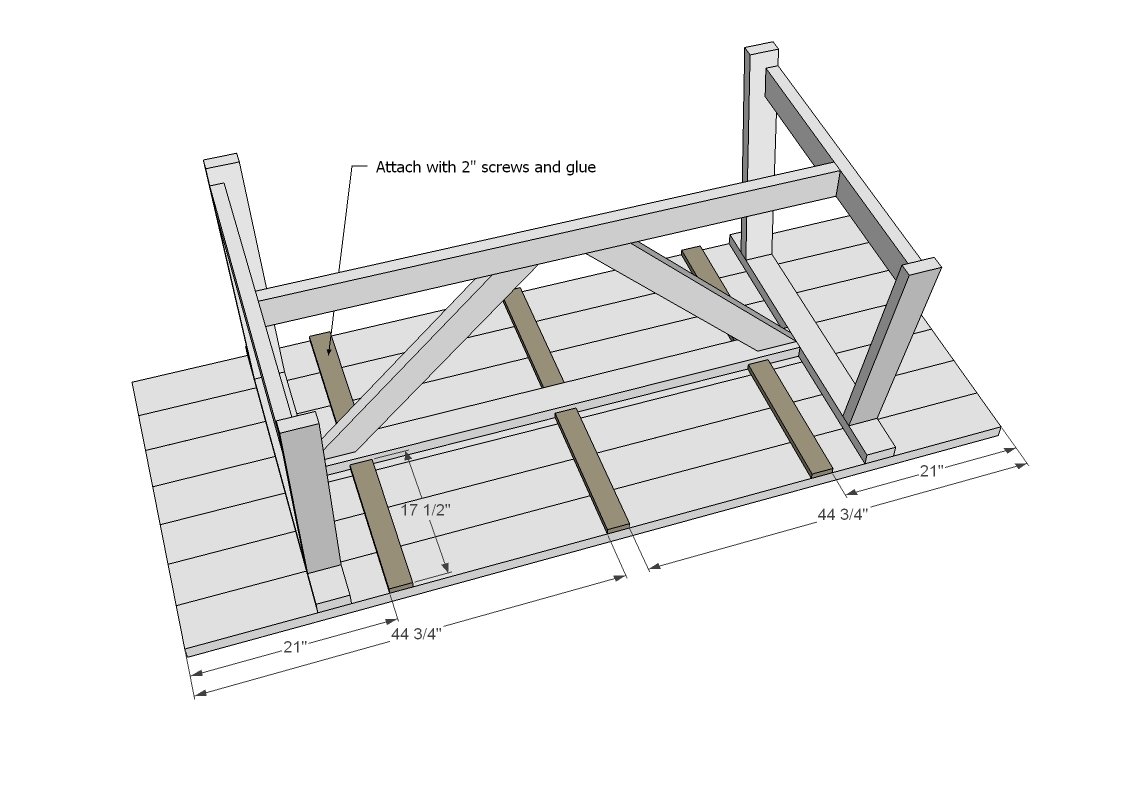

Step 6
And then add these for keeping the boards straight and a little extra character.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
