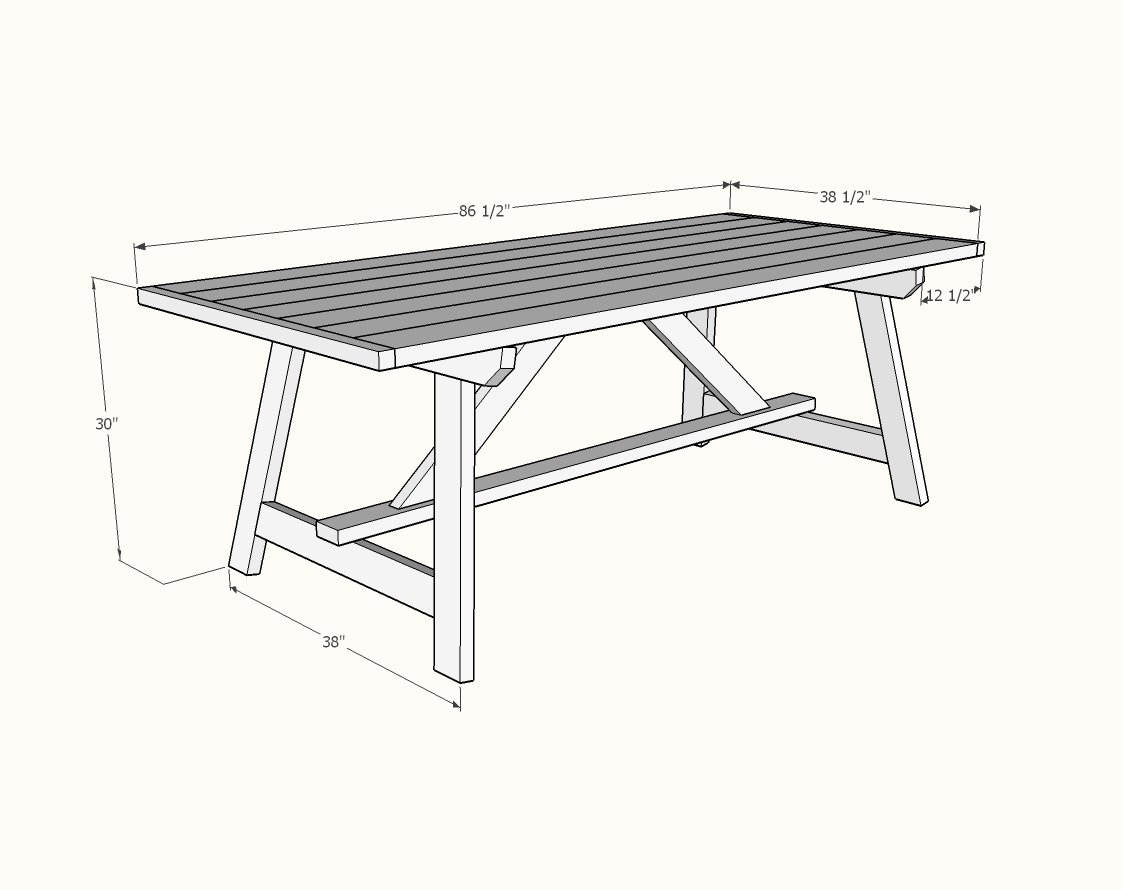

2x4 Truss Table

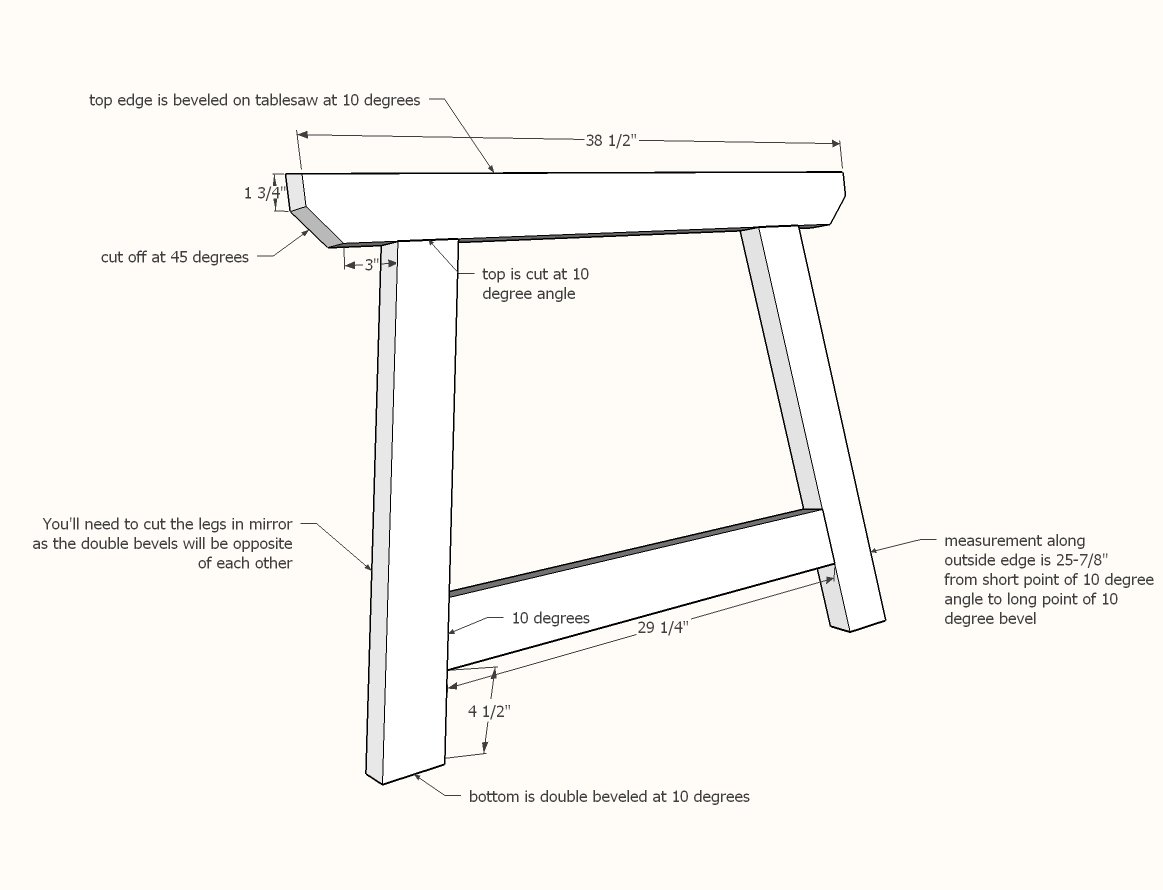

Step 1

This step is a little on the advanced side, so please don't take this project on if you don't have building experience or a table saw. You'll need to bevel the top edge of your 2x4s that are 38-1/2" long at 10 degrees, keeping the full length on the long point side of the board. Also cut the ends off at 45 degrees, half way down the ends of the boards. Make two of these, they can be identical. The legs are a little trickier because you'll need to make the four legs up from the 2x4s with one end cut at 10 degree bevel - but two will be cut one way, and the remaining two cut in mirror to the first two. So set your compound miter saw to a 10 degree angle and a 10 degree bevel, and measure down 25-7/8" from the short point of your angle. This will be the outside edge of your leg (you should mark it on top and bottom as outside edge). Cut with the point you measured being the long point. Make two of these legs. Now you'll need to adjust your saw so it cuts a mirror double bevel for your remaining two legs. Repeat. Drill 1-1/2" pocket holes at all the joints, and attach with 2-1/2" pocket hole screws. Make sure you place pocket holes on the insides of the legs where they won't be as visible. Also drill 1-1/2" pocket holes facing upward for attaching the tabletop in later steps.

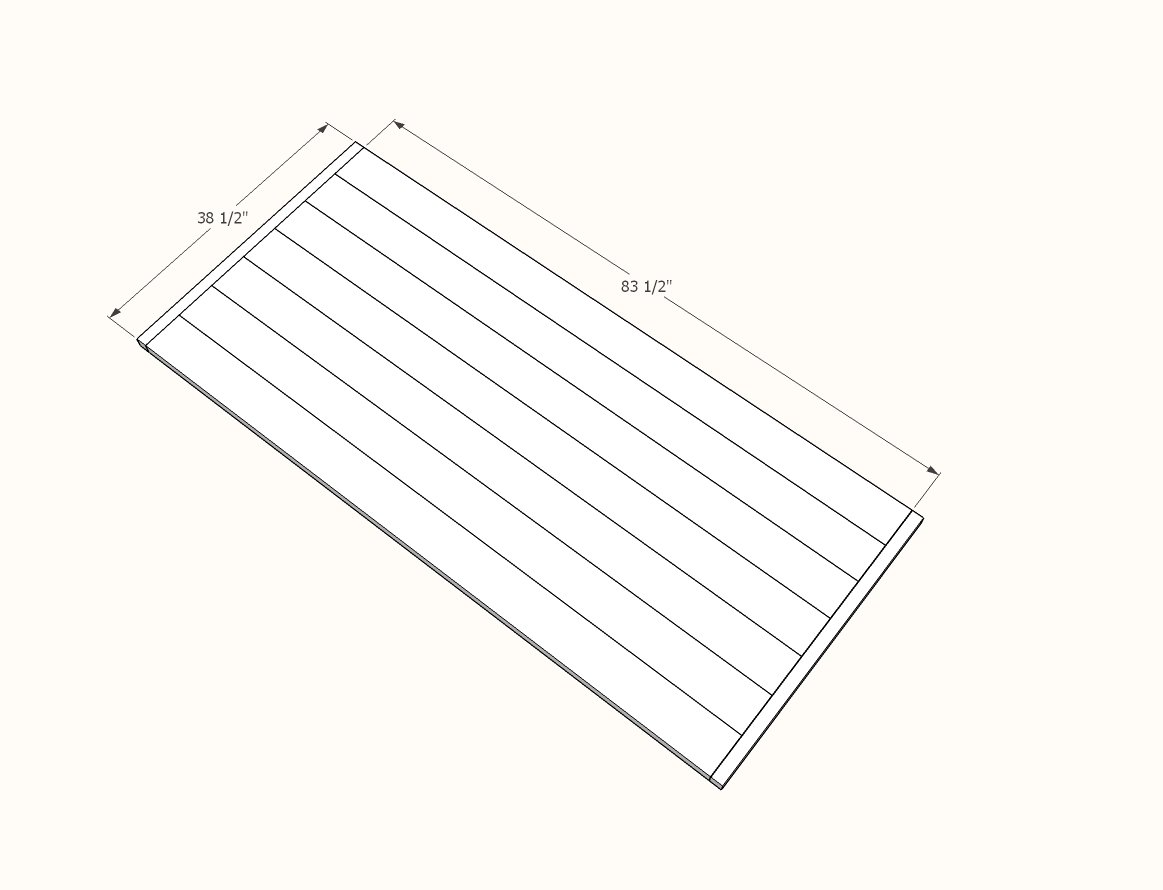

Step 2

Build your tabletop on a flat level surface with glue. Here are some tabletop building tips to check out before you get started.

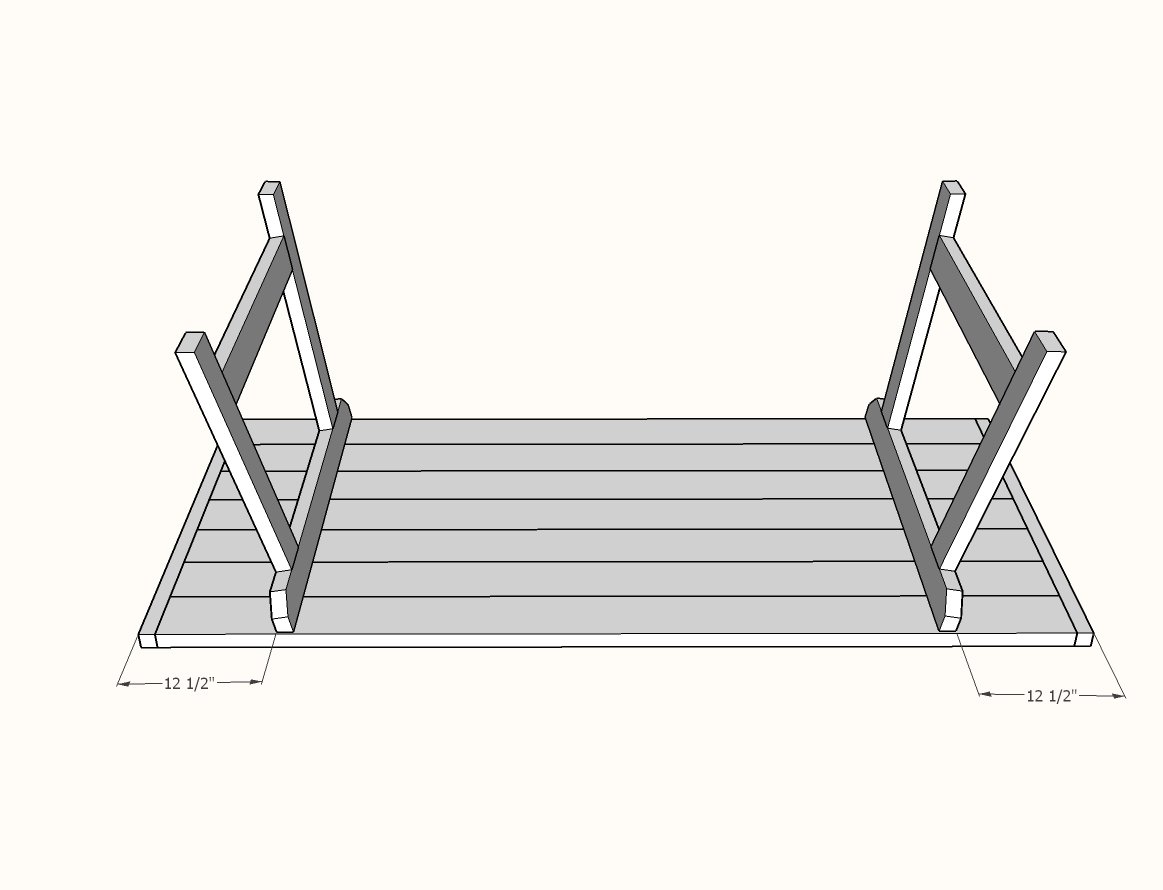

Step 3

Attach the legs with 2-1/2" pocket hole screws to the underside of the tabletop.

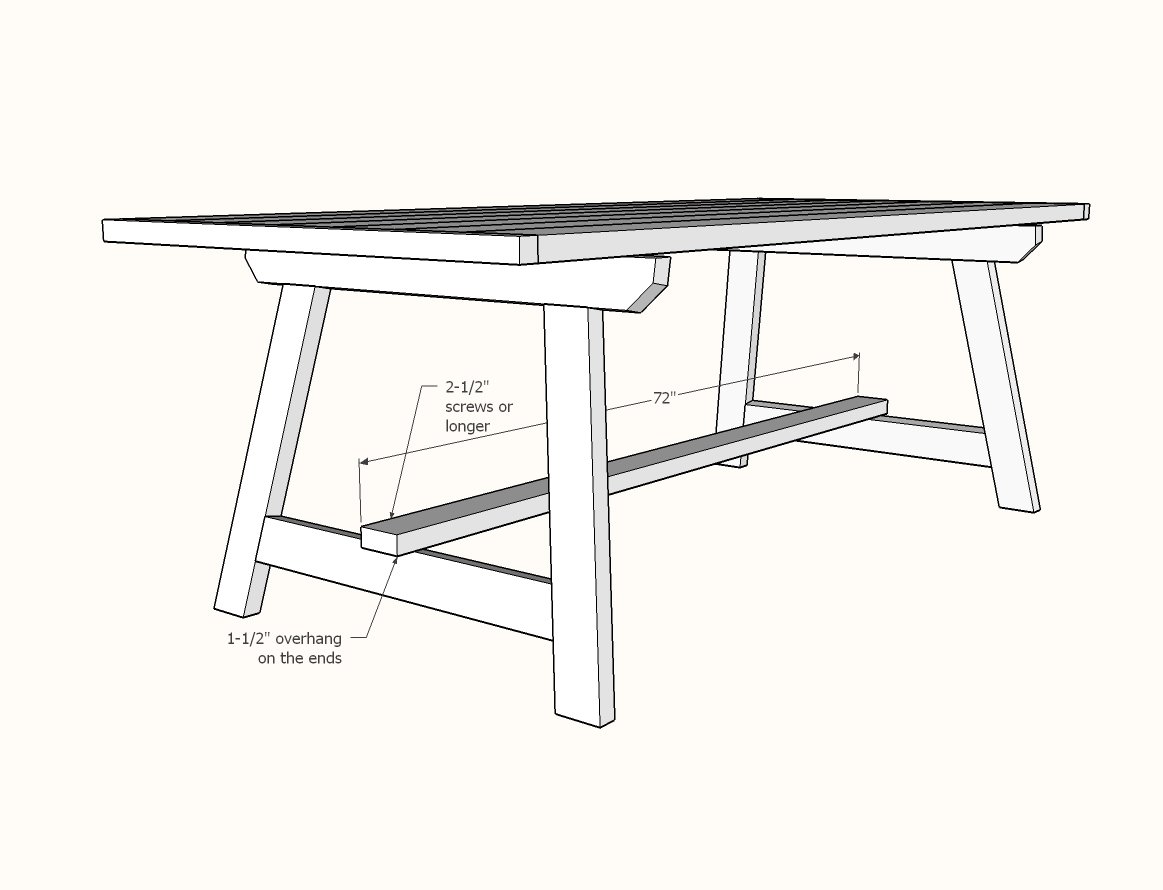

Step 4

Add the bottom stretcher, screwing down with 2-1/2" or longer screws. You can use pocket hole screws here so you don't have to go out and buy different screws.

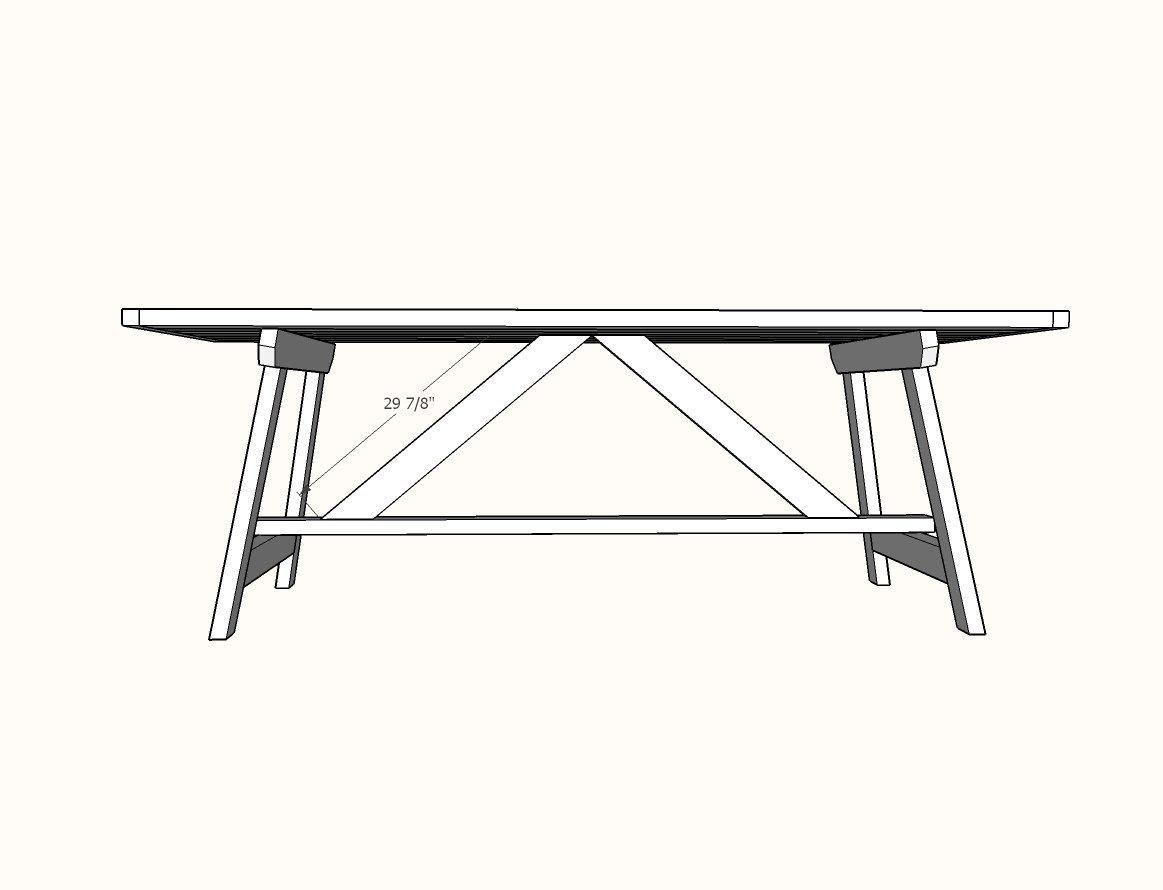

Step 5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
