$30 Cedar Fence Picket Sand Box

Build your own cedar sandbox for about $30! The secret? Use cedar fence pickets. This beginner friendly plan has minimal cuts and is very easy to assemble! Free

$30 Cedar Fence Picket Sand Box

Specifications

Project typeToys
RoomOutdoor
DifficultyBeginner Projects

Dimensions

Use the size-specific shopping and cut lists below.

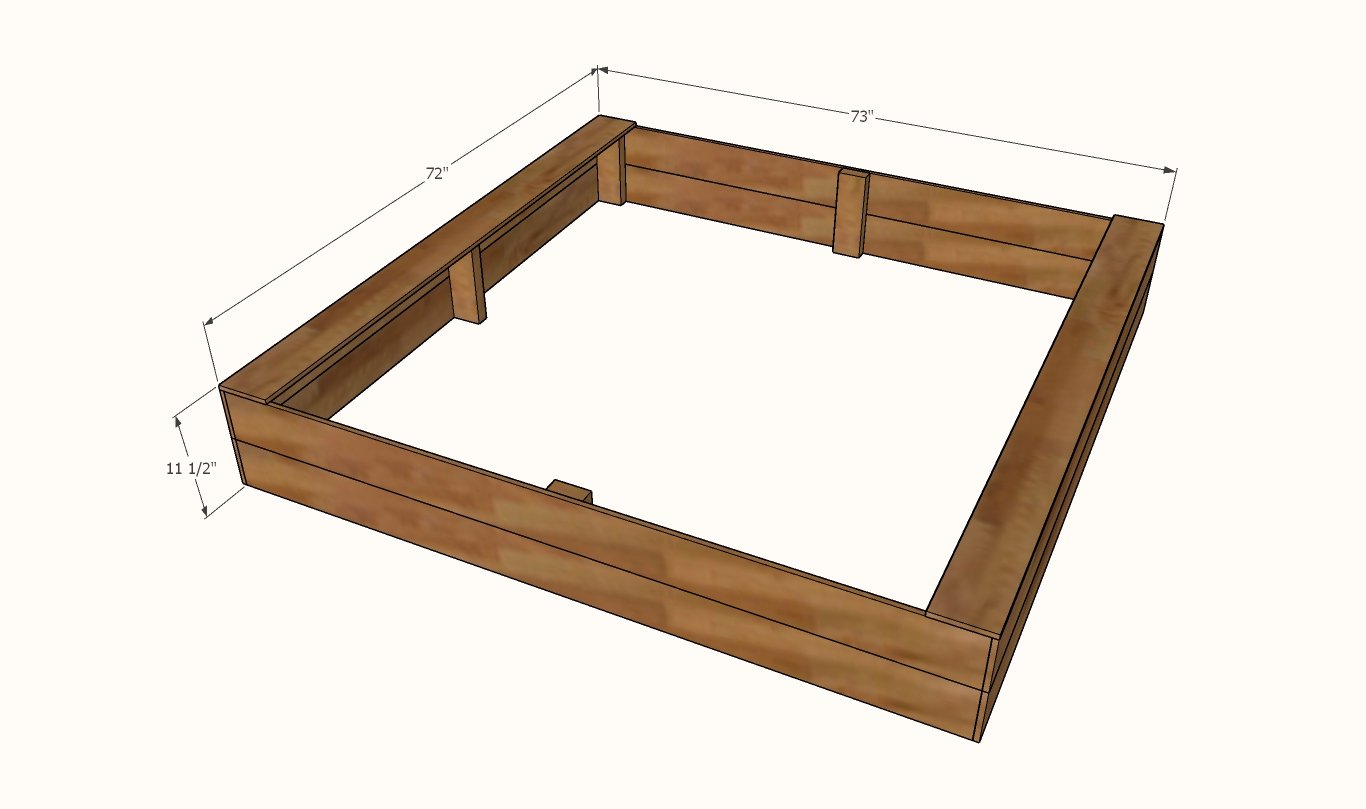

$30 Cedar Fence Picket Sand Box dimension diagram 1

Shopping List

  • 10 - 5-1/2" wide x 6 foot long cedar fence pickets (preferably NOT dogeared, but can be)
  • 1 - 2x4 @ 8 foot or 92-5/8" stud length
  • 60 - 1-1/4" self tapping exterior wood screws (look for the star bit ones)

Cut List

8 - 2x4 @ 11"

The cedar fence pickets do not need to be cut if they are NOT dogeared. If dogeared, simply cut all the cedar fence pickets to the same length (ie 71").

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • circular saw
  • sander

Step-by-step Instructions

1

Step 1

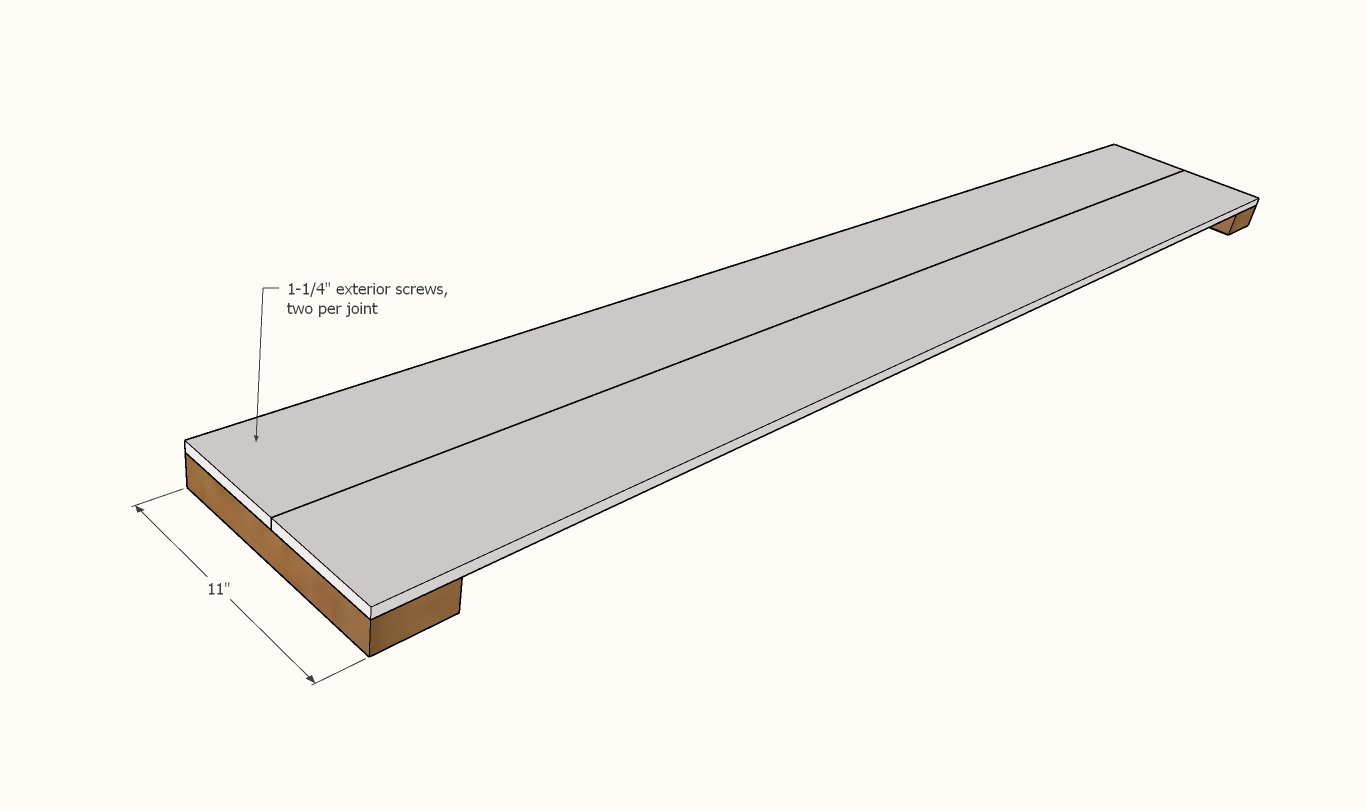

Lay two 2x4s down on a flat level surface. Attach two cedar fence pickets to the top with 1-1/4" screws. Build two the same.

$30 Cedar Fence Picket Sand Box — step 1
2

Step 2

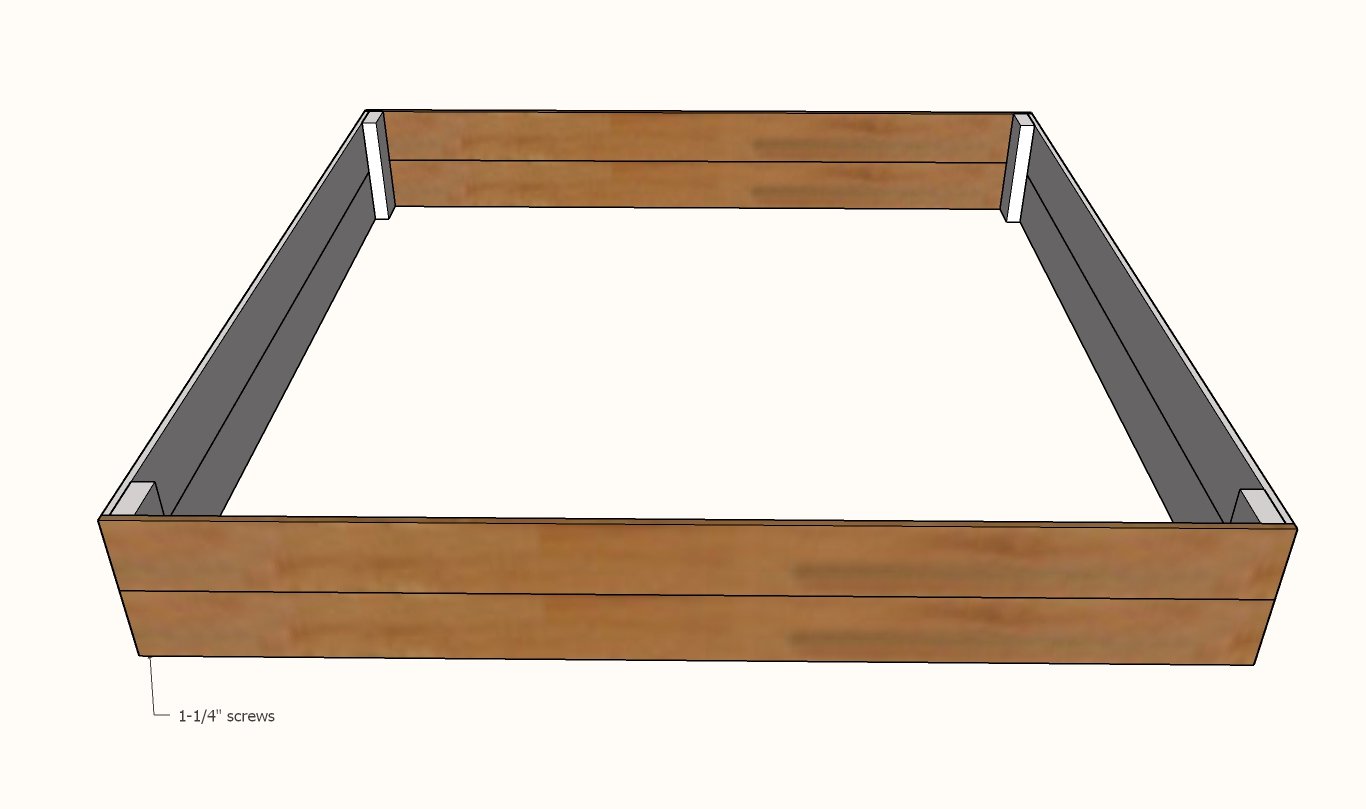

Attach two cedar fence pickets to each side to create the sandbox shape.

$30 Cedar Fence Picket Sand Box — step 2
3

Step 3

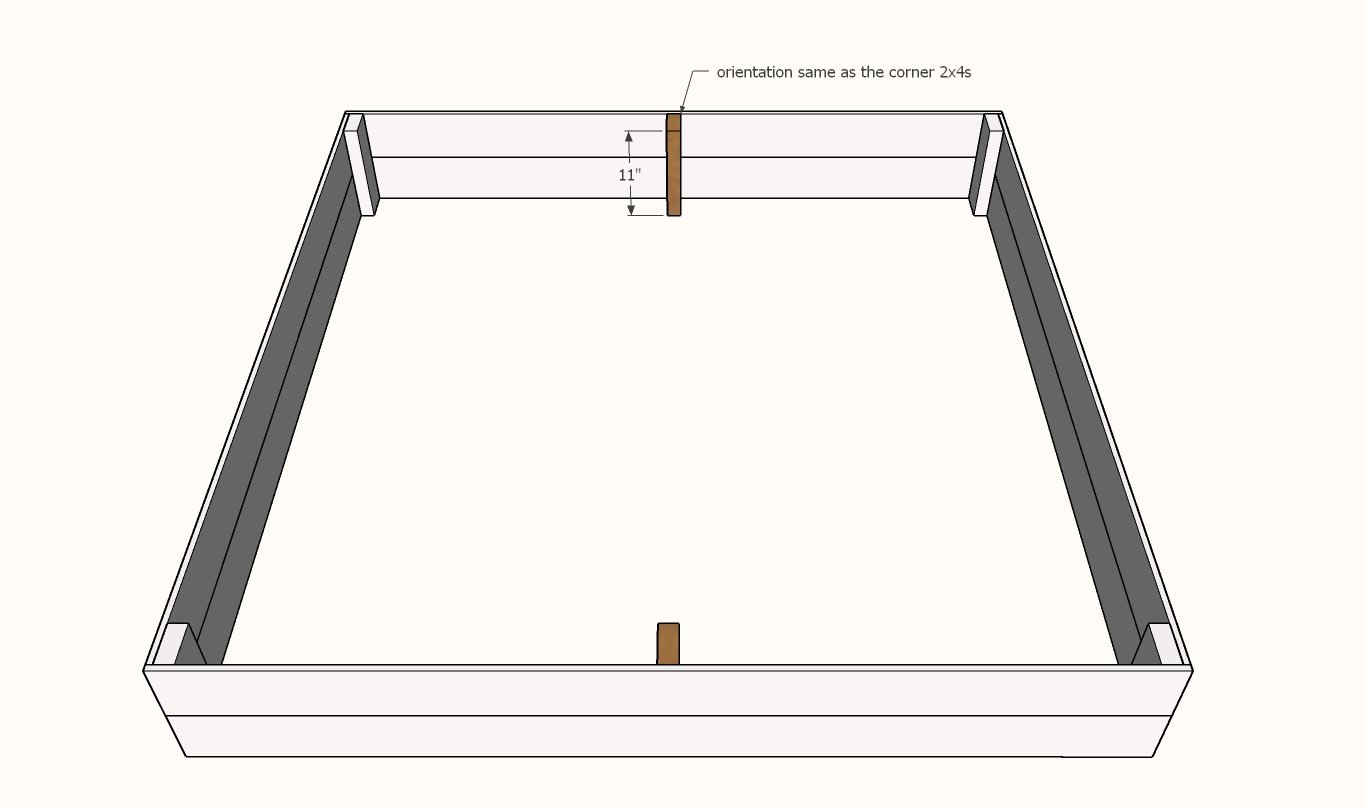

Find the center of the sides attached in step 2. Attach 2x4 in the center with screws, with the narrower side of the 2x4 being screwed to the side (orientation same as the corner 2x4s).

$30 Cedar Fence Picket Sand Box — step 3
4

Step 4

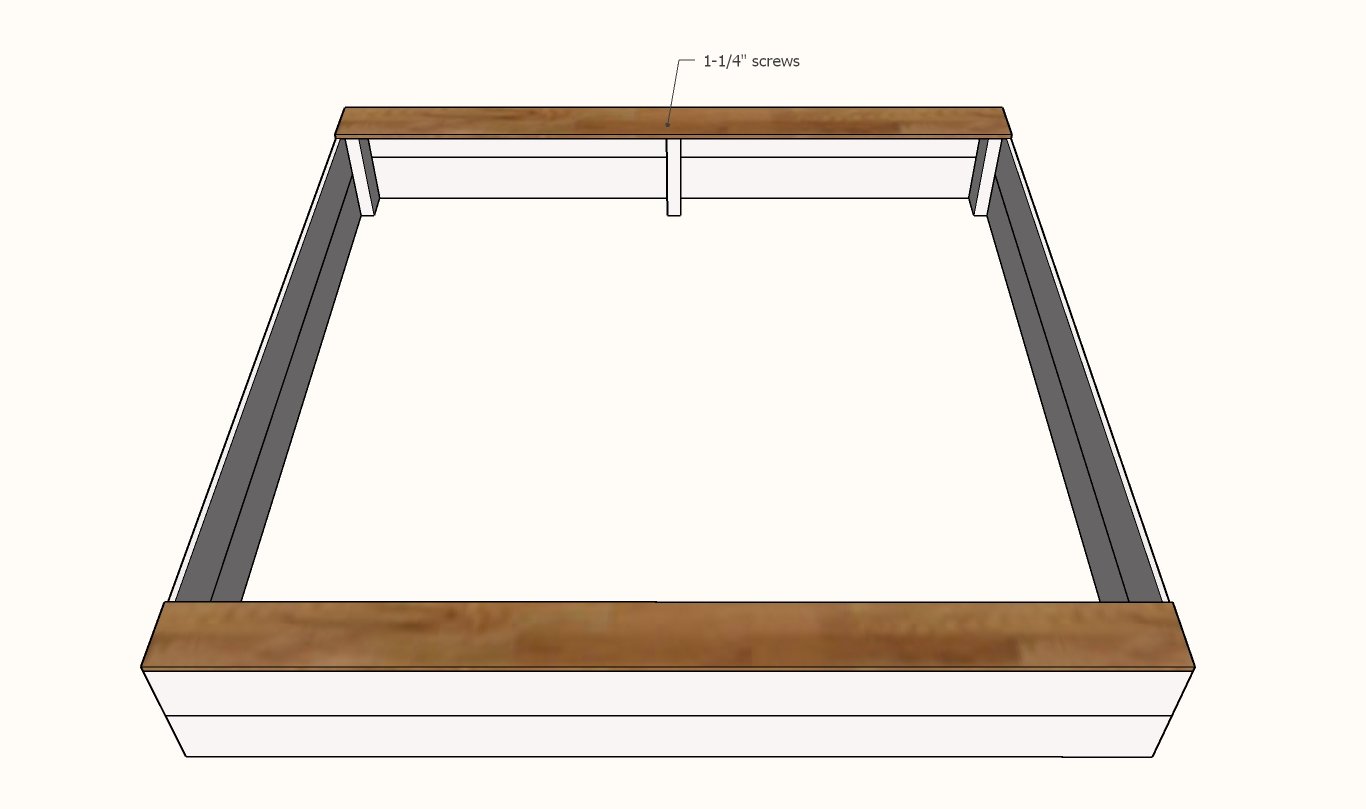

Place top cedar fence pickets along three 2x4s and attach to top.

$30 Cedar Fence Picket Sand Box — step 4
5

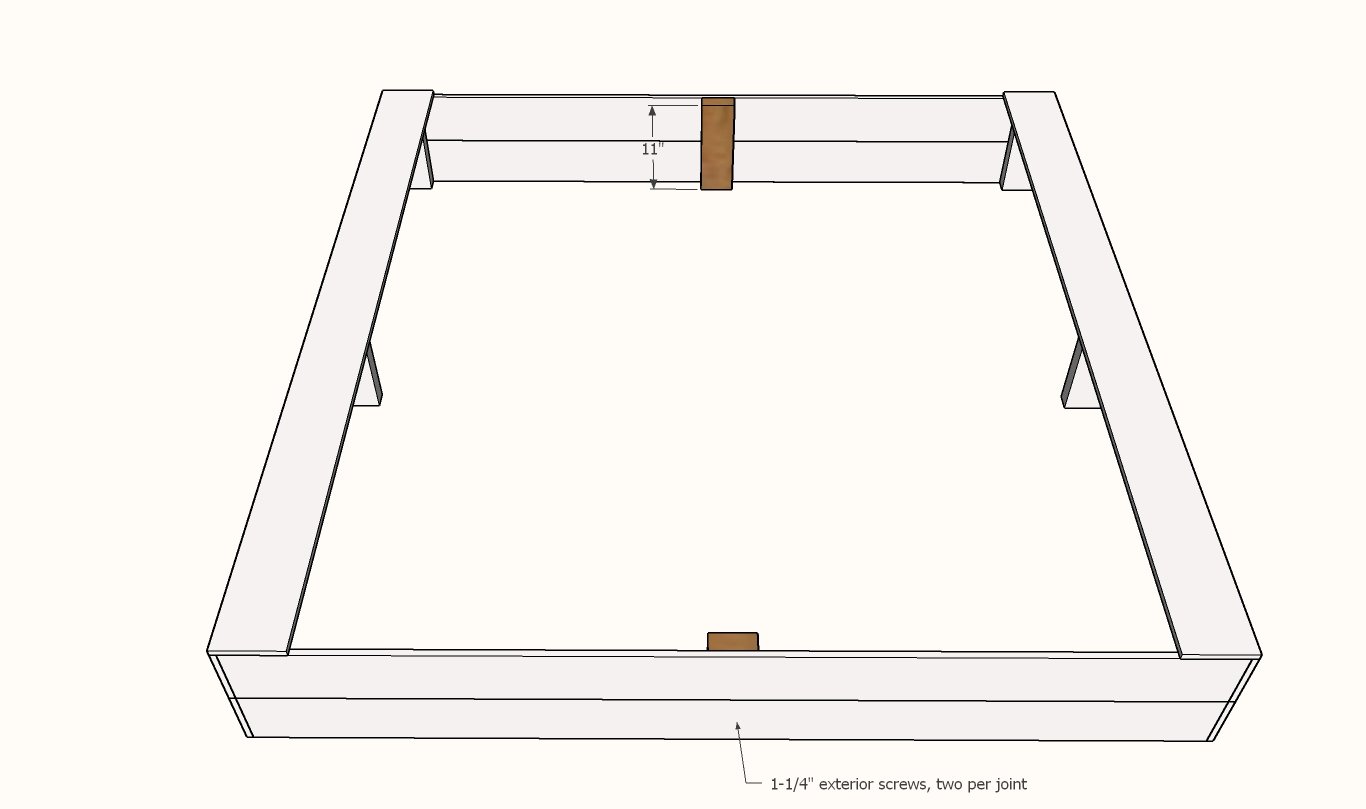

Screw remaining cedar fence pickets to open ends, flat to the sides.

Sand top edges and do a final sanding to prevent splinters. Finish with an exterior product if desired.

$30 Cedar Fence Picket Sand Box — step 5
6

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
