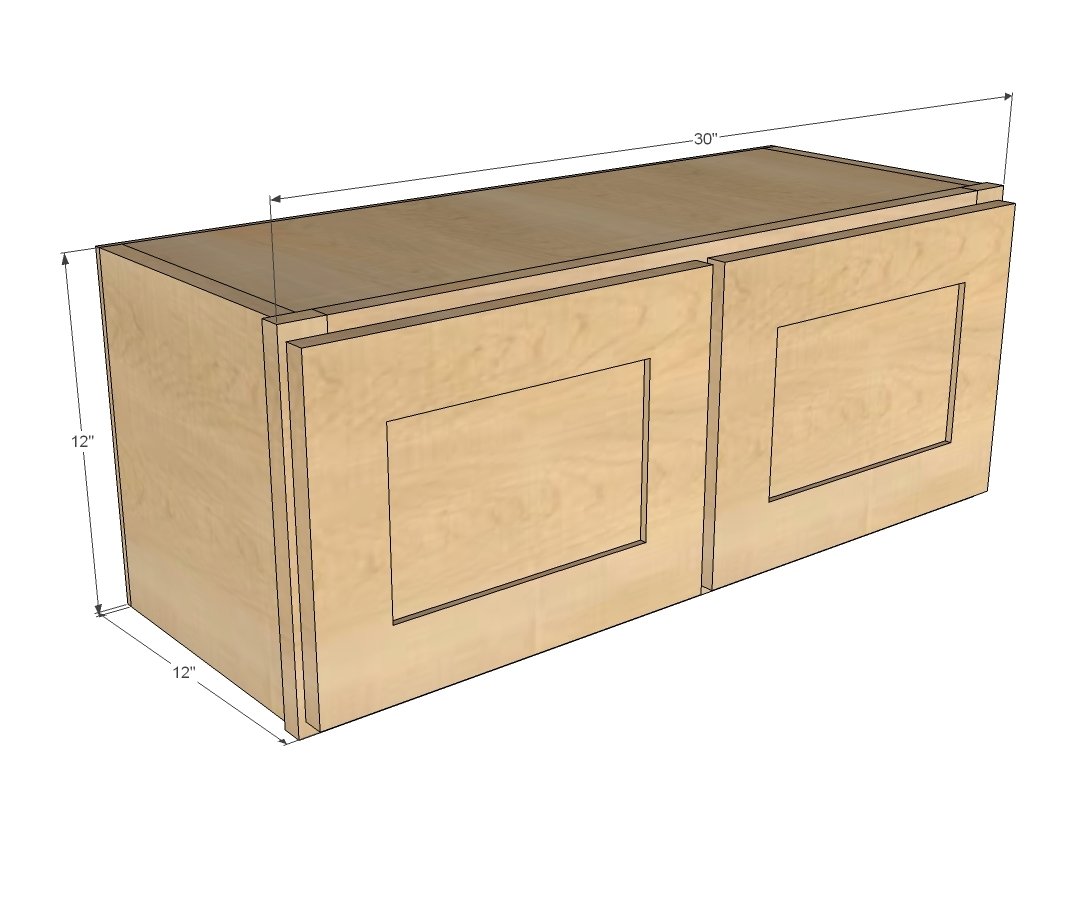

30" x 12" Above Range Wall Cabinet

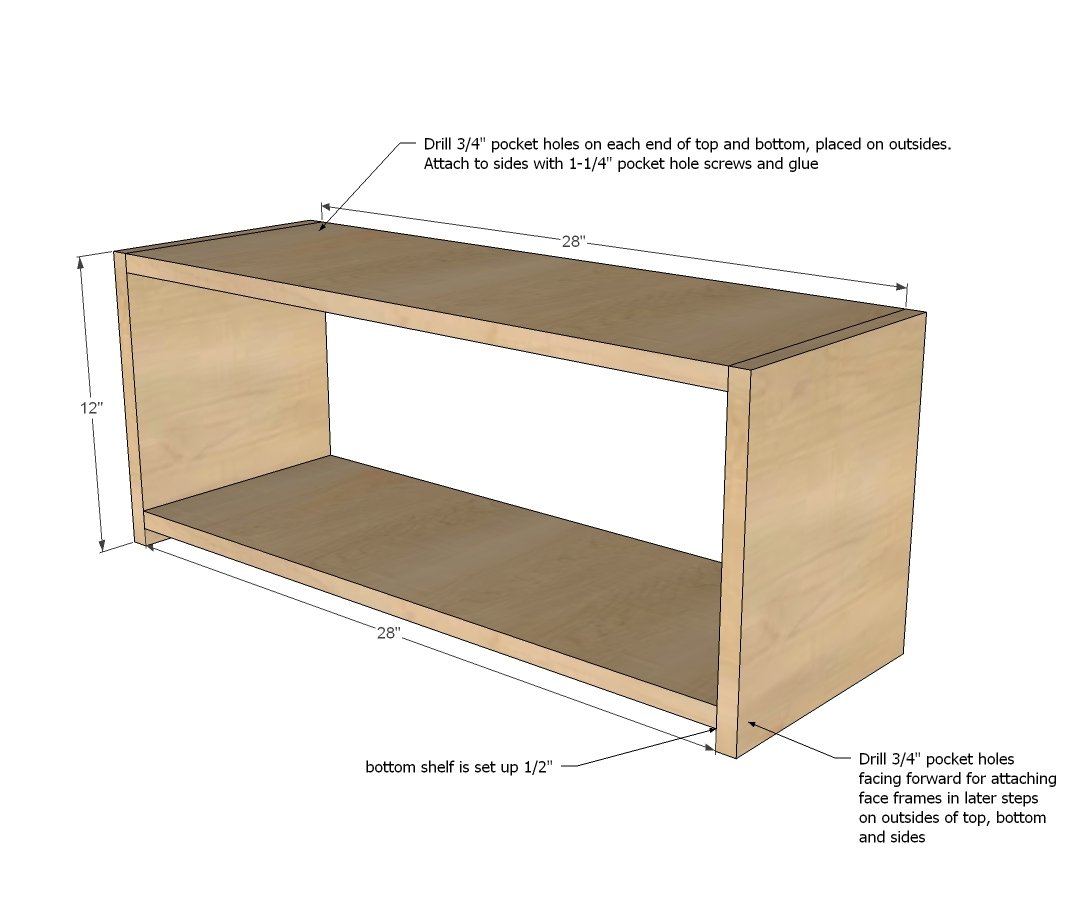

Step 1

On the outsides of the sides and top/bottom, drill 3/4" pocket holes along the front edges (outsides or less attractive side) of the pieces, for attaching the face frame in later steps. These pocket holes will be covered by neighboring cabinets, or if end cabinet, covered in 1/4" finished plywood to match doors and face frames. Then on the outsides, drill 3/4" pocket holes on each end of the top and bottom, and attach to sides with 1-1/4" pocket hole screws and glue.

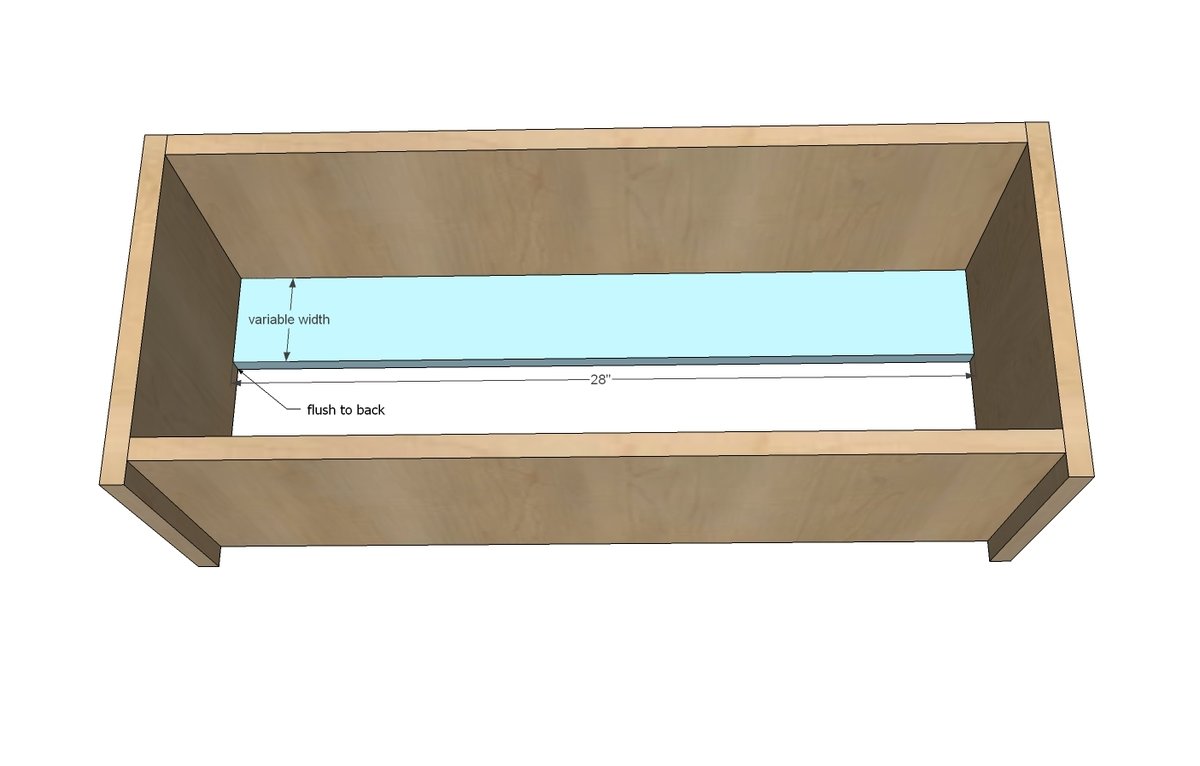

Step 2

Drill 3/4" pocket holes along top edge and ends of back support. Attach inset at back - this piece will be used to hang your cabinet. You can also add a second piece at the base for additional support. We used leftover finished plywood for these pieces, but a 1x3 or 1x4 could also be used.

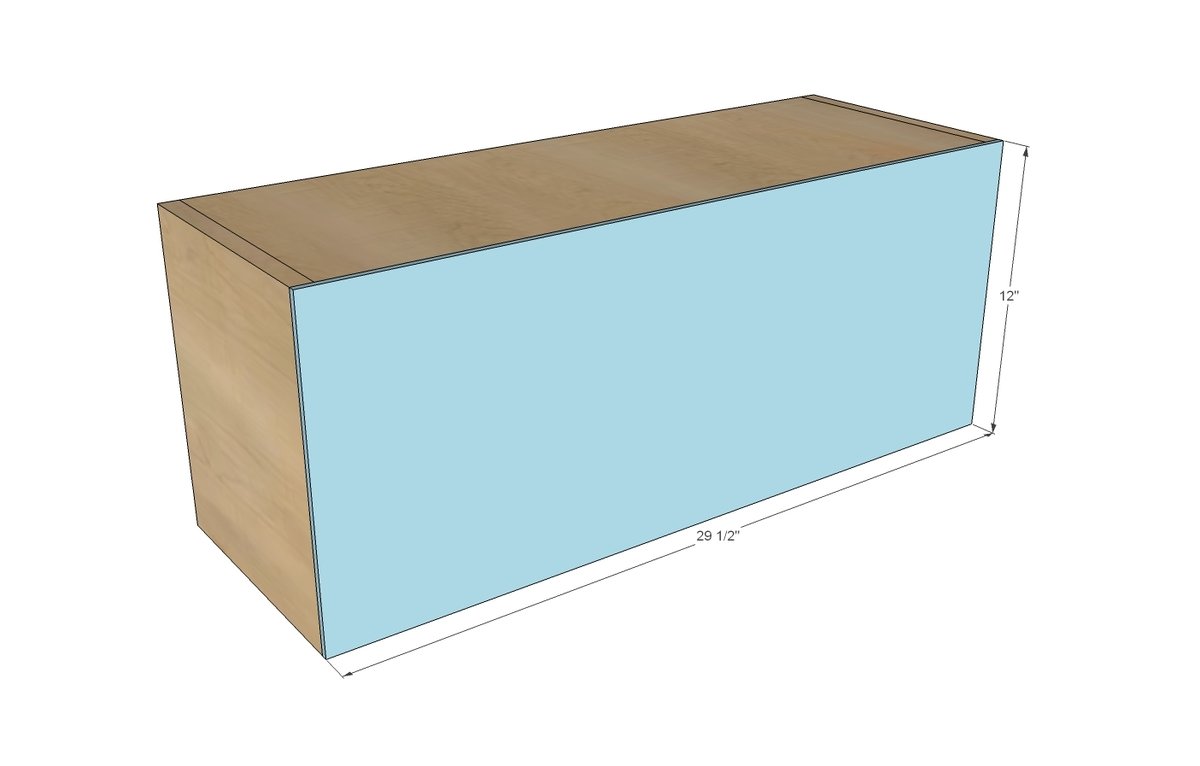

Step 3

The back is not structural - it just finished out the inside of the cabinet. Attach with 3/4" finish nails and glue.

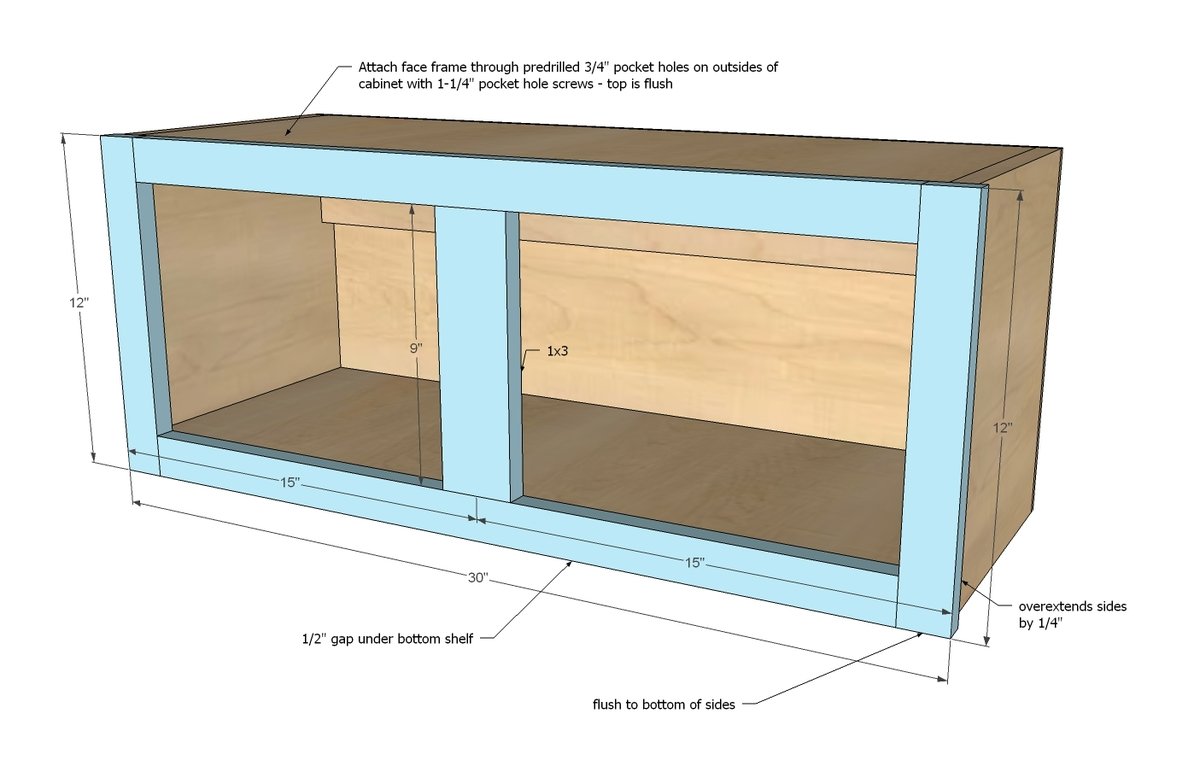

Step 4

Build the face frame separately on the table, and then attach the completed face frame to the front of the cabinet.

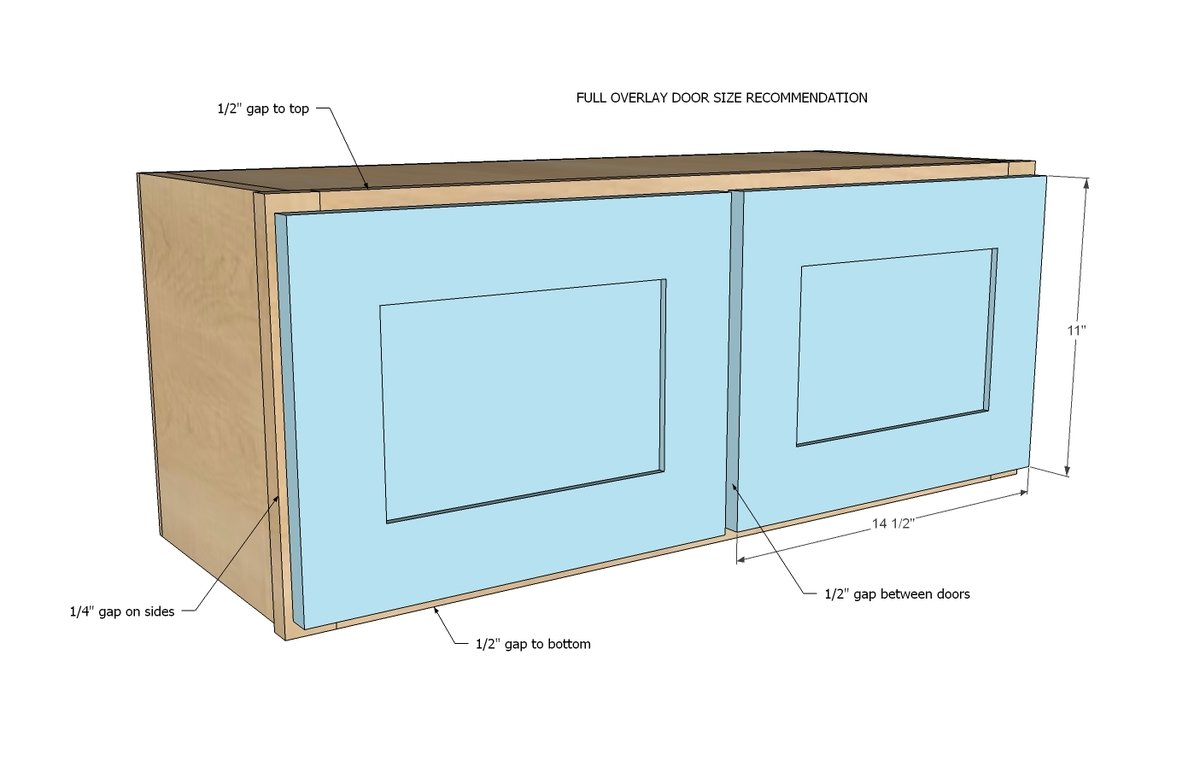

Step 5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
