5 Board Cross Brace Console or Side Table
How to build a five board cross brace console or side table. from
Specifications
| Project type | Console Table Plans |
|---|---|
| Room | living room |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |

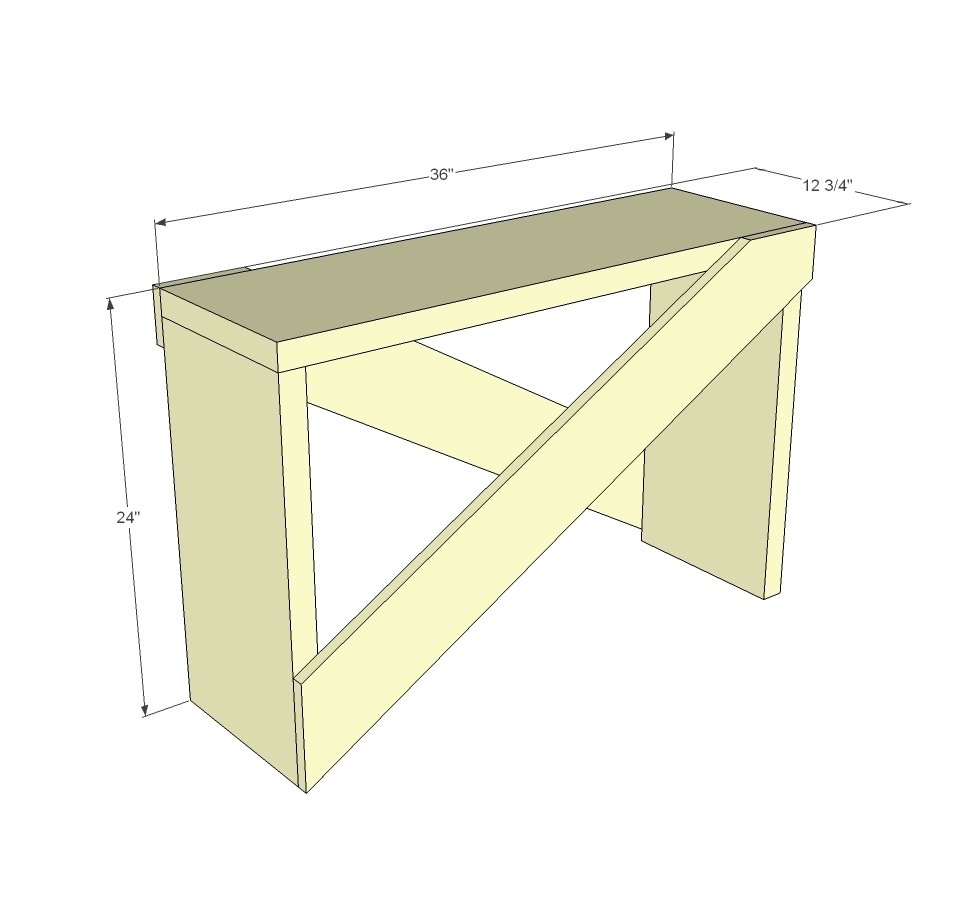

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 1x12 @ 8 feet long
1 - 1x6 @ 8 feet long
Fasteners for 1 1/2" stock would be either 2 1/2" pocket hole screws or 3" nails or screws and glue
Can use nails (more rustic looking) or screws for attaching cross supports
Cut List
2 - 1x12 @ 22 1/2" 1 - 1x12 @ 36" 2 - 1x6 @ 41 5/8" (both ends cut parallel to each other at 30 degrees off square, long point to short point)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- circular saw
- compound miter saw
- sander
- countersink drill bit
Step-by-step Instructions

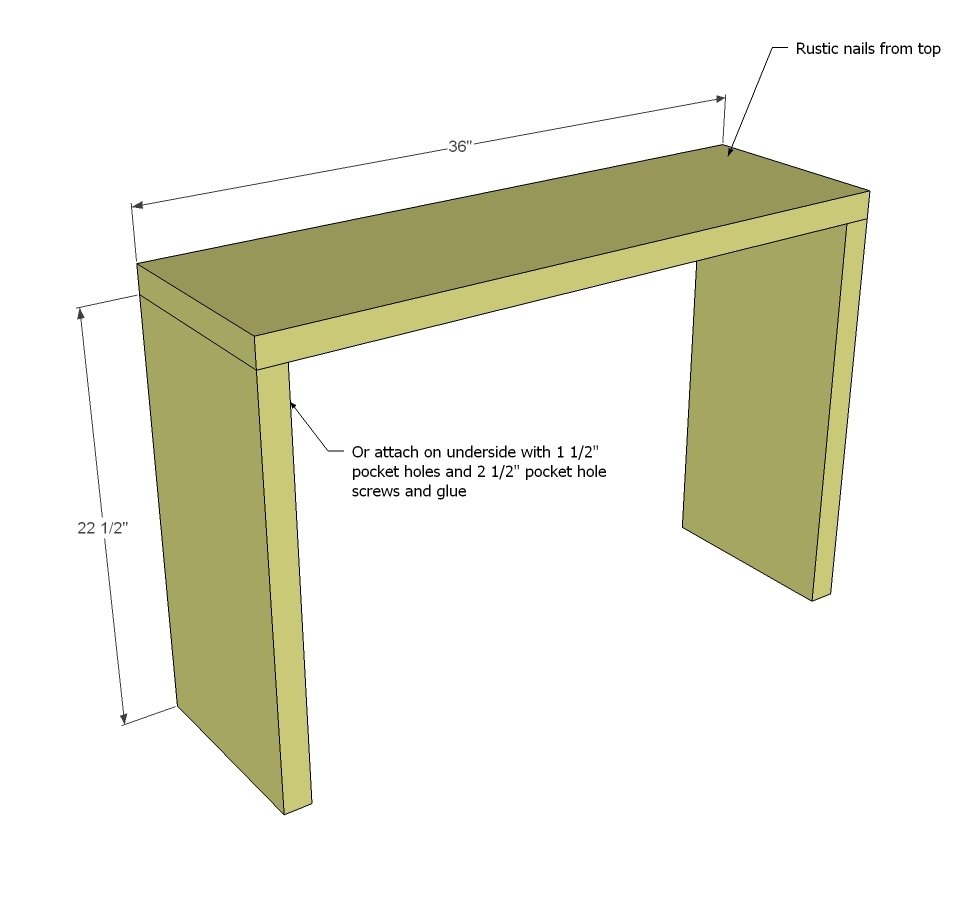

Step 1
Build the basic frame of your console table. Check to make sure the table is square and the width at the legs is the same as the width at the top.

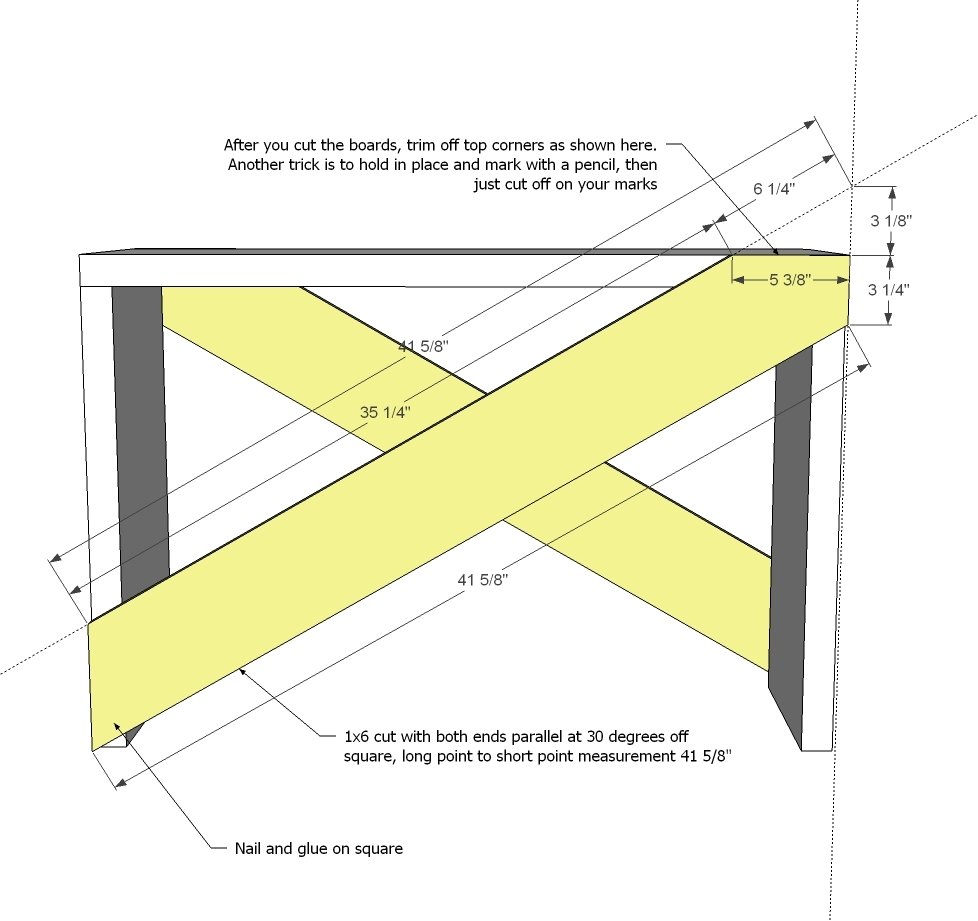

Step 2
Cut the cross supports and attach to face of sides with either nails or screws and glue. Make sure everything is square as you do this.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
