6 Cube Organizer
Build your own 6 cube organizer bookcase designed to fit standard fabric cubes! The cubby design helps with organization and keeping items separated. We love the legs - so it's more like a real piece of furniture. Solid wood construction is easy to paint or stain. from
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Storage Solutions |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

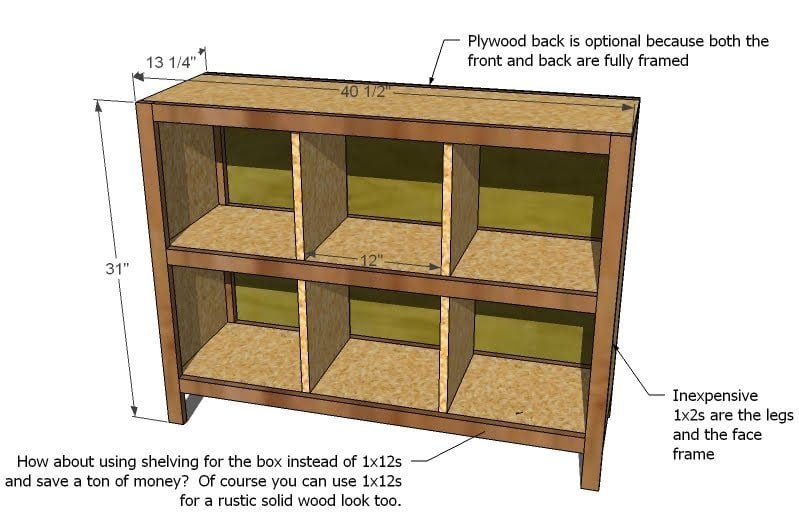

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 1x12, 12’ Long
- 1 1x12, 8’ Long
- 5 1x2s, 8’ Length
- 2” self tapping wood screws or 1-1/4" pocket hole screws
- 1 1/4” and 3/4" brad nails
- Small Tube Wood Glue
- Medium Grit Sandpaper
- Finishing Supplies including wood filler, paint or stain of choice
Cut List
- 1- 1x12 @ 40 1/2” Top
- 2- 1x12 @ 26 3/4 “ Sides
- 2- 1x12 @ 39” Shelves
- 4- 1x12 @ 12 1/4” Cubby Dividers
- 4- 1x2 @ 31” Legs
- 6- 1x2 @ about 37 1/2” Side Shelf trim - you should measure and cut these pieces to fit
Tools
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- drill
- circular saw
- sander
Step-by-step Instructions

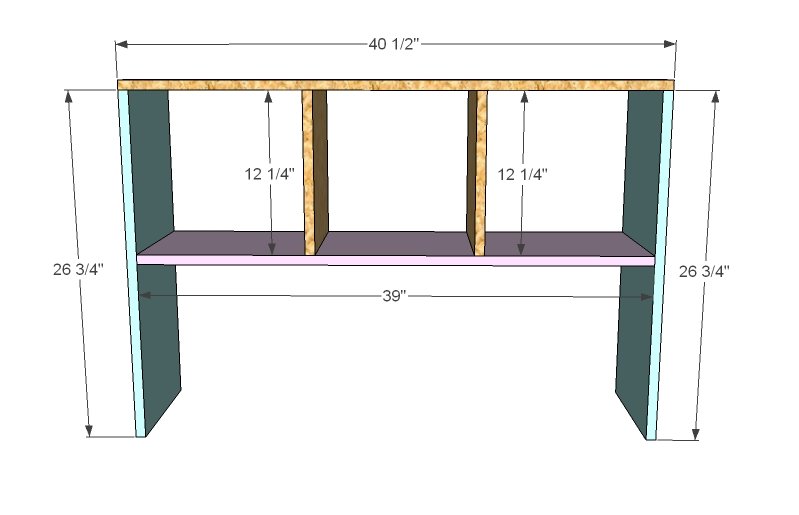

Step 1
Mark out all of your joints as shown in the diagram on the cut pieces. Predrill and countersink all screws, using 2” screws and glue. Adjust for square. NOTE: You can also use 1-1/4" pocket hole screws and a Kreg Jig for construction.

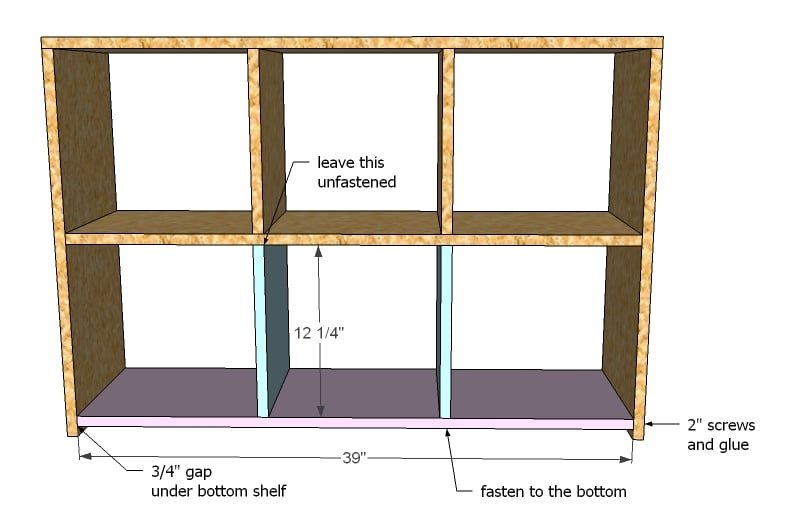

Attach the bottom shelf divider pieces to the bottom shelf with 2" screws.
Then attach bottom shelf to sides (with glue where the vertical cubby dividers line up). A 1x2 will be added to further strengthen this joint.

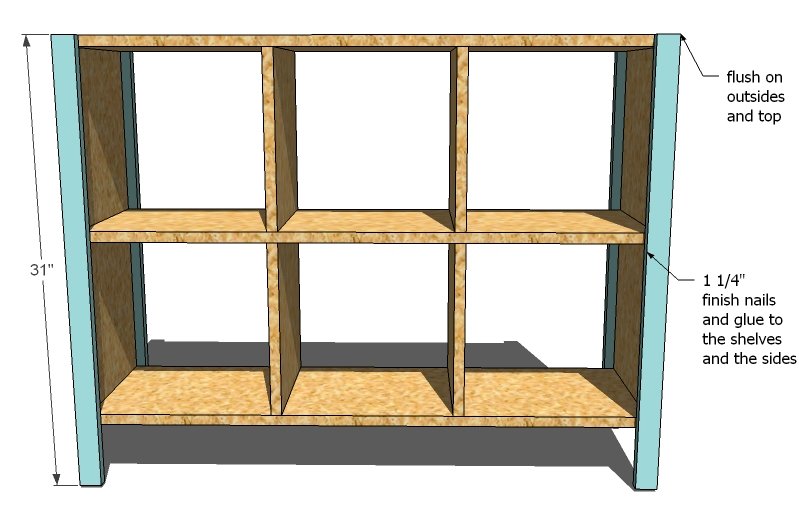

Step 3
Attach legs to the sides, flush on all sides, with 1-1/4" brad nails and wood glue.

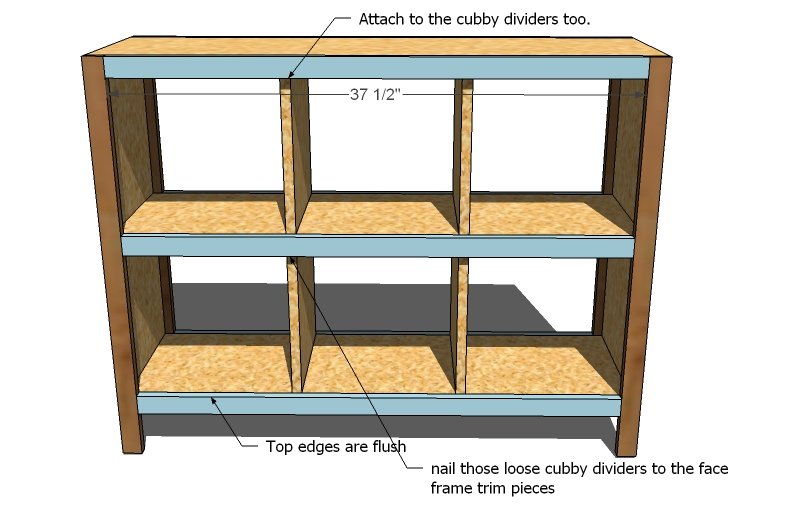

Step 4
Measure and cut the horizontal trim to fit on the front and backs of the bookshelf. Repeat for back.

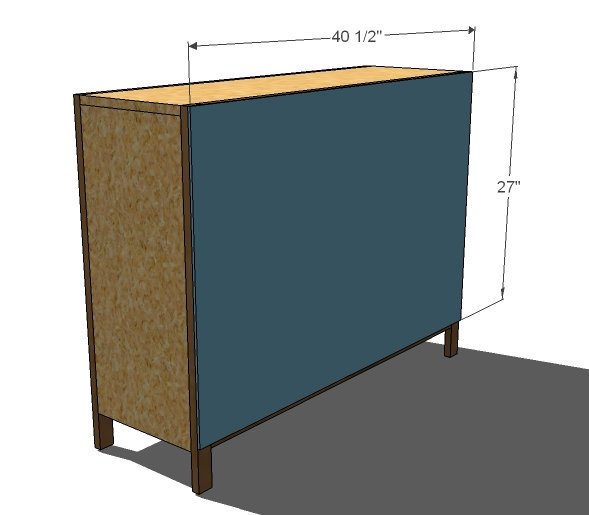

Step 5
Attach back with 3/4" brad nails and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
