9 Cubby Bookshelf
9 big cubbies to store everything from books to toys - or use around the house for a vintage feel. from
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Storage Solutions |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

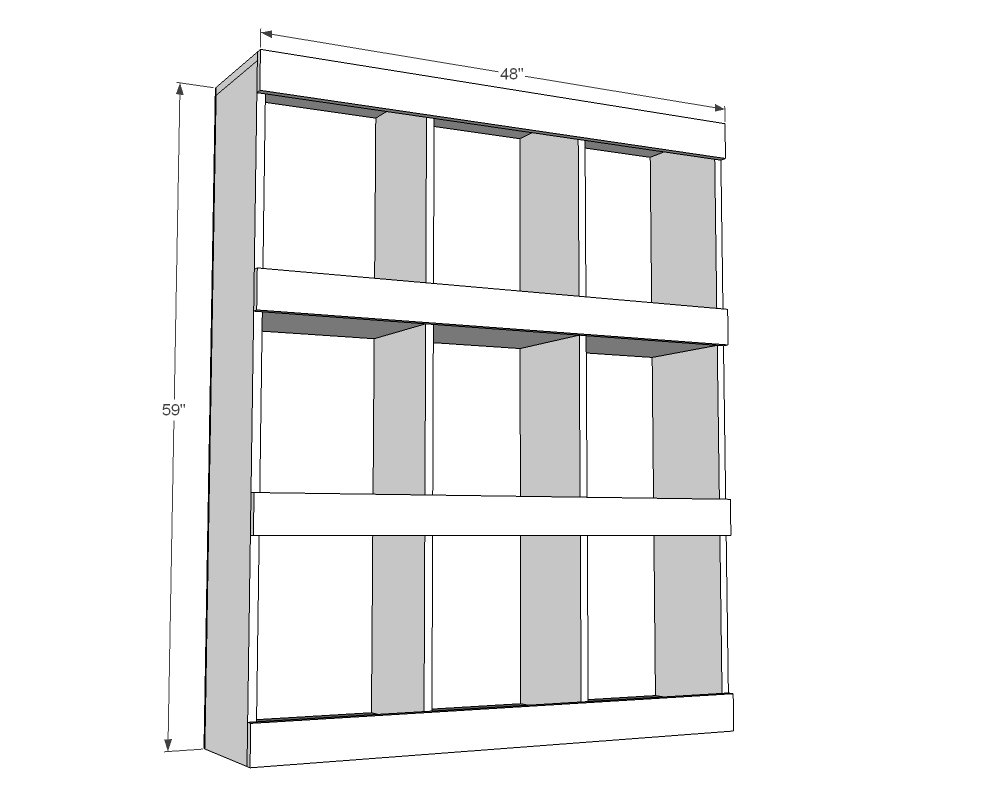

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 1x12 @ 8 feet long
2 - 1x12 @ 10 feet long
1 - 1x2 @ 8 feet long
2 - 1x4 @ 8 feet long
1 - Full sheet (4x8 feet) of 1/4" plywood or other hardboard
Cut List
- 1 - 1x12 @ 48" (top)
- 2 - 1x12 @ 59-1/4" (sides)
- 2 - 1x12 @ 56" (dividers)
- 1 - 1x12 @ 46-1/2" (bottom)
- 2 - 1x2 @ 46-1/2" (bottom supports)
- 6 - 1x12 @ 15" (shelves)
- 4 - 1x4 @ 48" (shelf trim)
- 1 - 1/4" plywood @ 48" x 59"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions

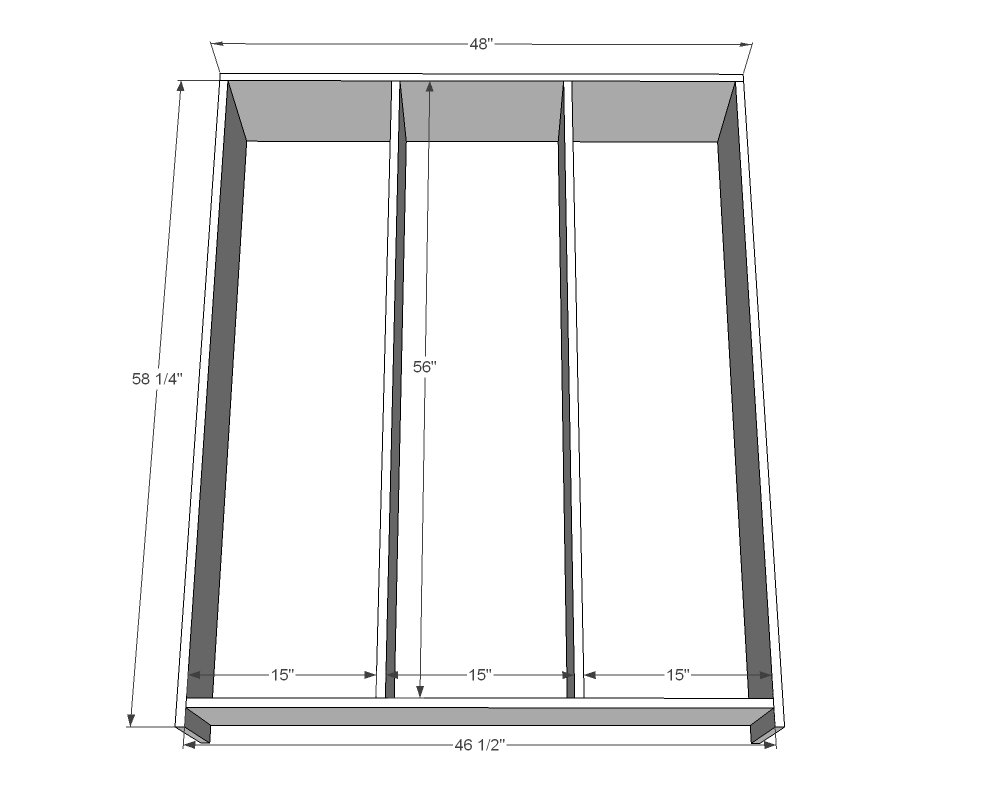

Step 1
Build the frame for the shelf with 3/4" pocket holes and 1-1/4" pocket hole screws. Place pocket holes on insides and undersides to hide.

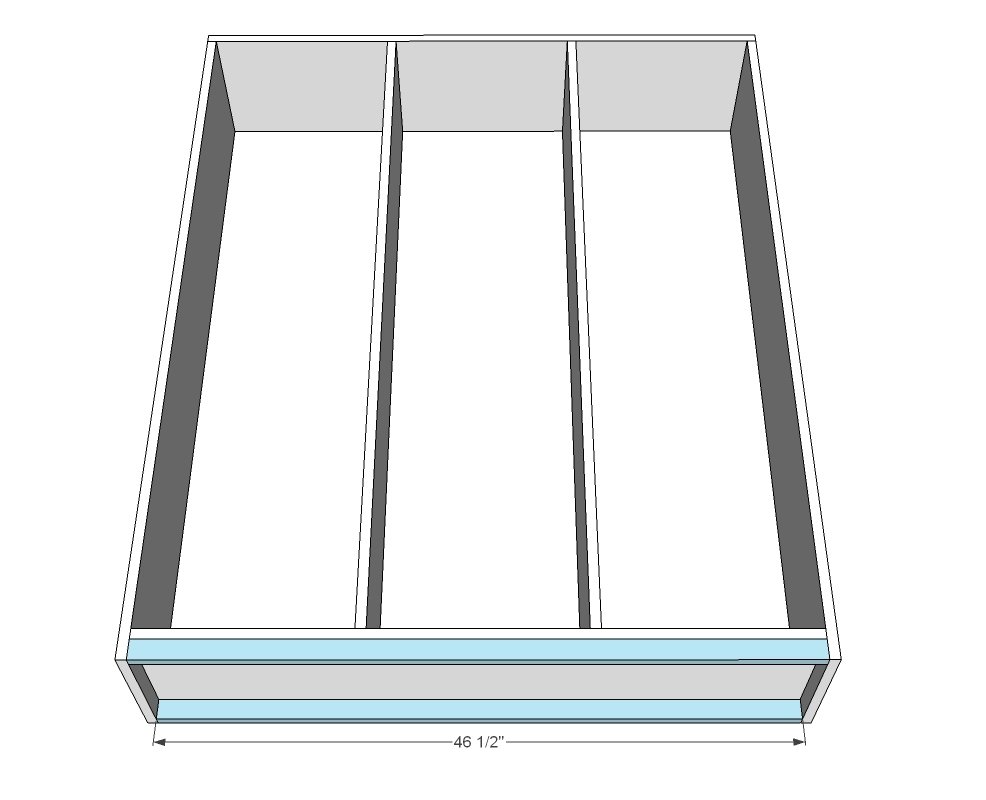

Step 2
Attach bottom 1x2 trim with 1-1/4" brad nails and wood glue.

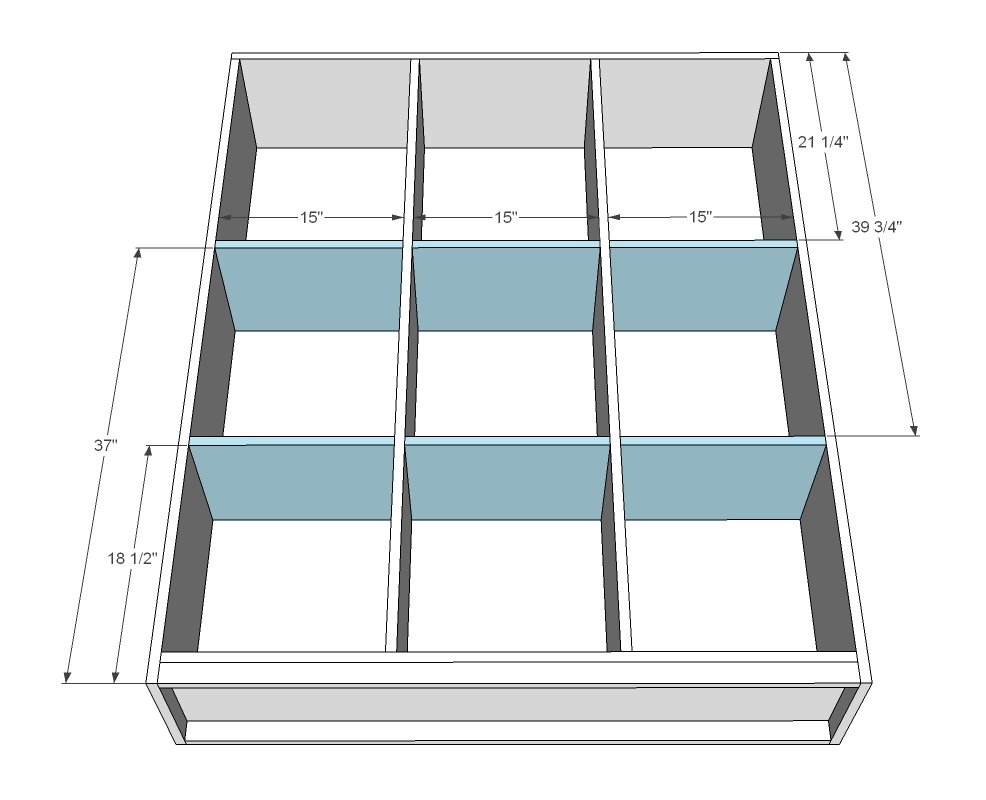

Step 3
Attach shelves to sides and dividers with 3/4" pocket holes and 1-1/4" pocket hole screws.

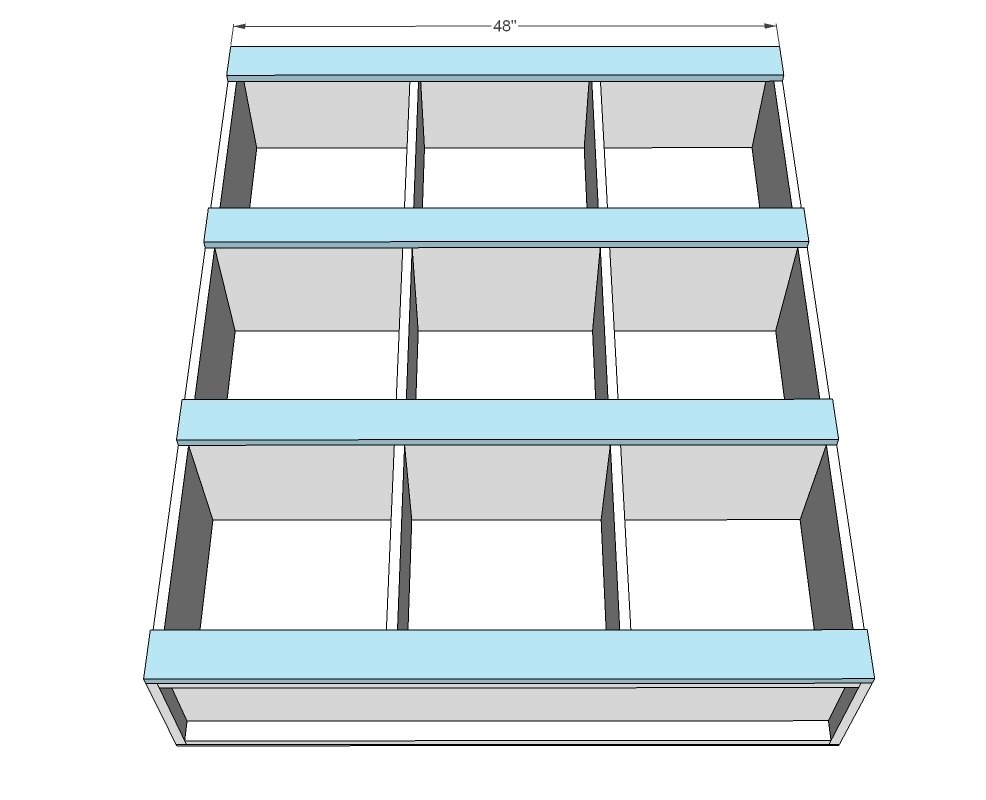

Step 4
Attach 1x4s to fronts of shelves with 1-1/4" brad nails and wood glue.

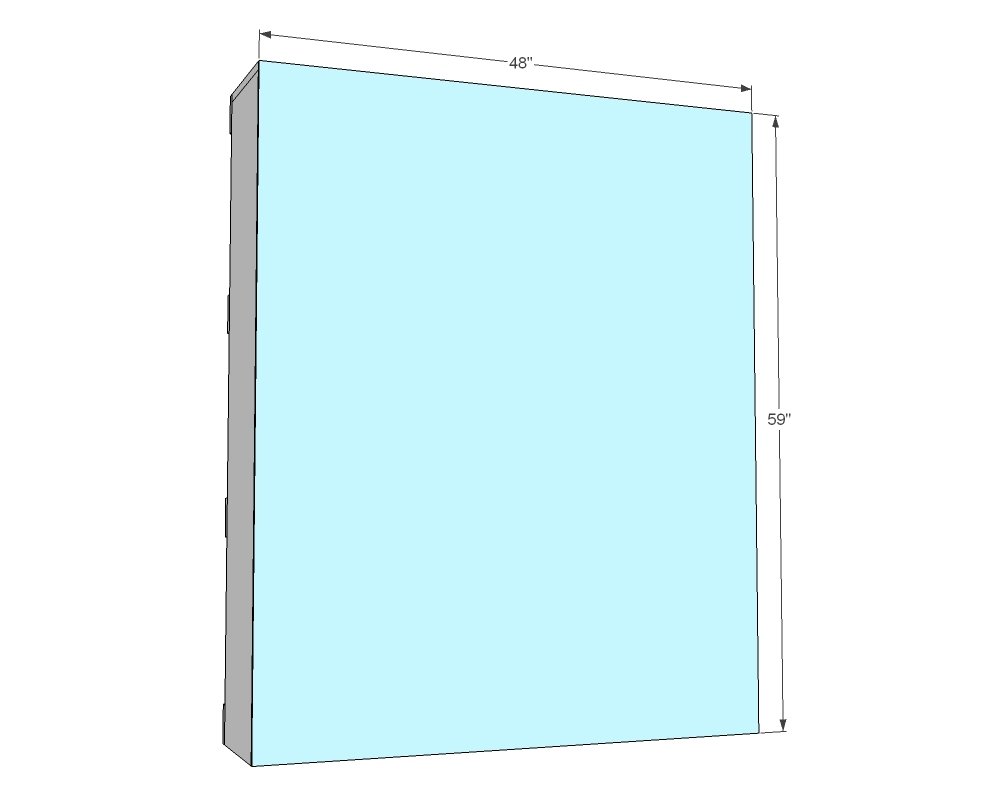

Step 5
Add back with glue and 3/4" brad nails. Nail to all dividers and shelves.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
