American Girl or 18" Doll Kitchen Stove Range or Oven Gray with Brass Hardware
for American Girl or 18 Inch Doll sized kitchen stove oven or range plans made from wood.
Specifications
| Project type | Doll Furniture |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Beginner Projects |
| Estimated cost | scraps |

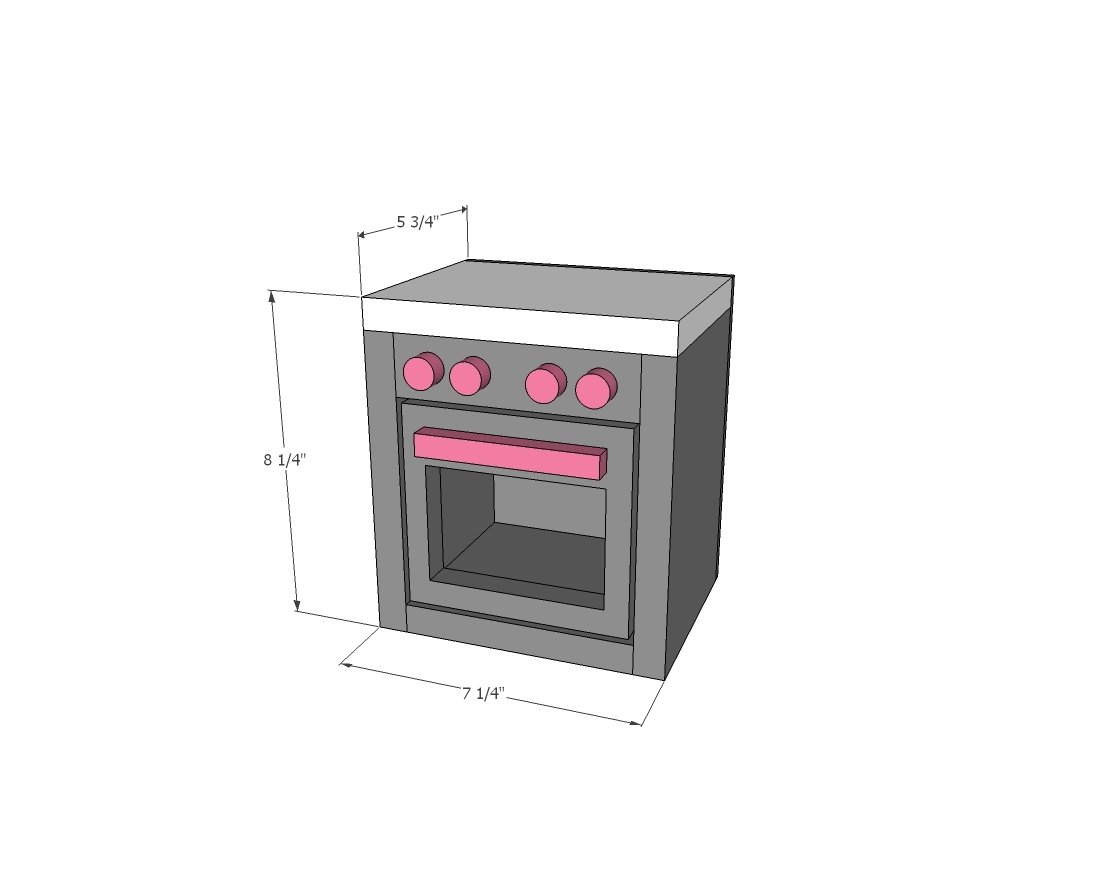

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 3 feet of 1x6 board
- 6 inches of 1x2 board
- scrap plywood 7-1/4" x 8-1/4"
- knobs and handle
Cut List
- 2 - 1x6 @ 7-1/2" (sides)
- 1 - 1x6 @ 5-3/4" (bottom)
- 1 - 1x2 @ 5-3/4" (front apron)
- 2 - 1x6 @ 7-1/4" (top)
- 1 - 1/4" plywood @ 8-1/4" x 7-1/4"
- 1 - 1x6 @ 5" (door)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- circular saw
- nailer
Step-by-step Instructions

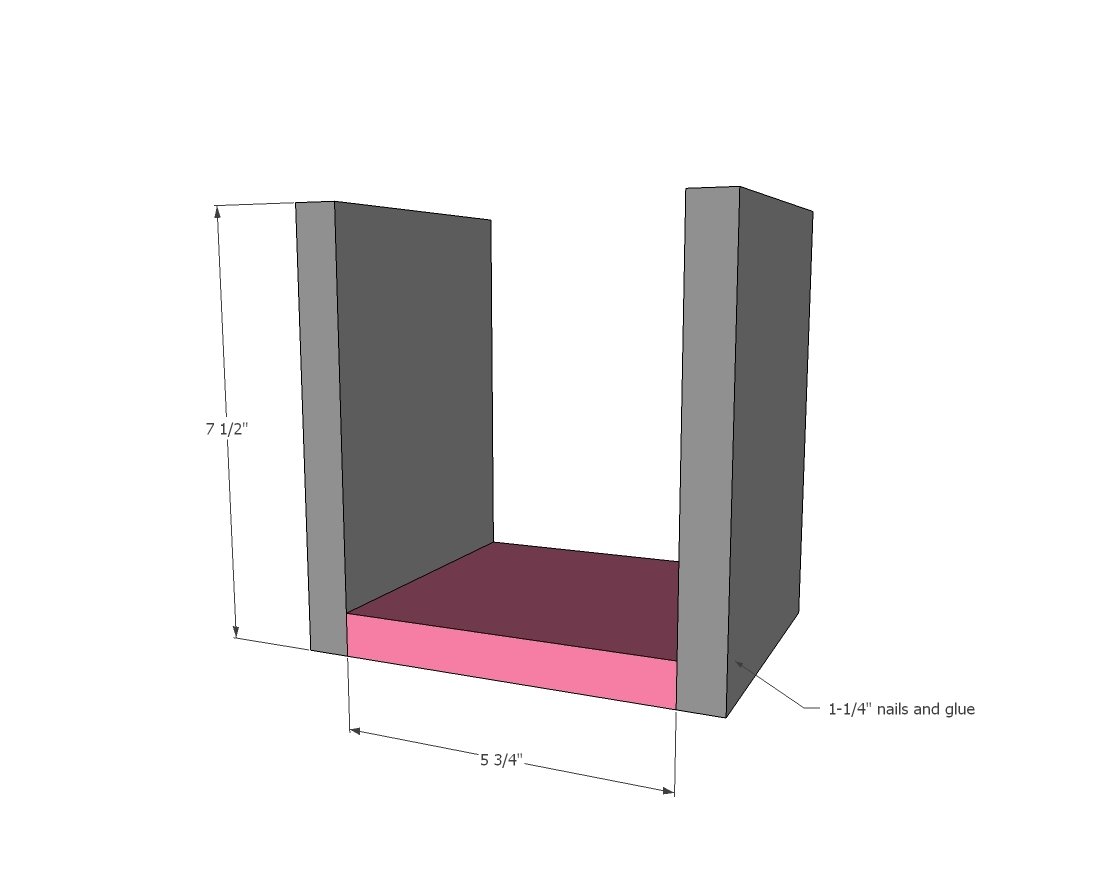

Step 1
Nail the bottom to the sides. You can use the 1x2 aprons as a spacer to help support the open end as you attach. Use glue with all nails.

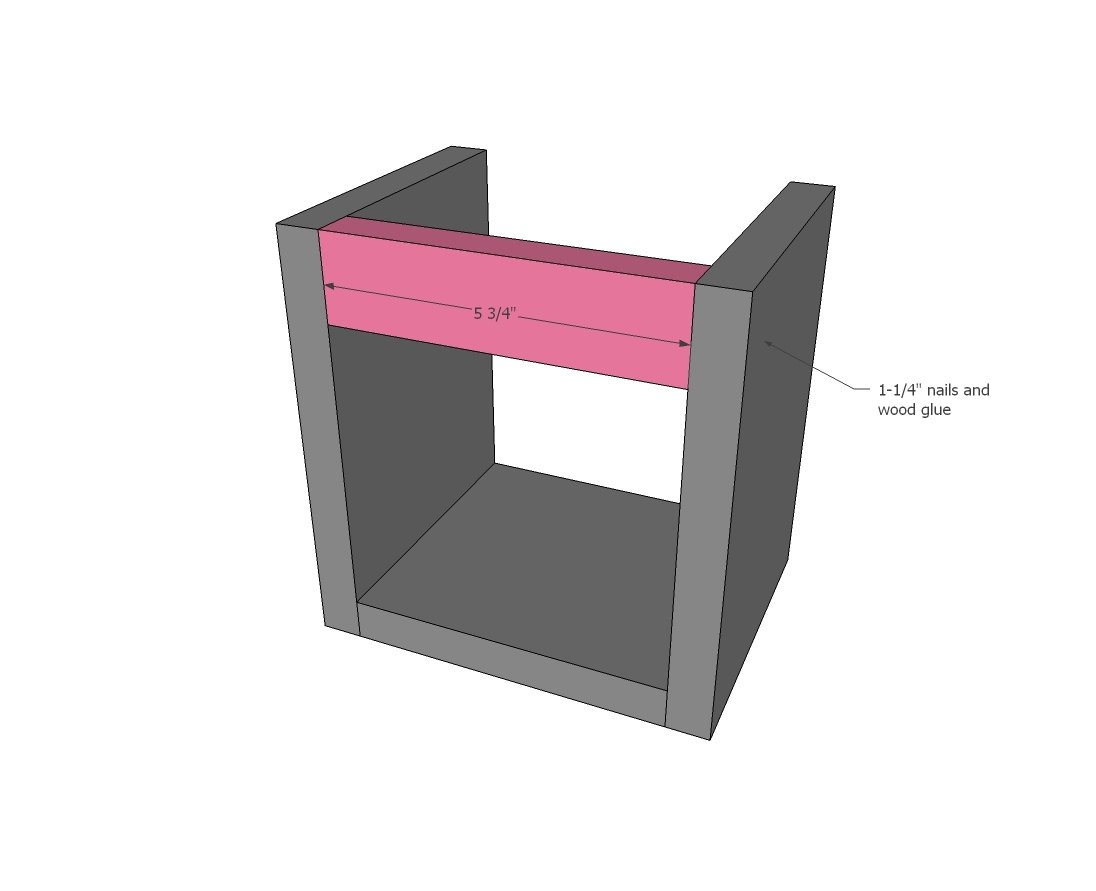

Step 2
Then attach apron at top.

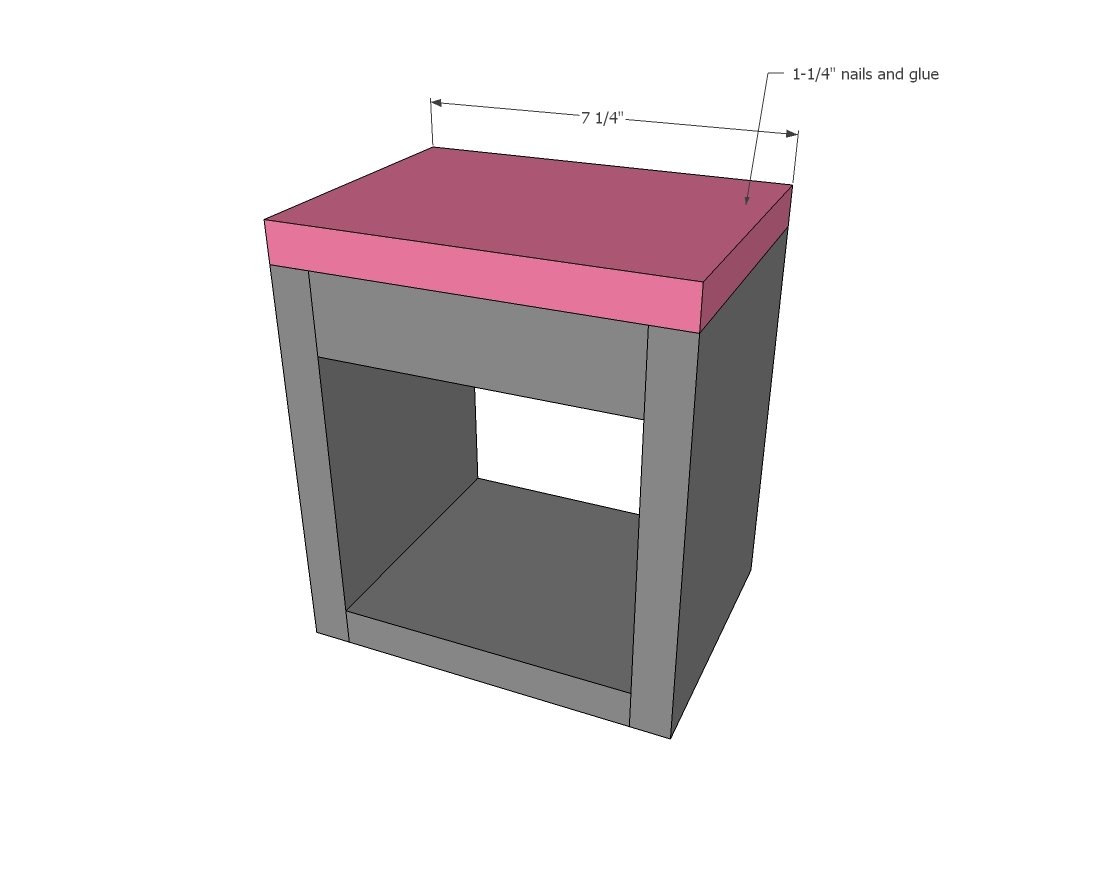

Step 3
Attach top to apron and sides. TIP: If you are adding knobs to front you may wish to do this now, before the back is attached.

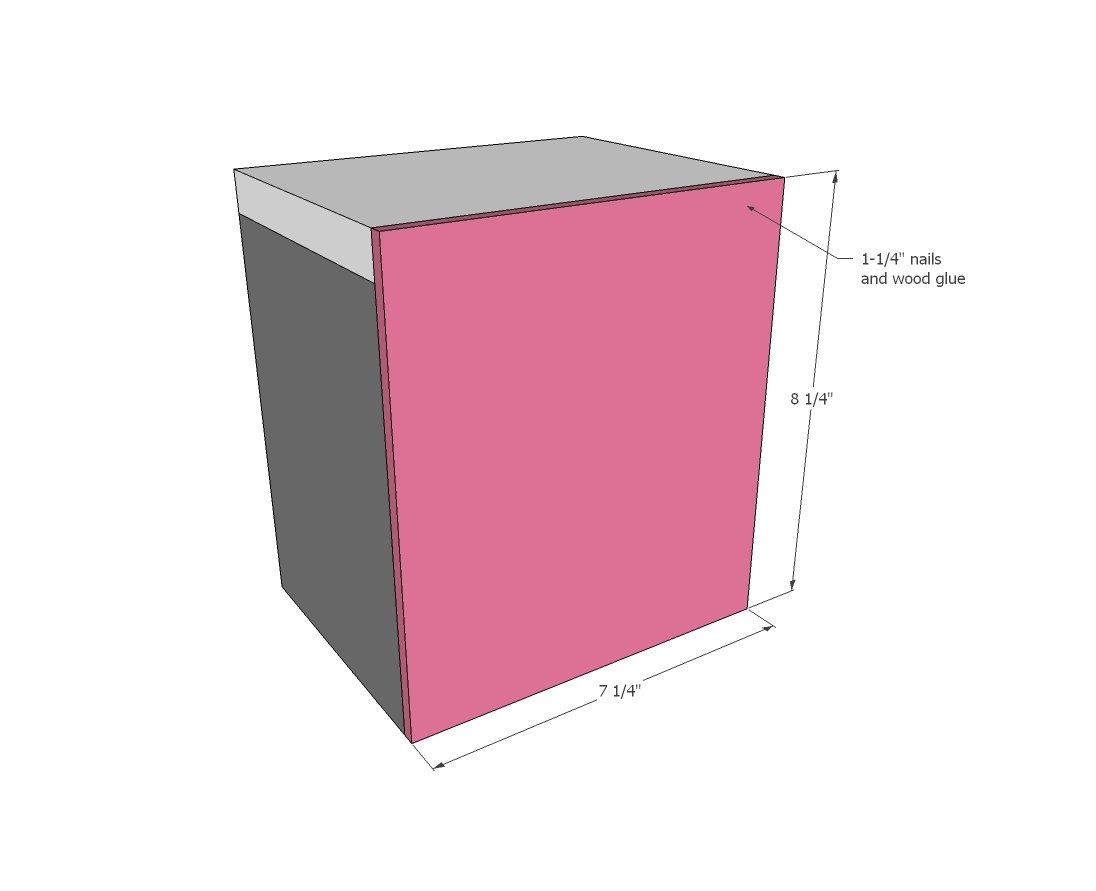

Step 4
Attach back. If you have shorter nails like 3/4" length you can use those instead.

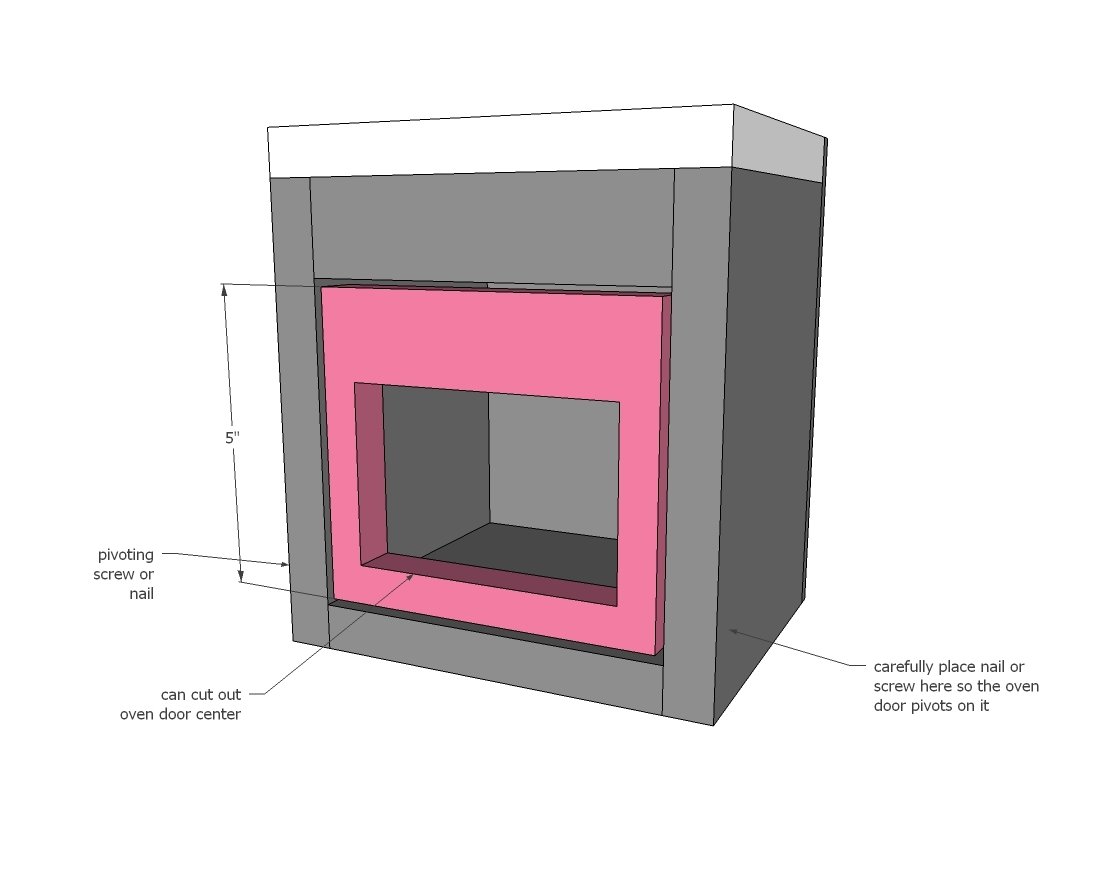

Step 5

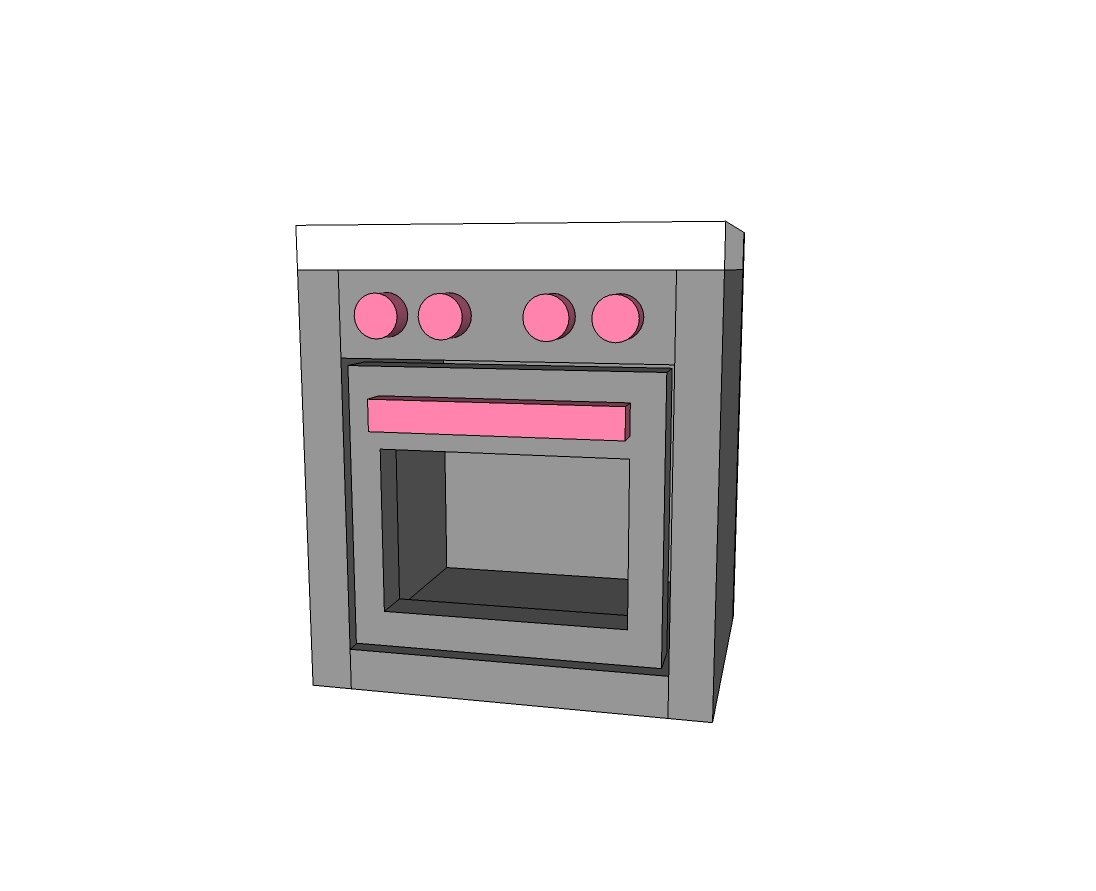

Step 6
I spray painted knobs and handles and attached to the front of the project..
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
