Baby Doll Furniture Moon Bassinet

to build a baby doll furniture moon bassinet. Easy tutorial by

Baby Doll Furniture Moon Bassinet

Specifications

Project typeToys
RoomKids and Toys
StyleFarmhouse Furniture
DifficultyBeginner Projects
Estimated costscraps

Dimensions

Use the size-specific shopping and cut lists below.

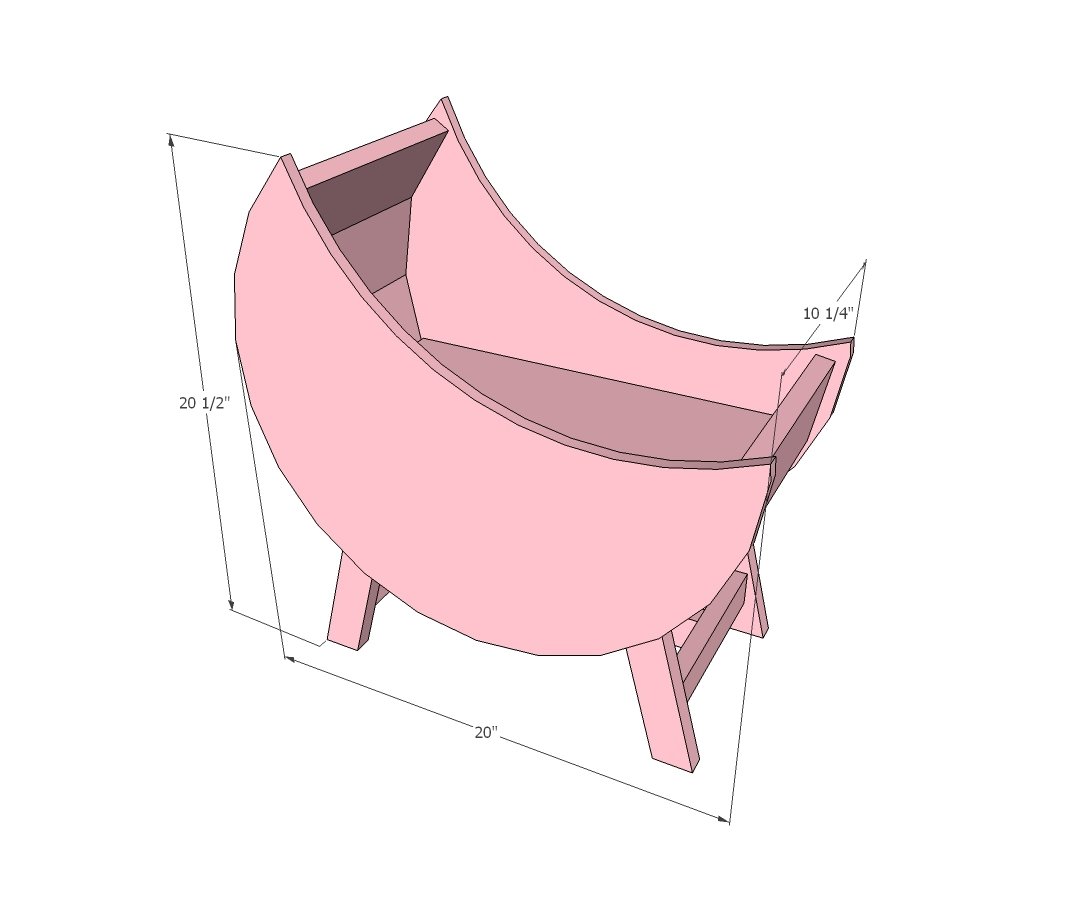

Baby Doll Furniture Moon Bassinet dimension diagram 1

Shopping List

I - 24” x 48” piece of ½” thick plywood or similar

1 – 1x2 @ 8 feet long

1 – 1x10 @ 16-1/2” – can also use ¾” plywood

1 – 1x4 @ 4 feet long

Cut List

2 – ½” plywood @ 20” x 20”

4 – 1x2 @ 9-5/8” long point to short point, both ends cut at 15 degrees off square, ends are parallel

4 – 1x2 @ 7-3/4”

1 – 1x2 @ 13”

1 – 1x10 @16-1/2”

4 – 1x4 @ 9-1/4”

Tools

  • pencil
  • safety glasses
  • hearing protection
  • drill
  • jigsaw
  • compound miter saw
  • sander
  • countersink drill bit

Step-by-step Instructions

1

Step 1

Mark out the moon shape on 1/2" plywood pieces as shown in the pattern. Cut out carefully with a jigsaw. Also cut the sharp ends of the moon shape off square to prevent sharp edges. Clamp the two moon shaped sides together and sand outside edges until smooth using a coarse sandpaper, working down to a medium sandpaper, until smooth. It is very important to have the line drawn 4" from center as this will help you evenly place the moon shapes on the baby doll crib base.

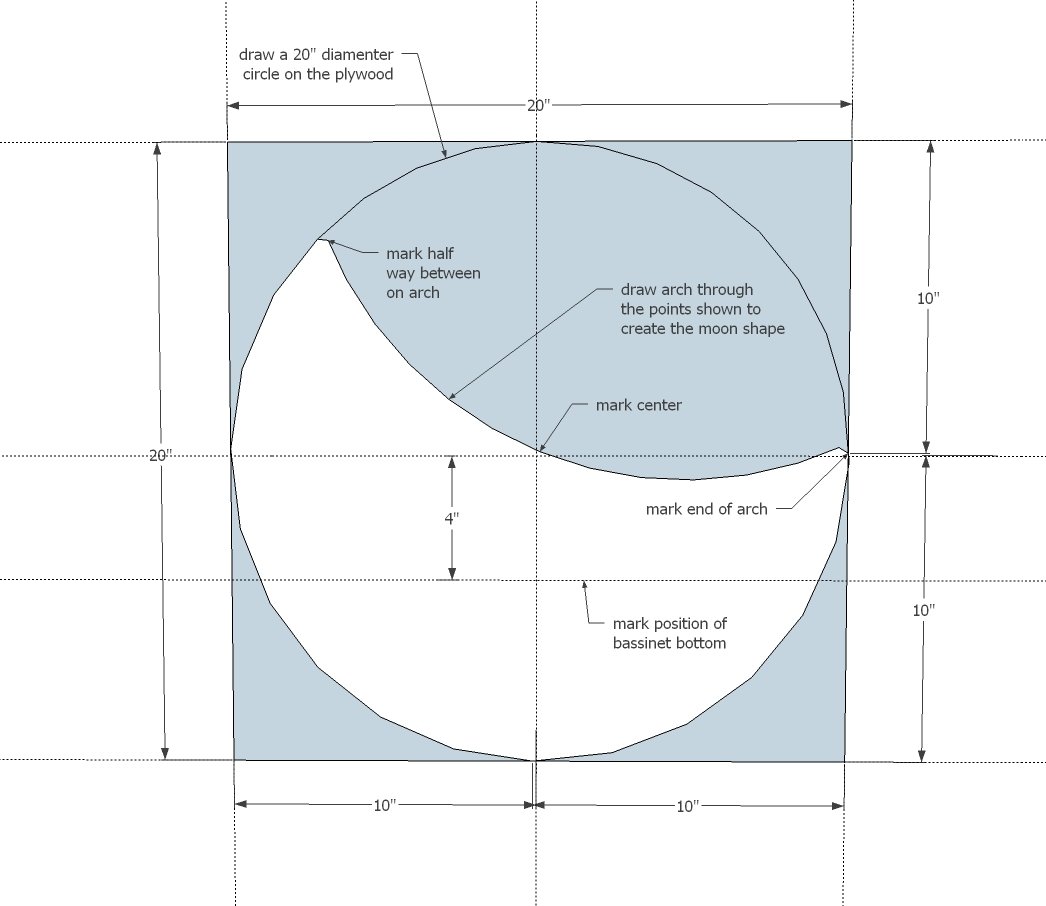

Baby Doll Furniture Moon Bassinet — step 1
2

Step 2

Now build the leg sets - you can use either pocket holes or simply 2" long self tapping screws (I like the Spax brand because the don't split wood, so you don't have to predrill and they come in small packs).

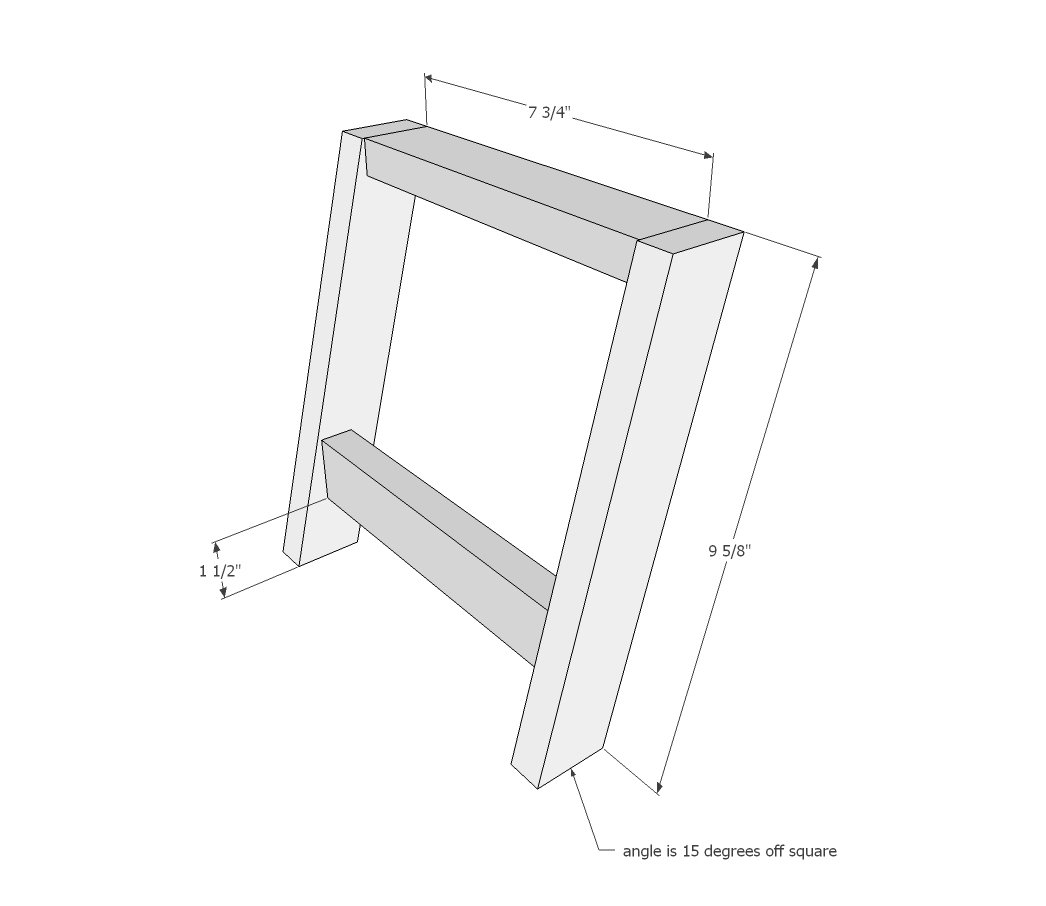

Baby Doll Furniture Moon Bassinet — step 2
3

Step 3

Tie the two together with the center stretcher.

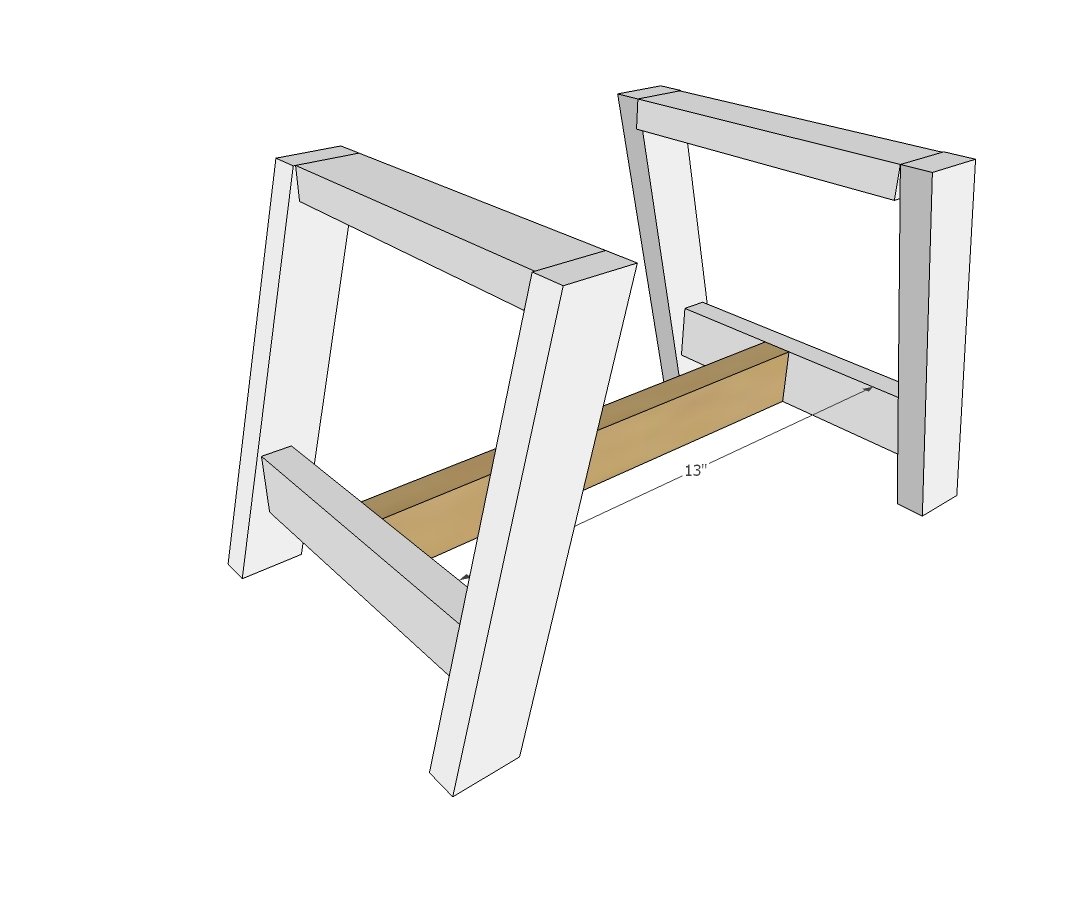

Baby Doll Furniture Moon Bassinet — step 3
4

Step 4

Attach the base of the baby doll crib to the 1x10 board.

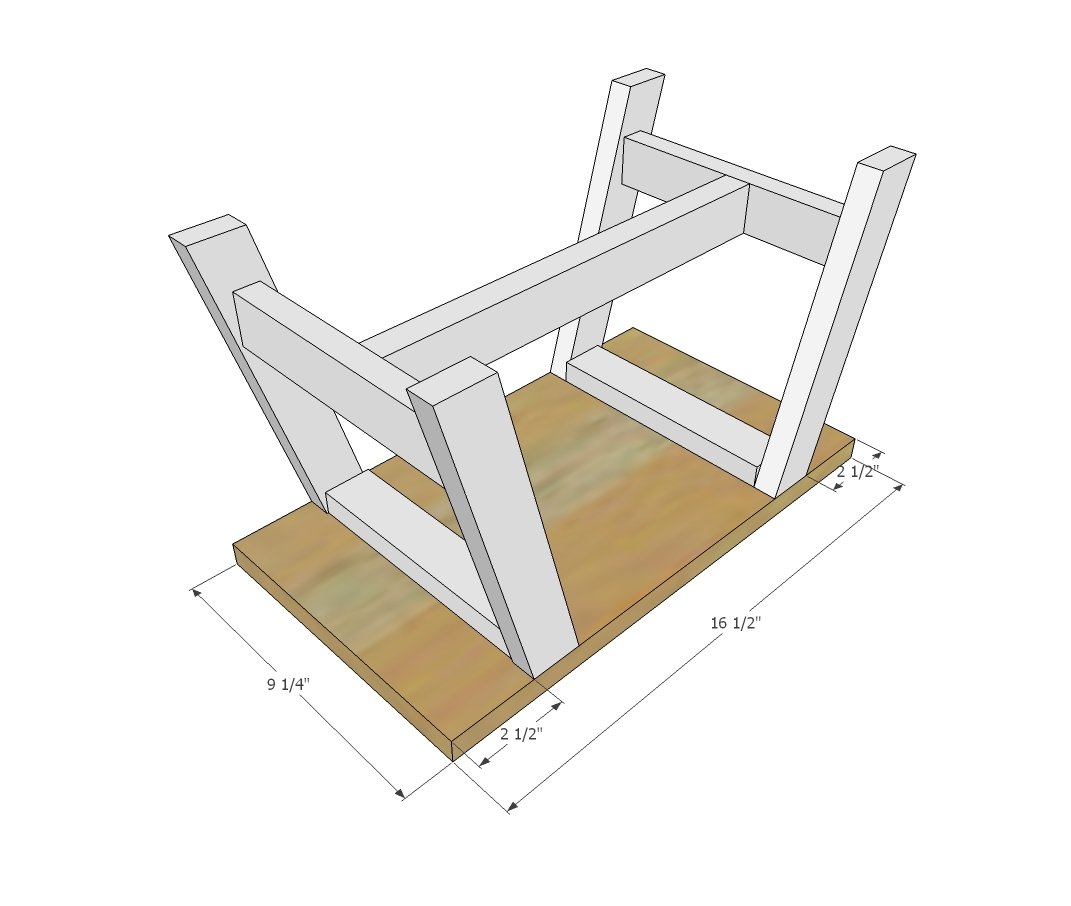

Baby Doll Furniture Moon Bassinet — step 4
5

Step 5

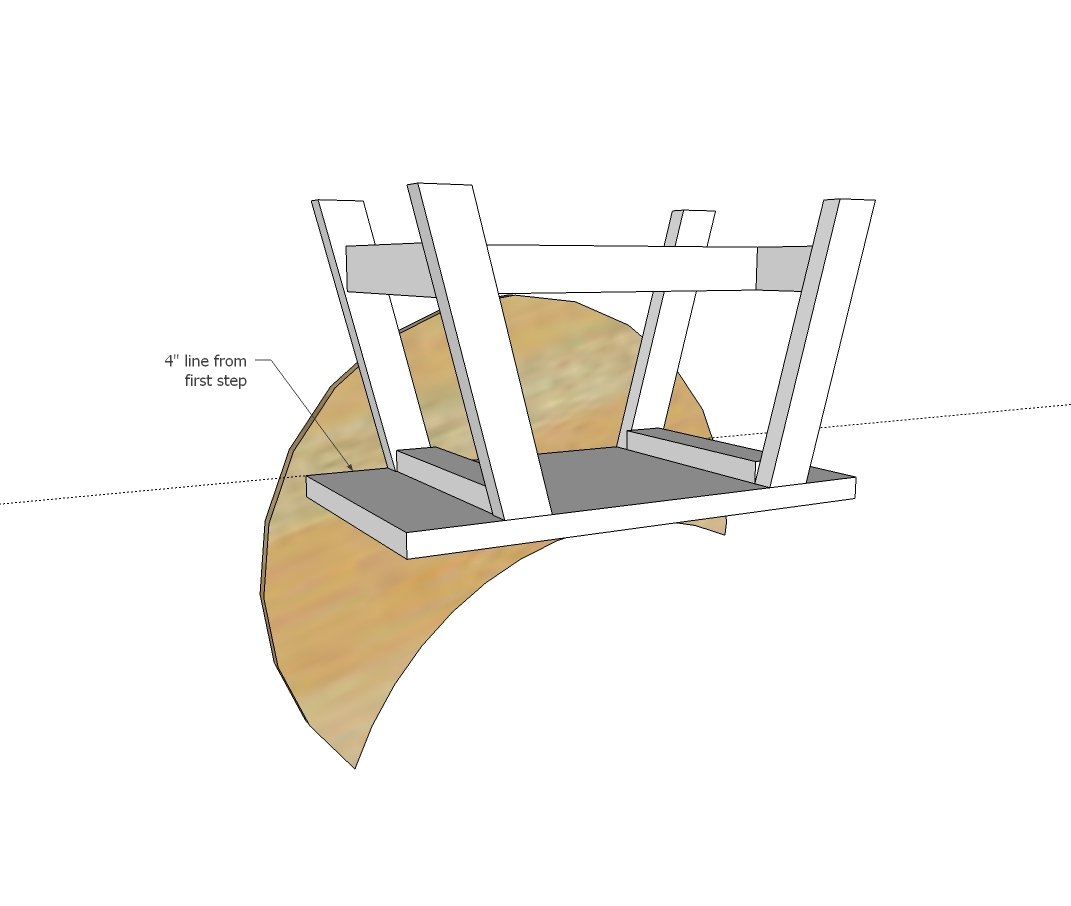

Baby Doll Furniture Moon Bassinet — step 5
6

Step 6

Finally, work from the base of the baby doll crib upward, attaching the 1x4s to the moon shaped sides with 2" screws and wood glue.

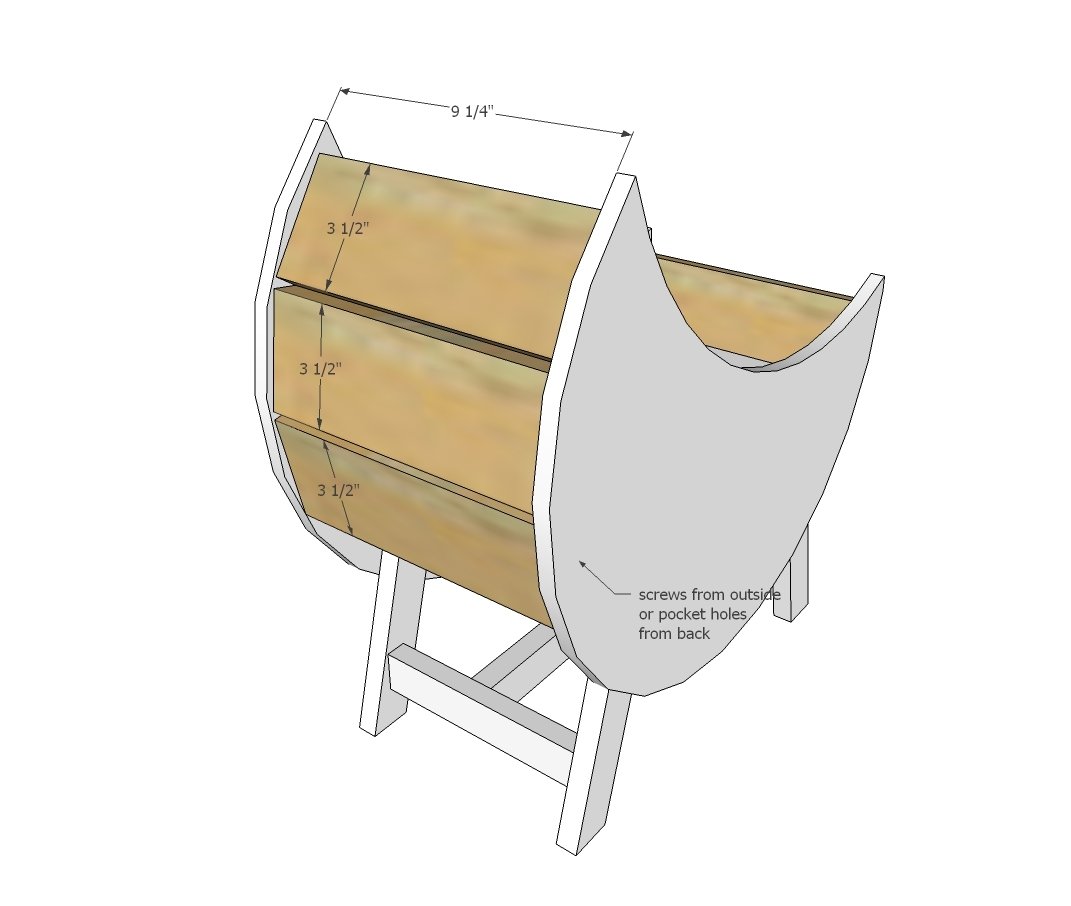

Baby Doll Furniture Moon Bassinet — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
