Balustrade Coffee Table

DIY balustrade coffee table inspired by Restoration Hardware coffee table. Save hundreds by building yourself! with diagrams, shopping and cut list from

Balustrade Coffee Table

Specifications

Project typeCoffee Tables
Roomliving room
DifficultyIntermediate
Estimated cost$150 - $200

Dimensions

Use the size-specific shopping and cut lists below.

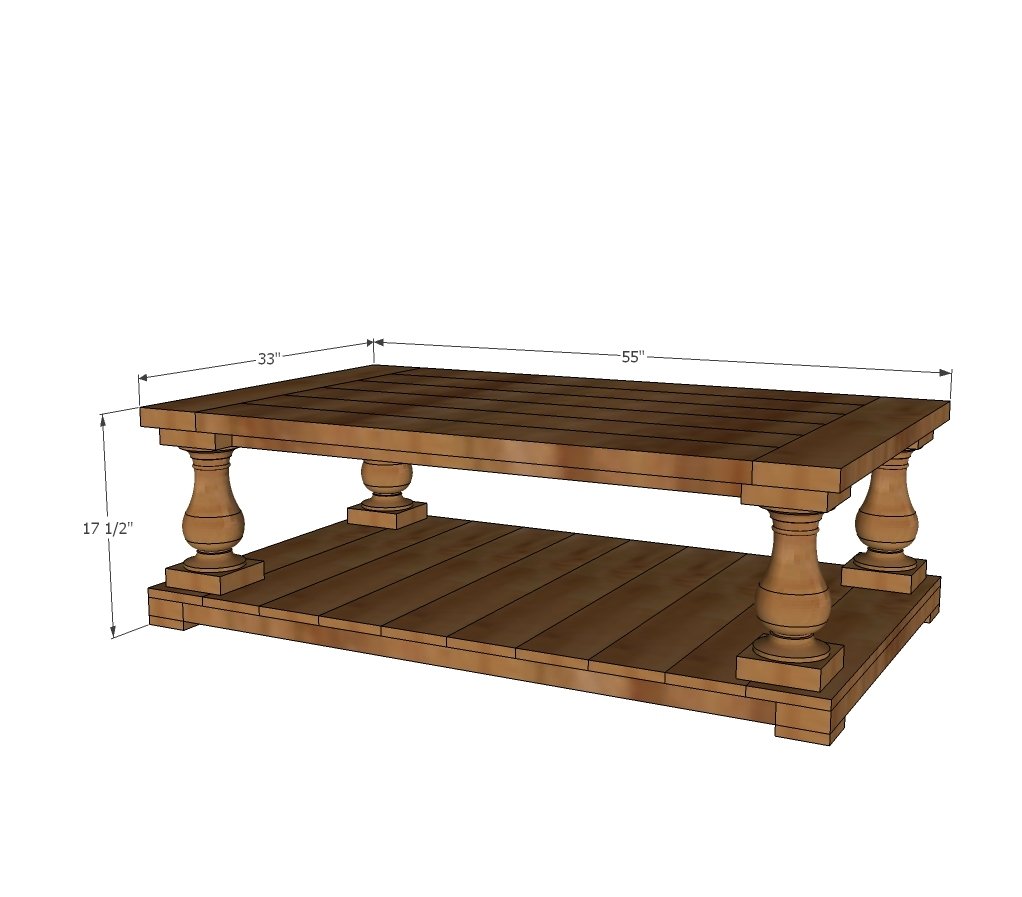

Balustrade Coffee Table dimension diagram 1

Shopping List

  • 5 - 1x6 @ 6 feet long
  • 4 - 2x4 @ 8 feet long
  • 1 - 1x4 @ 15” long
  • 4 - 2x6 @ 8 feet or stud length
  • 4 - turned pillars ( Jen used these from Osborne Wood )
  • 1-1/4” and 2-1/2” pocket hole screws
  • 2” or longer wood screws nails for nailing on feet

Cut List

  • 10 - 1x6 @ 33” long
  • 2 - 2x4 @ 33” long
  • 2 - 2x4 @ 48” long (may need to be cut to fit)
  • 4 - 1x4 @ 3-1/2” long
  • 8 - 2x6 @ 5-1/2” long
  • 2 - 2x4 @ 20” long
  • 2 - 2x4 @ 42” (may need to be cut to fit)
  • 2 - 2x6 @ 33” long 6 - 2x6 @ 44” long

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

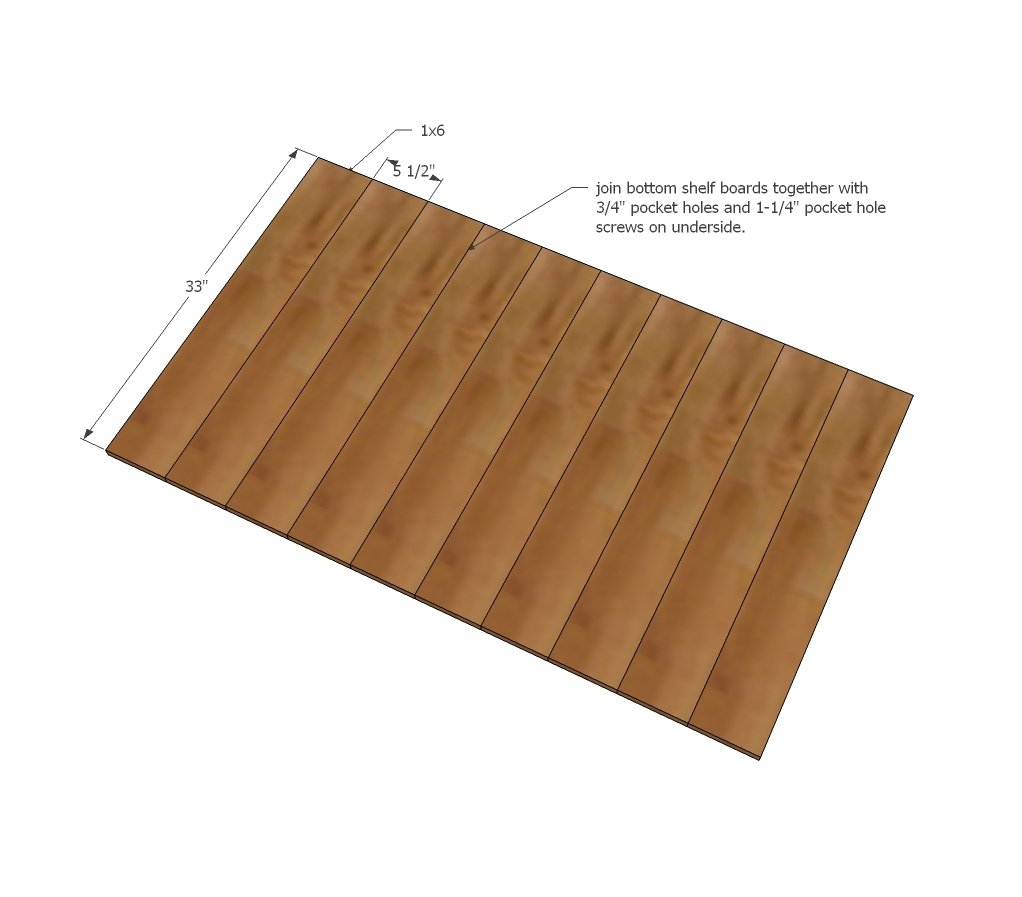

Start by building the bottom shelf with pocket holes. TIP: I like to cut all my shelf boards a tad long, then join the boards and trim down the tabletop with a circular saw. After building it, take a second to measure the size of the shelf (1x6 boards can vary in width) - so you may need to adjust some of your cuts or cut as you go. NOTE: You may wish to attach legs (step 5) before moving on to hide screw holes underneath.

Balustrade Coffee Table — step 1
2

Step 2

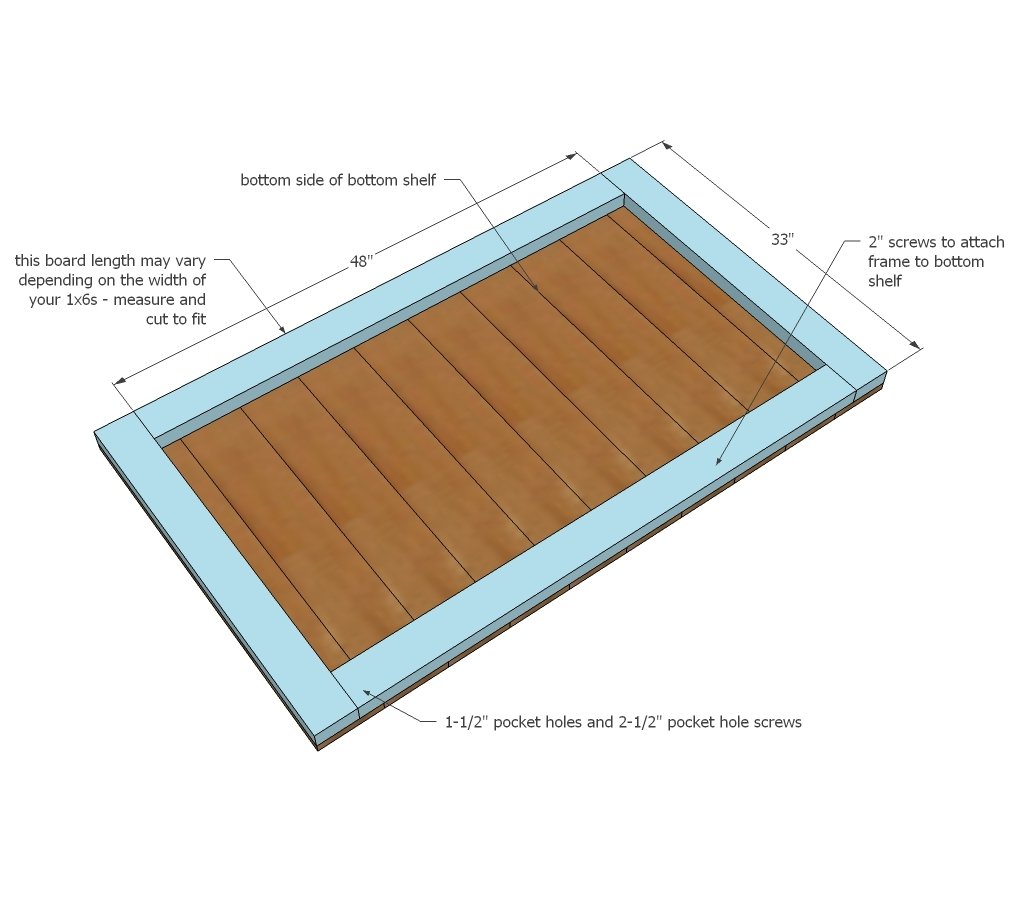

Frame up the bottom supports and attach to bottom shelf.

Balustrade Coffee Table — step 2
3

Step 3

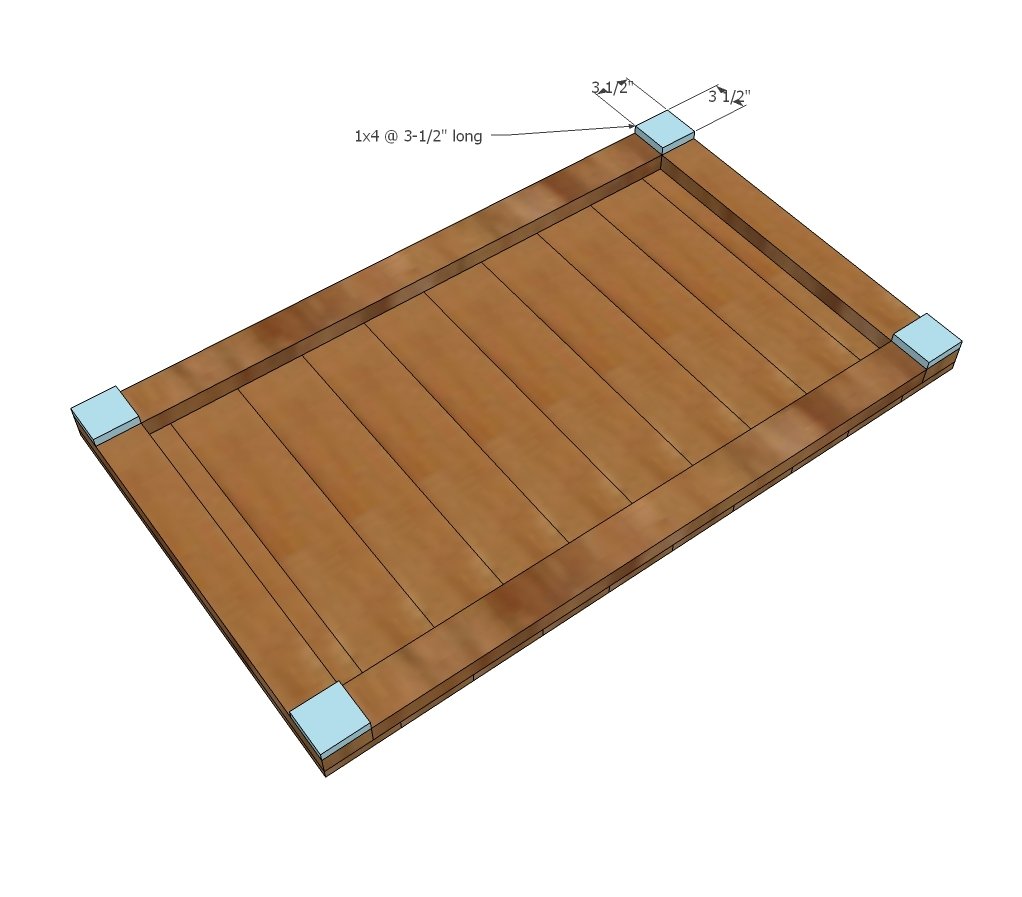

Nail and glue the feet on at the bottom shelf corners. You can use 1-1/4" - 2" long nails.

Balustrade Coffee Table — step 3
4

Step 4

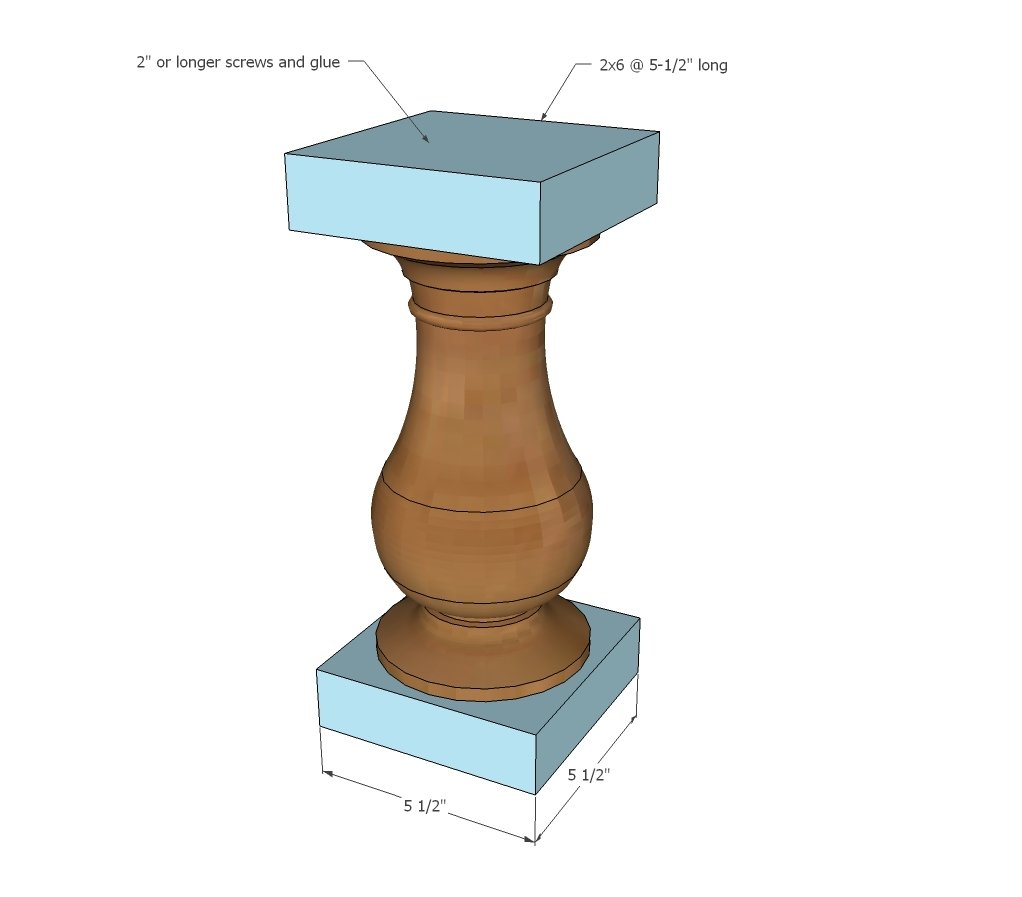

Attach the 2x6 blocks to the tops and bottoms of the legs.

Balustrade Coffee Table — step 4
5

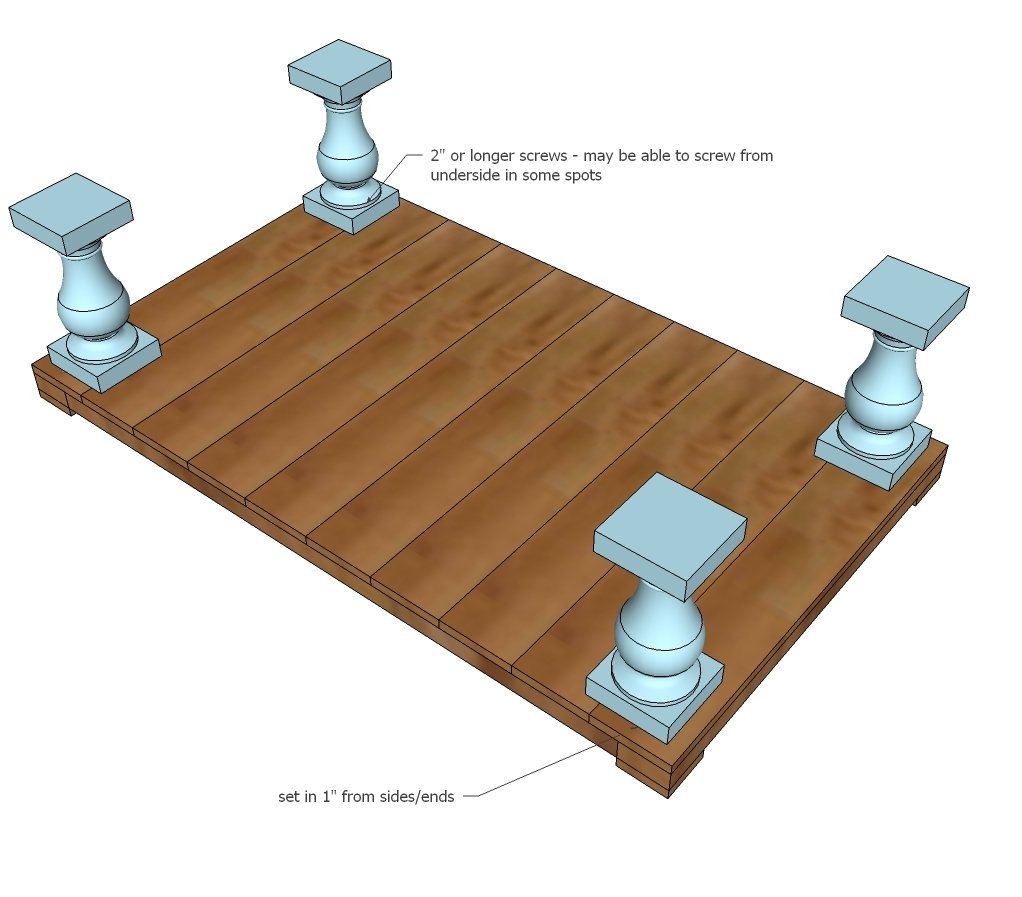

Step 5

Balustrade Coffee Table — step 5
6

Step 6

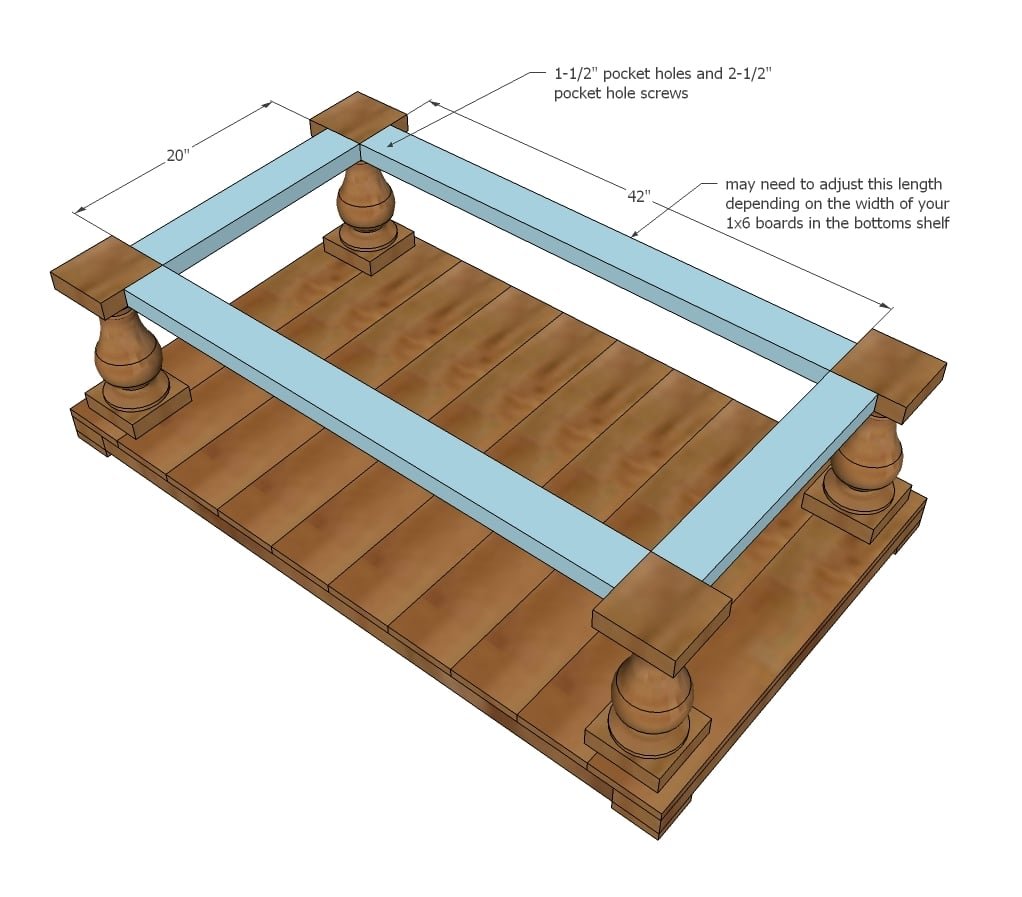

Attach legs together with pocket holes placed on top.

Balustrade Coffee Table — step 6
7

Step 7

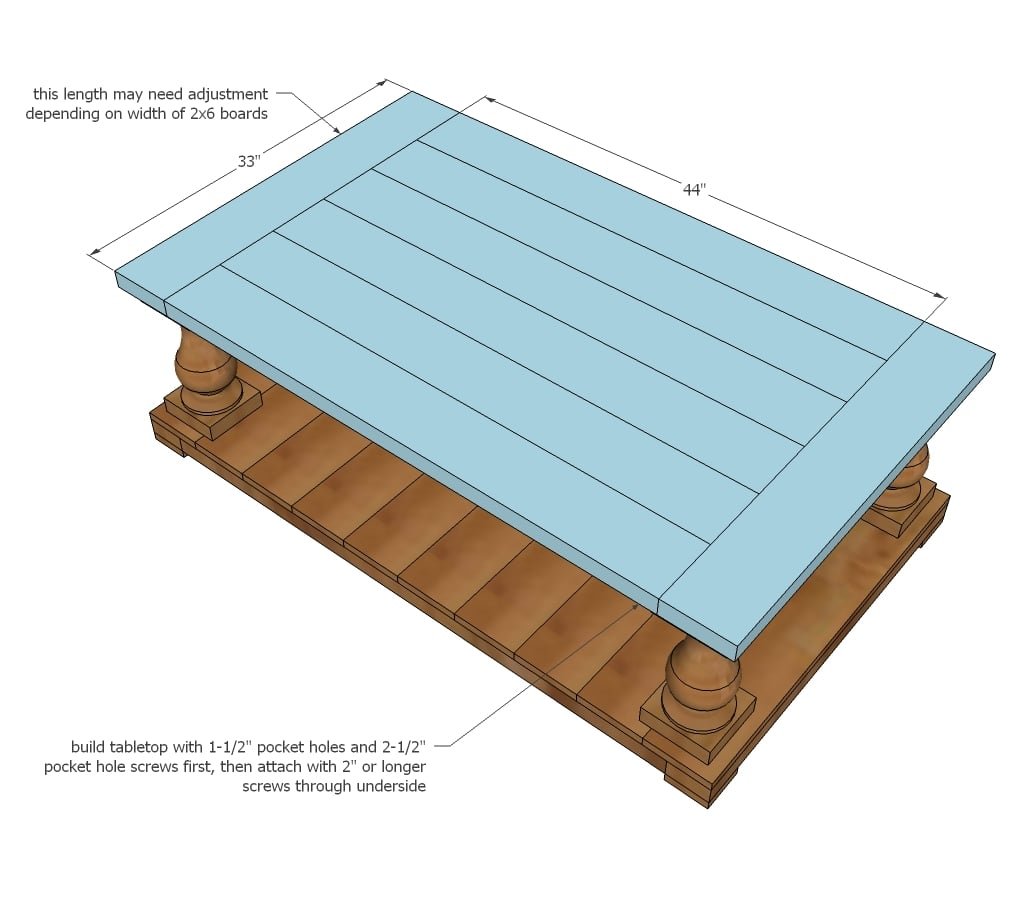

Build the tabletop first, then attach to top of coffee table through the boards added in step 6 and legs.

Balustrade Coffee Table — step 7
8

Step 8

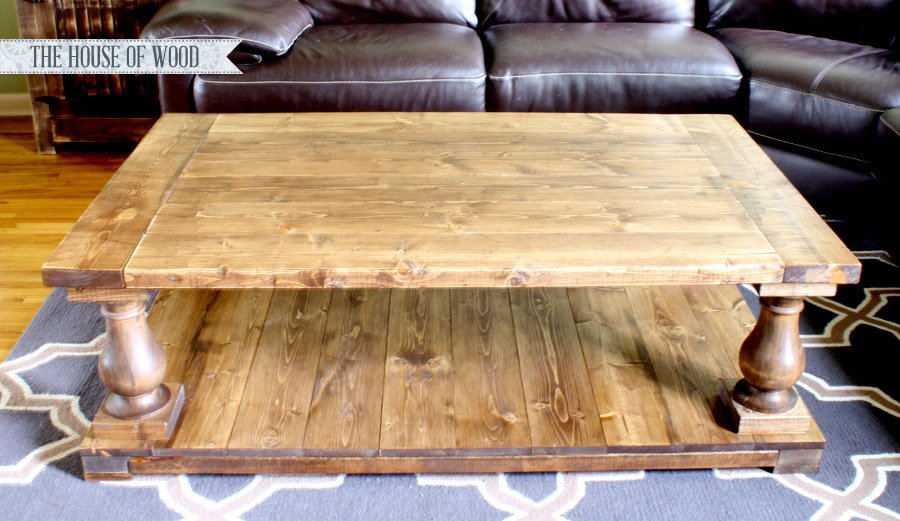

For finishing details and building photos, please visit Jen at House of Wood.

Balustrade Coffee Table — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
