Benchmark Pedestal Base Round or Octagon Table

Build your own farmhouse style pedestal table for about $110! Perfect for a breakfast nook or family dining room. Use an octagon top or circular top. for large octagon table with pedestal base and truss supports from

Benchmark Pedestal Base Round or Octagon Table

Specifications

Project typeDining Table Plans
Roomdining room
StyleFarmhouse Furniture
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

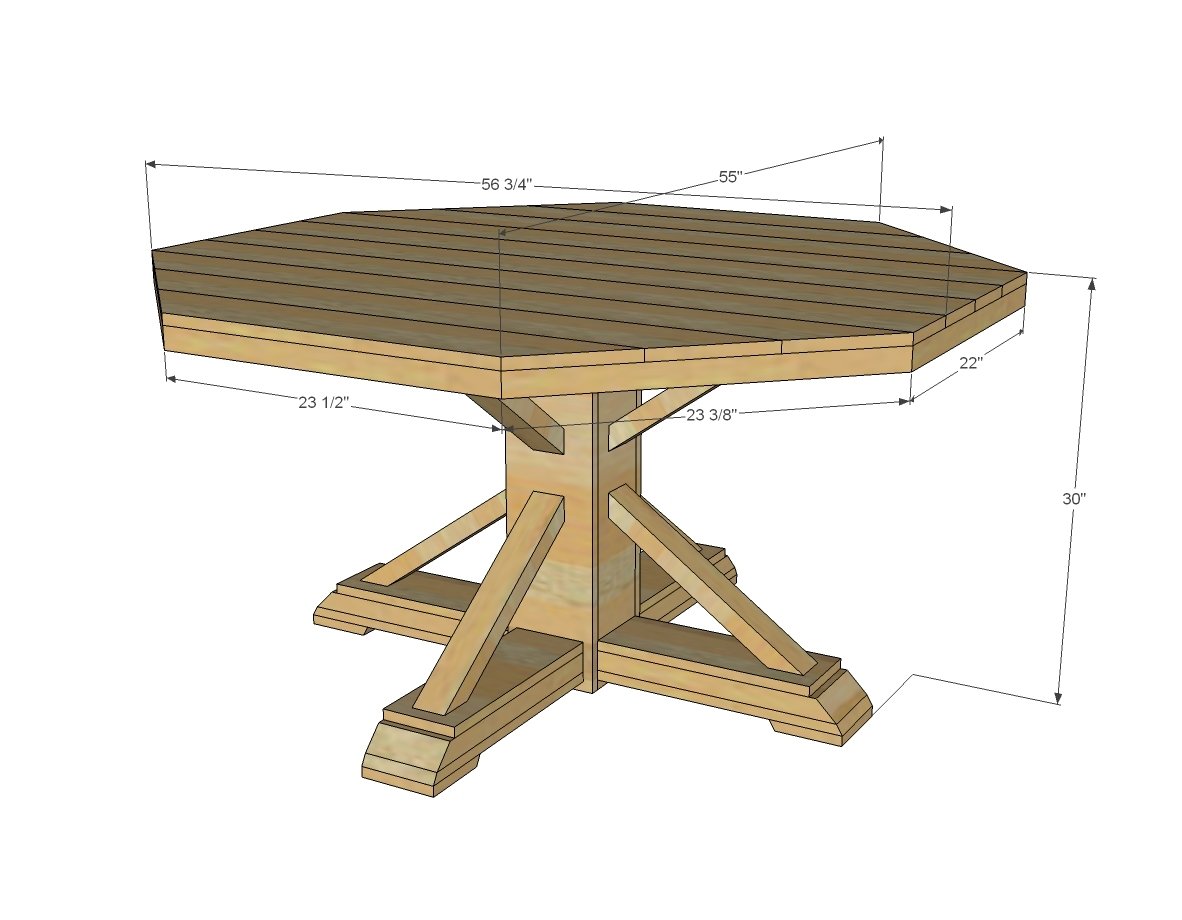

Benchmark Pedestal Base Round or Octagon Table dimension diagram 1

Shopping List

7 - 1x6 @ 8 feet long (cut longest first)

2- 2x2 @ 8 feet long

2 - 2x6 @ 8 feet long

1 - 1x8 @ 6 feet long

1 - 2x8 @ 6 feet long

2 - 2x3 @ 8 feet long screws and nails

Cut List

BASE PIECES

  • 4 - 1x6 @ 5-1/4" (long point measurment, one end cut at 30 degree bevel)
  • 2 - 1x6 @ 18-1/2" (long point measurmenet, one end cut at 30 degree bevel)
  • 2 - 2x6 @ 18-1/8" (long point measurmenet, one end cut at 45 degree bevel)
  • 2 - 1x6 @ 16-1/8" 1 - 1x6 @ 44" (long point measurmenet, both ends cut at 30 degree bevel)
  • 1 - 2x6 @ 43-1/8" (long point measurmenet, both ends cut at 45 degree bevel)
  • 1 - 1x6 @ 39-1/8"

CENTER PEDESTAL

  • 2 - 1x8 @ 27-3/4"
  • 1 - 1x8 @ 5-1/2" (cut to width of 1x6s)
  • 2 - 1x6 @ 24"
  • 2 - 2x6 @ 23 1/4"
  • 1 - 2x8 @ 52"

TABELTOP

  • 4 - 1x6 @ 56-1/2"
  • 2 - 1x6 @ 56-1/2" CUT TO FIT!!! (long point to long point, both ends cut at 45 degrees off square)
  • 2 - 1x6 @ 45-1/2" CUT TO FIT!!! (long point to long point, both ends cut at 45 degrees off square)
  • 2 - 1x6 @ 34-1/2" CUT TO FIT!!! (long point to long point, both ends cut at 45 degrees off square)
  • CUT 2x2 trim pieces to fit

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

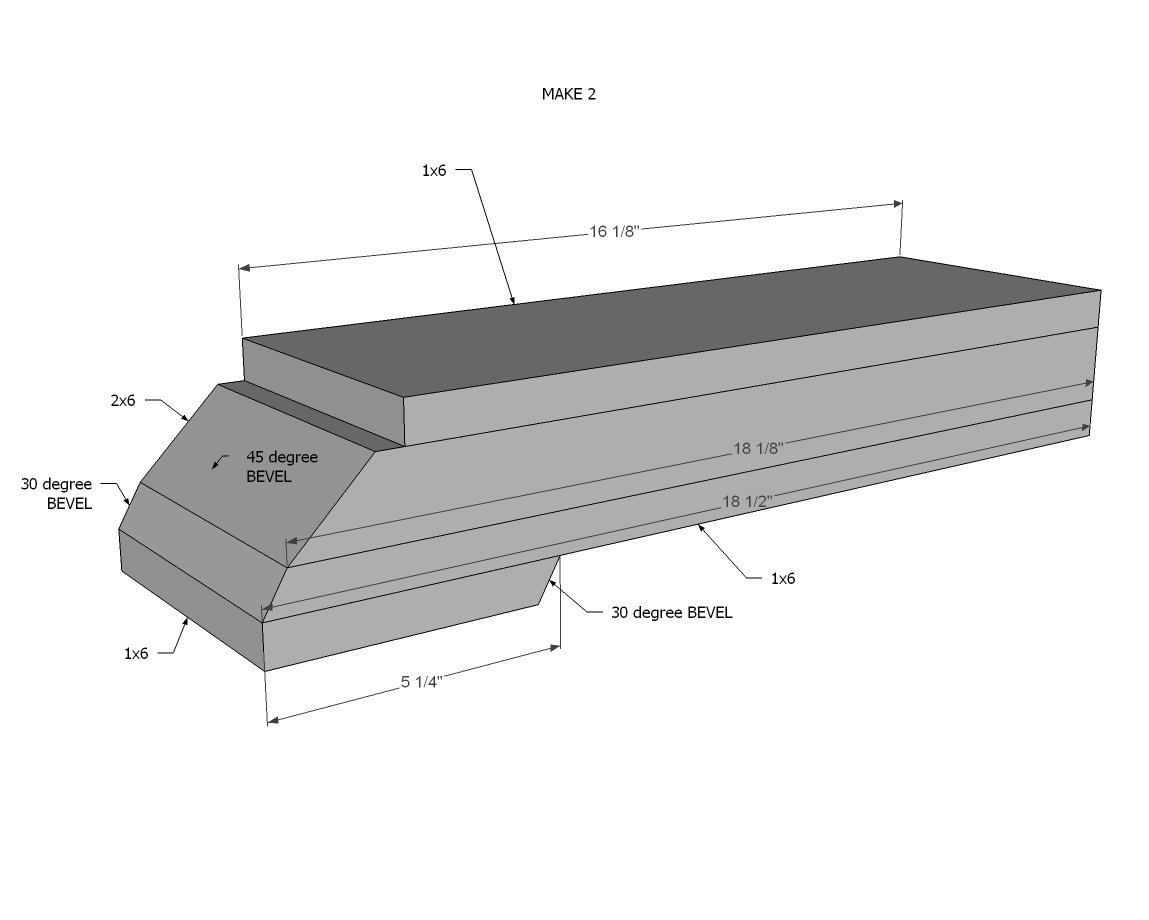

Start by building the two shorter feet - use glue when nailing.

Benchmark Pedestal Base Round or Octagon Table — step 1
2

Step 2

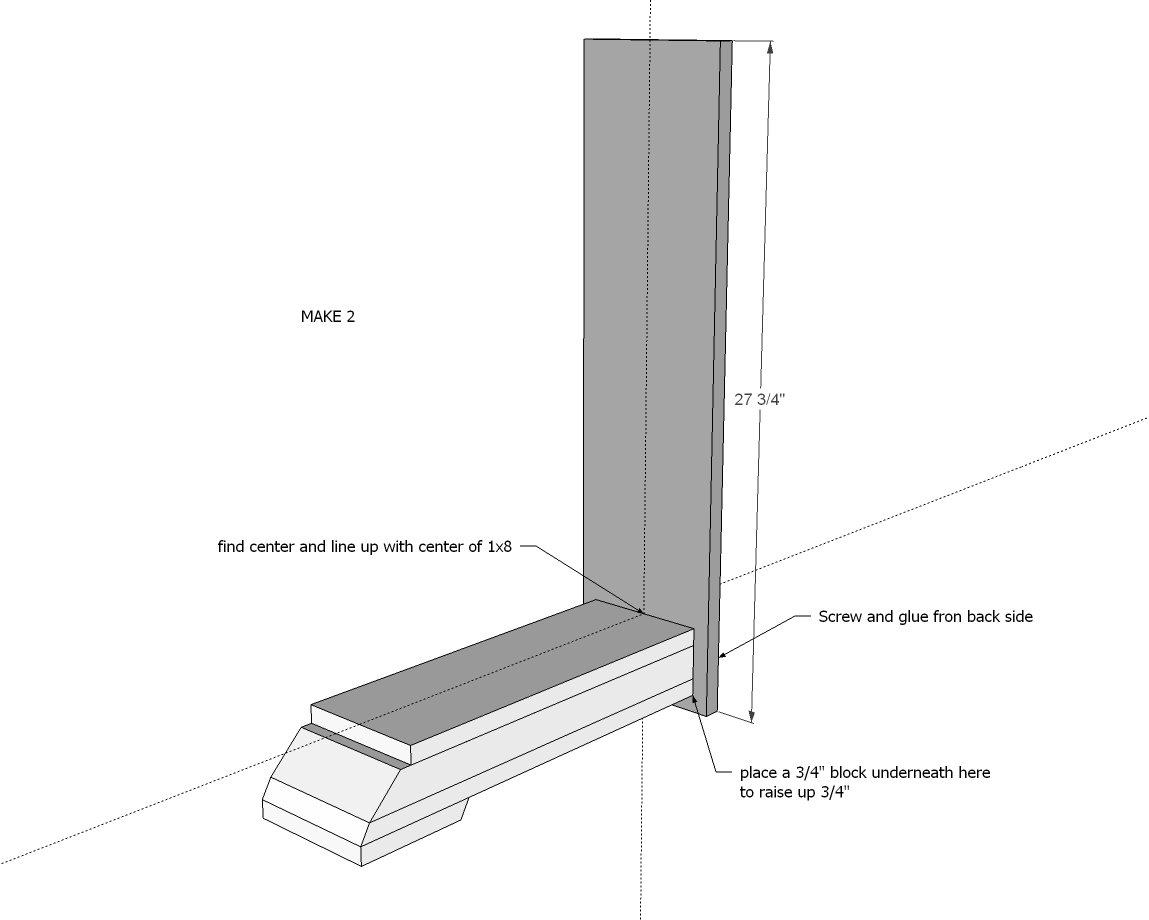

Then attach to uprights that make up the pedestal.

Benchmark Pedestal Base Round or Octagon Table — step 2
3

Step 3

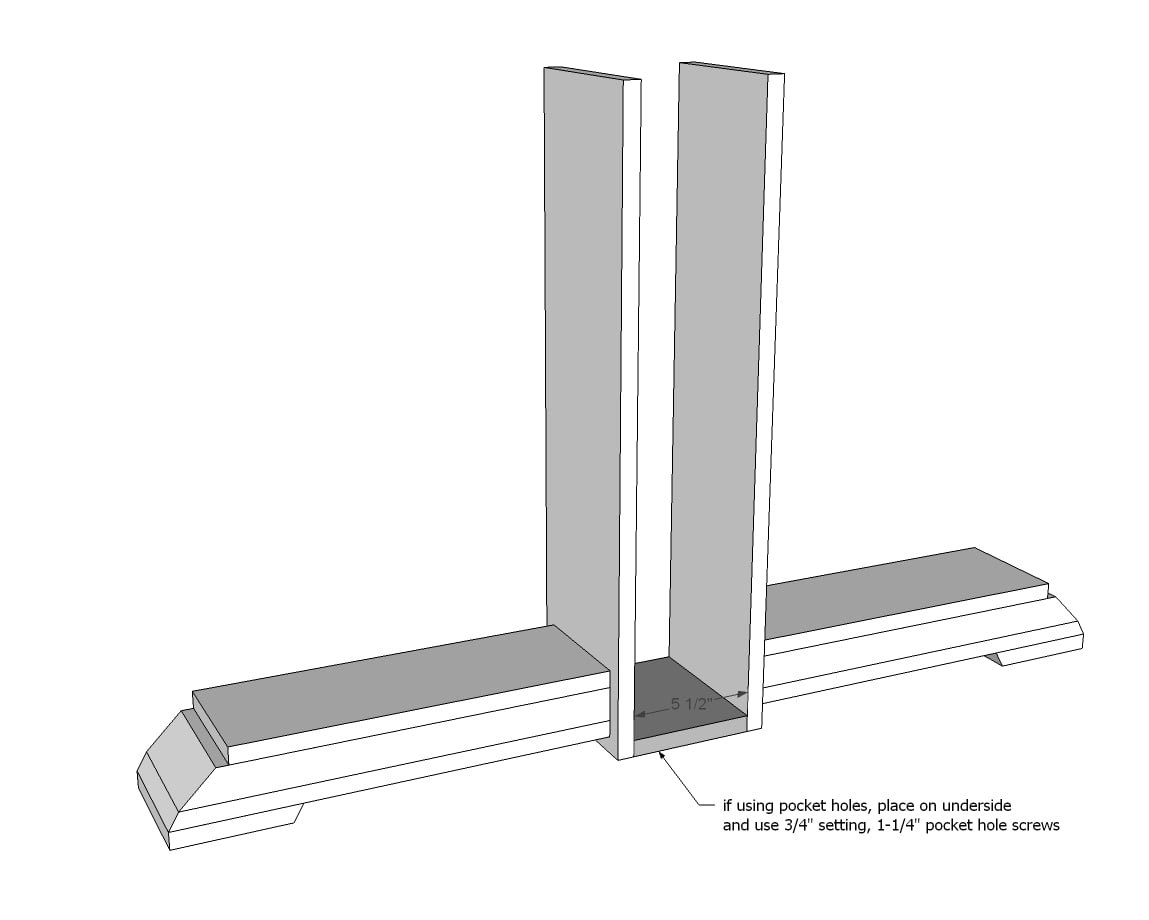

You'll want the center of the pedestal to sit on the floor, so that's why we do this. Attach the two shorter feet pieces together.

Benchmark Pedestal Base Round or Octagon Table — step 3
4

Step 4

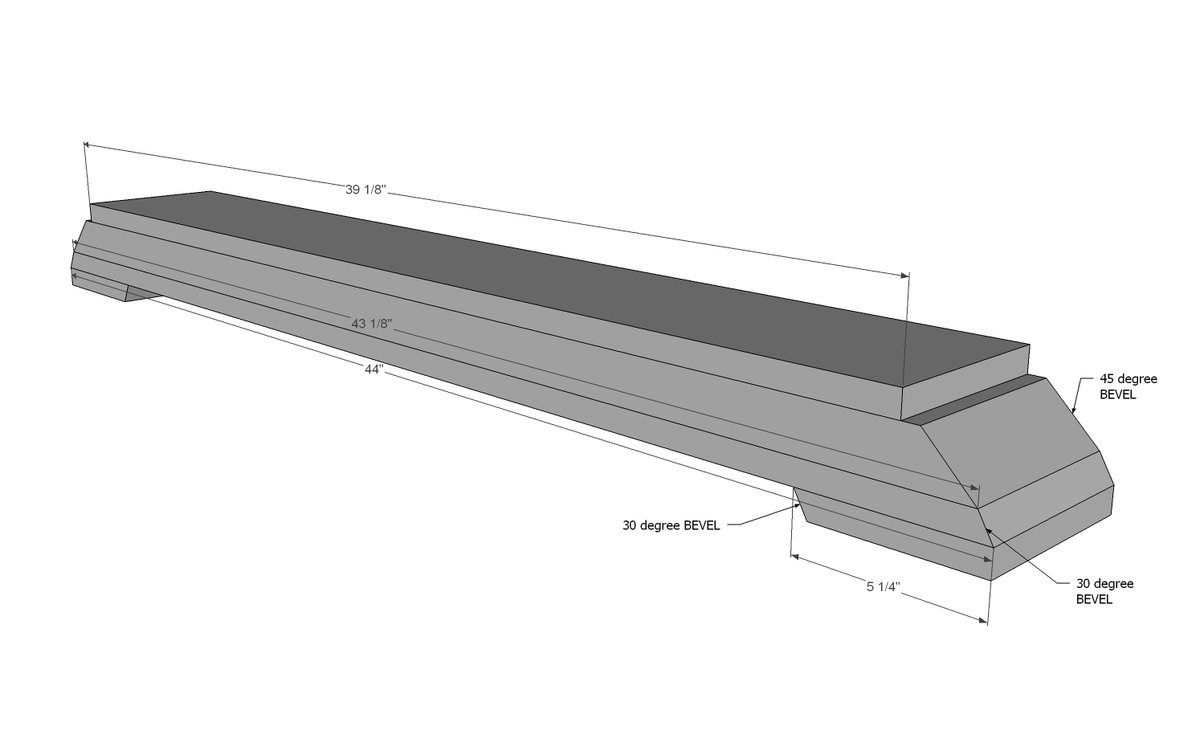

Now build the longer, continuous leg piece that makes up the remaining two feet.

Benchmark Pedestal Base Round or Octagon Table — step 4
5

Step 5

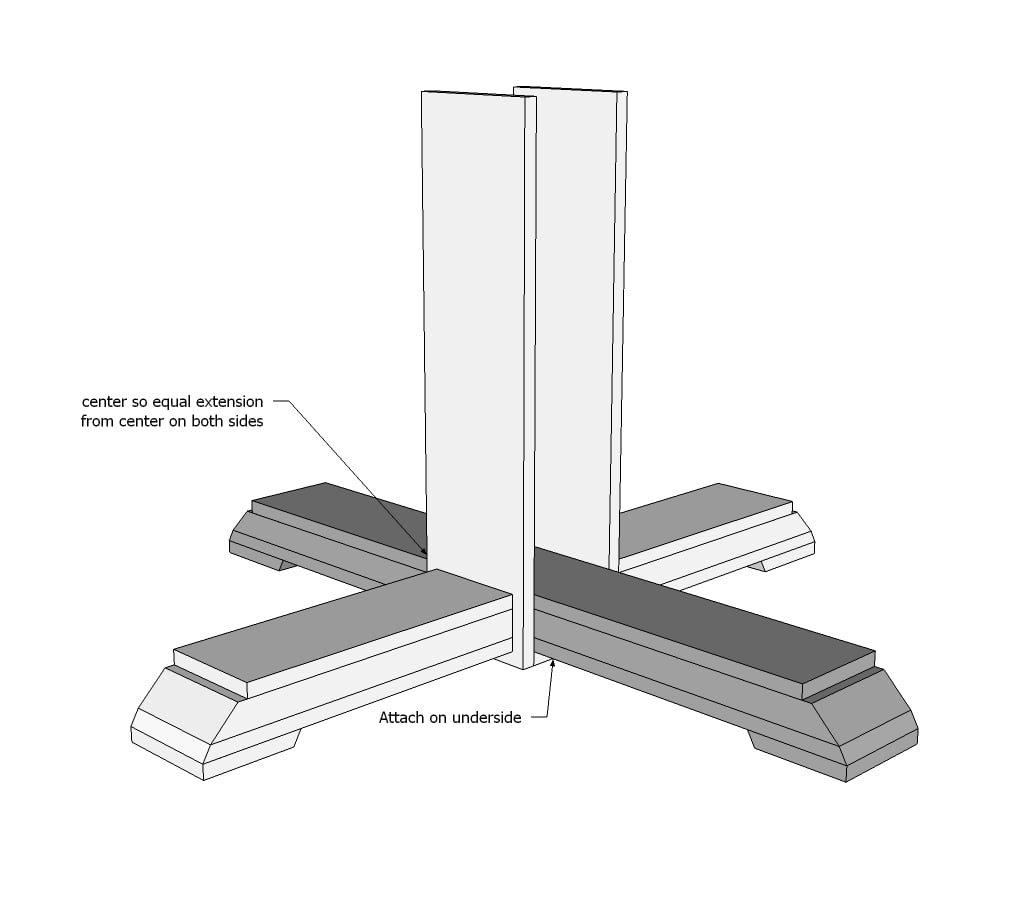

Benchmark Pedestal Base Round or Octagon Table — step 5
6

Step 6

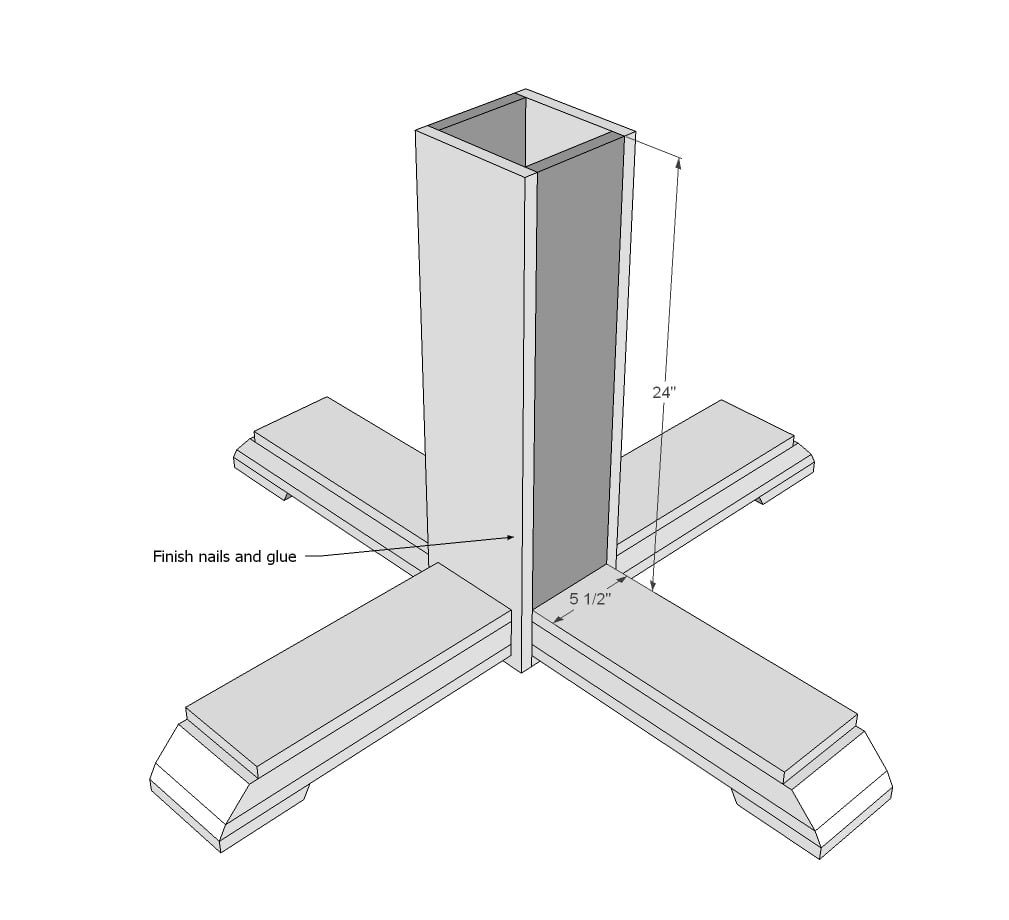

And then attach the remaining pedestal pieces.

Benchmark Pedestal Base Round or Octagon Table — step 6
7

Step 7

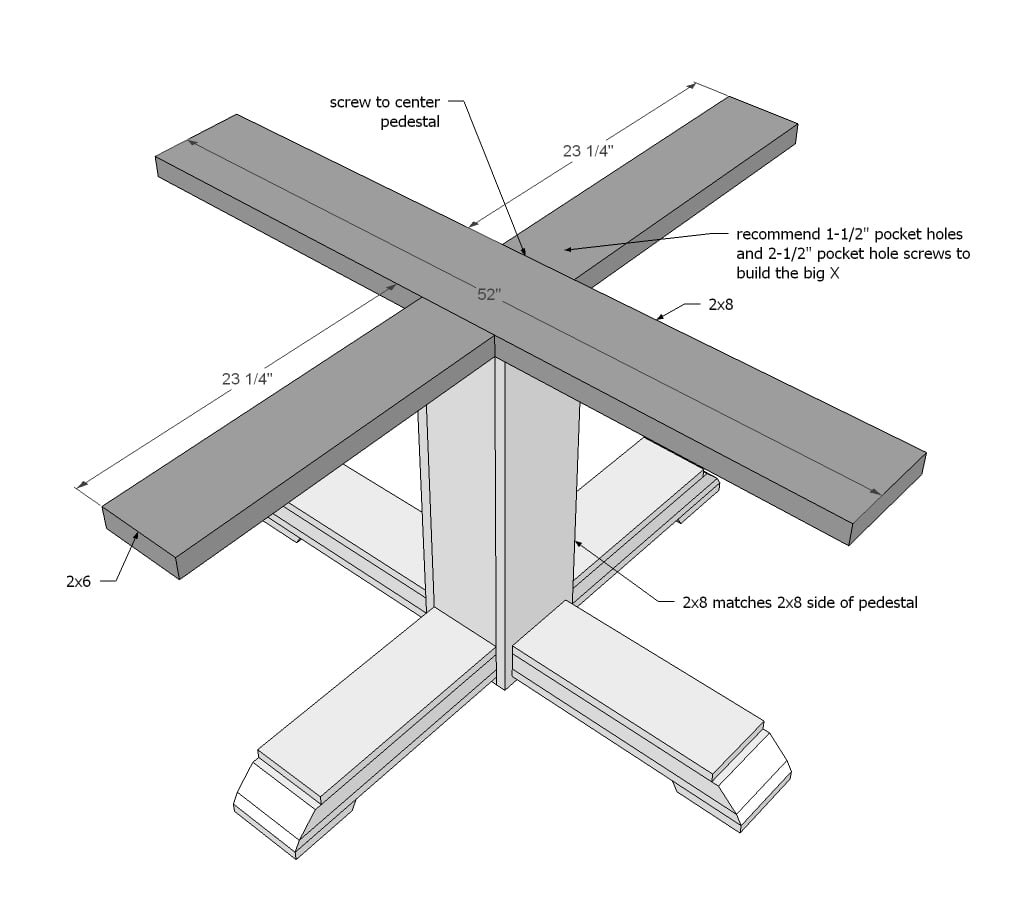

Build the top support base and attach to top of pedestal.

Benchmark Pedestal Base Round or Octagon Table — step 7
8

Step 8

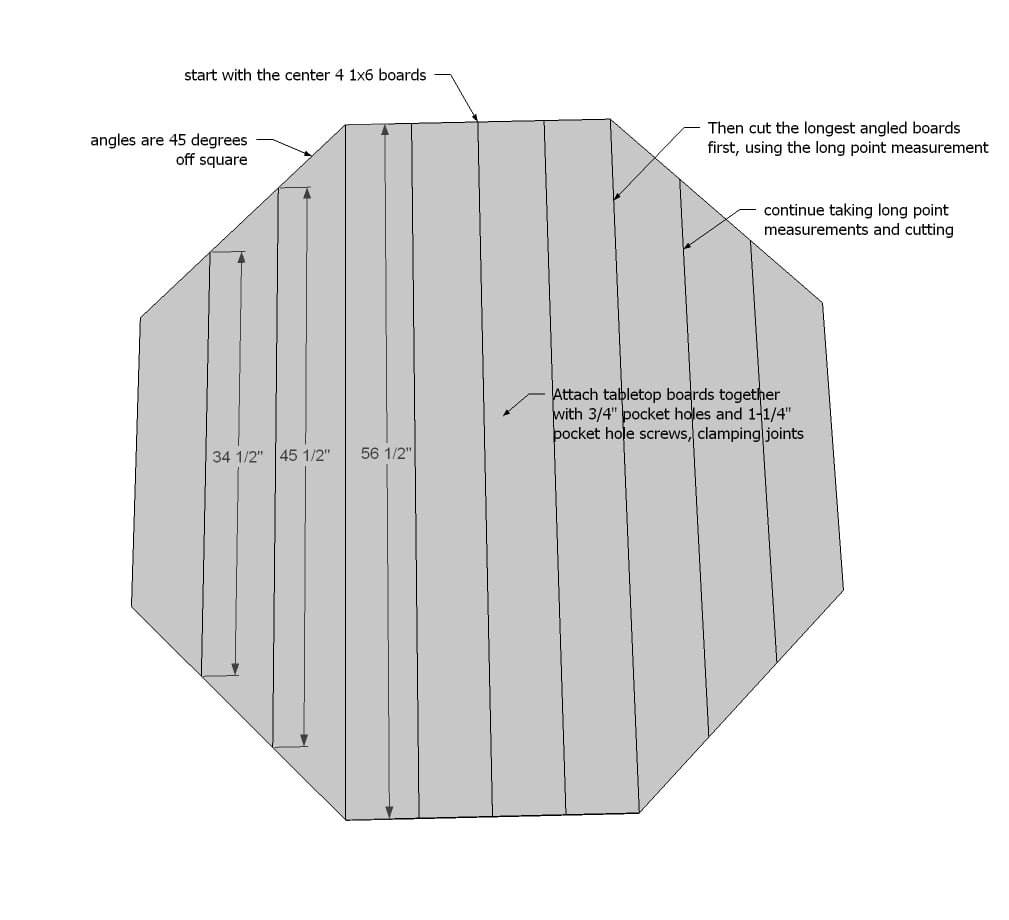

Build your tabletop - cut each angled piece to fit.

Benchmark Pedestal Base Round or Octagon Table — step 8
9

Step 9

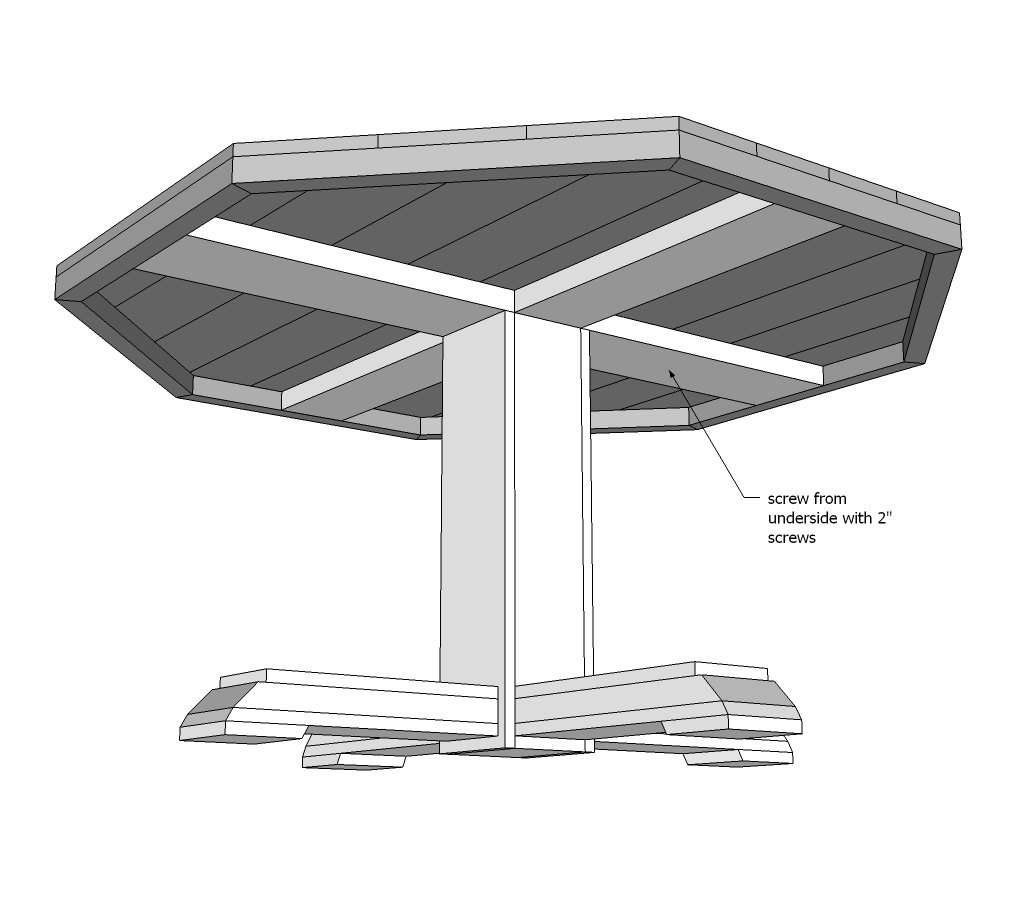

Trim the tabletop out with 2x2s, and then attach the top to the base.

Benchmark Pedestal Base Round or Octagon Table — step 9
10

Step 10

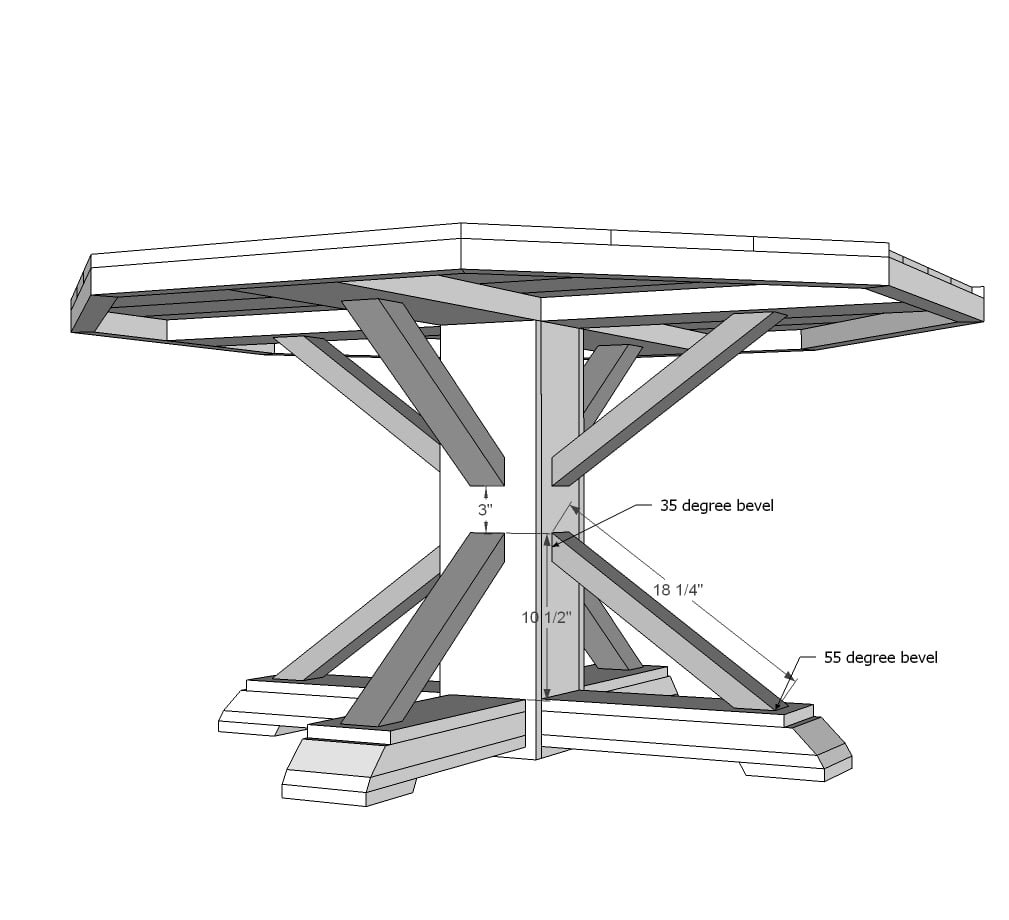

Add the cross supports underneath. If you saw won't cut a 55 degree bevel, you can alter the bevel down to what your saw will cut (ie 40/50 or 45/45 instead of the 35/55). And that's it!!!

Benchmark Pedestal Base Round or Octagon Table — step 10
11

Step 11

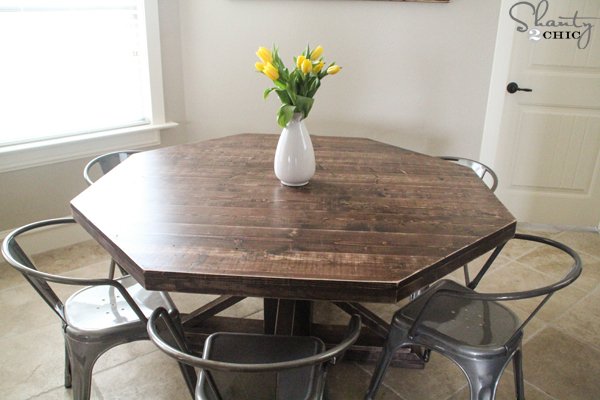

For more details on the finish, more photos, and for building tips, please visit Ashley at Shanty2Chic.

Benchmark Pedestal Base Round or Octagon Table — step 11
12

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
