Benchright Industrial Farmhouse Table
to make an industrial style Farmhouse Table. Features metal stretcher and lots of details to make your table interesting and unique. We also have matching bench plans available here.
Specifications
| Project type | Dining Table Plans |
|---|---|
| Room | dining room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

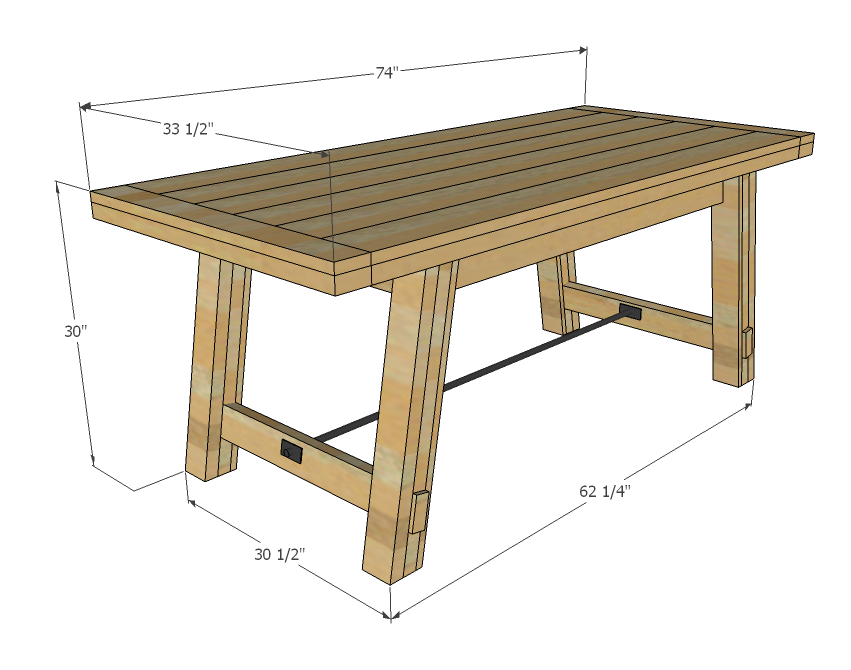

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
6 - 1x6 @ 6 feet long
2 - 1x4 @ 8 feet long
2 - 2x4 @ 8 feet or stud length
2 - 1x2 @ 8 feet long
3 - 2x6 @ 8 feet long
3 - 2x2 @ 8 feet long
1 - Black Iron Pipe 60" long, both ends threaded Bolts/Caps and Washers for decorative touches
4 - 6" Black Bolts with washer and Nuts (1/4" would work fine)
Cut List
Legs
- 4 - 1x4 @ 29 3/8" (Bevel both ends at 10 degrees off square, short point to long point)
- 4 - 1x2 @ 21 5/8" (Both ends cut at angle 10 degrees off square, short point to long point)
- 4 - 2x4 @ 29 3/8" (Bevel both ends at 10 degrees off square, short point to long point)
- 2 - 2x6 @ 28 1/2" (End Aprons)
- 2 - 2x4 @ 31" (Stretcher)
- 8 - 1x2 @ 4 1/4" (One end cut at 10 degree angle, longest point measurement)
- 4 - 1x2 @ 16 1/8 (cut to fit - spacer)
Table
- 2 - 2x6 @ 45 1/4" (Side Aprons - short point to short point measurement, both ends cut at 10 degrees off square)
- 3 - 2x2 @ 20" (Supports)
- 2 - 2x2 @ 67" (Sides)
- 2 - 2x2 @ 30" (Ends)
- 2 - 2x4 @ 33"
- 2 - 1x4 @ 33"
- 6 - 1x6 @ 67 1/8" (cut to fit)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- compound miter saw
- nailer
- sander
- level
- countersink drill bit
Step-by-step Instructions

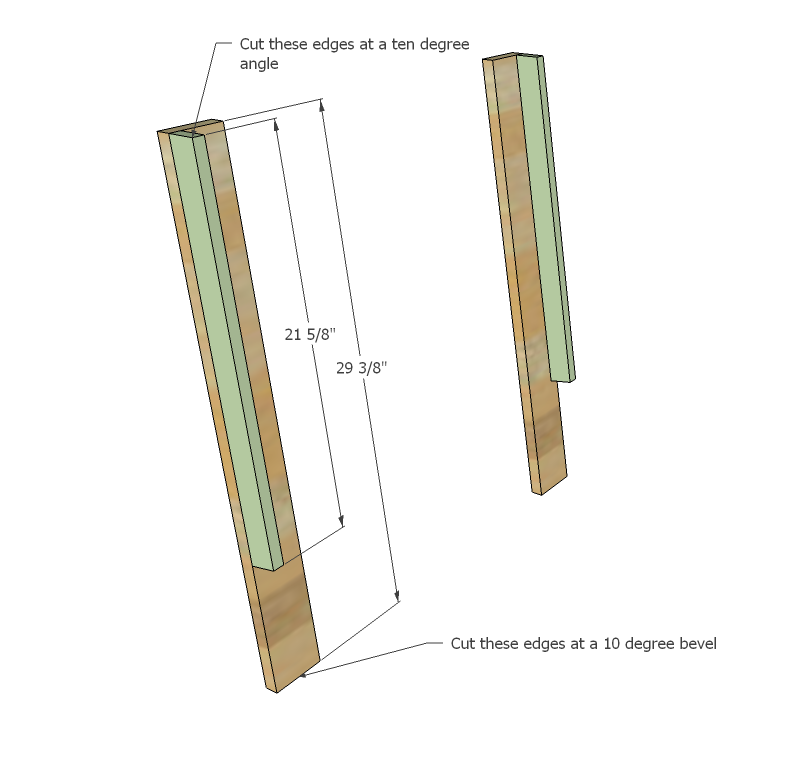

Step 1
We'll start by making the legs. The most important part of the legs is getting your cuts right. Some of the cuts are bevels and some are angles, so pay attention in the diagrams. All angles will be ten degrees off square. Remember, you will need to assemble two sets of legs, and the legs are mirrors of each other. You can use finish nails and glue. Start by attaching the 1x4 to the top 1x2 as shown above.

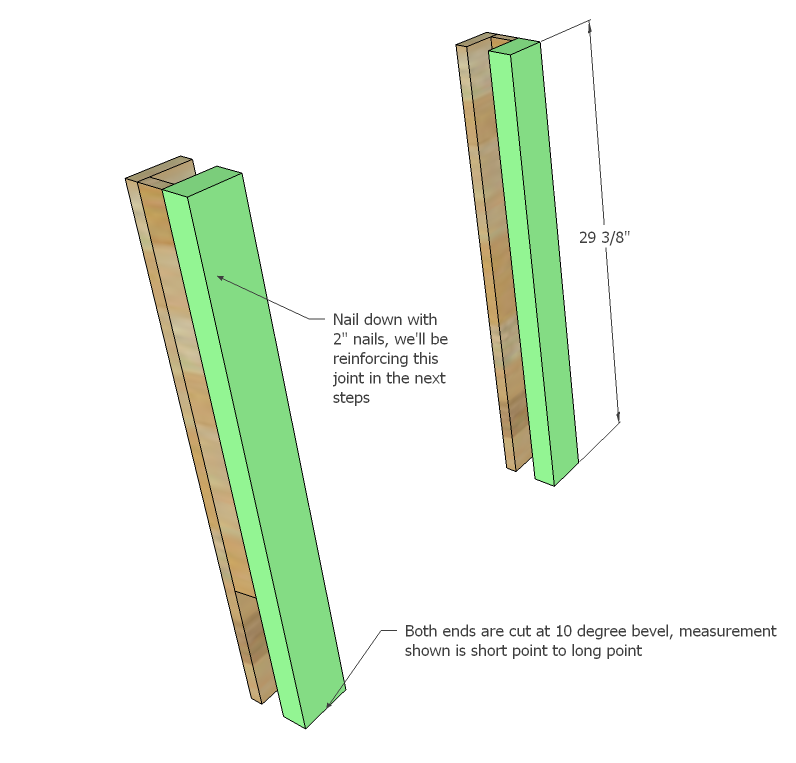

Step 2
Now attach the 2x4 to the legs as shown above. Use glue and 2" finish nails - don't worry, we'll be further suporting this leg shortly.

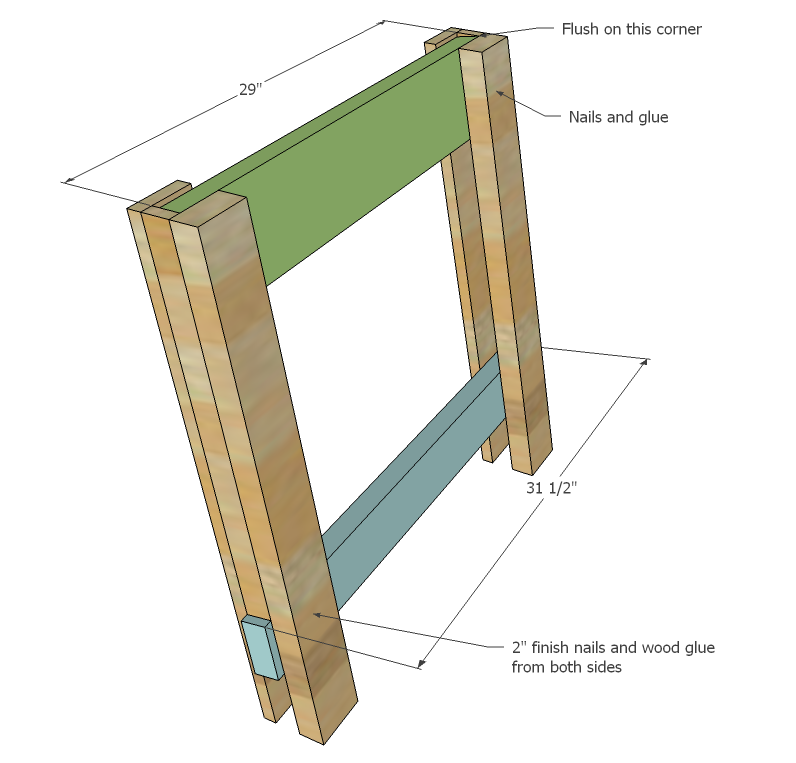

Step 3
Now sandwich in the apron and stretcher as shown above. Stretcher will overhang 1/2" on each outside end.

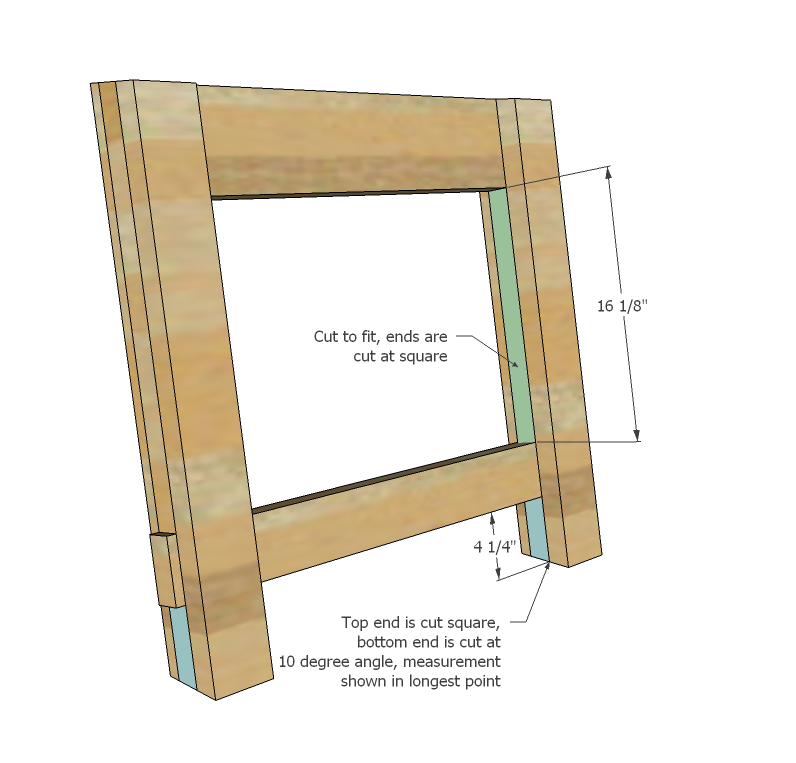

Step 4
And now simply fill in the blanks.

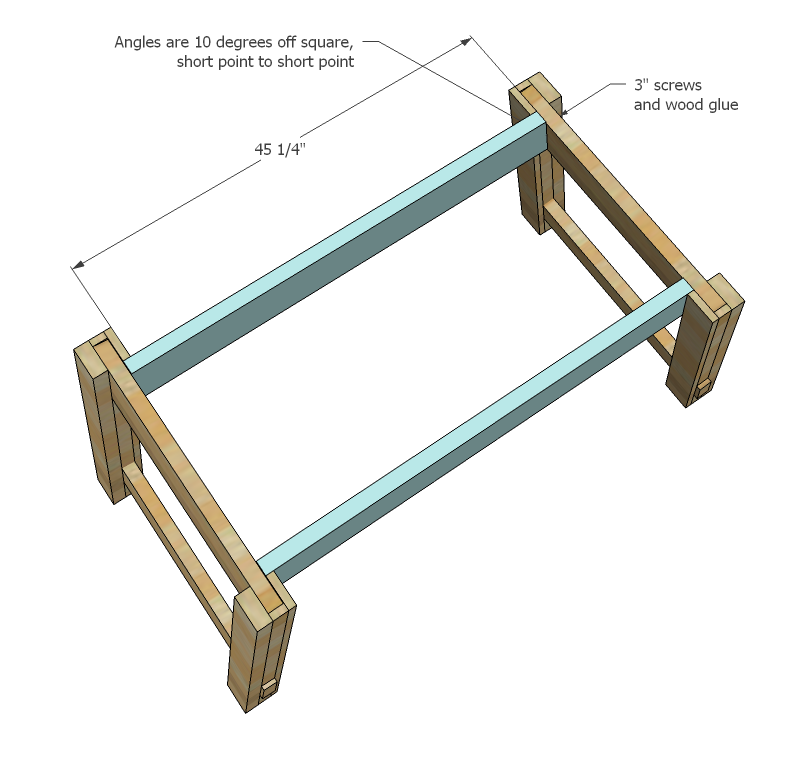

Step 5

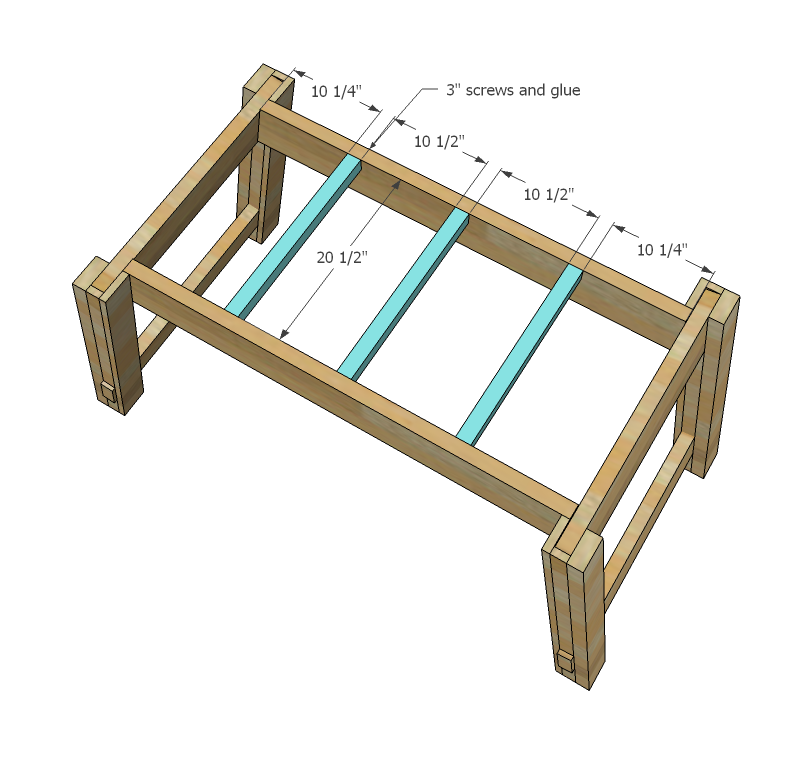

Step 6
And attach the supports - these will give you something to nail your top boards on too.

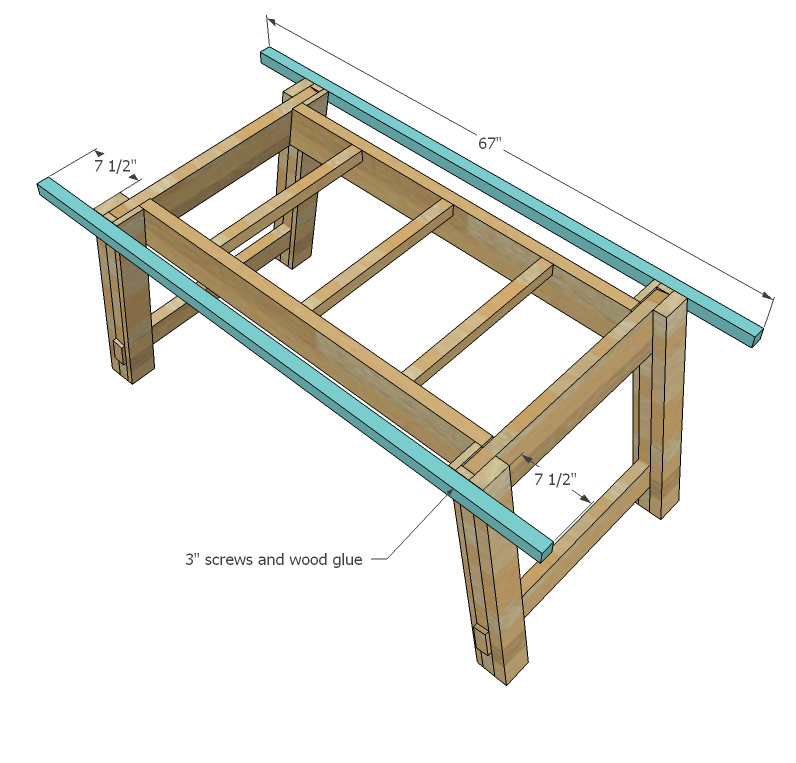

Step 7
I'd love to see these bolted on with a iron bolt for a little extra touch. Attach with 7 1/2" overhangs on ends.

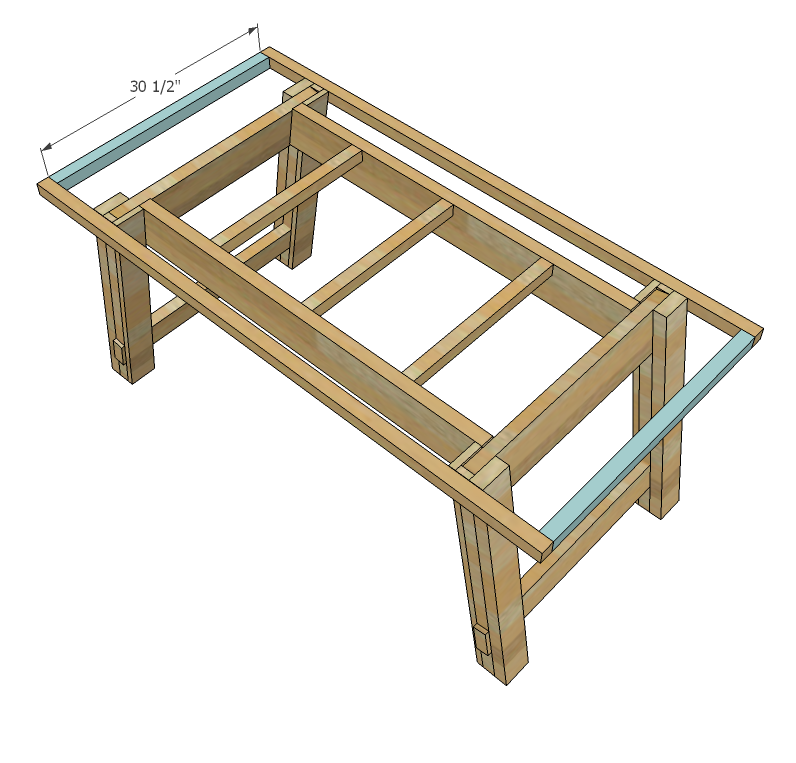

Step 8
Now the end supports. Attach with screws and glue.

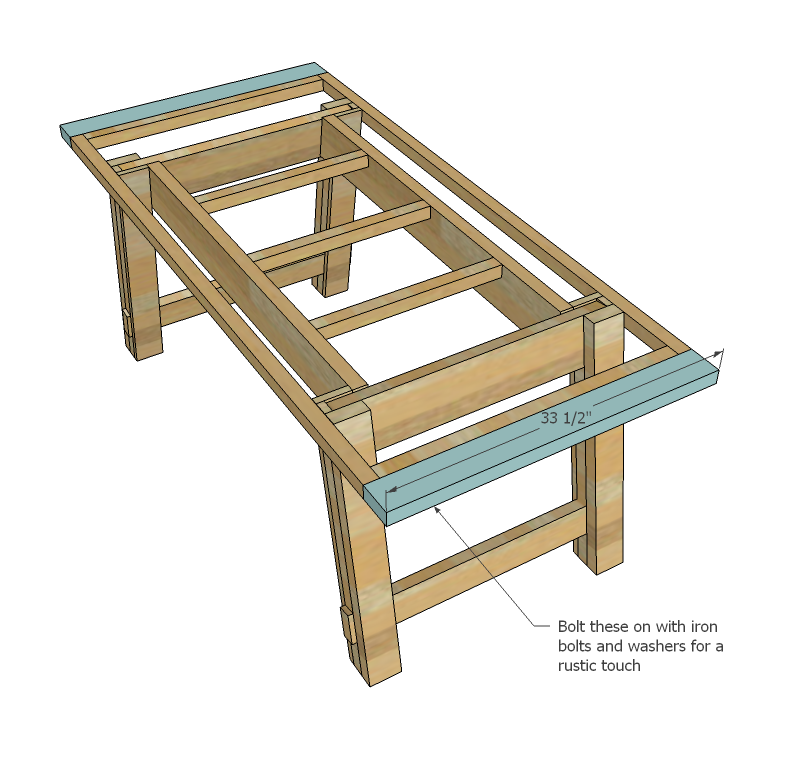

Step 9
Bolt the breadboard end on as shown above. Use 6" bolts with washers as done here.

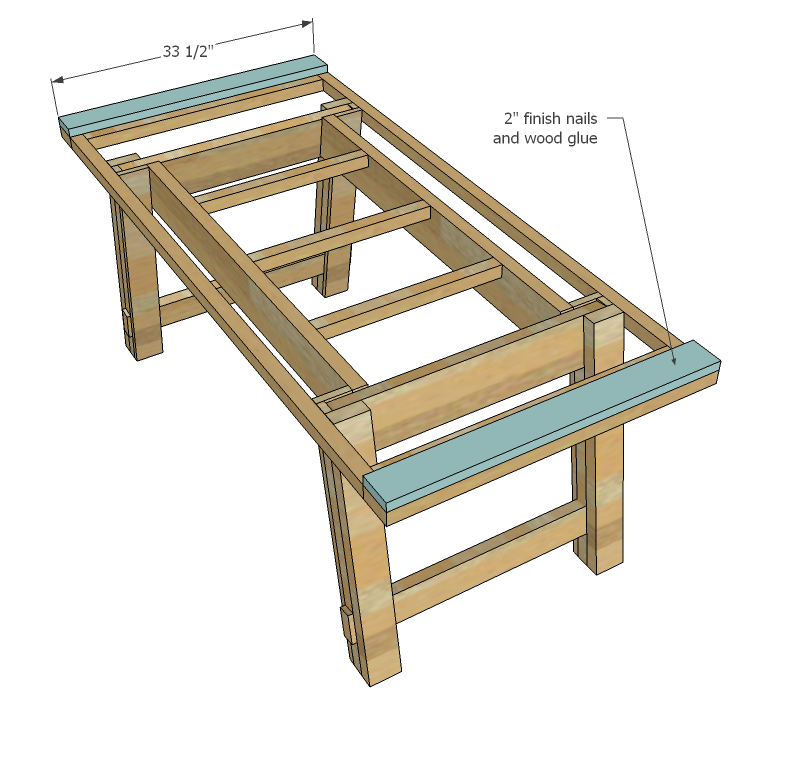

Step 10
Nail down the 1x4 to the ends as shown here.

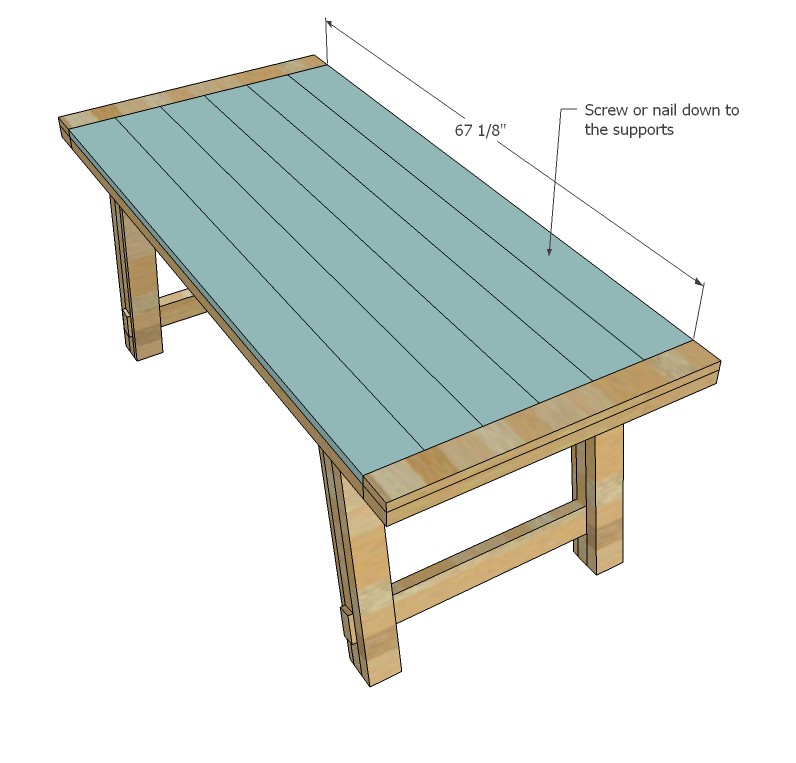

Step 11
And finally top with the 1x6s. Note, you can use other boards for the top, for example reclaimed wood boards for a more rustic look.

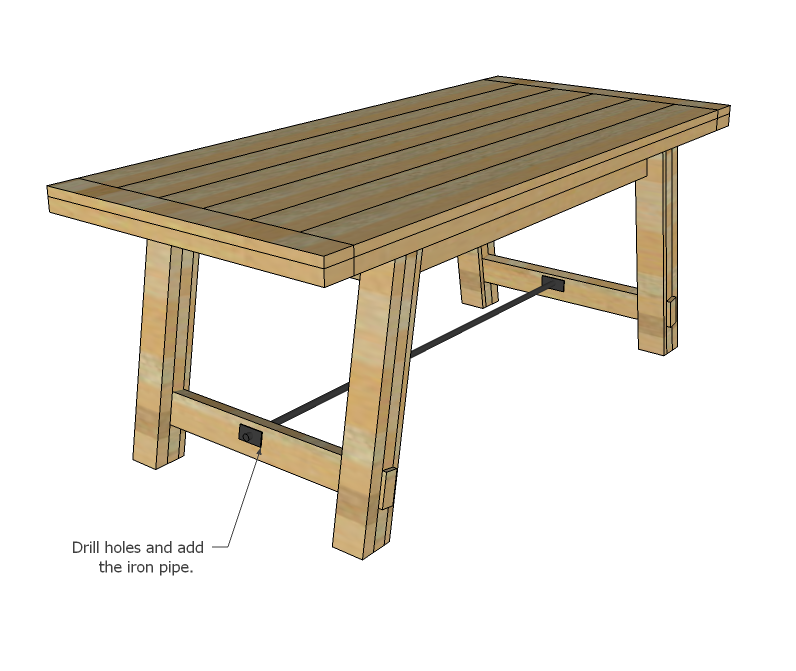

Step 12
Drill holes in the stretchers and add iron pipe. Use fittings to secure pipe in place.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
