Benchright Round End Tables

Make this side table inspired by Pottery Barn Benchwright Side Table! from!

Benchright Round End Tables

Specifications

Project typeSide and End Table Plans
RoomBedroom
StyleFarmhouse Furniture
DifficultyAdvanced
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

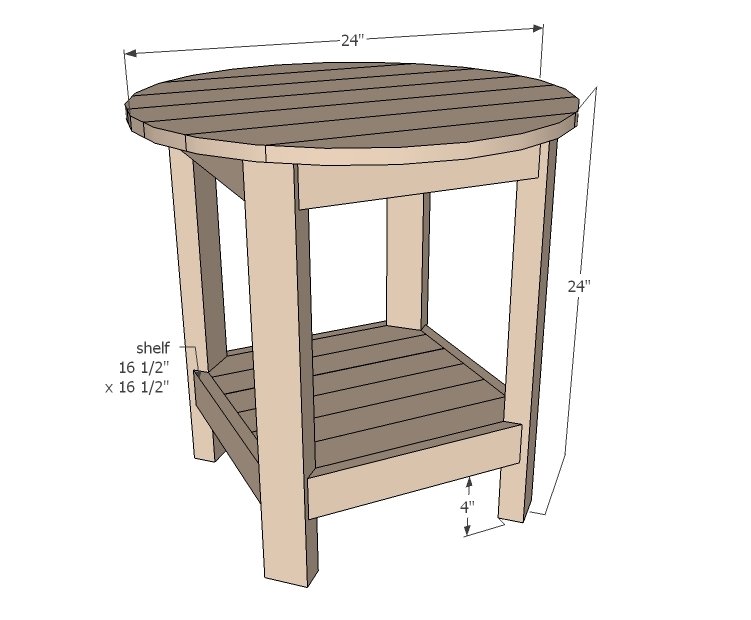

Benchright Round End Tables dimension diagram 1

Shopping List

  • 3 – 1x3 boards 8 feet long
  • 1 – 2x3 board 8 feet long
  • 2 – 1x4 boards, 8 feet long OR 24” round tabletop
  • 1 1/4" pocket hole screws
  • 2” brad nails
  • Decorative bolts or nails

*If you can't find 2x3s (Our Home Depot stocks them) you can rip a 2x6 into two 2x3s. 2x3 needs to measure 1 1/2" x 2 1/2".

Cut List

BASE

  • 6 – 1x3 @ 15” (Bottom Shelf Boards)
  • 4 – 2x3 @ 23 1/4" (Legs)
  • 8 – 1x3 @ 13” (both ends beveled at 45 degrees off square, not parallel, long point to long point)

TABLETOP

  • 1 – 1x4 @ 24”
  • 2 – 1x4 @ 23 1/2"
  • 2 – 1x4 @ 21 3/8”
  • 2 – 1x4 @ 16 1/4"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • sander
  • countersink drill bit

Step-by-step Instructions

1

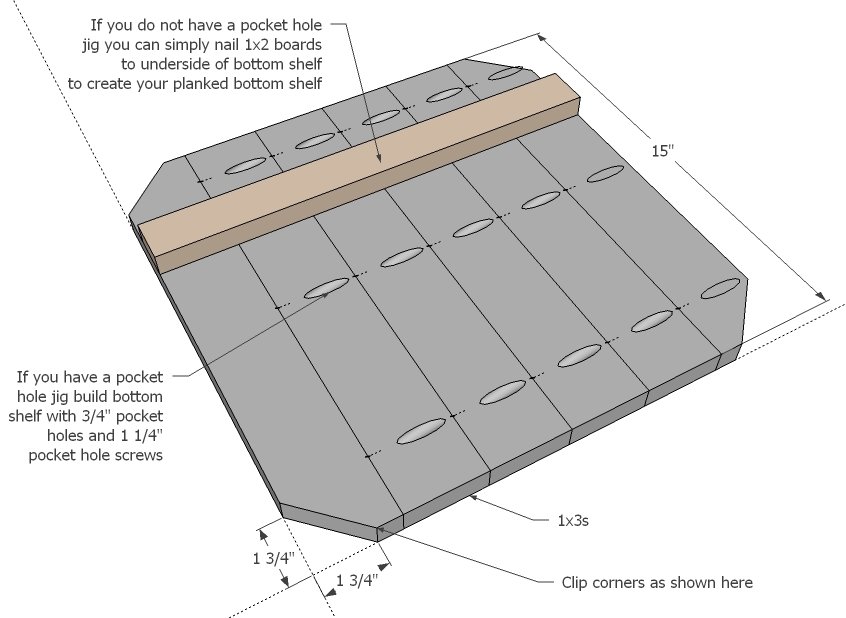

Step 1

Build your bottom shelf as shown here. You can use the Kreg Jig or just a wood block underneath to attach.

Benchright Round End Tables — step 1
2

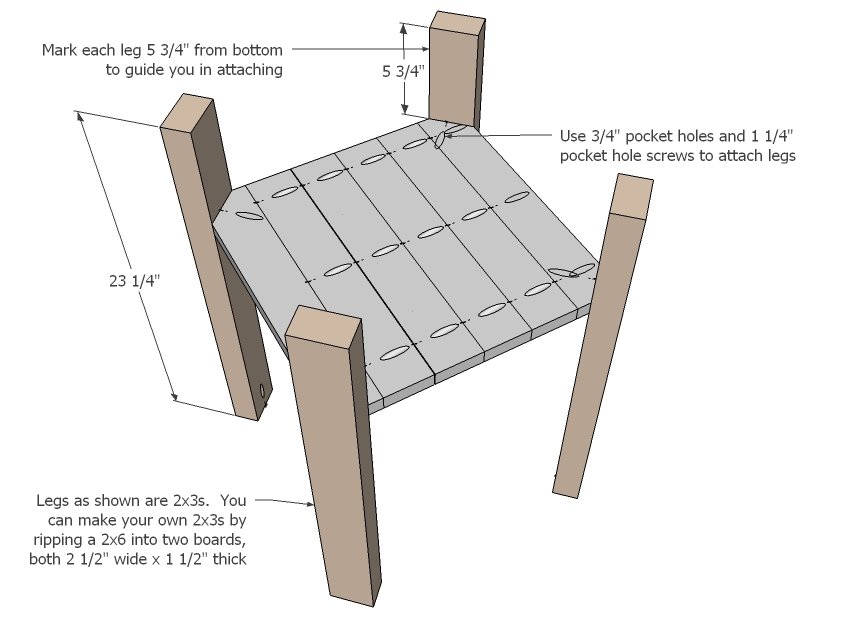

Step 2

Then add legs to bottom shelf as shown above.

Benchright Round End Tables — step 2
3

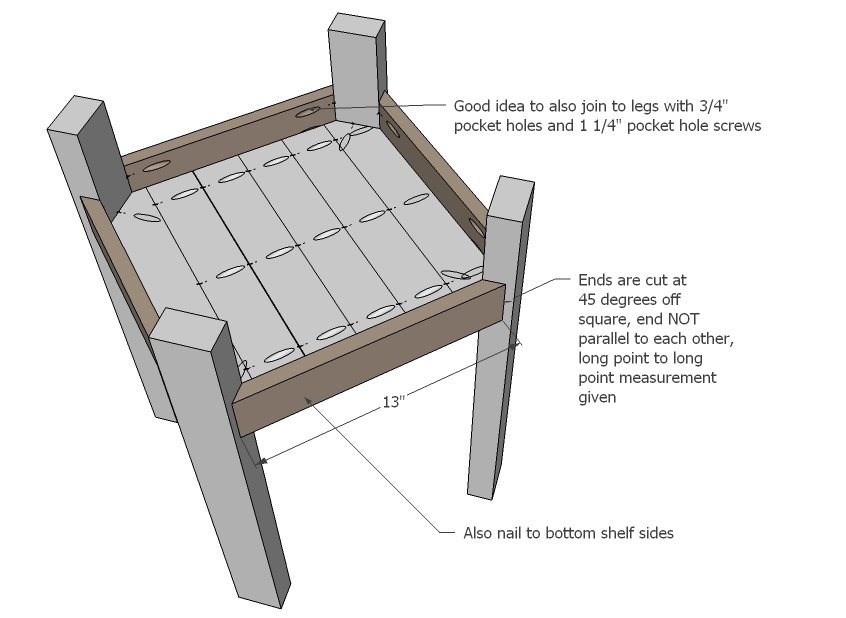

Step 3

Followed by the side aprons.

Benchright Round End Tables — step 3
4

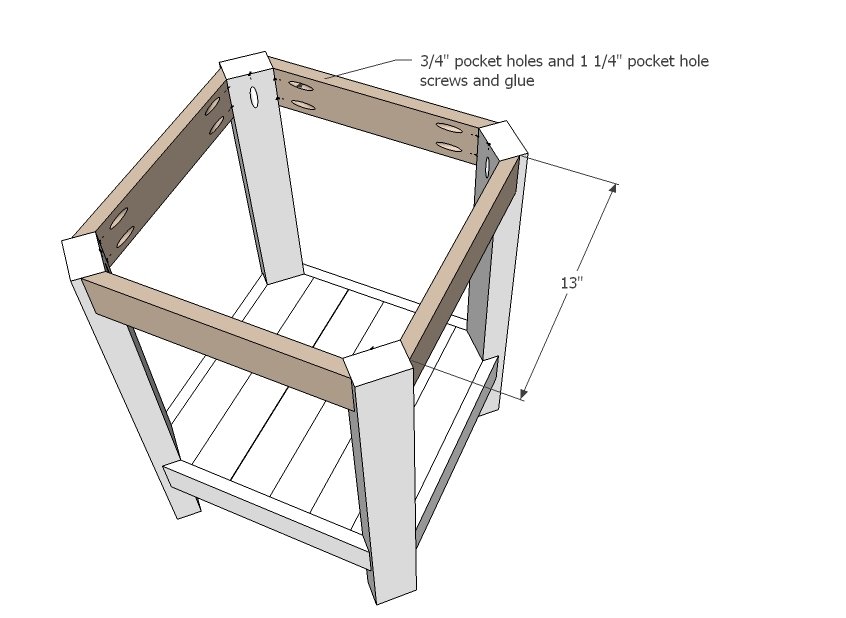

And then the top aprons. I recommend 3/4" PHs and 1 1/4" PH screws here.

NOTE: To attach top with PHs later, drill 3/4" PHs facing upward on aprons.

Benchright Round End Tables — step 4
5

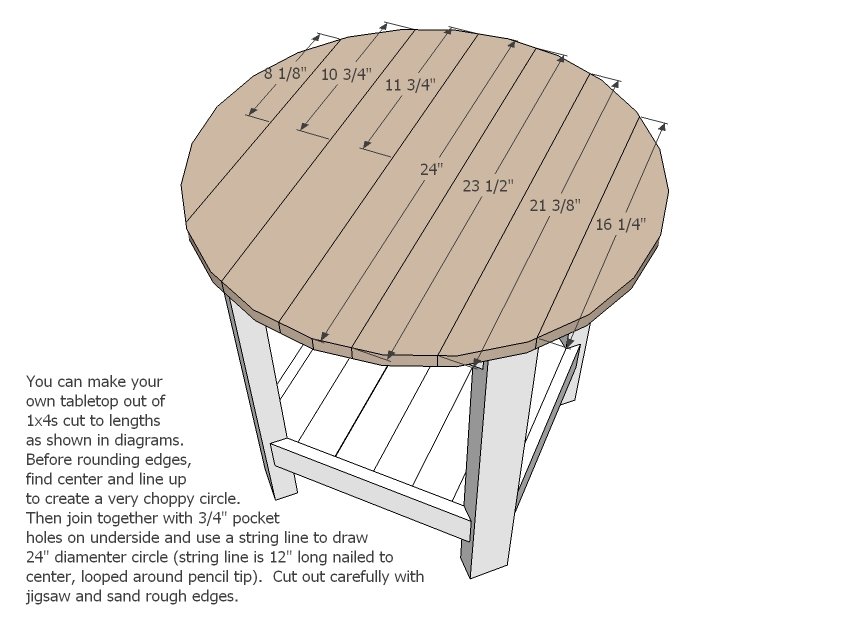

Step 5

Benchright Round End Tables — step 5
6

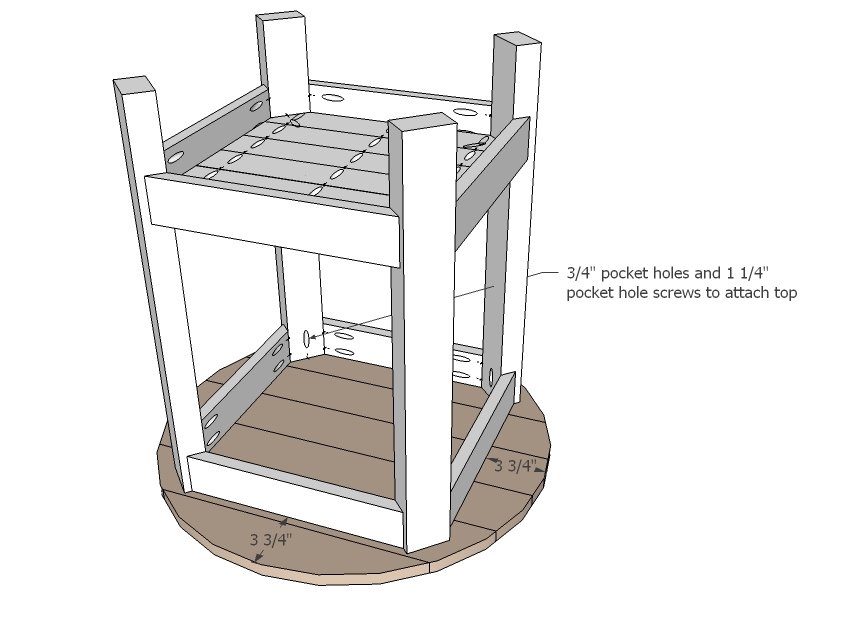

Step 6

Attach top to base. You can use decorative nails or screw through aprons.

Benchright Round End Tables — step 6
7

Step 7

More details from Ashley are located here.

8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
