Birdhouse Bath Shelf with Towel Bar

to build a cute bath shelf with towel bar that looks like a birdhouse from

Birdhouse Bath Shelf with Towel Bar

Specifications

Project typeshelves
RoomBathroom
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

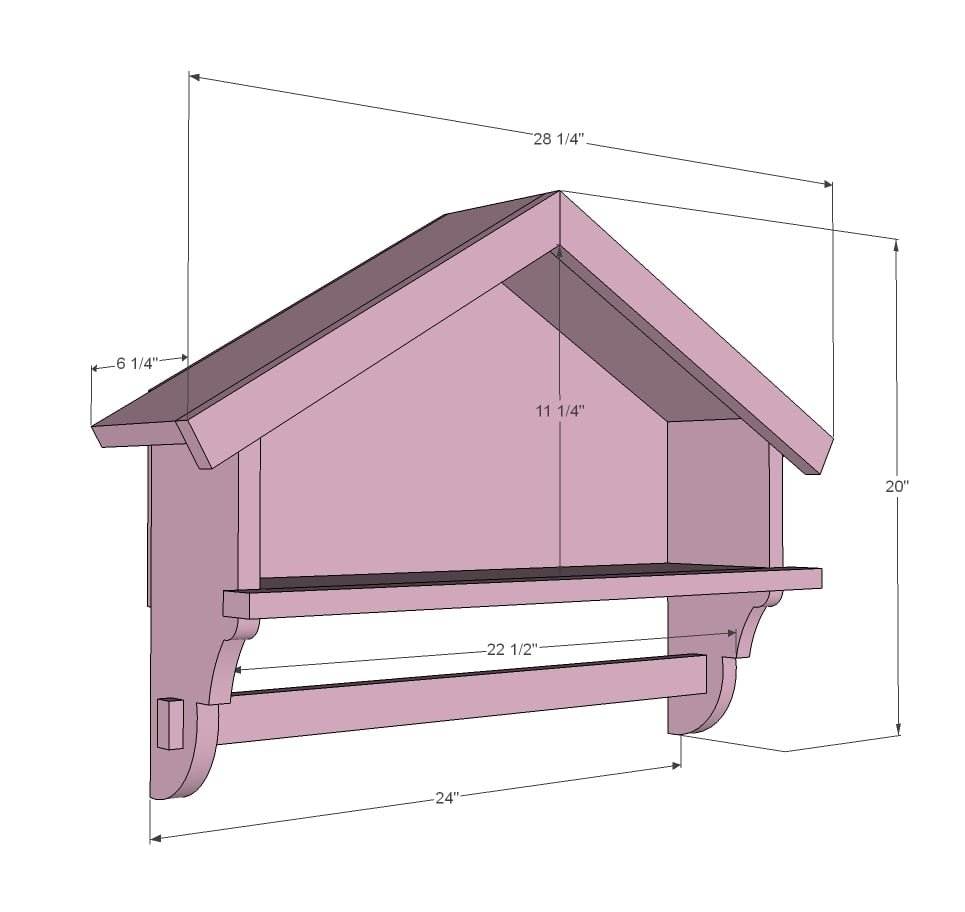

Birdhouse Bath Shelf with Towel Bar dimension diagram 1

Shopping List

1 - 1x6 @ 8 feet long

1 - 1x2 @ 8 feet long

Plywood or beadboard scrap 24" x 13 3/4"

1 1/4" and 2" finish nails

wood glue

Cut List

2 - 1x6 @ 12 1/2" long (longest point measurement with top end beveled at 30 degrees off square)

1 - 1x6 @ 22 1/2"

2 - 1x6 @ 16 1/4" (top end beveled at 30 degrees off square, longest point measurement)

1 - 1/4" plywood (I used beadboard scrap) 24" x 13 3/4"

2 - 1x2 @ 16 1/4" (top end ANGLED at 30 degrees off square, longest point measurement)

2 - 1x2 @ 25"

Tools

  • measuring tape
  • square
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • jigsaw
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

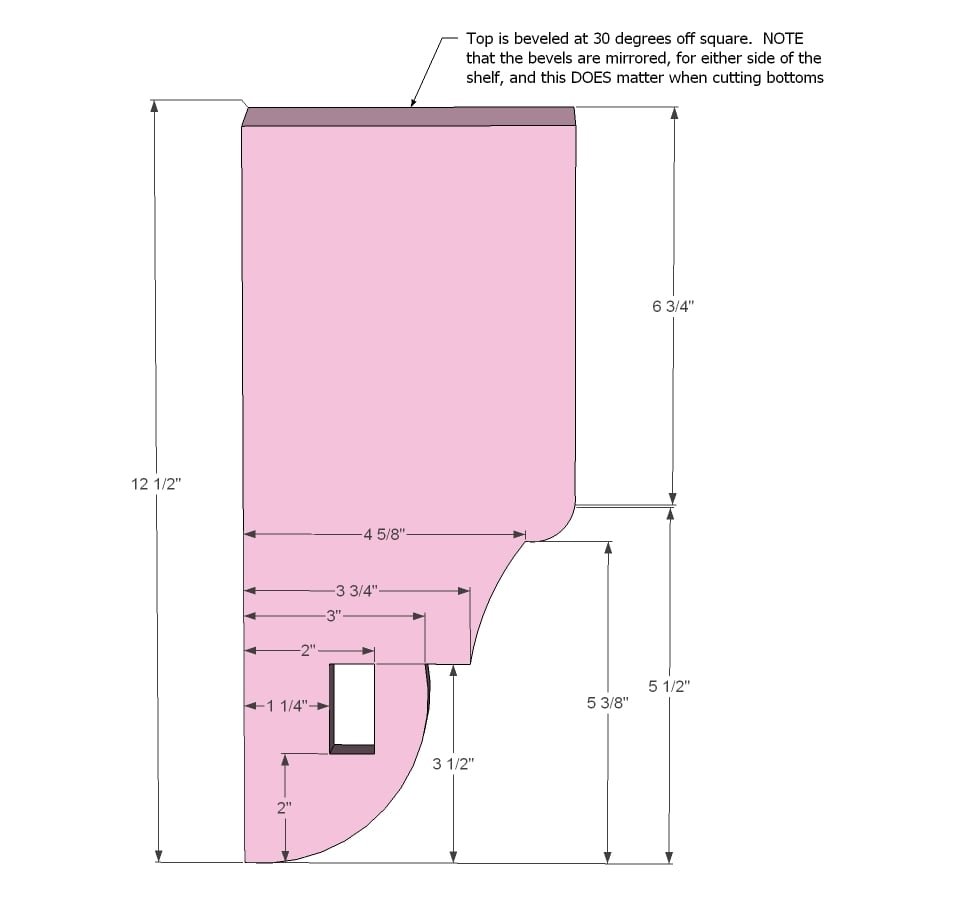

Cut out the sides with a jigsaw, keeping in mind the top bevels need to stay beveling upward, so the two sides are actually cut in MIRROR. I used a drill bit to drill out the 1x2 towel bar opening in all the corners, and then connected the dots. This was actually more difficult than it seems, so perhaps practice first on a scrap. Sand the two jigsaw cut edges now to make match and smooth.

Birdhouse Bath Shelf with Towel Bar — step 1
2

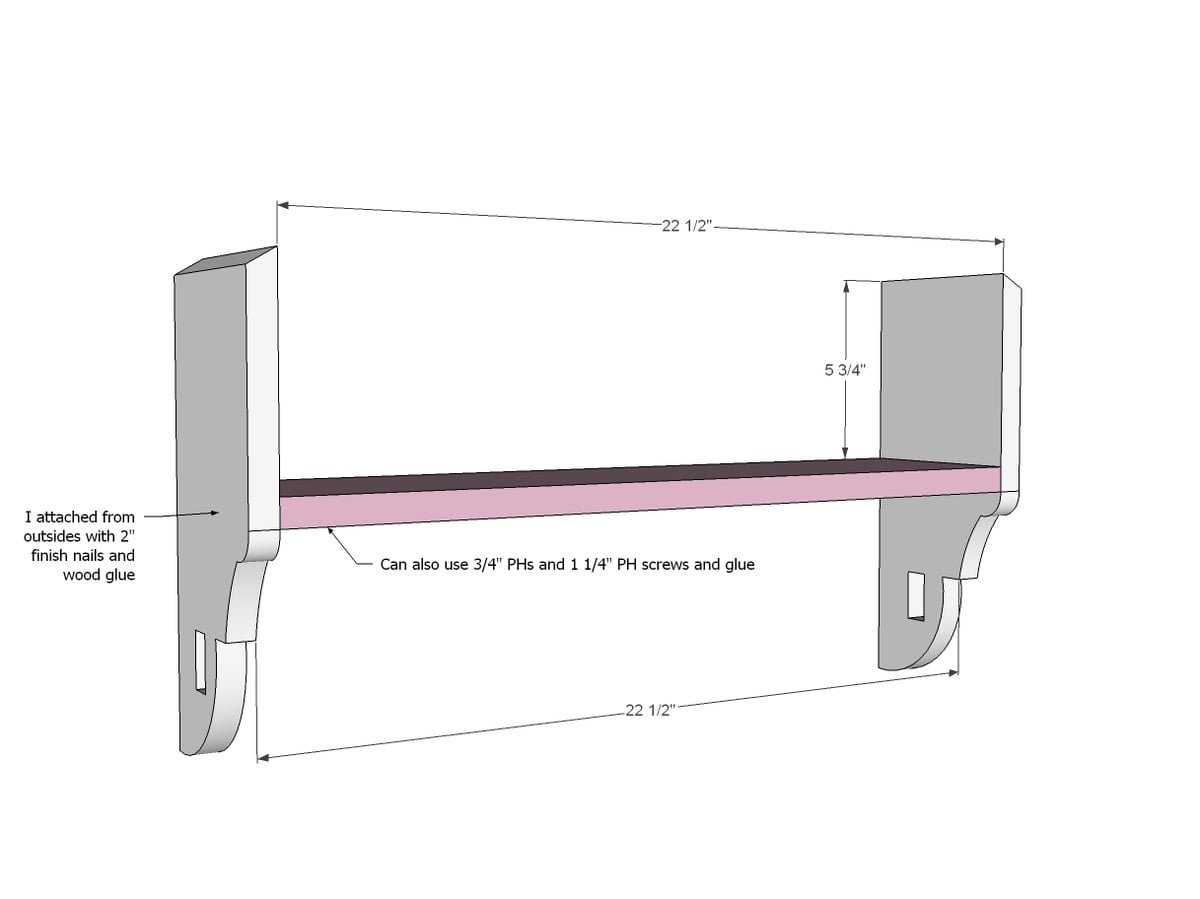

Step 2

With the two ends beveling upward at tops, attach shelf. I just nailed and glued.

Birdhouse Bath Shelf with Towel Bar — step 2
3

Step 3

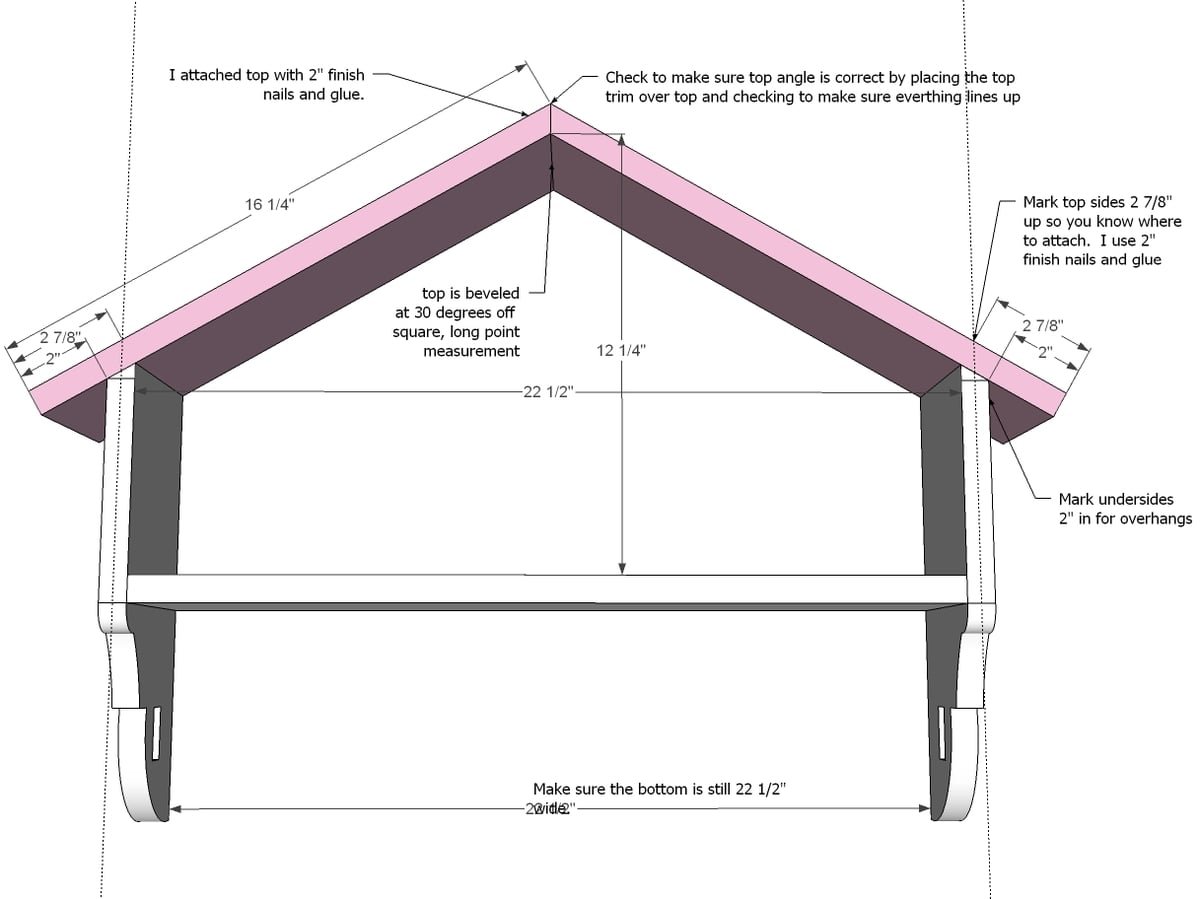

Mark the top "roof" pieces on the underside and top side so you know where to attach and line up. If you have the back plywood piece cut, you can also use it as a pattern by laying the shelf on top and matching edges. Attach with nails and glue. Also check to make sure the top angles match the angles for the trim you attach in step 5.

Birdhouse Bath Shelf with Towel Bar — step 3
4

Step 4

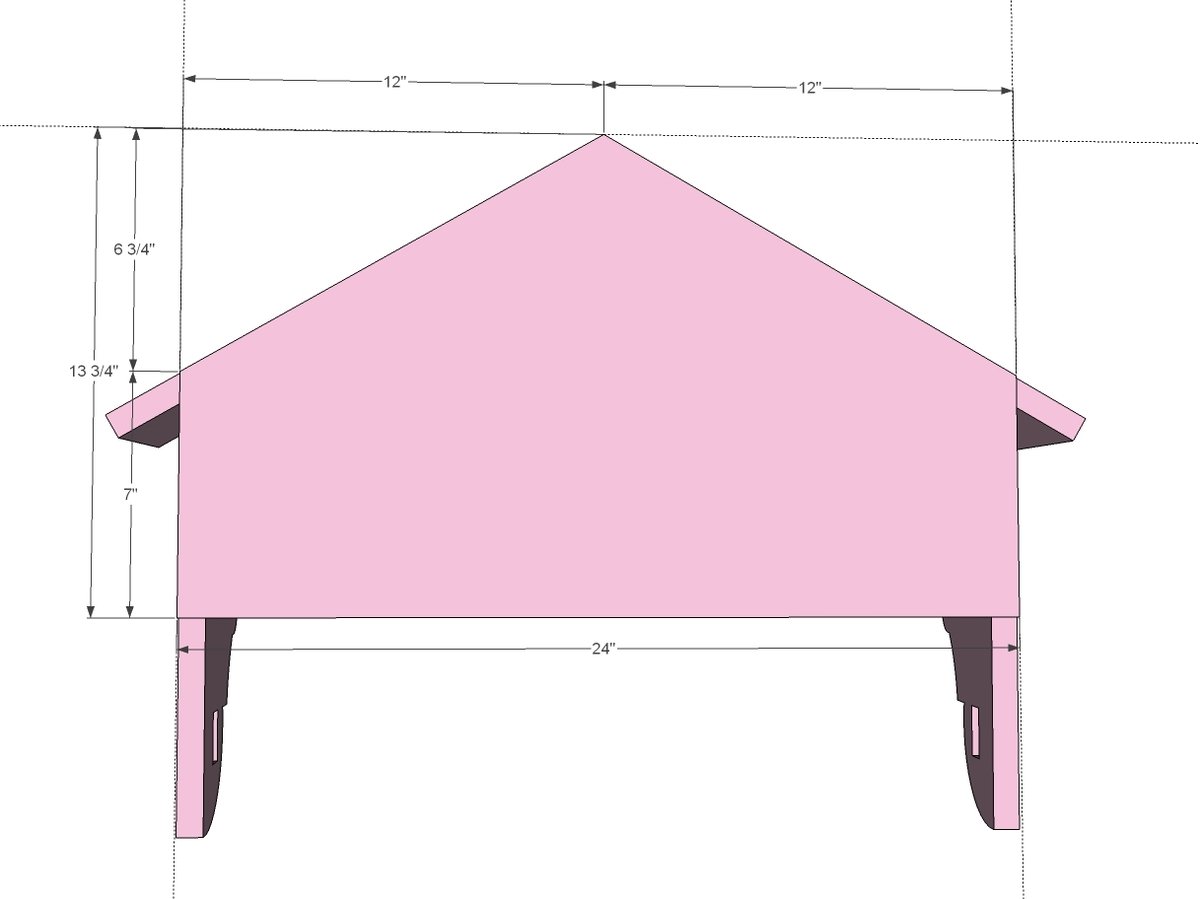

Attach back with 1 1/4" finish nails and glue.

Birdhouse Bath Shelf with Towel Bar — step 4
5

Step 5

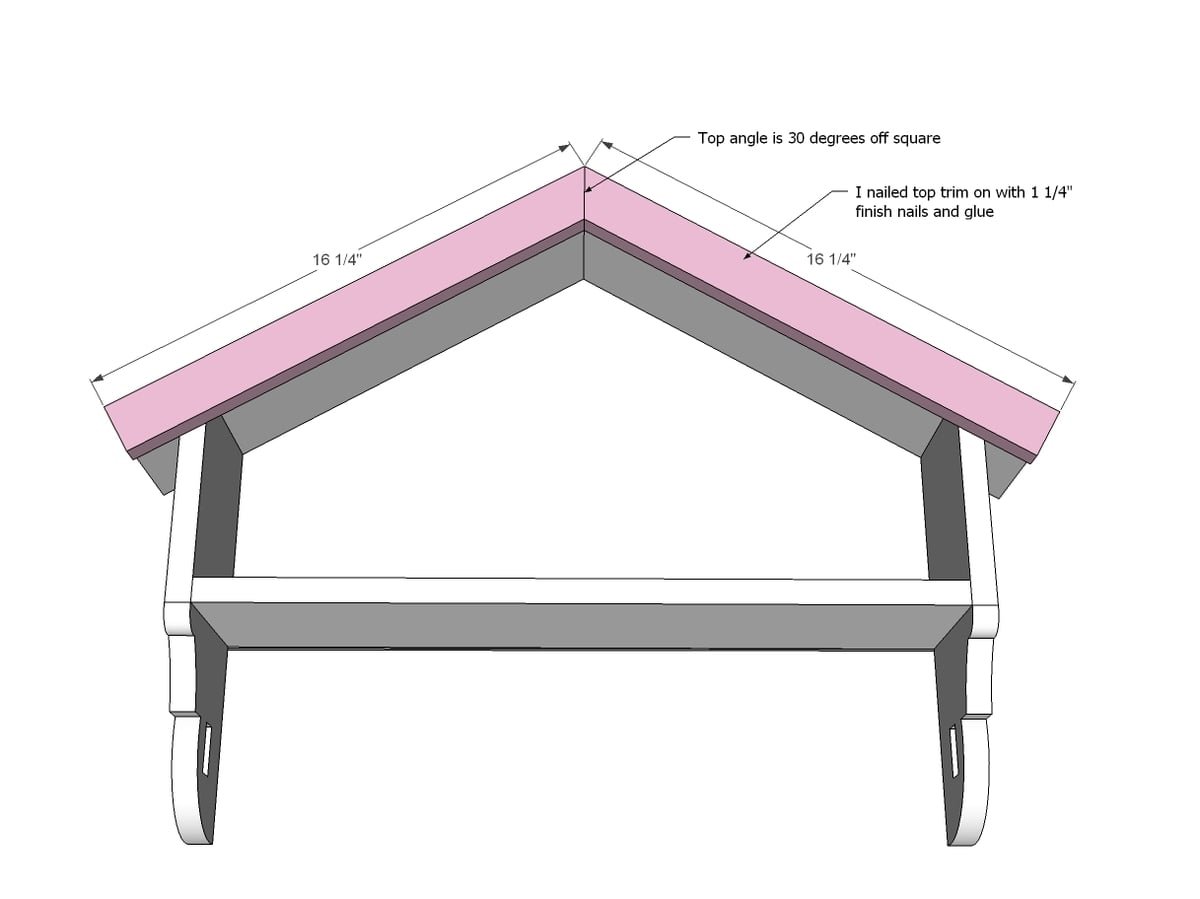

Birdhouse Bath Shelf with Towel Bar — step 5
6

Step 6

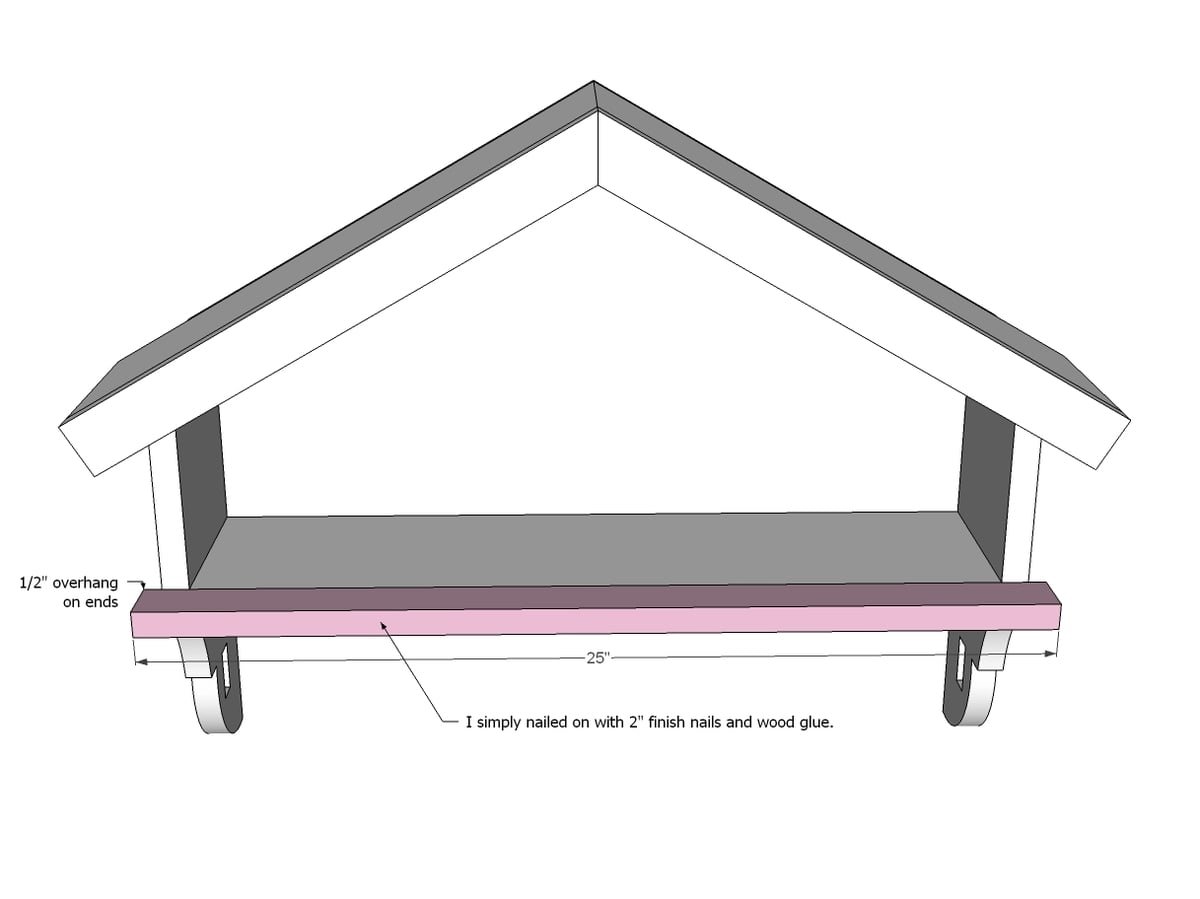

For the ledge, I just glued and nailed on, overhanging ends 1/2".

Birdhouse Bath Shelf with Towel Bar — step 6
7

Step 7

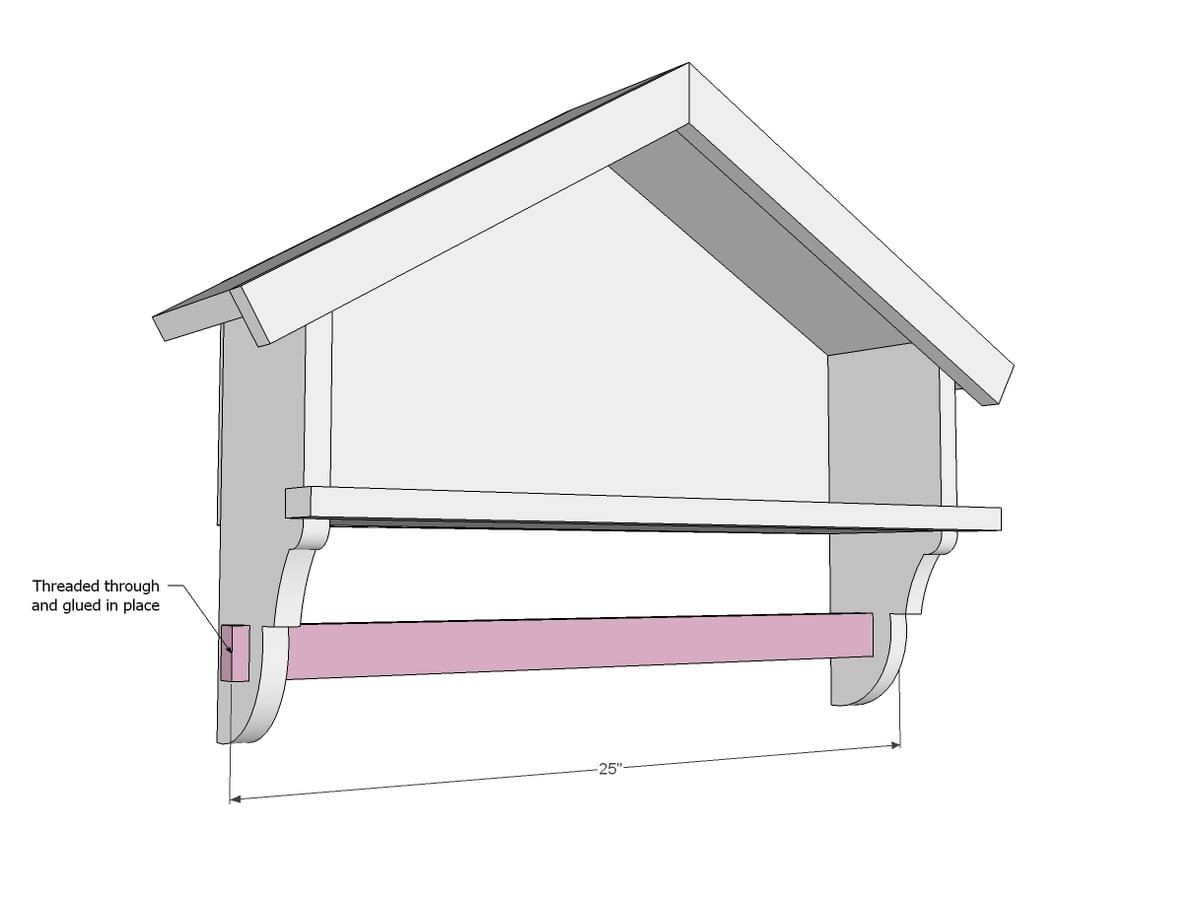

Thread the towel rod through and glue in place and you are done!

Birdhouse Bath Shelf with Towel Bar — step 7
8

Step 8

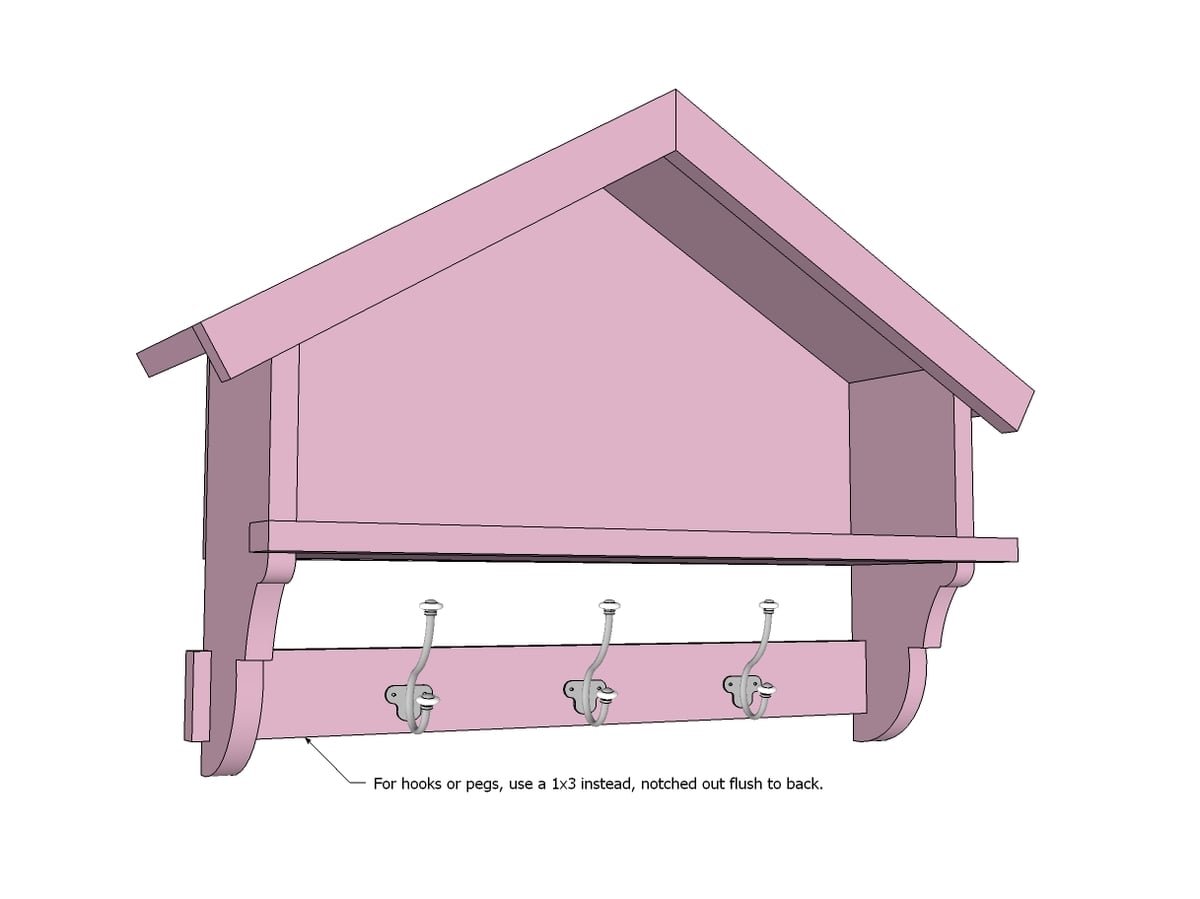

Here's the option for the coat hooks as well. I'd recommend the double robe hooks here, as you may not have enough space for the larger hooks as shown.

Birdhouse Bath Shelf with Towel Bar — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
