Book or Magazine Ladder Shelf
Build your own forward facing bookshelf or magazine rack! These easy to follow plans include everything you need to DIY your own bookshelf designed to help kids put their own books away!
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Starter Projects |
| Estimated cost | $20 - $50 |

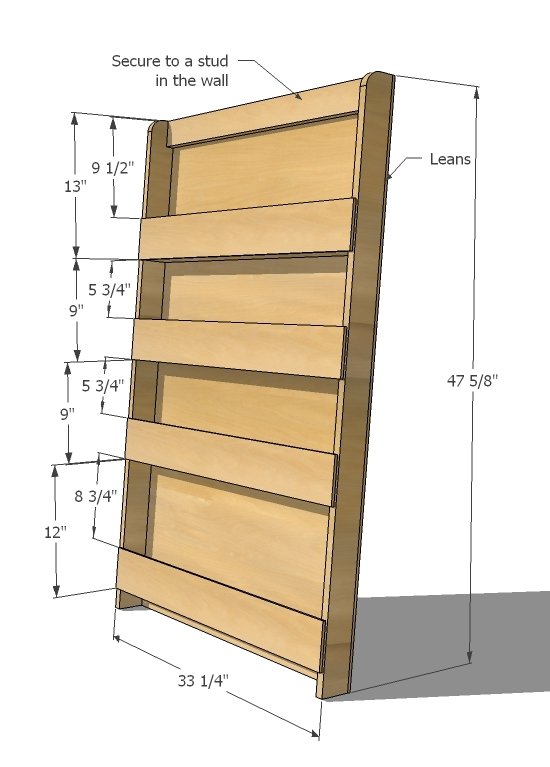

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 1/4" Plywood or Hardboard full sheet (8 feet x 4 feet)
3 - 1x3 boards, 8 feet long (you can use 1x4s for deeper shelves)
Either pocket holes or 2" screws
Cut List
2 - 1x3 @ 47 3/4" (Short point to short point, one end cut at 10 degrees off square)
5 - 1x3 @ 31 3/4" (Shelves)
1 - 1/4" plywood @ 46" x 33 1/4"
4 - 1/4" plywood @ 4" x 33" (if you are staining, cut the strips with the grain)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- jigsaw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions

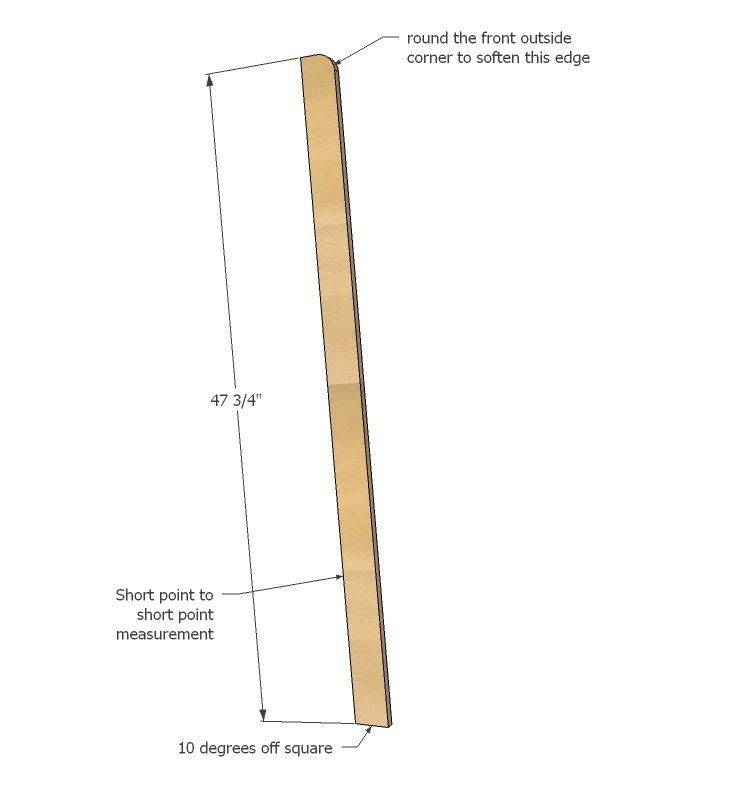

Step 1
Cut your 1x3 sides as shown above. NOTE: I ended up cutting the bottoms at a 5 degree angle - felt the 10 degree was just a little too much.

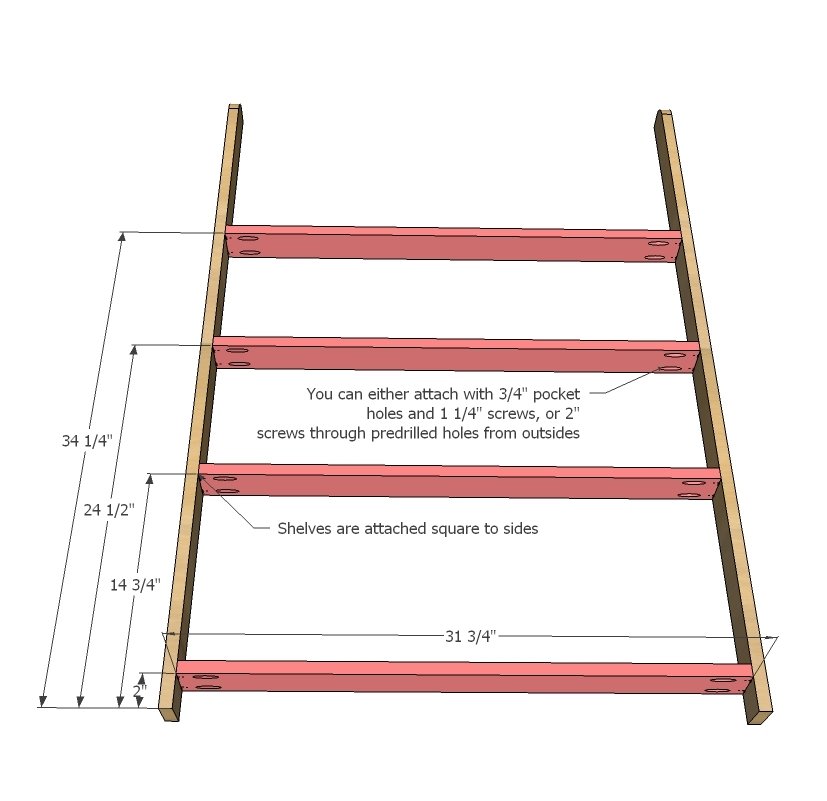

Step 2
Mark location of all shelves and predrill holes. You can either use the Kreg Jig or countersunk screws from the outsides.

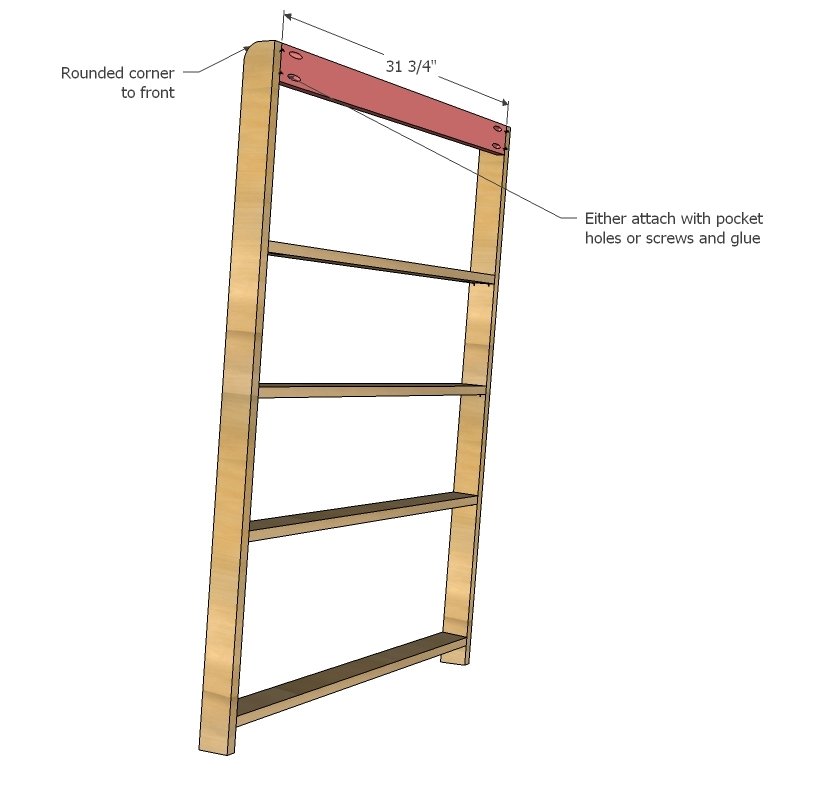

Step 3
The back is attached flush on top as shown above.

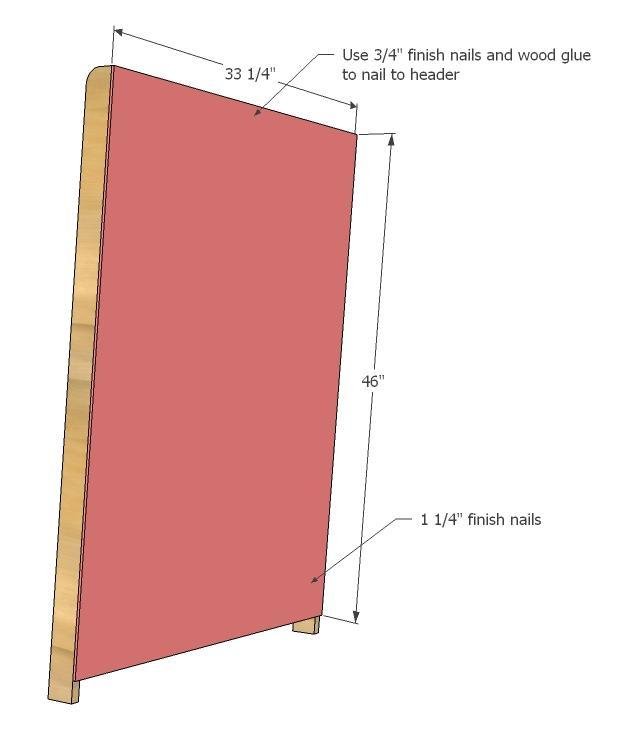

Step 4
Then just apply glue to back edges and nail plywood on.

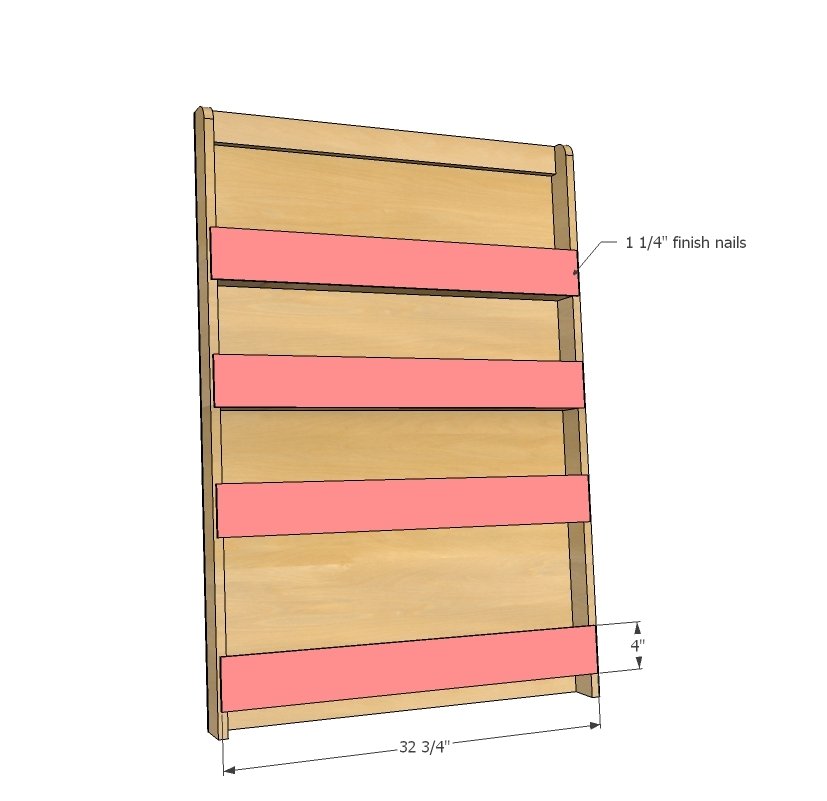

Step 5

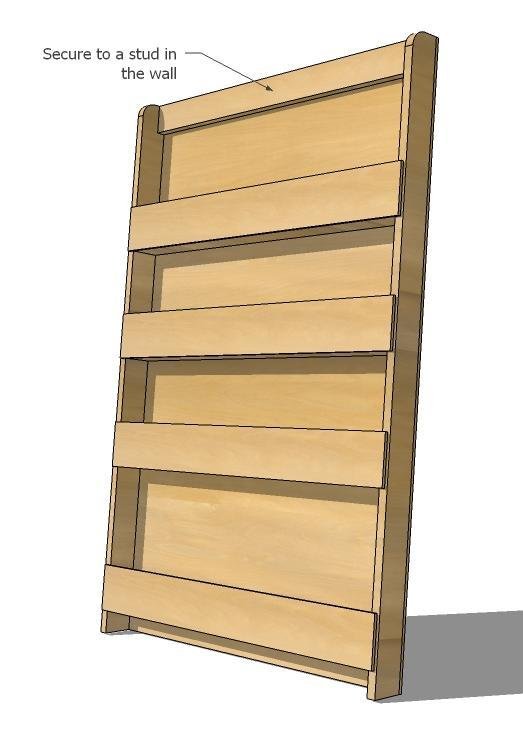

Step 6
Make sure you secure the bookshelf through a predrilled hole to a stud in the wall to keep the bookshelf from falling forward.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
