Box Frame Console Table
I built this box frame console table with lumber using just a few tools. It cost me about $25 and about 2 hours to build. I love the wood top contrasted with the boxy base. This is the perfect low cost but beautiful piece that goes with just about any decor style. Build your own with, diagrams, shopping list and cut list with a video tutorial. I also have plans for the matching coffee tables, and side tables. From
Specifications
| Project type | Console Table Plans |
|---|---|
| Room | dining room |
| Style | Industrial Style Furniture Plans |
| Difficulty | Starter Projects |
| Estimated cost | $20 - $50 |

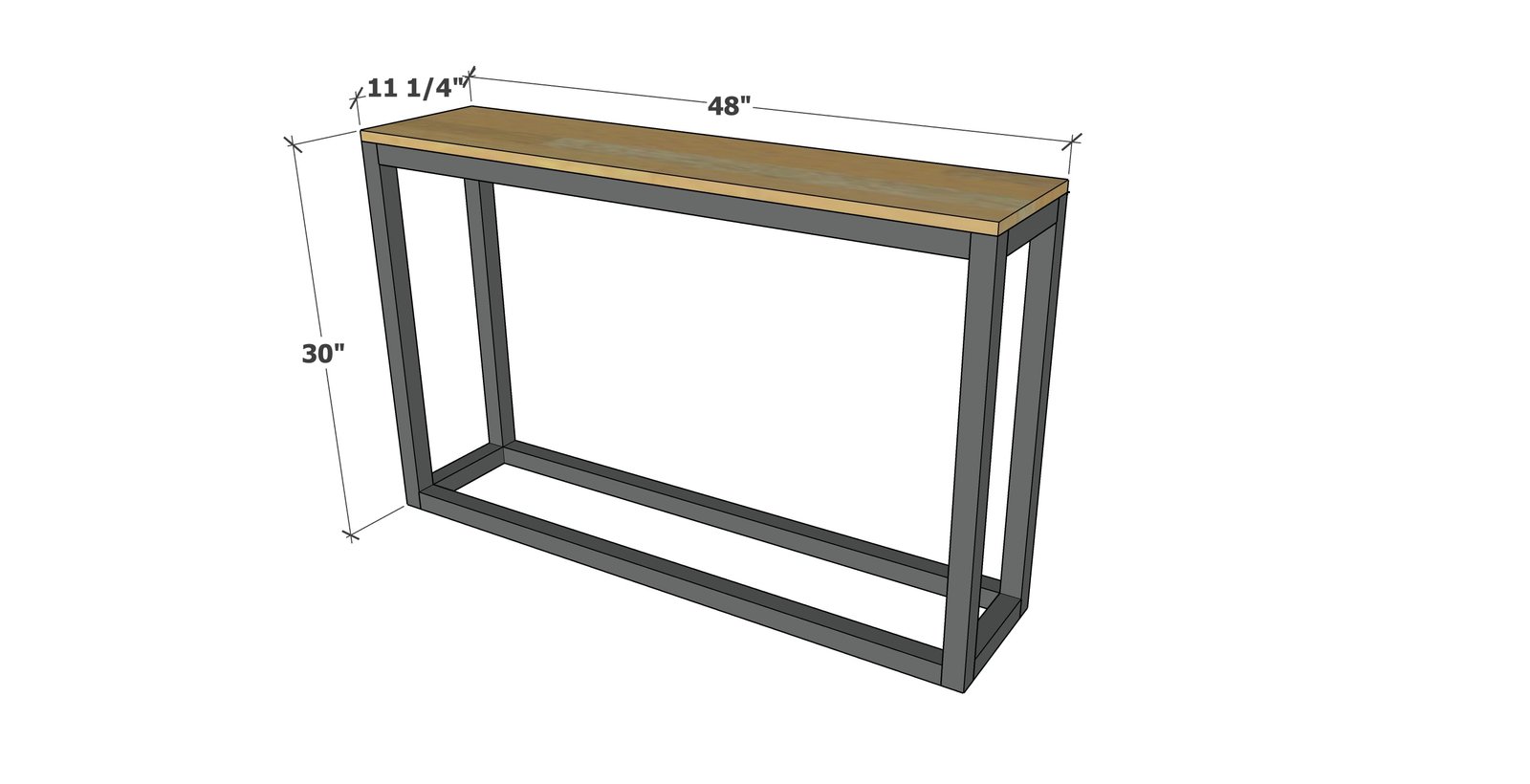

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 4 - 2x2 @ 8 feet long (I used furring strips)
- 1 - 1x12 @ 4 feet long
- 2-1/2" self tapping trim screws (16 needed)
- 1-5/8" self tapping trim screws or 1-1/4" brad nails for attaching top
- wood glue
- wood filler
- 120 grit sanding block
- paint or stain for finishing
Cut List
- 4 - 2x2 @ 29-1/4" - legs
- 4 - 2x2 @ 45" - side frame
- 4 - 2x2 @ 8-1/4" - or 3" less than width of 1x12 - end frame
- 1 - 1x12 @ 48" - top
Tools
- measuring tape
- pencil
- safety glasses
- drill
- circular saw
Step-by-step Instructions
Step 1

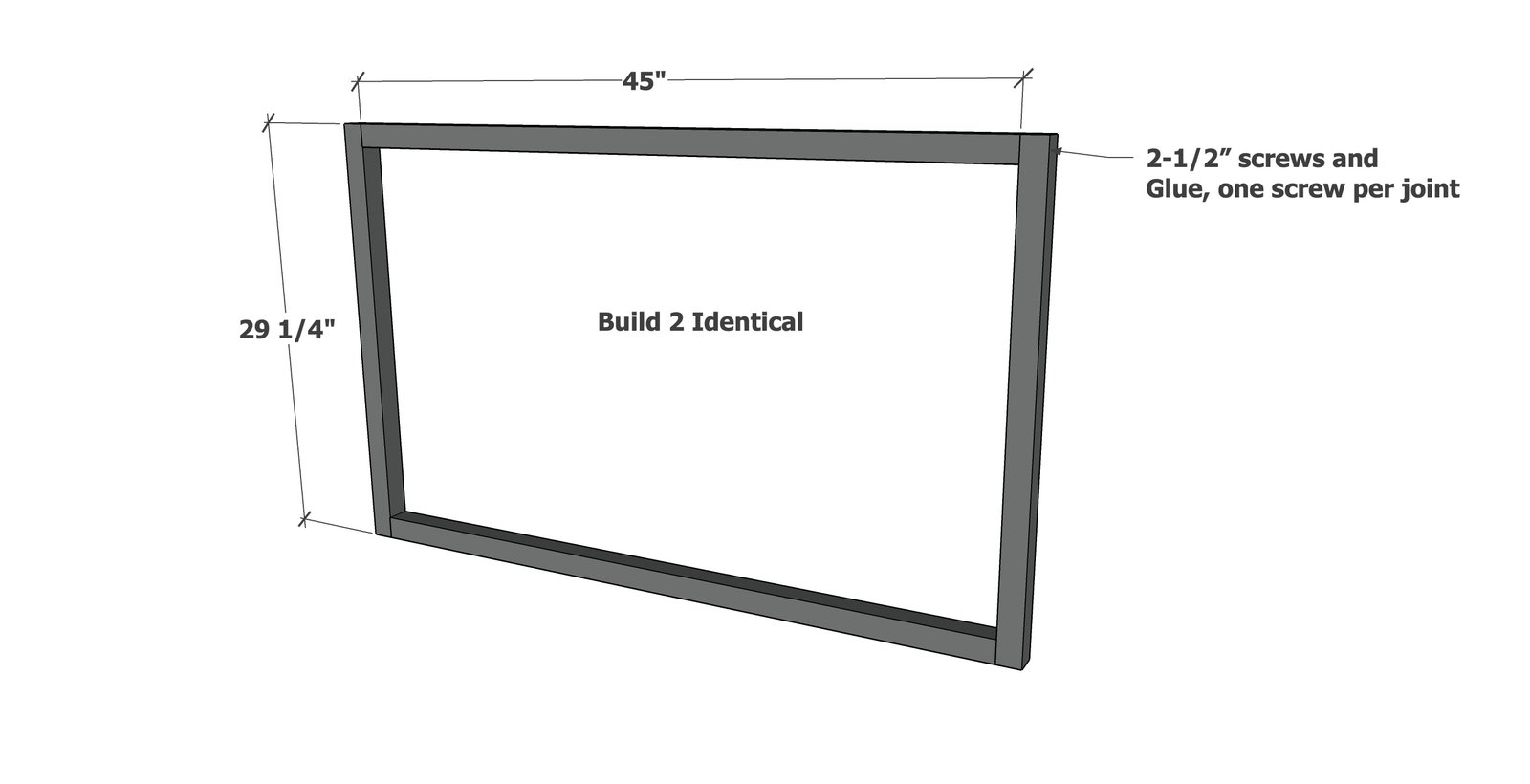

Build two frames for the sides as shown, using the 2-1/2" screws, one screw per joint with generous glue.

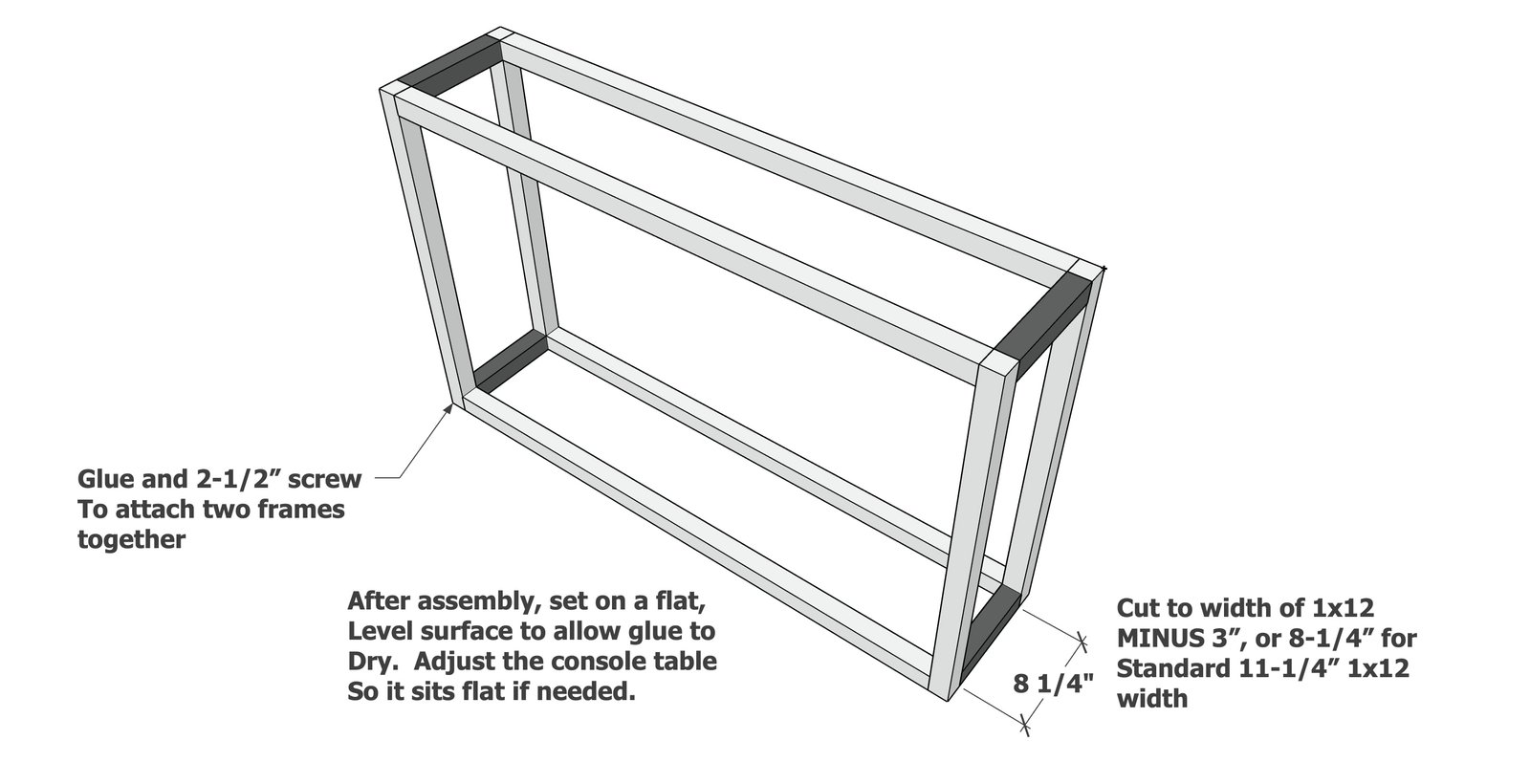

Connect the two frames with the short 2x2 pieces, attaching with glue and 2-1/2" screw.
Set the assembled frame on a level surface. Adjust any joints if needed for square, so the frame sits level and flat. Let glue dry. TIP: If going for a two tone finish, paint or stain the base as desired before attaching the top. Do not finish the top edges, you want raw wood to bond with the 1x12 top to be attach in the next steps.
Apply glue generously to the top of the frame.

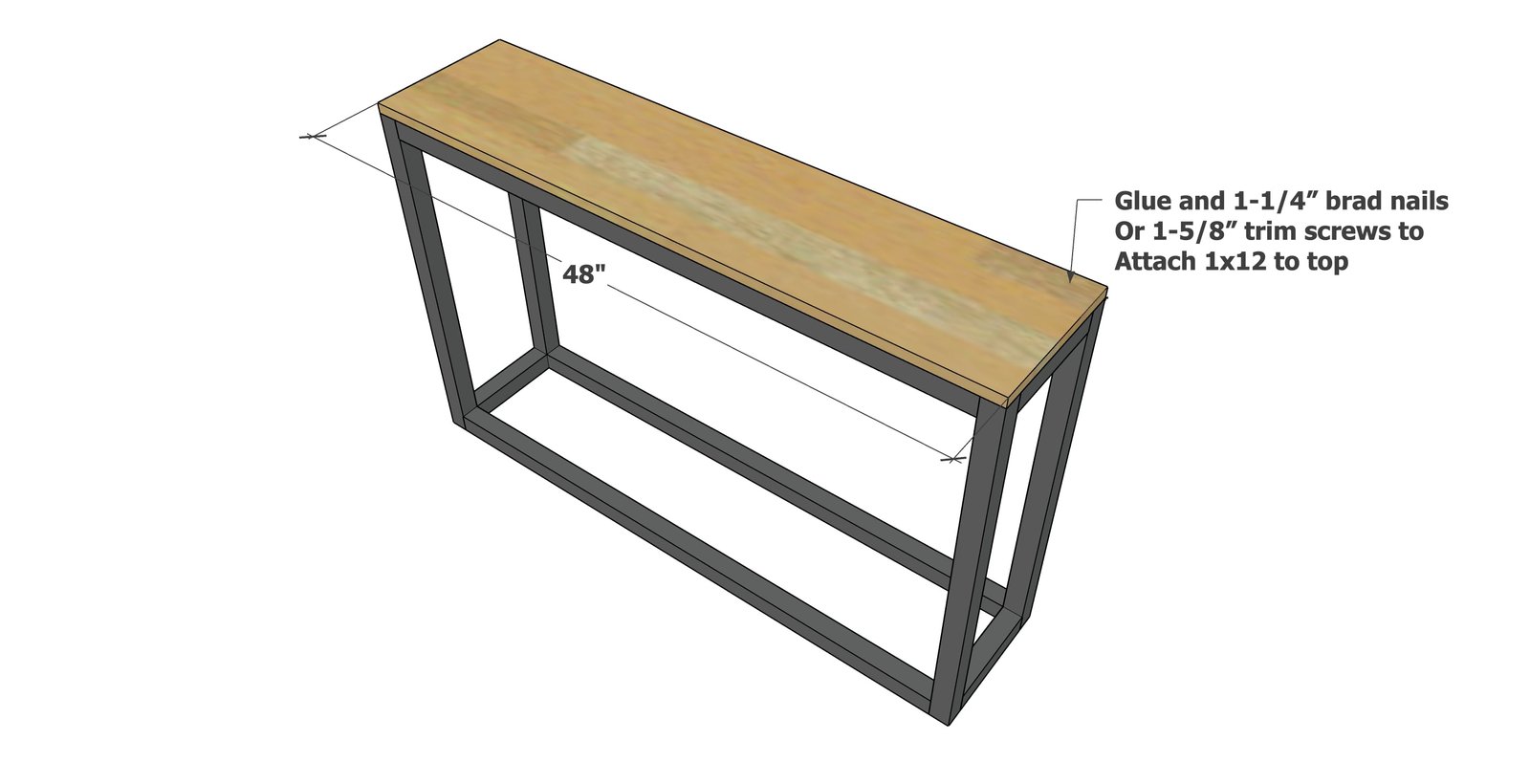

Place the 1x12 on top and nail or screw down. Fill nail holes with wood filler and let dry. Lightly sand with sanding block. Finish the top with stain, a clean polyurethane coat will help seal the top.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
