Box Frame Square Side Table
Here's a simple side table plan that's easy and inexpensive to build. This is a free project plan with step by step diagrams, shopping list and cut list. You can build the entire collection with matching plans for the entire set.
Specifications
| Project type | Nightstands |
|---|---|
| Room | living room |
| Style | Industrial Style Furniture Plans |
| Difficulty | Starter Projects |

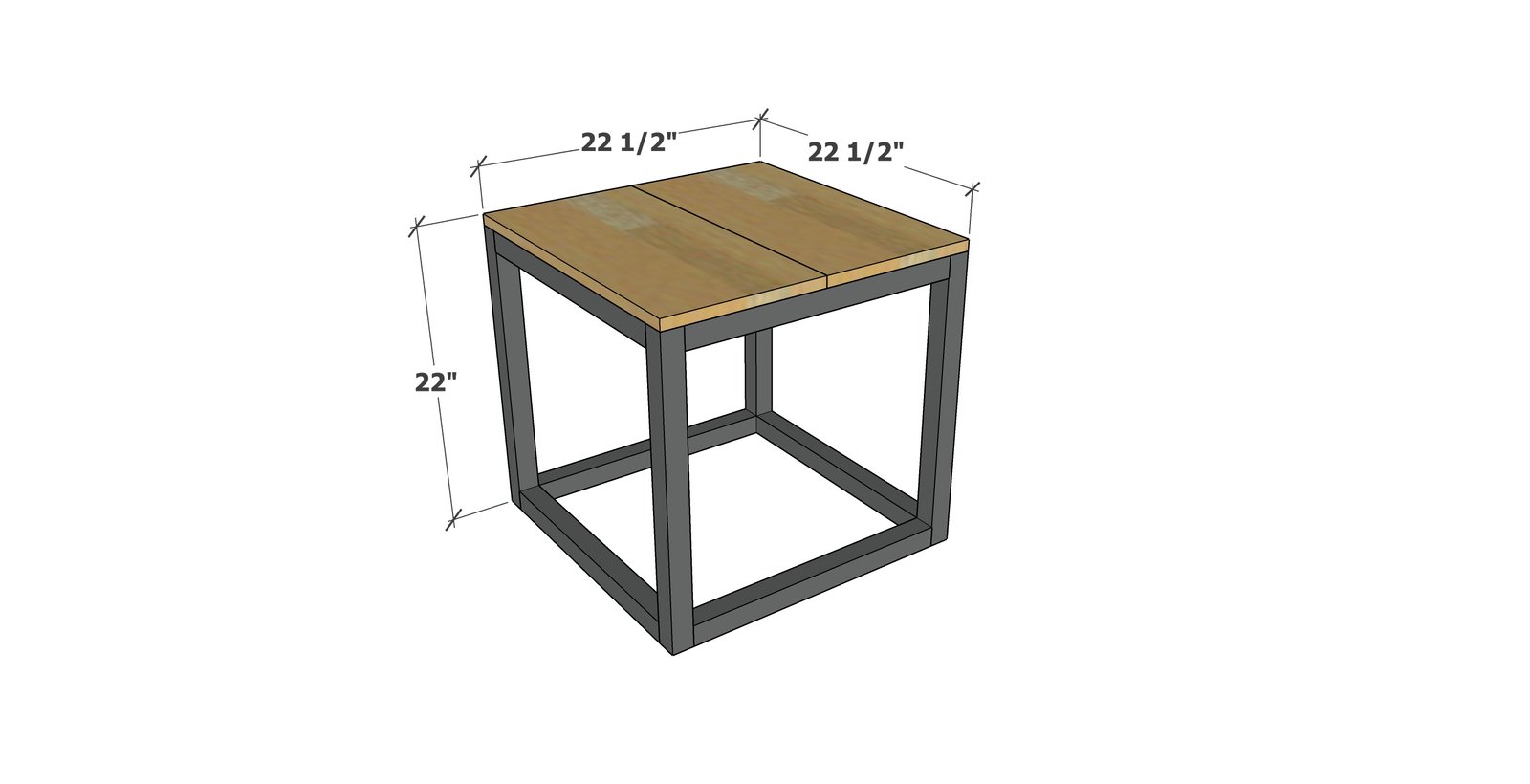

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 3 - 2x2 @ 8 feet long
- 1 - 1x12 @ 4 feet long
- 2-1/2" self tapping trim screws
- 1-5/8" self tapping trim screws or 1-1/4" brad nails
- wood glue
- 120 grit sanding block
- paint or stain
Cut List
- 2 - 1x12 @ 22-1/2"
- 4 - 2x2 @ 21-1/4" - legs
- 4 - 2x2 @ 19-1/2" - frame
- 5 - 2x2 @ ABOUT 19-1/2" - adjust to 3" less than the width of the tabletop boards
Tools
- measuring tape
- pencil
- safety glasses
- drill
- circular saw
Step-by-step Instructions

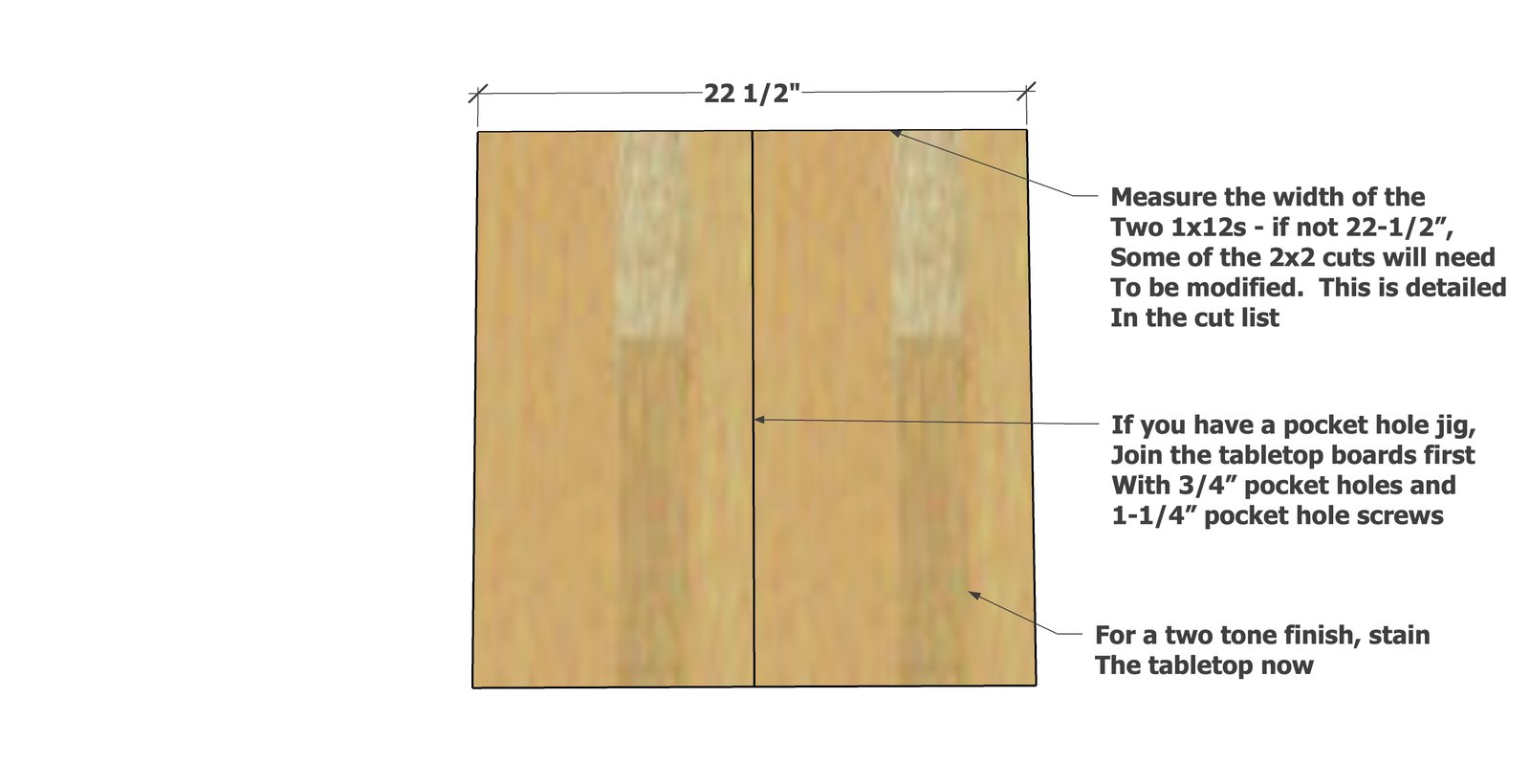

Cut the 1x12 tabletop boards.
Lay flat and measure the width. Note this width - if it does not match the diagram, you will need to make cut adjustments as noted in the cut list. If you have a pocket hole jig, join the tabletop boards with 3/4" pocket holes and 1-1/4" pocket hole screws.
Step 2

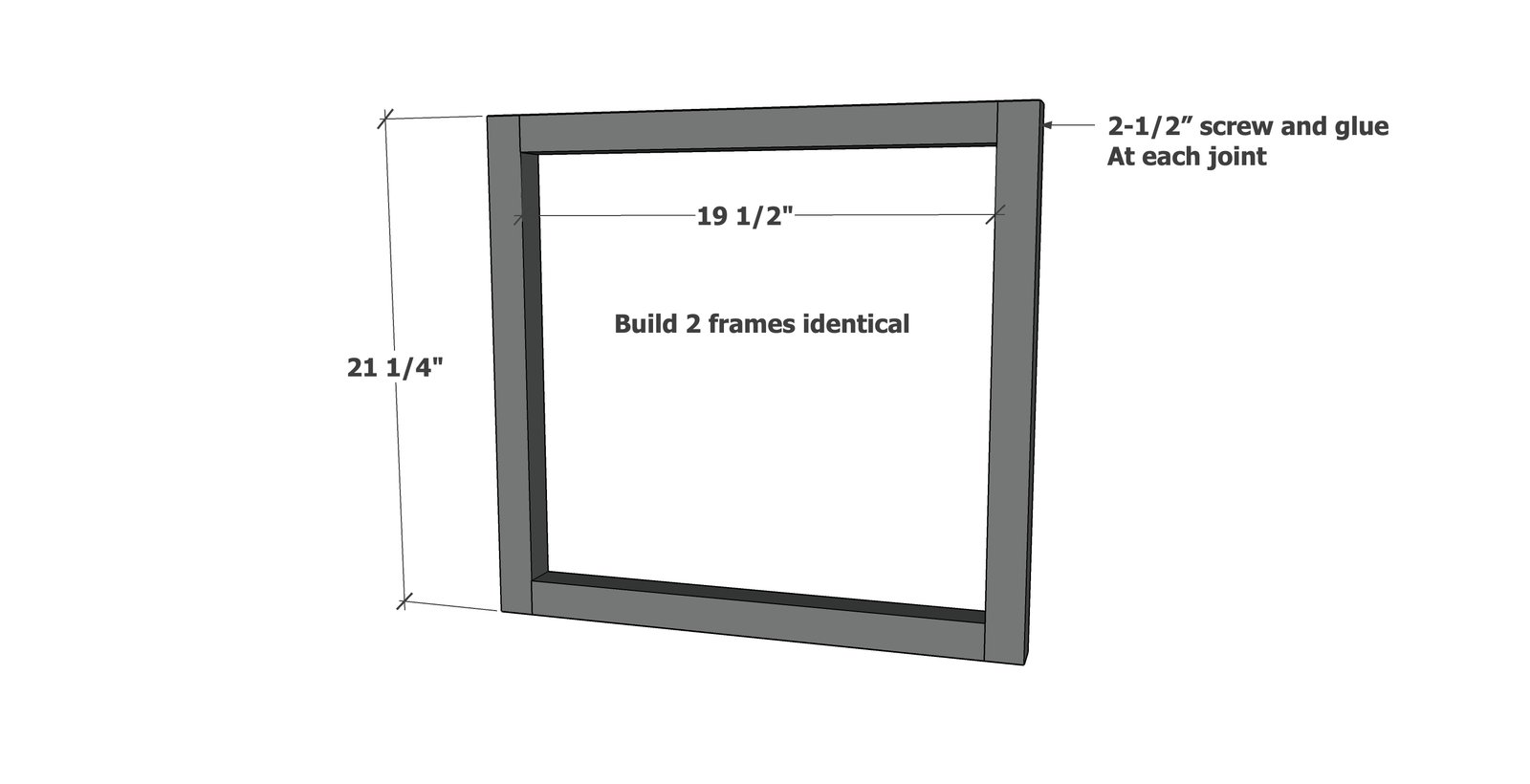

Build two frames as shown using the longer screws and wood glue.

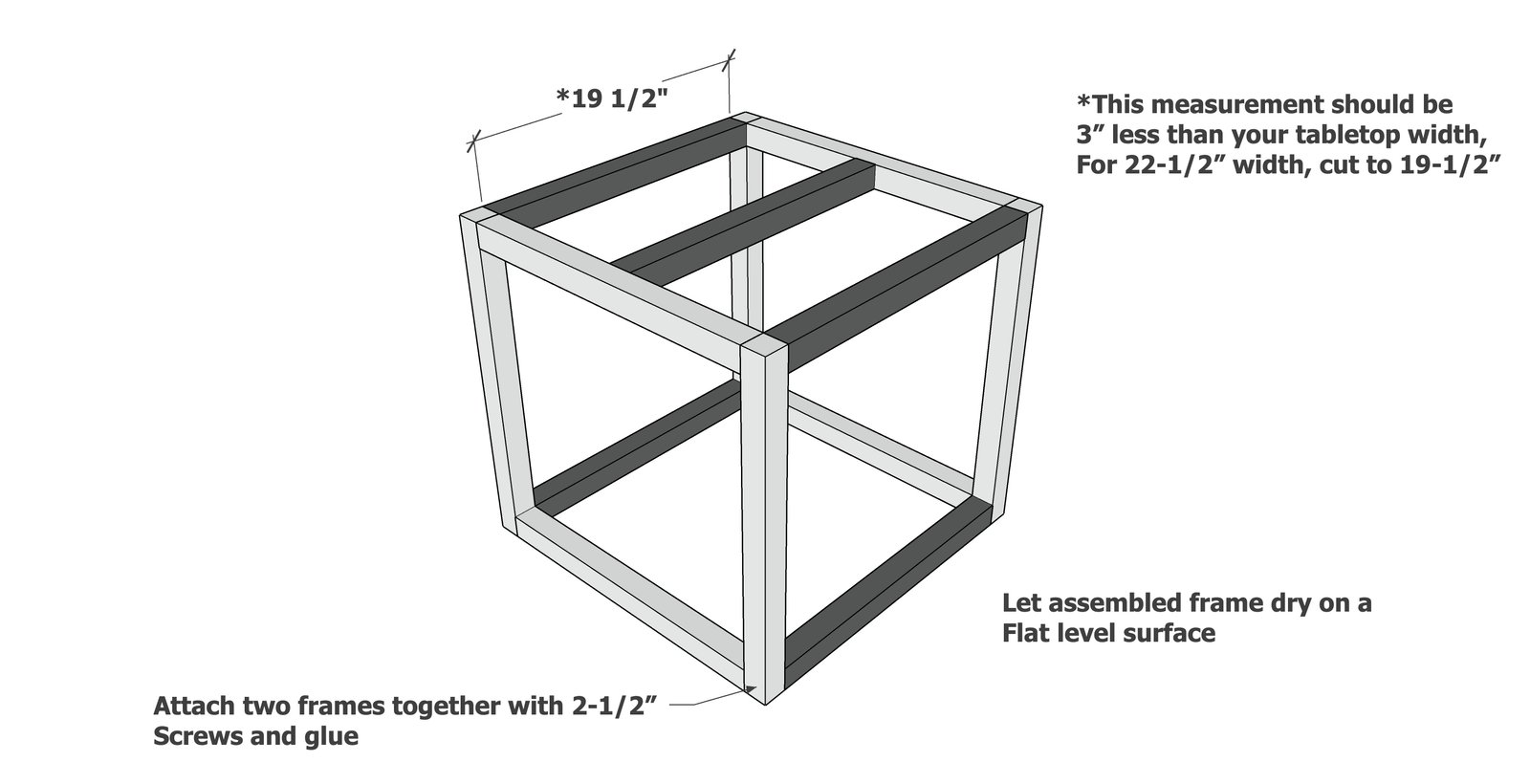

Adjust cuts if necessary for the remaining frame pieces. Assemble the frame.
Let dry on a level surface. Fill hole with wood filler and let dry. Sand off sanding residue. TIP: For a two tone finish, paint or stain the frame now, but keep top raw for gluing to the tabletop in later steps.
Step 4

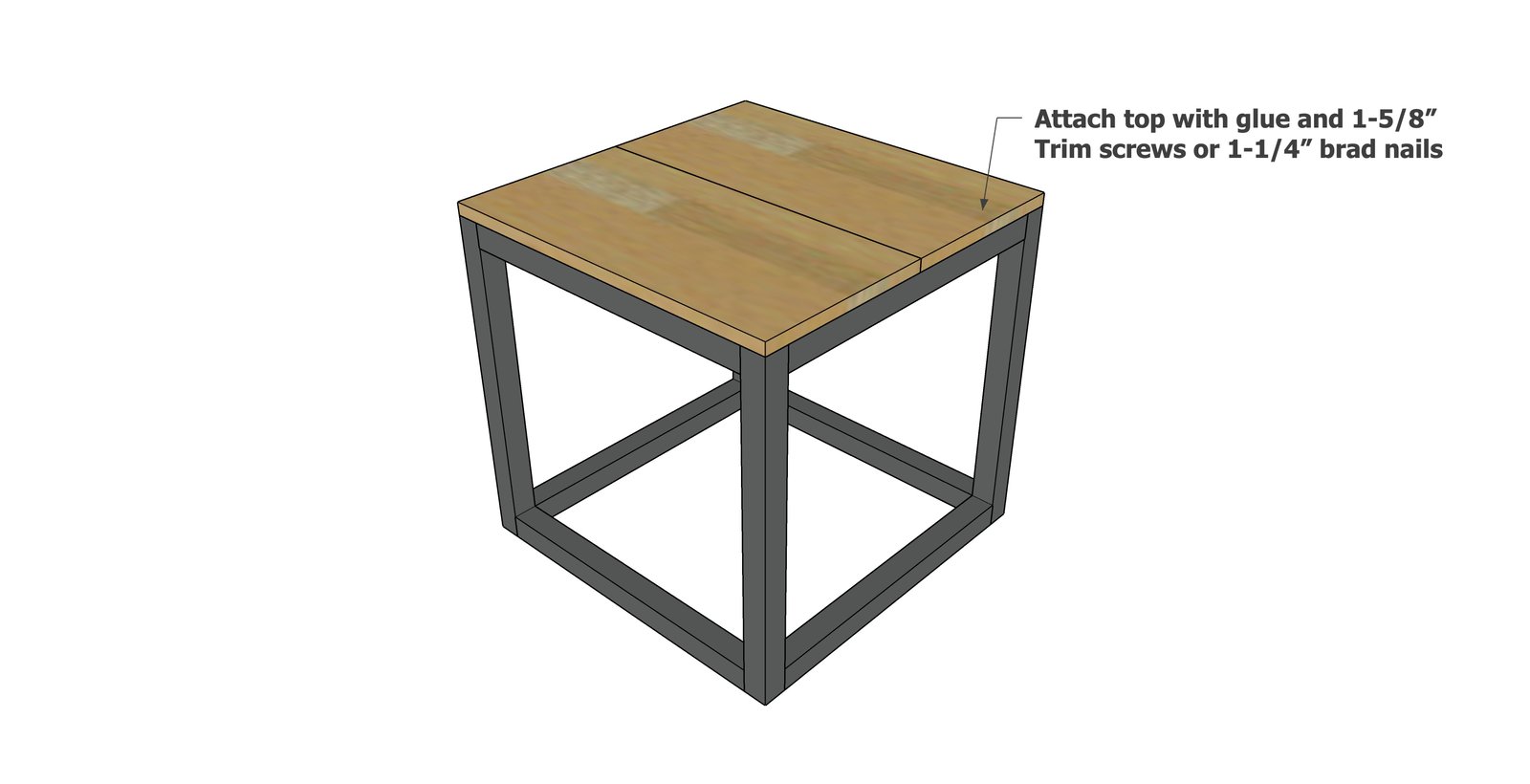

Attach tabletop to the base.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
