Brookstone Desk Hutch
Build your own desk hutch. This plan matches our Brookstone desk plans. Features three cubby shelves and space to fit most computer monitors or all in one computers. Free step by step
Specifications
| Project type | Desk, Desk Systems and Project Table Plans |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

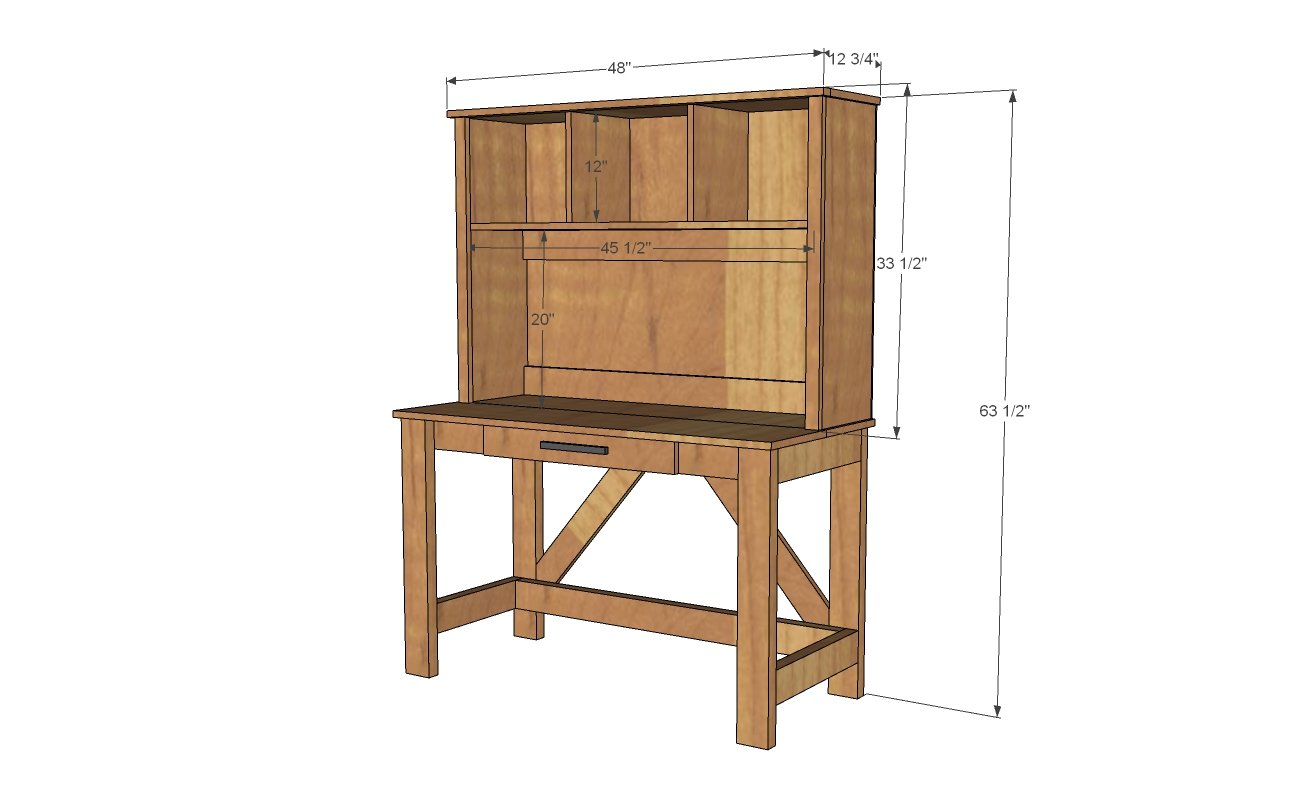

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 1x12 @ 8 feet long
1 - 1x4 @ 8 feet long
1 - 1x2 @ 10 feet long
32" x 48" wainscotting panel for the back, or 1/4" plywood
Fastener of choice - can use 1-1/4" pocket holes, brad nails, or trim screws, or any combination
Also need 3/4" brad nails or staples for attaching the back
Cut List
1 - 1x12 @ 48" - top
1 - 1x12 @ 45-1/2" - shelf
2 - 1x12 @ 32-3/4" - sides
2 - 1x12 @ 12" - dividers
2 - 1x4 @ 45-1/2" - supports
Back is 47" x 33-1/2" - can be shorter since the 1x4 is at the bottom of the back
2 - 1x2 @ 32-3/4"
1 - 1x2 @ 48"
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions

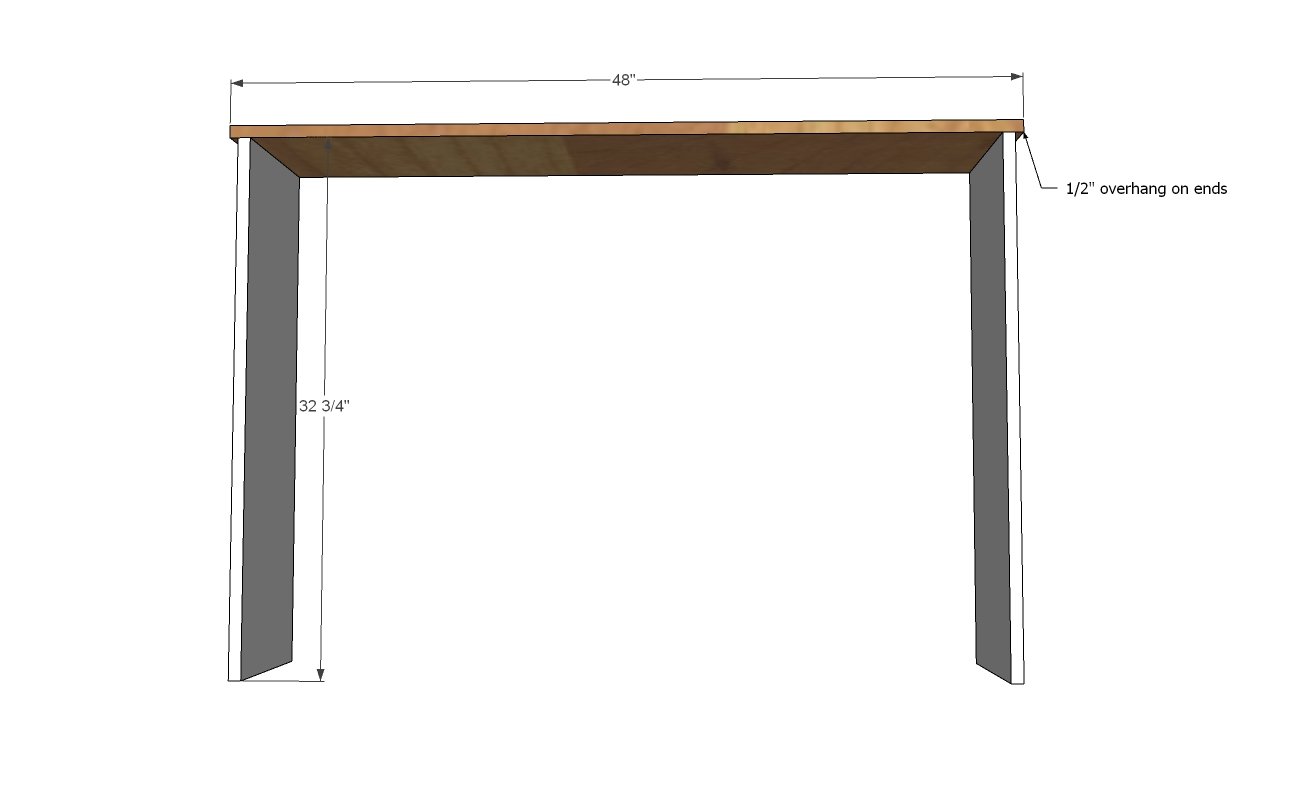

Step 1
Attach top to sides with 1/2" overhang on ends. Use your choice of fastener.

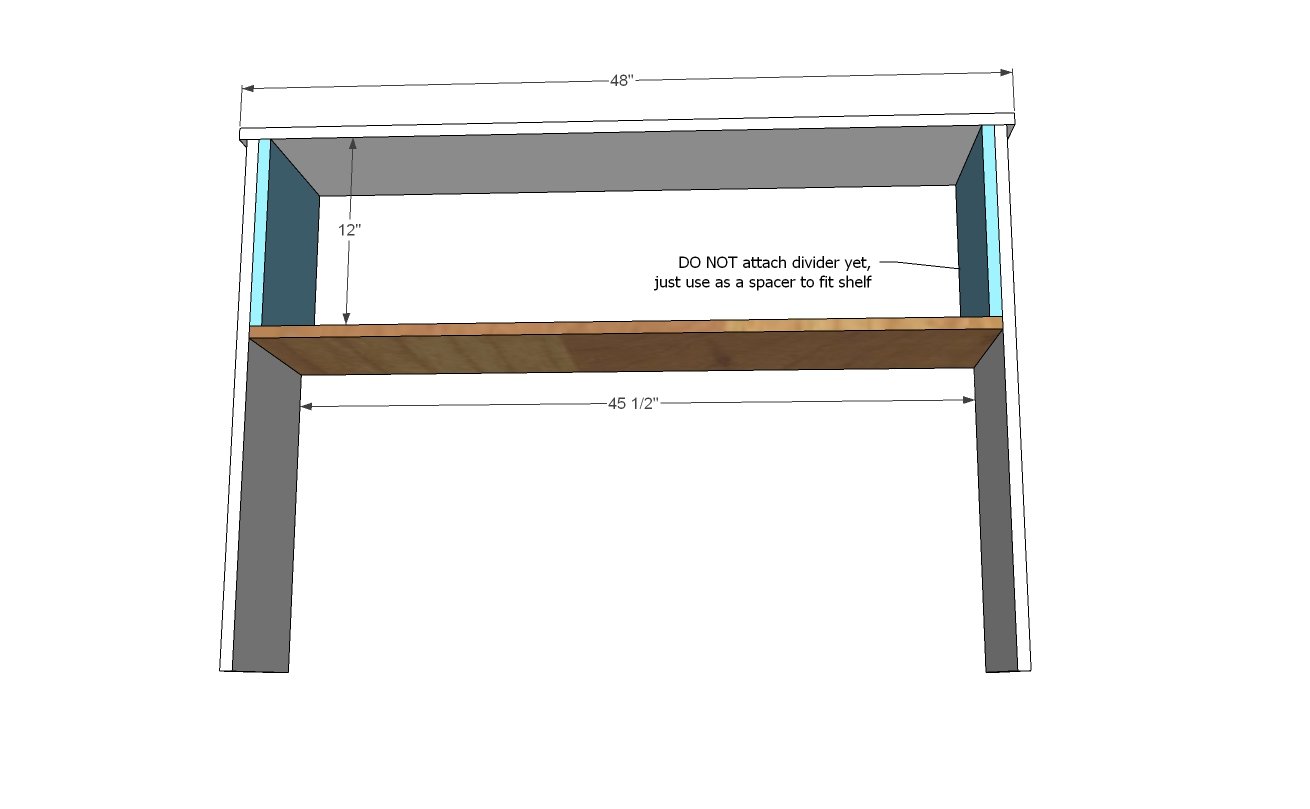

Step 2
Use the dividers to help place the shelf as shown. Attach shelf to sides.

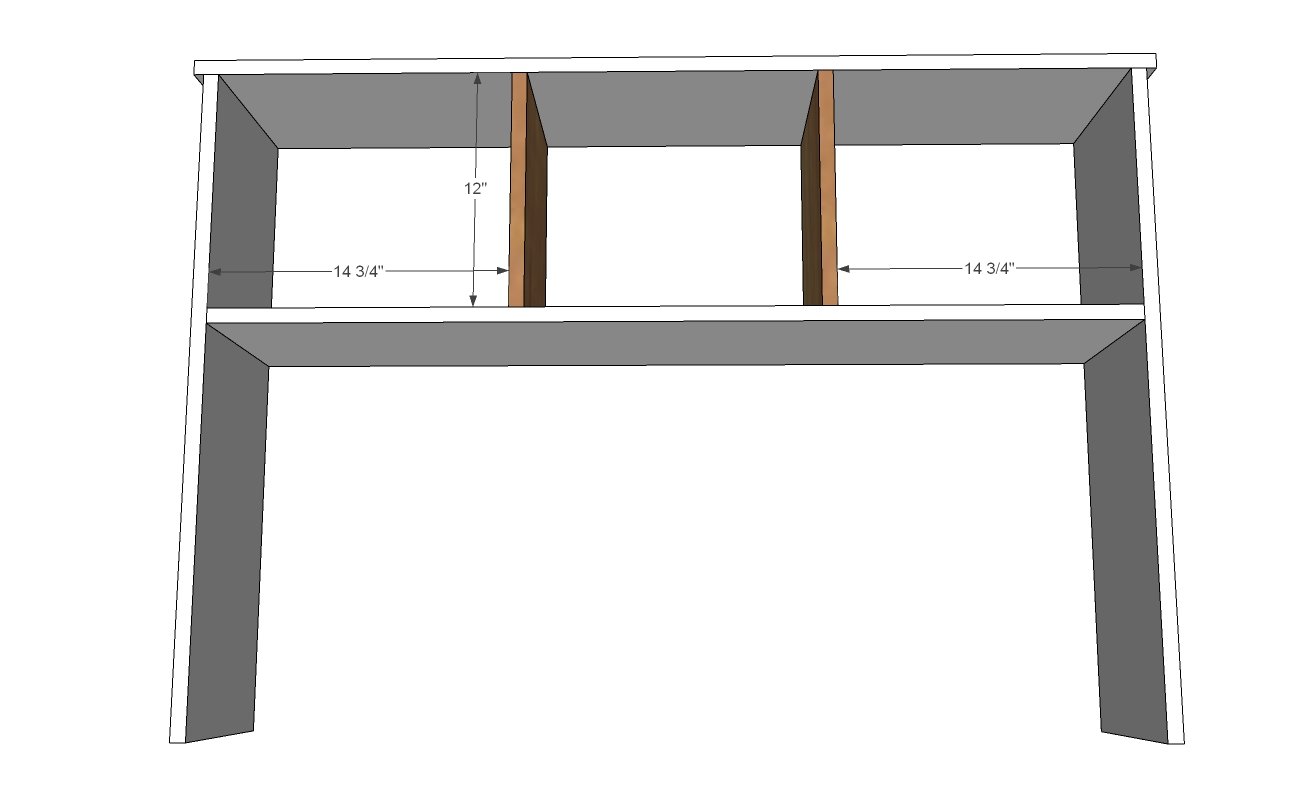

Step 3
Position dividers in final locations and attach.

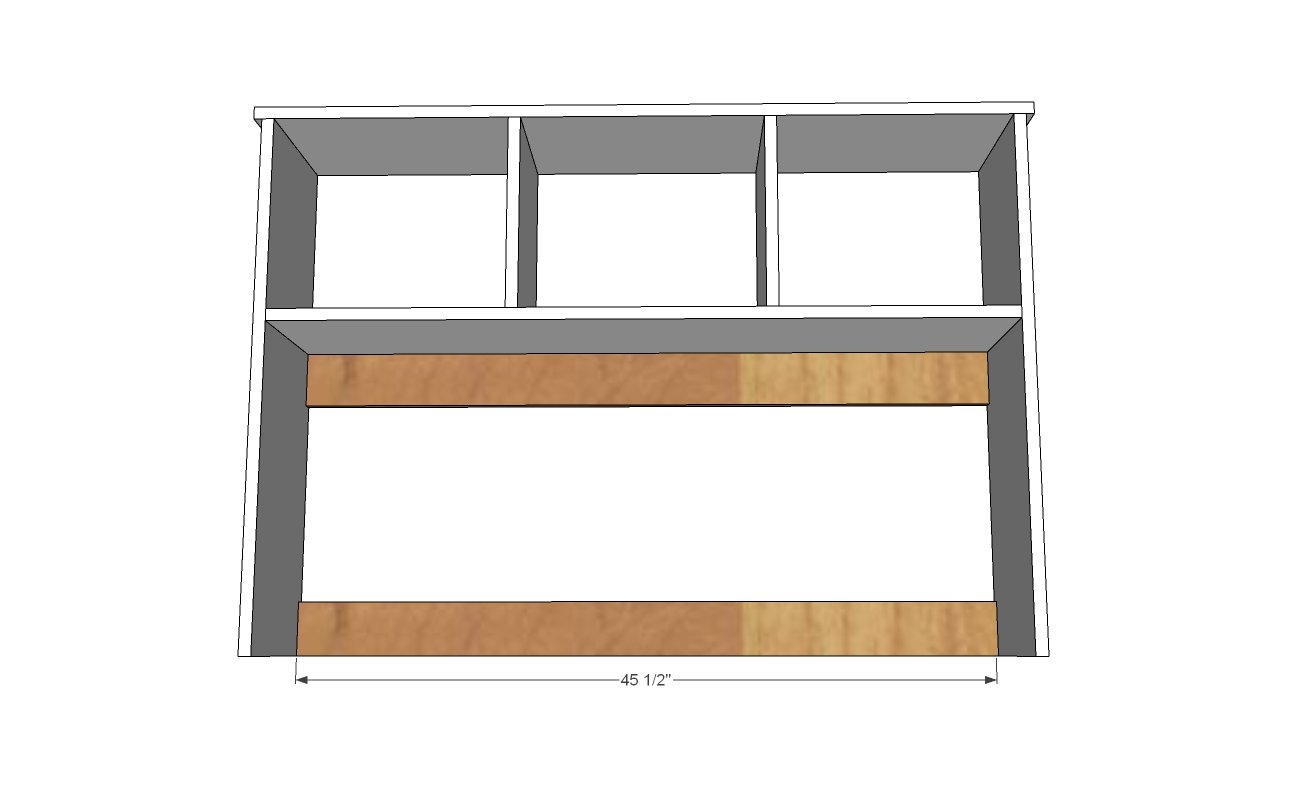

Step 4
Add 1x4 supports. Make sure you fasten to the bottom shelf as well for the most strength.

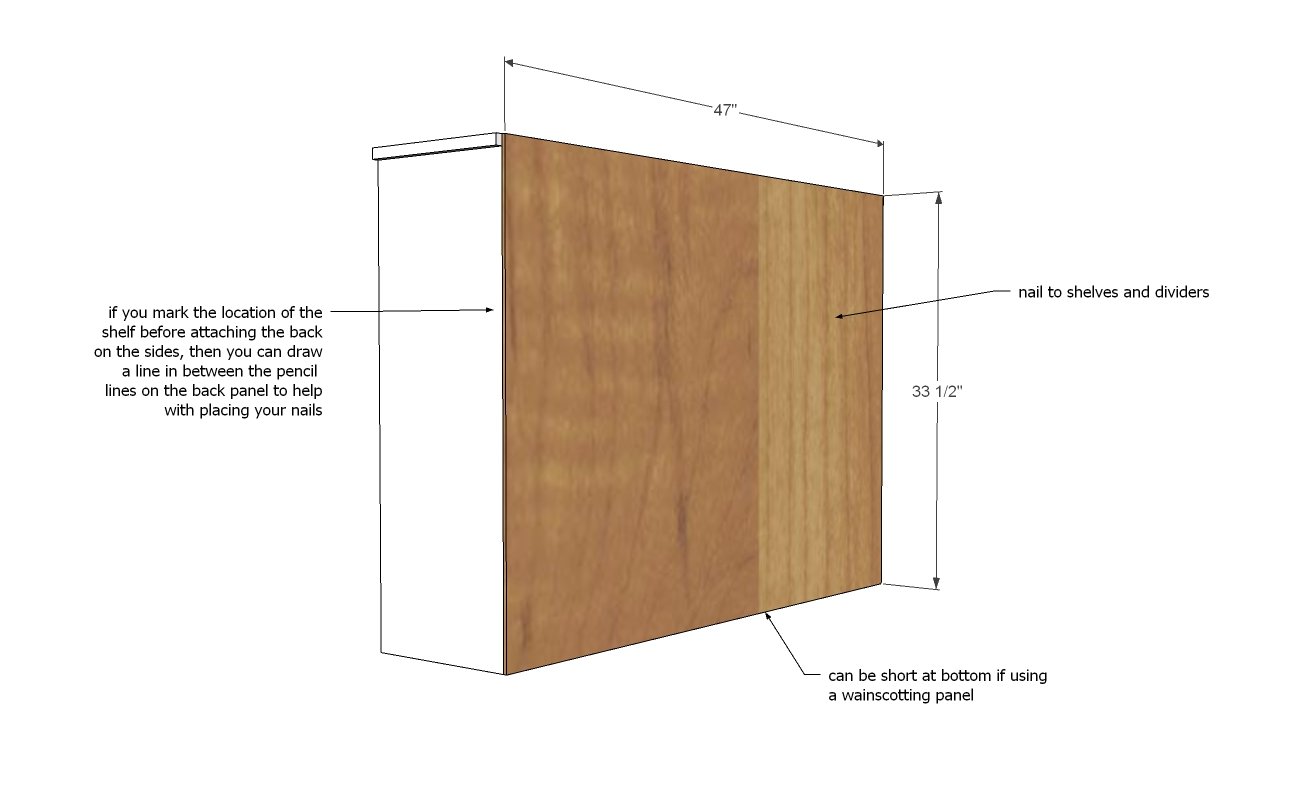

Step 5
Attach back panel with 3/4" brad nails and wood glue.

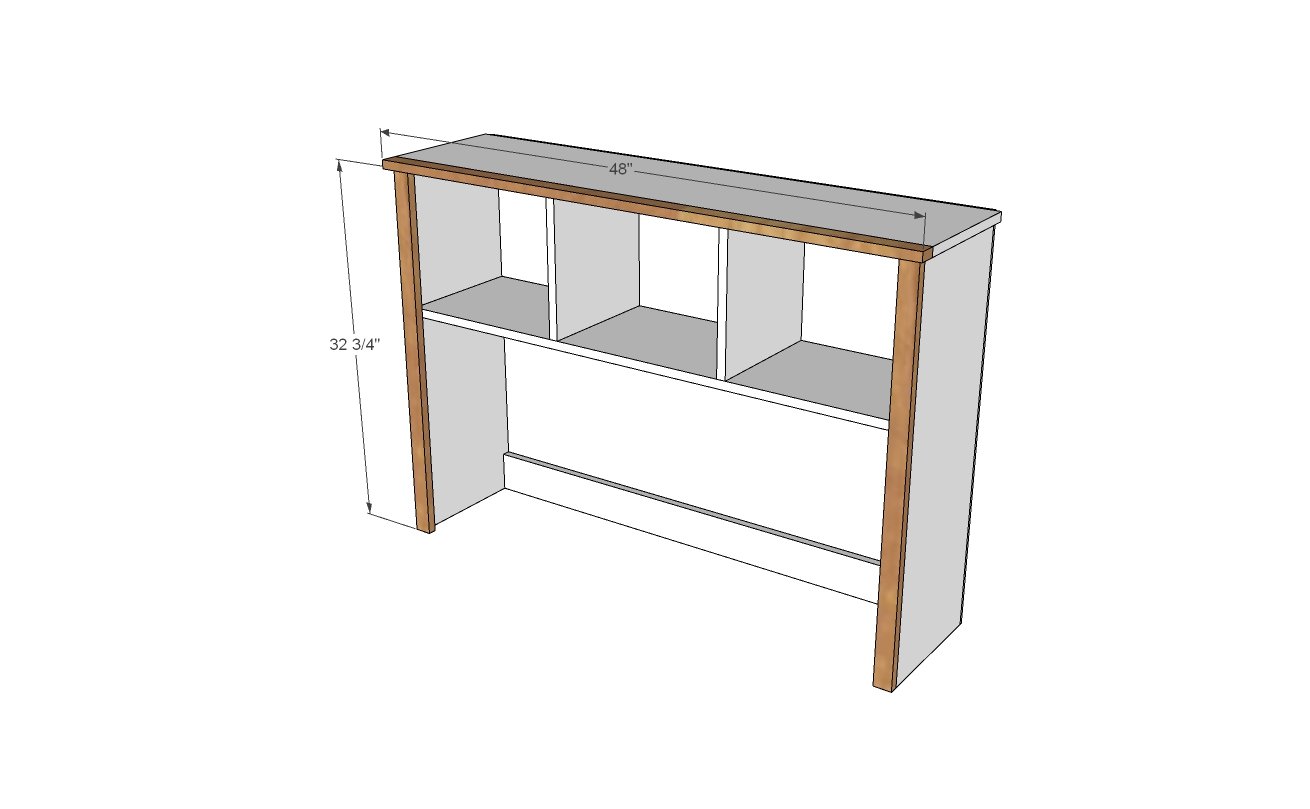

Step 6
Trim front with 1x2s to finish out the front edges and add an overhang to the top. You can build first with pocket holes and then attach, or attach with brad nails. 2" brad nails would be needed to attach the top front to the 1x12 edge.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
