Build the Tommy Storage Wall
This simple media base is designed for flat panel tvs. It is easy to build and there is an entire collection of plans available here to build a media wall around this console.
Specifications
| Project type | Media and Entertainment Centers |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

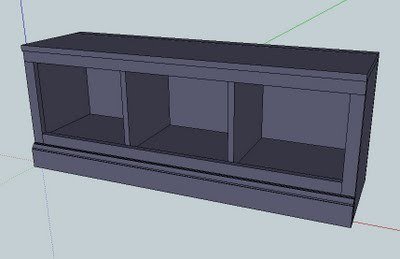

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 1x12 @ 8 feet long 2 - 1x2 @ 8 feet long 1 - 3 1/2" Base Moulding @ 4 feet long 1 sheet of Beadboard Paneling (wainscotting could work)
Cut List
A) 2 - 1x12 @ 16 3/4" (Sides) B) 2 - 1x12 @ 43 1/2" (Top and Bottom of the "Box") C) 2 - 1x12 @ 11 3/4" (Vertical Dividers) D) 1 - 45" x 16 3/4" beadboard (any thickness) E) 2 - 1x2 @ 45" (trim pieces for the top) F) 1 - 1x2 @ 42" (trim piece for the bottom) G) 2 - 1x2 @ 15 1/4" (front outside corner trim pieces) H) 1 - 45" piece of 3 1/2" base moulding I) 1 - 1x12 @ 45" (Top)
Tools
- measuring tape
- square
- hammer
- safety glasses
- hearing protection
- drill
- circular saw
- sander
Step-by-step Instructions
Step 1

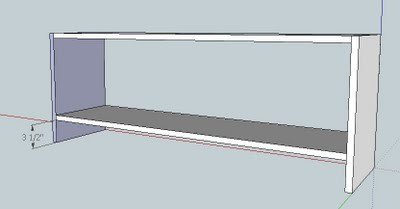

1. Box. Start by "building the box" by nailing through the sides (A) and into the edge of (B), as shown above. Note the dimensions on the space below the bottom shelf - 3 1/2" Use glue and at least 2" nails.
Step 2

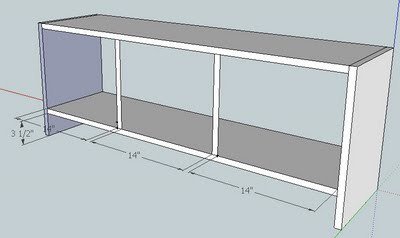

2. Dividers. Now add the center dividers (C) for the cubbies, spaced 14" between the upright boards, as shown above. Then add the beadboard (D) to the back. Use glue and 1 1/2" nails.
Step 3

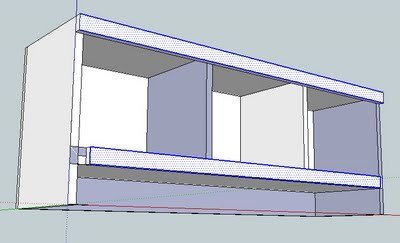

3. Trim. Now attach one of the top trim pieces, E, to the top edge, as shown above. Attach the shorter trim piece, F, to the bottom shelf, lining top edges, and leaving 1 1/2" on either side.
Step 4

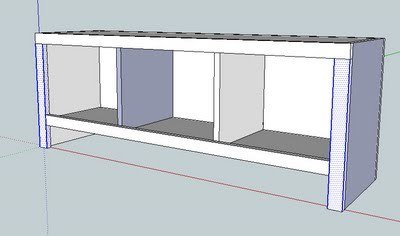

4. Side Trim. Add the vertical trim (G), as shown above, on both ends.

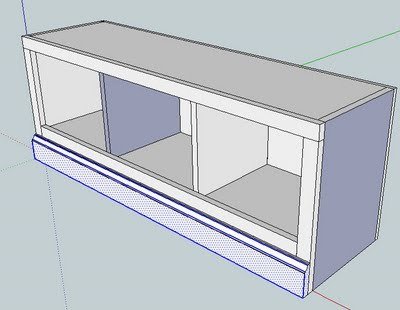

Step 5
Step 6

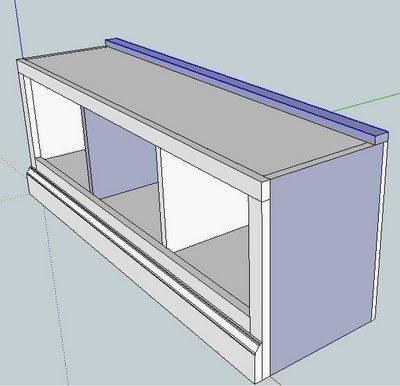

6. Top. Use the remaining piece (E) on top of the shelf. Attach as shown above. Use 1 1/4" nails and glue. Then add the remaining piece, I, to the top of the base unit, as shown below.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
