Camp Style Bunk Beds for American Girl or 18 Dolls

to make bunk beds for American Girl or 18" dolls.

Camp Style Bunk Beds for American Girl or 18 Dolls

Specifications

Project typeDoll Furniture
RoomKids and Toys
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

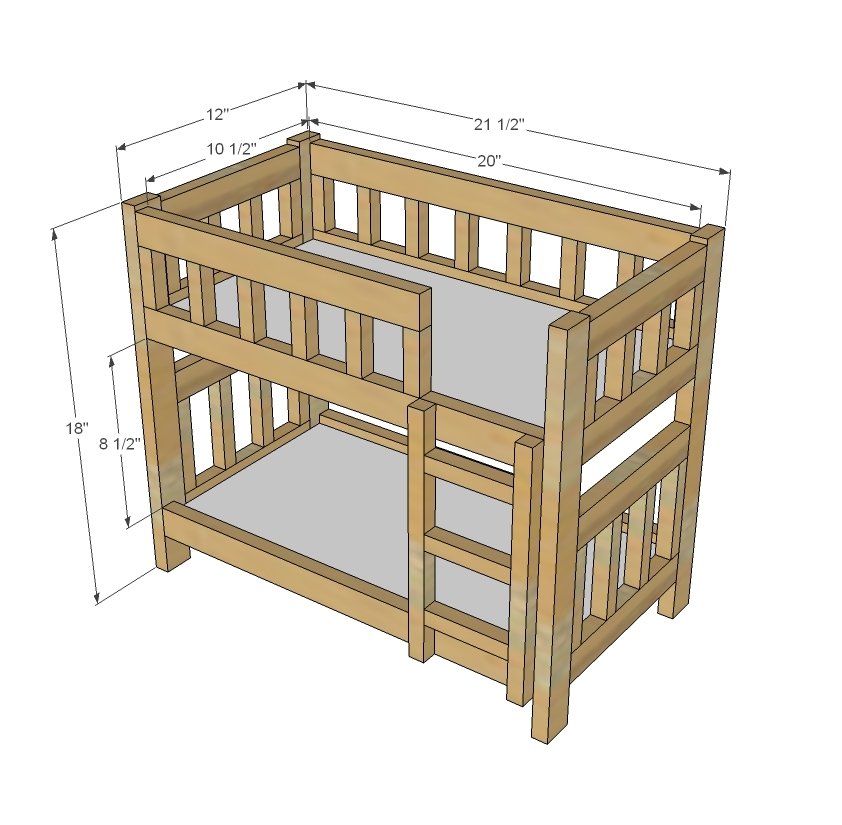

Camp Style Bunk Beds for American Girl or 18 Dolls dimension diagram 1

Shopping List

4 - 1x2 @ 8 feet long 2 - 1x1 @ 8 feet long (if you have a table saw, a 1x2 can be ripped in half) 21” x 20” - 1/4” plywood Wood glue 2” trim screws or finish nails Optional 1” or 1 1/4” pocket hole screws

Cut List

8 - 1x2 @ 9” long 22 - 1x1 @ 2 3/4” long 8 - 1x1 @ 4 3/4” long 4 - 1x2 @ 18” long 5 - 1x2 @ 20” long 1 - 1x2 @ 14 1/2” long 6 - 1x2 @ 10 1/2” long 2 - 1/4” plywood @ 10 1/2” x 20” 2 - 1x1 @ 11 1/2” long 3 - 1x1 @ 4” long

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

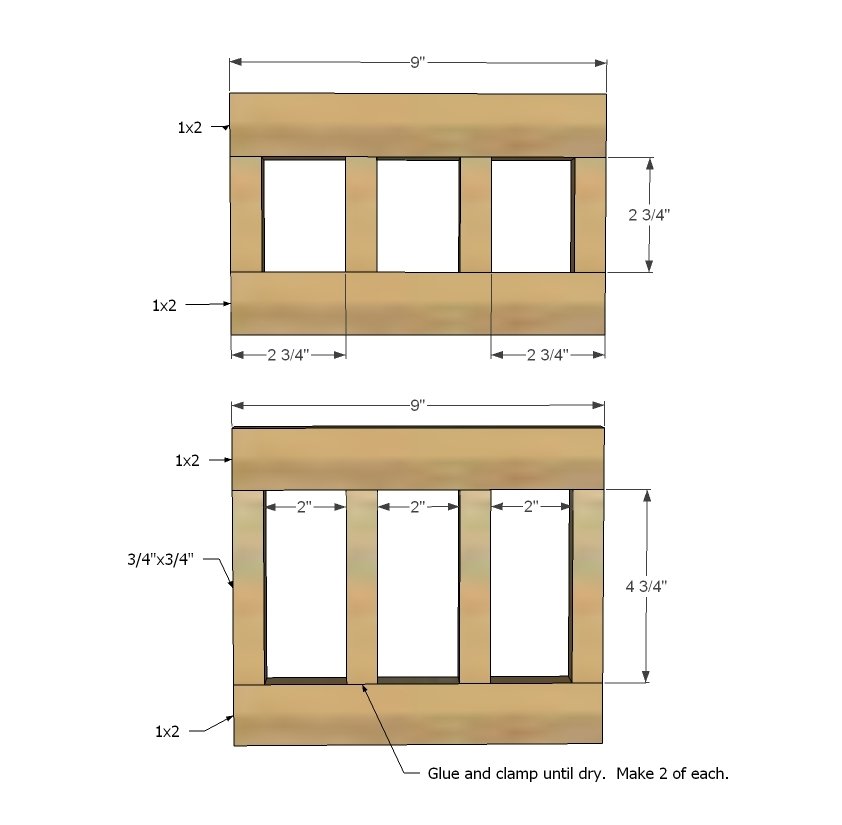

Glue and clamp the headboards and footboards together - you'll need to make two of each.

Camp Style Bunk Beds for American Girl or 18 Dolls — step 1
2

Step 2

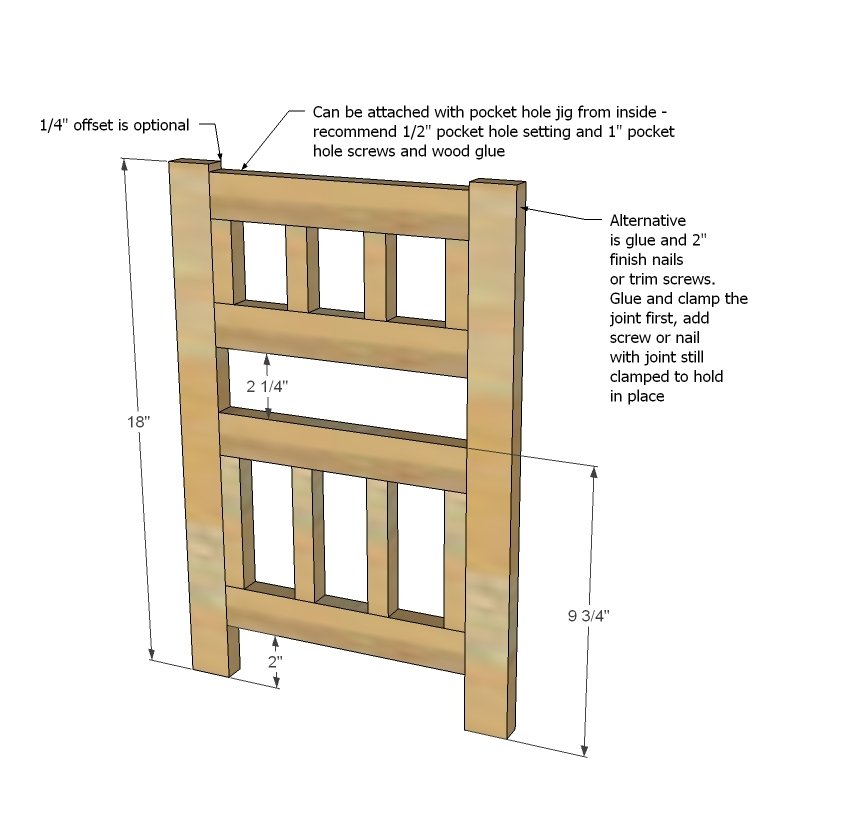

Then attach with glue to the legs. You'll need to make two of these - one for the top and bottom.

Camp Style Bunk Beds for American Girl or 18 Dolls — step 2
3

Step 3

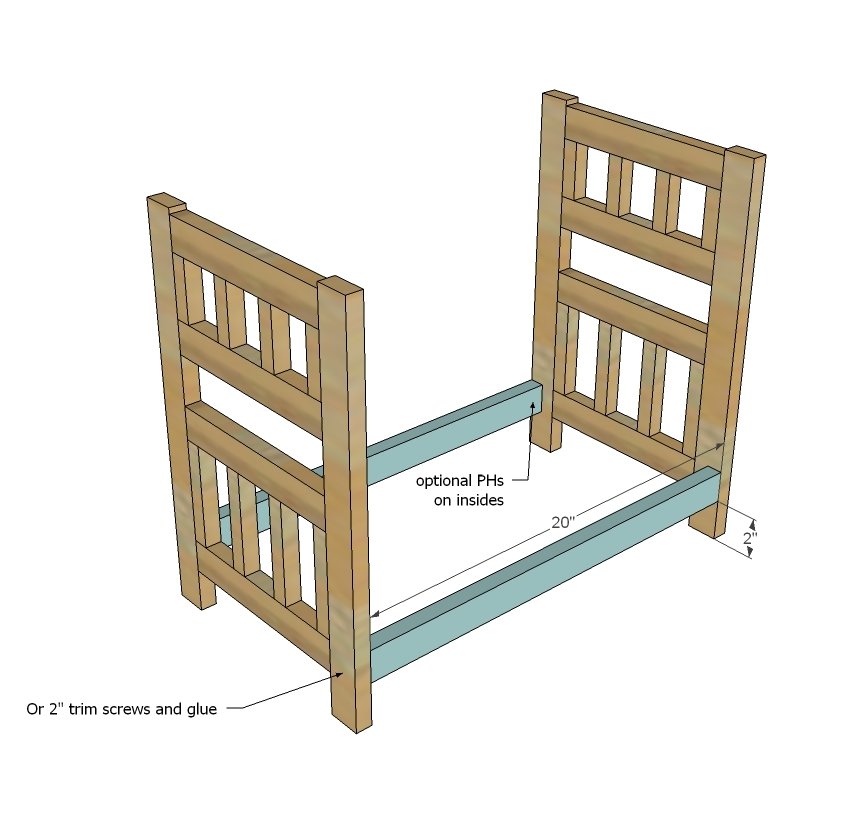

Now this is where your main weight is - for example, a child decides to sit on the bed.... so I suggest attaching with glue and screws here. A 3/4" PH underneath with 1 1/4" (try fine thread screws to prevent wood from splitting or 1" PH screws) will do the trick.

Camp Style Bunk Beds for American Girl or 18 Dolls — step 3
4

Step 4

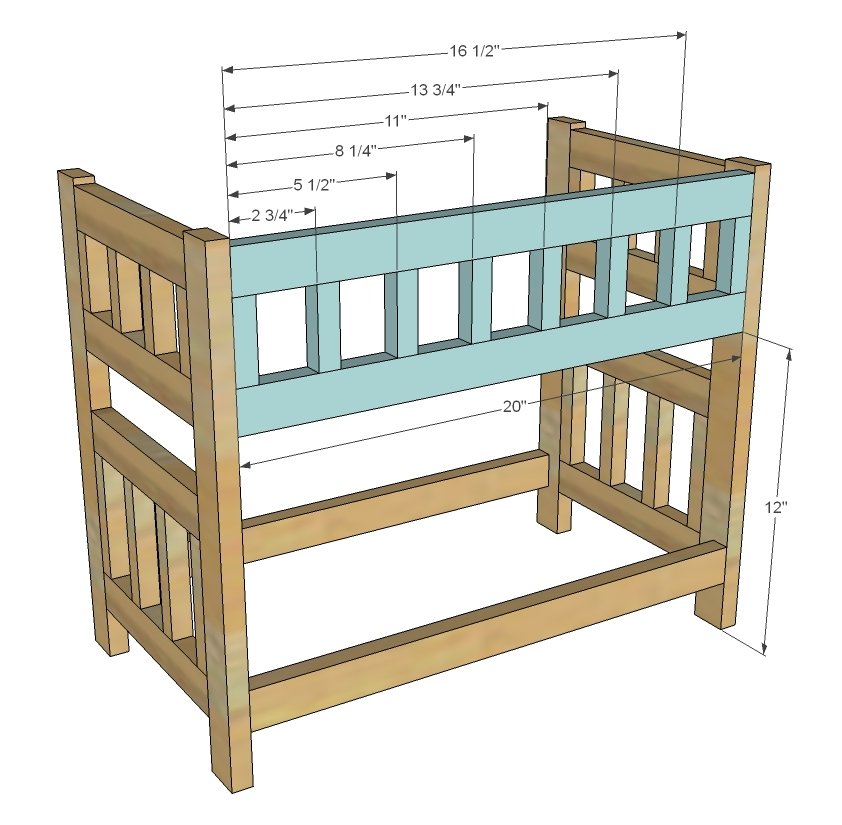

Build the top railing with glue and let dry. Then attach to legs with screws or nails.

Camp Style Bunk Beds for American Girl or 18 Dolls — step 4
5

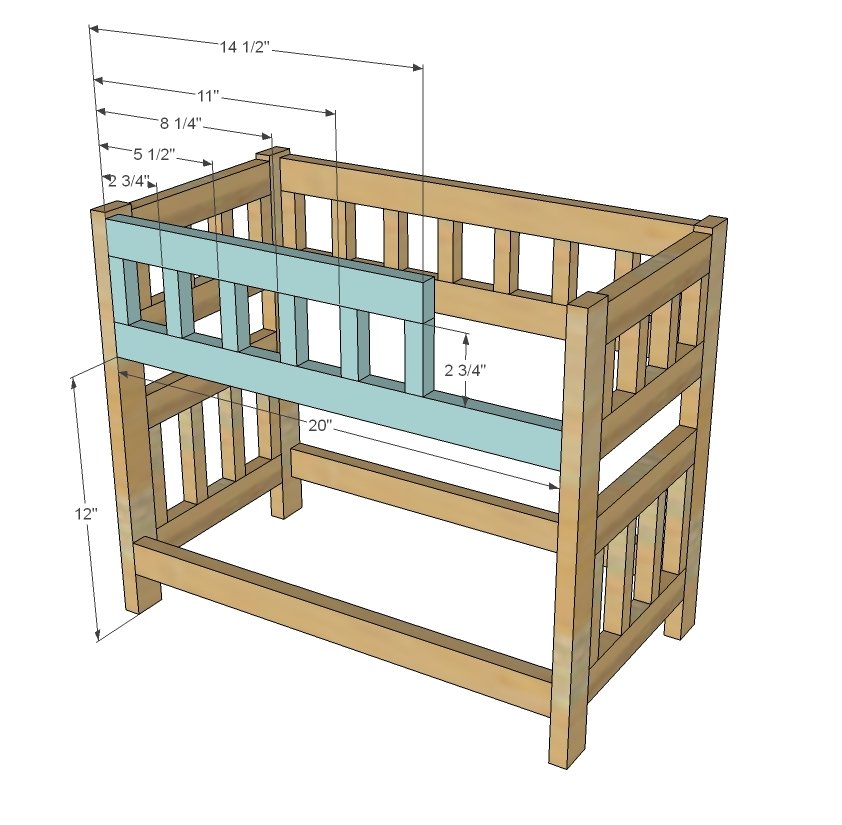

Step 5

Camp Style Bunk Beds for American Girl or 18 Dolls — step 5
6

Step 6

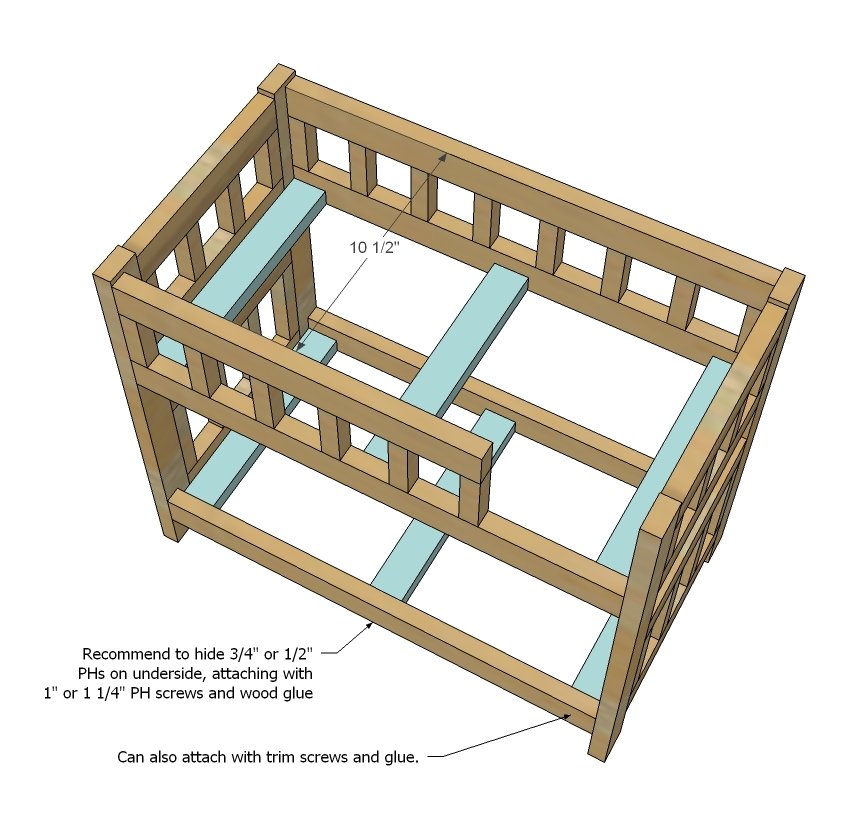

Now I know this is a doll bed, but I have kids in my house, and I know they are rough on little furniture. So I added these supports underneath for the mattress. Attach the footboard/headboard to the end ones for added support, and don't forget the glue!

Camp Style Bunk Beds for American Girl or 18 Dolls — step 6
7

Step 7

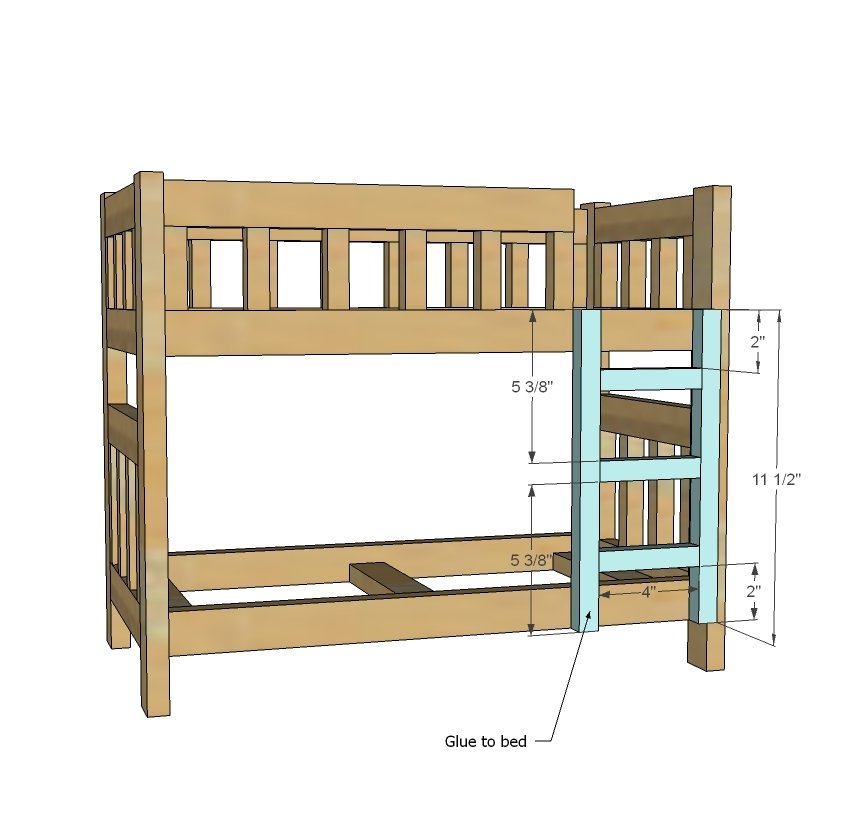

Make the ladder with glue and let dry. Then attach to the bed with glue.

Camp Style Bunk Beds for American Girl or 18 Dolls — step 7
8

Step 8

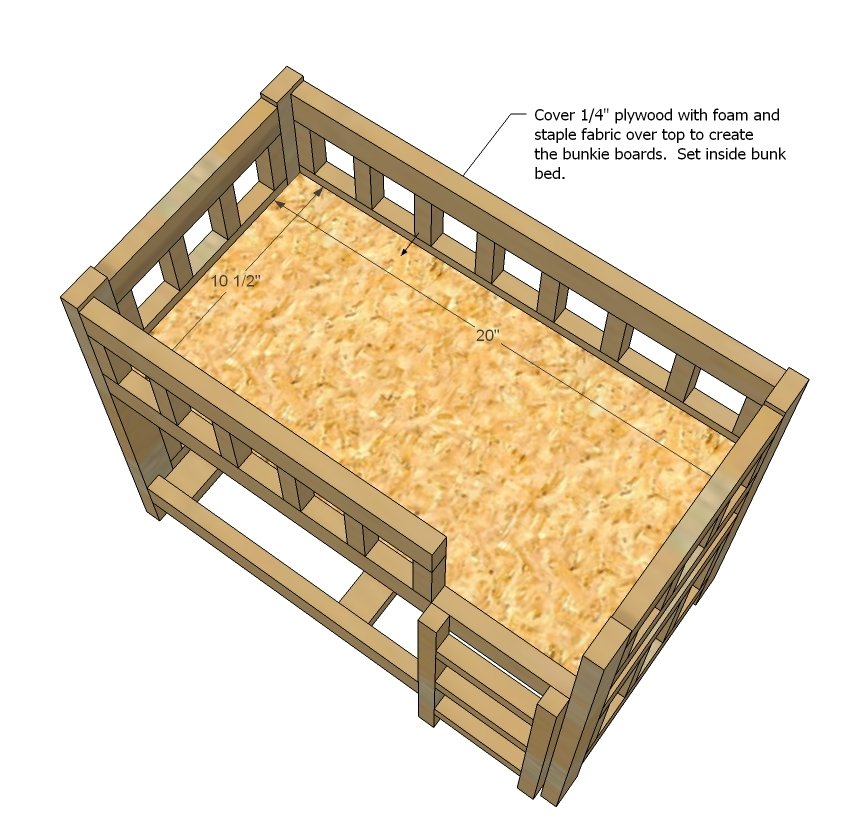

You can use scrap plywood or even heavy cardboard for the mattress bottom. I loved how Jaime made her mattresses by attaching foam and fabric to the plywood. You can go check out how she did that here. Thanks Jaime!

Camp Style Bunk Beds for American Girl or 18 Dolls — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
