Cayden Nailhead Counter Height Stool

How to build leather nailhead upholstered stools inspired by Pottery Barn Caden Nailhead Barstools. include tutorial for nailhead upholstery.

Cayden Nailhead Counter Height Stool

Specifications

Project typeStools
Roomkitchen
StyleFarmhouse Furniture
DifficultyIntermediate
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

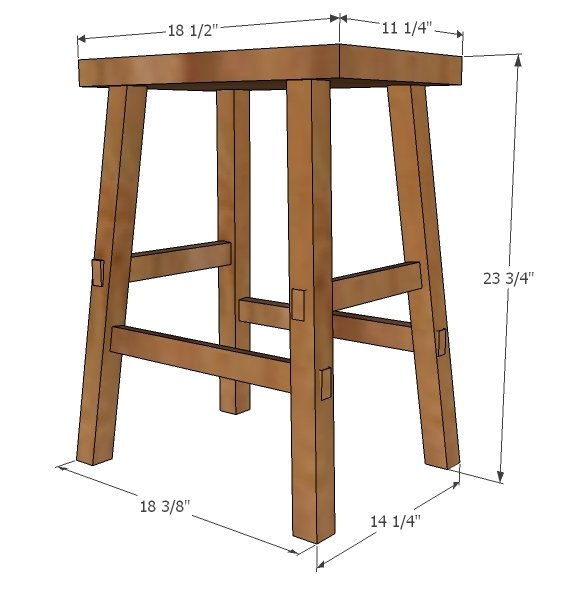

Cayden Nailhead Counter Height Stool dimension diagram 1

Shopping List

1 - 2x2 @ 8 feet long

1 - 1x2 @ 8 feet long

1 - 2x12 @ 18 1/2" long

Use either 2 1/2" and 1 1/4" pocket hole screws OR 3" trim screws countersunk

Cut List

1 - 2x12 @ 18 1/2"

4 - 2x2 @ 22 3/8" (long point to short point, ends cut parallel at a 5 degree double bevel)

2 - 1x2 @ 9 3/8" (long point to long point, ends NOT parallel, ends cut at 5 degrees off square)

2 - 1x2 @ 14" (long point to long point, ends NOT parallel, ends cut at 5 degrees off square)

8 - 1x2 @ 1/2" - one end cut at 5 degrees off square

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • countersink drill bit

Step-by-step Instructions

1

Step 1

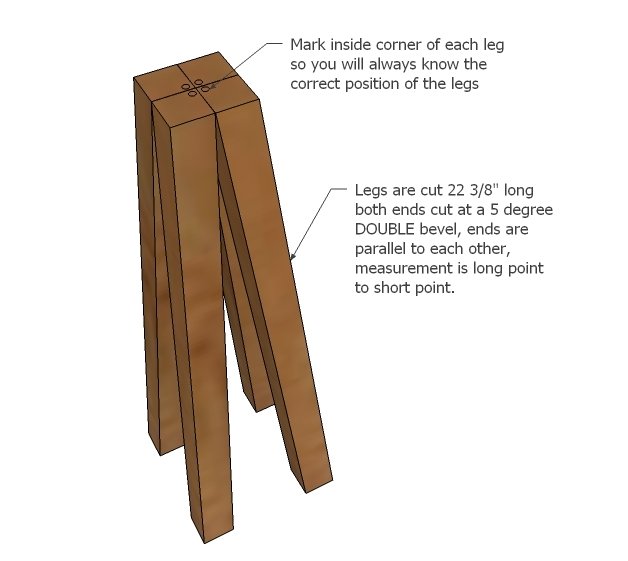

Set your compound miter saw to a 5 degree bevel and 5 degree angle to create the 5 degree double bevel. Cut the end of the 2x2 off, as close as possible to the end. Measure down the outside edge 22 3/8" and mark and cut, without rotating the board. Repeat, simply moving the board down and cutting, without rotating the board, until you have all four legs cut. Then position legs so they all point inward as shown in diagram. Mark inside corner. This will save much confusion later on.

Cayden Nailhead Counter Height Stool — step 1
2

Step 2

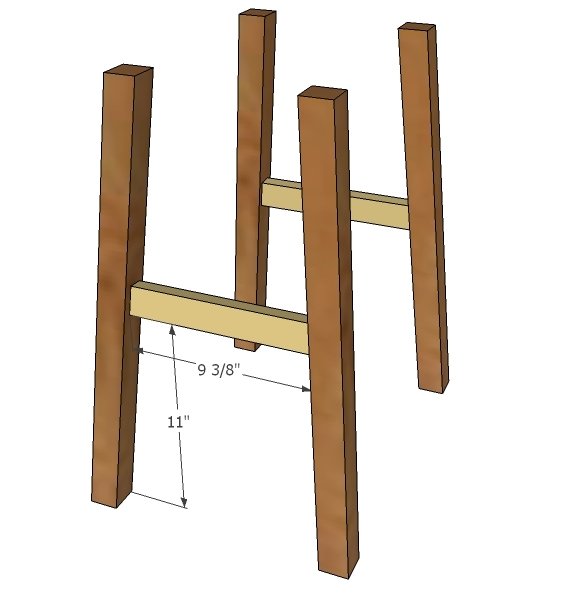

You can either use 3/4" pocket holes and 1 1/4" pocket hole screws or 3" countersunk screws. Position side rungs and attach in place with glue and screws.

Cayden Nailhead Counter Height Stool — step 2
3

Step 3

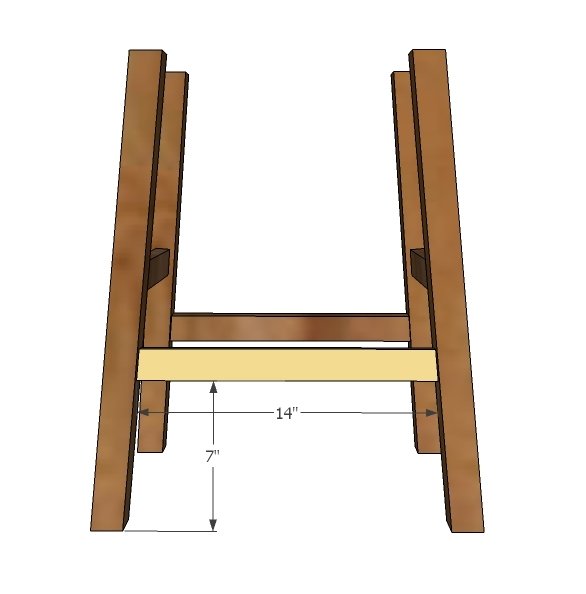

Next assemble the stool base by adding the remaining side stretchers.

Cayden Nailhead Counter Height Stool — step 3
4

Step 4

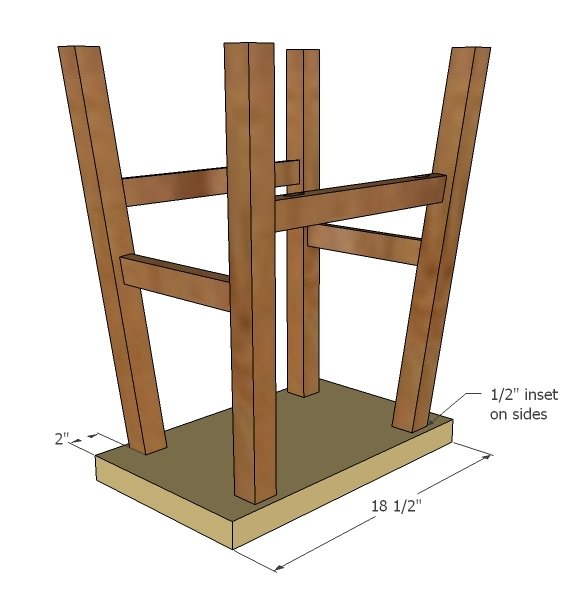

Add the top by either screwing through top (will be covered by upholstery) or using 1 1/2" pocket holes and 2 1/2" pocket hole screws and wood glue.

Cayden Nailhead Counter Height Stool — step 4
5

Step 5

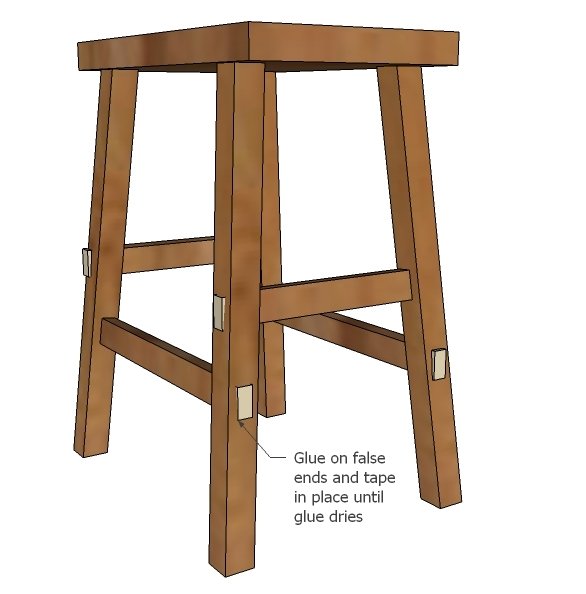

Cayden Nailhead Counter Height Stool — step 5
6

Step 6

For a full step by step tutorial on upholstering with leather, check out Jaime's post.

7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
