Cedar Propane Tank Cover Table
Build your own propane tank cover table using cedar fence pickets! This super easy to build project plan can hide your propane tank, and works as an extra side table. It's easy to build with diagrams, shopping and cut lists, and lots of photos from Build and Photos by Family DIYnamic
Specifications
| Project type | Outdoor Seating, Lounging and Accents |
|---|---|
| Room | Outdoor |
| Difficulty | Starter Projects |

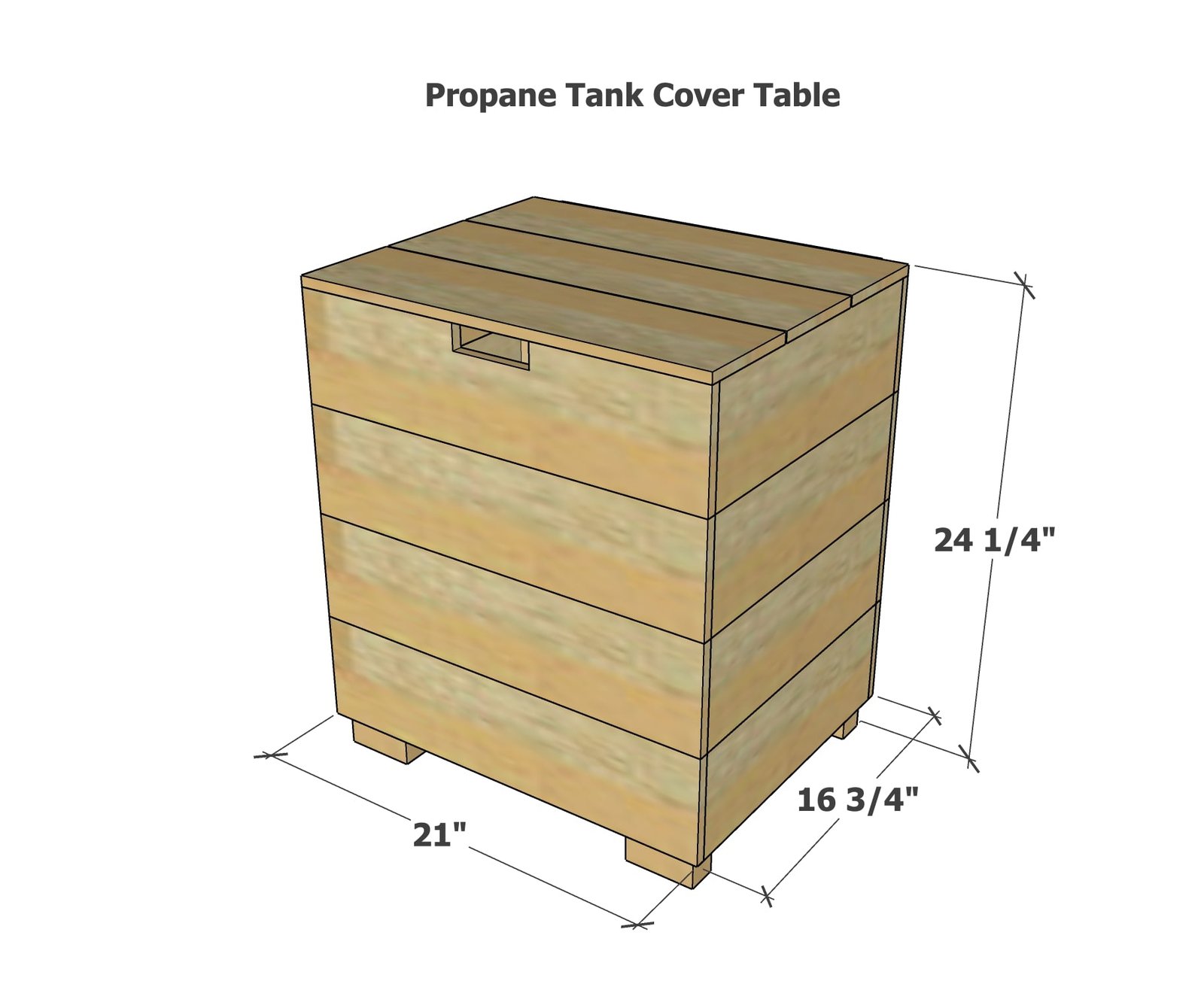

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 6 - 6’ cedar fence pickets - not dog eared
- 1 - 2x4 @ 10’
- 1- 1x3 scrap totaling 31”
- 1-1/4" and 2-1/2" self tapping star bit screws
- piano hinge or exterior hinges
Cut List
- 2 - 2x4 @ 15-3/4" - leg caps
- 4 - 2x4 @ 21-1/2" - legs
- 8 - Cedar fence pickets @ 15.75” - side slats
- 8 - Cedar fence pickets @ 21" - front and back slats - cut to fit
- 3 - Cedar fence pickets @ 21" - top lid slats - cut to fit
- 2 - 1x3 @ 15-1/4" - inside lid supports
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- circular saw
- sander
Step-by-step Instructions

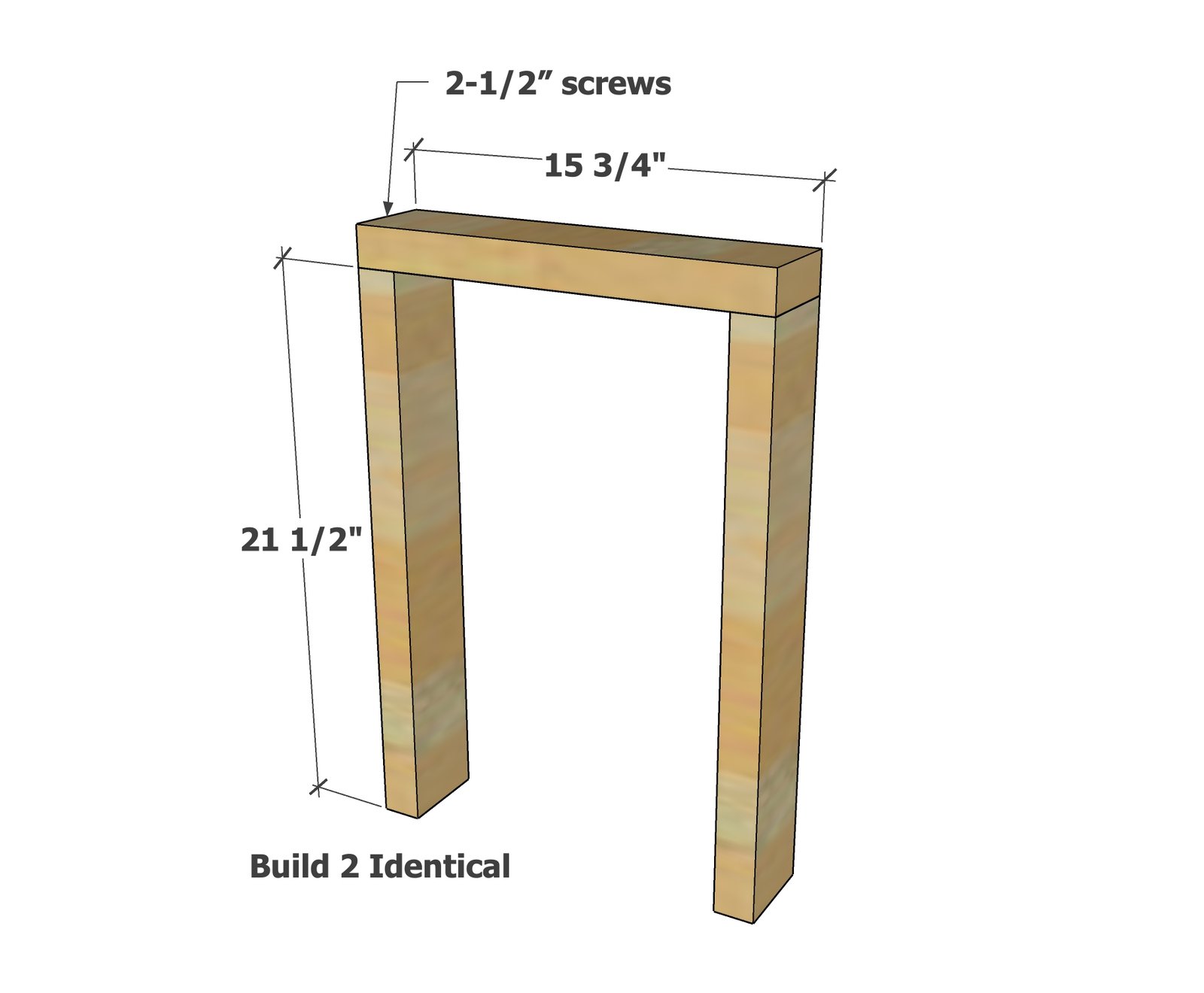

Step 1
Build two of the inner frames using 2x4s and the longer screws.

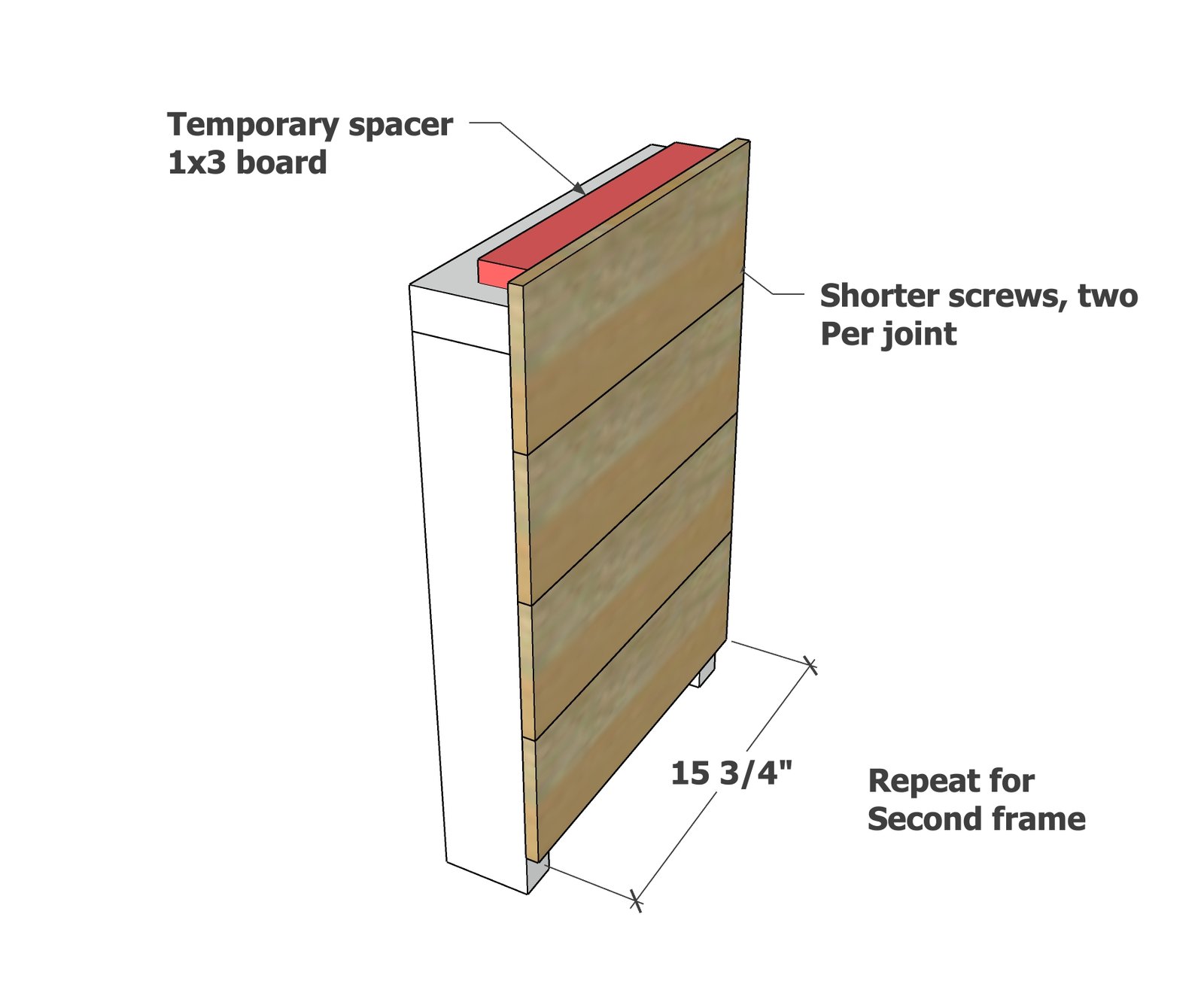

Step 2
Attach the siding panels to the frames, with a 3/4" overhang at the top (use the 1x3 pieces as a guide). Attach with the shorter screws.

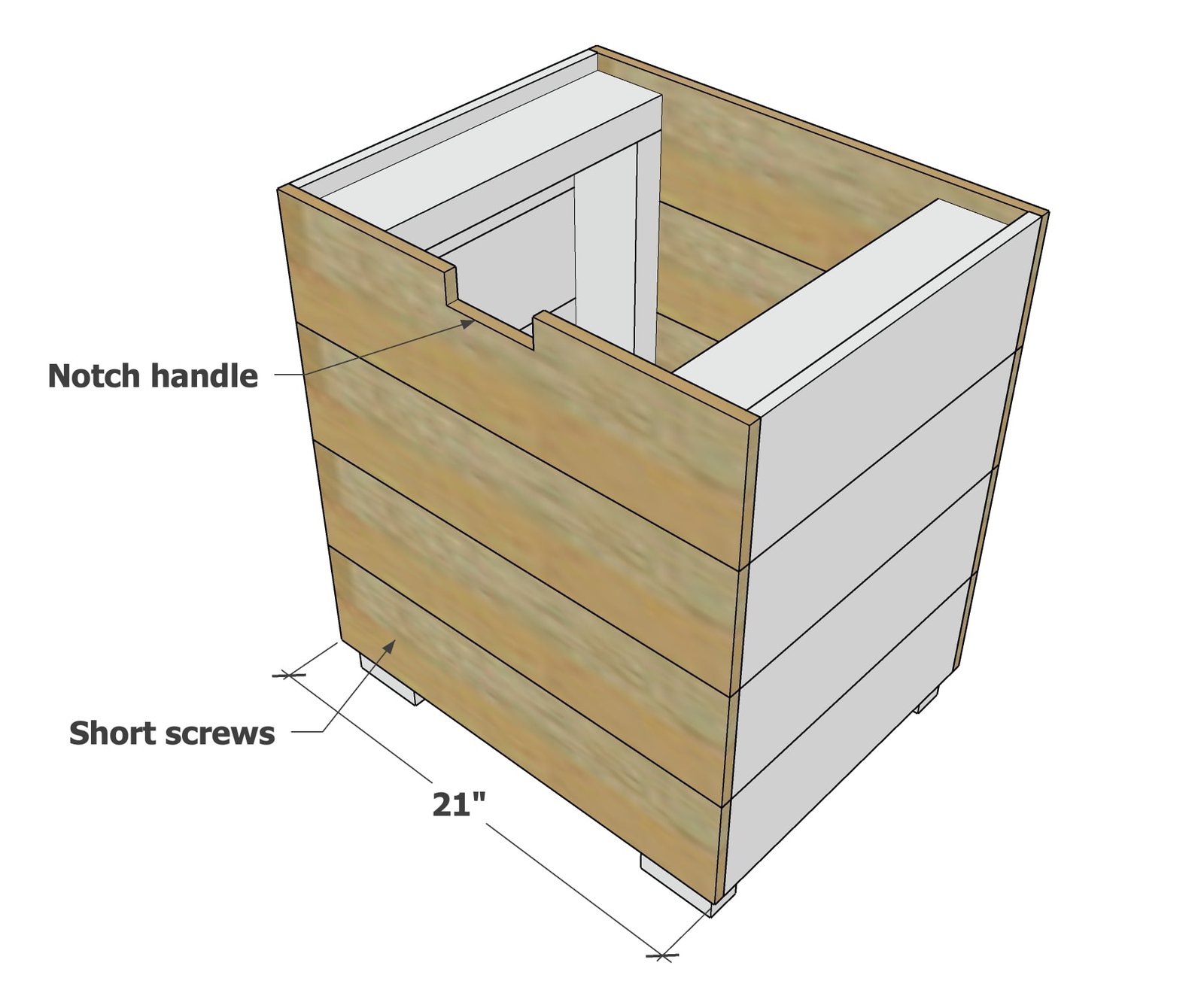

Attach the front and back siding pieces to the sides with the shorter screws.
Cut the front notch out if desired.

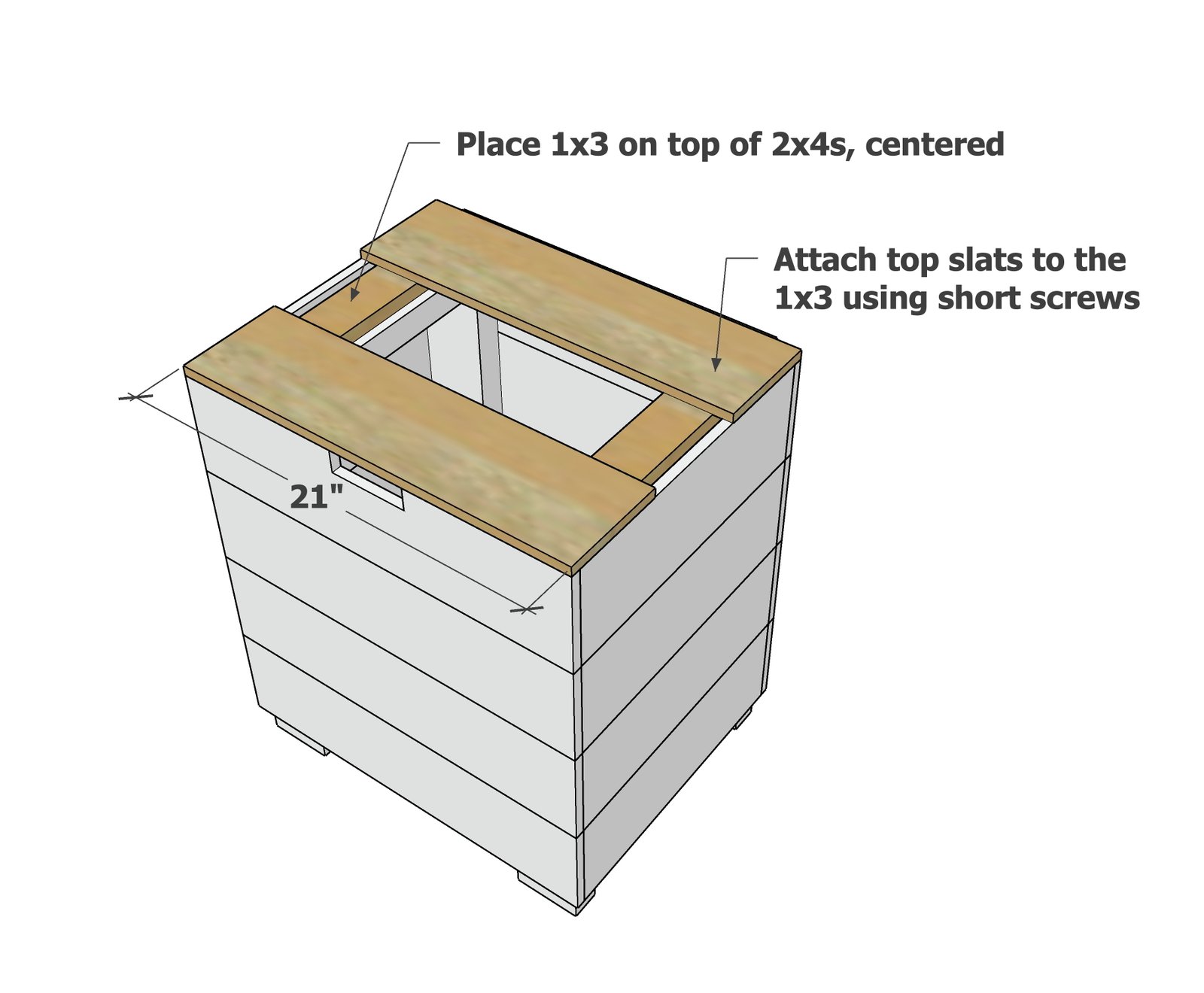

Step 4
Place the 1x3 on top of the 2x4s, center on the 2x4s, and place the outer top pieces on top so the edges are flush to the outsides of the table. Screw down with shorter screws.

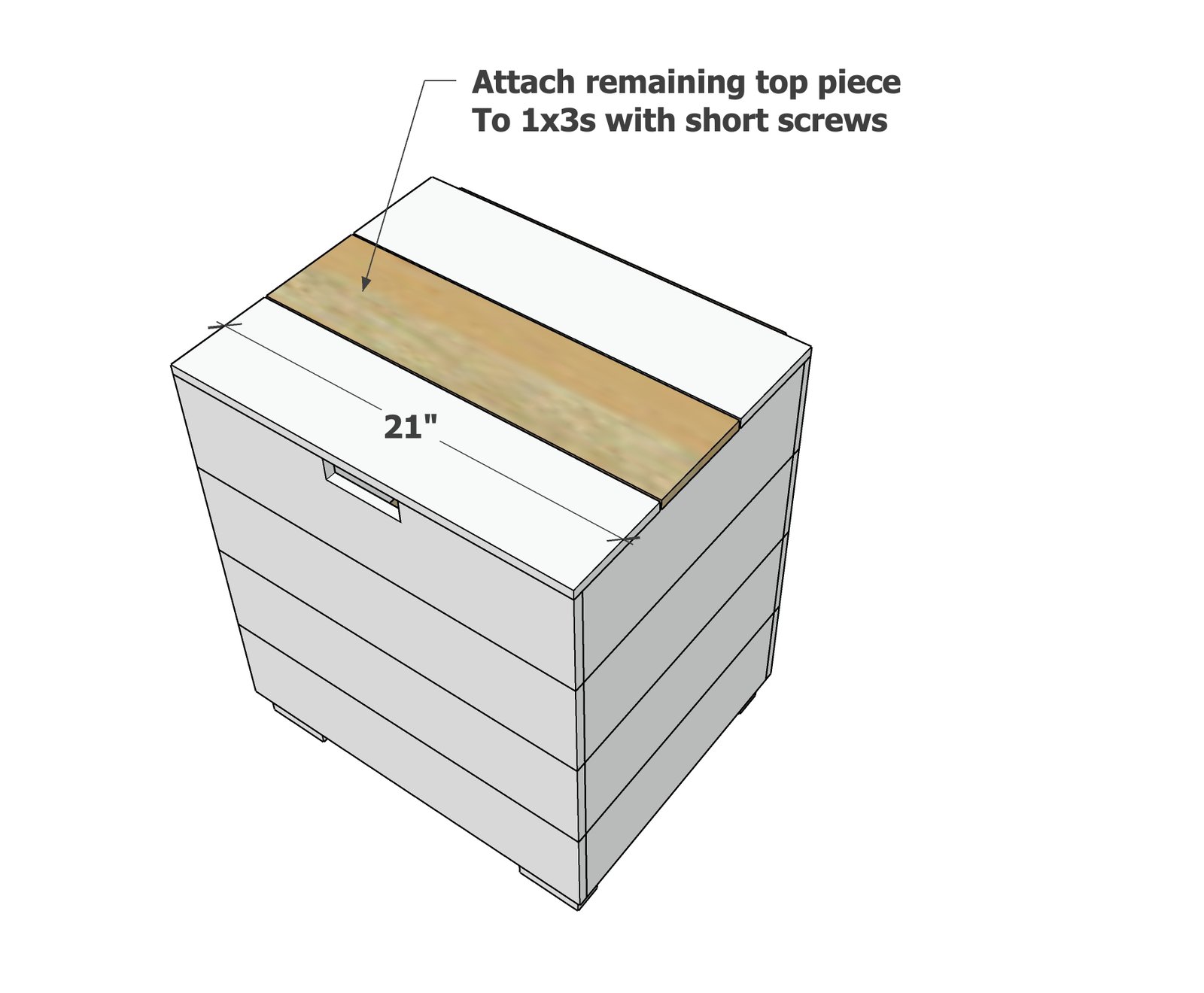

Step 5
Place the remaining top piece in between and attach with screws.

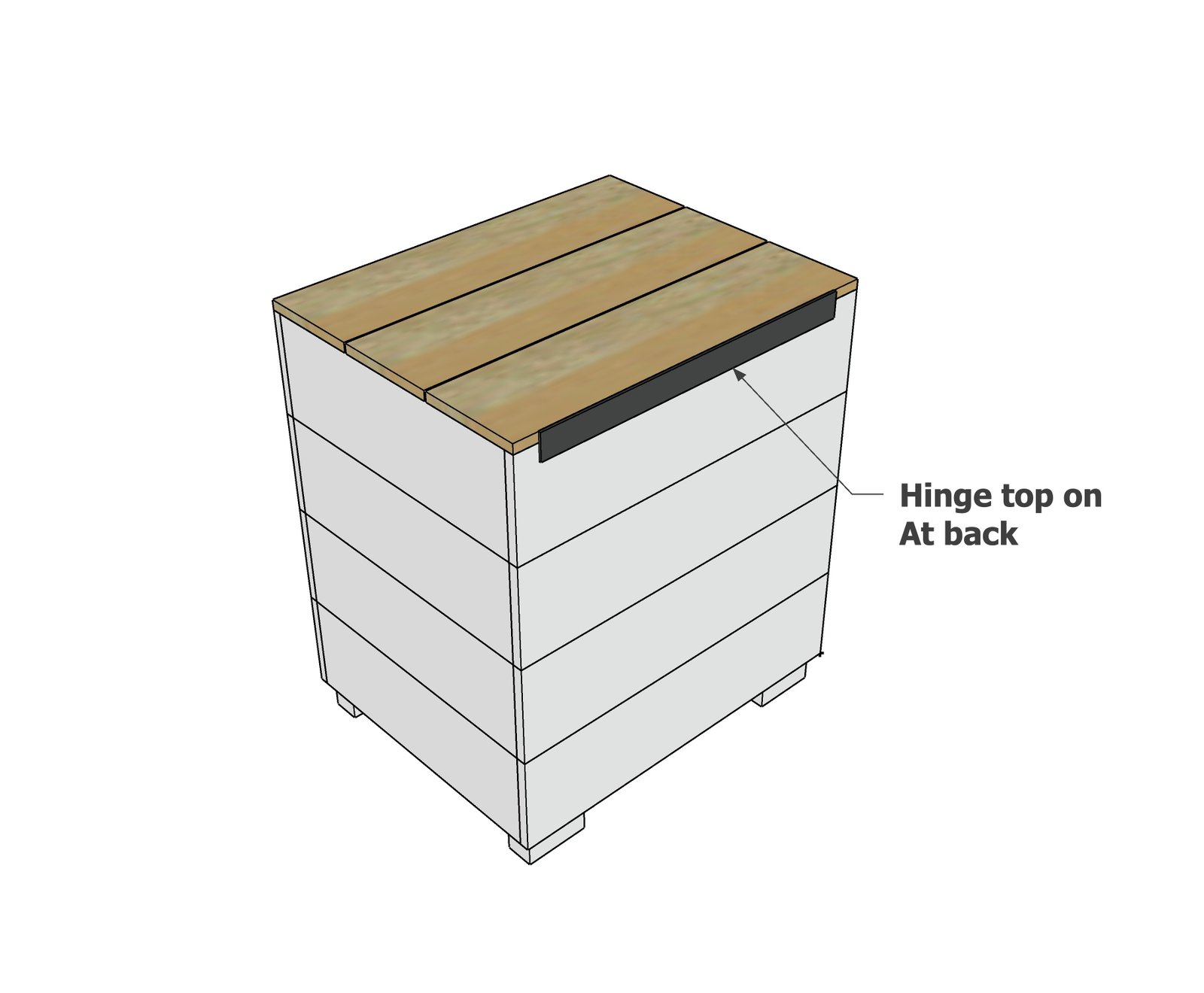

Step 6
Attach top with hinge at the back.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
