Cedar Vertical Tiered Ladder Garden Planter

Build your own cedar ladder garden planter for about $20 using inexpensive cedar fence pickets - from

Cedar Vertical Tiered Ladder Garden Planter

Specifications

Project typePlanters, Garden Beds, and Greenhouses
RoomOutdoor
StyleGreen or Eco-Friendly Style Furniture
DifficultyBeginner Projects
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

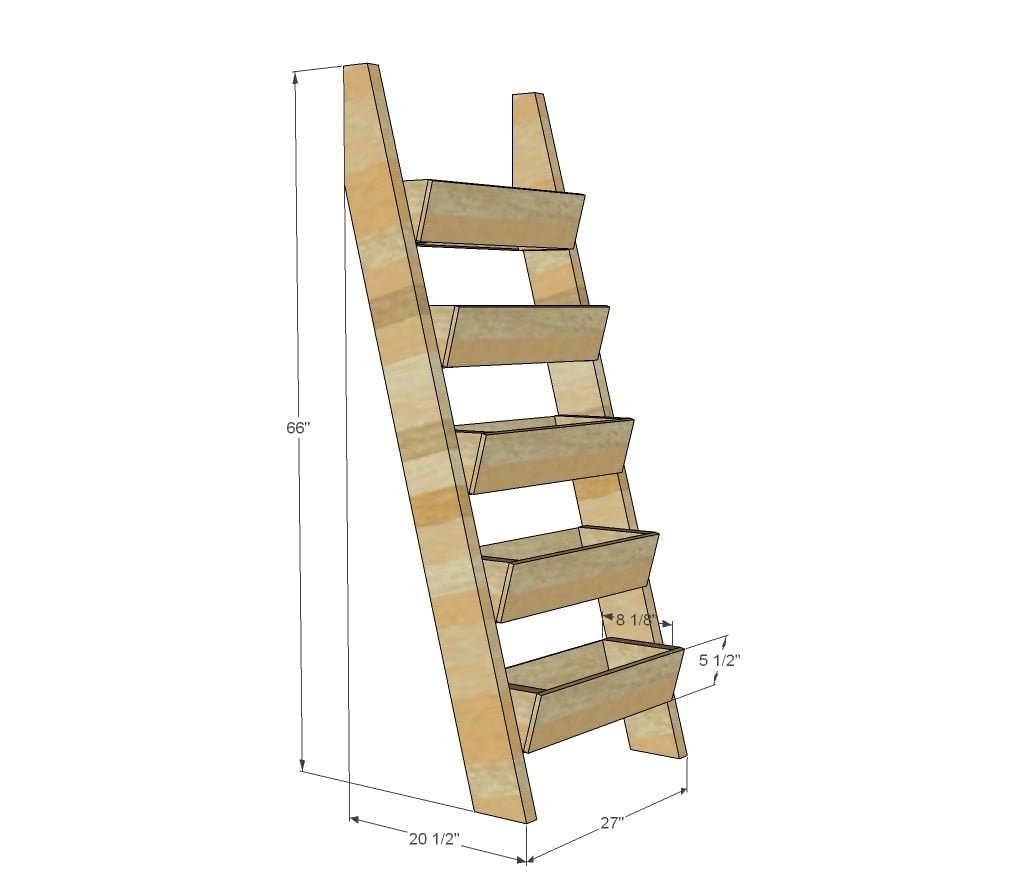

Cedar Vertical Tiered Ladder Garden Planter dimension diagram 1

Shopping List

  • 5 - 5-1/2" wide cedar fence pickets (dogeared is fine) 72" length
  • 2 - 10' long 2x6
  • 20 - 2-1/2" long exterior decking screws (for attaching boxes to legs)
  • 1-1/4" galvanized nails or staples (for making boxes)

Cut List

  • 10 - 2x6 @ 5-1/4" both ends cut at 15 degrees off square, ends are NOT parallel
  • 10 - 5-1/2" wide cedar fence pickets @ 23-1/2"
  • 5 - 5-1/2" wide cedar fence pickets @ 20-1/2" (cut to fit)
  • 2 - 2x6 @ 68-3/8" both ends cut at 15 degrees off square, ends ARE parallel

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • jigsaw
  • compound miter saw
  • staple gun

Step-by-step Instructions

1

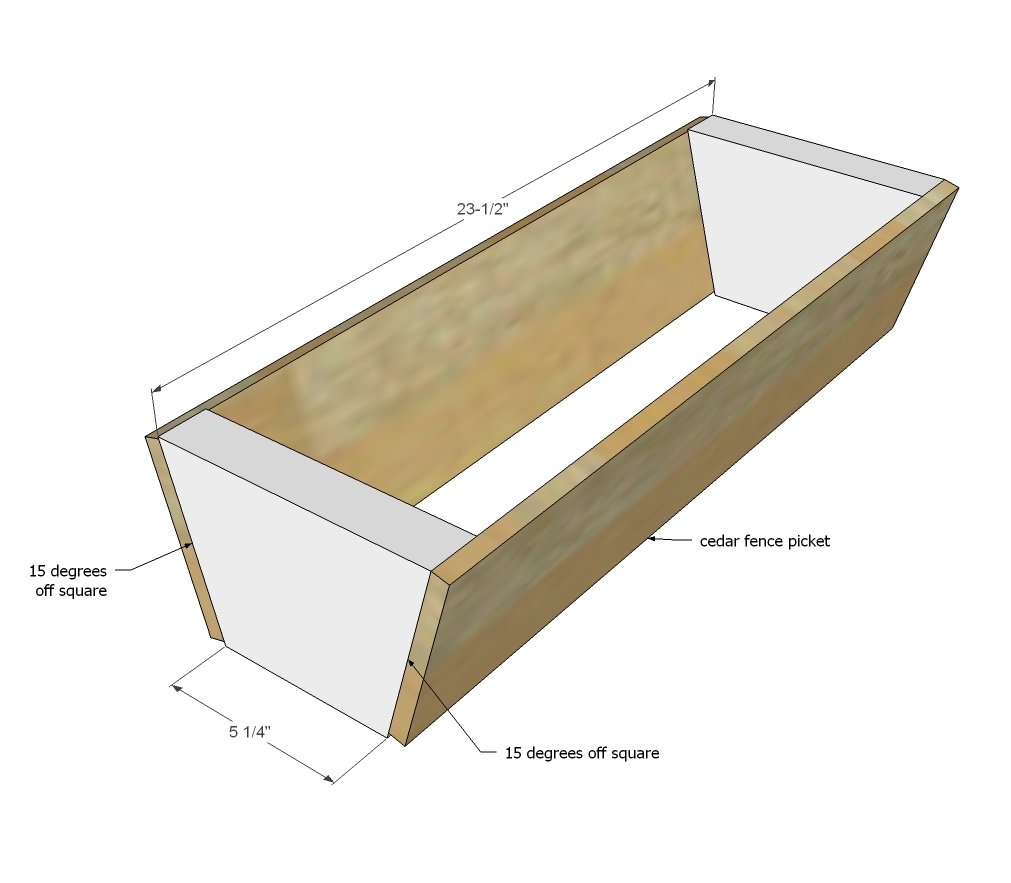

Step 1

Attach two of the longer cedar fence picket pieces to two ends. I used 1-1/4" galvanized staples, but you could also use screws or nails.

Cedar Vertical Tiered Ladder Garden Planter — step 1
2

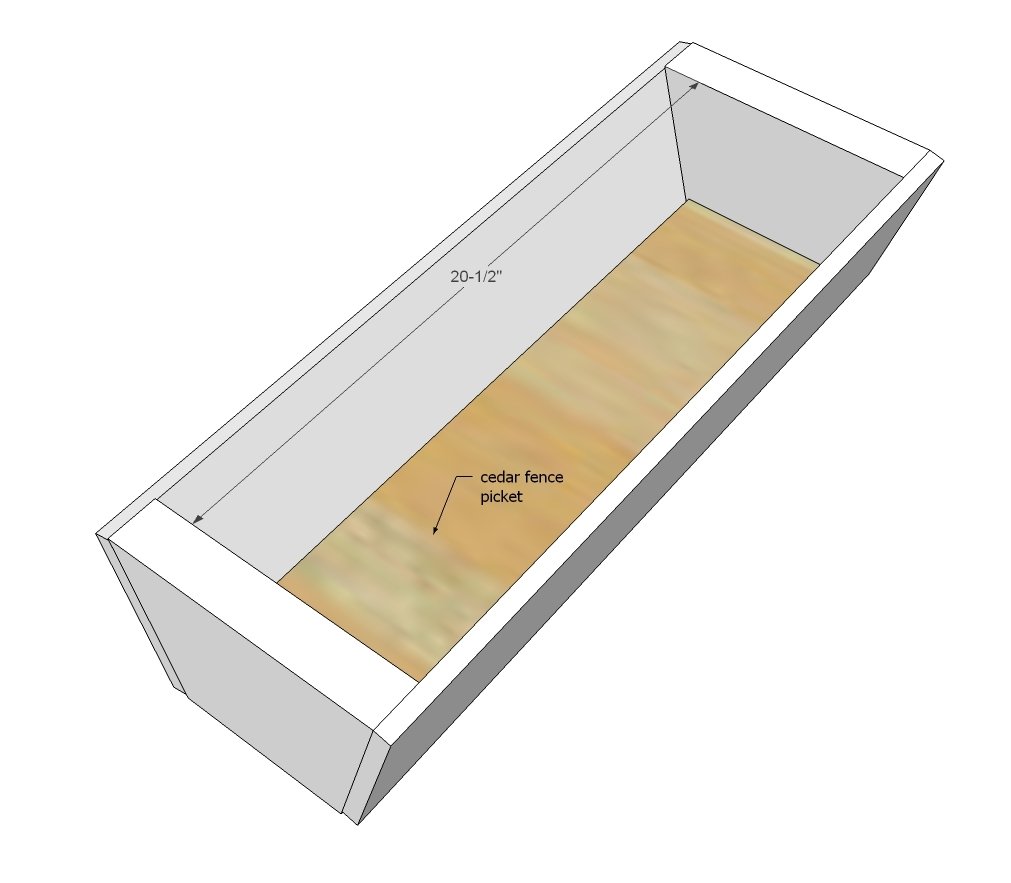

Step 2

I placed the bottoms in from the top, and then added a few staples to keep them in place.

Cedar Vertical Tiered Ladder Garden Planter — step 2
3

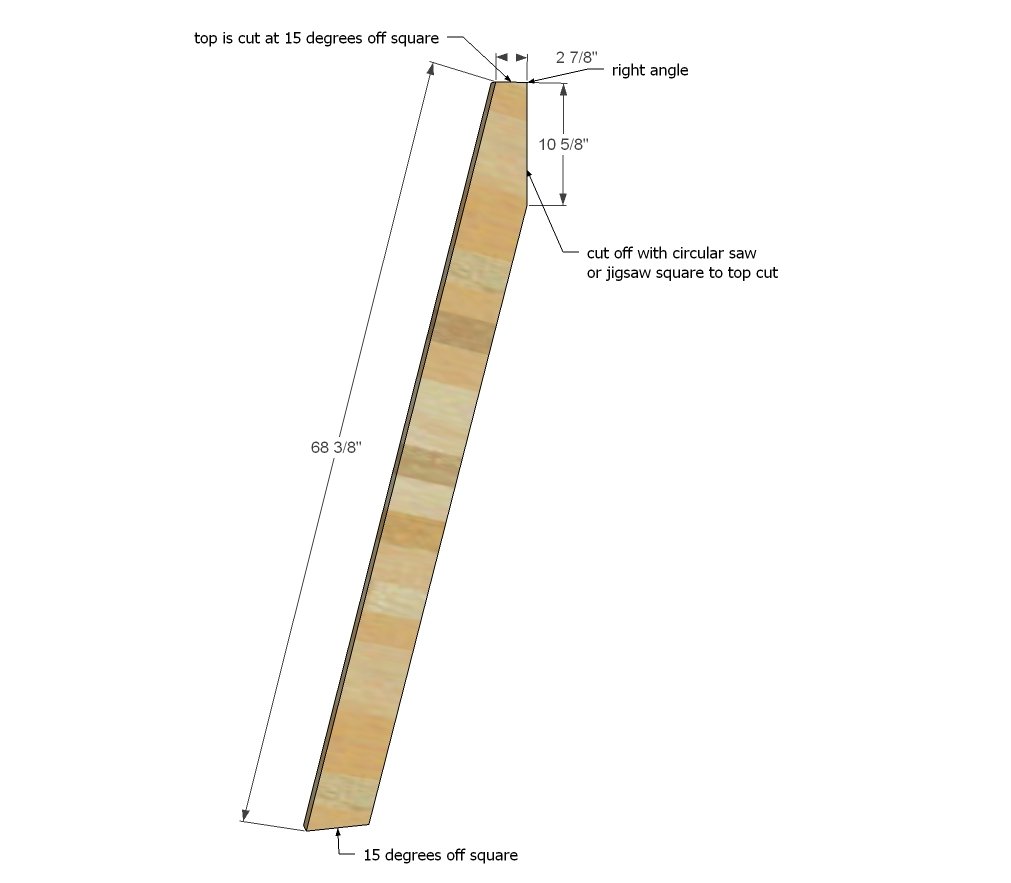

Step 3

The sides are simply cut with ends parallel at 15 degrees, then the back is cut off perpendicular to the top 15 degree cut. It's easier than you'd think. I used a jigsaw but the right tool would have been a circular saw. Start your cut on the top as you will have more to bit into.

Cedar Vertical Tiered Ladder Garden Planter — step 3
4

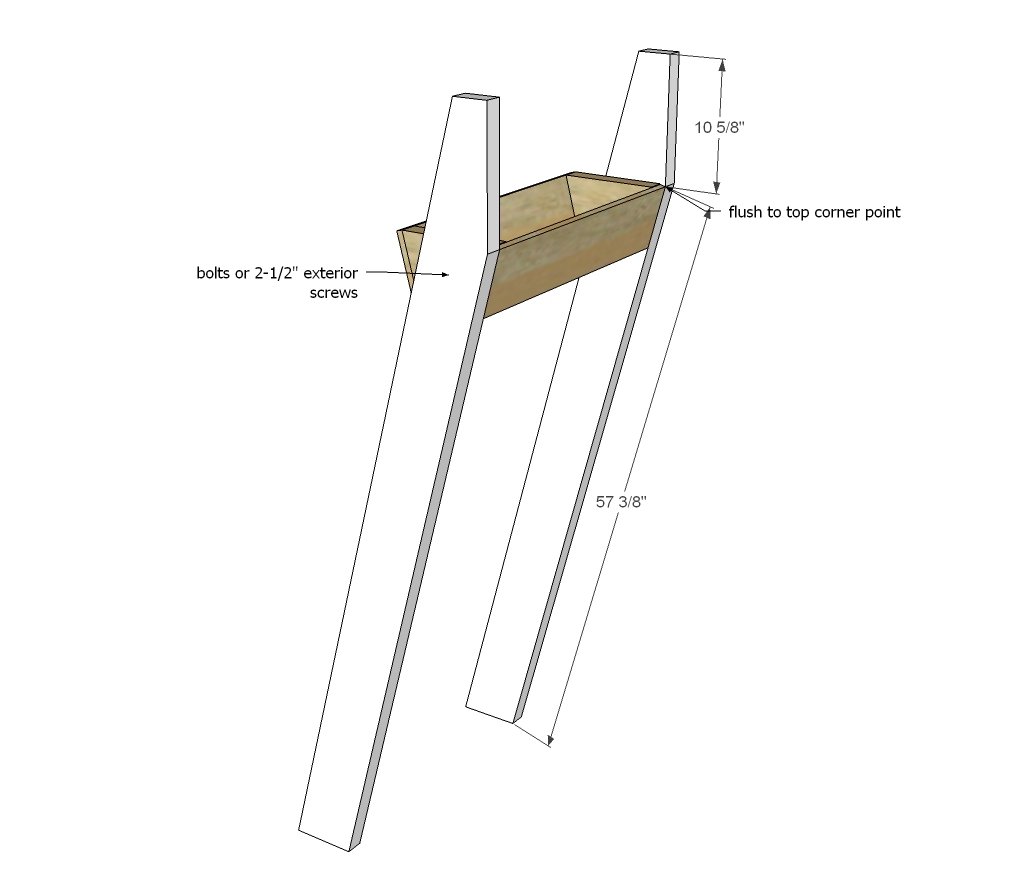

Step 4

Mark the placement of the top planter on both legs first to make sure you place the planter in exactly the same spot on both legs. Then I attached from inside with 2-1/2" exterior decking screws. The 2x6s I used were very hard to drill into, so I ended up predrilling as well.

Cedar Vertical Tiered Ladder Garden Planter — step 4
5

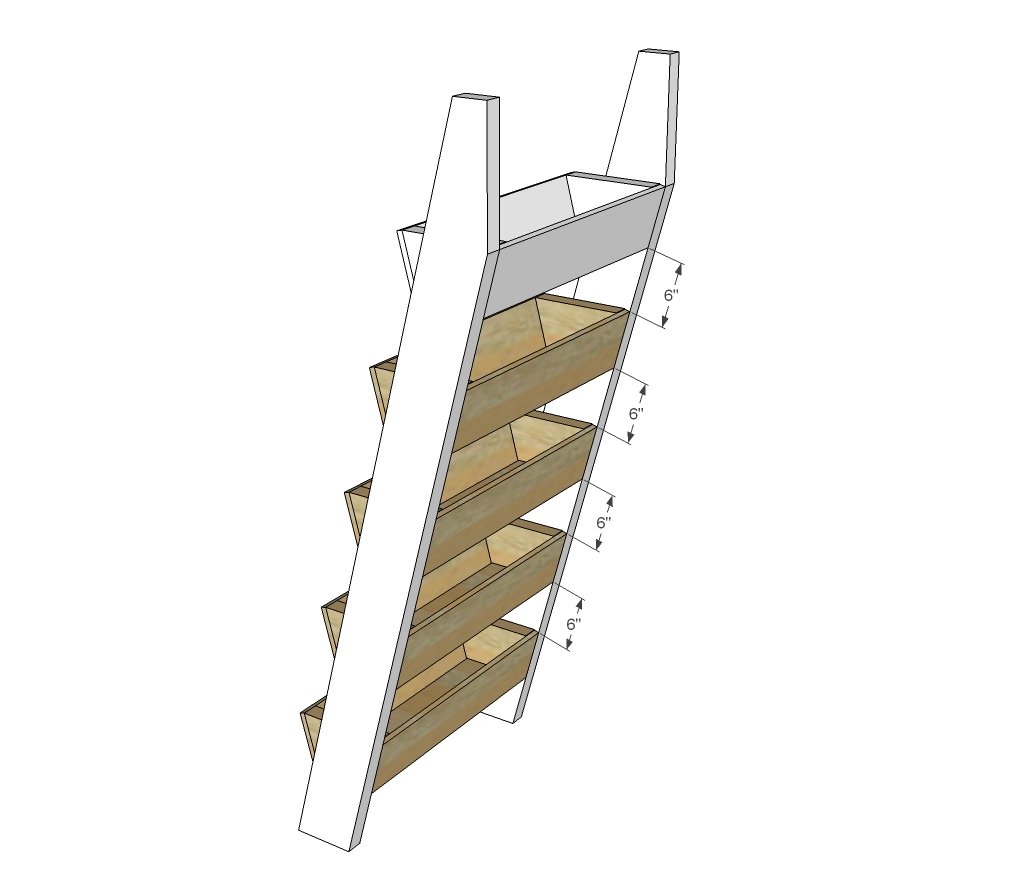

Step 5

Cedar Vertical Tiered Ladder Garden Planter — step 5
6

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
