Center Media Console (Rebecca Media Suite)

Build your own media wall! You can customize to fit your needs and space easily. This plan is for the center entertainment console piece. This collection includes everything you need to build an entire media wall.

Center Media Console (Rebecca Media Suite)

Specifications

Project typeMedia and Entertainment Centers
RoomStorage Solutions
StyleCottage Style Furniture Plans
DifficultyAdvanced

Dimensions

Use the size-specific shopping and cut lists below.

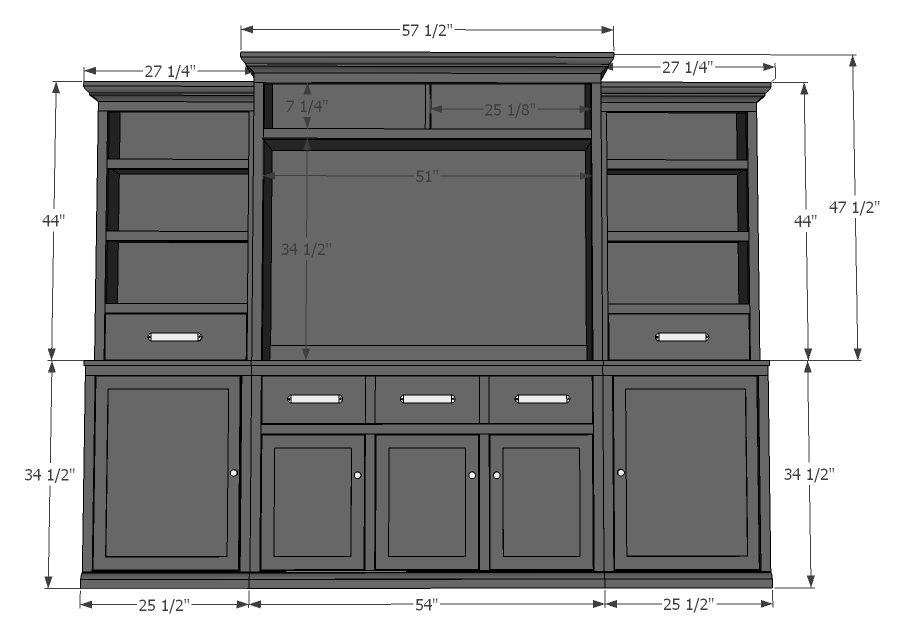

Center Media Console (Rebecca Media Suite) dimension diagram 1

Shopping List

  • 1 sheet 3/4" plywood
  • 1 sheet 1/4" plywood
  • 5- 8ft 1x2's
  • 3- 8ft 1x3's
  • 54" base molding

Cut List

3/4" Plywood

  • 1 @ 11 3/4" x 54"
  • 2 @ 11 3/4" x 33 3/4"
  • 2 @ 11 3/4" x 52 1/2"
  • 2 @ 11 3/4" x 21 3/4"
  • 1 @ 7 3/4" x 50 3/4"

1/4" plywood

  • 3 @ 11 3/4" x 16 1/2" (These are your inset door fronts) you might want to measure and cut specifically for what you need especially if you are not insetting your doors into their frames.
  • 1 @ 34 1/2" x x54"

1x2's

  • 2 @ 52 1/2"
  • 2 @ 32 1/4"
  • 2 @ 54"
  • 2 @ 20 3/4"
  • 1 @ 51" 1x3's
  • 1 @ 51"
  • 6 @ 20 1/2" (These are for your door frames cut on a miter. This will be a different measurement if you are doing butt joint doors)
  • 6 @ 10 3/4" (These are for your door frames cut on a miter. This will be a different measurement if you are doing butt joint doors)
  • 2" base molding
  • 1 @ 54"

Tools

  • measuring tape
  • square
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • table saw
  • nailer
  • sander
  • level

Step-by-step Instructions

1

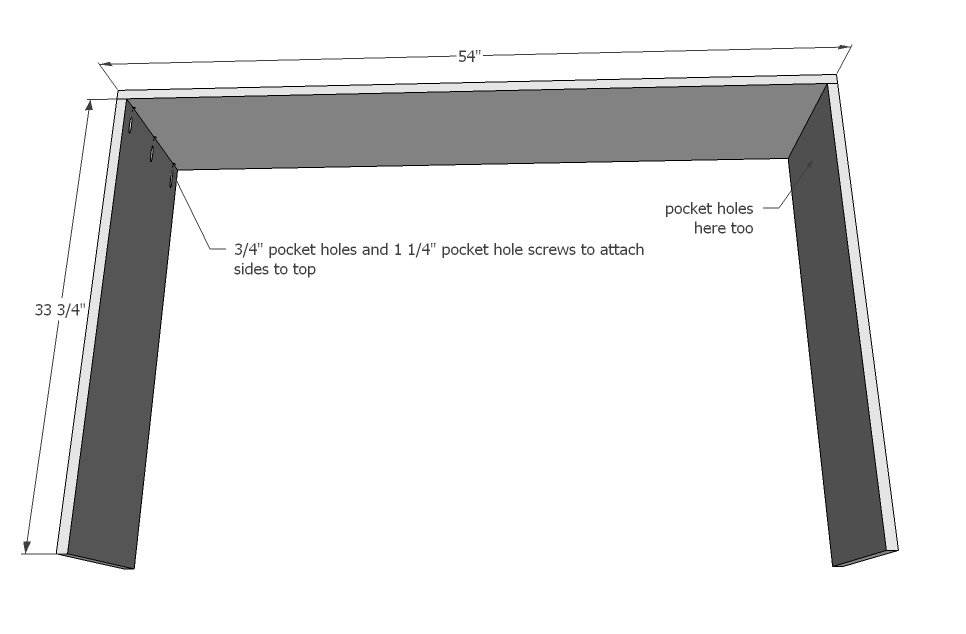

Step 1

Easy step - just start by attaching sides to top.

Center Media Console (Rebecca Media Suite) — step 1
2

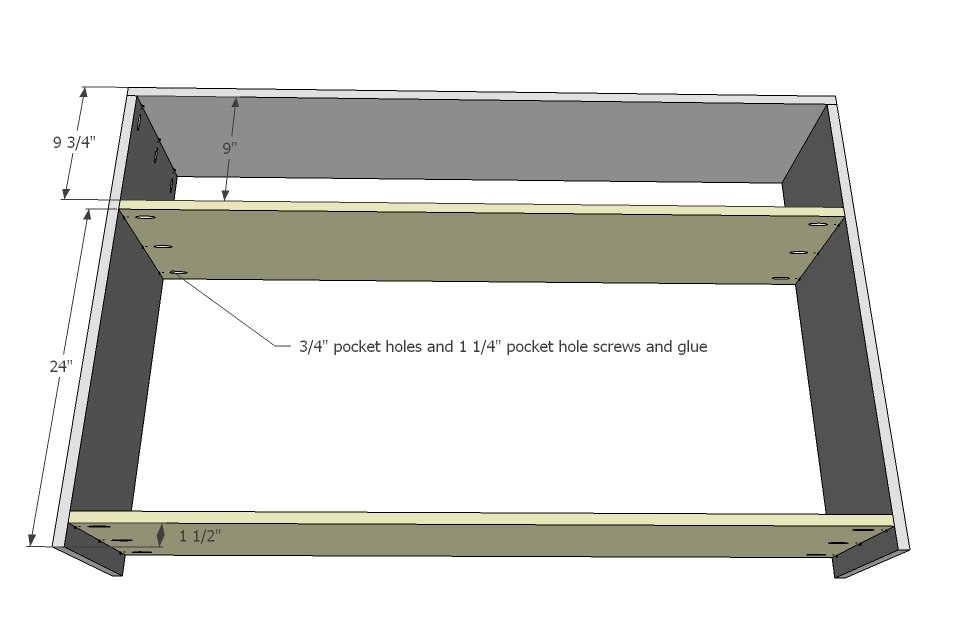

Step 2

Now the shelves.

Center Media Console (Rebecca Media Suite) — step 2
3

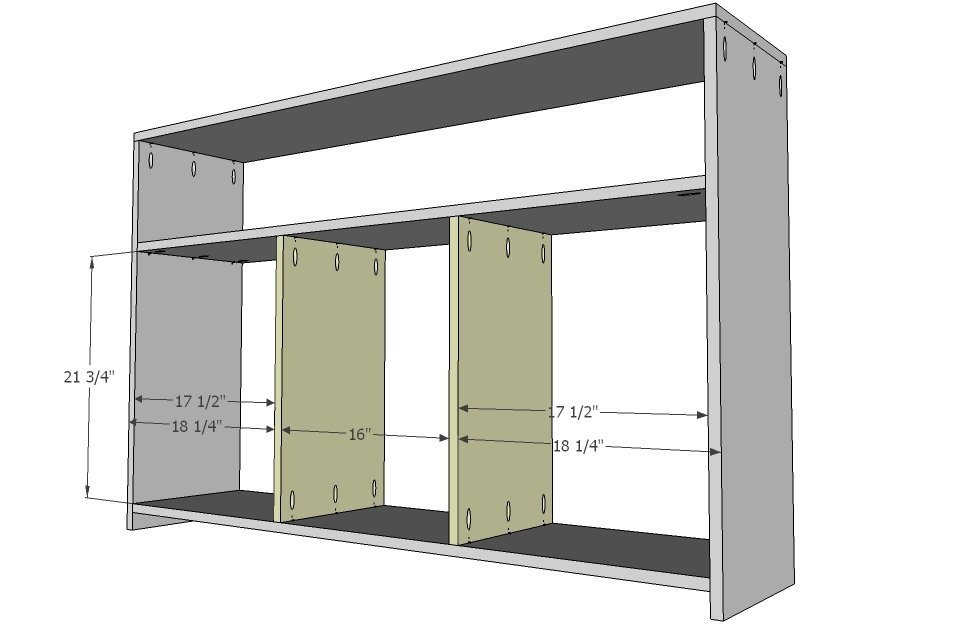

Step 3

Now add the dividers between the shelves.

Center Media Console (Rebecca Media Suite) — step 3
4

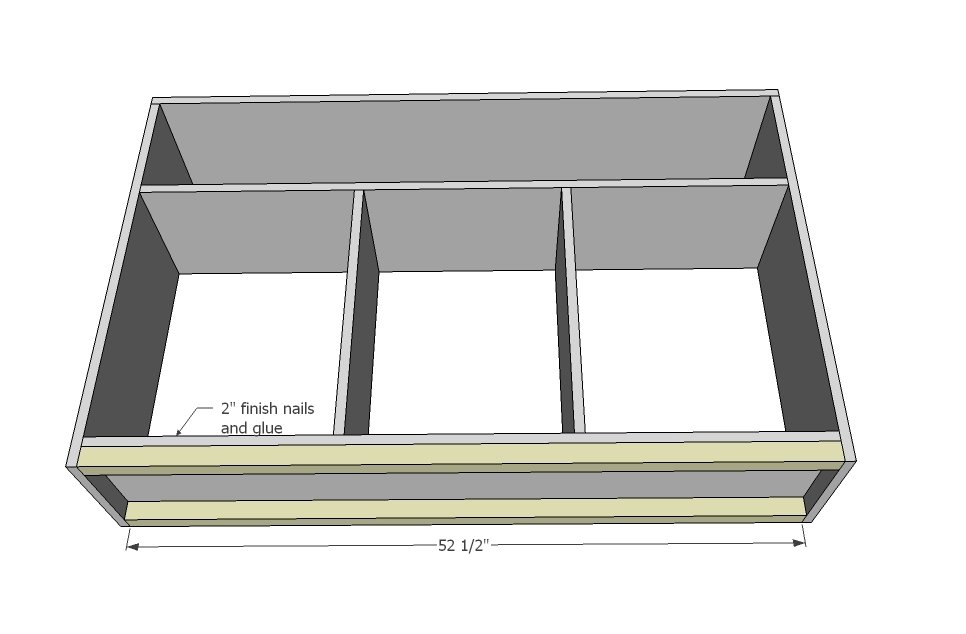

Step 4

These are to provide support for the bottom shelf.

Center Media Console (Rebecca Media Suite) — step 4
5

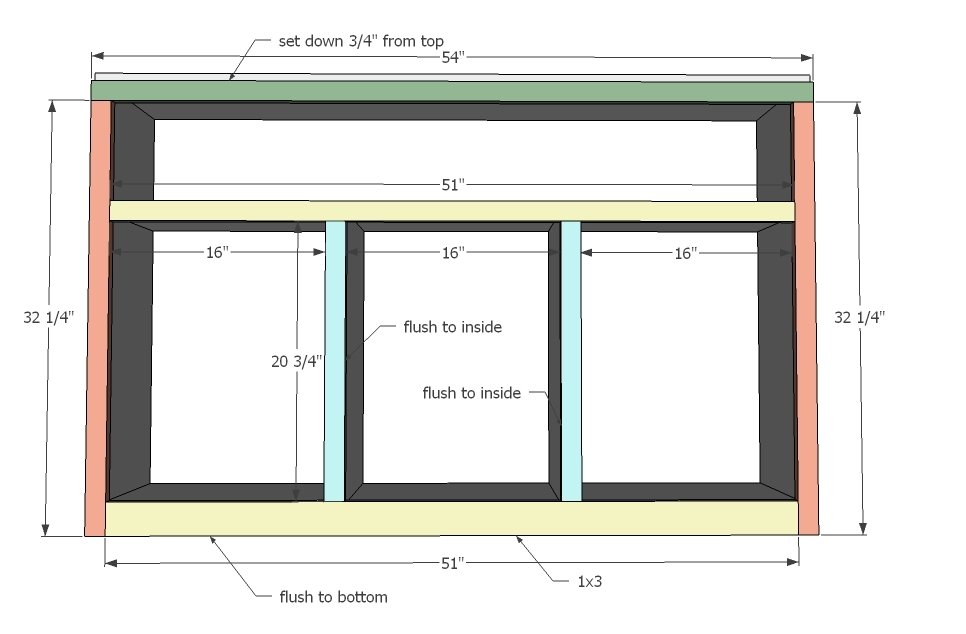

Step 5

Center Media Console (Rebecca Media Suite) — step 5
6

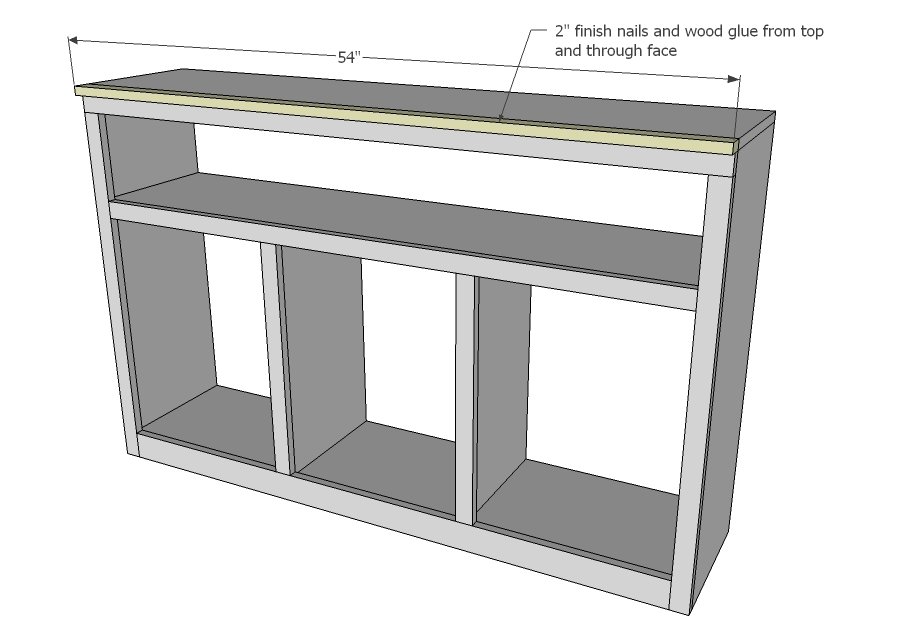

Step 6

Now the front edge trim...

Center Media Console (Rebecca Media Suite) — step 6
7

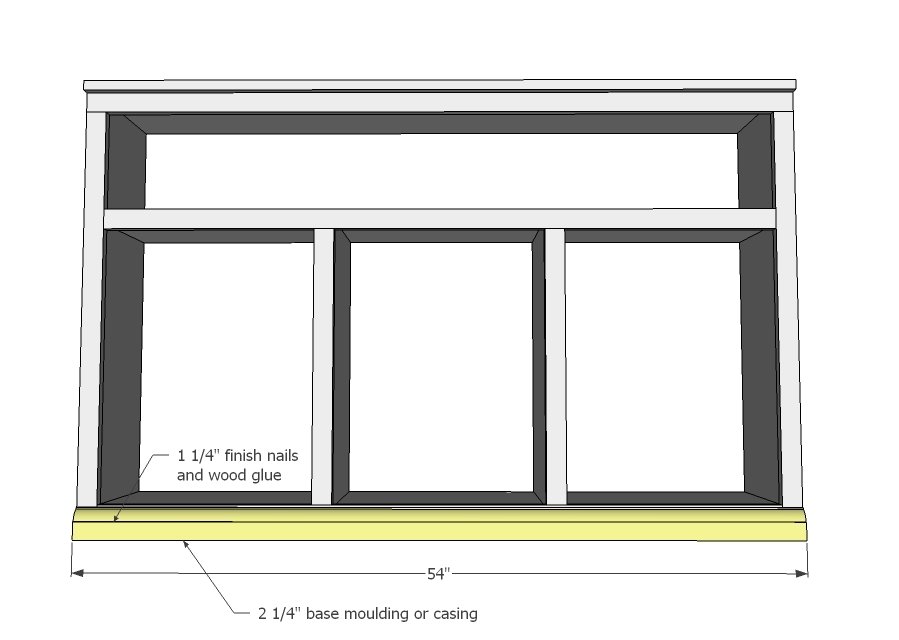

Step 7

And the bottom moulding gets nailed on.

Center Media Console (Rebecca Media Suite) — step 7
8

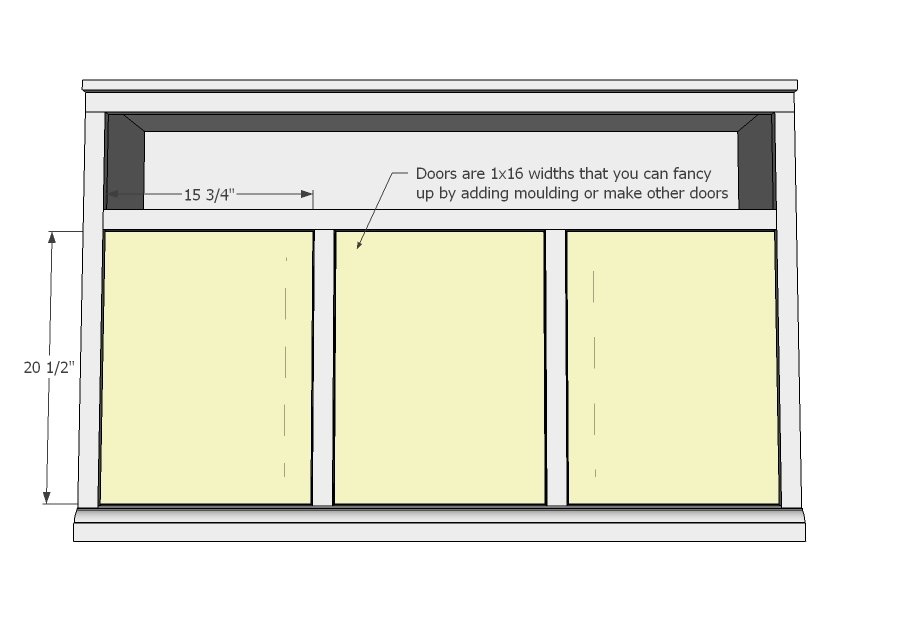

Step 8

And finally the doors. Rebecca is going to put together a post on doors later this week, so check back for that.

Center Media Console (Rebecca Media Suite) — step 8
9

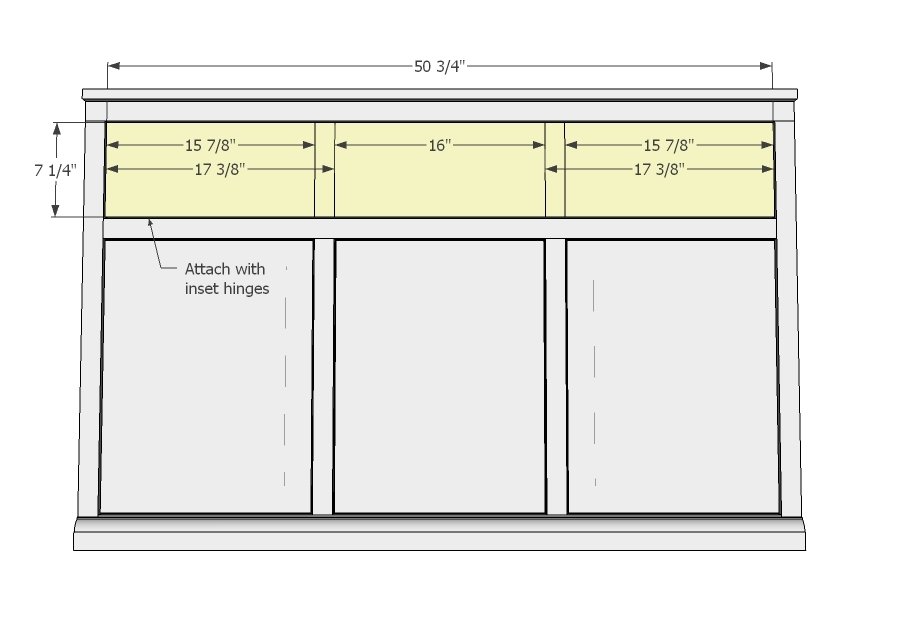

Step 9

This piece is a fake drawer front and opens with hinges. I did some miss-measuring in my face frame so the piece I cut did not fit when I went to assemble it. I could have fixed it, but had these boxes already that fit perfectly so decided to leave it off.

Center Media Console (Rebecca Media Suite) — step 9
10

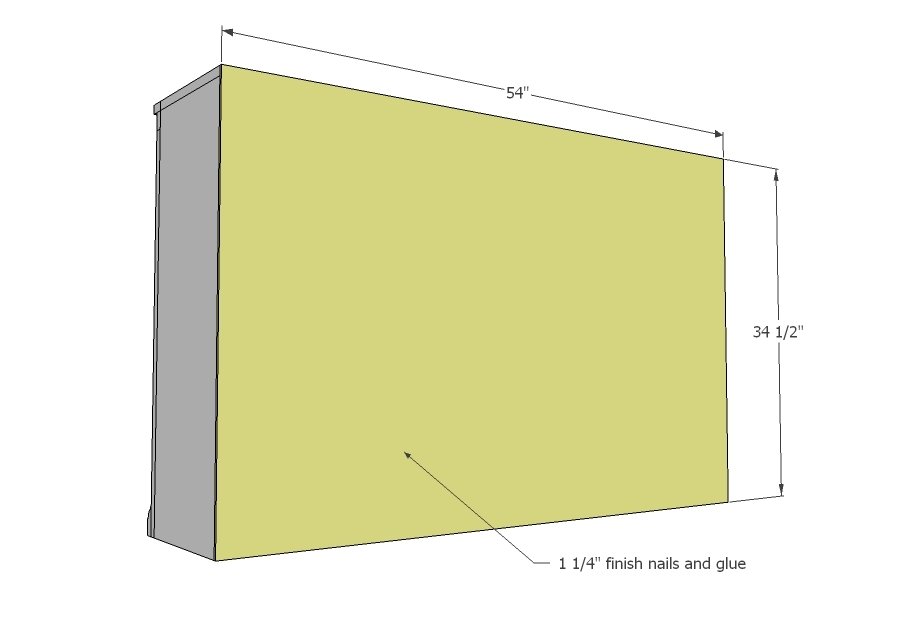

Step 10

And add the back. I always like to add the back last so I can work on hinges and such from the back.

Center Media Console (Rebecca Media Suite) — step 10
11

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
