Chalkboard Produce Crate
to build a chalkboard produce crate from
Specifications
| Project type | Crate Plans and Projects Made with Crates |
|---|---|
| Room | Storage Solutions |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |

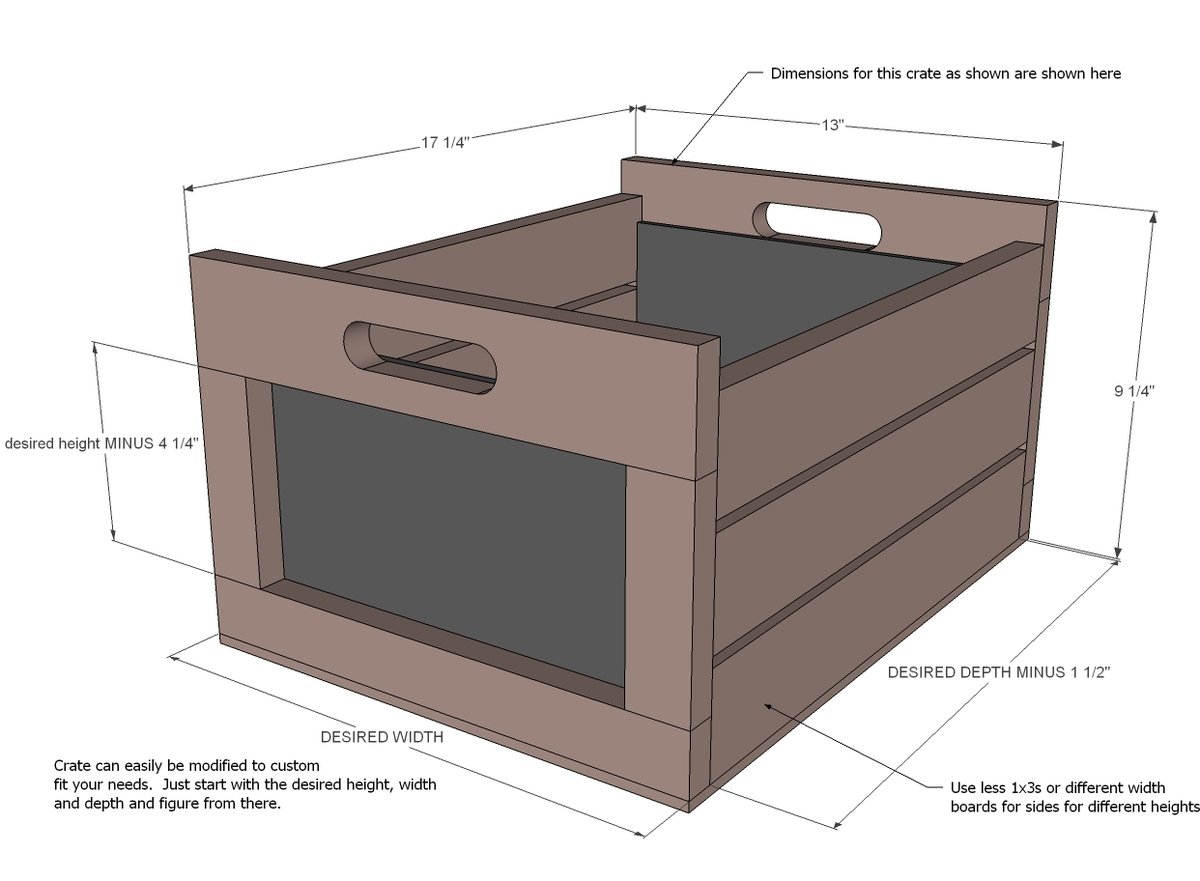

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 1x3 @ 8 feet long
1 - 1x2 @ 2 feet long
1/4" plywood scraps for bottom and chalkboards
1 1/4" pocket hole screws
finish nails or more 1 1/4" pocket holes for attaching sides
wood glue
chalkboard paint
Cut List
4 - 1x3 @ 13"
4 - 1x2 @ 5"
6 - 1x3 @ 15 3/4"
1 - 1/4" plywood @ 17 1/4" x 13"
2 - 1/4" plywood 11 1/2" x 7 1/4" (paint with chalkboard paint)
3/4" drill bit
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- jigsaw
- sander
Step-by-step Instructions

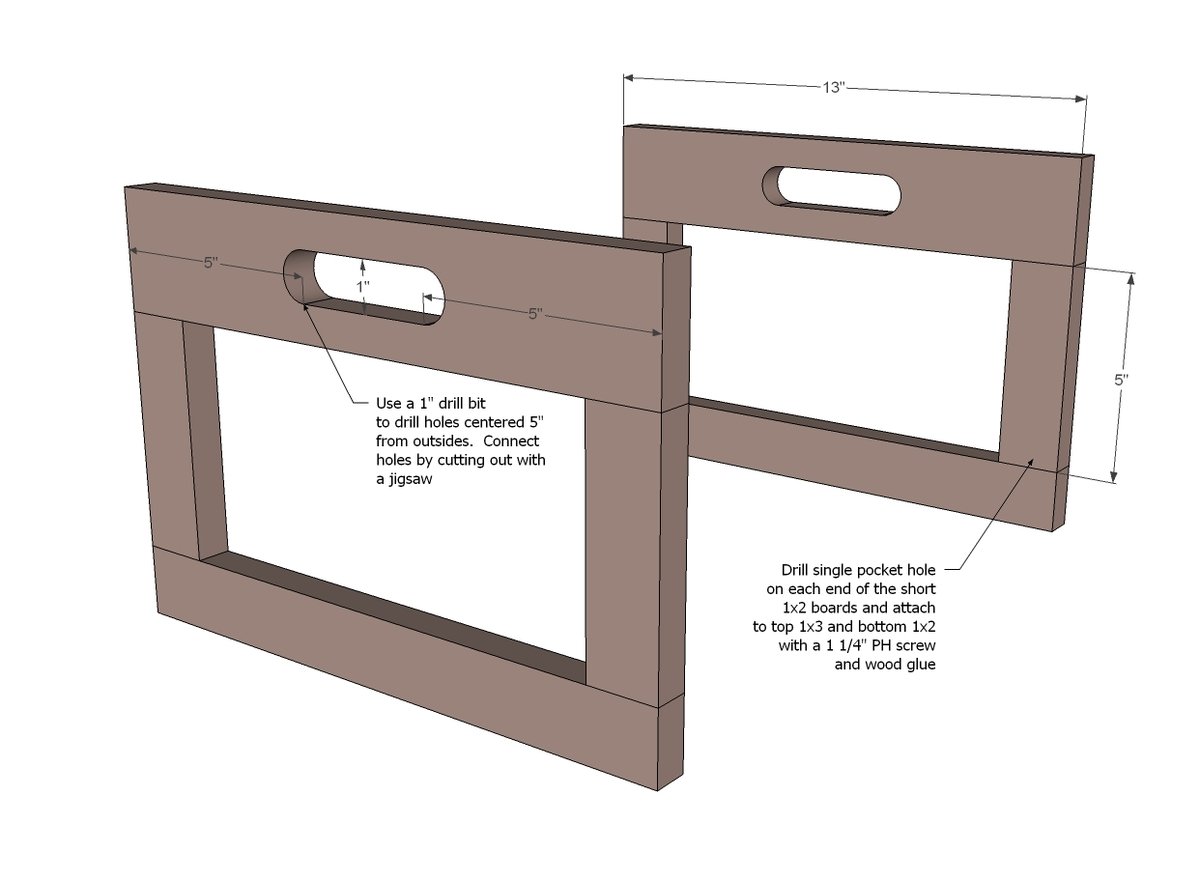

Step 1
Start by making your two ends. Drill handles out with drill bits and then connect the two holes with a jigsaw to cut out handles. I built the ends with 3/4" pocket holes and 1 1/4" pocket hole screws - just a single screw per each end of the 1x2s and glue. Lay flat to dry.

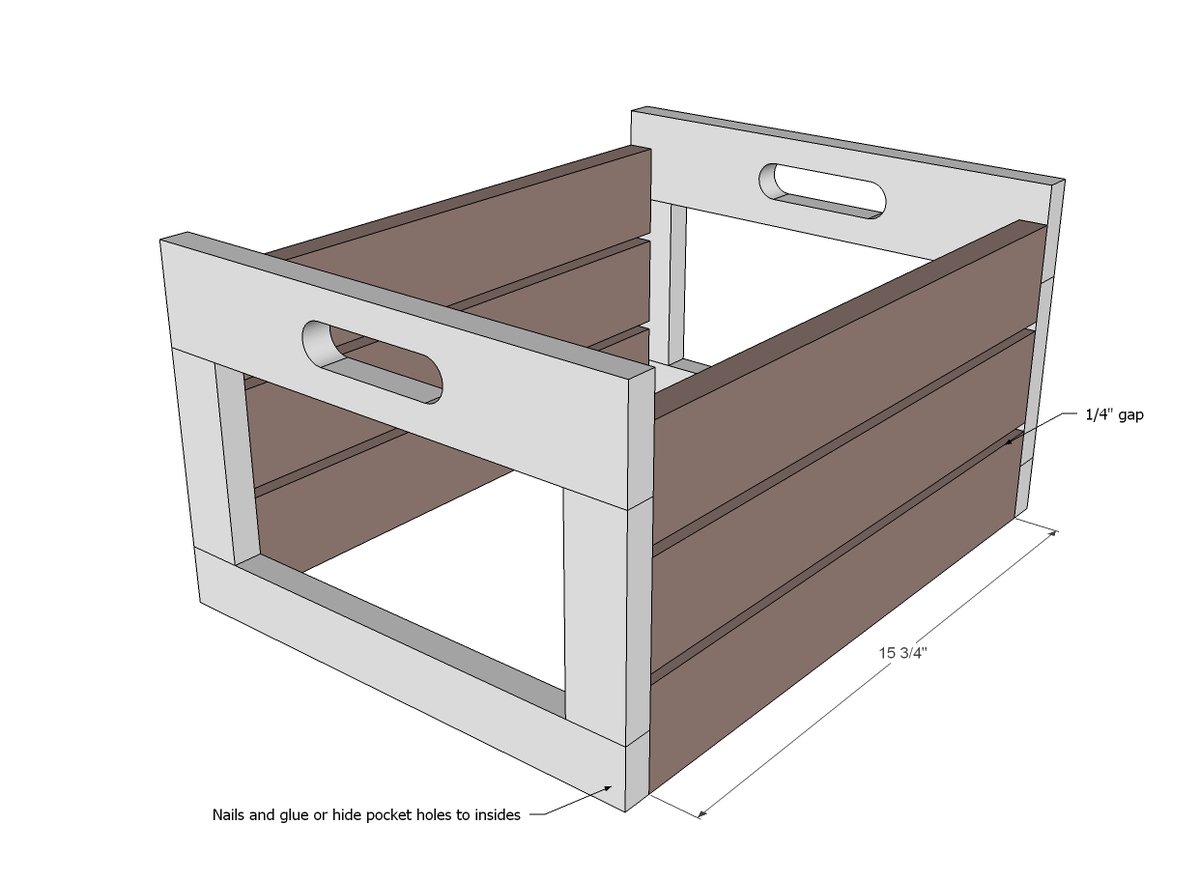

Step 2
Then for the sides you can attach with nails or pocket holes from the insides. I used 1x3s for the sides because they are so cheap, but you could also use 1x8s or any other board width.

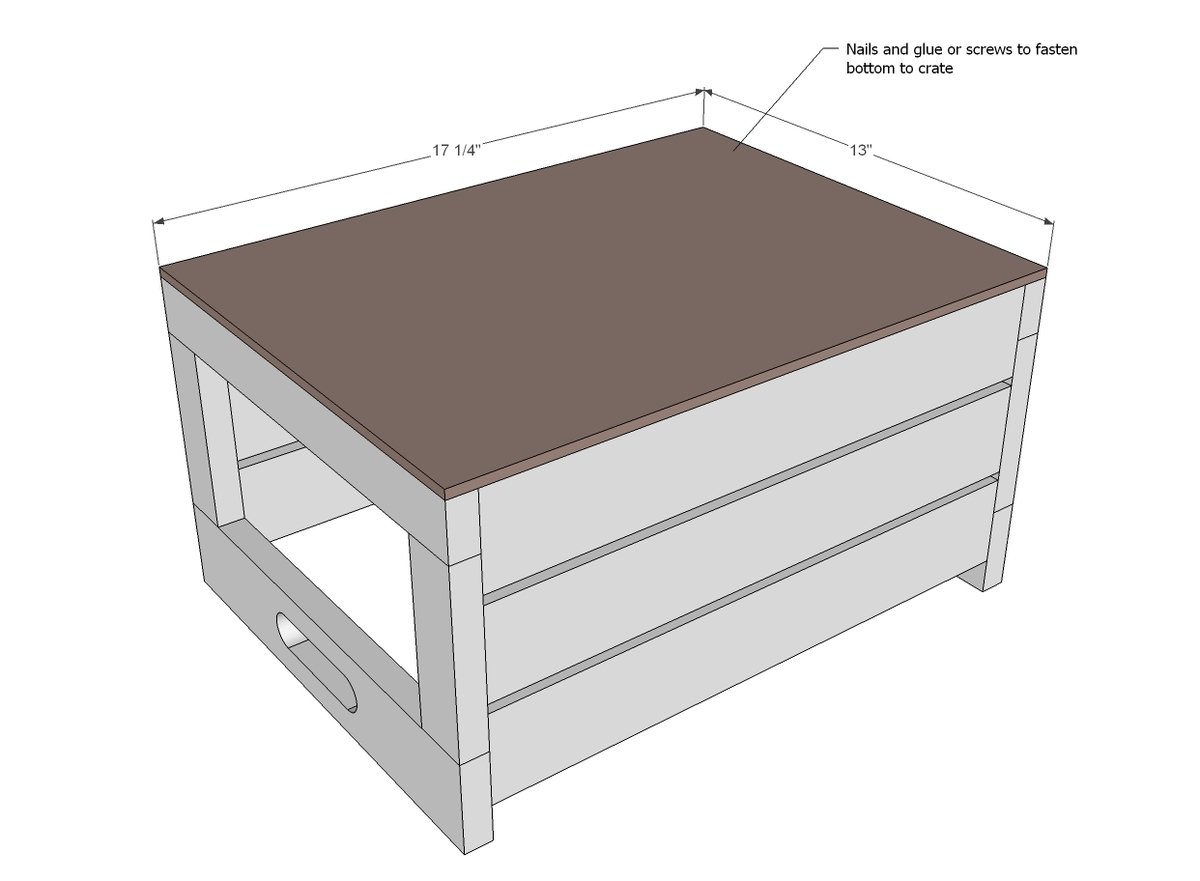

Step 3
Then I just attached the 1/4" plywood to the bottom with finish nails and glue.

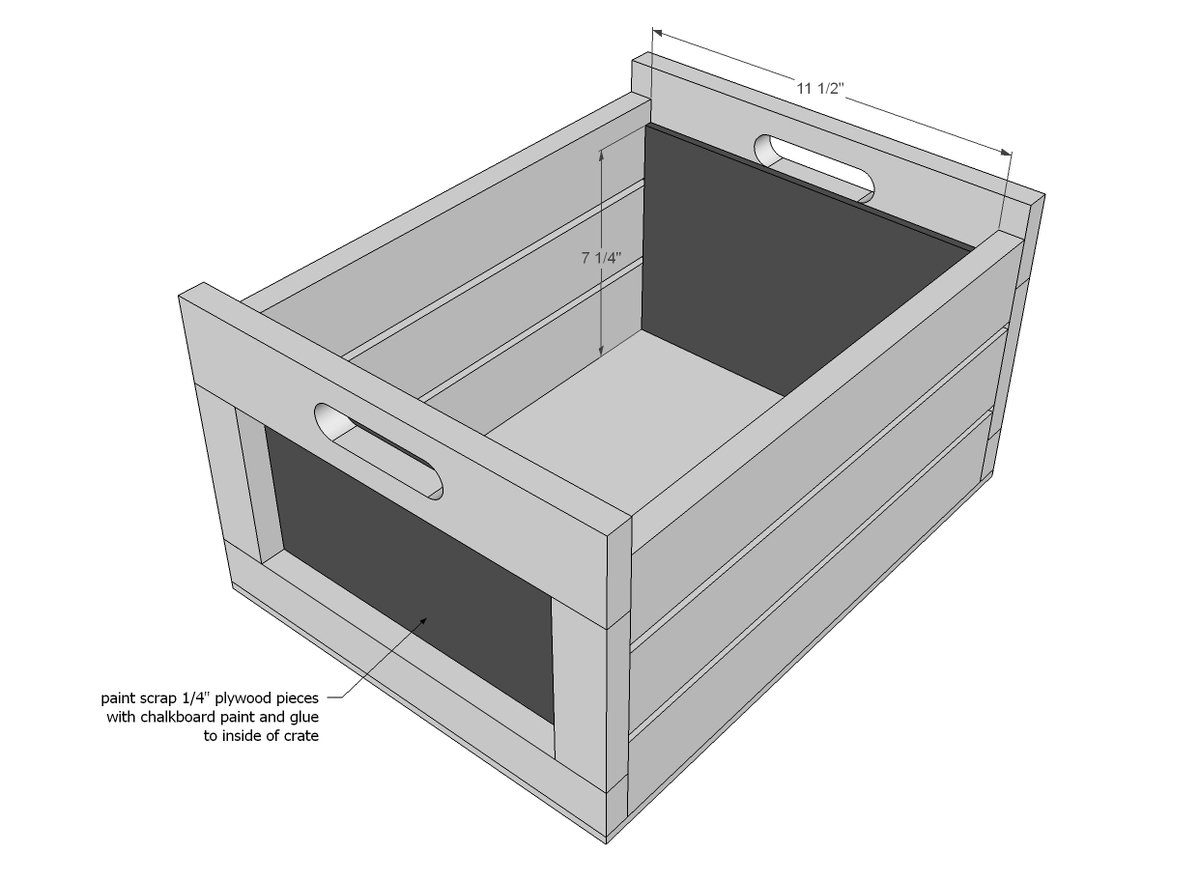

Step 4
Then glue the chalkboard pieces into ends to secure in place.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
