Classic Chair

Simple chairs with an upholstered seat. Comfortable and oversized with base supports. from

Classic Chair

Specifications

Project typeChairs
Roomdining room
StyleCottage Style Furniture Plans
DifficultyBeginner Projects

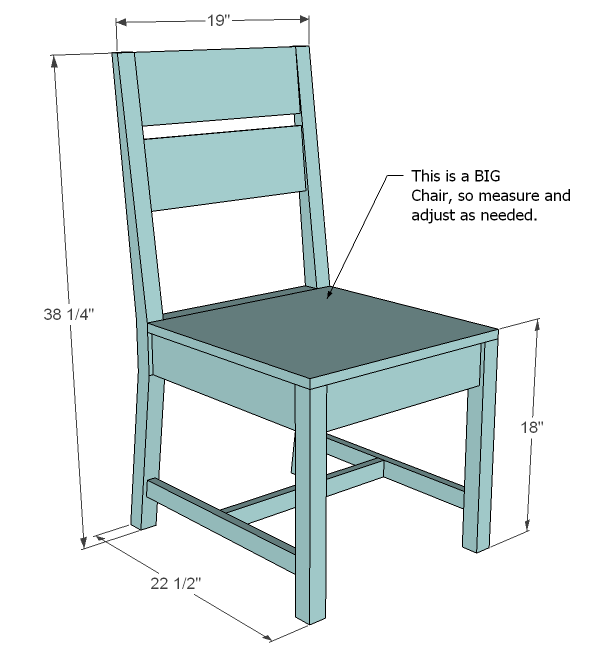

Dimensions

Use the size-specific shopping and cut lists below.

Classic Chair dimension diagram 1

Shopping List

1×6 @ 3 feet long

1 – 2×2 @ 8 feet long

1 – 1×4 @6 feet long

1 – 1×2 @ 8 feet long

1 – 2×4 @ stud or 8 feet length

1 – 1/2″ scrap plywood for seat top, 19″ x 19″

1 yard of fabric

1 piece of foam, 19″ x 19″ x 1″ thick

3/8″ staples

1 1/4″ pocket hole screws

Cut List

2 – 2×4 @ 38 1/4″ (Chair back legs)

2 – 1×4 @ 17 1/2″ (Side Aprons)

2 – 2×2 @ 17 1/4″ (Front Legs)

2 – 1×4 @ 16″ (Front/Back Aprons)

4 – 2×2 @ 4″ (Supports – both ends cut at 45 degrees off square, NOT parallel to each other)

1 – 1×2 @ 16″ (Seat Back Top)

2 – 1×6 @ 16″ (Seat Back)

2 – 1×2 @ 19″ (Longest point, one end cut at 8 degrees off square)

1 – 1×2 @ 16 3/4″ (Center Support)

1/2″ plywood @ 19″ x 19″ (Seat top)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • jigsaw
  • sander
  • level
  • countersink drill bit

Step-by-step Instructions

1

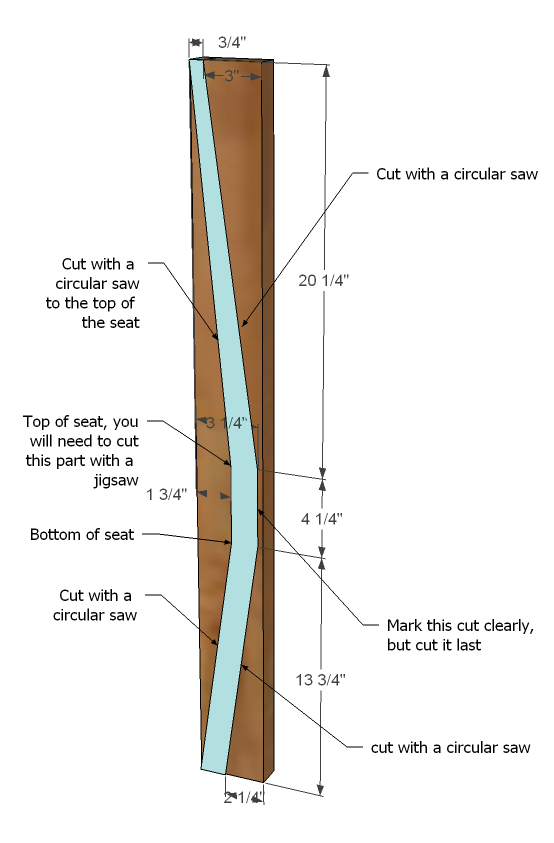

Back Legs

If you follow these steps carefully, you can cut back legs that are straight and symmetrically to each other. Mark the legs as shown in the diagram. The front – where the chair leg connects to the side aprons – needs to be cut in 1/4″ to account for rounded edges on 2x4s. The goal is to make as many cuts as possible with a circular saw, but you will need to finish inside cuts on the back with a jigsaw. Follow the diagram above carefully. I advise taking the scrap piece of 2×4 and cutting a leg first from it to get some practice. Once your legs are cut, lay them together, and check to make sure that the top, bottom and front sides all match. The other parts are not as significant. Sand your cuts smooth.

Classic Chair — step 1
2

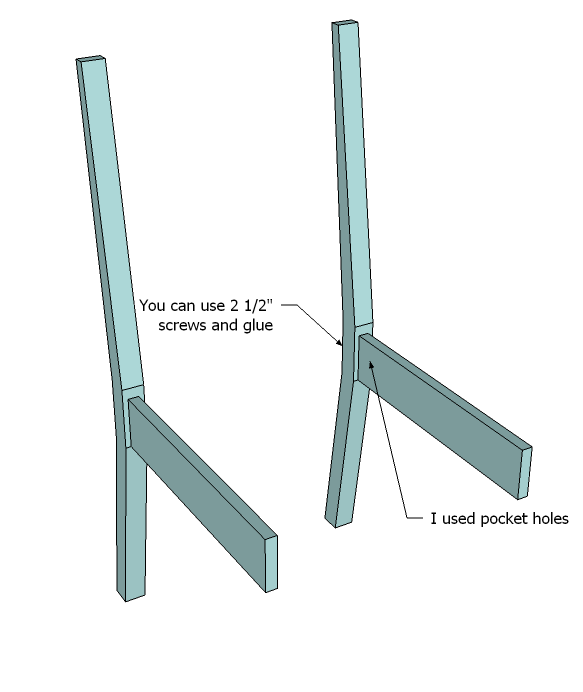

Side Aprons

Attach the side aprons to the back legs, flush to the bottom of the front cuts on your chair back legs. Make sure the two leg pieces still match up – if not, your chair is going to be crooked!

Classic Chair — step 2
3

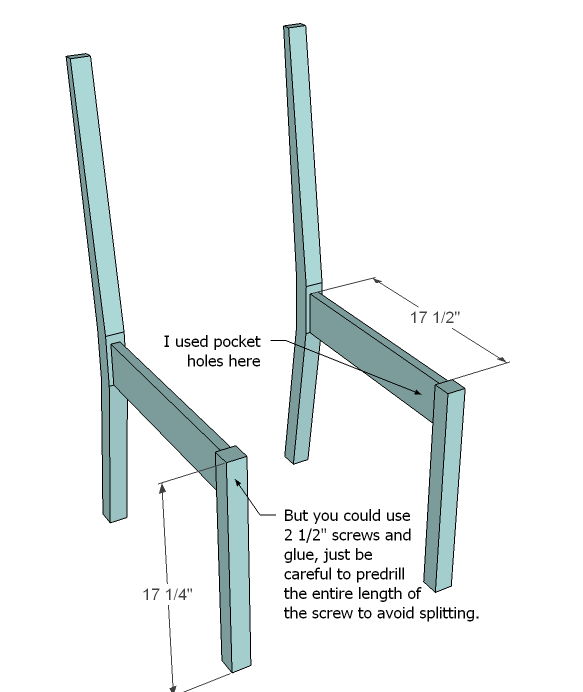

Front Legs

Attach the front legs to the side aprons as shown above. The tops are flush, and your chair part should match up at this point.

Classic Chair — step 3

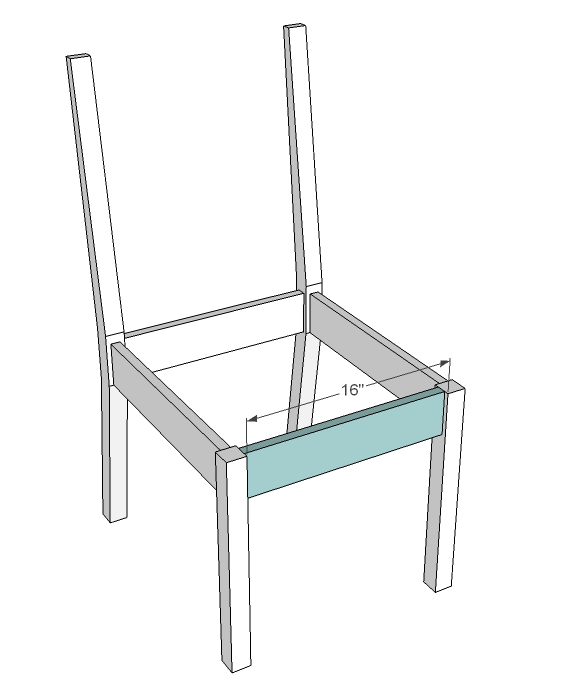

4

Front/Back Aprons

Attach the front and back aprons, carefully predrilling. I used pocket hole screws and glue. Top is flush.

Classic Chair — step 4

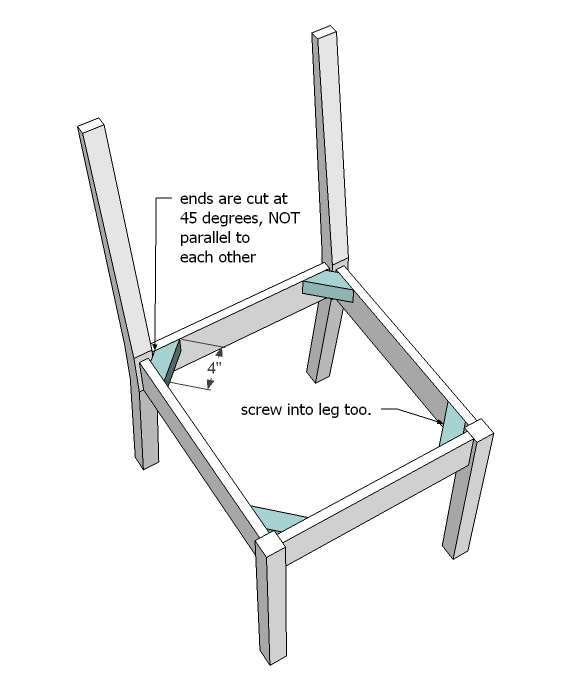

5

Step 5

Classic Chair — step 5

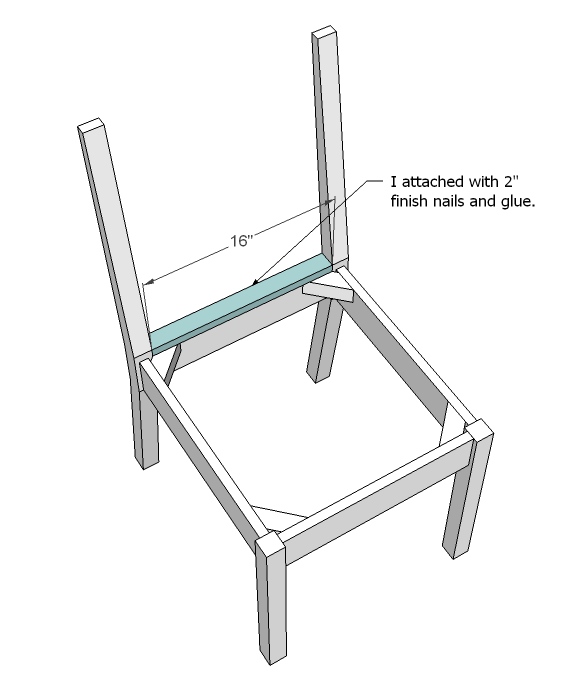

6

Seat Back Top

Attach the seat back top as shown above.

Classic Chair — step 6
7

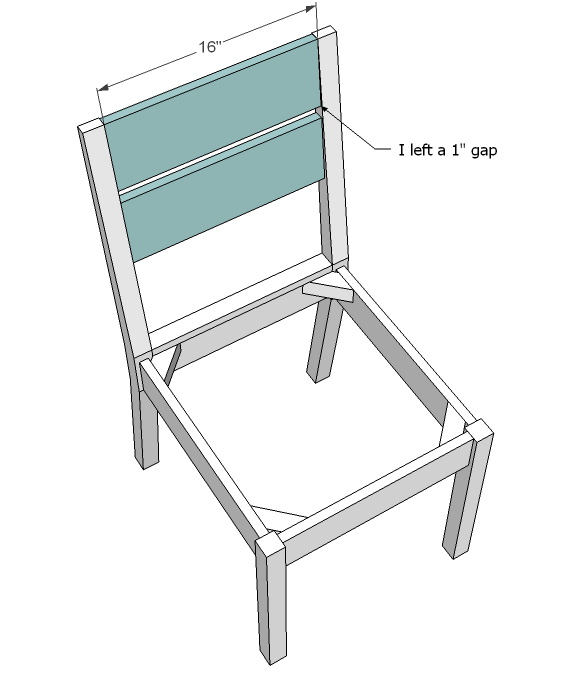

Seat back

I used pocket holes from the back but you can also use predrilled screws from the legs. Attach as shown above.

Classic Chair — step 7

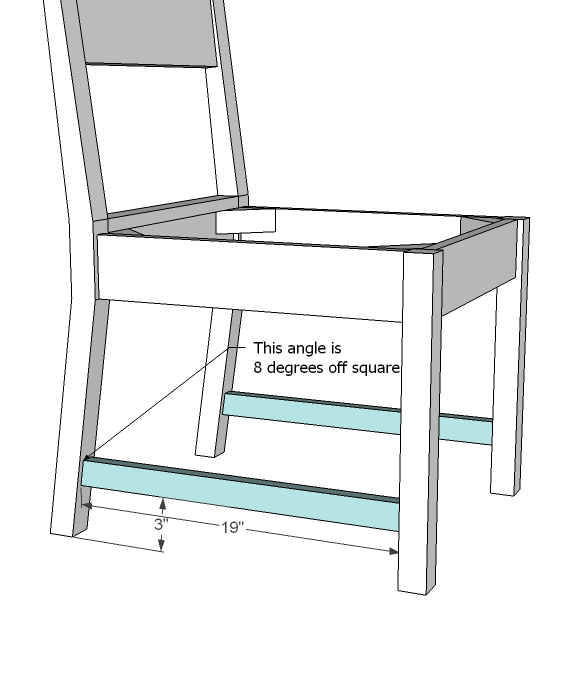

8

Base Support

The base supports will add considerable strength to your chairs. Attach as shown above.

Classic Chair — step 8
9

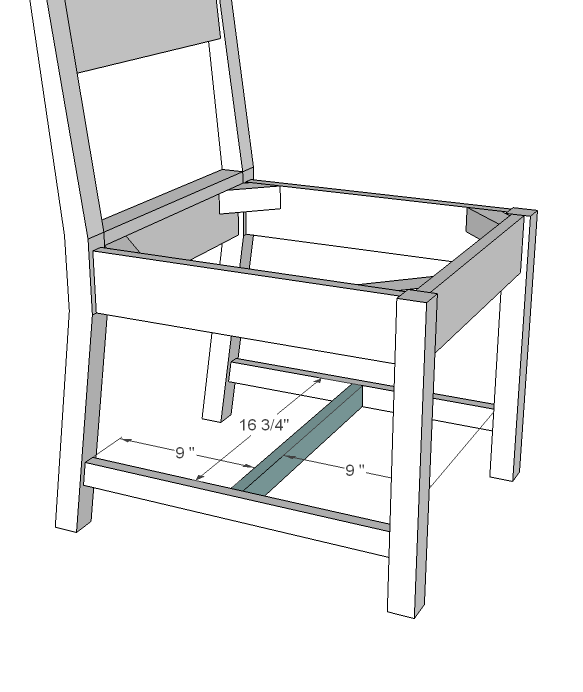

Base Center

Attach the base center to the sides as shown in the diagram above.

Classic Chair — step 9
10

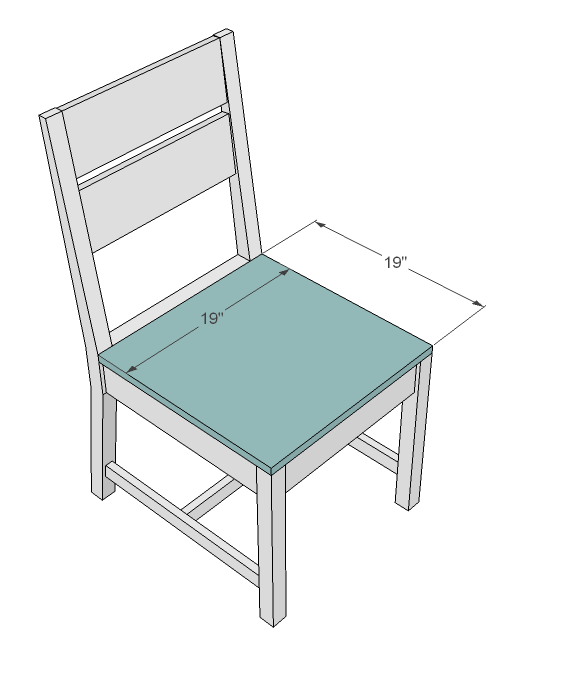

Seat

Spray glue the seat cushion to the seat top plywood. Lay fabric facedown on table with seat top on top of fabric, foam side down. Staple fabric carefully to the underside of the chair, tucking corners neatly. Use 2″ screws to attach the seat to the cross supports or use pocket hole screws.

Classic Chair — step 10
11

Step 11

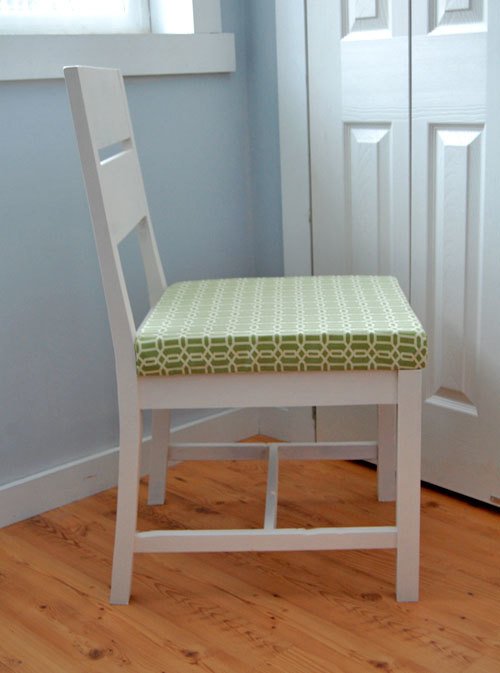

This chair was painted with Valspar Antique White in Flat Enamel, three coats. A top coat (Valspar satin finish poly) was added. The fabric is from Joanns, and is part of the Home Decorator’s 45″ wide fabric, and was on sale for $5 a yard. For a foam pad, I used a discarded chair pad cut to size. Total cost of this chair was under $20.

Classic Chair — step 11
12

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
