Classic Storage Wall, Extra Wide Media Unit
This extra wide media base is sturdy and solid, featuring ample storage. If you need more storage, simply add storage bases and hutches to create an entire media suite from other plans in the Classic Storage Collection. Special thanks to our readers for sharing their photos.
Specifications
| Project type | Media and Entertainment Centers |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

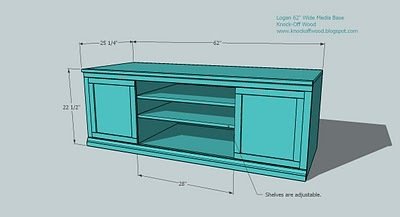

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 2 – Sheet of 3/4″ A1 Plywood in desired Species or MDF if you are painting
- 1 – 1×3 at least 62″ Long
- 2 – 1×2
- 1 – 2 1/2 base moulding (optional)
- 1 – sheet of 3/8 Plywood or MDF (matching your A1 if you are staining the project)
- 2 – Sets of either butterfly hinges or Face Frame Euro Hinges
- 2 – Pulls or Knobs
- 8 – Shelf Pins Edge Banding (If you are staining the project)
Cut List
- A) 1 – 1×24 @ 60 1/2″ (Bottom)
- B) 2 – 1×24 @ 19 1/4″ (Middle Partitions)
- C) 2 – 1×24 @ 21 3/4″ (Sides)
- D) 1 – 1×24 @ 62″ (Top)
- E) 1- 3/8″ Plywood or MDF @ 62″ x 22 1/2″ (Back)
- F) 1- 1×3 @ 62″ (Bottom Trim)
- G) 2 – 1×2 @ 62″ (Top Trim and Top Edge Trim)
- H) 2 – 1×2 @ 17 3/4″ (Side Trim) Optional Base Moulding, 2 1/2″ overall height, 62″ Long 2 – 1×24 @ 28″ (Shelves) Door Cut List – Recommend measuring the opening in the drawer and building the drawer 1/4″ smaller thean the overall opening. Remember that the door will cover the middle partitions, as shown in the diagrams. These dimensions give are the ideal door dimensions.
- I) 2 – 3/8″ Plywood or MDF @ 17 1/4″ x 15 1/4″ (Backs of Doors)
- J) 4 – 3/8″ Plywood or MDF @ 1 1/2″ x 15 1/4″ (Rails on the Doors)
- K) 4 – 3/8″ Plywood or MDF @ 1 1/2″ x 14 1/4″ (Stiles on the Doors)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions
Step 1
Bottom and Middle Partitions. Fasten with 2″ fasteners the bottom, A, to the middle pieces, B (green) as shown above.
Step 2
Sides. Use the 2″ fasteners to fasten the sides to the bottom as shown above. There will be a 1 3/4″ clearnance under the bottom shelf.

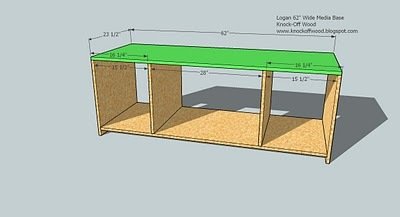

Step 3
Top. Fasten the top to the sides and middle partitions, as shown above. Use the 2″ fasteners. Make sure you fasten the middle partitions to the measurements shown above.

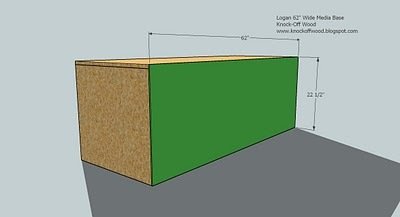

Step 4
Back. Fasten the back with 1 1/4″ fasteners to the top, bottom, sides and middle partition, as shown in the above diagram.

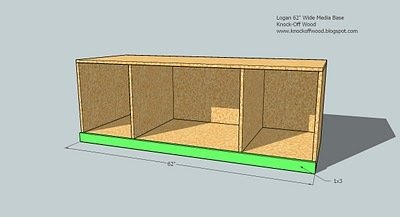

Step 5

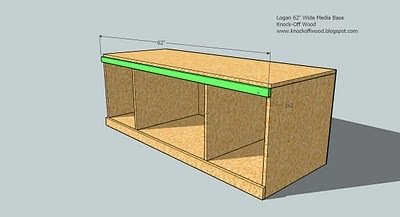

Step 6
Top Trim. Fasten the top trim in place, as shown above. Be sure to fasten to the middle partitions and the sides. You will not be able to fasten to the top. See next step.

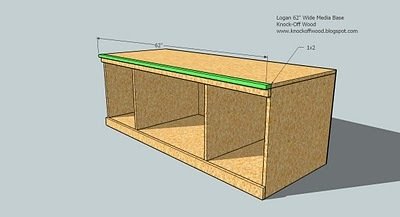

Step 7
Top Edge Trim. Fasten the top edge trim in place, as shown below. Make sure you fasten through the face of the trim into the top of the project.

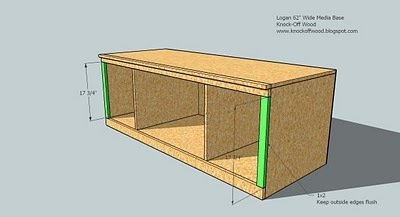

Step 8
Side Trim. Fasten the side trim to the base unit, as shown above. Keep outside edges flush.

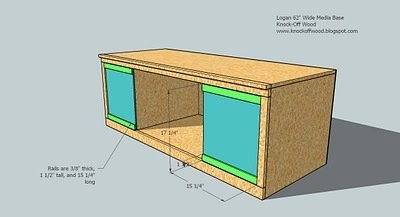

Step 9
Doors. Test your backs to make sure they fit in the openings. Notice how the doors cover the middle partition. Use 5/8″ fasteners, lots of glue and clamps to fasten the rails to the back of the doors, as shown above.

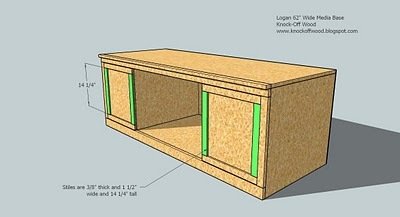

Step 10
Door Stiles. Fasten the stiles, as directed in step 9, to the doors. Lay flat to dry, preferably with something heavy on top. If you are staining the project, you will need to add edge banding to the top and inside edges of the doors. This is easy and inexpensive to do (see HOW-TO section for a post on Choosing your Wood). After you have finished the project, attach the doors to the cabinet using either butterfly hinges or euro hinges for face framed cabinets.

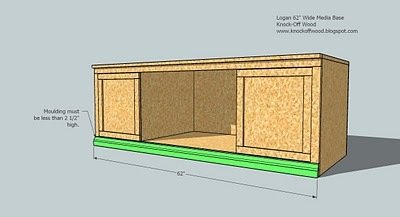

Step 11
Optional Base Moulding. If you would like to dress the base up, add moulding as shown above. The moulding will need to be less than 2 1/2″ in overall width.

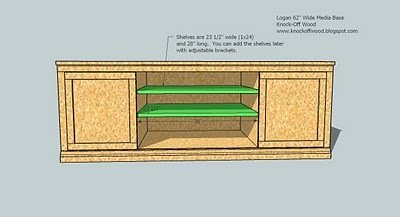

Step 12
Shelves. Determine where you will place your shelves. Drill holes 1″ from the front and 1″ from the back on both middle partitions, 1/2″ deep, with a 1/4″ drill bit, where the base of the shelf will sit. Insert shelf pins and place your shelf in the base unit. If you are staining your base unit, you will need to add edge banding to the front edge of the shelves.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
