Classic X-Back Loveseat Sectional Add-On

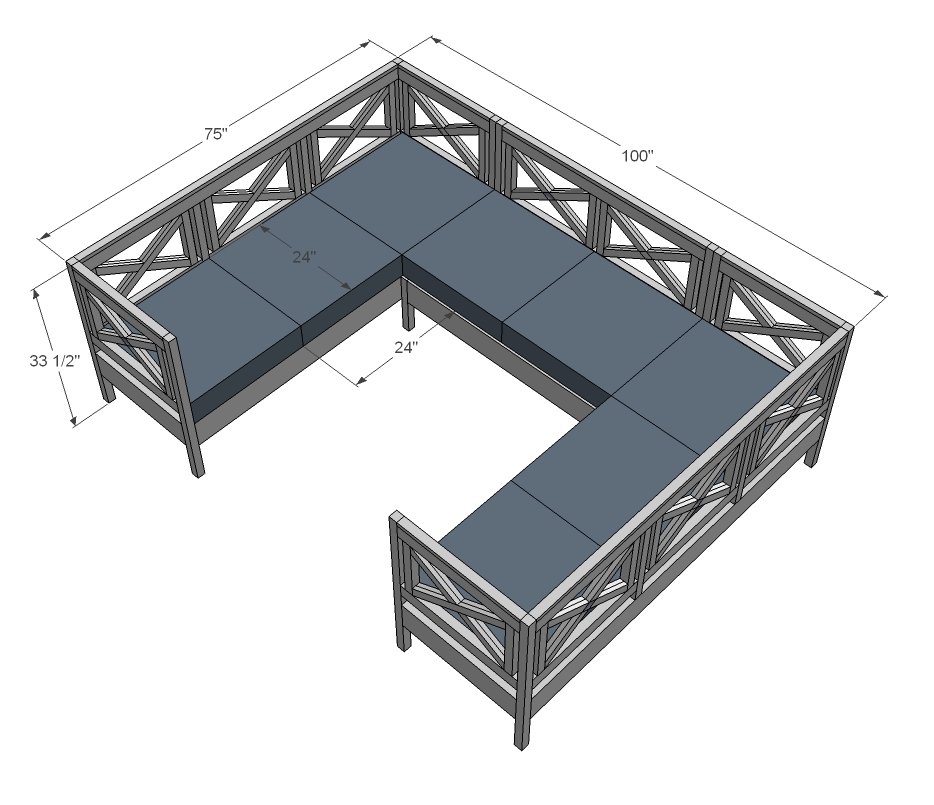

Loveseat Plans – Standalone or Sectional Add-On to the Sofa Plans This versatile loveseat is designed to work beautifully on its own or as the connecting piece in a full sectional layout. As a standalone, it’s the perfect compact outdoor sofa for patios, decks, or small spaces. When paired with two matching sofas, it becomes the center piece that transforms your build into a spacious L-shaped sectional. Built with the same clean lines and sturdy 2x4 construction, this loveseat is easy to build, budget-friendly, and designed to fit standard deep seat cushions. Whether you’re starting small or planning a full sectional, this piece gives you the flexibility to grow your setup over time. Why you’ll love it: • Works as a standalone loveseat or sectional connector • Modular design—expand anytime with matching pieces • Beginner-friendly build with common materials • Designed for standard outdoor cushions • Clean, modern style that fits any outdoor space
Specifications
| Project type | Side and End Table Plans |
|---|---|
| Room | Outdoor |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |
Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 3 - 1x3 @ 8 feet long (slats)
- 3 - 1x2 @ 8 feet long
- 4 - 2x2 @ 8 feet long
- 1 - 2x3 @ 8 feet long
- 2 - 2x6 @ 8 feet or stud length
Cut List
- 4 - 1x2 @ 20 13/16" (both ends cut at 30 degrees off square, ends parallel to each other)
- 8 - 1x2 @ 10 3/8" (both ends cut at 30 degrees off square, ends NOT parallel to each other)
- 4 - 2x2 @ 12 1/8"
- 2 - 2x3 @ 45"
- 1 - 1x2 @ 45"
- 2 - 2x2 @ 33 1/2"
- 2 - 2x6 @ 45"
- 2 - 2x6 @ 23"
- 2 - 2x2 @ 13"
- 2 - 2x2 @ 45"
- 9 - 1x3 @ 23"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- nailer
- sander
- level
- countersink drill bit
Step-by-step Instructions
Step 1

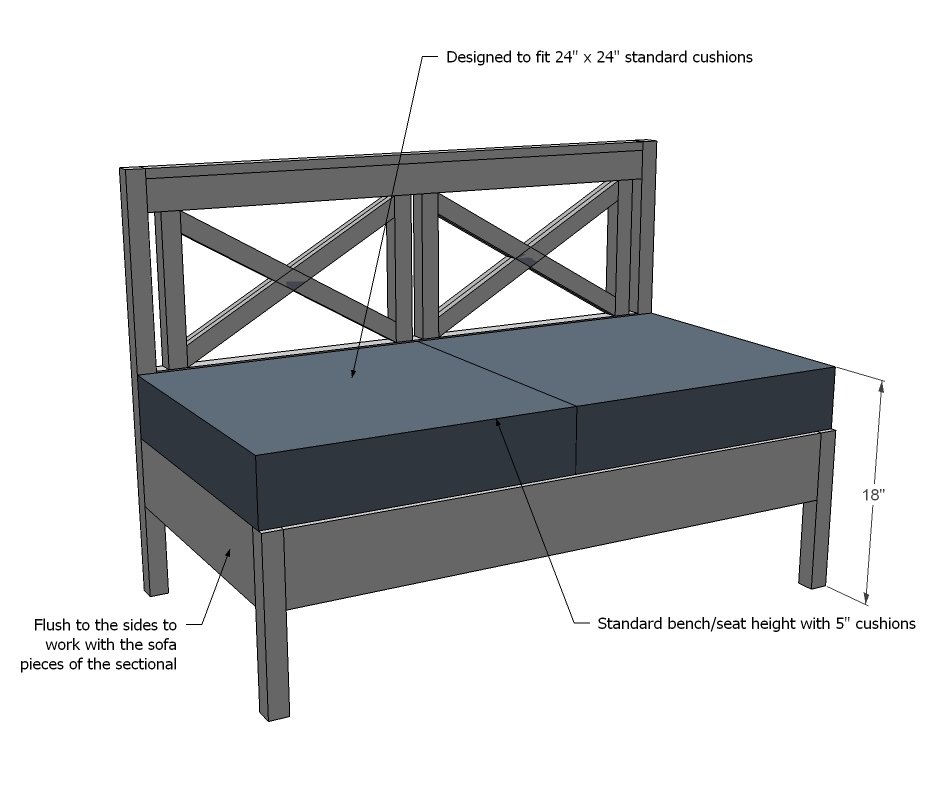

Designed to fit standard 24" x 24" cushions, this loveseat is 48" wide, 33 1/2" tall (without finials) and 27" deep overall.

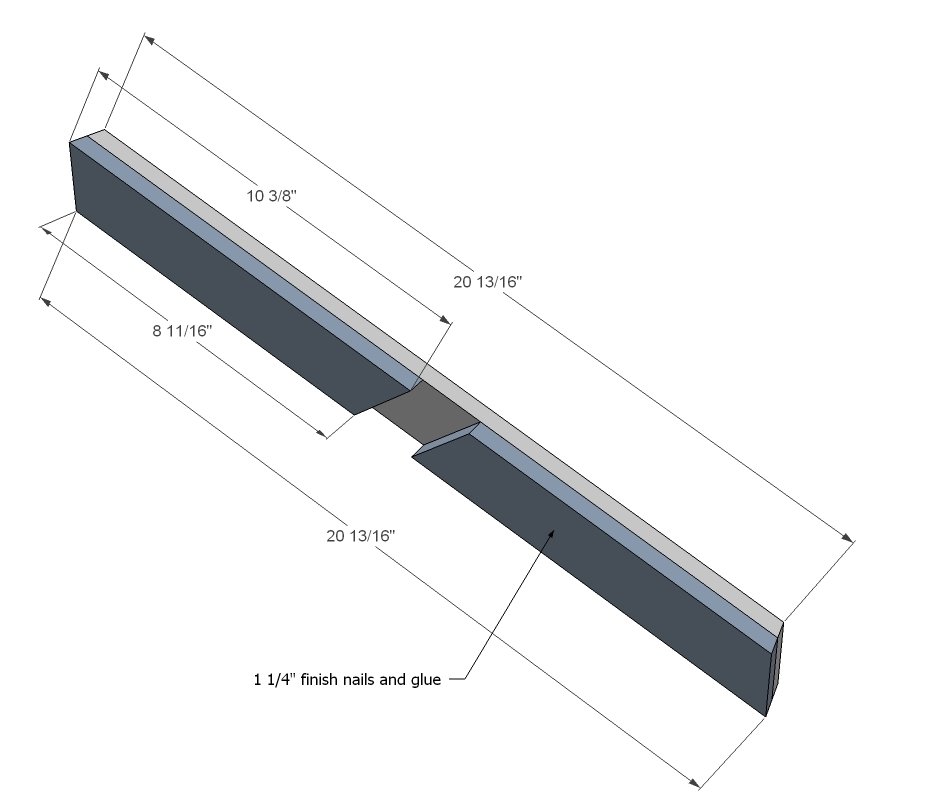

Step 2
Start by taking all four longer back pieces and nailing two of the shorter pieces to them as shown above with 1 1/4" finish nails and glue. You should end up with a total of four of these.

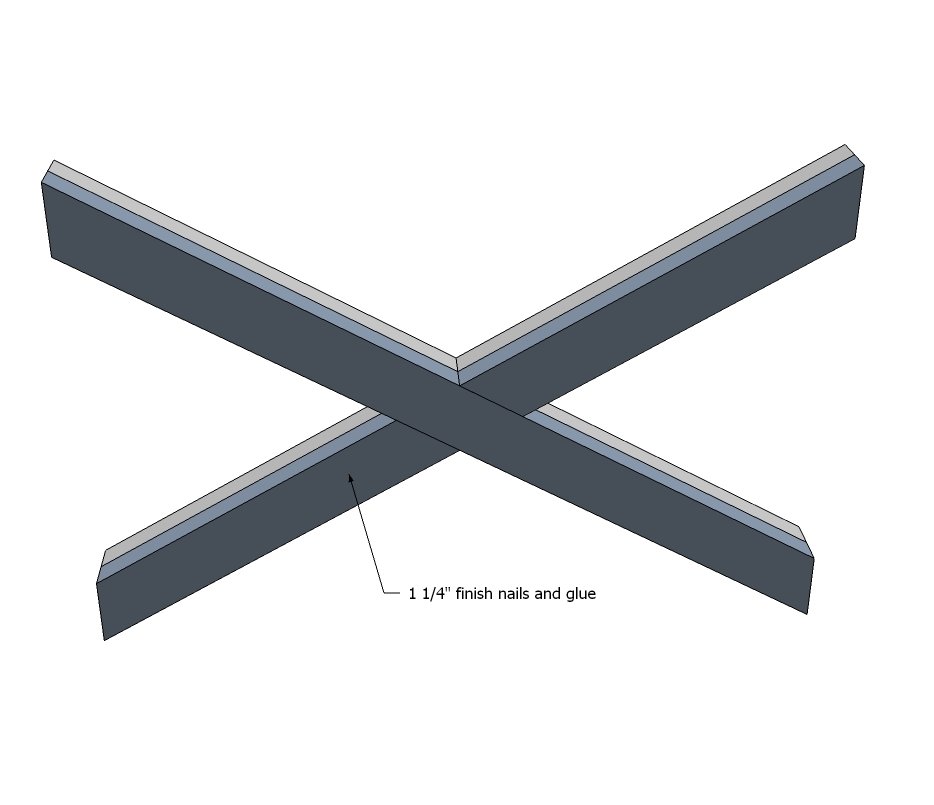

Step 3
Then make Xs out of the pieces from step 1. Attach with glue and 1 1/4" finish nails.

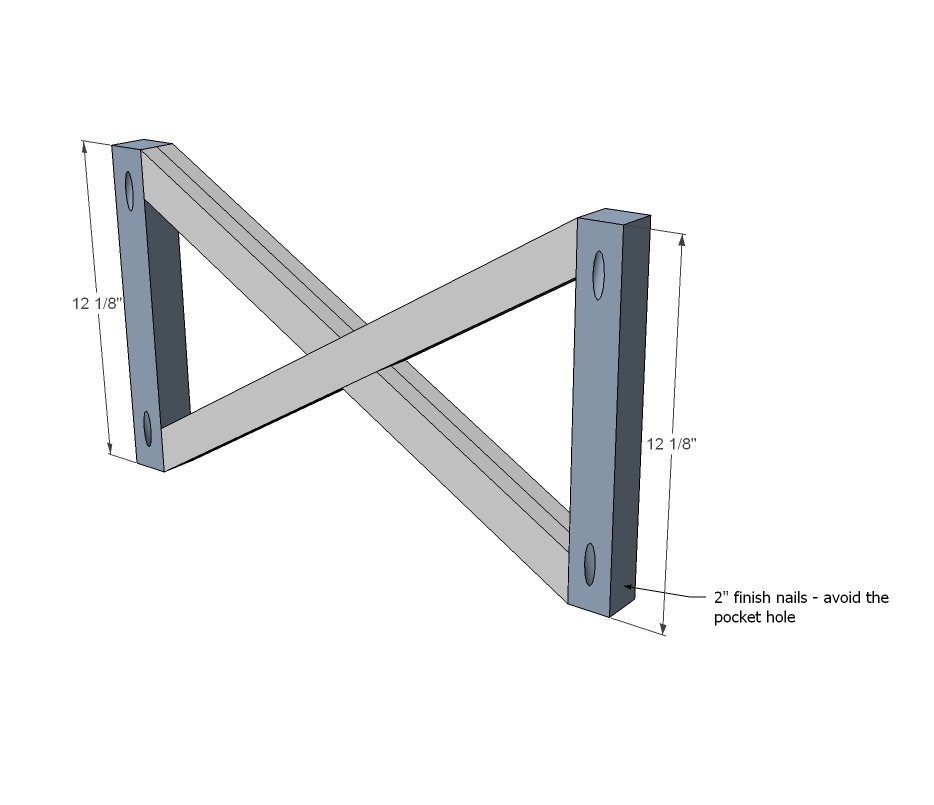

Step 4
Now add the sides. This is not super structurally important, so I glued and nailed mine - and there was no issue. You could use the Kreg Jig™ - but the pocket holes are going to cross, and I had some issues with screws overlapping. You will need to drill your pocket holes in the 2x2s in this step

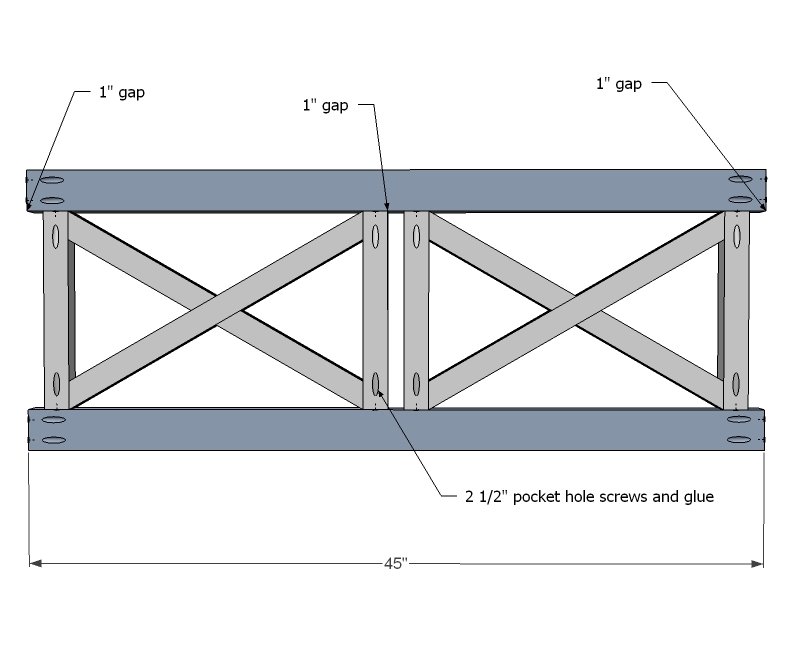

Step 5

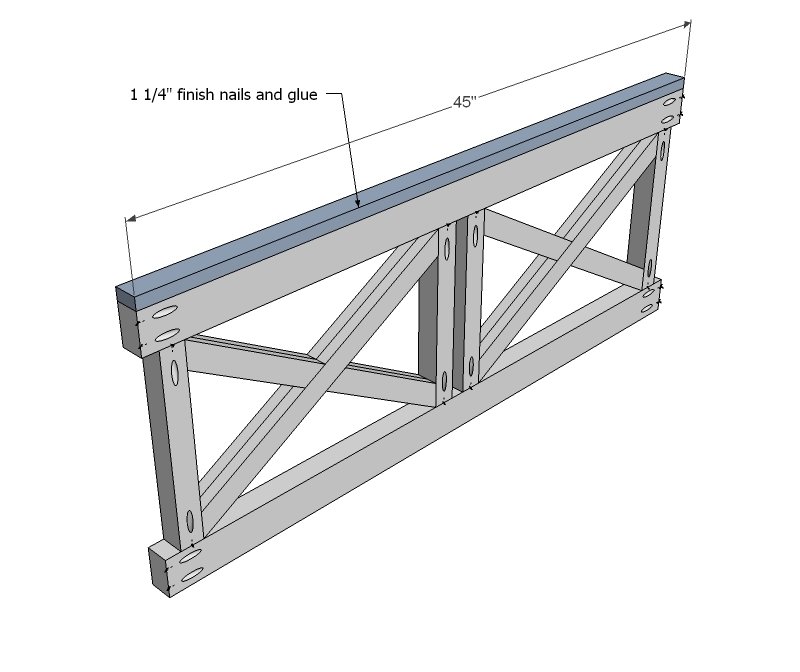

Step 6
Now attach the top with 1 1/4" finish nails and glue.

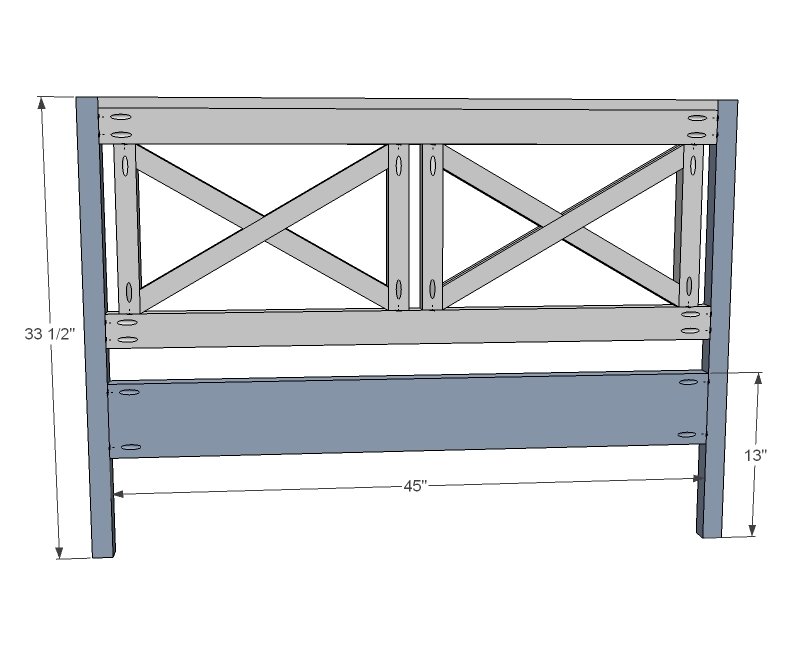

Step 7
And the legs. Shown above is the Kreg Jig™ pocket holes, but you could also use 2 1/2" screws countersunk from the legs (That's what I ended up doing, and it worked great!)

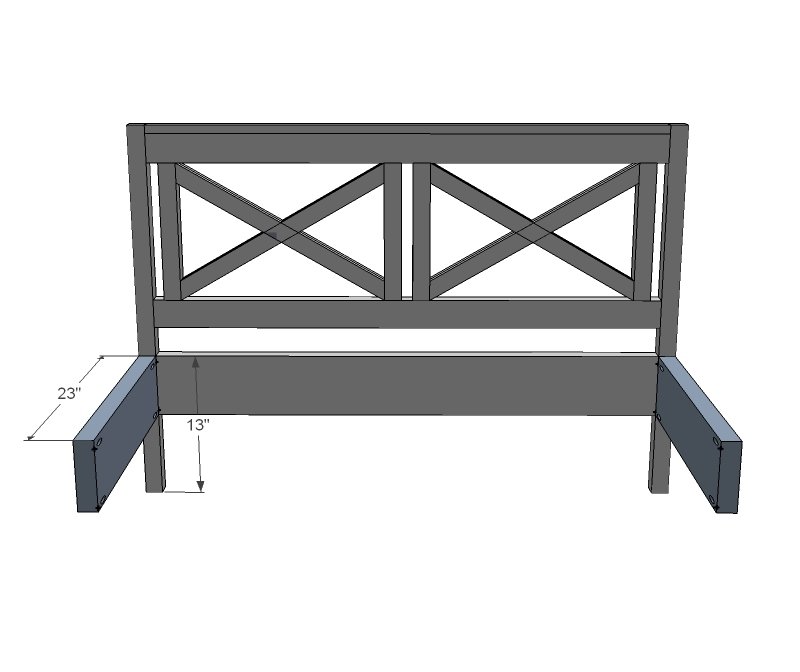

Step 8
Now the sides - use the Kreg Jig™ as shown above or again, 2 1/2" screws countersunk with glue.

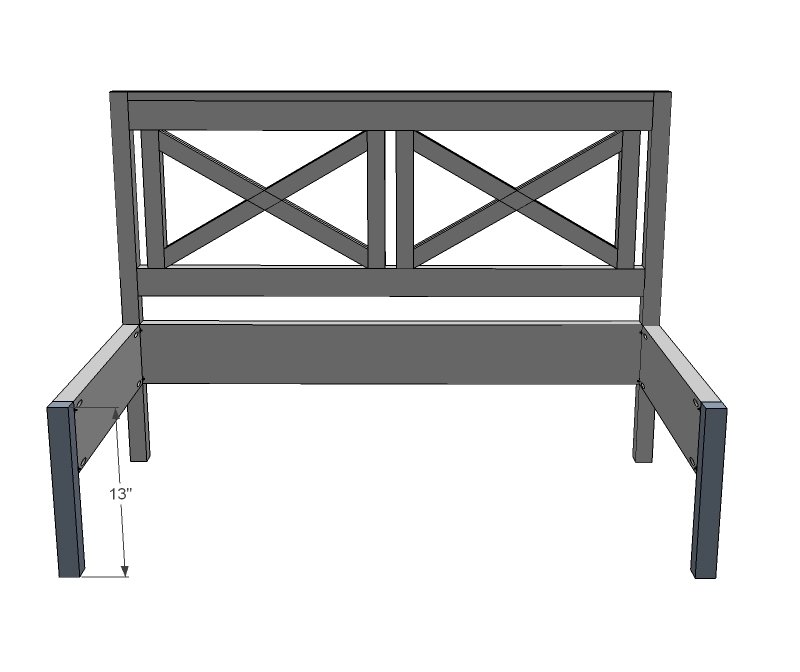

Step 9
And the front legs. Use the Kreg Jig™, set for 1 1/2" stock and 2 1/2" screws. TIP: If you find your boards splitting out on you, sometimes using a shorter screw of setting your Kreg Jig™ for smaller stock (for example, 3/4" stock and 1 1/4" screws) can minimize the splitting.

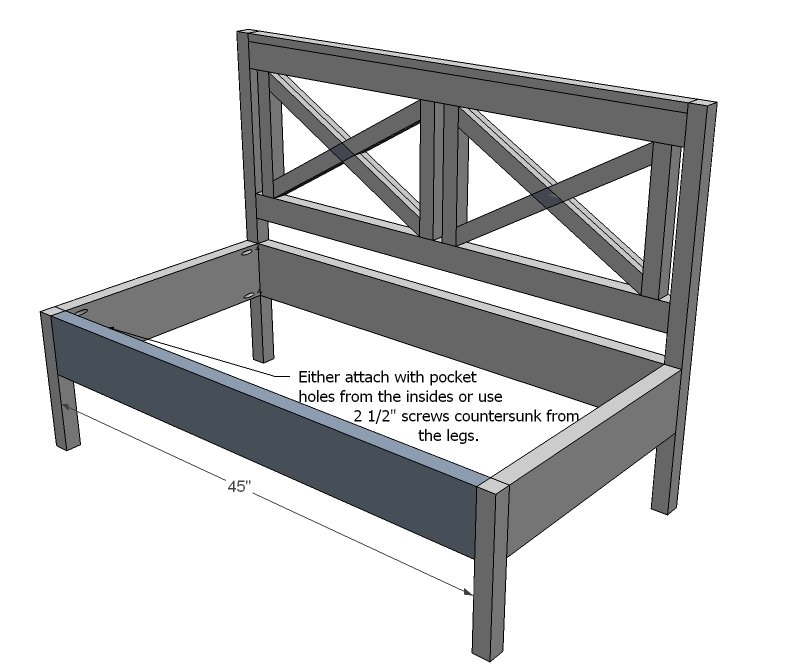

Step 10
And finally the front.

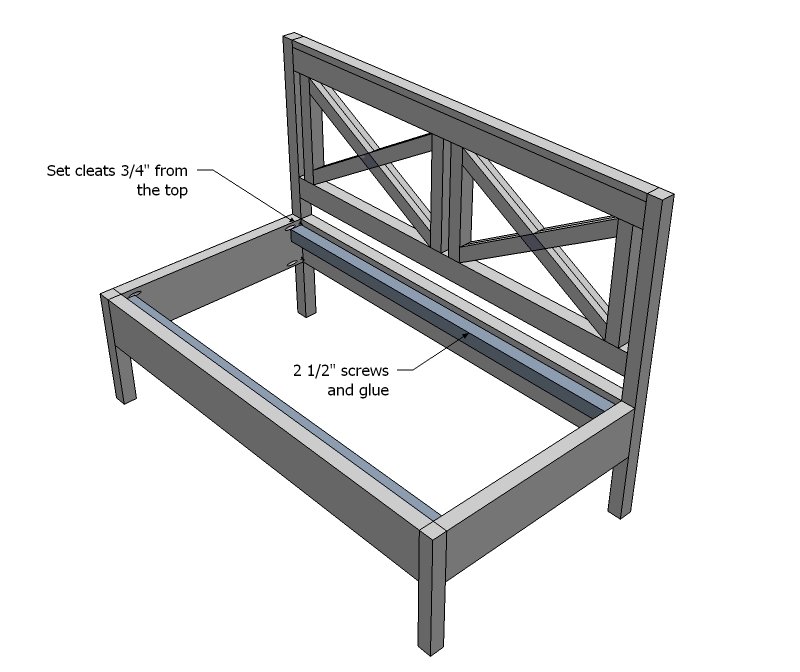

Step 11
Now the cleats.

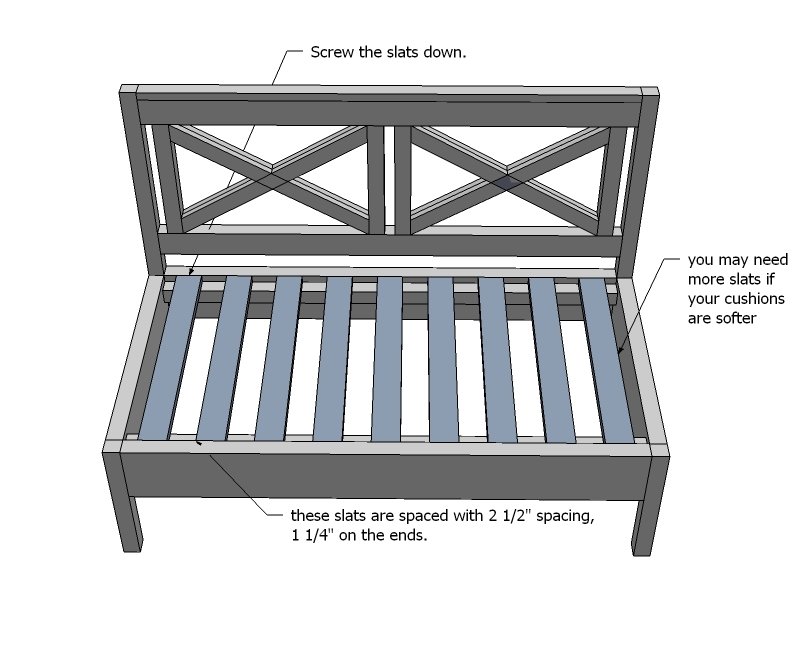

Step 12
And finally lay the slats.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
