Coffee Table Converts to Dining Table from Wild Rose Tiny House

DIY coffee table that converts to dining table. Free

Coffee Table Converts to Dining Table from Wild Rose Tiny House

Specifications

Project typeDining Table Plans
Roomdining room
StyleCottage Style Furniture Plans
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

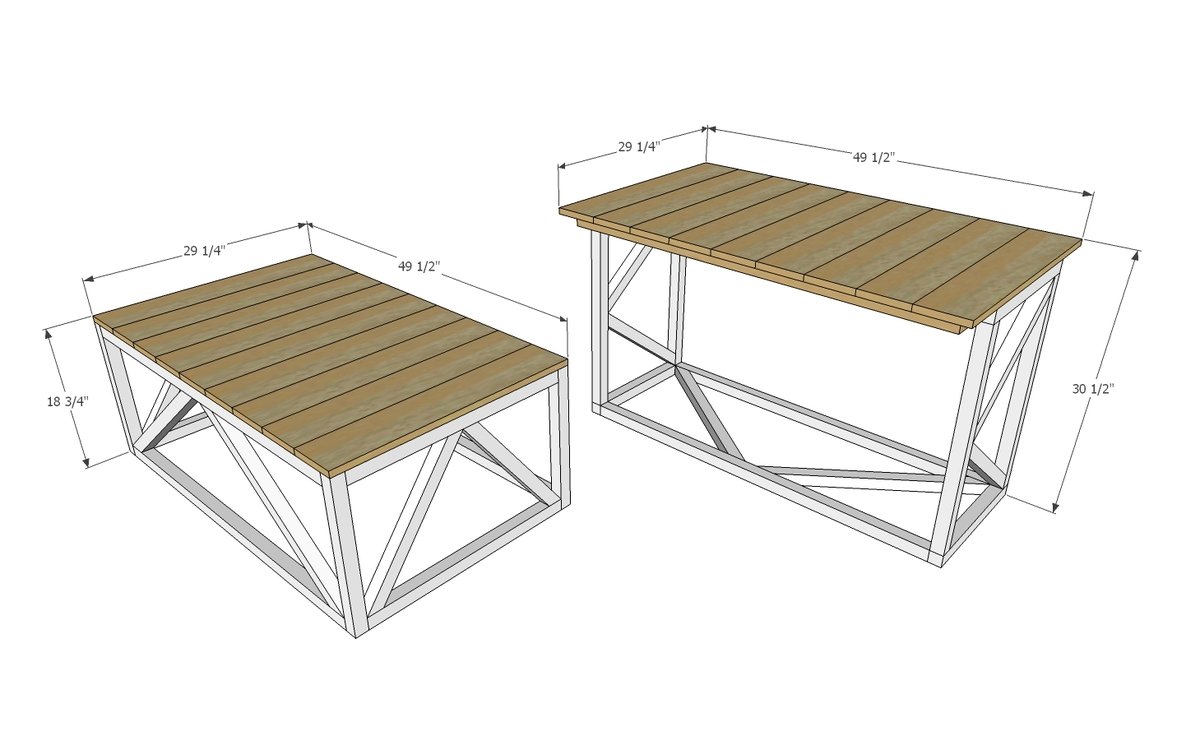

Coffee Table Converts to Dining Table from Wild Rose Tiny House dimension diagram 1

Shopping List

3 - 1x6 @ 8 feet long

5 - 2x2 @ 8 feet long

2 - 2x4 @ 8 feet or stud length

4 4" L brackets or additional cross bracing for open bottom side

Cut List

9 - 1x6 @ 29-1/4"

2 - 2x4 @ 46-1/2" (approx)

4 - 2x2 @ 18"

4 - 2x2 @ 46-1/2"

4 - 2x2 @ 26-1/4"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • sander

Step-by-step Instructions

1

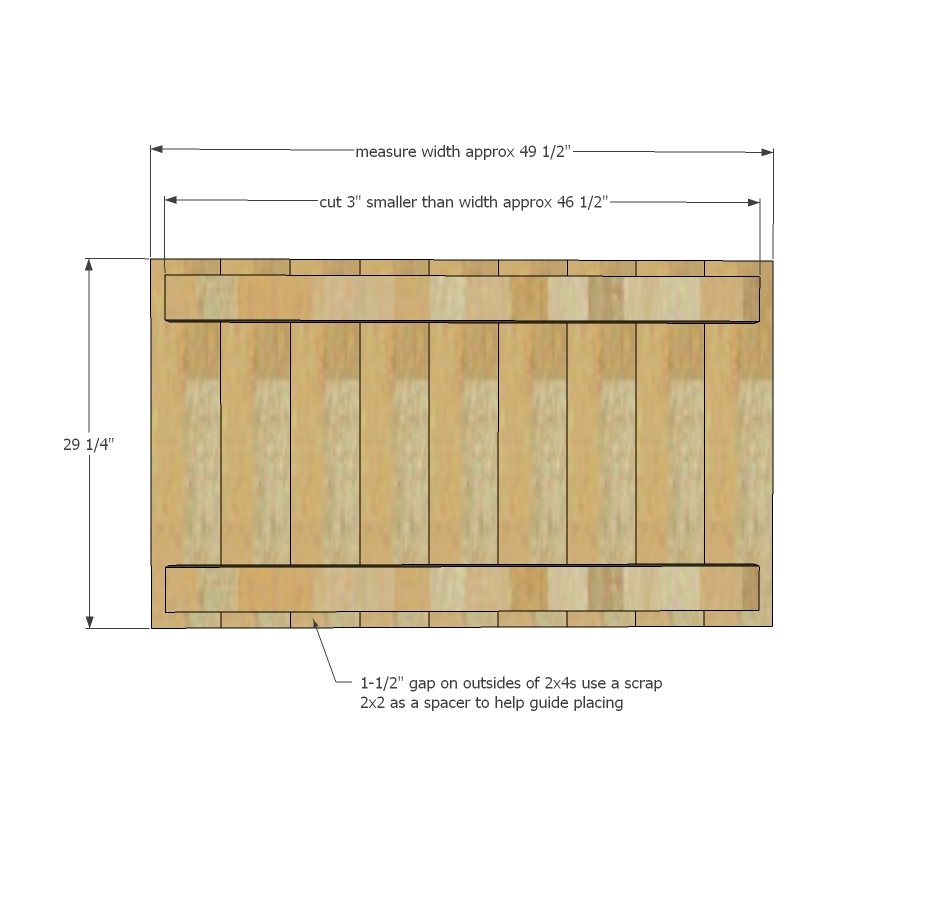

Step 1

Layout the tabletop boards. You can pocket hole them together with 3/4" pocket holes and 1-1/4" pocket hole screws if you choose. Then add the back supports and attach with 2" self tapping screws and wood glue.

Coffee Table Converts to Dining Table from Wild Rose Tiny House — step 1
2

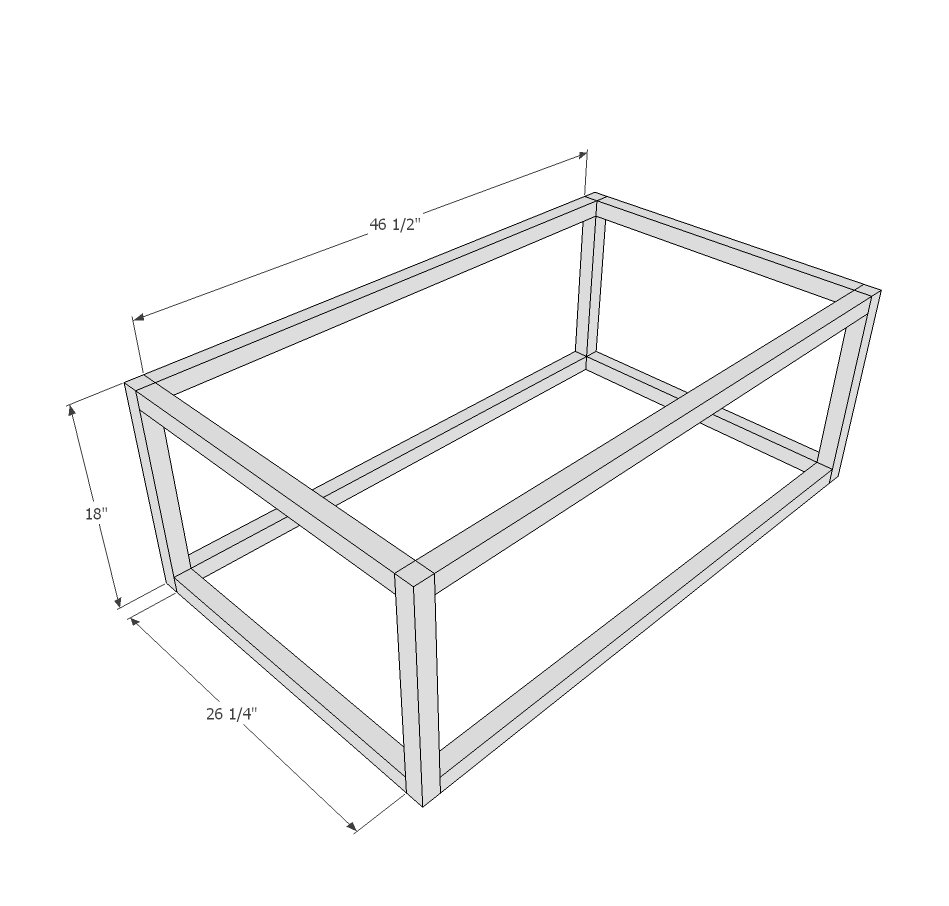

Step 2

Build the rectangle base with 1-1/2" pocket holes and 2-1/2" pocket hole screws and glue. Remember to hide pocket holes on side that will be less visible. Use one pocket hole per end, use glue to secure.

Coffee Table Converts to Dining Table from Wild Rose Tiny House — step 2
3

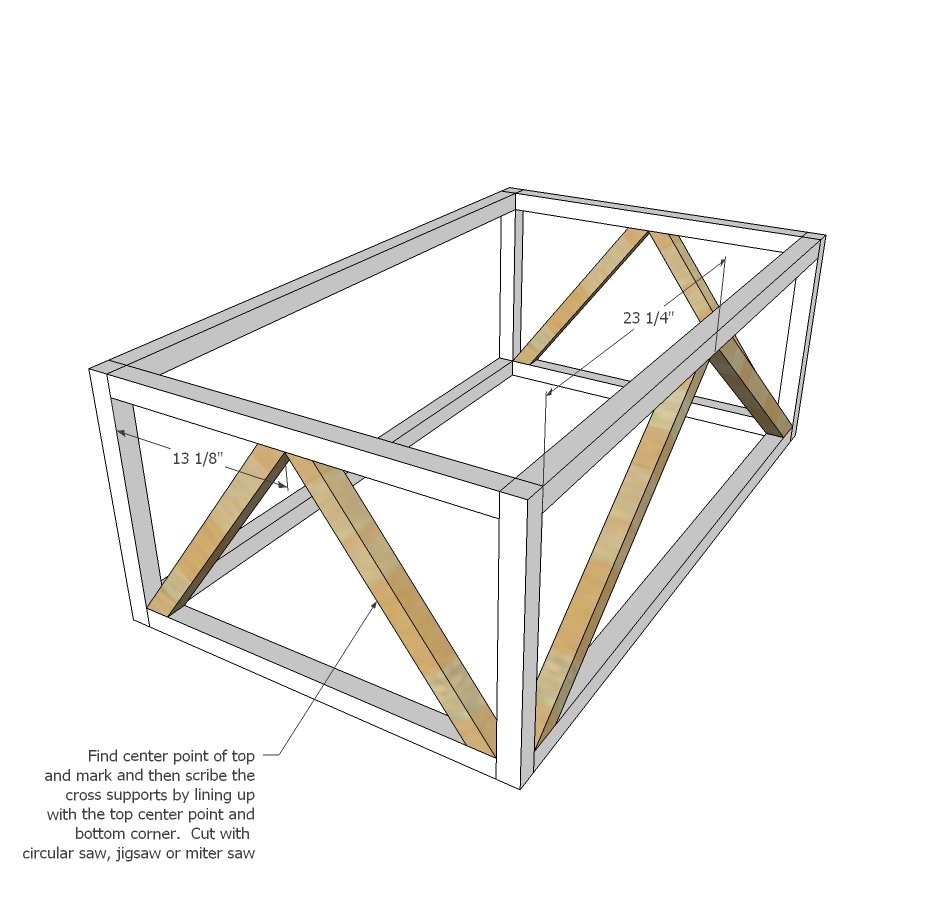

Step 3

Scribe cut the cross supports and attach to the frame, using the 2" screws and glue to attach.

Coffee Table Converts to Dining Table from Wild Rose Tiny House — step 3
4

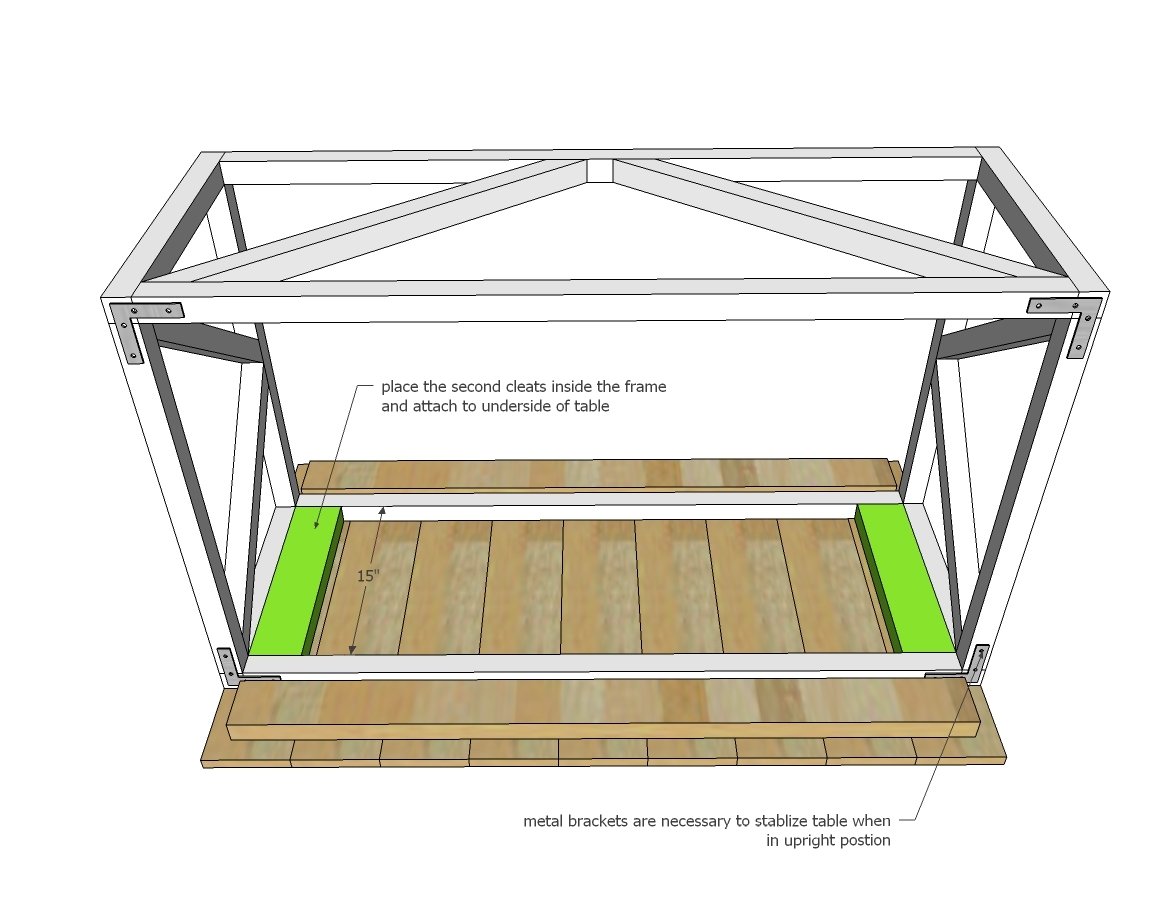

Place frame on tabletop and attach remaining cleats in place with 2" screws and wood glue.

My coffee table needed additional support, so I purchased four L brackets in 4" length, and attached flat to the underside of the coffee table frame. This was sufficient. You could also add additonal cross bracing to the bottom (when in coffee table position).

Coffee Table Converts to Dining Table from Wild Rose Tiny House — step 4
5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
