Console Table [Modern Farmhouse Collection]

Build your own stunning modern farmhouse console table with free

Console Table [Modern Farmhouse Collection]

Specifications

Project typeConsole Table Plans
Roomdining room
StyleFarmhouse Furniture
DifficultyBeginner Projects

Dimensions

Use the size-specific shopping and cut lists below.

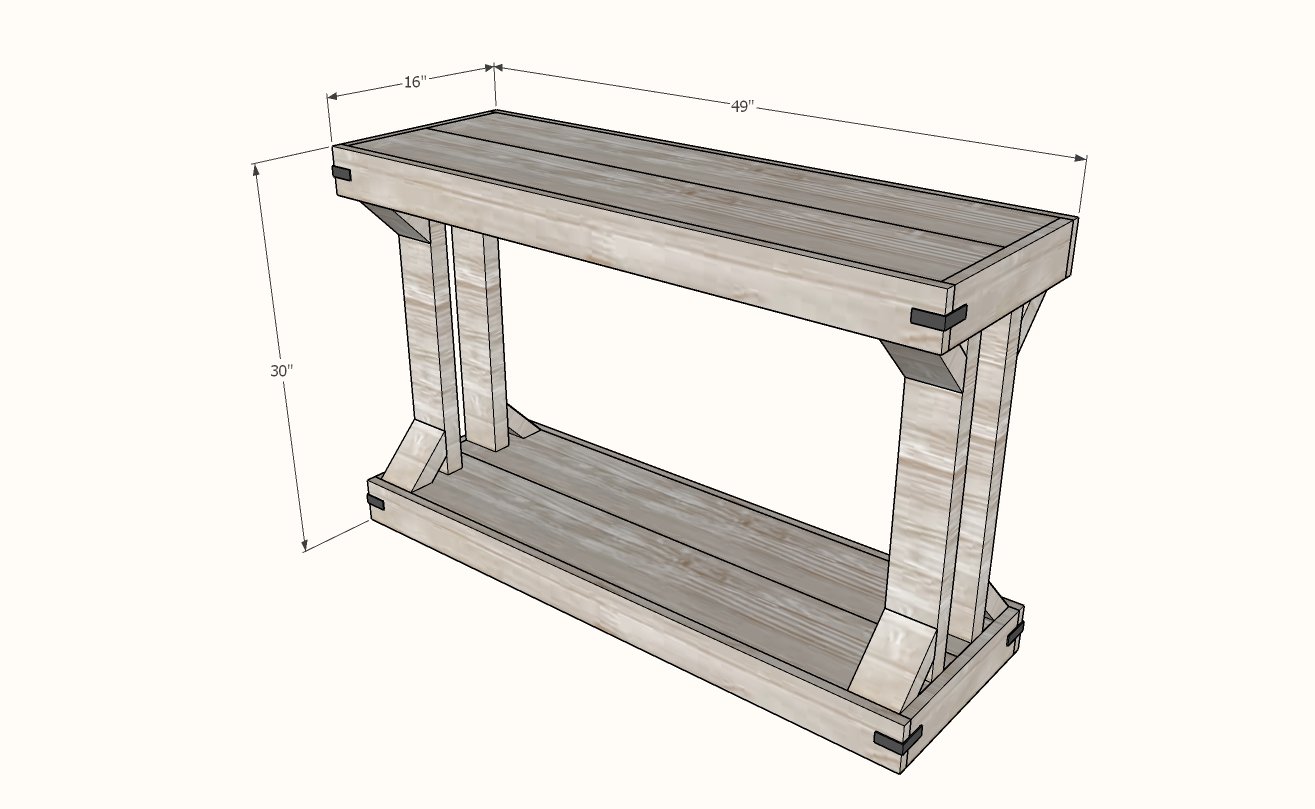

Console Table [Modern Farmhouse Collection] dimension diagram 1

Shopping List

2 - 1x8 @ 8 feet long

2 - 2x4 @ 8 feet long

2 - 1x4 @ 8 feet long (cut one front/back trim and two side trims from each board)

1 - 1x4 @ 10 feet long (cut two of the trim front and backs from this board)

16 - 2-1/2" self tapping wood screws with star bit

1-1/4" brad nails

wood glue

Cut List

4 - 1x8 @ 47-3/4" - tabletop boards

4 - 1x4 @ approximately 14-1/2" - side trim (should be cut to fit)

4 - 1x4 @ approximately 49-1/4" - front/back trim (should be cut to fit)

2 - 2x4 @ approximately 14-1/2" - inner support (should be cut to fit)

4 - 2x4 @ 23" - legs

8 - 2x4 @ 5-1/2" - long point to long point measurement, both ends cut at 45 degree bevel, ends NOT parallel

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

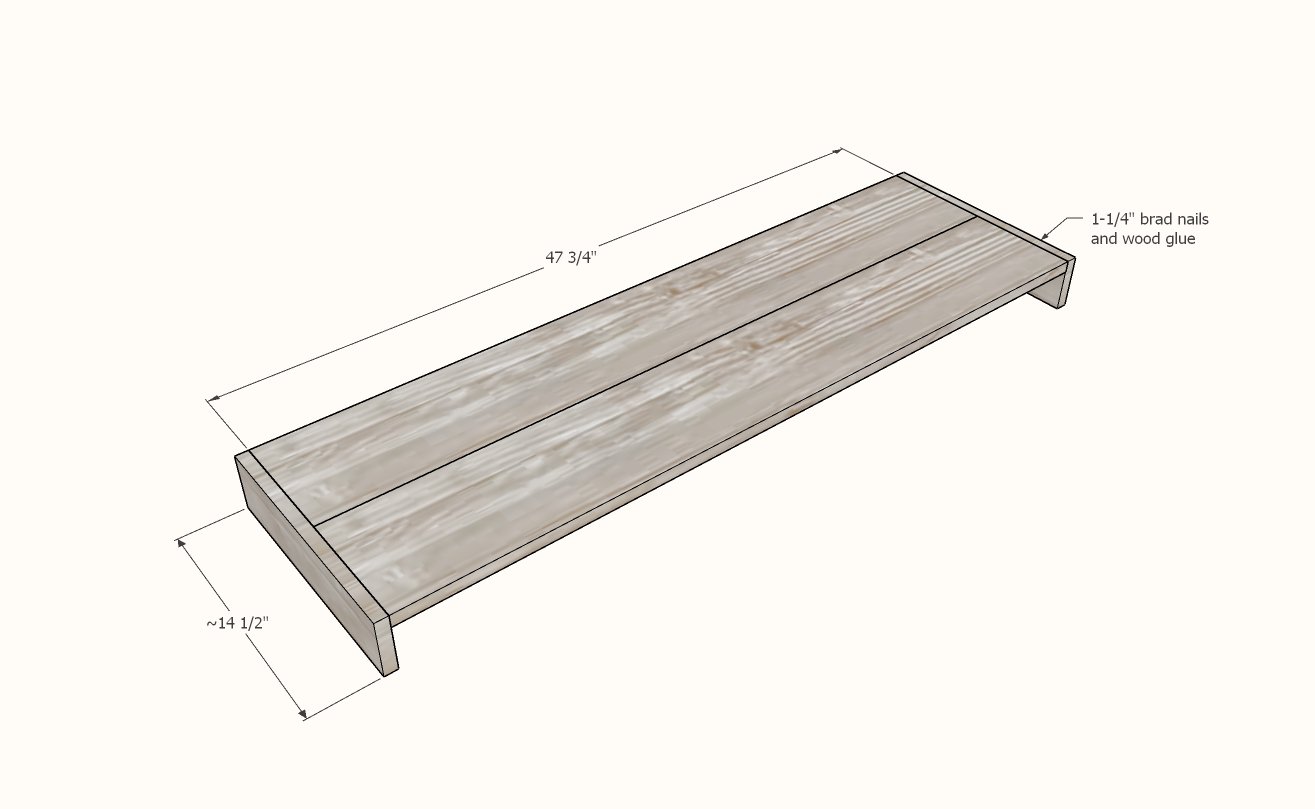

1

Lay two of the 1x8 boards together and measure the width.

Cut 1x4s to this width. Apply glue between the 1x8 boards. If you have a Kreg Jig you can also join the two 1x8 boards together first. Nail the 1x4 trim to the ends. Build two identical.

Console Table [Modern Farmhouse Collection] — step 1

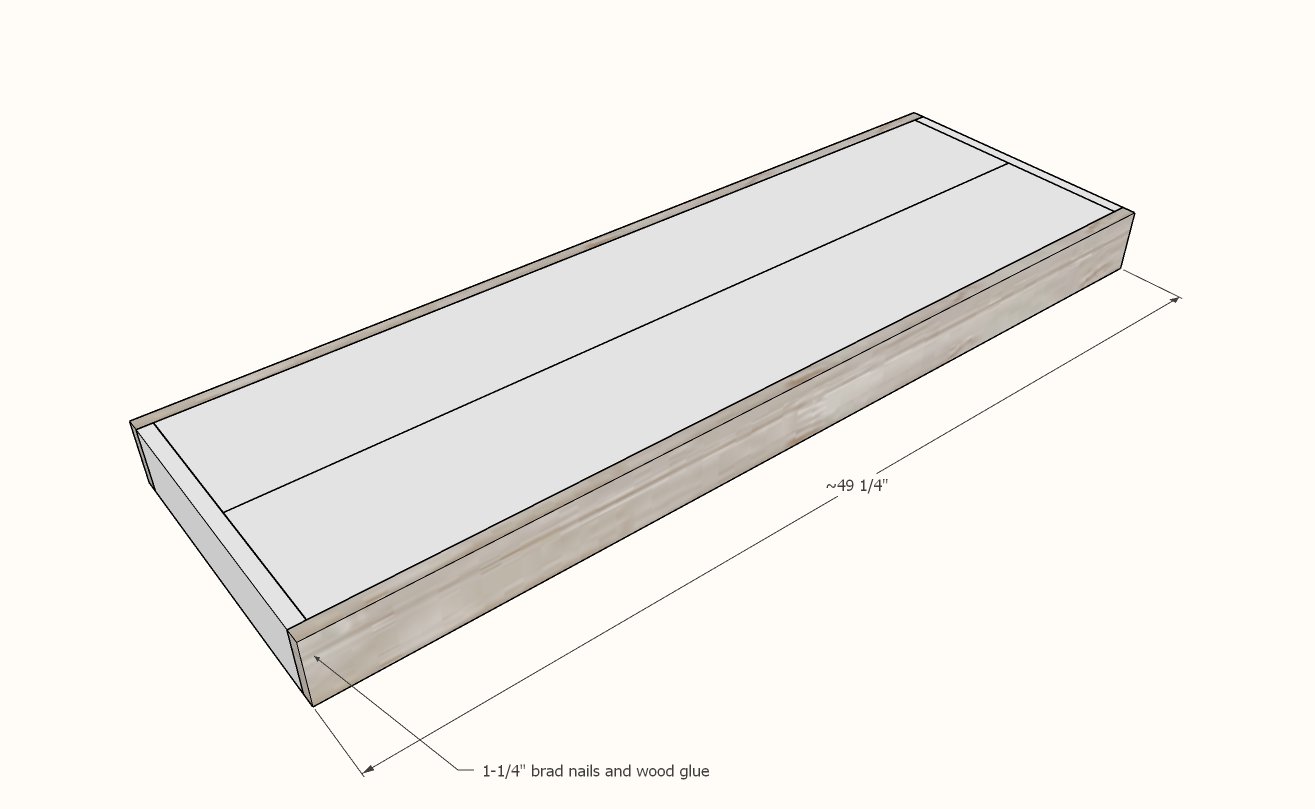

2

Measure and cut the front and back trim.

Attach with glue and 1-1/4" brad nails to the top and side trim. Repeat so both top and bottom shelf are identical. Set aside.

Console Table [Modern Farmhouse Collection] — step 2

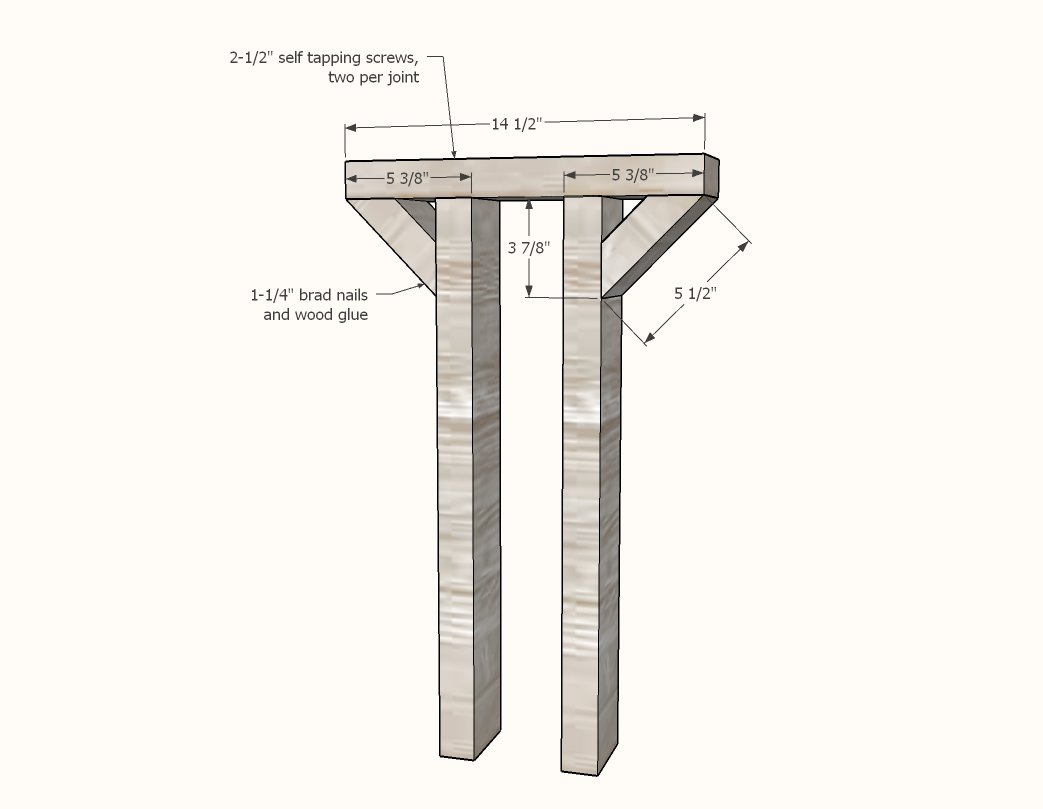

3

Match the top 2x4 to the side trim length.

Attach legs with screws. Then attach the cross supports with 1-1/4" brad nails and glue. Adjust for level if needed.

Console Table [Modern Farmhouse Collection] — step 3

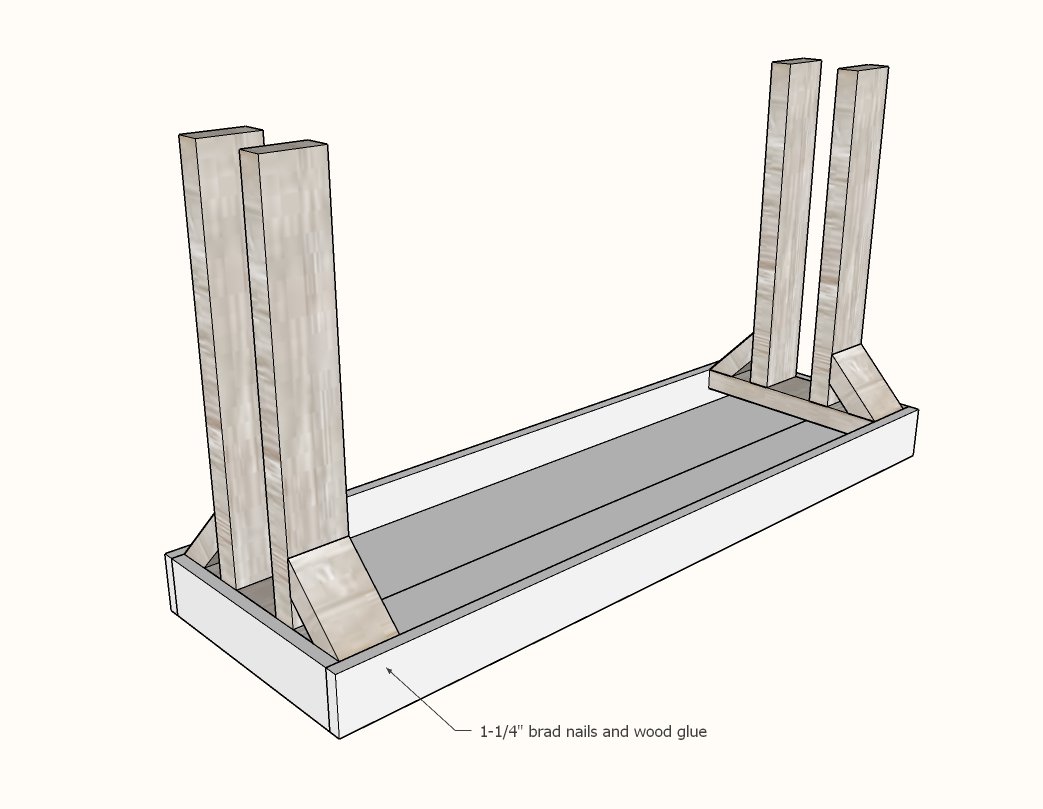

4

Step 4

Attach the leg sets inside the frame for the tabletop.

Console Table [Modern Farmhouse Collection] — step 4

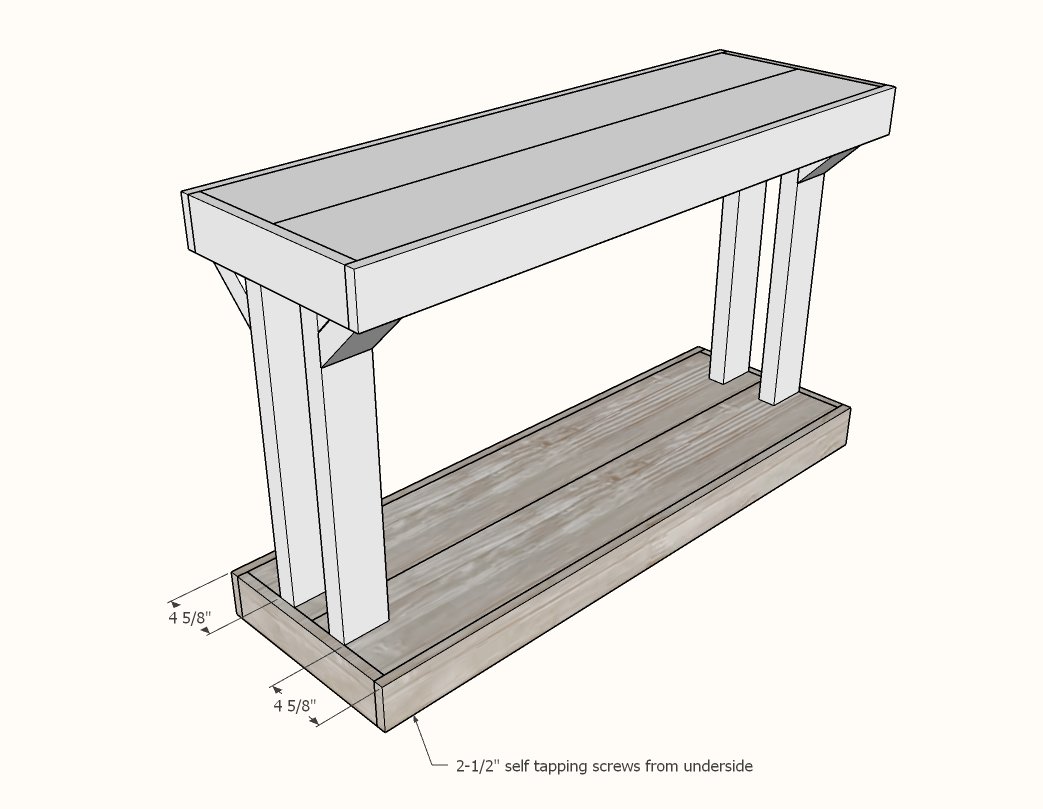

5

Place the legs with tabletop on top of bottom shelf.

Attach with screws and glue.

Console Table [Modern Farmhouse Collection] — step 5

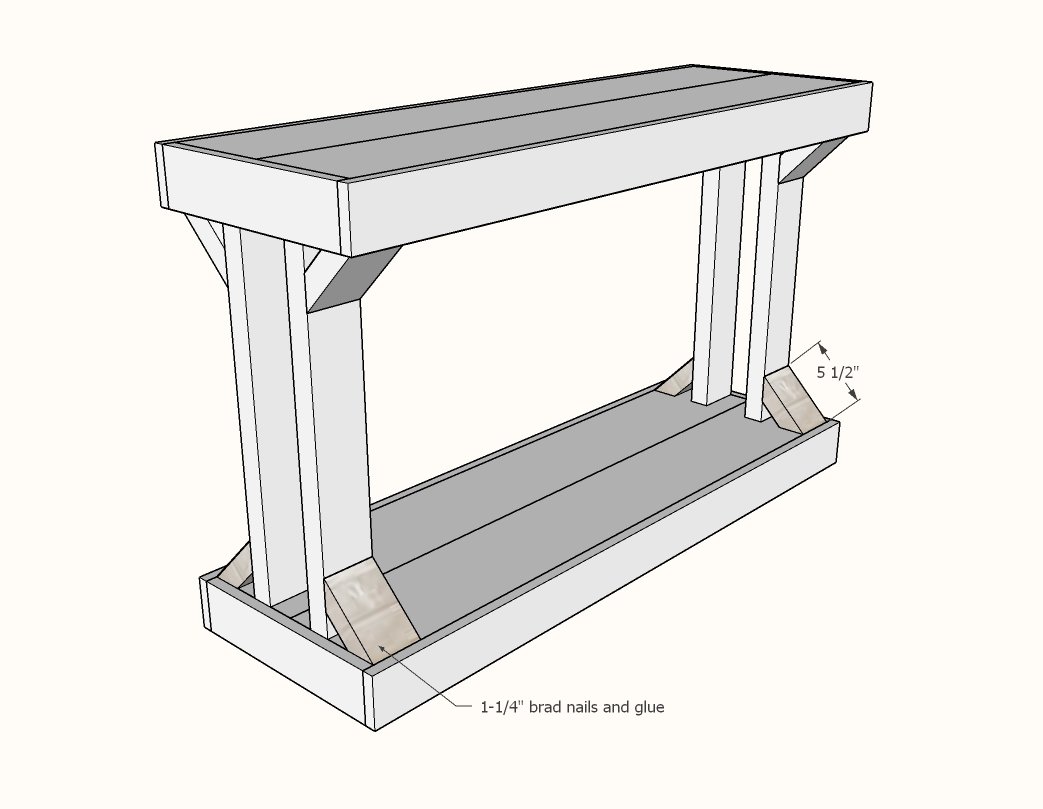

6

Step 6

Finish the base by adding the cross supports with 1-1/4" brad nails and glue.

Console Table [Modern Farmhouse Collection] — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
