Counter Height Fancy X Farmhouse Table

to build a counter height X base farmhouse table. Step by step diagram, video of build process and cutting and shopping list included. From

Counter Height Fancy X Farmhouse Table

Specifications

Project typeKitchen Island Plans
Roomdining room
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

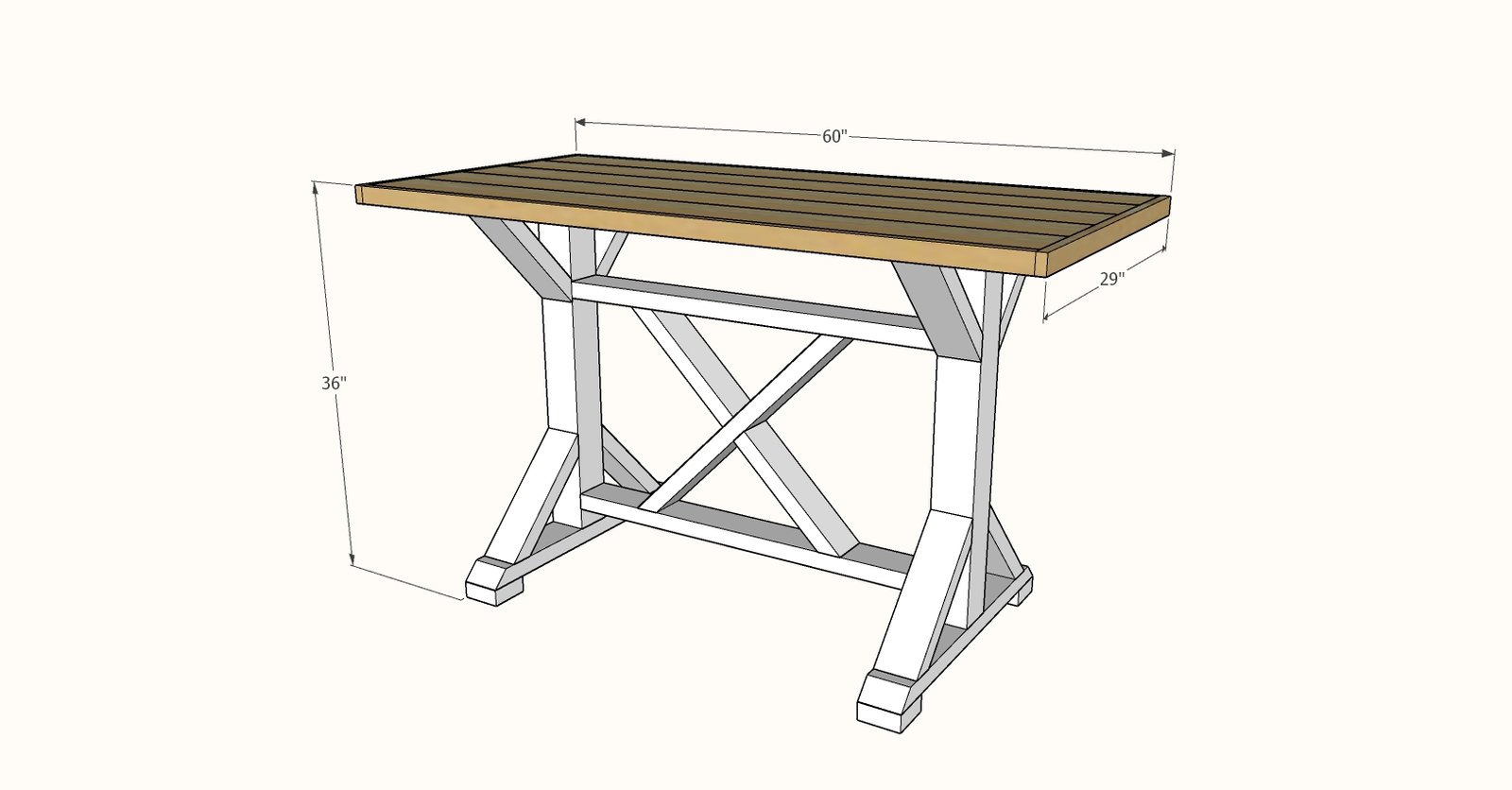

Counter Height Fancy X Farmhouse Table dimension diagram 1

Shopping List

  • 1 - 1x4x6'
  • 1 - 4x4x6'
  • 4 - 2x4x8'
  • 5 - 1x6x5'
  • 2 - 1x2x8'
  • 60 - 2-1/2" self tapping star bit construction screws (recommend #8)
  • 8 - 2-1/2" pocket hole screws
  • 30 - 1-1/4" pocket hole screws
  • 1-1/4" brad nails
  • wood glue

Cut List

LEG SETS

  • 2 - 1x4 @ 27-1/2"
  • 2 - 4x4 @ 31-1/2"
  • 2 - 2x4 @ 27-1/2" - long point to long point, both ends cut at 45 degree bevel, ends NOT parallel
  • 4 - 2x4 @ 3-1/2"
  • 8 - 2x4 @ 13-3/8" - long point to long point, both ends cut at 45 degree bevel, ends NOT parallel

CENTER

  • 2 - 2x4 @ 35-1/2"
  • 1 - 2x4 @ 26-5/8" - long point to short point, both ends cut at 45 degree bevel, ends ARE parallel
  • 2 - 2x4 @ 13-3/8" - longest point measurement, one end cut at 45 degree bevel

TABLETOP

  • 5 - 1x6 @ 58-1/2"
  • 2 - 1x2 @ 58-1/2"
  • 2 - 1x2 @ approximately 29" - measure and cut to fit

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • kreg-jig
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

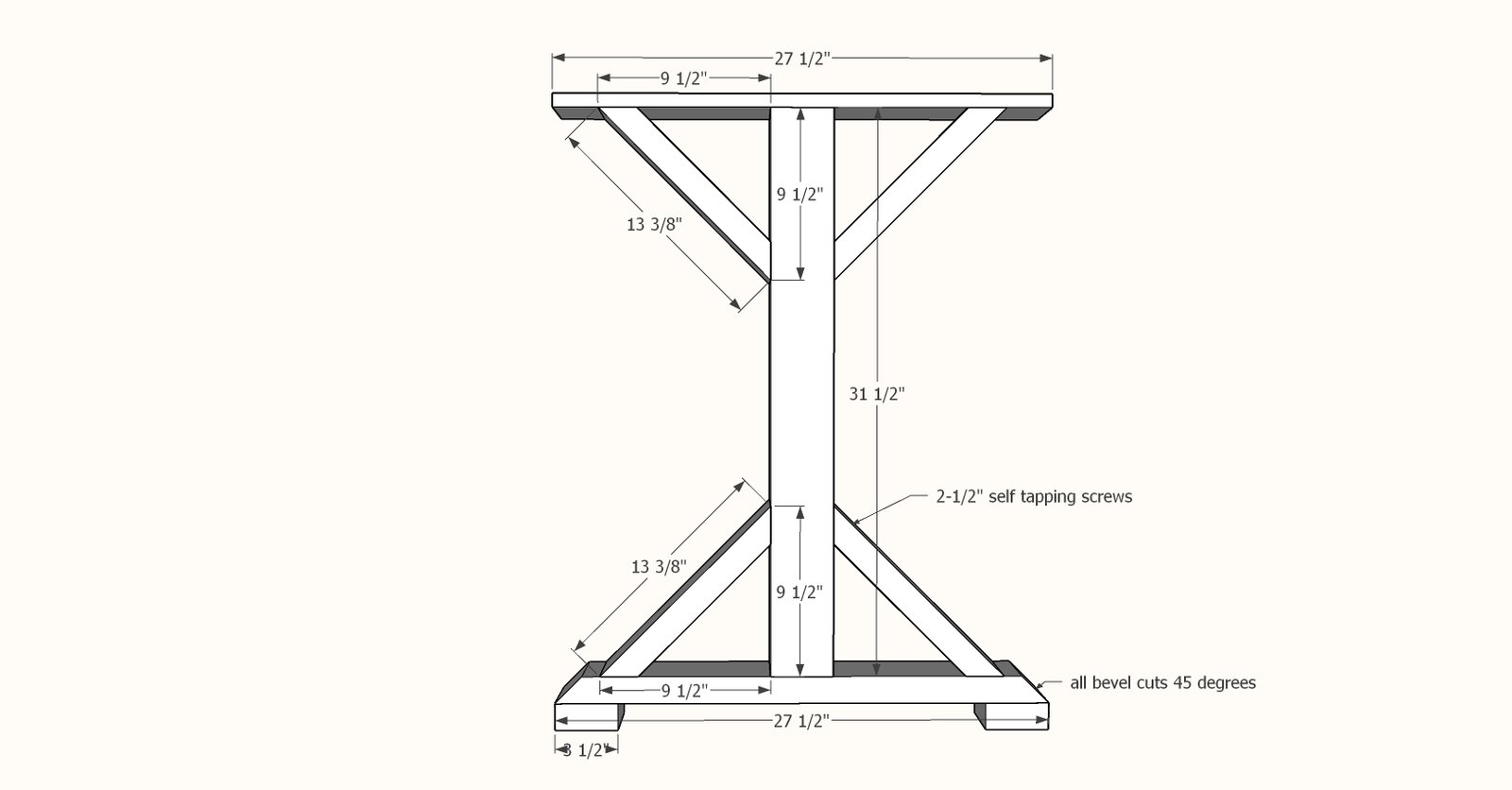

Step 1

Build two leg sets as shown with the 2-1/2" star bit construction screws. Start in the middle and work outward. Make sure the legs are square as you attach - the cross braces will work out perfectly if you are square.

Counter Height Fancy X Farmhouse Table — step 1
2

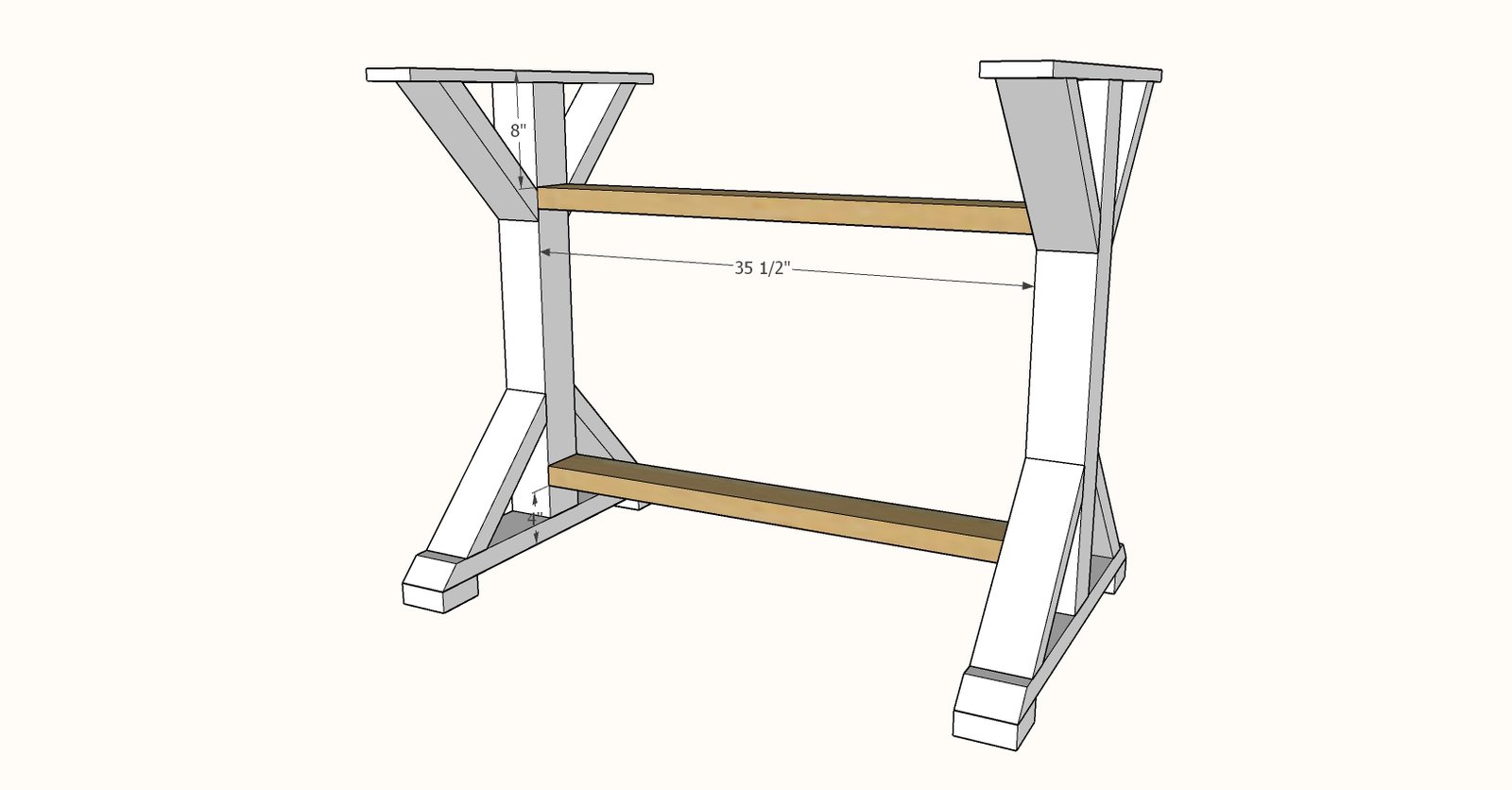

Step 2

Drill two pocket holes on each end of the 2x4s and attach, so the pocket holes are hidden underneath.

Counter Height Fancy X Farmhouse Table — step 2
3

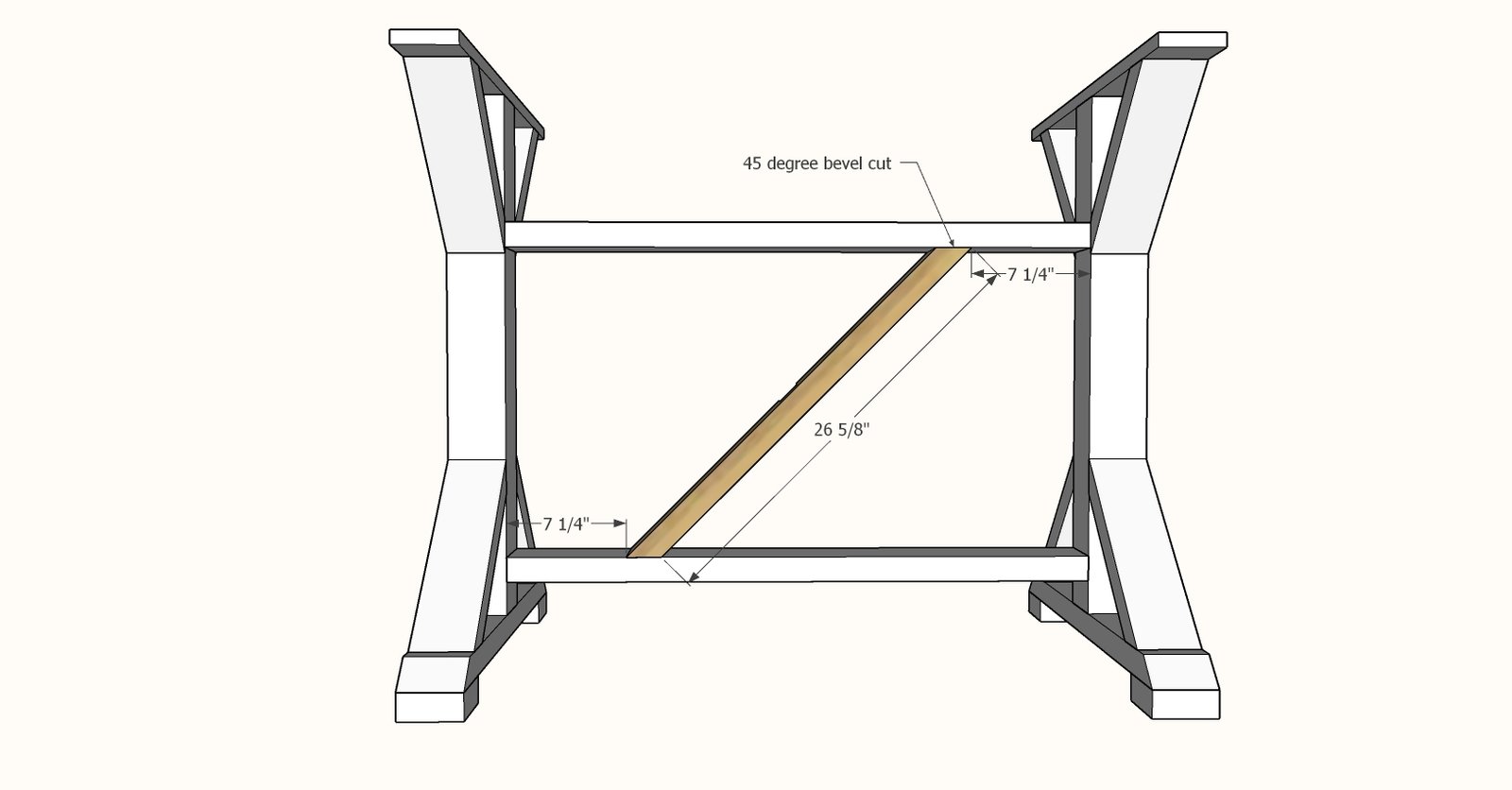

Step 3

Fit the longer 2x4 in first and attach centered inside the opening.

Counter Height Fancy X Farmhouse Table — step 3
4

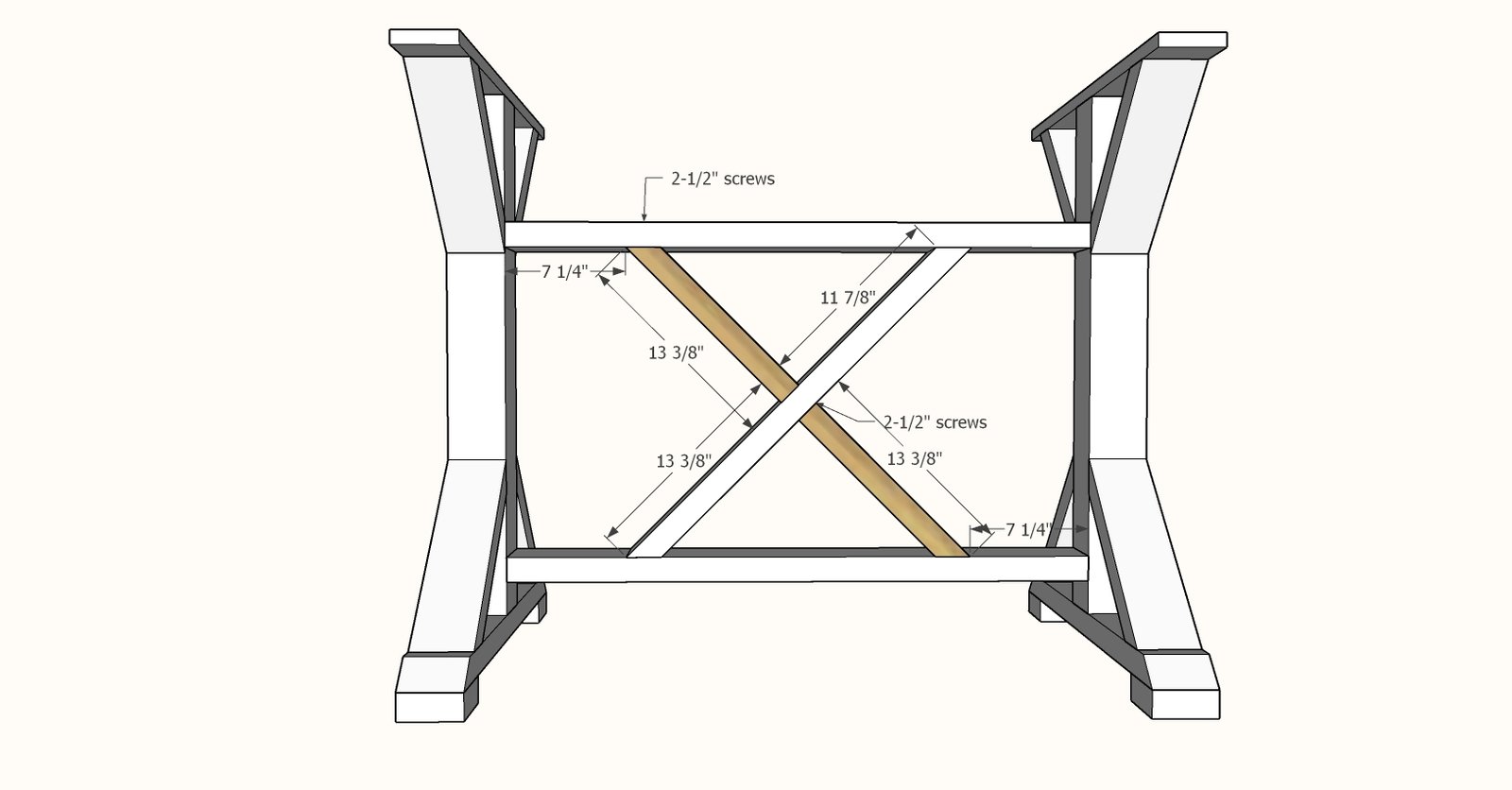

Step 4

Scribe the smaller pieces and attach as shown in the diagram with the 2-1/2" screws.

Counter Height Fancy X Farmhouse Table — step 4
5

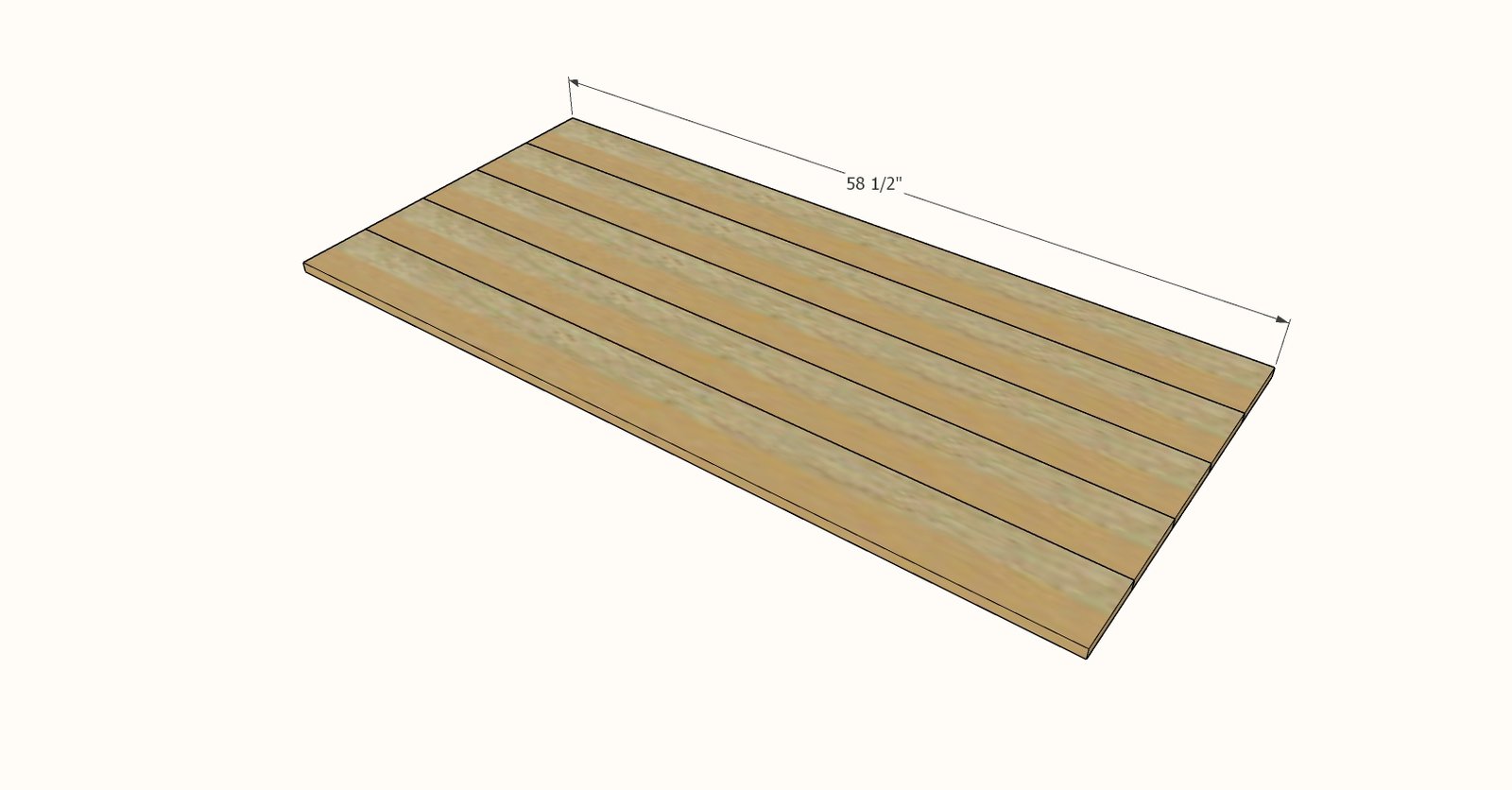

Step 5

For the tabletop, I recommend following my video tutorial here to build a pretty 1x tabletop. You'll use the 1-1/4" pocket hole screws to assemble.

Counter Height Fancy X Farmhouse Table — step 5
6

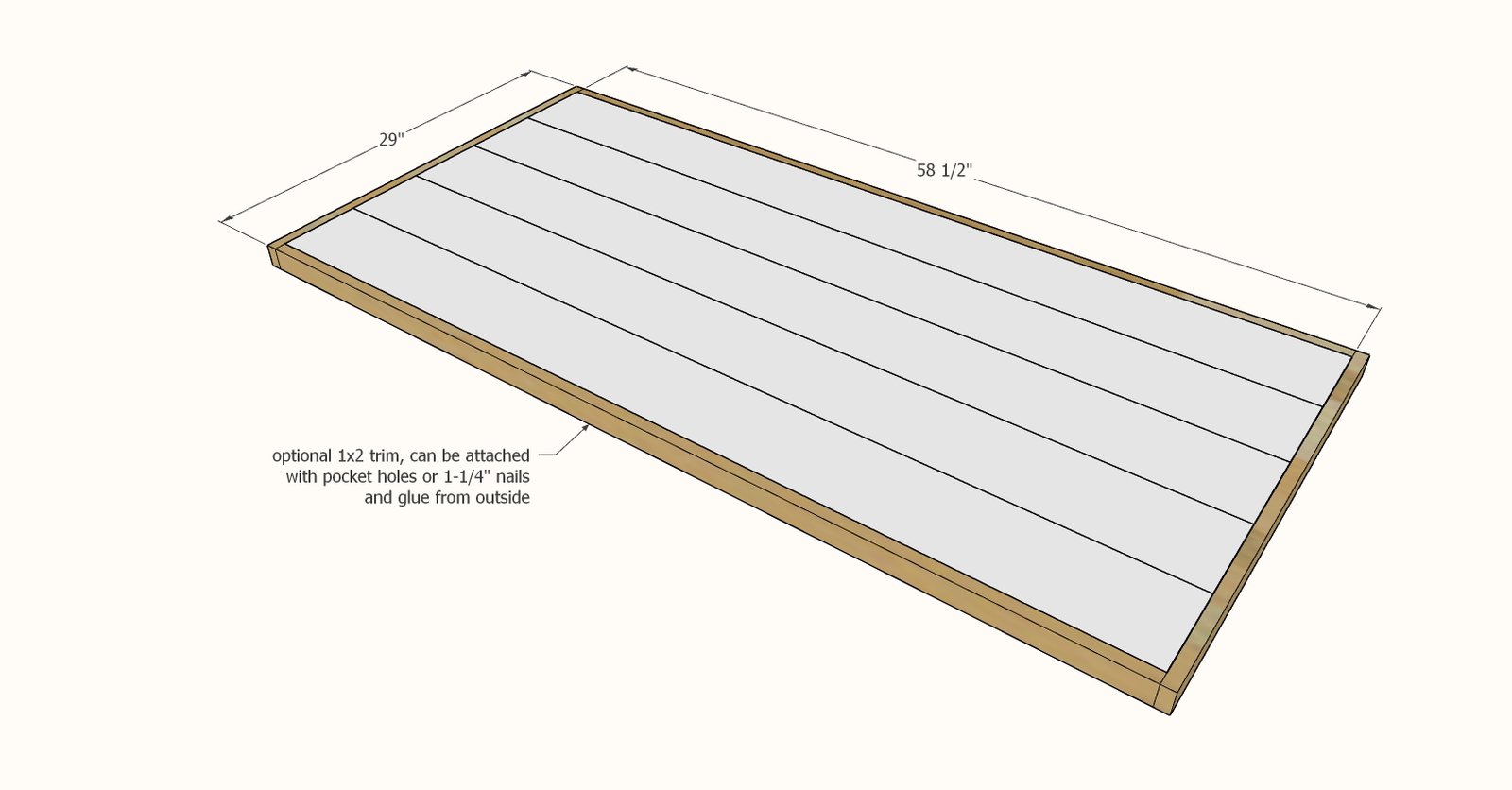

Step 6

Optional: 1x2 trim can give the tabletop a thicker profile. Attach with 1-1/4' brad nails and glue. 1x blocking can be added behind the edge to further strengthen. The tabletop was finished using this tutorial.

Counter Height Fancy X Farmhouse Table — step 6
7

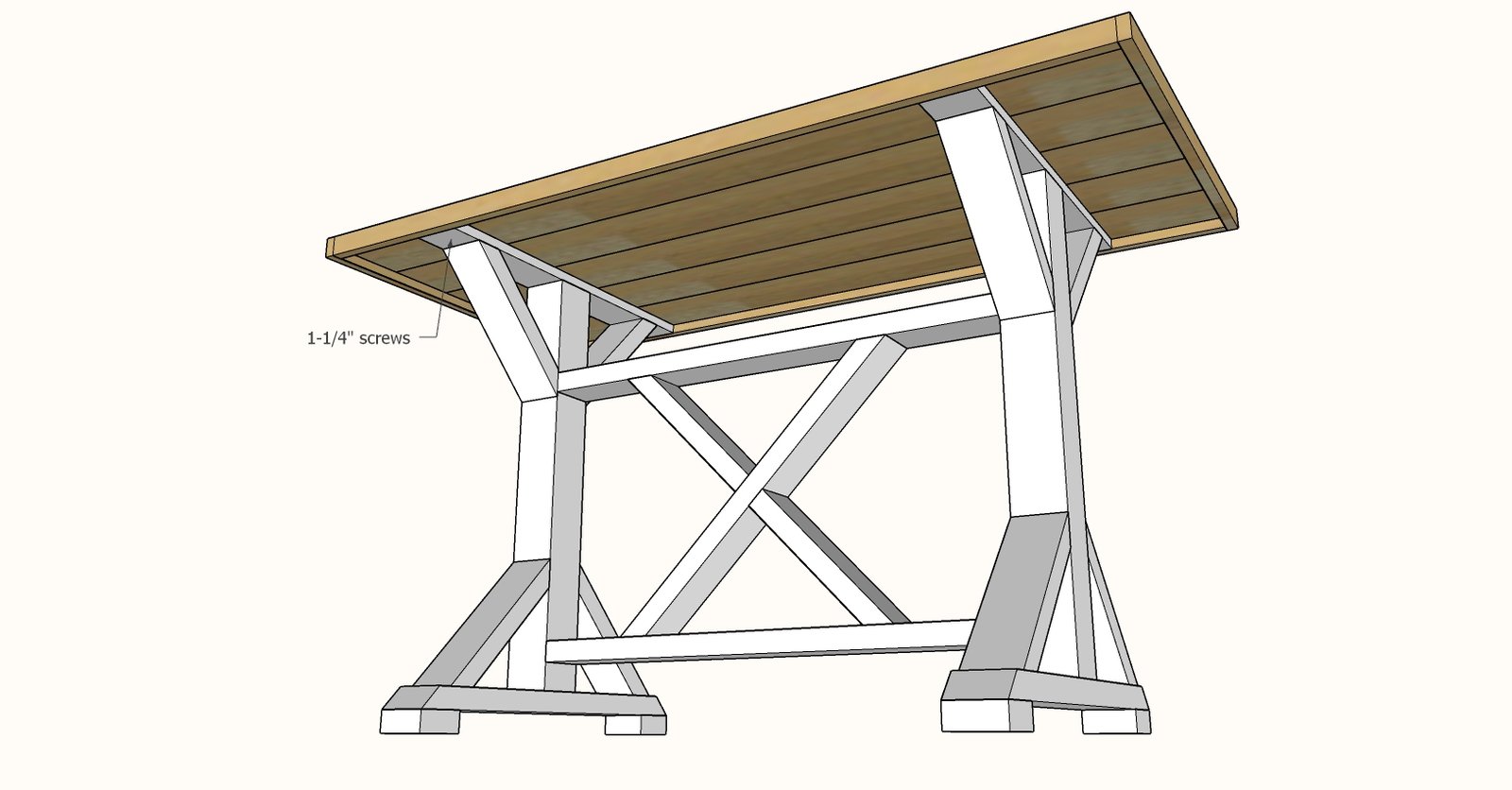

Step 7

Attach the top from underneath with 1-1/4" pocket hole screws or other 1-1/4" wood screws.

Counter Height Fancy X Farmhouse Table — step 7
8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
