Countertop Pie Safe
Store pies on your countertop in this DIY wood pie safe. Can be used to transport and gift pies too! include step by step diagrams, shopping and cut list. Beginner friendly plan requires basic tools and simple techniques. Plan fits smaller pies, interior dimensions are 10-1/2" deep. Built by Jaime Costiglio for Handbuilt Holiday.
Specifications
| Project type | Other Projects |
|---|---|
| Room | kitchen |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

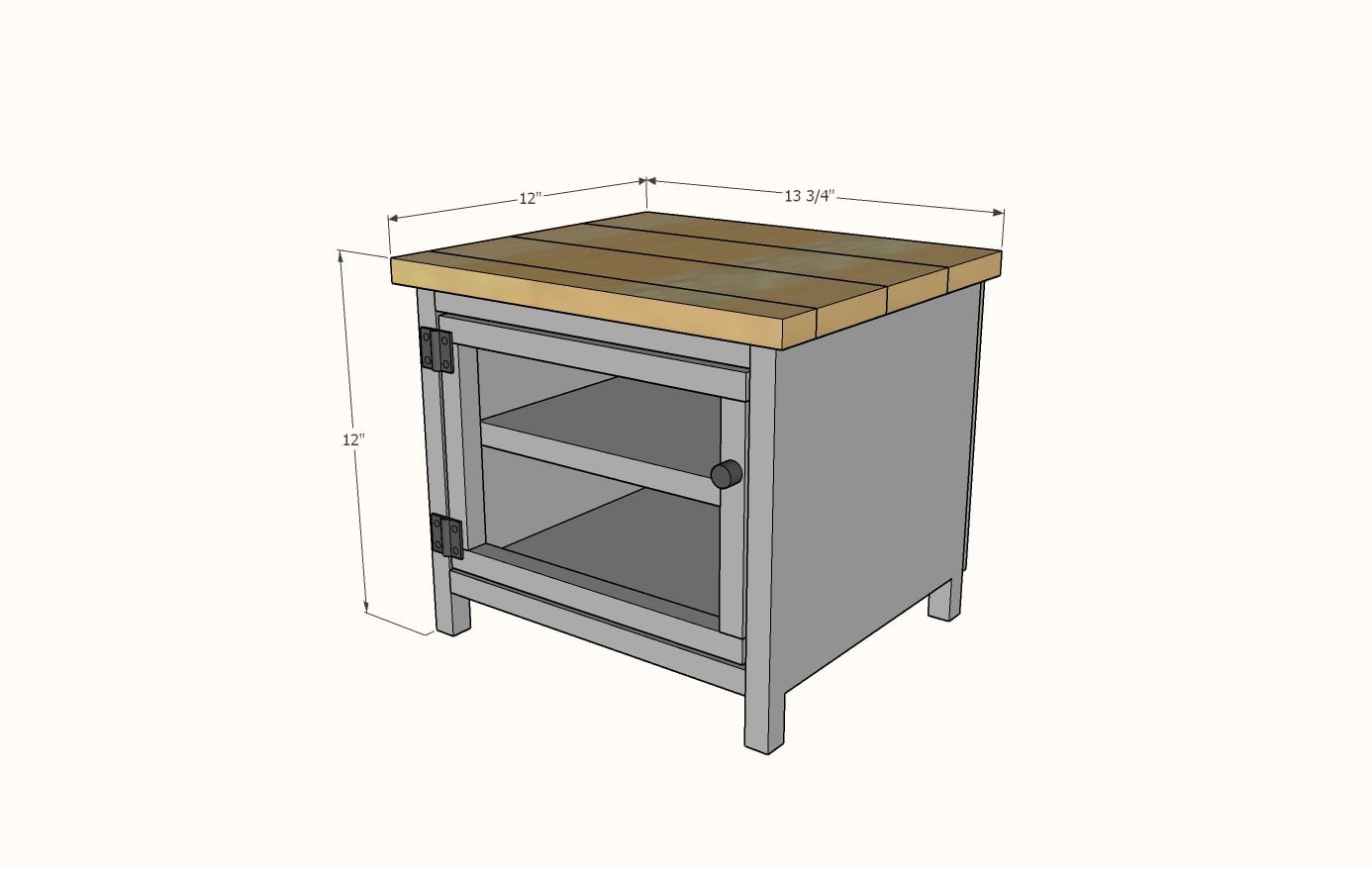

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 1x12 @ 4 feet long
- 1 - 1x2 @ 4 feet long
- 1 - 1x4 @ 4 feet long
- 1 - 3/4" x 3/4" square dowel, 36" long
- scrap piece of 1/4" plywood at least 12" x 9"
- 1 - 8x10 piece of acrylic glass
- set of small hinges
- knob or handle
Cut List
- 3 - 1x12 @ 11-1/4" - sides and bottom
- 1 - 1x12 @ 10" - shelf
- 2 - 1x2 @ 11-1/4" - top supports
- 1 - 1/4" plywood @ 9-3/4" x 12-3/4" - back (can be slightly smaller)
- 3 - 1x4 @ 13-3/4" - top
- 1- 1x2 @ 13-3/4" - top
- 2 - 3/4" x 3/4" @ 11"
- 2 - 3/4" x 3/4" @ 6-1/2"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- jigsaw
- compound miter saw
- nailer
- sander
Step-by-step Instructions

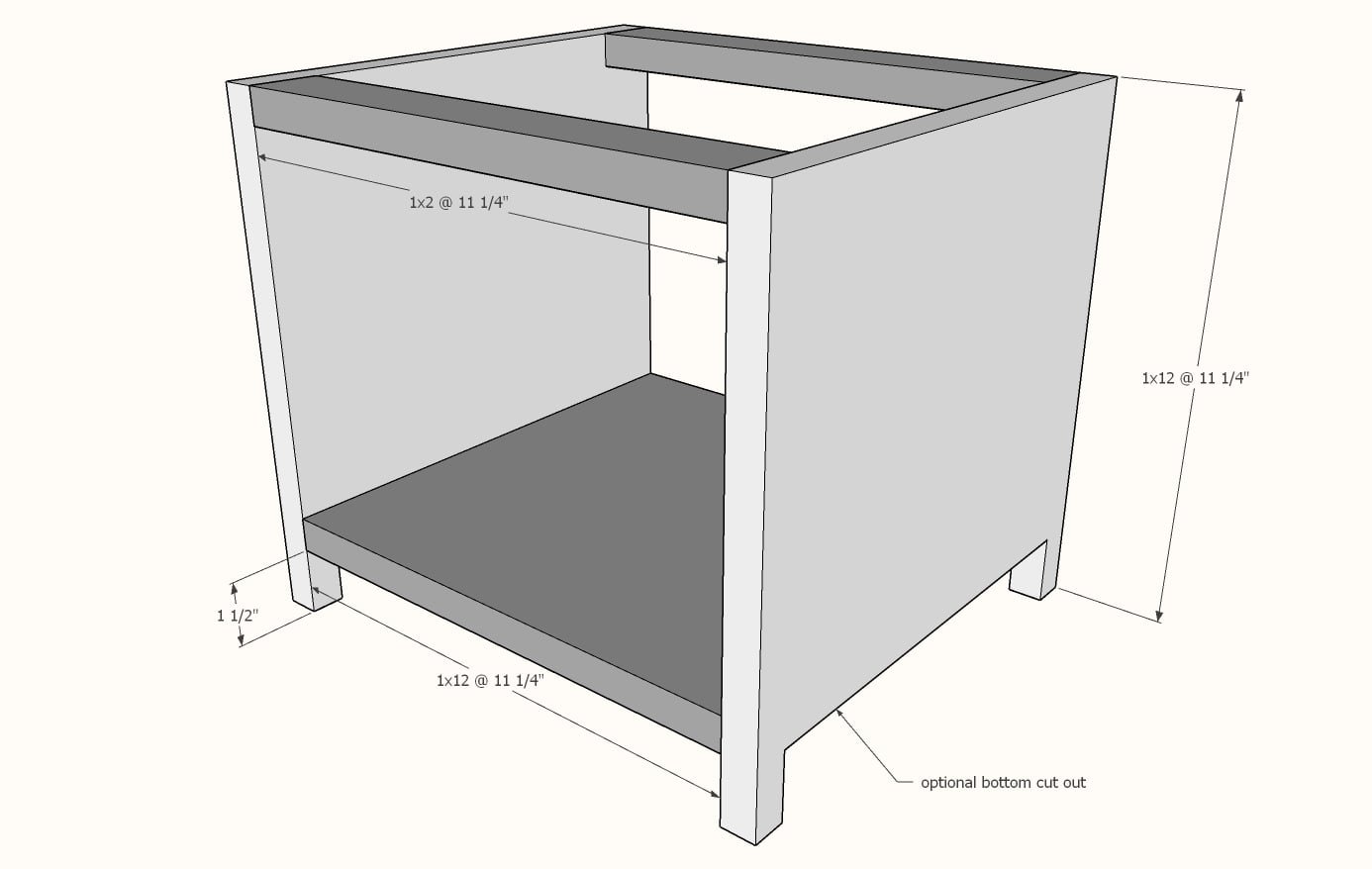

Attach the sides to the top pieces and the bottom shelf.
The base can be cut out with a jigsaw for additional detail. 1-1/4" brad nails and wood glue are plenty to attach.

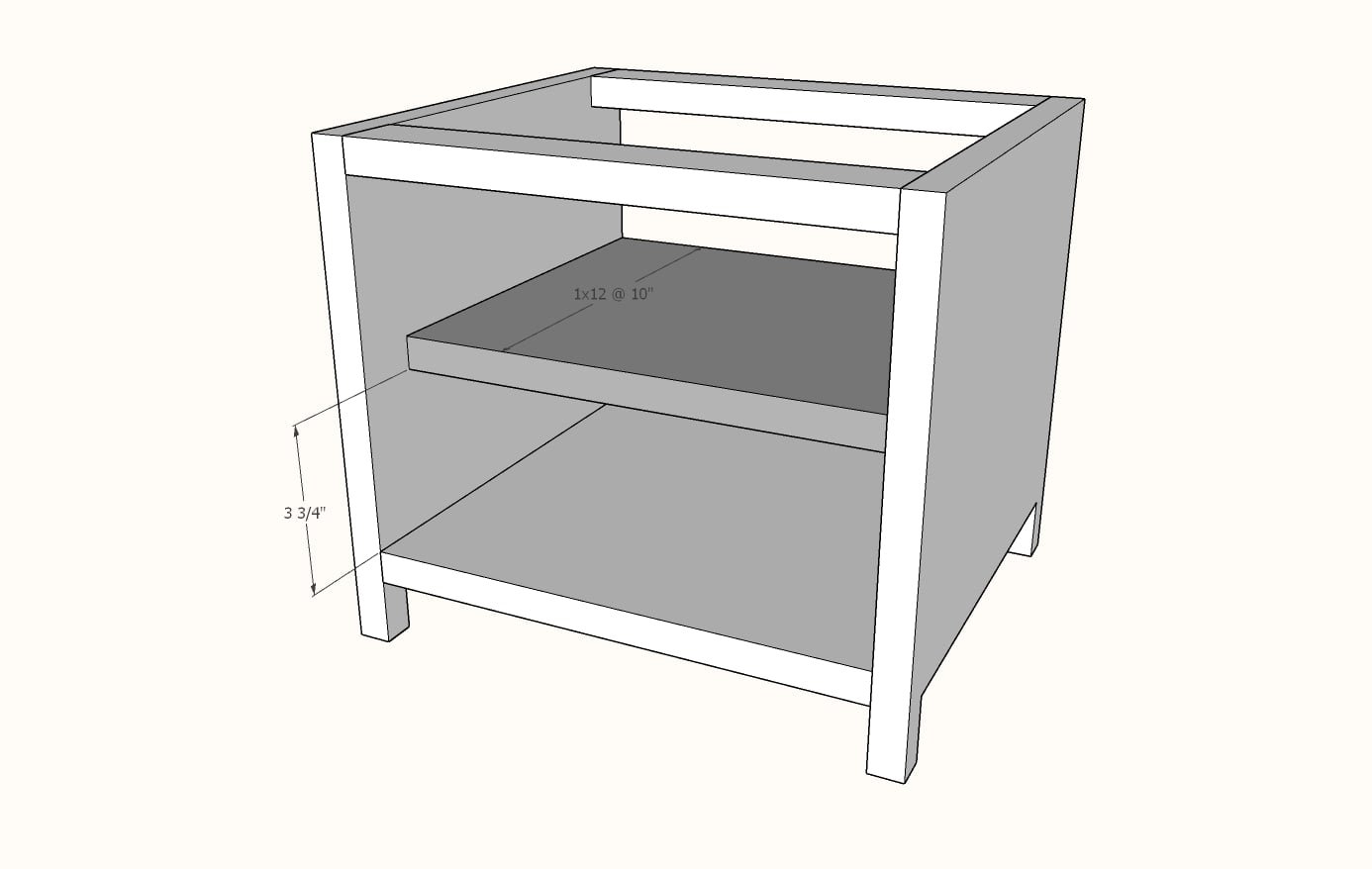

Step 2
Attach shelf inside the pie safe, so there is space to the front and it is flush to the back of the pie safe. Use 1-1/4" brad nails and wood glue.

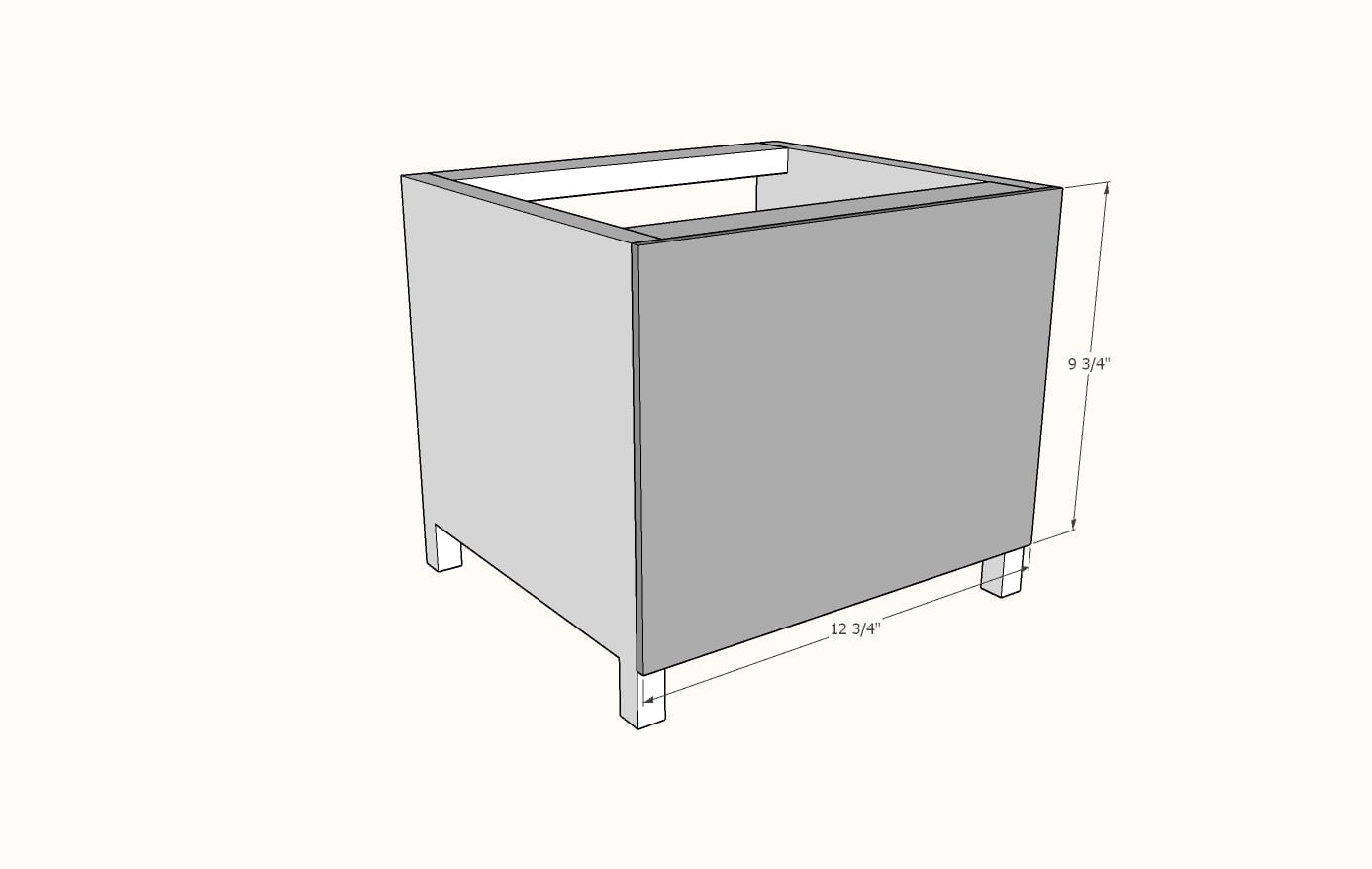

Step 3
Attach 1/4" plywood to the back with 3/4" brad nails and wood glue.

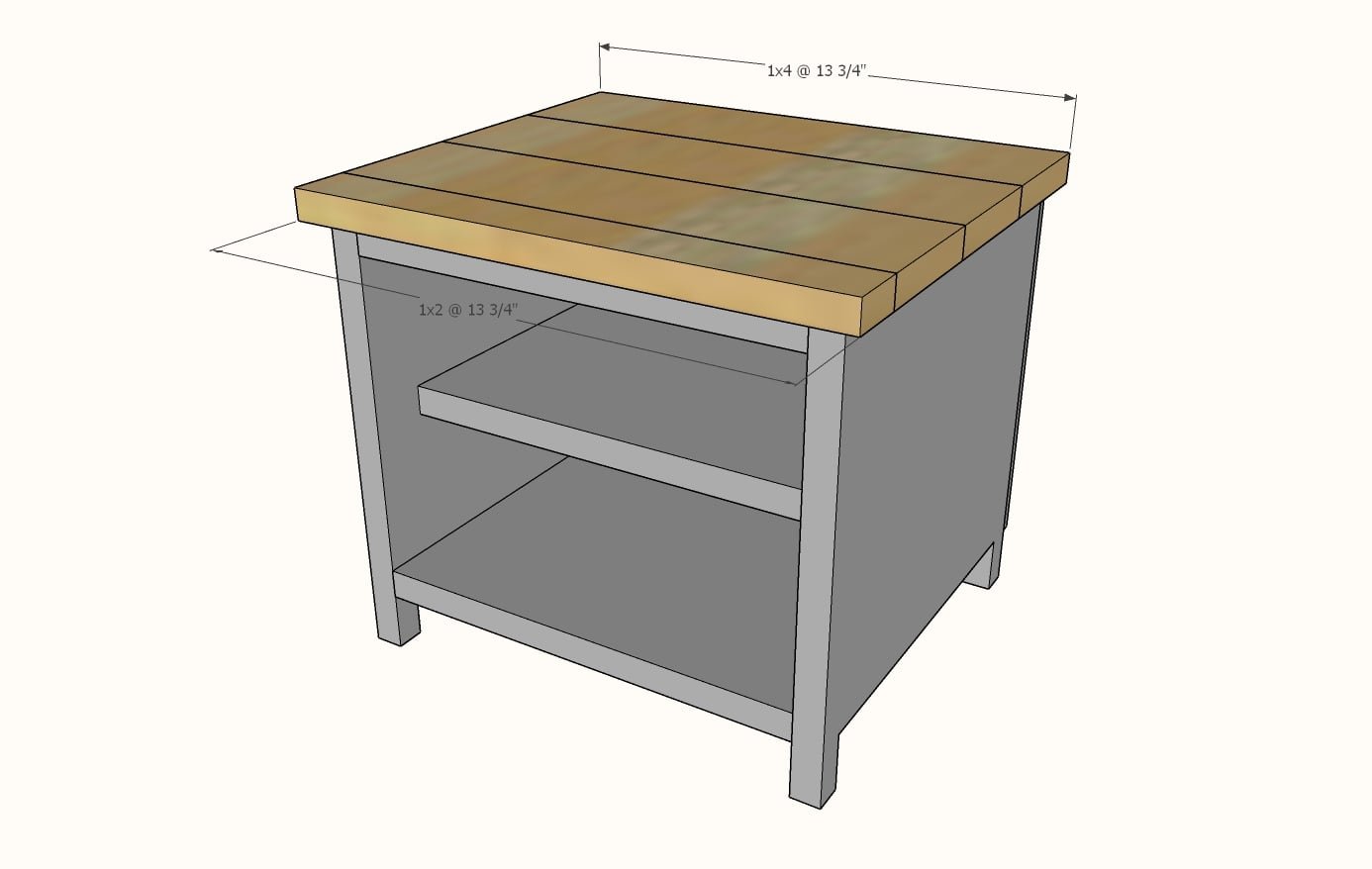

Step 4
Attach top boards, with even overhang on front and sides, with 1-1/4" brad nails and wood glue.

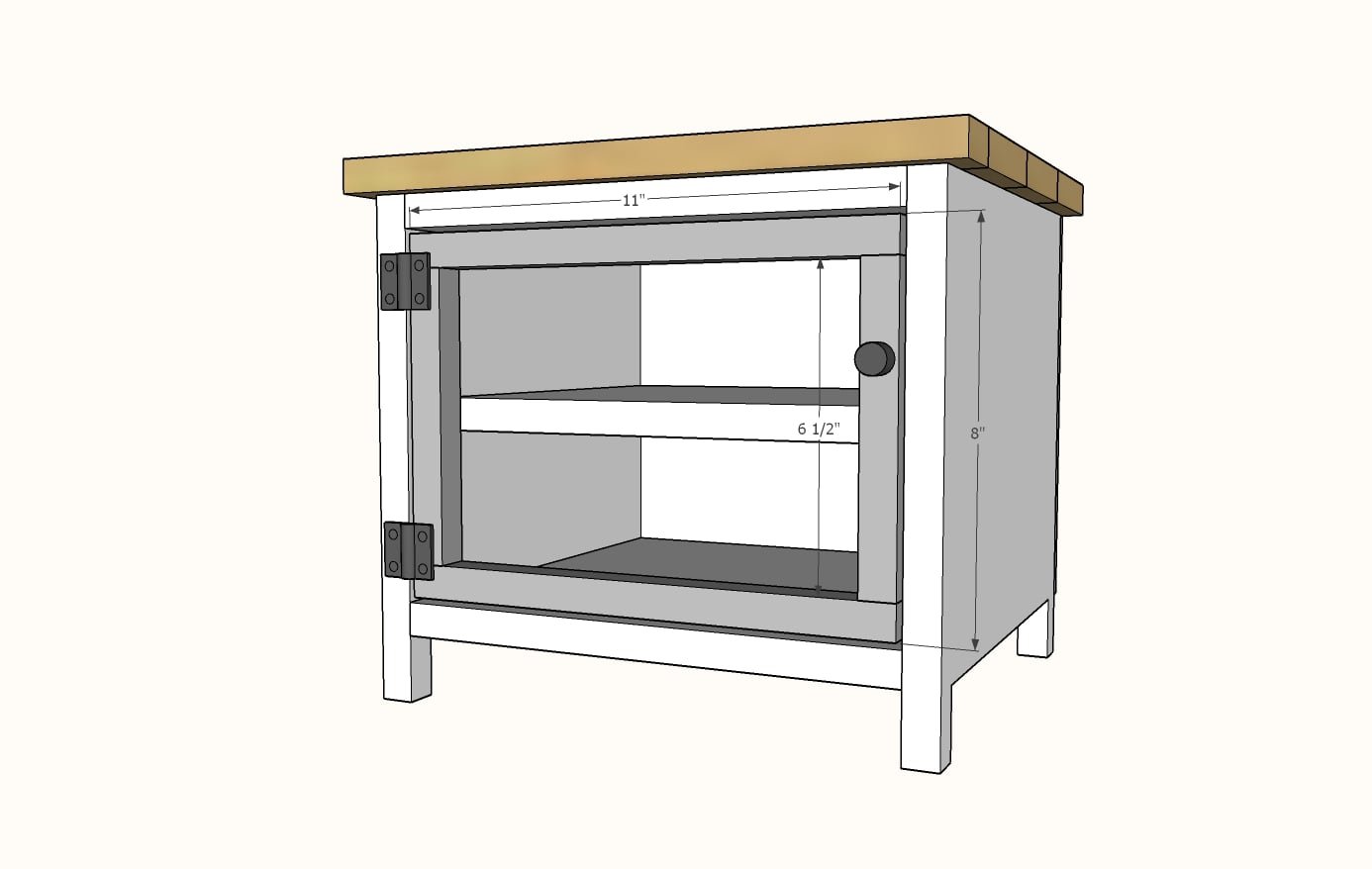

Attach dowels with 1-1/4" brad nail and wood glue.
Use super glue or hot glue to attach the acrylic glass to the back of the door. Attach hinges to the door (we recommend predrilling holes to prevent splitting the wood). A stop or magnetic clasp can be added if the pie safe is going to be used for transporting.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
