Craft Paper Roll Holder
Make a craft paper roll holder! to build your own craft paper roll holder.
Specifications
| Project type | Toys |
|---|---|
| Room | Craftroom |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Starter Projects |
| Estimated cost | Under $20 |

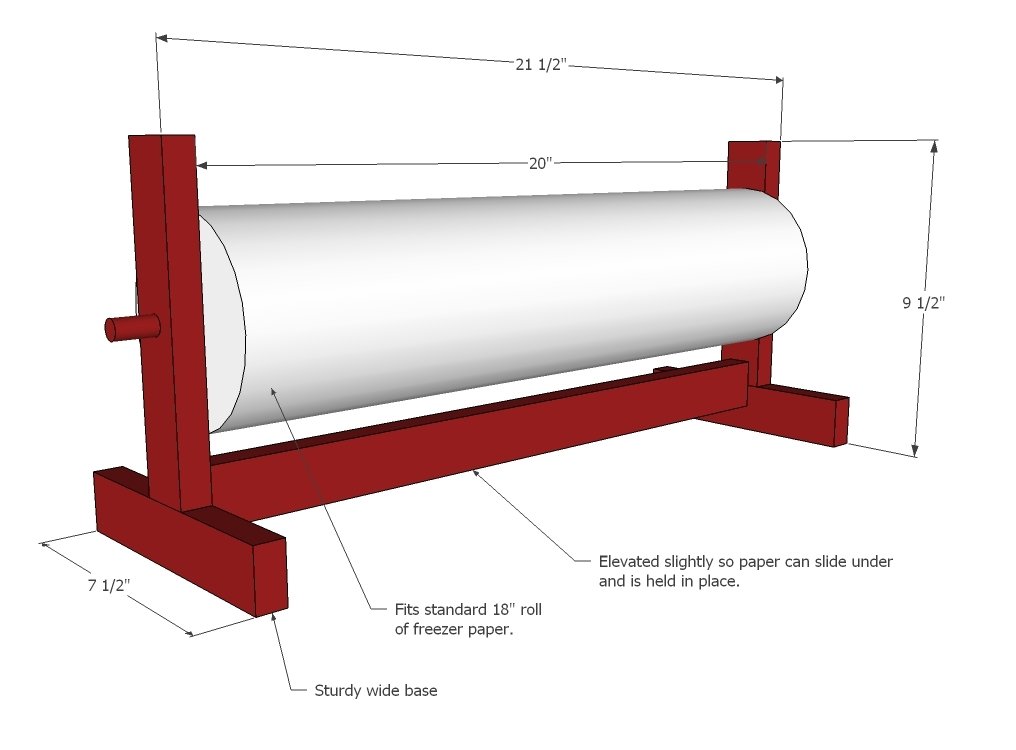

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 1x2 @ 4 feet long
- 1 - 1/2" diameter wood dowel
- 1-1/4" pocket hole screws (8)
Cut List
2 - 1x2 @ 6"
2 - 1x2 @ 8"
1 - 1x2 @ 20"
1 - 1/4" Diameter Dowel @ 24"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- sander
- countersink drill bit
Step-by-step Instructions

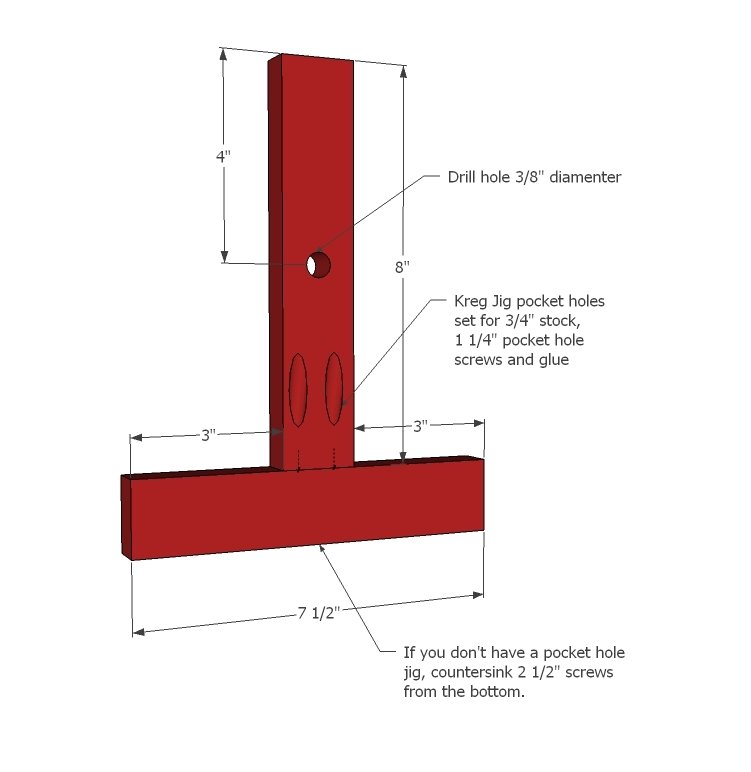

Step 1
Build your ends as shown above, either with 3/4" Kreg Jig Pocket Holes and 1 1/4" pocket hole screws or 2 1/2" screws and a countersink bit. Drill holes for dowel as shown in diagram with 3/8" spade bit.

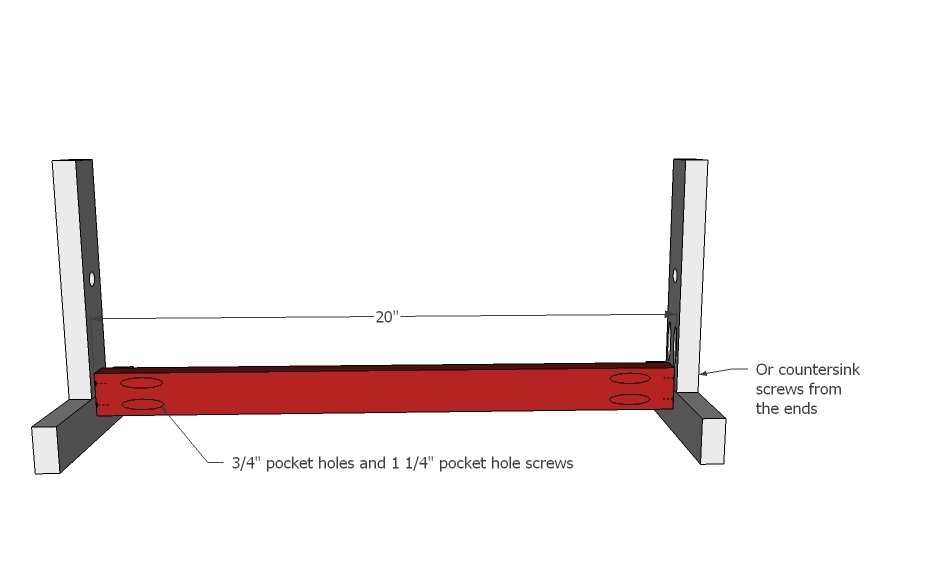

Step 2
Once both sides are complete, join with bottom board. Leave a 3/4" gap under bottom board to allow paper to pass under.

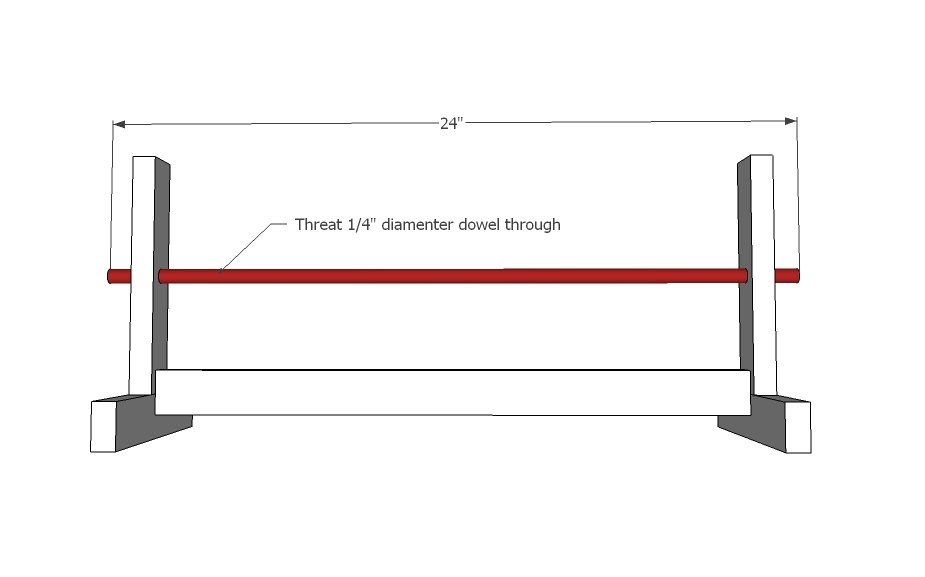

Step 3
Simply insert your dowel and you're done building!
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
