Desk Hutch for File Cubby Base Desk with Drawers
to build your own desk hutch ( match this desk ) but can be used on any desk. Step by step plans with diagrams, shopping and cut list from
Specifications
| Project type | Hutch Plans |
|---|---|
| Room | Storage Solutions |
| Style | Cottage Style Furniture Plans |
| Difficulty | Beginner Projects |

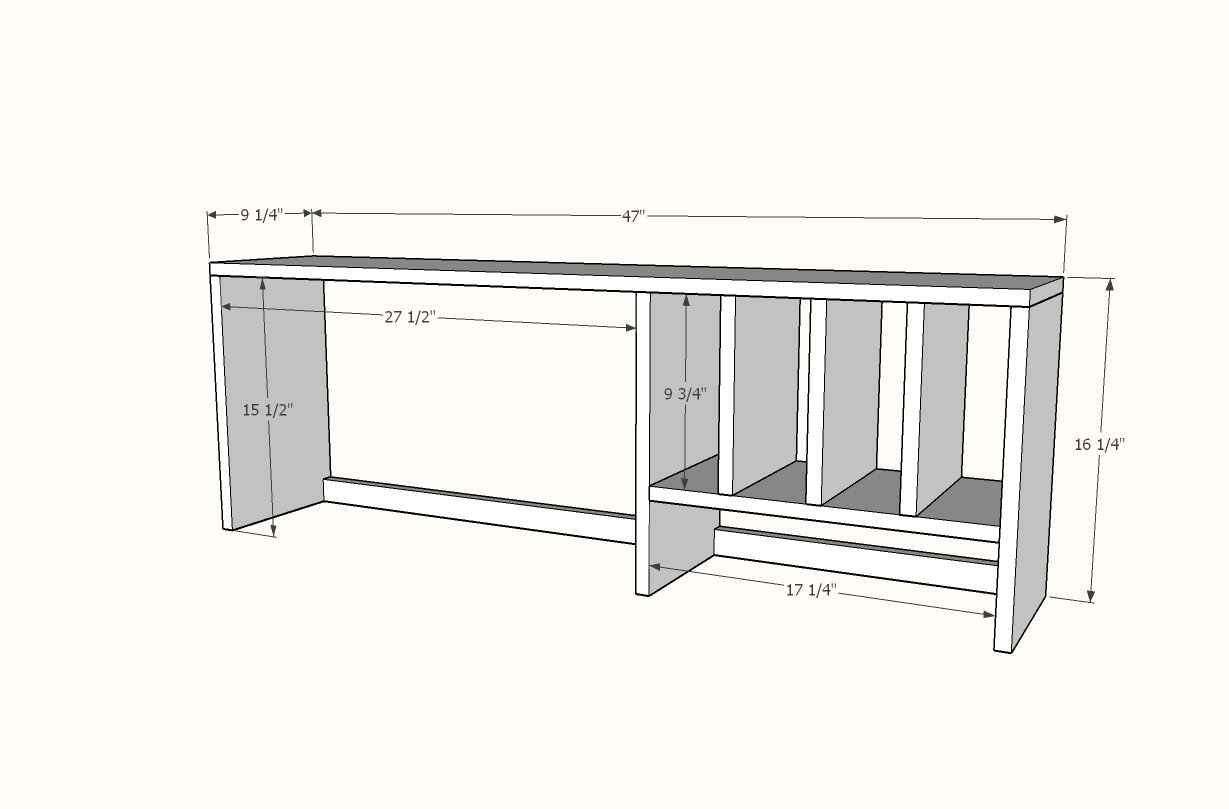

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 1x10 @ 4 feet long
1 - 1x10 @ 8 feet long
1 - 1x3 @ 4 feet long
quarter sheet (2'x4') of 1/4" thick backing material (plywood, mdf, paneling etc)
1-1/4" pocket hole screws
1-1/4" brad nails
3/4" brad nails (for attaching back)
Cut List
1 - 1x10 @ 47-1/2" - top
3 - 1x10 @ 15-1/4" - vertical sides
1 - 1x3 @ 17-1/4" - shelving area base
1 - 1x3 @ 27-1/2" - open area base
1 - 1x10 @ 17-1/4" - shelving area bottom
3 - 1x10 @ 9-1/2" - shelving area dividers - cut to fit
1 - 1/4" plywood @ 16" x 47" - back - cut to fit
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- nailer
- sander
Step-by-step Instructions

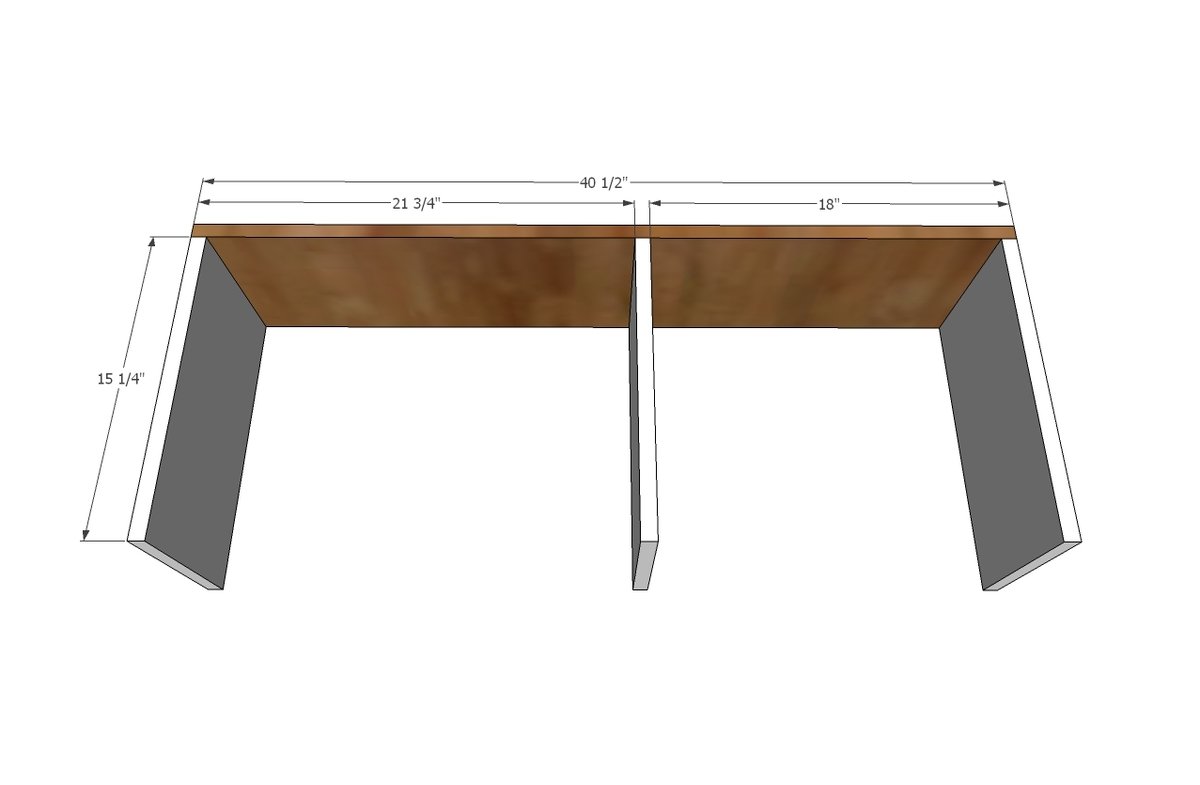

Step 1
Attach the top to the sides and divider. You can use 2" screws, 3/4" pocket holes (with 1-1/4" pocket hole screws), or 1-1/4" brad nails with glue (since this joint will be reinforced). Note that the open area inside width has been updated to 27-1/2" (NOT 21")

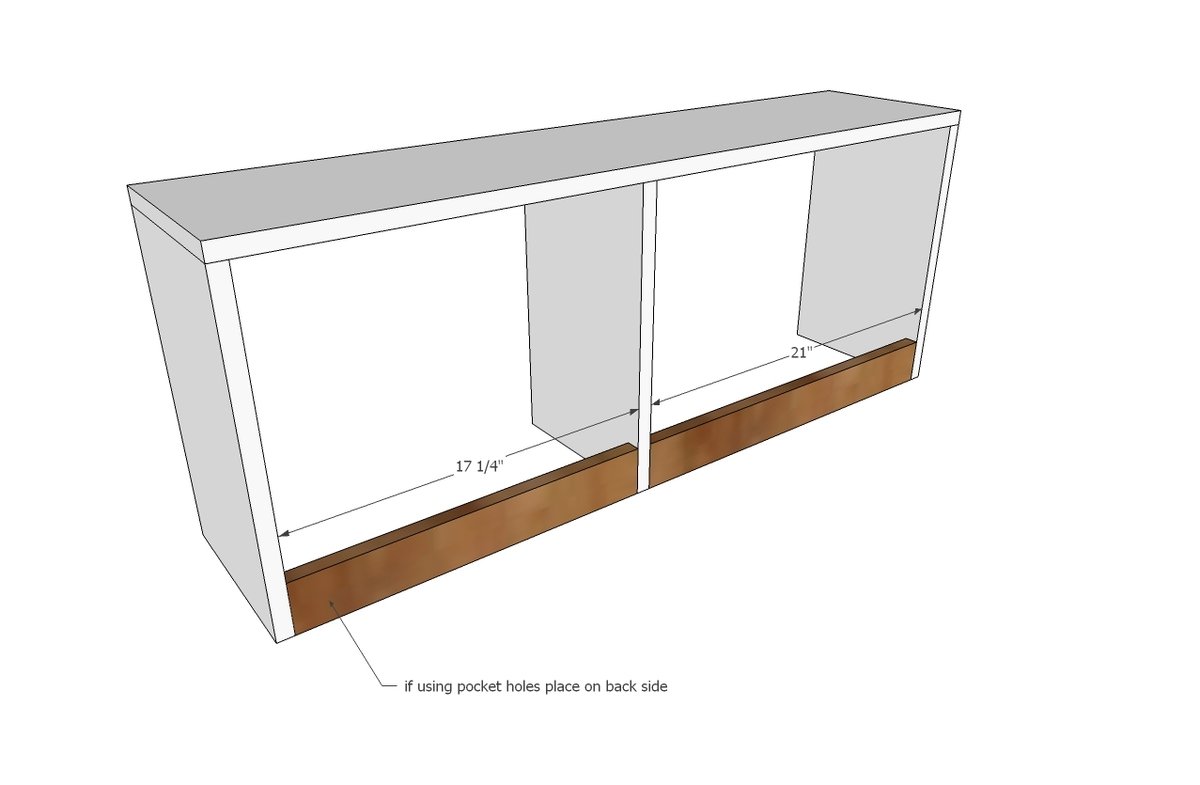

Step 2
Attach back supports. These can be nailed as well, but pocket holes are preferred at the center. If you don't have a Kreg Jig, you can nail or screw at an angle. NOTE the longer support has been updated to 27-1/2"

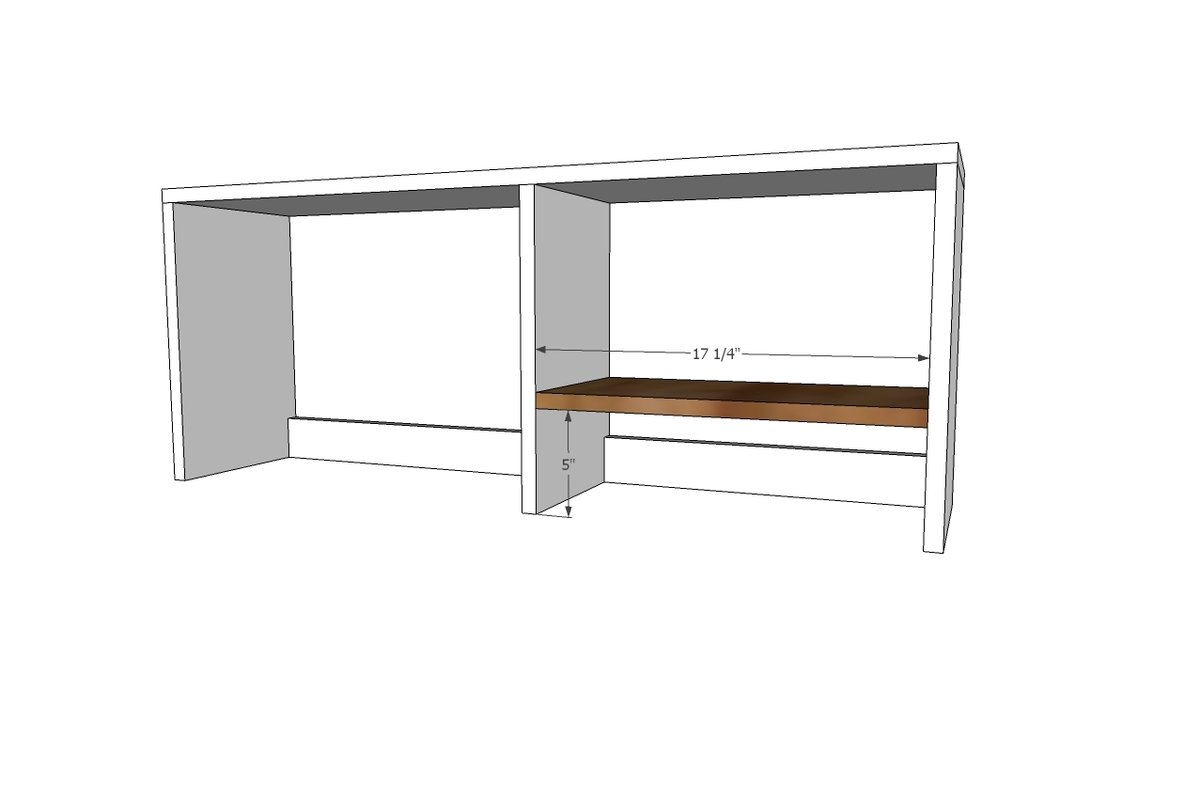

Step 3
Attach shelf, again, your choice of fasteners.

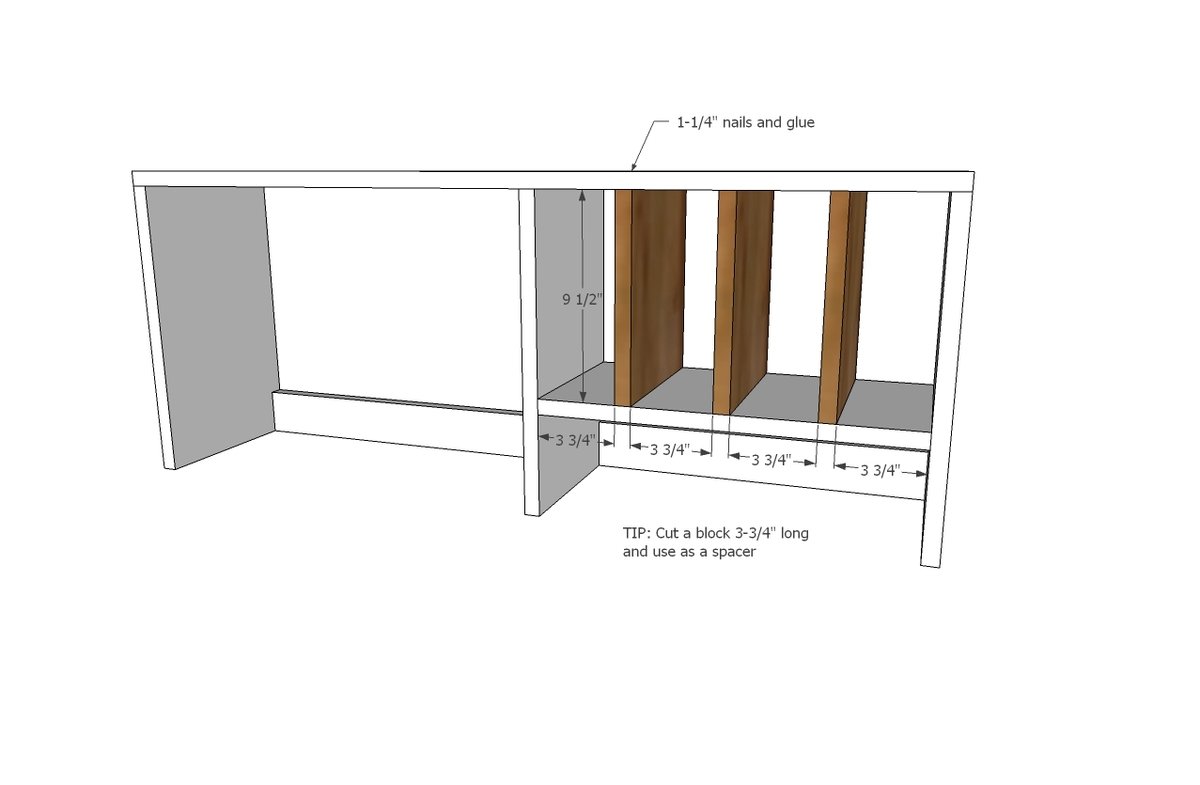

Step 4
Add dividers, same as shelf.

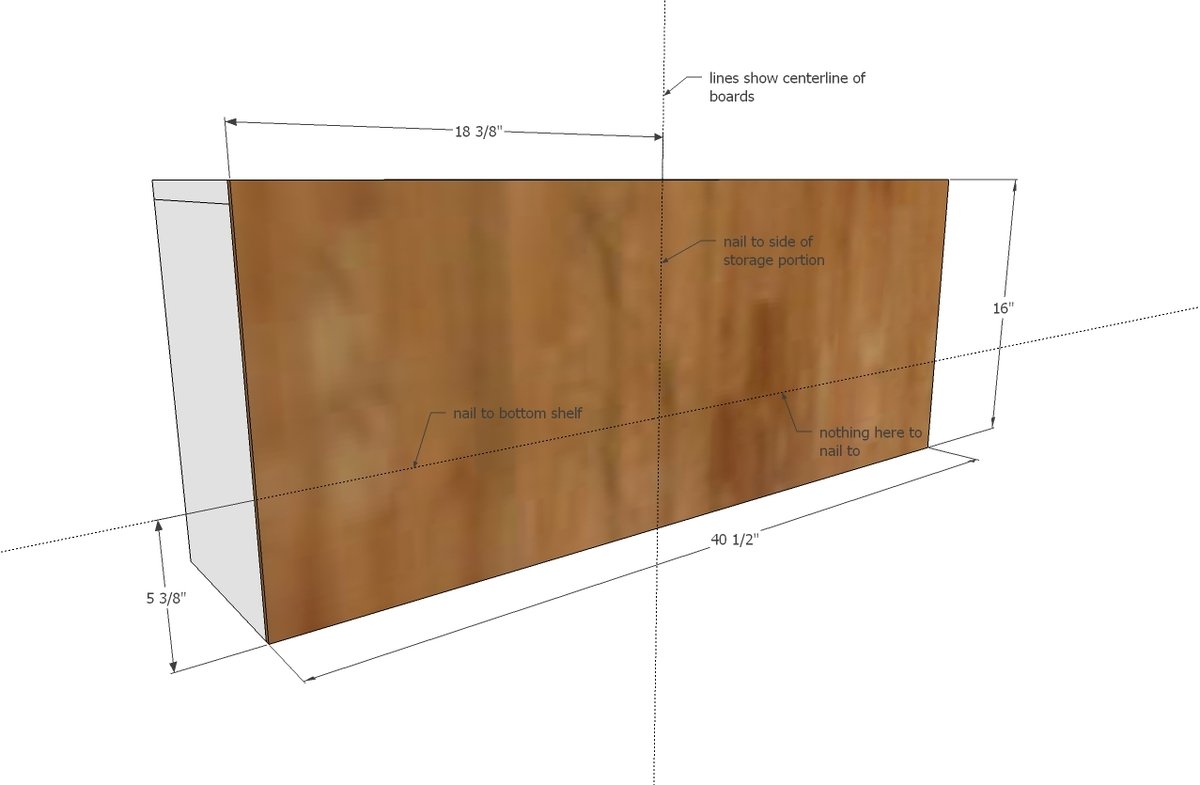

Step 5
Cut back to fit and attach with 3/4" brad nails and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
