Desks that Convert to Table for our Tiny House on Wheels

Desk by day, table by night. How to build diy desks that convert to table free

Desks that Convert to Table for our Tiny House on Wheels

Specifications

Project typeDining Table Plans
RoomCraftroom
StyleCottage Style Furniture Plans
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

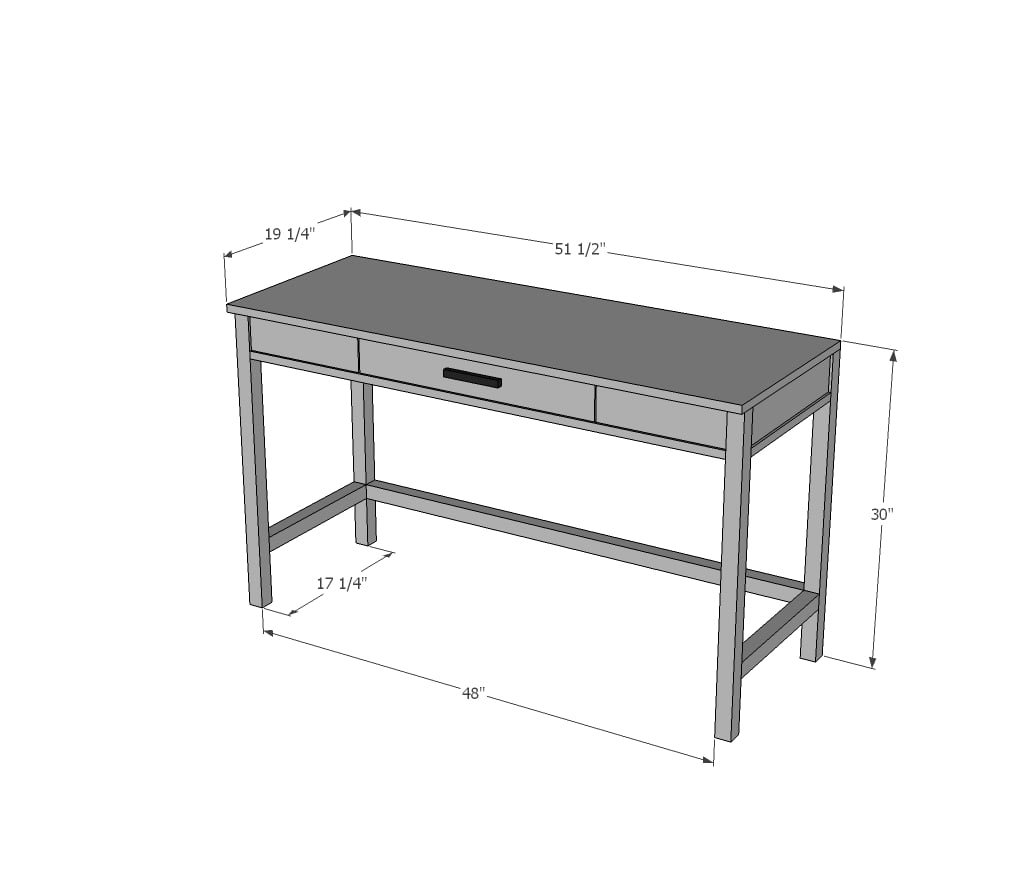

Desks that Convert to Table for our Tiny House on Wheels dimension diagram 1

Shopping List

FOR ONE DESK - WIll have scraps from one desk so will not need to totally double for two desks

3 - 2x2 @ 8 feet long

1 - 1x2 @ 12 feet long (can use smaller pieces)

2 - 1x4 @ 8 feet long

1 - 1x3 @ 8 feet long

1/4" plywood 16" x 23"

Tabletop is minimum 19-1/4" x 51-1/2"

16" white euro style (bottom corner mount) drawer slides

Cut List

4 - 2x2 @ 29-1/4" (legs, may need to cut shorter for wheel wells if using in a tiny house)

2 - 2x2 @ 15-3/4" - bottom side supports

2 - 1x2 @ 15-3/4" - top side supports

2 - 1x2 @ 48" - top front/back supports

1 - 2x2 @ 48" - bottom support

1 - 1x4 @ 48" (back apron)

2 - 1x4 @ 15-3/4" (side aprons)

2 - 1x4 @ 12" (front aprons)

2 - 1x4 @ 16-3/4" (drawer supports)

DRAWER

2 - 1x3 @ 16" (drawer sides)

2 - 1x3 @ 21-1/2" (drawer front and back)

1 - 1/4" plywood @ 16" x 23" (drawer bottom)

1 - 1x4 @ 3" x 23-3/4" (drawer face)

TOP

19-1/4" x 51-1/2"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

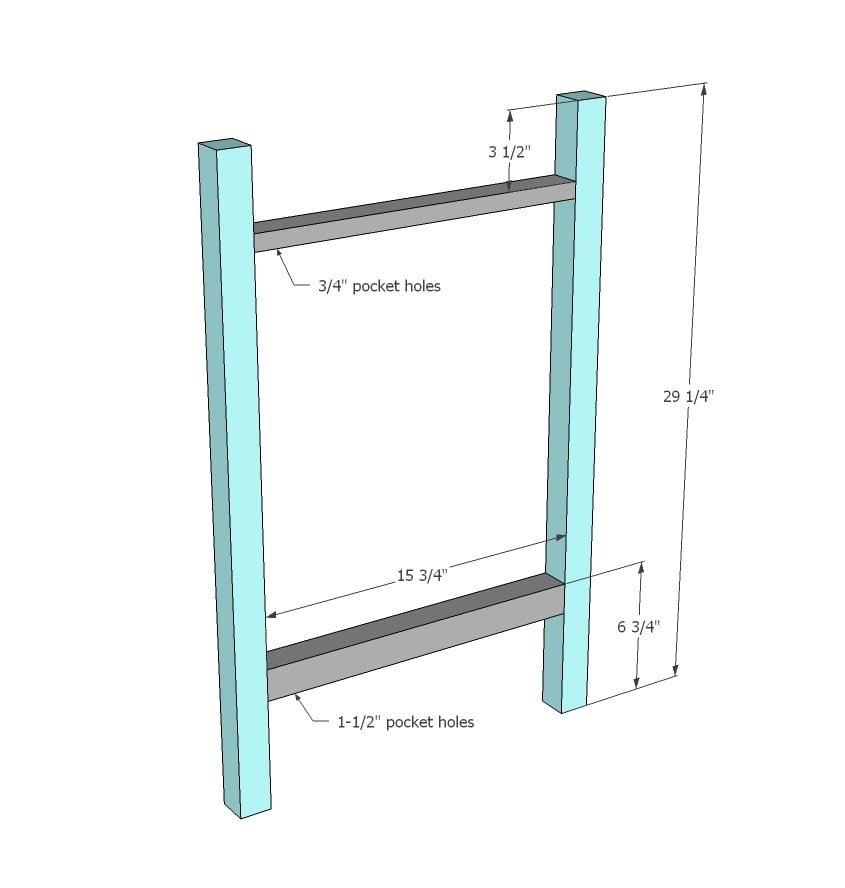

Build two of the leg sets, using 3/4" pocket holes and 1-1/4" pocket hole screws whenever 3/4" thick material is involved, and 1-1/2" pocket holes and 2-1/2" pocket hole screws whenever 1-1/2" material is exclusively used.

Desks that Convert to Table for our Tiny House on Wheels — step 1
2

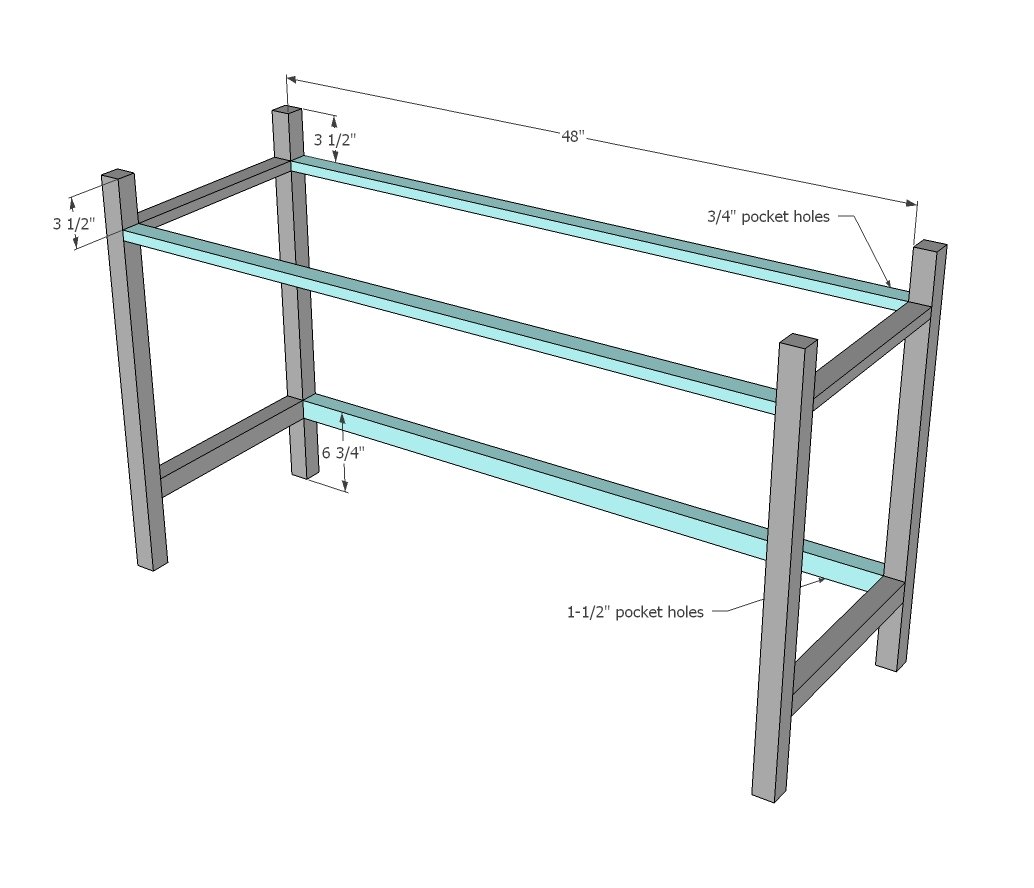

Step 2

Attach the two leg sets together with the 1x2s and top and 2x2s on bottom.

Desks that Convert to Table for our Tiny House on Wheels — step 2
3

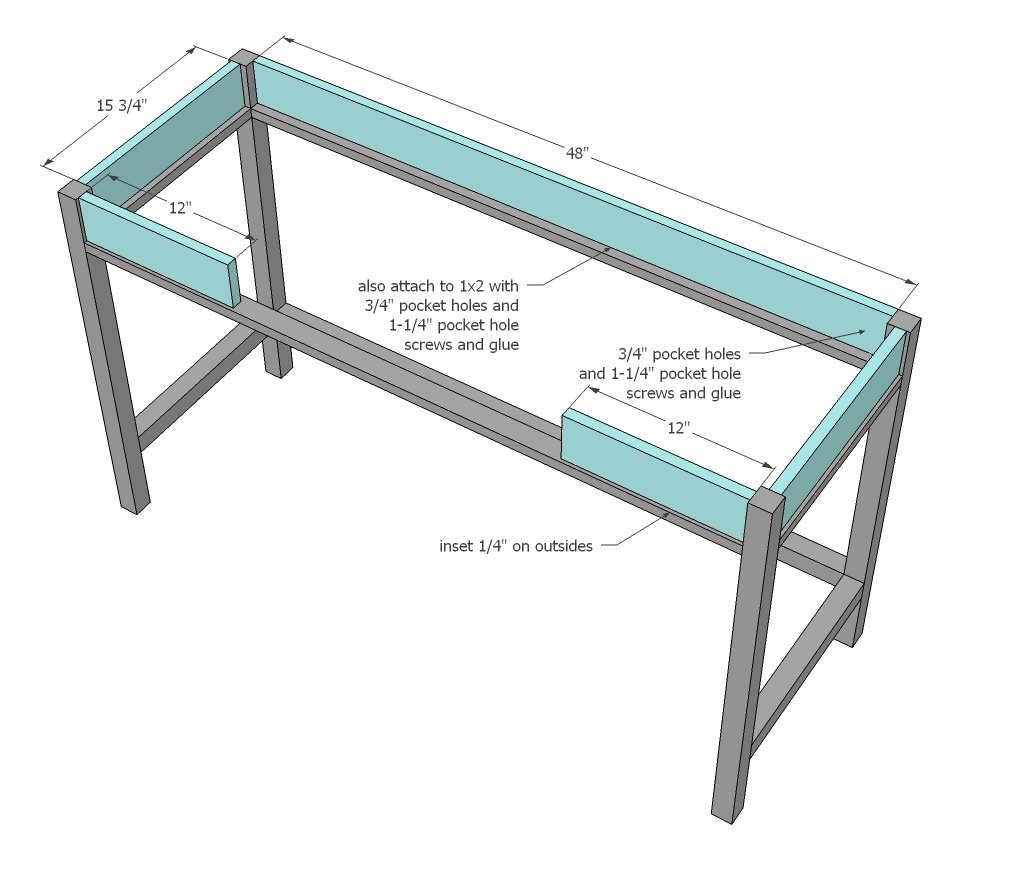

Step 3

Drill 3/4" pocket holes on all sides of the 1x4 aprons boards, including the top for attaching the tabletop in later steps. Attach to legs, 1x2s with 3/4" pocket hole screws and glue. All aprons are inset 1/4" from outside.

Desks that Convert to Table for our Tiny House on Wheels — step 3
4

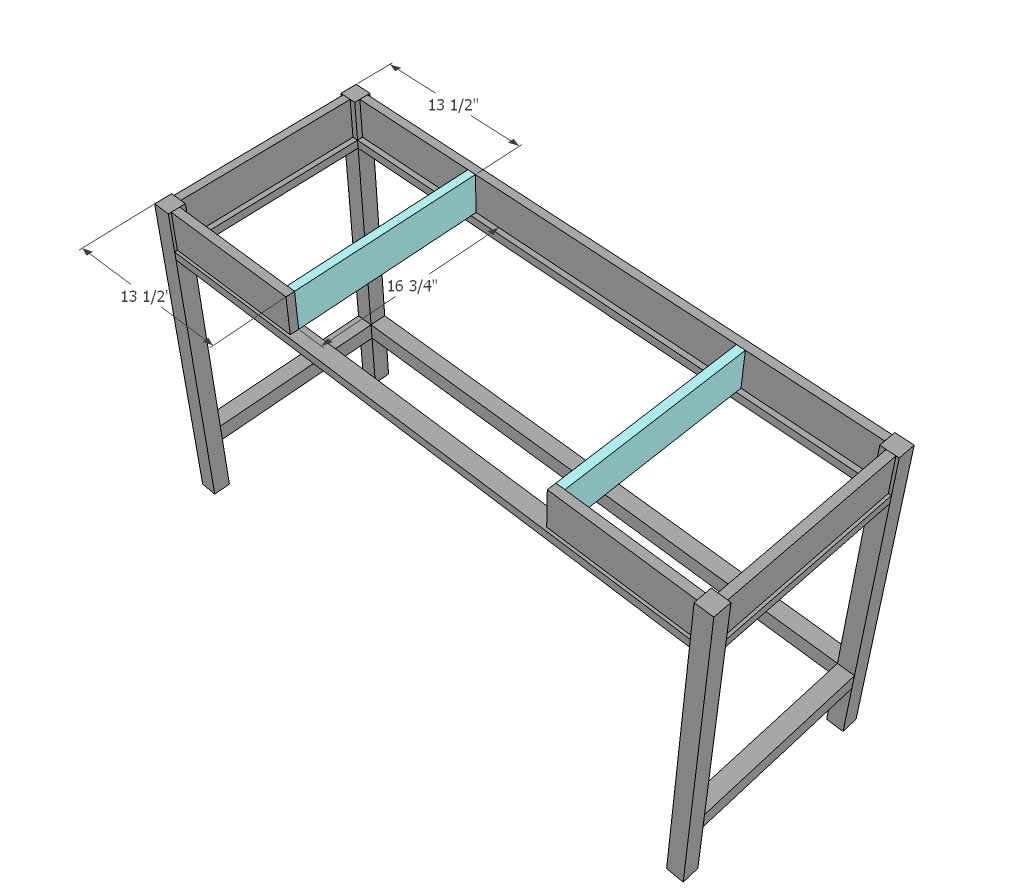

Step 4

Drill 3/4" pocket holes on ends and top edge of drawer supports. Attach drawer supports inside aprons with 1-1/4" pocket hole screws and glue.

Desks that Convert to Table for our Tiny House on Wheels — step 4
5

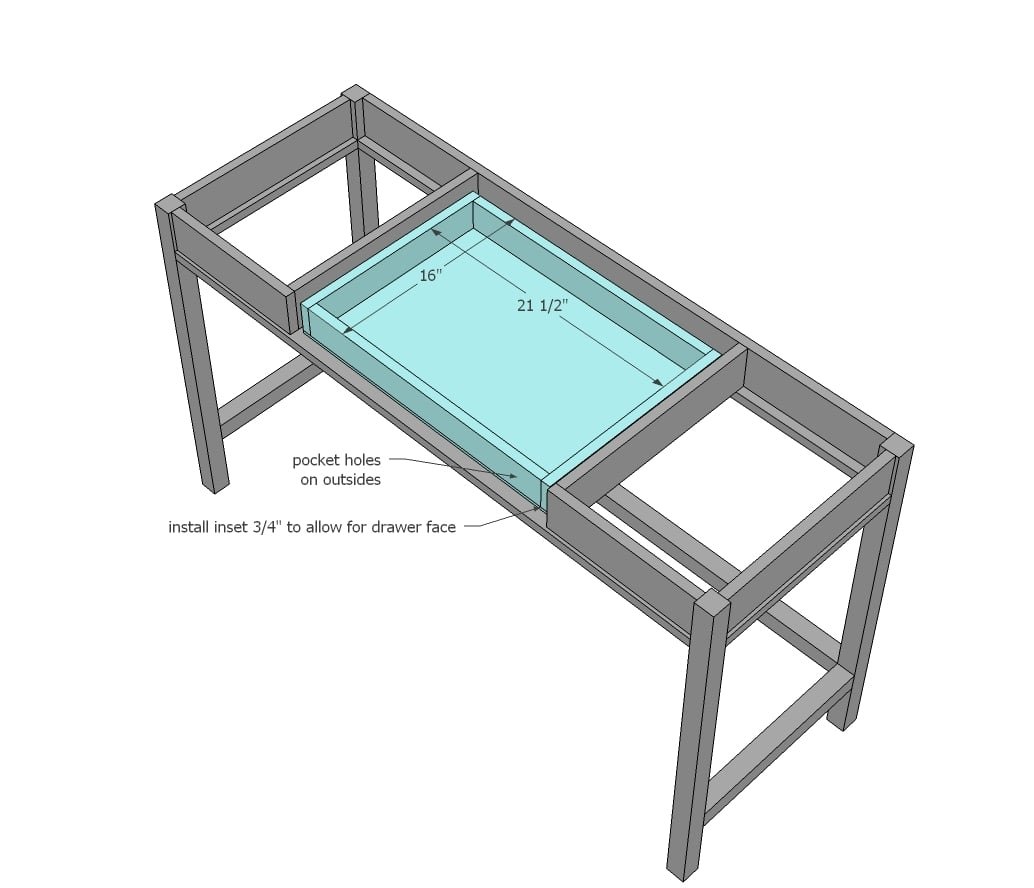

Step 5

Desks that Convert to Table for our Tiny House on Wheels — step 5
6

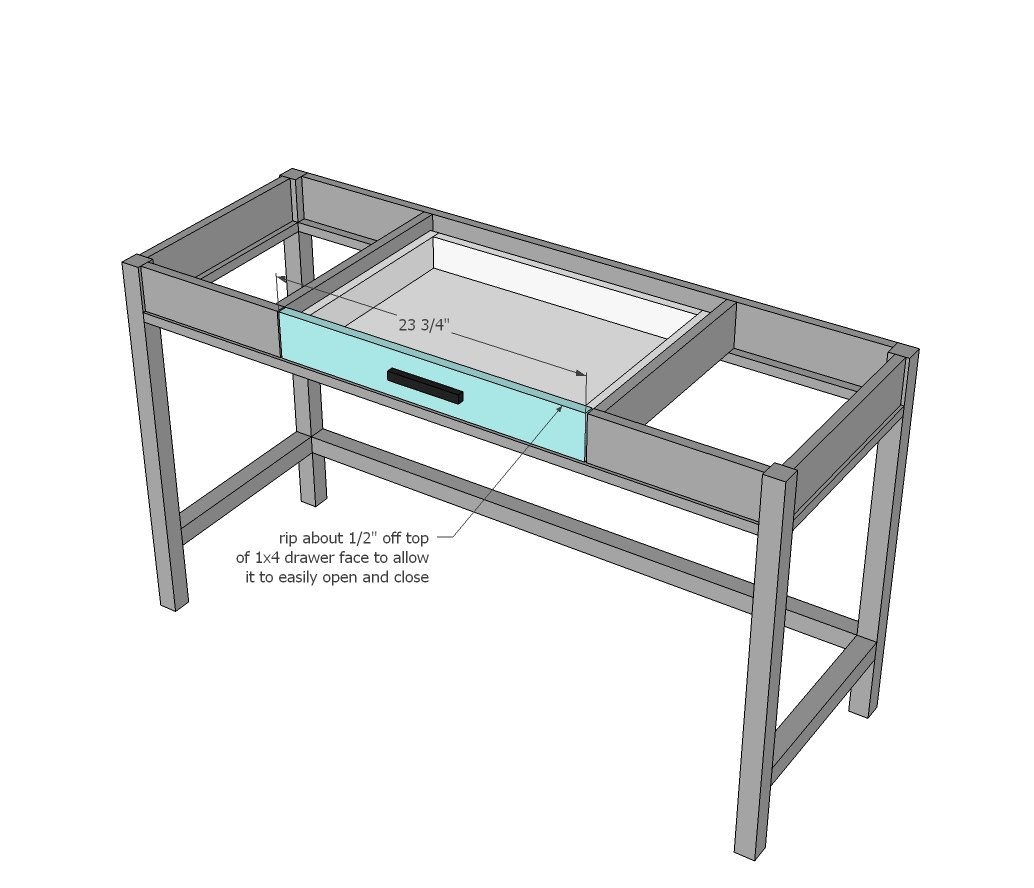

Step 6

Attach drawer face to drawer with 1/8" gap along bottom and side edges. A larger gap on top will help the drawer open and close easier, but will be hidden under tabletop front edge. Attach with 1-1/4" screws from inside with glue (can use pocket hole screws).

Desks that Convert to Table for our Tiny House on Wheels — step 6
7

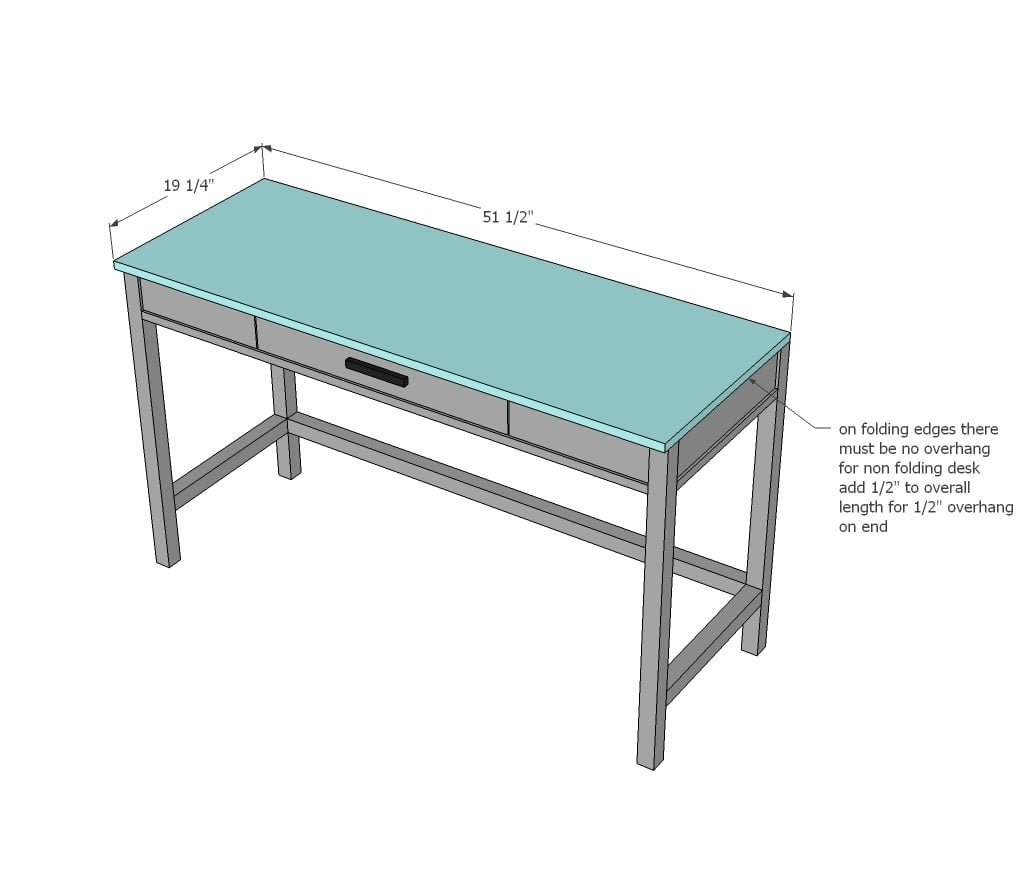

Step 7

Remove drawer. Place desk inverted on underside of tabletop. Attach through predrilled pocket holes to tabletop, making sure project is square, using 1-1/4" pocket hole screws and glue. If creating the hinged desk to table option, make sure the tabletop does not overhang on the back edge and side edge that will be hinged to the second desk.

Desks that Convert to Table for our Tiny House on Wheels — step 7
8

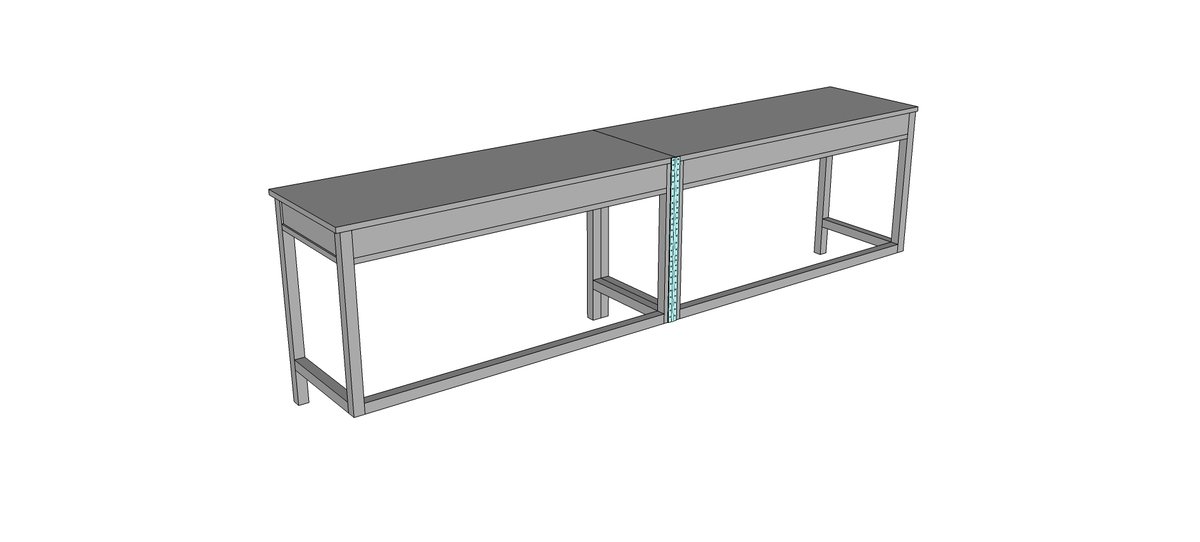

Step 8

To create the converting desks, add hinges along the back legs.

Desks that Convert to Table for our Tiny House on Wheels — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
