Art Easel for Kids
DIY project - build your own art easel for kids. Free
Specifications
| Project type | Toys |
|---|---|
| Room | Craftroom |
| Style | Cottage Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

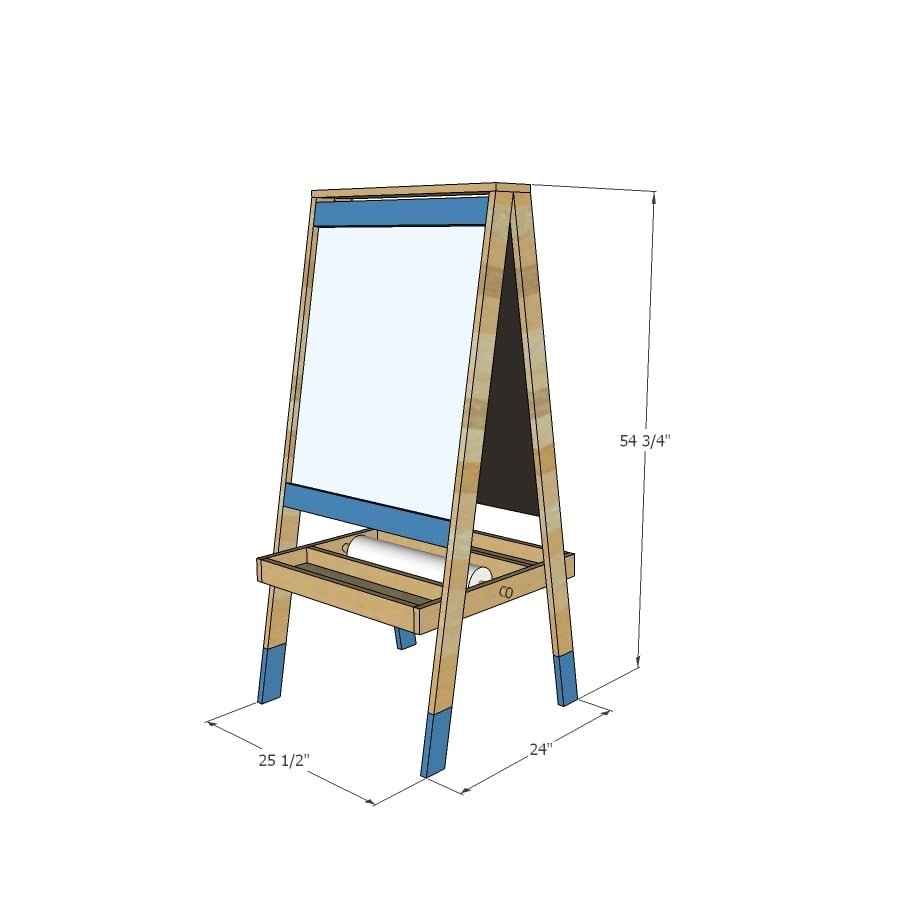

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 6 - 1x3 @ 8 feet long
- 1 - 1x6 @ 6 feet long
- 2 - 1/4" panels - plywood, whiteboard, chalkboard, pinboard etc
- 1 - 3/4" dowel @ 25-1/2" long
Cut List
- 4 - 1x3 @ 54-3/4" - both ends cut at 10 degrees off square, long point to short point measurement, ends ARE parallel
- 6 - 1x3 @ 24"
- 2 - 1/4" panels (chalkboard, whiteboard) @ 24" x 32"
- 1 - 1x6 @ 25-1/2"
- 4 - 1x3 @ 22-1/2"
- 2 - 1x6 @ 22-1/2"
- 1 - Dowel @ 25-1/2"
Tools
- measuring tape
- pencil
- safety glasses
- kreg-jig
- drill
- circular saw
- compound miter saw
- nailer
- sander
Step-by-step Instructions

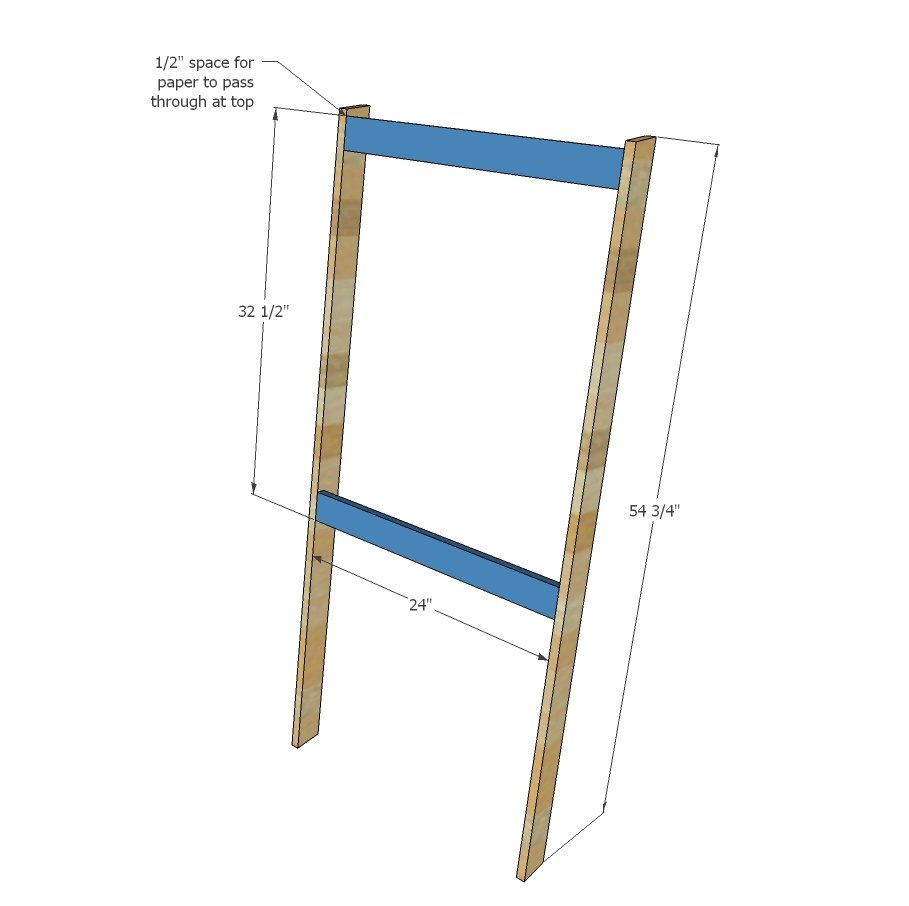

Step 1
Build two of the angled frames. I recommend pocket holes for strength here. Use 3/4" setting and 1-1/4" pocket hole screws. NOTE: Also drill two pocket holes on tops of each leg facing upward on inside for attaching top in later steps. See step 3 for placement.

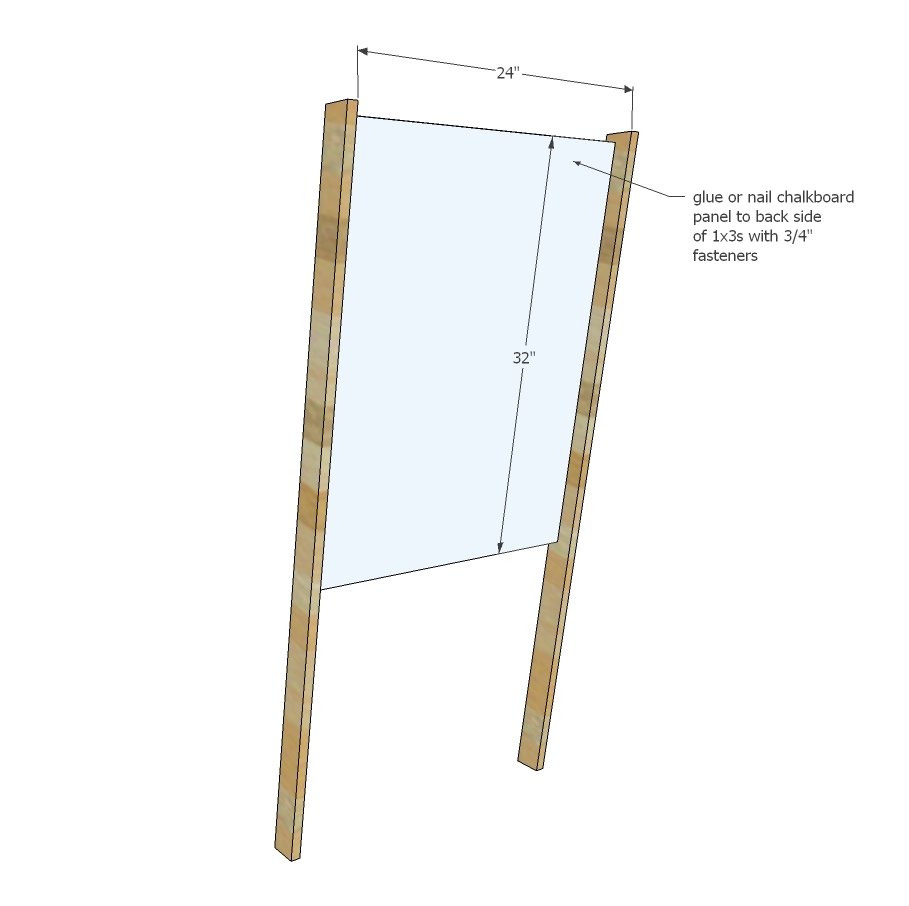

Step 2
Attach panels from back with glue and brad nails, staples or short screws.

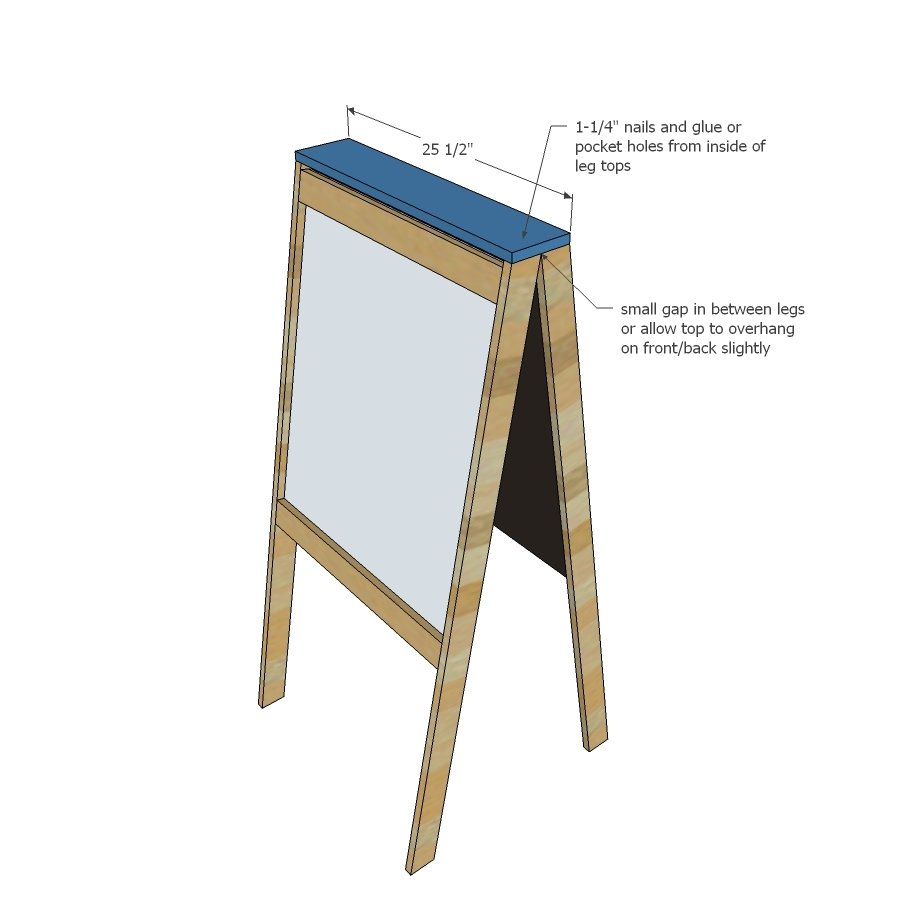

Step 3
Attach top to the legs with glue and screws.

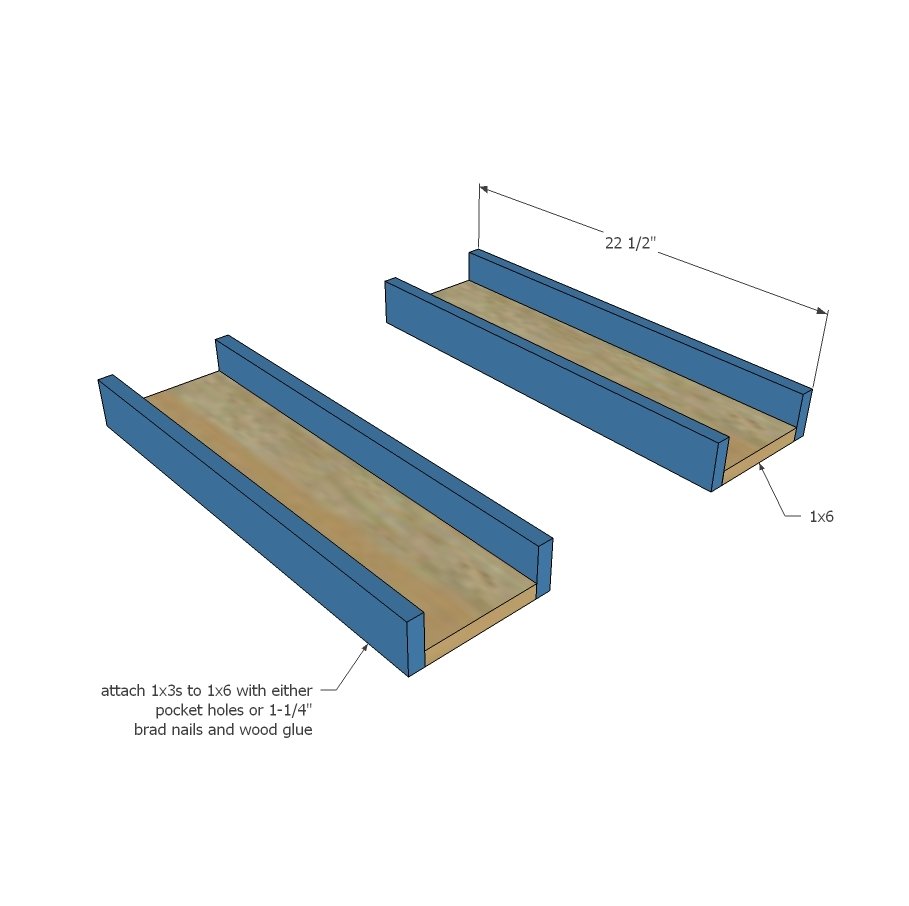

Step 4
Attach sides to tray bottoms.

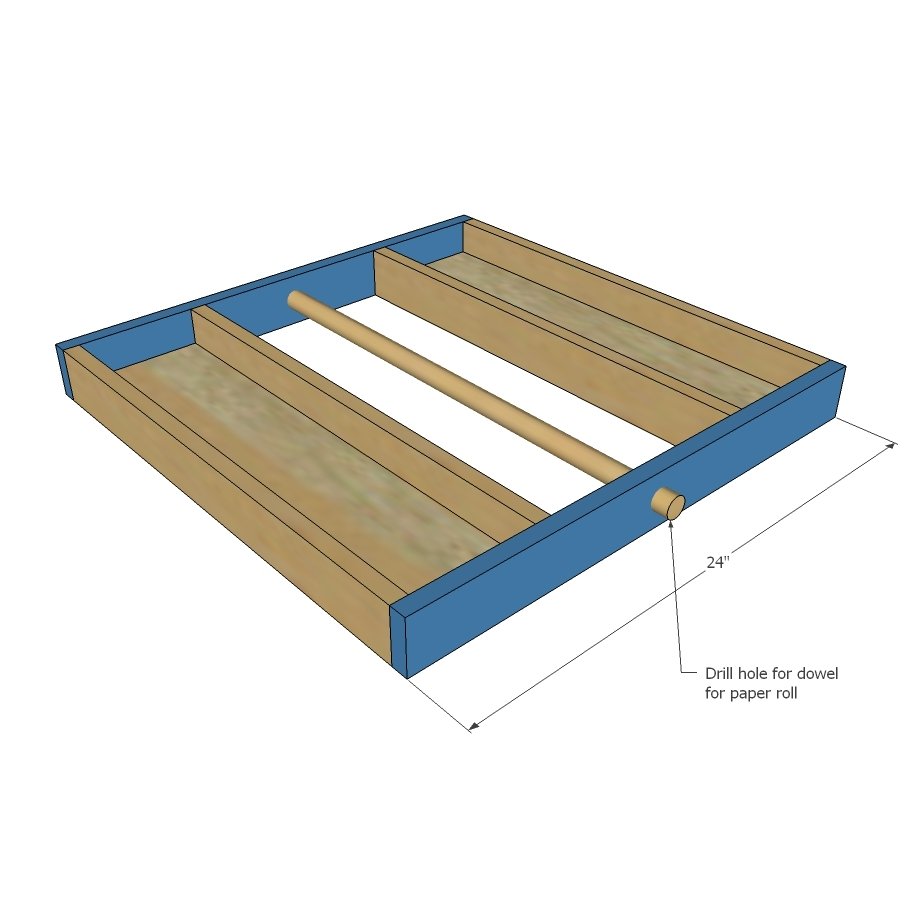

Step 5

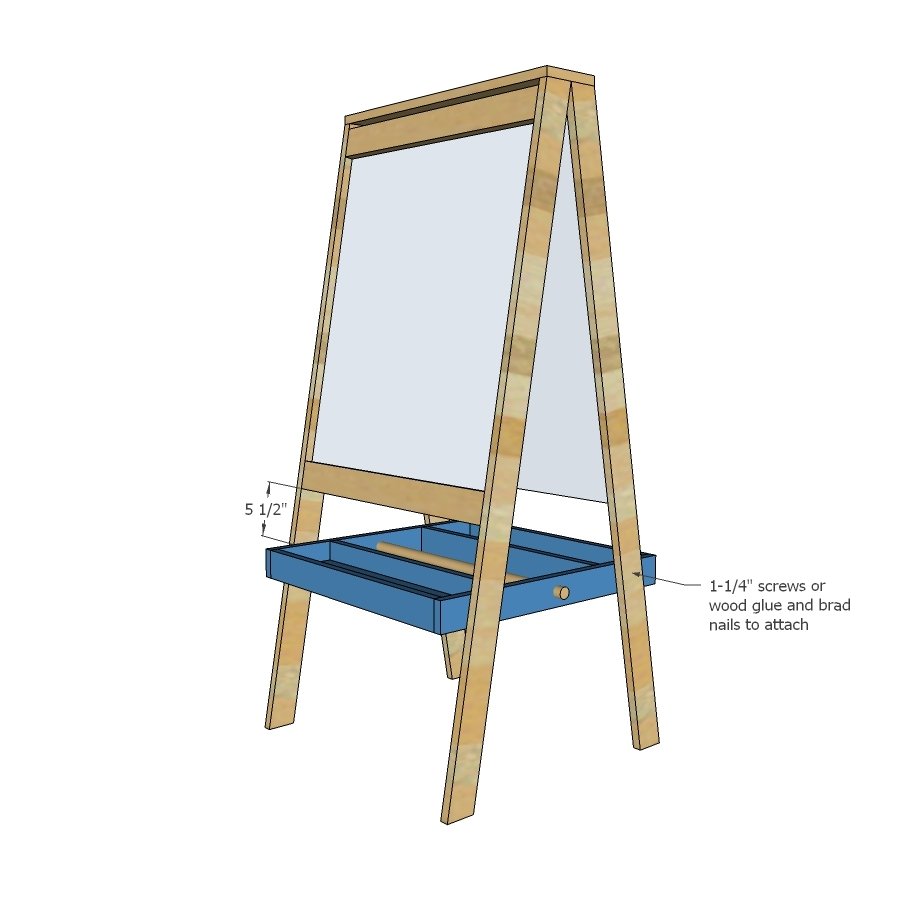

Step 6
Attach tray with 1-1/4" screws to the legs.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
