Drink Dispenser Stand / Holder
Build your own drink dispenser stand that flips to a carrying crate for way less than buying one. This uses inexpensive cedar fence pickets to create a beautiful wood drink dispenser stand. Perfect for parties, weddings, picnics - and great for storing your drink dispensers too. Step by step tutorial with photos and detailed diagrams, shopping list and cut list from Designed and built by Family DIYnamic
Specifications
| Project type | Kitchen Cabinet Plan, Accessories and Serving |
|---|---|
| Room | dining room |
| Difficulty | Starter Projects |
| Estimated cost | Under $20 |

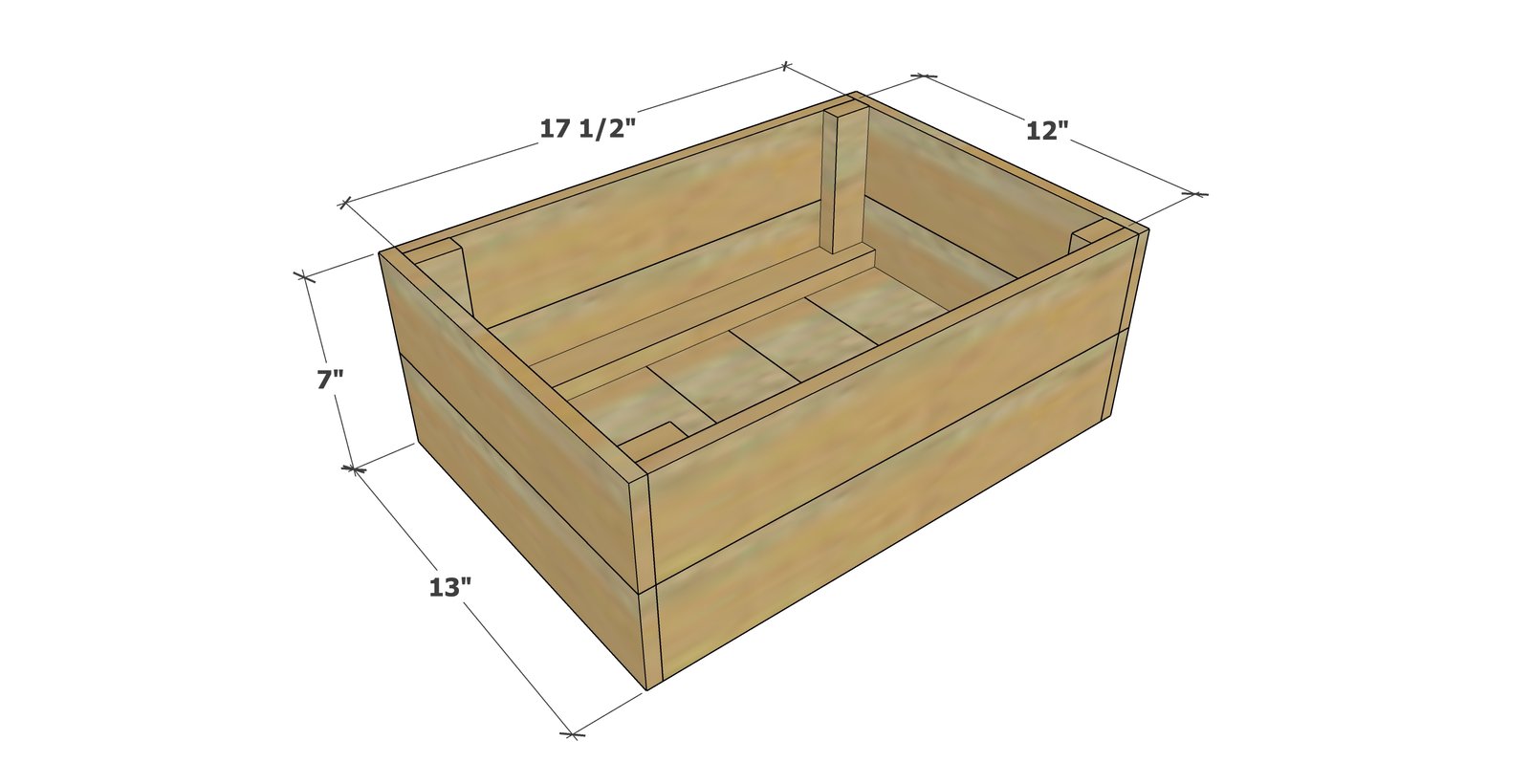

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 1x2 - 4 feet long
- 3 - 6' x 3-1/2" wide cedar fence pickets (can also use 1x4s but some measurements will need adjustment, cut as you go)
- 1" brad nails or staples
- wood glue suitable for exterior use
Cut List
- 4 - 1x2 @ 5-1/2" - corner supports
- 2 - 1x2 @ 17-1/2" - bottom supports
- 4 - 3-1/2" wide cedar fence pickets @ 13" - sides with handles
- 4 - 3-1/2" wide cedar fence pickets @ 17-1/2" - longer sides without handles
- 5 - 3-1/2" wide cedar fence pickets @ 11-3/4" - bottom
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- jigsaw
- compound miter saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions

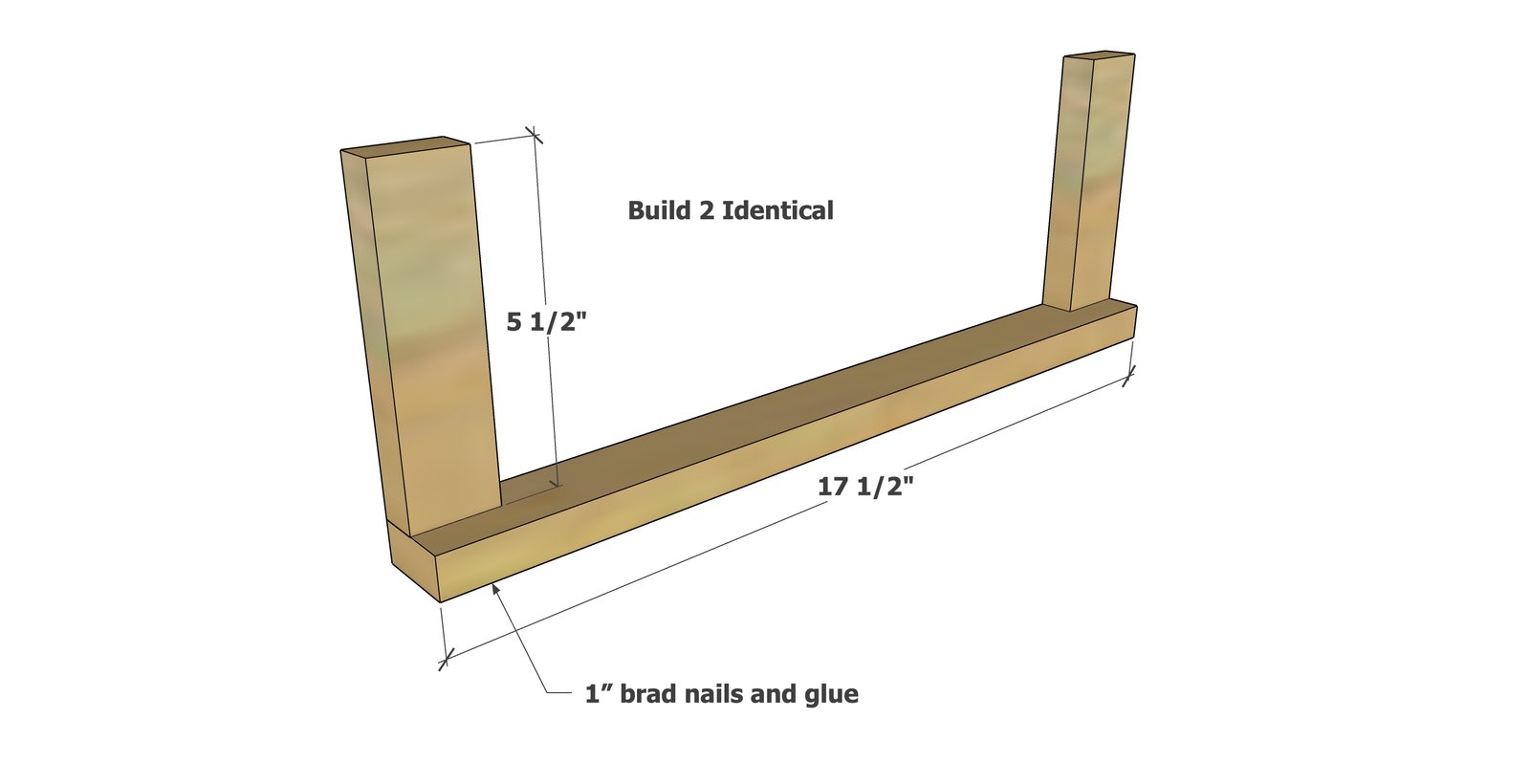

Step 1
Build the inner 1x2 frame first, build two identical.

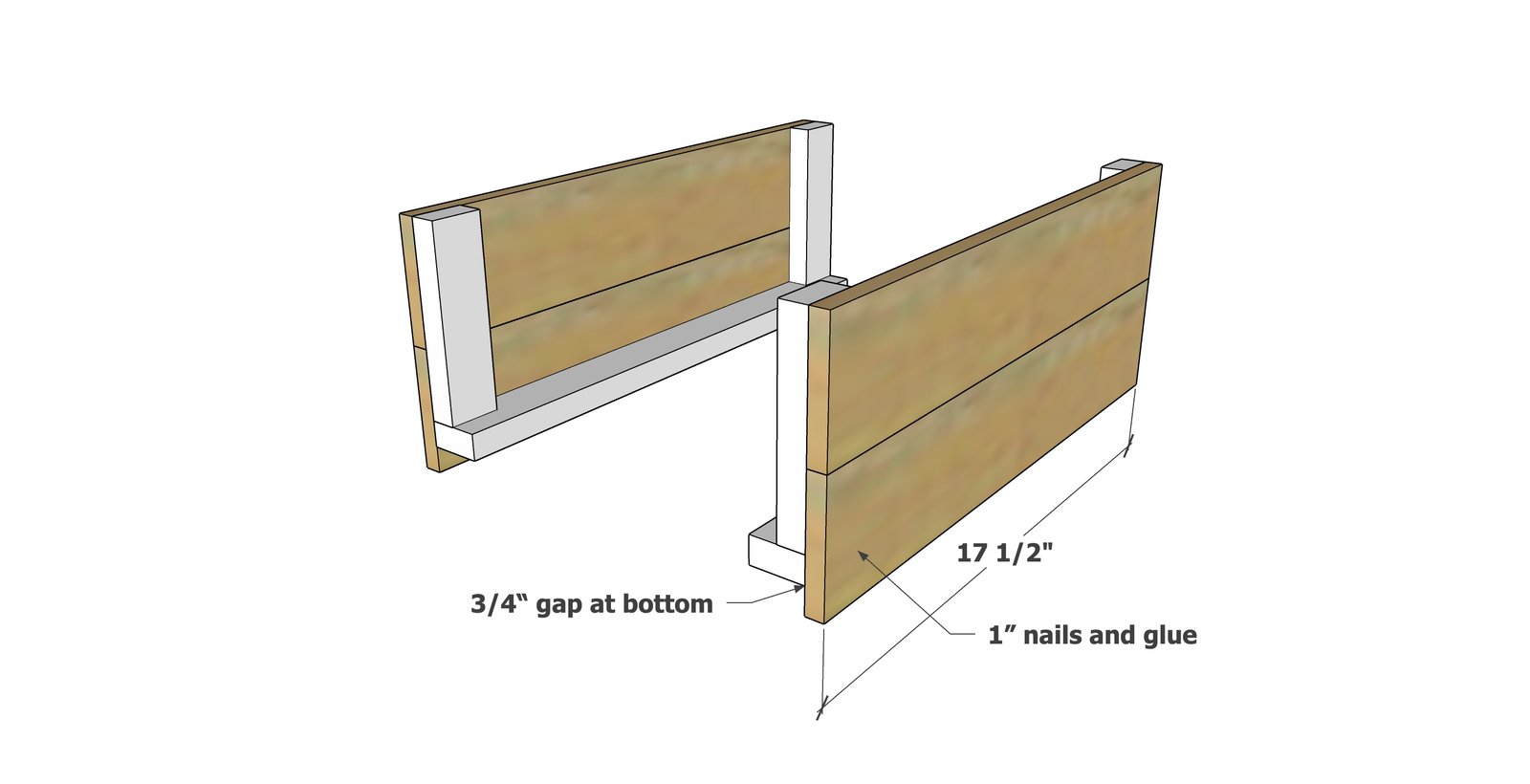

Step 2
Add the side panel pieces to the outsides of the 1x2 frames.

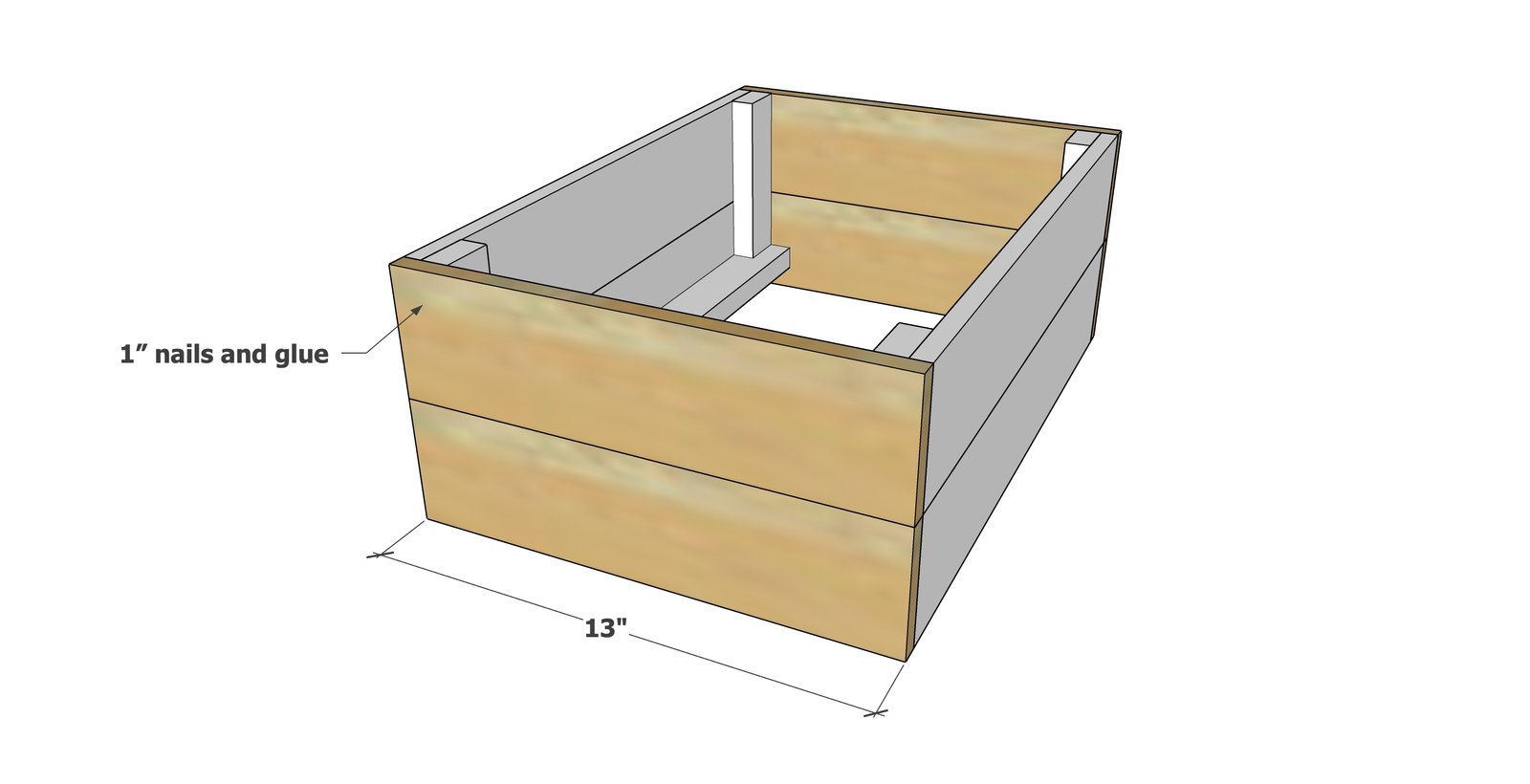

Step 3
Add the end pieces to the two side pieces.

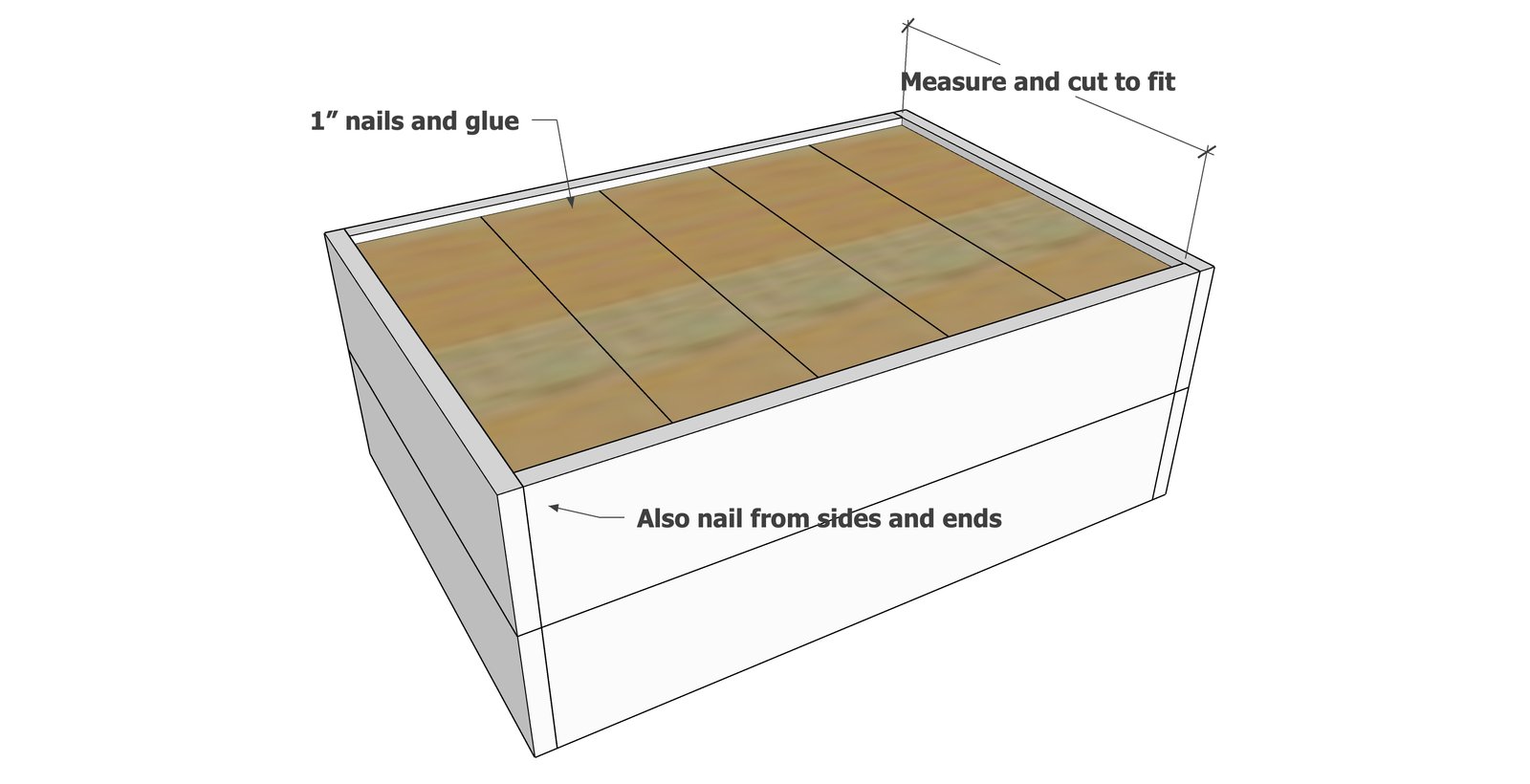

Add the bottom.
Drill out handles and cut with jigsaw or add hardware handles.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
