Grid Mirror from Mirror Tiles
This gorgeous grid mirror will bounce light around a room and almost feel like another window- but feels more like artwork with the grids breaking up the mirror than a giant reflection of the other side of the room. This project is great in dining rooms, entryways, halls and more! Save money by DIY -ing this grid mirror! You can build it for a fraction of the cost to buy it. Free
Specifications
| Project type | frames |
|---|---|
| Room | dining room |
| Difficulty | Beginner Projects |

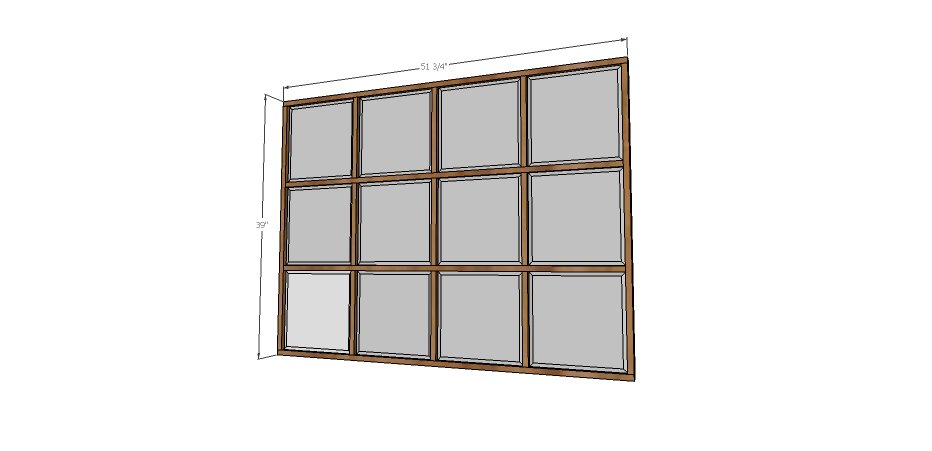

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 2 packs 12” x 12” mirror tiles
- 3 – 1x2x8 feet long
- 1 – 1x3x10 feet long (or two 8 feet long)
- 2 – 3/4” x 3/4” x 10 feet long wood moulding
- Mirror Mastic
- Wood Glue
- Heavy duty picture hanging hardware or french cleat system (if hanging)
Cut List
- 4 – 1x2 @ 37-1/2”
- 2 – 1x2 @ 51-3/4”
- 3 – 1x3 @ 37-1/2”
- 2 – 3/4" x 3/4" wood moulding @ 50-1/4”
- 9 – 3/4" x 3/4" wood moulding @ 12” long
Step-by-step Instructions

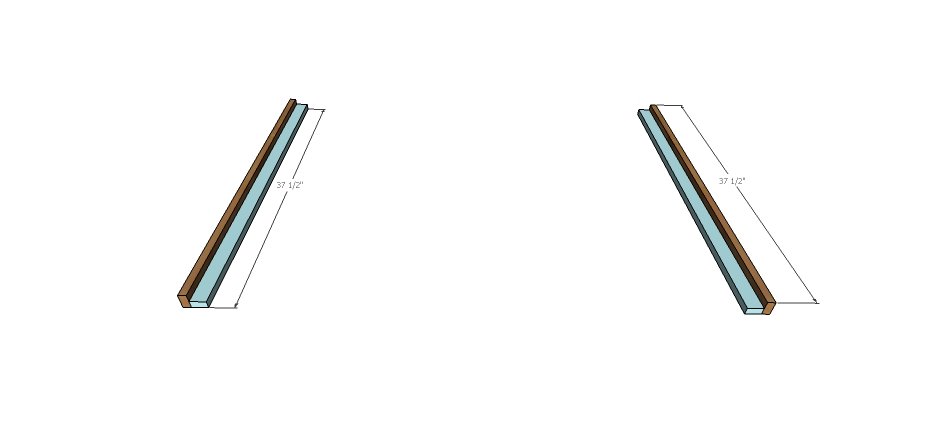

Step 1
Nail one 1x2 to a 1x3 on edge with glue and 1-1/4" brad nails. Repeat for two side pieces as shown in diagram.

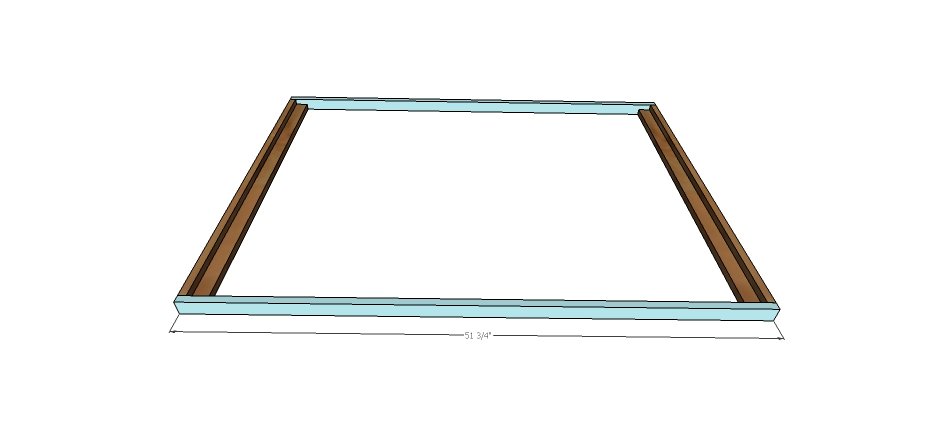

Step 2
Nail the two sides together with 1x2s with glue.

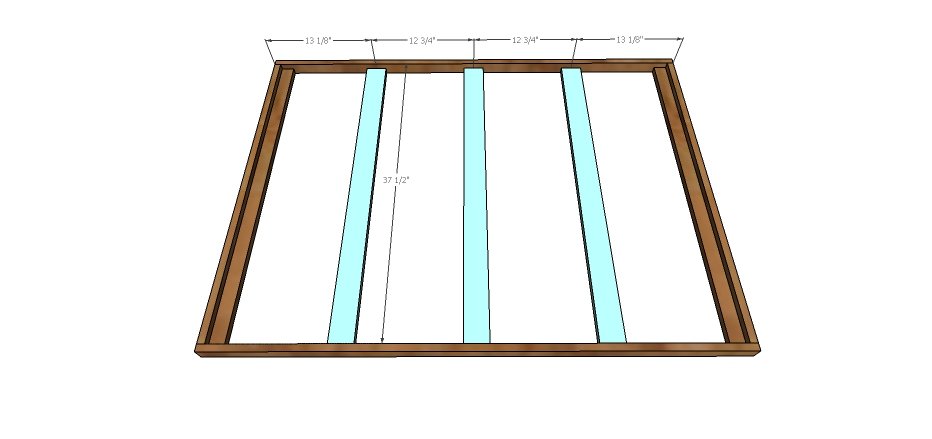

Step 3
Space 1x3s inside the frame and nail with glue and 1-1/4" brad nails.

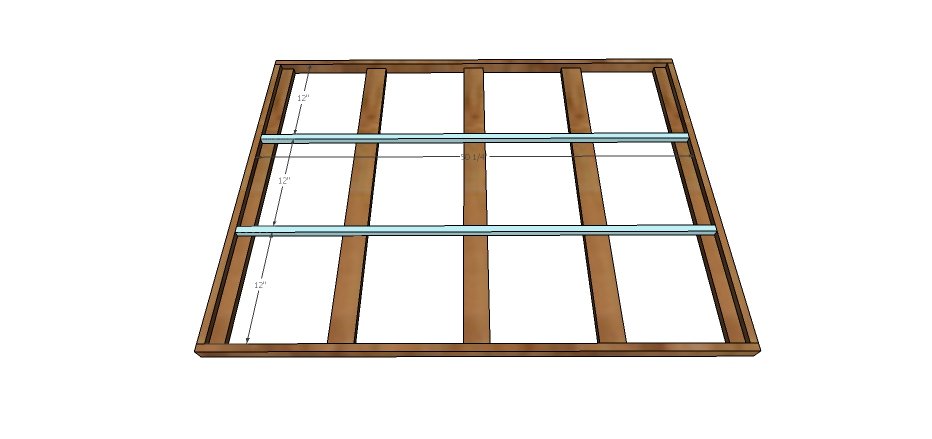

Step 4
Cut and set in place 3/4" moulding. Nail and glue.

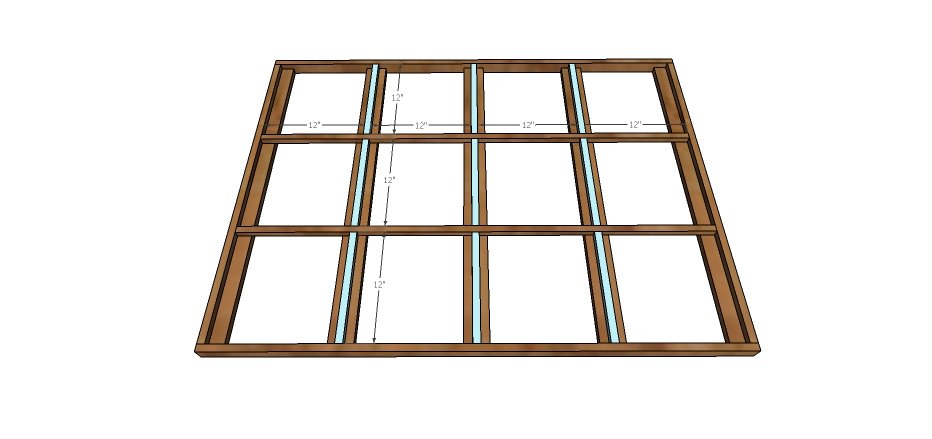

Step 5
Finish the trim between the moulding by nailing and gluing to the back 1x3s. Make sure your mirrors will fit inside before finalizing the moulding.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
