Mission Style Bed, Queen or Full Size Frame
Build your own beautiful Mission-style bed frame with, complete with step-by-step diagrams and a full cut list. Designed for a queen or full-size mattress, this project uses simple, off-the-shelf materials and basic tools—perfect for beginners! The clean lines and classic look fit seamlessly into almost any room. A high footboard keeps bedding in place, while the solid wood construction makes this bed sturdy and long-lasting. We also have this bed plan available in a twin size version.
Specifications
| Project type | Beds and Bed Frames |
|---|---|
| Room | Bedroom |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $100-$150 |

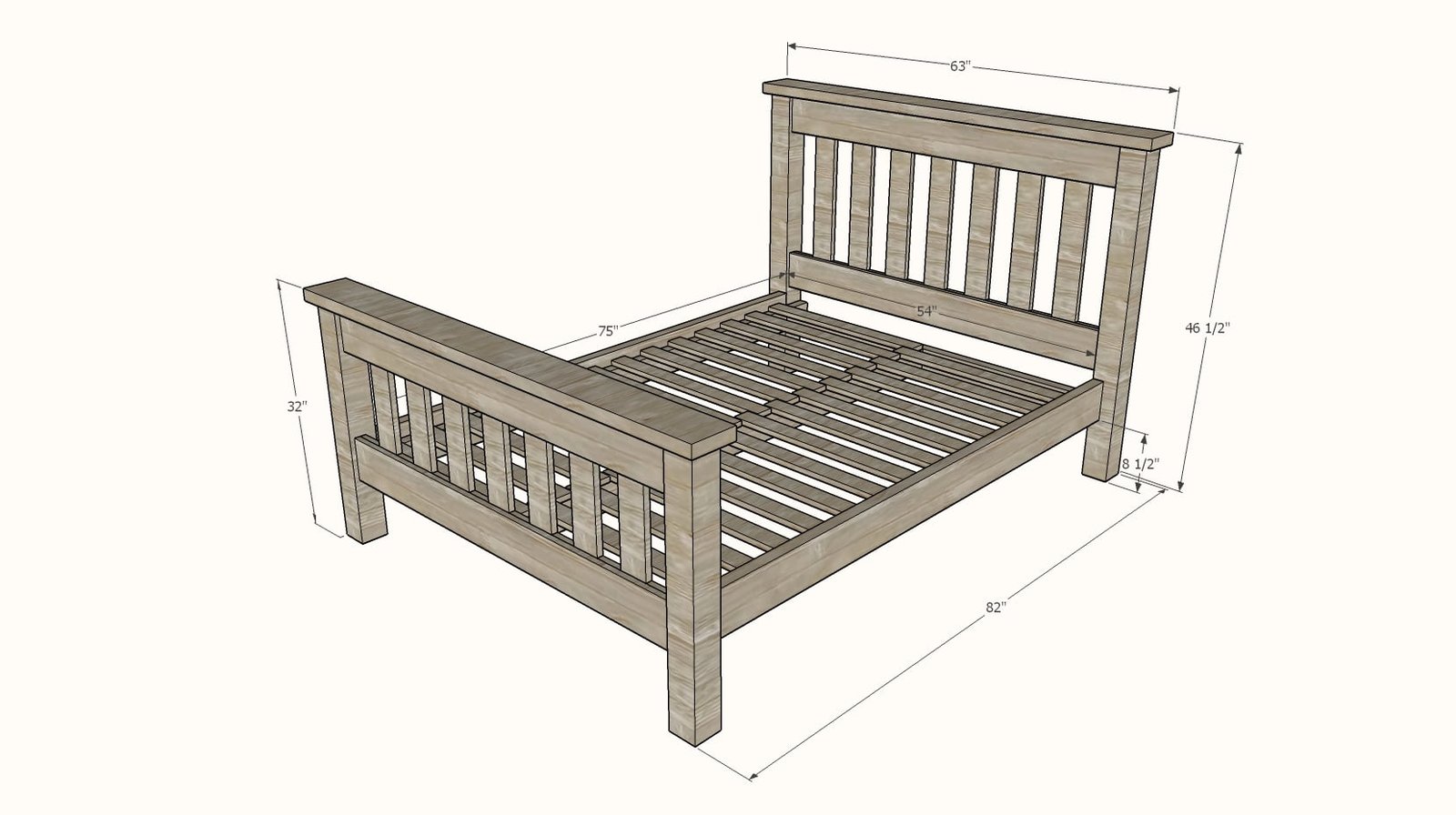

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
FULL SHOPPING LIST
- 1 - 1x6 @ 6 feet long
- 2 - 1x6 @ 10 feet long
- 4 - 1x4 @ 8 feet long
- 8 - 1x3 furring strips @ 8 feet long
- 1 - 4x4 @ 8 feet long (cut both headboard posts from this board)
- 1 - 4x4 @ 6 feet long (cut both footboard posts from this board)
- 4 - 2x6 @ stud length or 8 feet
- 4 - 2x4 @ stud length or 8 feet
- 1 - 1/4" long brad nails (a couple hundred)
- 16 - 5" long self tapping wood screws OR 2-1/2" pocket hole screws if you have a Kreg Jig
- 50 - 2-1/2" long self tapping wood screws
QUEEN SHOPPING LIST
- 4 - 1x6 @ 10 feet long
- 5 - 1x4 @ 8 feet long
- 9 - 1x3 furring strips @ 8 feet long
- 1 - 4x4 @ 8 feet long (cut both headboard posts from this board)
- 1 - 4x4 @ 6 feet long (cut both footboard posts from this board)
- 4 - 2x6 @ stud length or 8 feet
- 4 - 2x4 @ stud length or 8 feet
- 1 - 1/4" long brad nails (a couple hundred)
- 16 - 5" long self tapping wood screws OR 2-1/2" pocket hole screws if you have a Kreg Jig
- 50 - 2-1/2" long self tapping wood screws
Cut List
FULL SIZE HEADBOARD CUT LIST
- 2 - 1x6 @ 54"
- 7 - 1x4 @ 30"
- 12 - 1x6 @ 3-1/2"
- 4 - 1x6 @ 4-1/4" (measure and cut to fit)
- 2 - 4x4 @ 45"
- 1 - 2x6 @ 63"
FULL SIZE FOOTBOARD CUT LIST
- 3 - 1x6 @ 54"
- 7 - 1x4 @ 22"
- 12 - 1x6 @ 3-1/2"
- 4 - 1x6 @ 4-1/4" (measure and cut to fit)
- 2 - 4x4 @ 30-1/2"
- 1 - 2x6 @ 63"
FULL SIZE BED FRAME CUT LIST
- 2 - 2x4 @ 80" - cleats
- 1 - 2x4 @ 51" - center support, top
- 1 - 2x4 @ 70-75" - measure and cut to fit - center support, middle
- 2 - 2x6 @ ~75" - measure and cut to fit for best fit
- 13 - 1x3 @ 23 - 3/4" - shorter slats
- 14 - 1x3 @ 31-3/4" - longer slats
__________________________________________________________________________
QUEEN SIZE HEADBOARD CUT LIST
- 2 - 1x6 @ 60"
- 8 - 1x4 @ 30"
- 14 - 1x6 @ 3-1/2" - filler pieces
- 4 - 1x6 @ 3-1/4" (measure and cut to fit) - end pieces
- 2 - 4x4 @ 45"
- 1 - 2x6 @ 69"
QUEEN SIZE FOOTBOARD CUT LIST
- 3 - 1x6 @ 60"
- 8 - 1x4 @ 22"
- 14 - 1x6 @ 3-1/2" - filler pieces
- 4 - 1x6 @ 3-1/4" (measure and cut to fit) - end pieces
- 2 - 4x4 @ 30-1/2"
- 1 - 2x6 @ 69"
QUEEN SIZE BED FRAME CUT LIST
- 2 - 2x4 @ 85" - cleats
- 1 - 2x4 @ 57" - center support, top
- 1 - 2x4 @ 75-80" - measure and cut to fit - center support, middle
- 2 - 2x6 @ ~80" - measure and cut to fit for best fit
- 27 - 1x3 @ 31-3/4" - slats
Tools
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- drill
- circular saw
- sander
Step-by-step Instructions

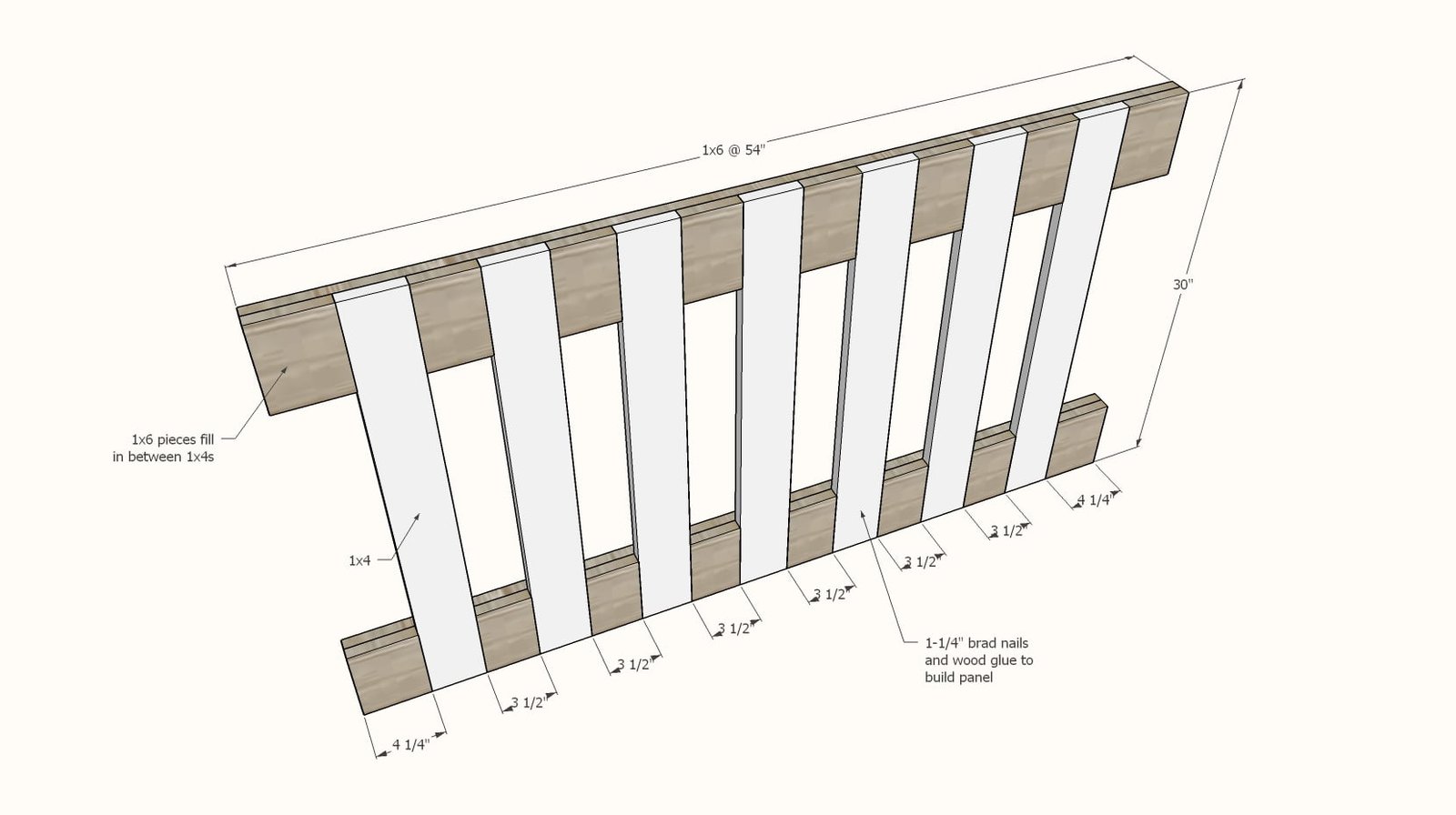

Layout the pieces for the headboard panel. Cut the end pieces to fit.
Glue and nail together with 1-1/4" brad nails. NOTE: If you are using a Kreg Jig to join the panel to the legs in Step 2, carefully place nails so you can drill pocket holes (see next step) on the end 1x6 boards marked 4-1/4" long. NOTE: Illustration is showing the full size. The queen size will have one additional slat.

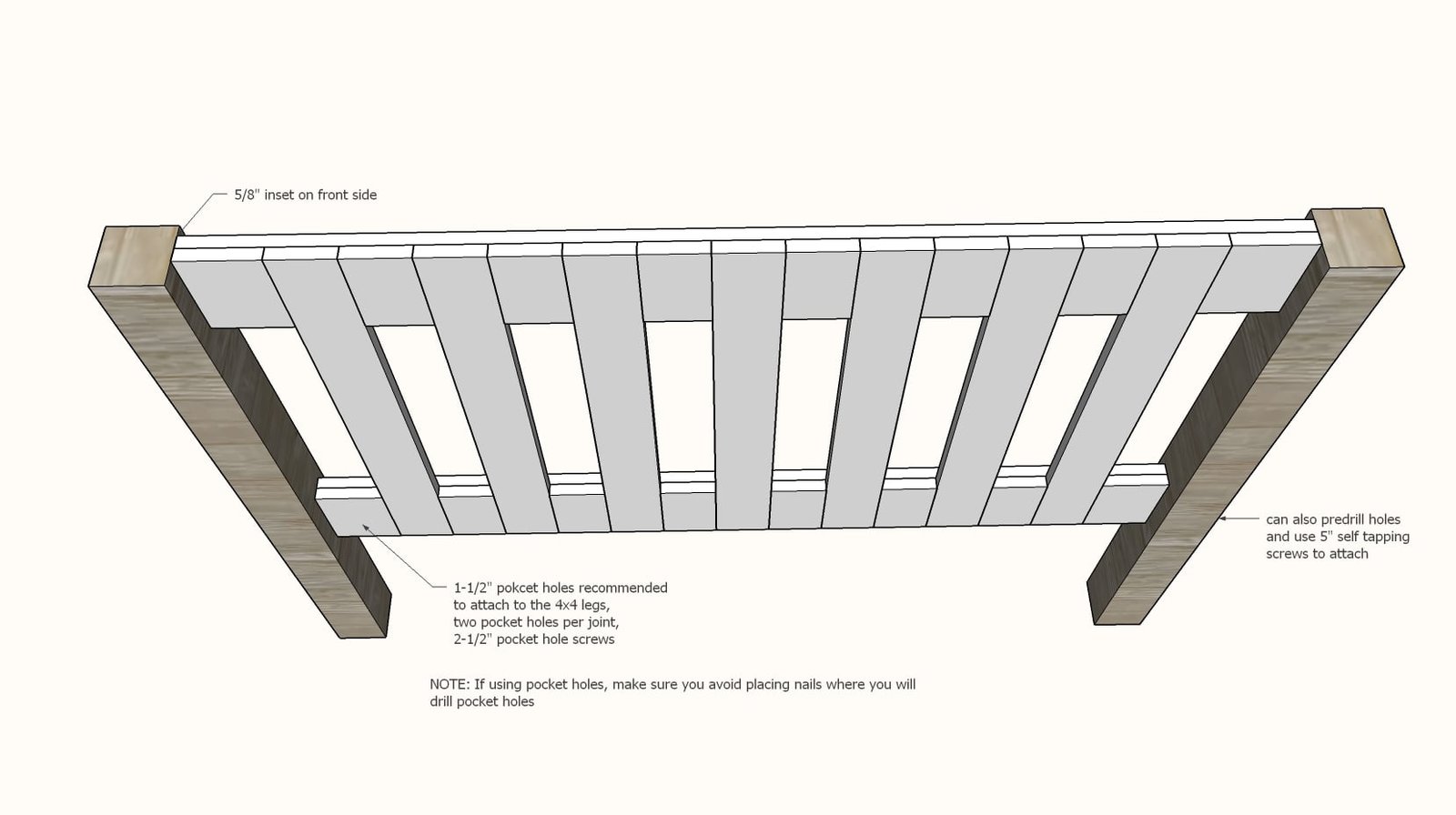

Step 2
Attach panel to the legs with either pocket holes (preferred) or 5" self tapping wood screws and glue.

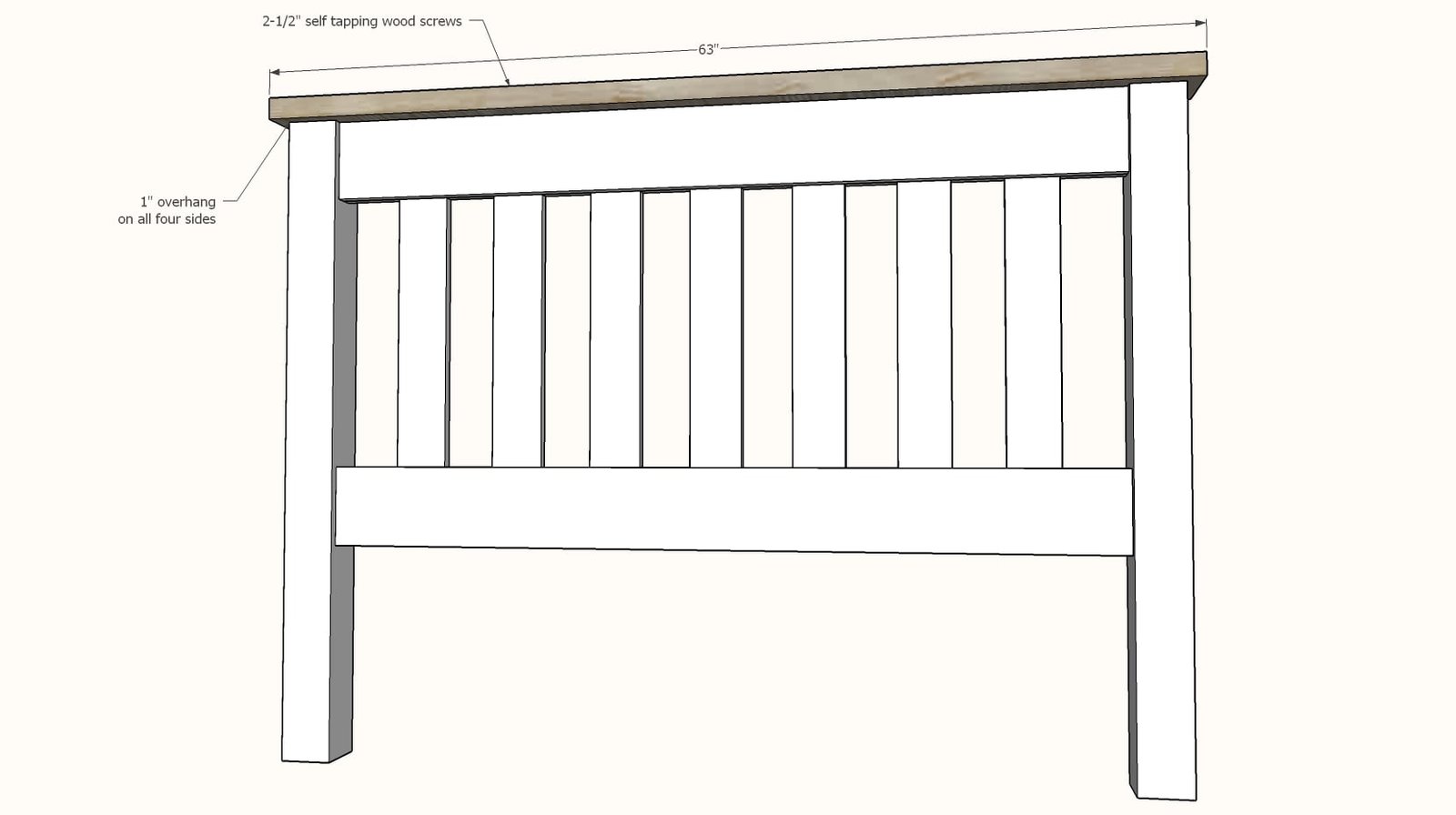

Step 3
Attach 2x6 header with 2-1/2" screws and glue to the top of the headboard.

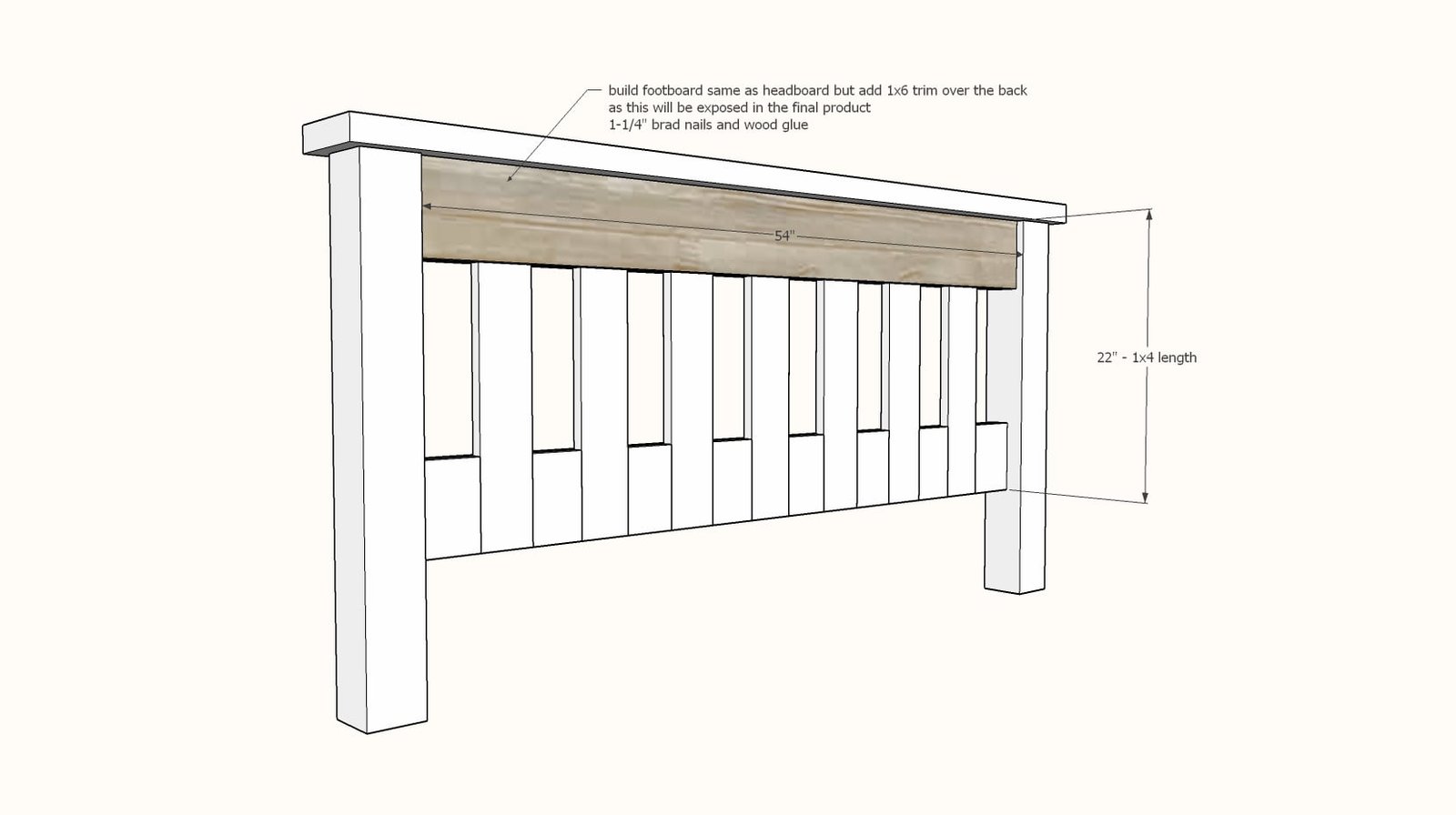

Repeat steps to build footboard.
Add additional 1x6 trim to the inside of the footboard as this will be exposed in the final product. Nail on with 1-1/4" brad nails and glue.

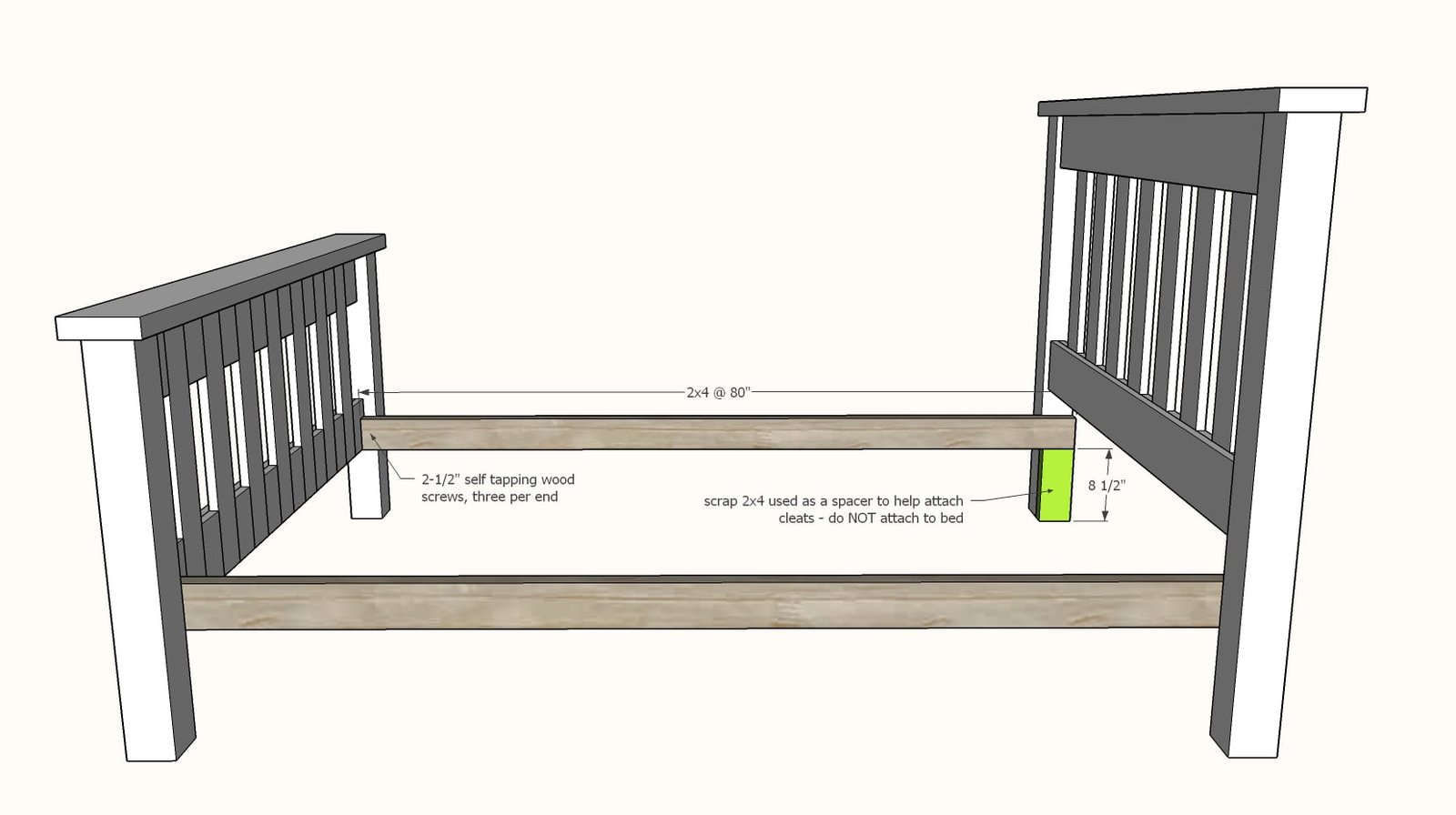

Cut cleats and attach to footboard, flush to bottom of 1x6 panel.
Then attach to headboard legs. Spacer blocks from scrap wood can help elevate the cleats while you work (or use clamps).

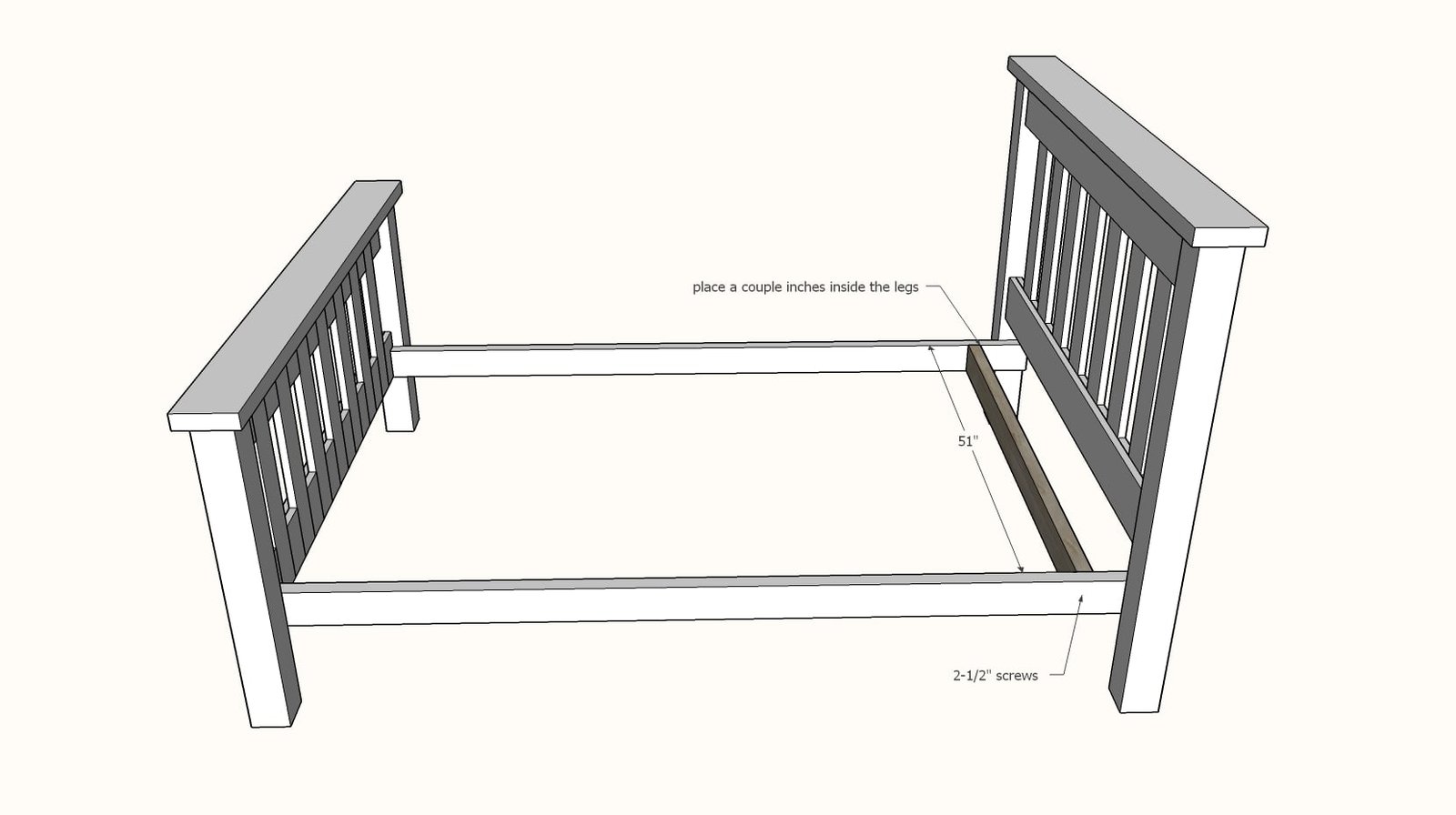

Since this bed is a full size, center support is recommended.
Attach a 2x4 close to the top with 2-1/2" screws, two per joint.

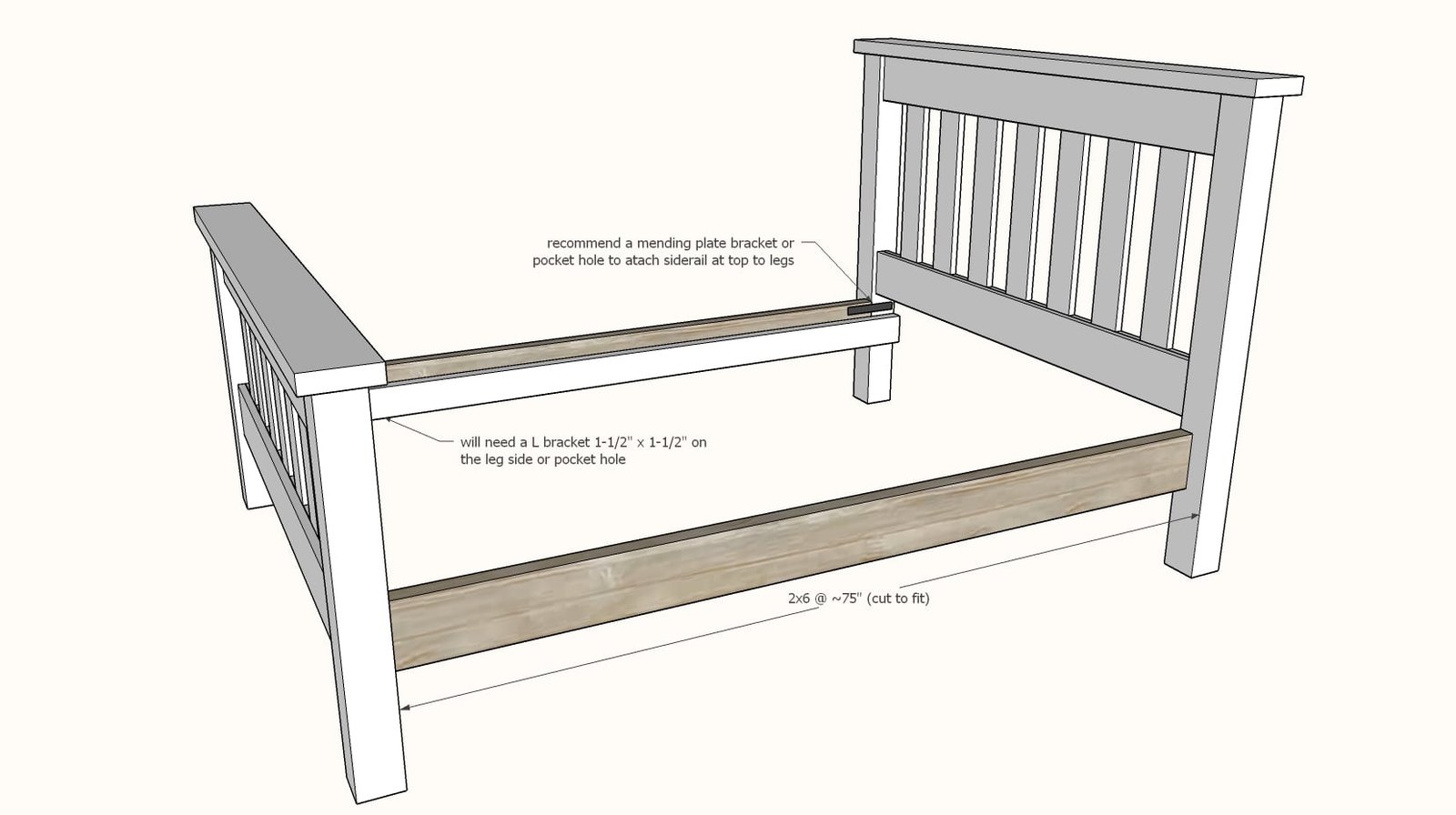

Step 7
Add siderails to the cleats.

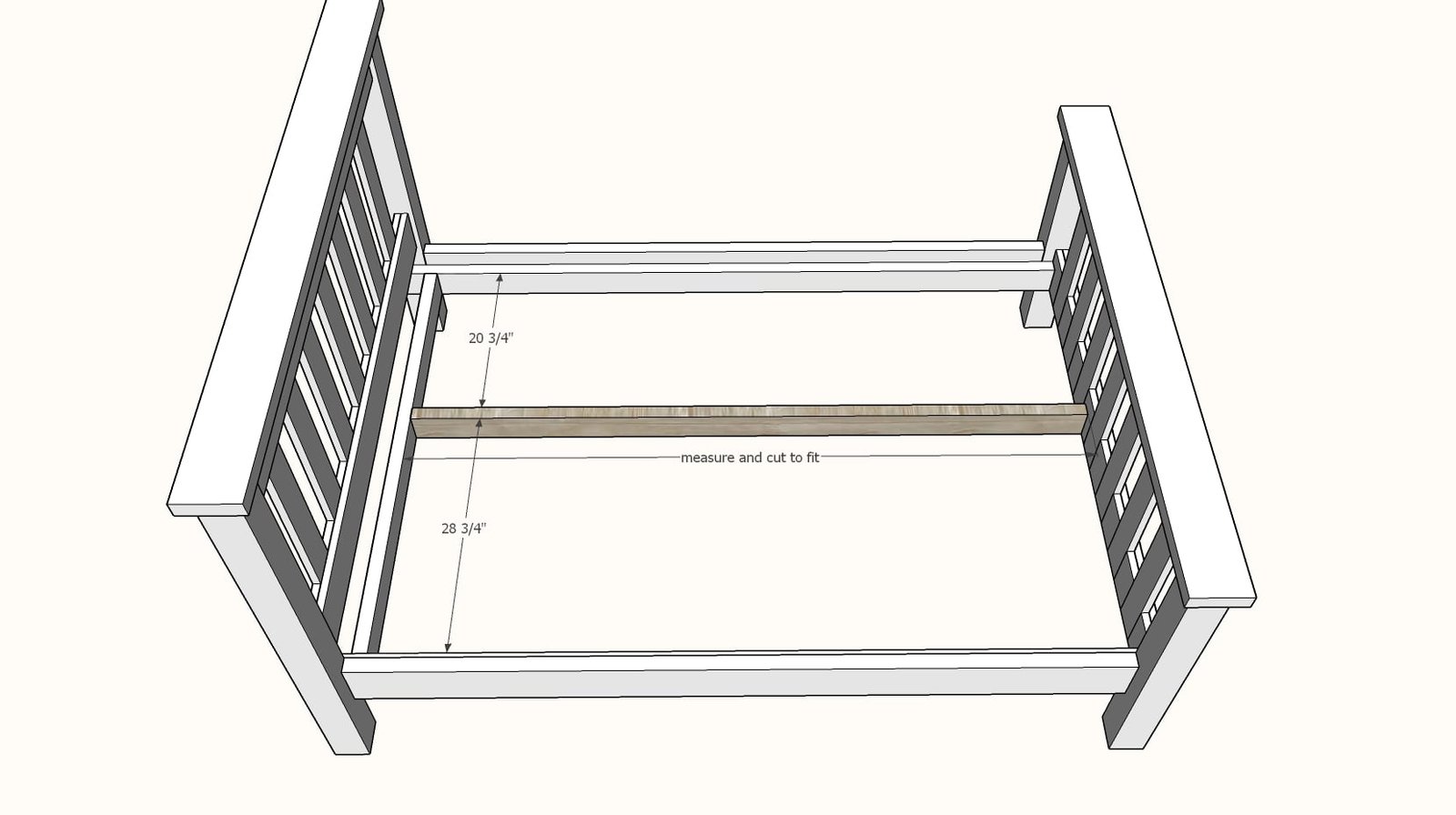

Step 8
Measure and cut the center support. Place as shown in the bed (this is done offset to conserve wood when cutting the slats)

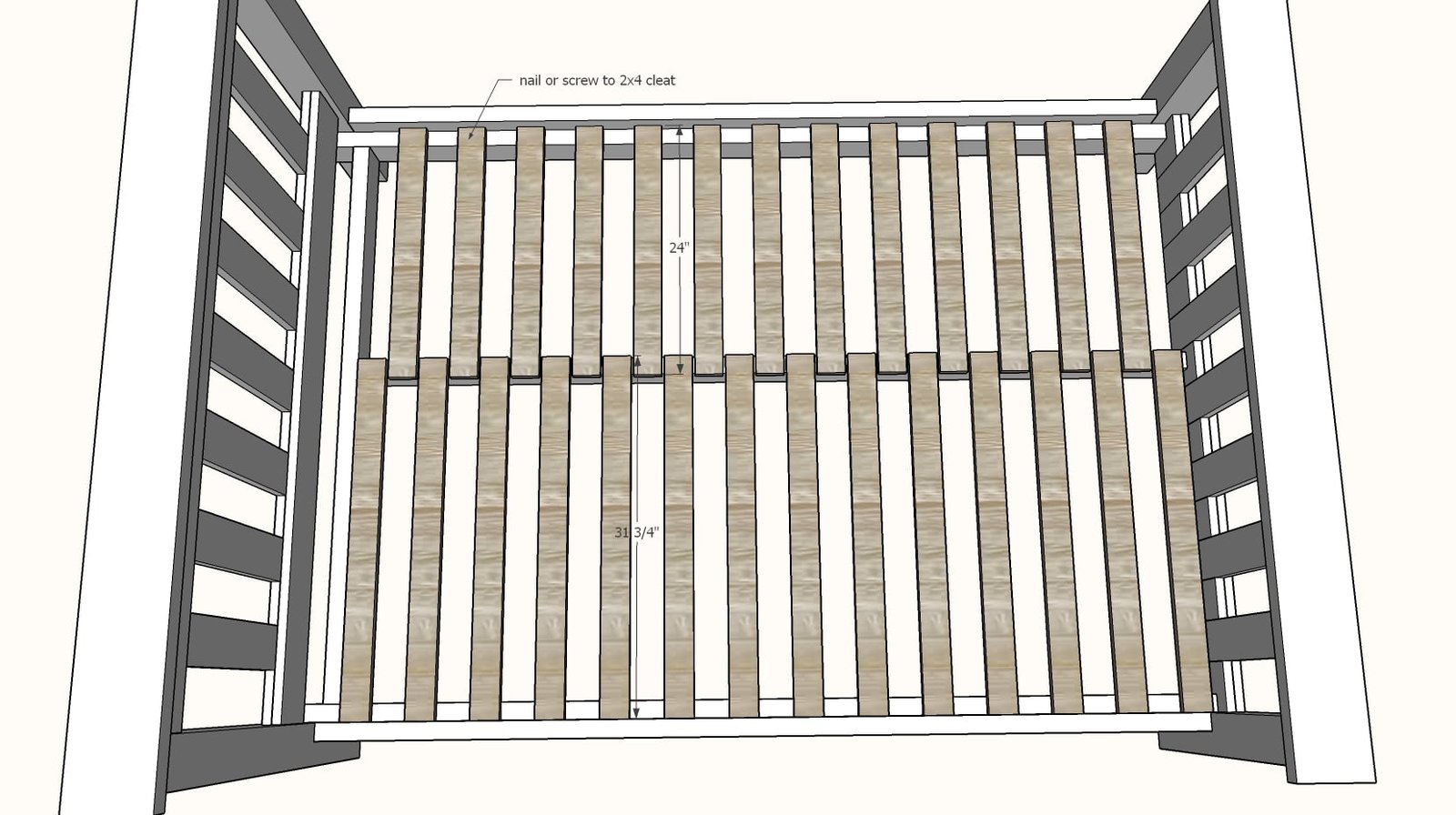

Step 9
Cut slats and lay in bed. You can nail down (will be harder to remove later) or screw down (screws take longer to install and are more expensive but will be easier to remove). Use a 1-1/4" to 2" long fastener. Do not use glue as it will be impossible to disassemble without damaging the bed. To conserve fastners and time, I often will just nail the sides down and leave the center floating on the slats.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
