Outdoor Bench
DIY Outdoor Bench Plans – Easy 2x4 Firepit Seating Build your own beautiful outdoor bench with these simple woodworking plans! Designed with sturdy 2x4 construction, this bench is perfect for backyard firepit seating, patio furniture, or cozy garden seating. The angled backrest and wide armrests make it as comfortable as it is durable, while the clean, rustic design fits seamlessly with any outdoor style. You can build it with just basic tools and common lumber, making it an affordable DIY project anyone can tackle. ✔ Beginner-friendly step-by-step instructions ✔ Uses inexpensive 2x4 lumber ✔ Perfect for firepits, patios, porches, or garden seating ✔ Paint, stain, or finish to match your outdoor décor ✔ Sturdy design built to last season after season Create a warm, inviting outdoor space with seating you built yourself. Whether you’re gathering around the firepit, relaxing in the garden, or adding extra patio furniture, this DIY outdoor bench plan will help you build a piece that’s both functional and stylish.
Specifications
| Project type | Bench |
|---|---|
| Room | Outdoor |
| Difficulty | Intermediate |

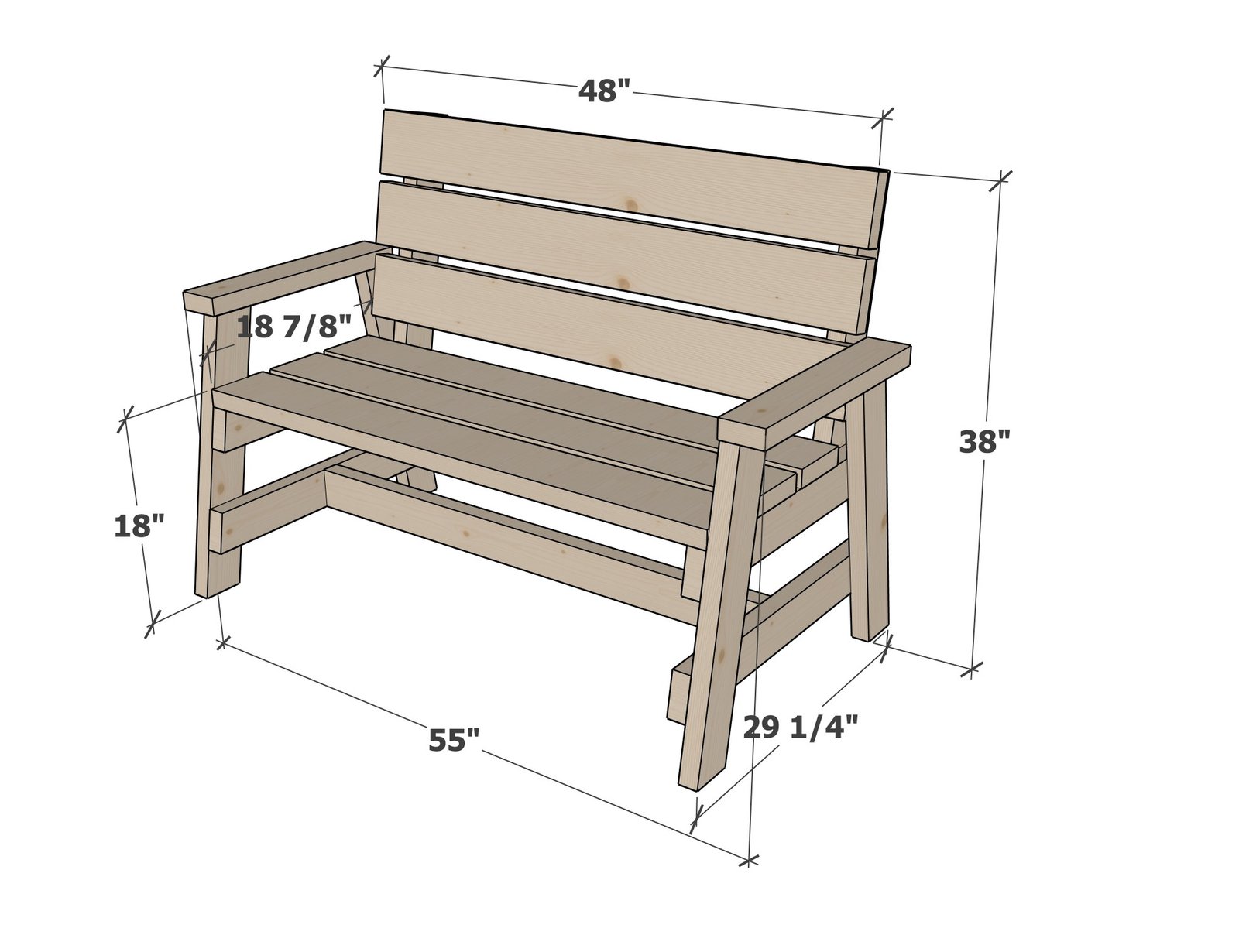

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 4 - 2x4 @ 8 feet long - make longest cuts first to ensure all pieces fit
- 3 - 2x6 @ 8 feet long (cut in half if exactly 8 feet long
- About 75 2-3/4" self tapping star bit general construction screws
- Exterior wood finish, appropriate for decks and fences
- Medium grit sanding paper
Cut List
- 2 - 2x4 @ 21-3/4" - arm rests
- 4 - 2x4 @ 24-3/8" - both ends cut at 10 degrees off square, long point to short point measurement, ends are parallel
- 2 - 2x4 @ 24-5/8" - both ends cut at 10 degrees off square, long point to long point measurement, ends are NOT parallel
- 2 - 2x4 @ 27-3/4" - both ends cut at 10 degrees off square, long point to long point measurement, ends are NOT parallel
- 2 - 2x4 @ 25" - one end cut at 10 degrees off square, long point measurement, ends are NOT parallel
- 1 - 2x4 @ 45"
- 6 - 2x6 @ 48" - can be 47-7/8" if your 2x6 material is exactly 8' long and you need to just cut in half and the boards are a little short of 48"
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- circular saw
- sander
Step-by-step Instructions

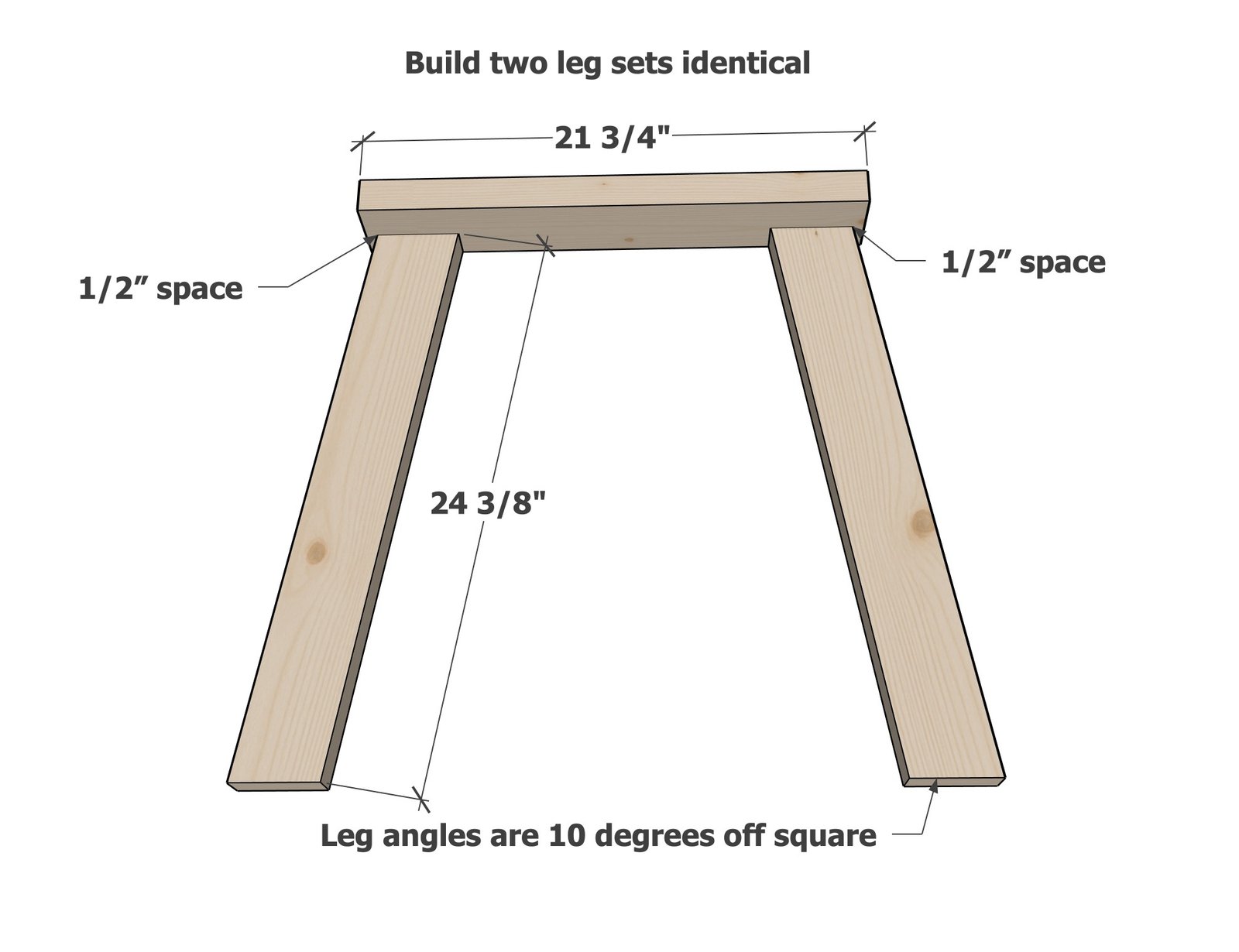

Step 1
Lay on a flat surface and attach the legs to the armrest from the top, with two screws per joint.

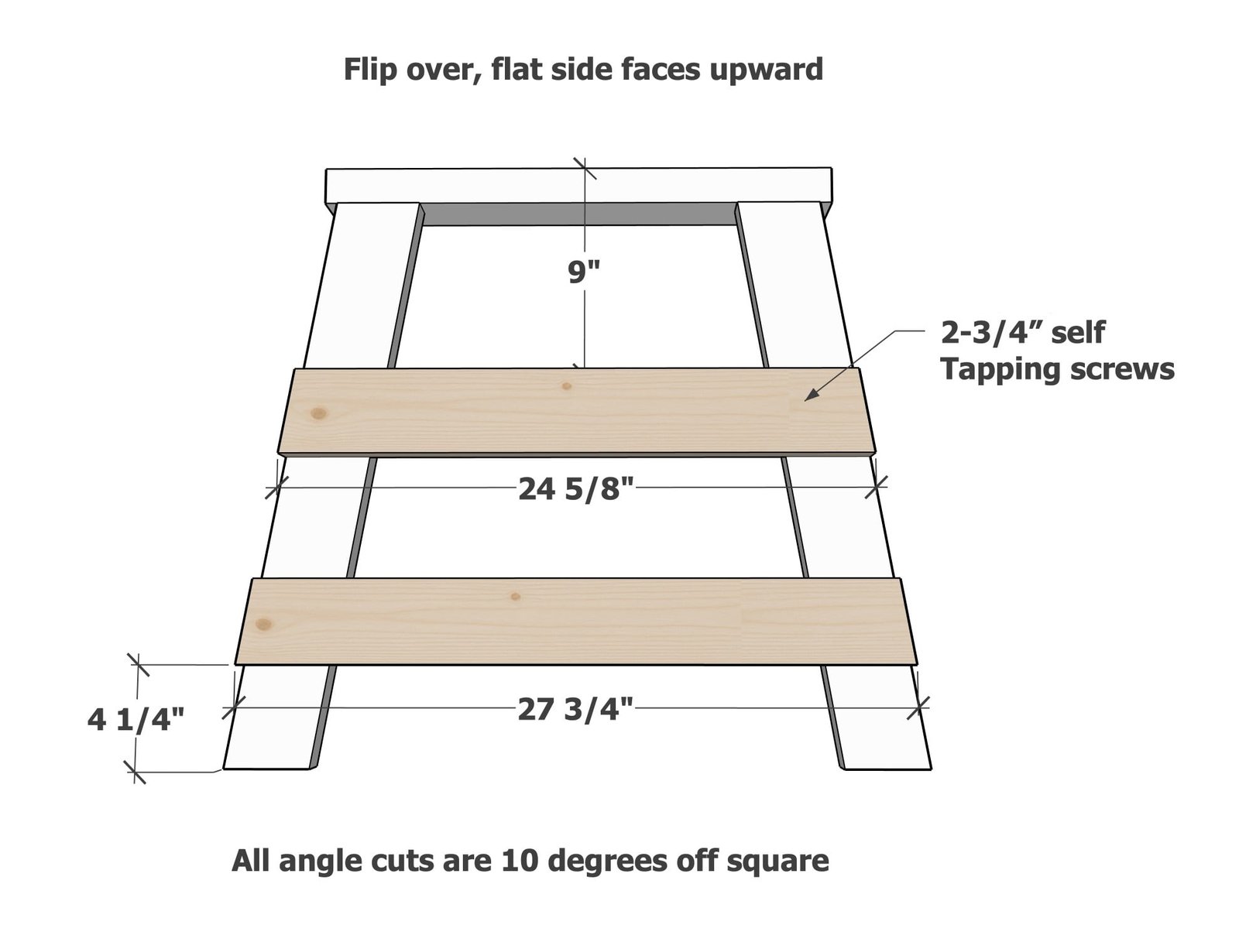

Measure and mark out placement of the arm supports and attach with two screws per joint.
Build two identical leg sets.

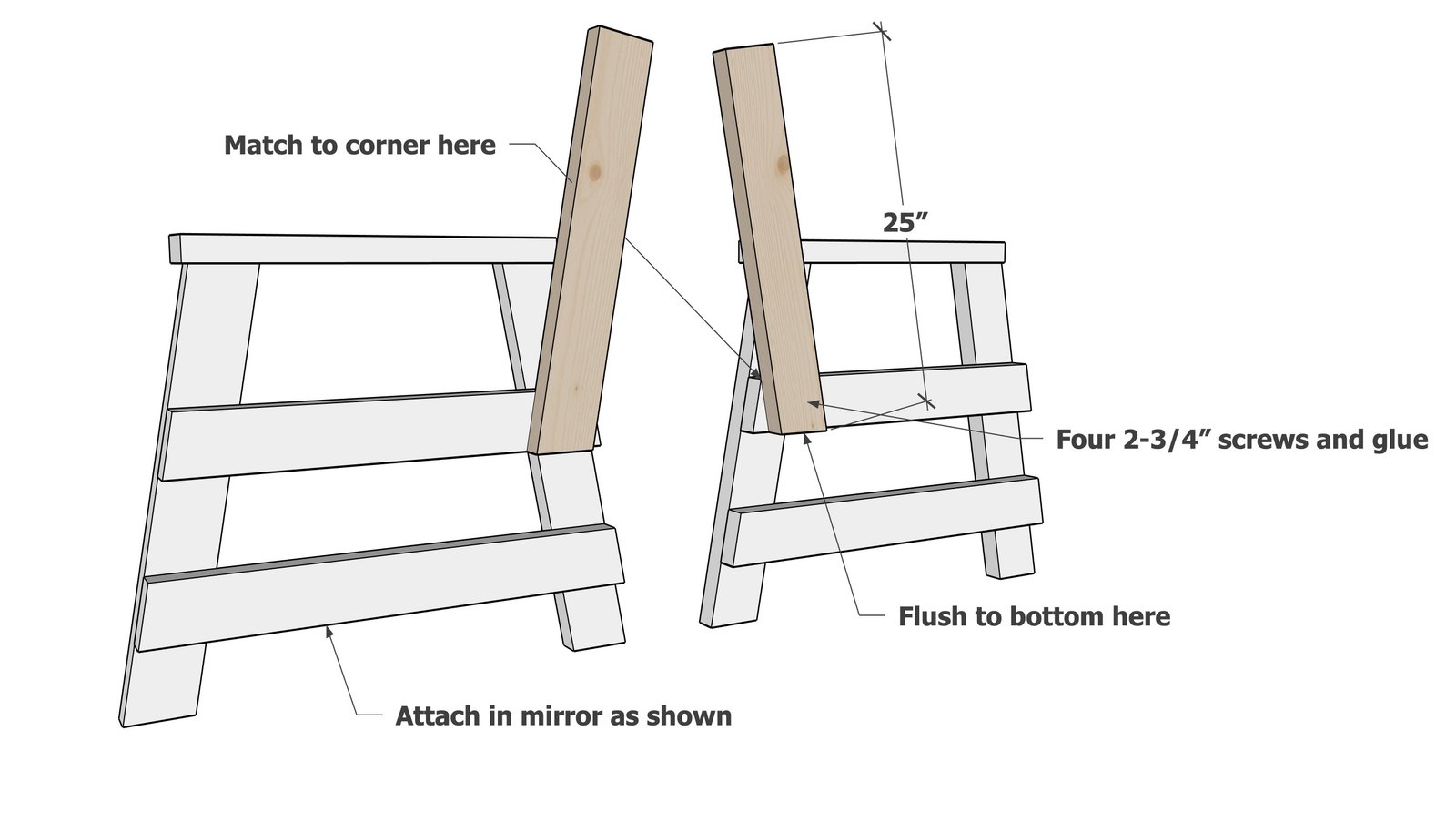

Step 3
Place the back supports and attach to JUST the top seat support - we will further attach in later steps. DO THIS IN MIRROR for the two leg sets. NOTE: We found the bench to be very sturdy as built. But if you wanted to increase the back strength, you could simply increase the length of the back support boards, so it ties in with the lower board on the arms (increase length to about 32"). This would add considerable strength to the back.

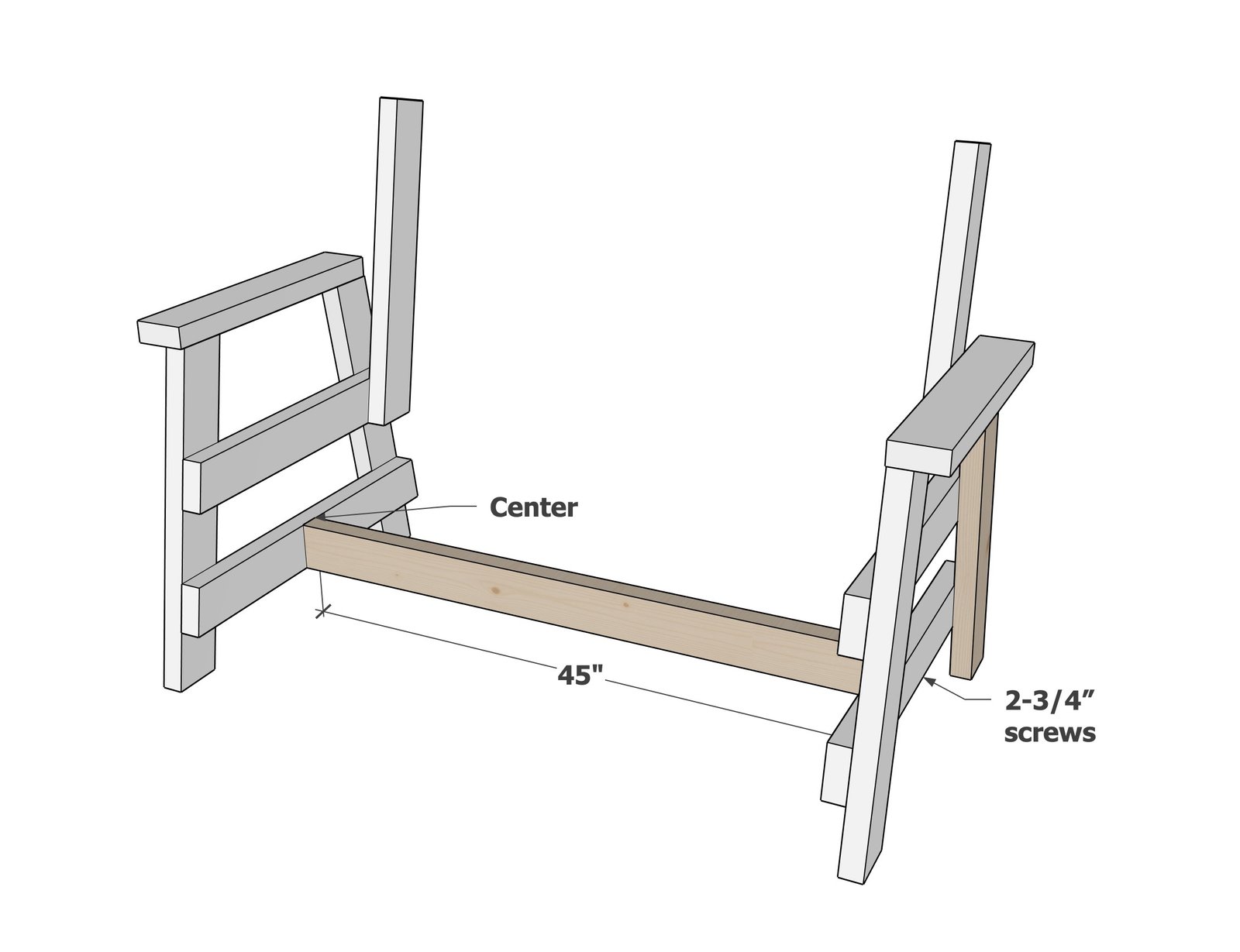

Step 4
Attach the bottom stretcher between the bottom boards. You may need an extra hand here, or you can use pocket holes, or try adding just one of the 2x6 seat boards (last step) to help stabilize as you attach.
Lay on back and attach the back rest boards, starting at the top and working downward.
IMPORTANT - further secure the back by adding screws into the back from the back leg.

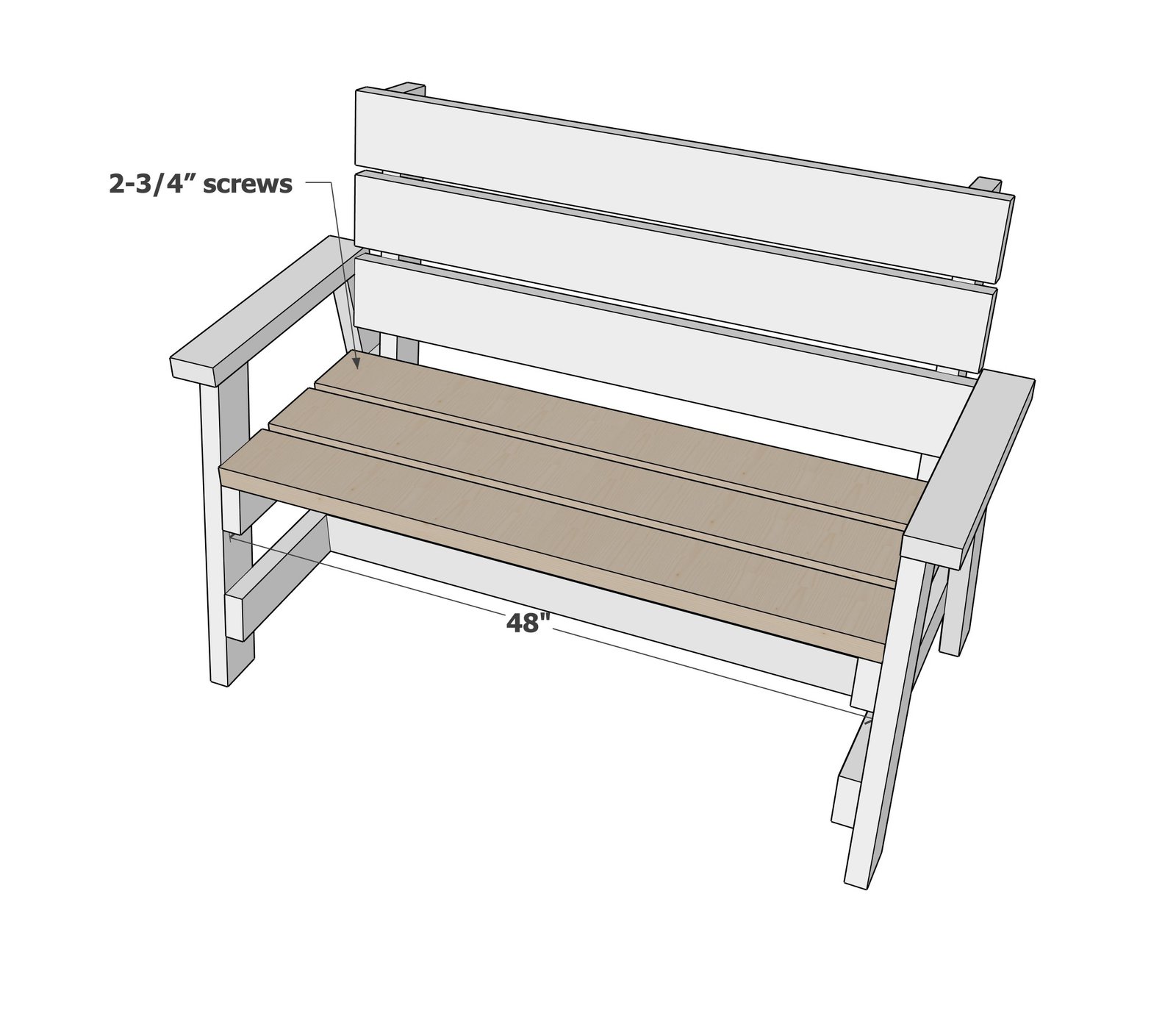

Step 6

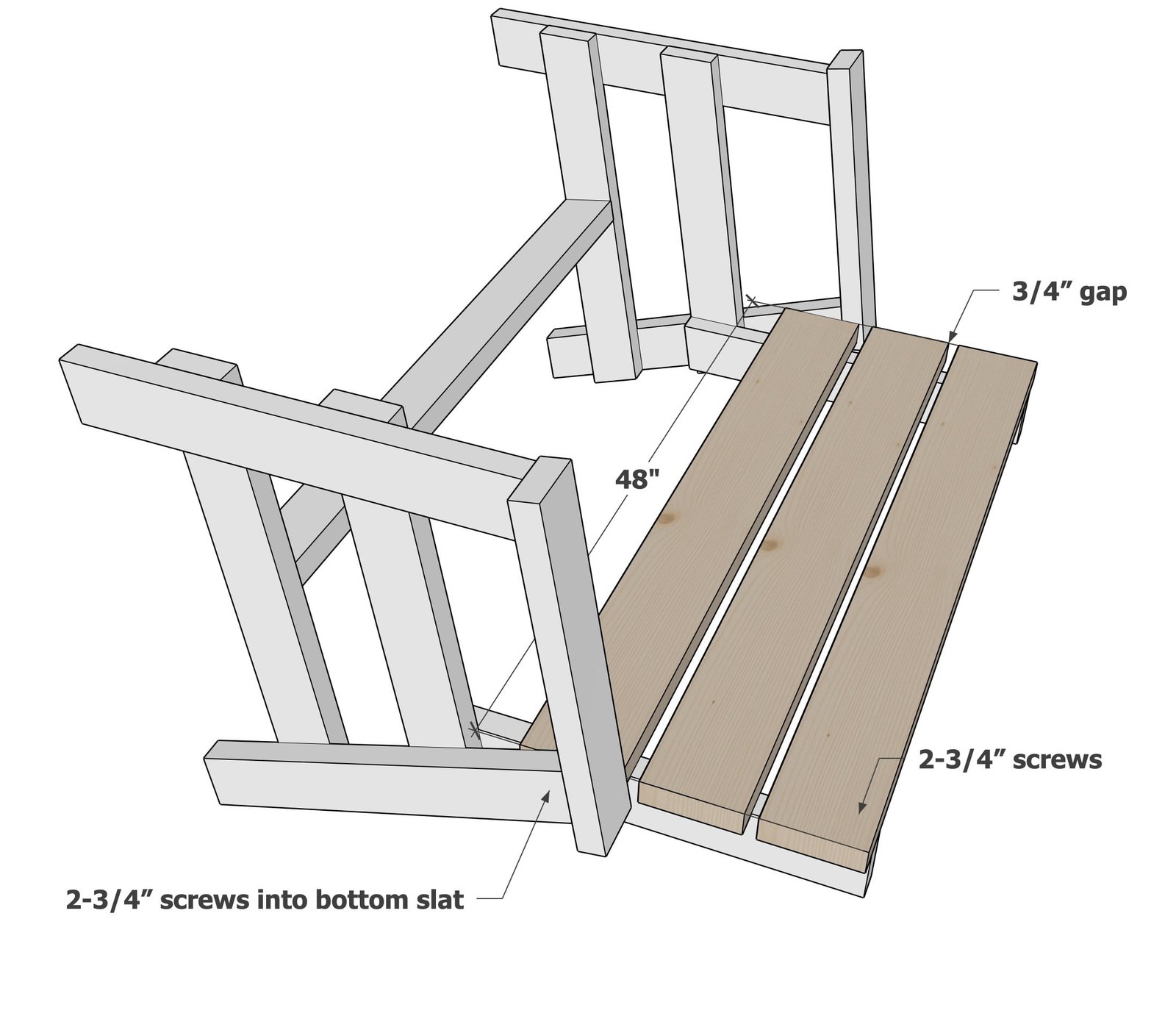

Layout seat boards and attach to the back supports.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
