Six-Sided Picnic Table (Hexagon)
Build your own round picnic table with this free six-sided woodworking plan! This hexagon-style table seats six comfortably in a compact, social format—perfect for outdoor dining or backyard fun. The built-in benches make it practical and space-saving. Includes step-by-step diagrams, a shopping list, cut list, and reader photos to guide your build from start to finish!
Specifications
| Project type | Picnic Tables and Outdoor Dining |
|---|---|
| Room | Outdoor |
| Style | Cottage Style Furniture Plans |
| Difficulty | Advanced |
| Estimated cost | $50 - $100 |

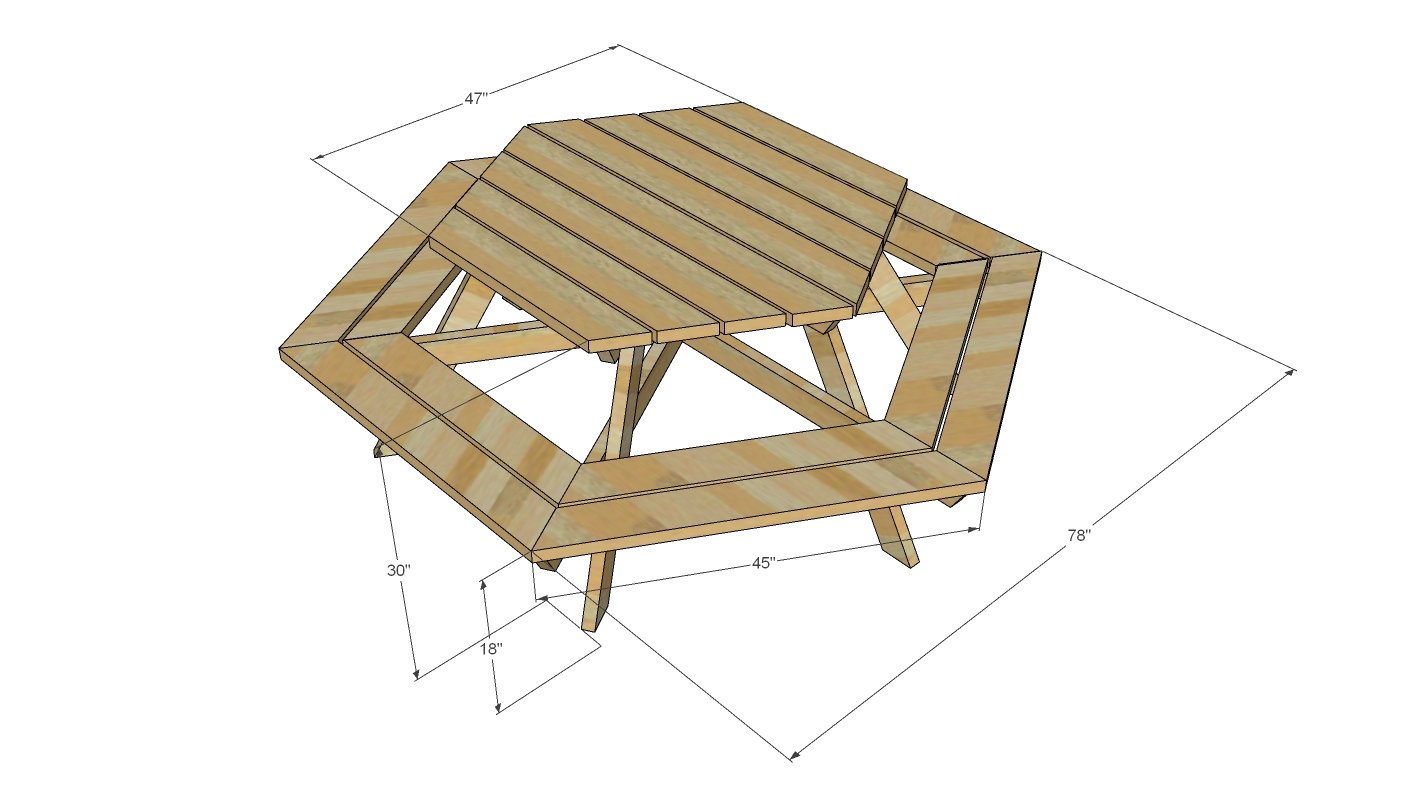

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 6 - 2x4 @ 8 feet long
- 10 - 2x6 @ 8 feet long
- 150 - 2-1/2" to 3" long self tapping exterior screws, can be "deck screws" or "general construction screws"
Cut List
Frame
- 1 - 2x4 @ 51" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (main frame, top)
- 1 - 2x4 @ 88" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (main frame, seat)
- 6 - 2x4 @ 33" - both ends cut at 30 degrees off square, end are parallel, long point to short point measurement (legs)
- 4 - 2x4 @ 25" - one end cut at 30 degree BEVEL, long point measurement (top frame secondary supports)
- 4 - 2x4 @ 43-3/8" - one end cut at 30 degree BEVEL, long point measurement (seat frame secondary supports)
Seat Boards
- 6 - 2x6 @ 45" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (seat boards)
- 6 - 2x6 @ 38" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (seat boards)
Tabletop
- 2 - 2x6 @ 54" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (tabletop)
- 2 - 2x6 @ 47" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (tabletop)
- 2 - 2x6 @ 40" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (tabletop)
- 2 - 2x6 @ 33-1/4" - both ends cut at 30 degrees off square, ends NOT parallel, long point to long point measurement (tabletop)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- compound miter saw
- sander
Step-by-step Instructions

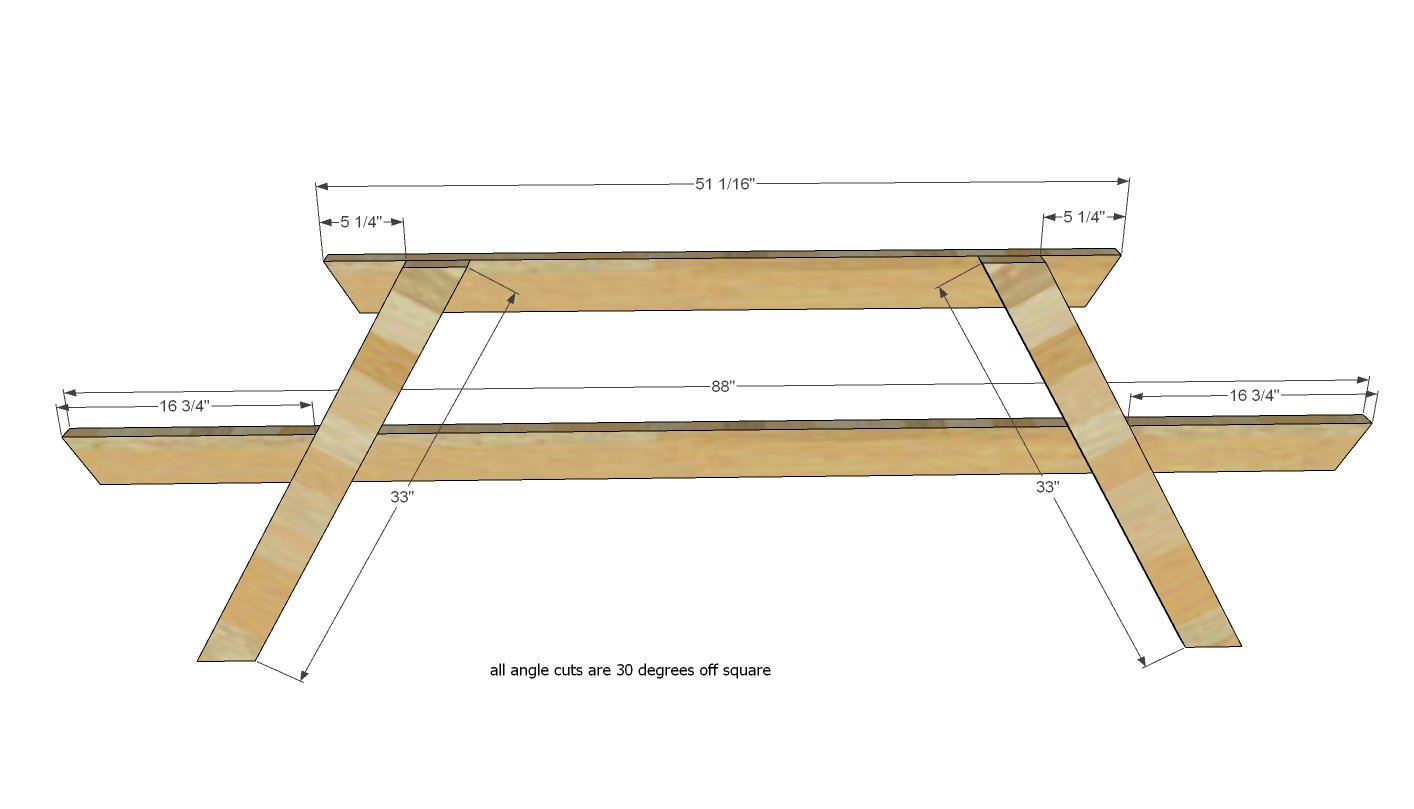

Step 1
On a flat level surface, carefully layout the first section of the picnic table. It can help to have two people at this stage. Attach at all joints with three 2-1/2" self tapping wood screws.

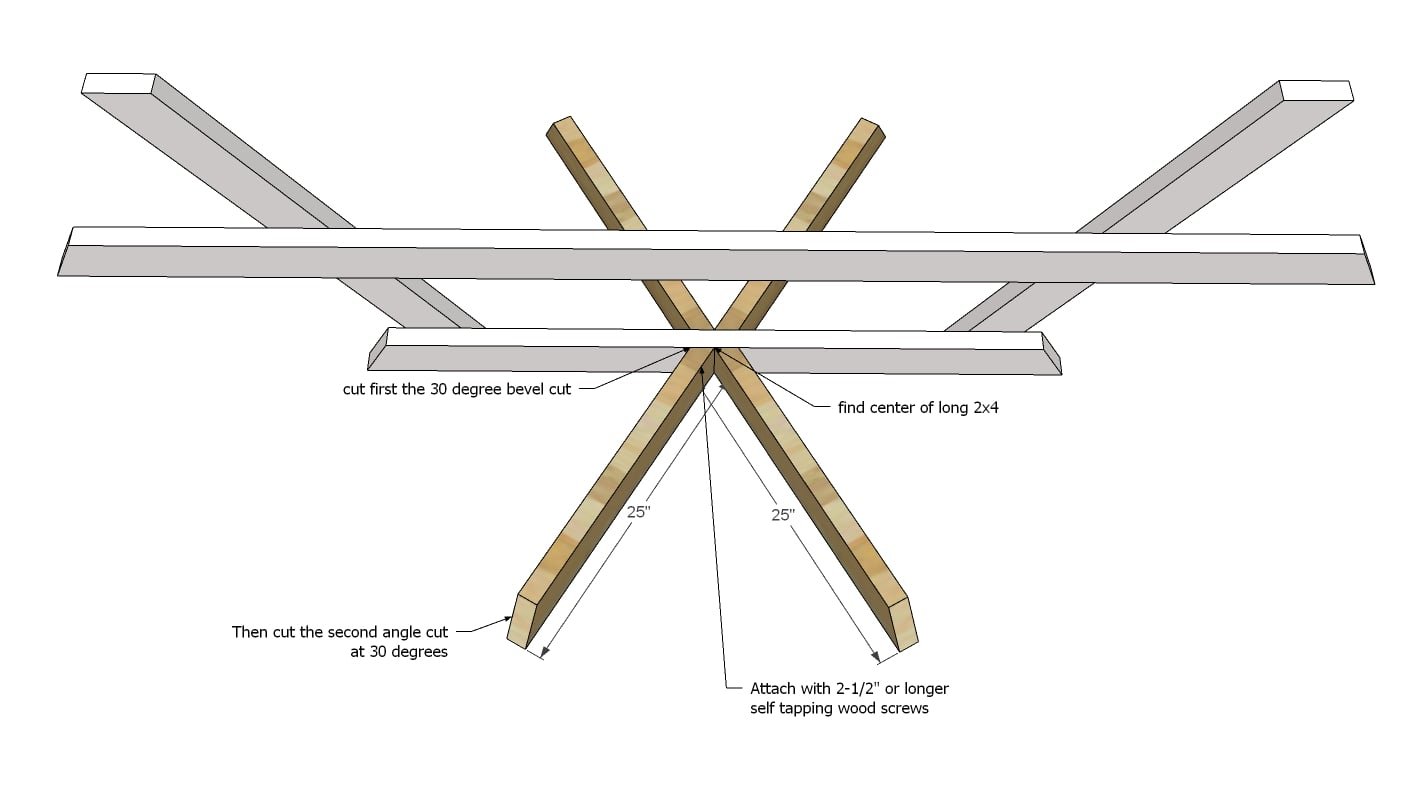

Step 2
First, cut the table supports according to the cut list. Then, keeping the same overall length, cut the outside end back at a 30 degree angle. Attach centered on the main frame with the 2-1/2" screws, two screws per joint.

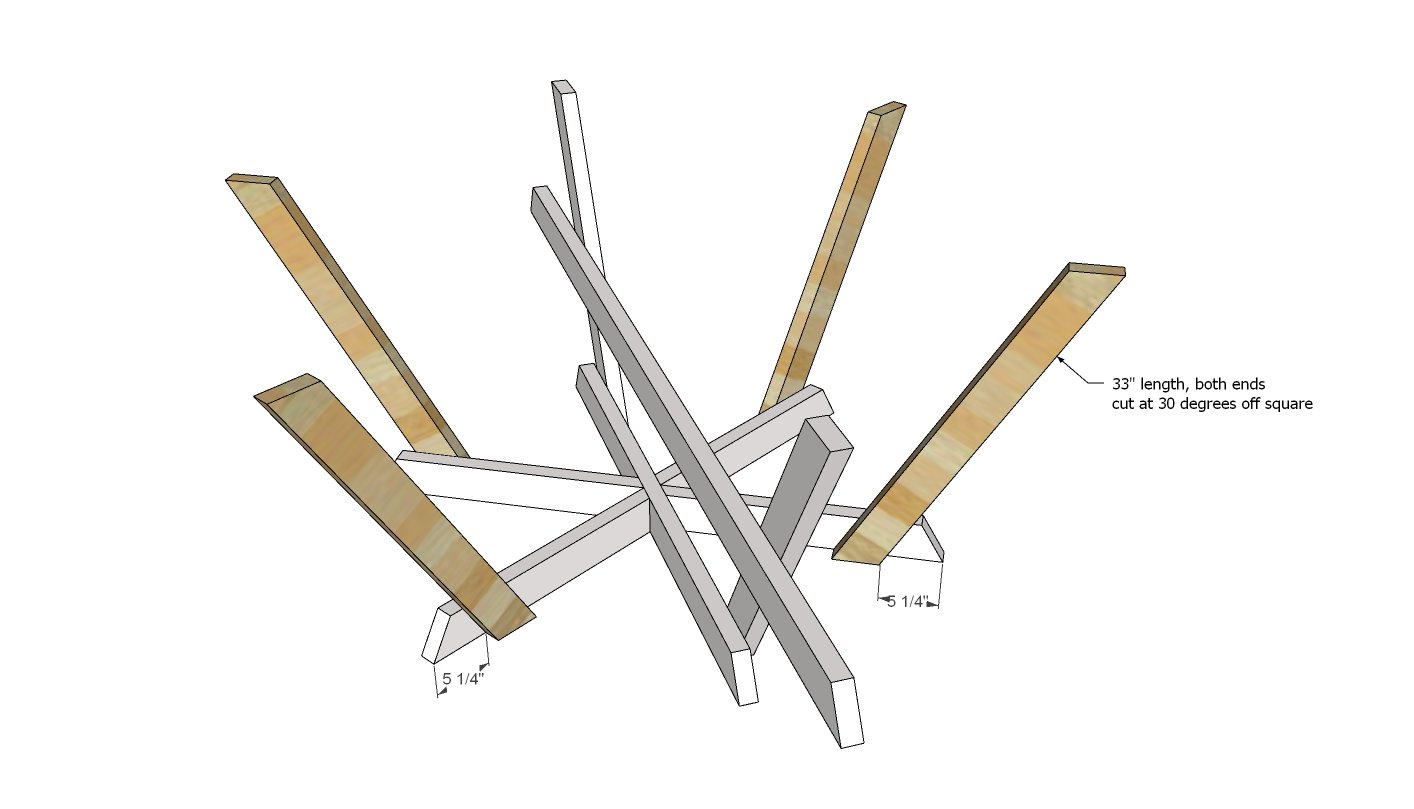

Step 3
Attach remaining legs with 2-1/2" self tapping wood screws, three screws per joint.

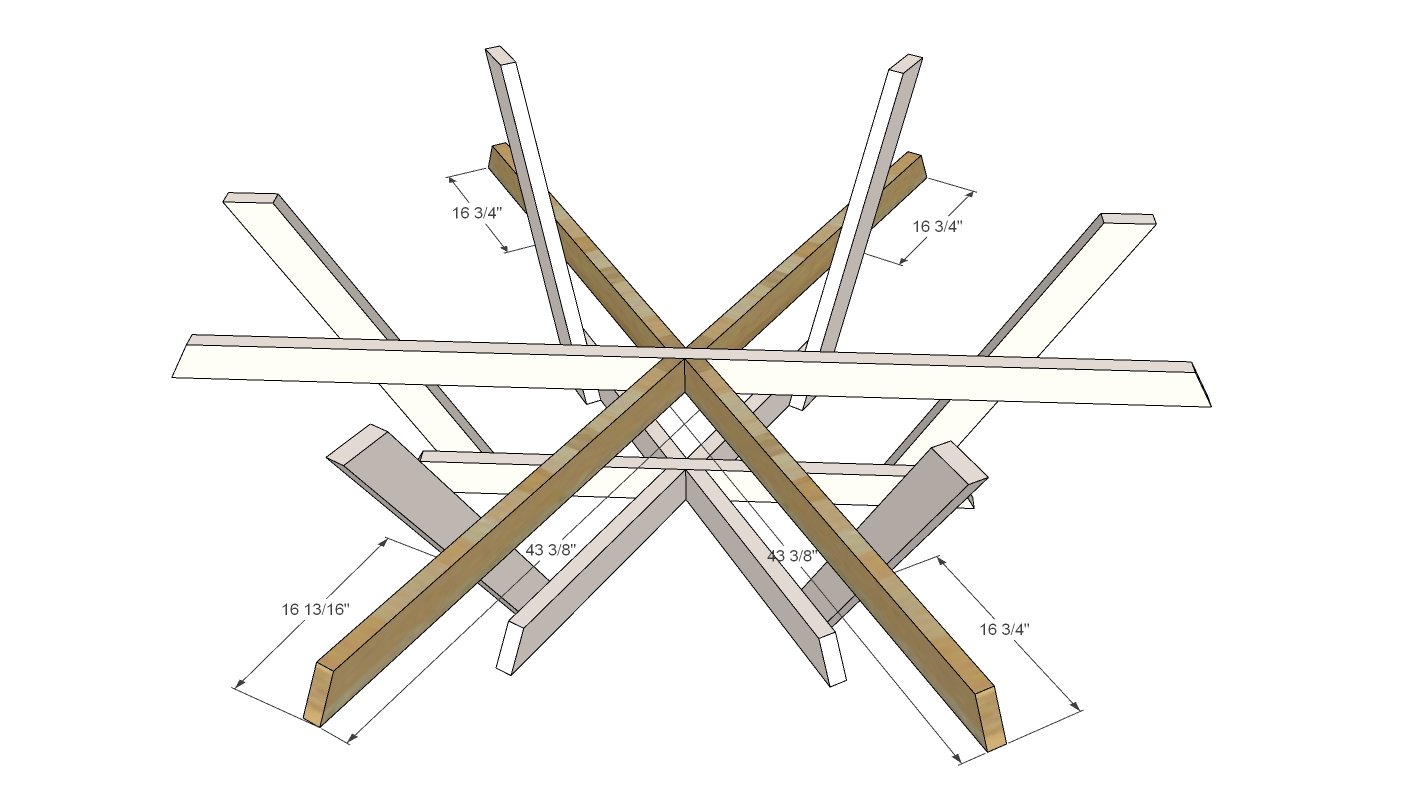

Step 4
Cut the seat frame board ends as directed in the cut list. Then, keeping the same overall length, cut the outside end back at a 30 degree off square angle. Attach to the center of the main frame and to the legs. TIP: Cut a 2x4 13" long and use it as a spacer to hold up your board while attaching to maintain the correct distance.
Flip the project over.

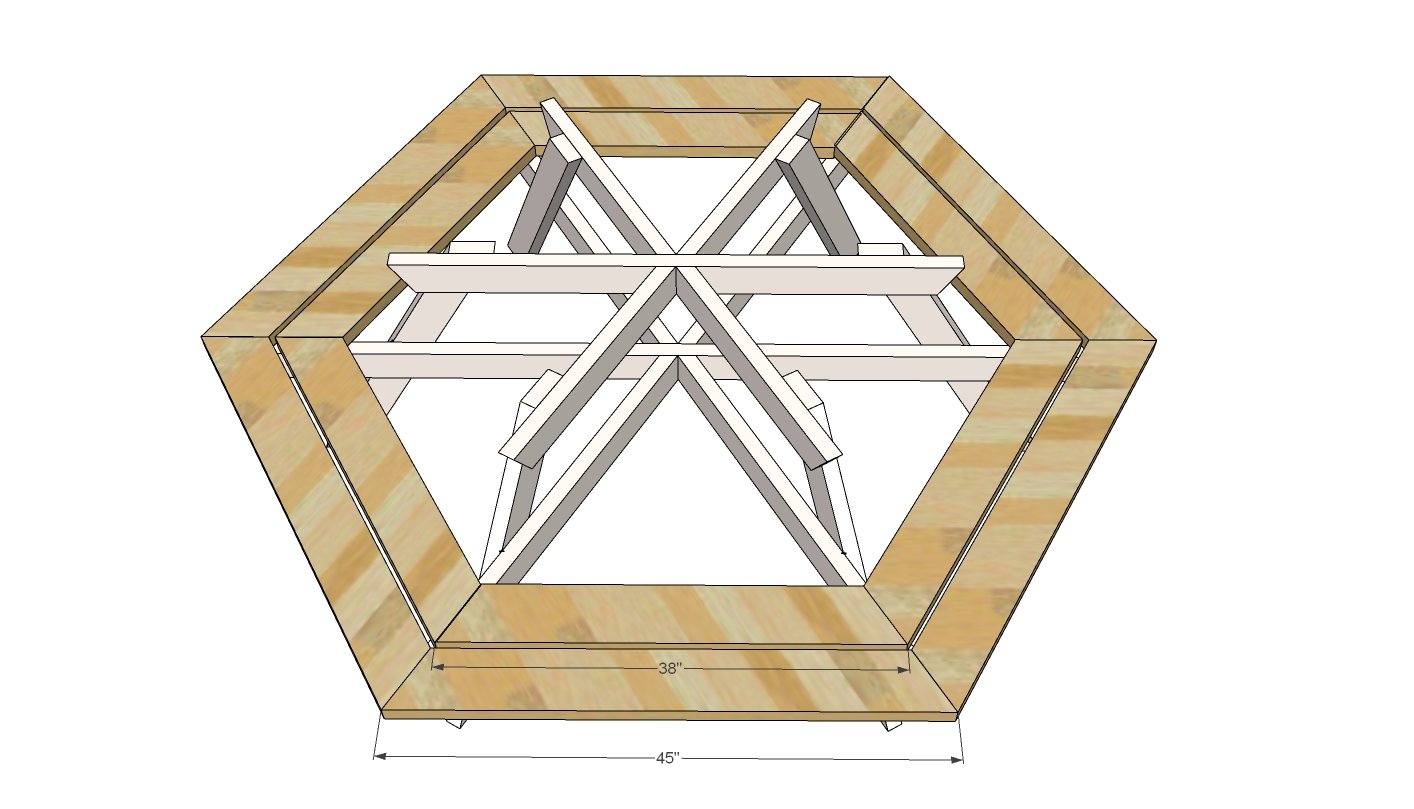

Cut seat boards and lay outside seat boards in place. Make sure all the angles line up with the seat boards joining in the middle of the frame boards. Attach with two screws per joint.

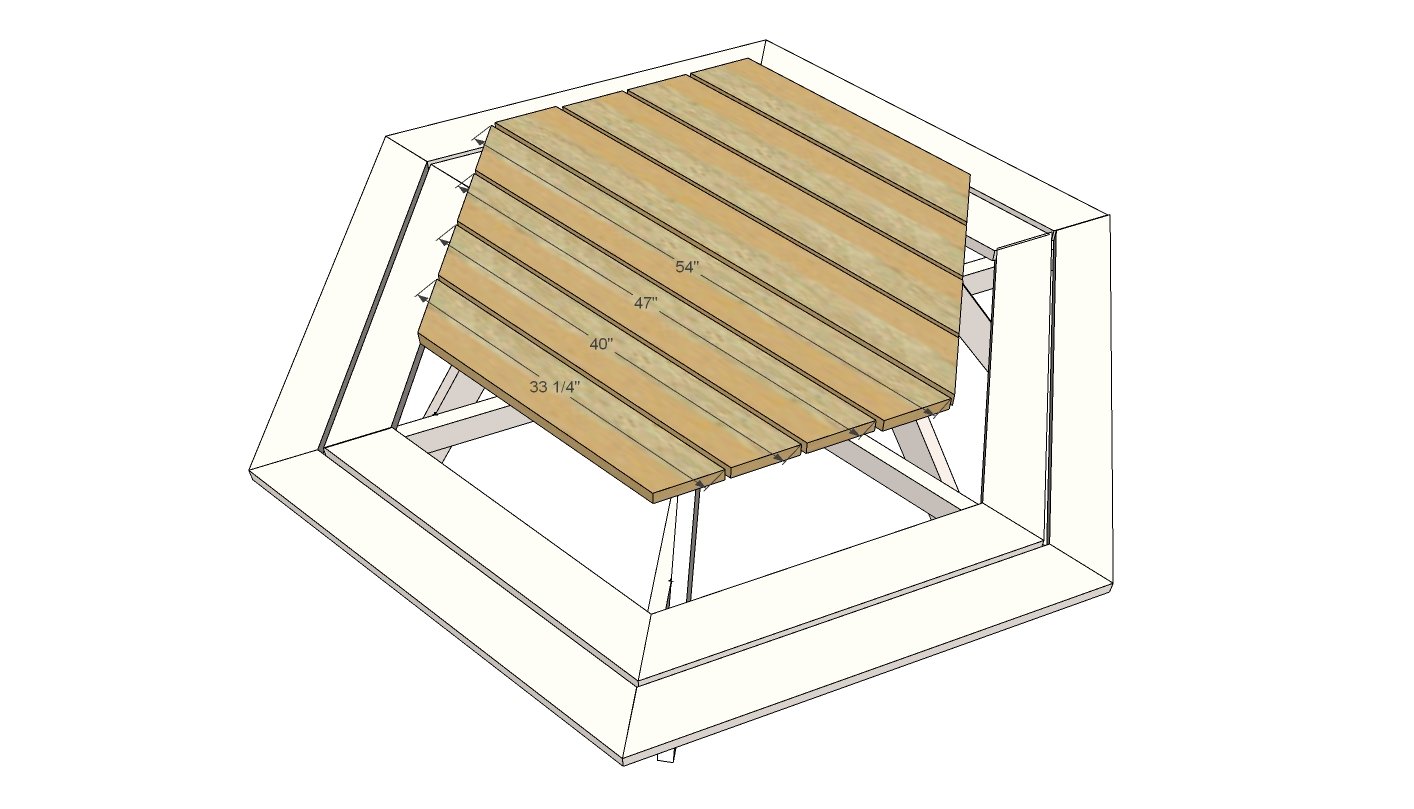

Step 6
Attach the tabletop boards on top, starting at the center and working outward, with a 1/2" gap in between.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
