Double Laundry Basket Organizer
Laundry basket organizer frame that holds four laundry baskets. The top has an open slatted design that can be used for drying or folding. This is an expensive DIY solution to create more space and organization your laundry room. Free beginner friendly build plans with step by step diagrams, shopping and cut lists from
Specifications
| Project type | Storage Woodworking Plans |
|---|---|
| Room | Laundry Room |
| Difficulty | Beginner Projects |

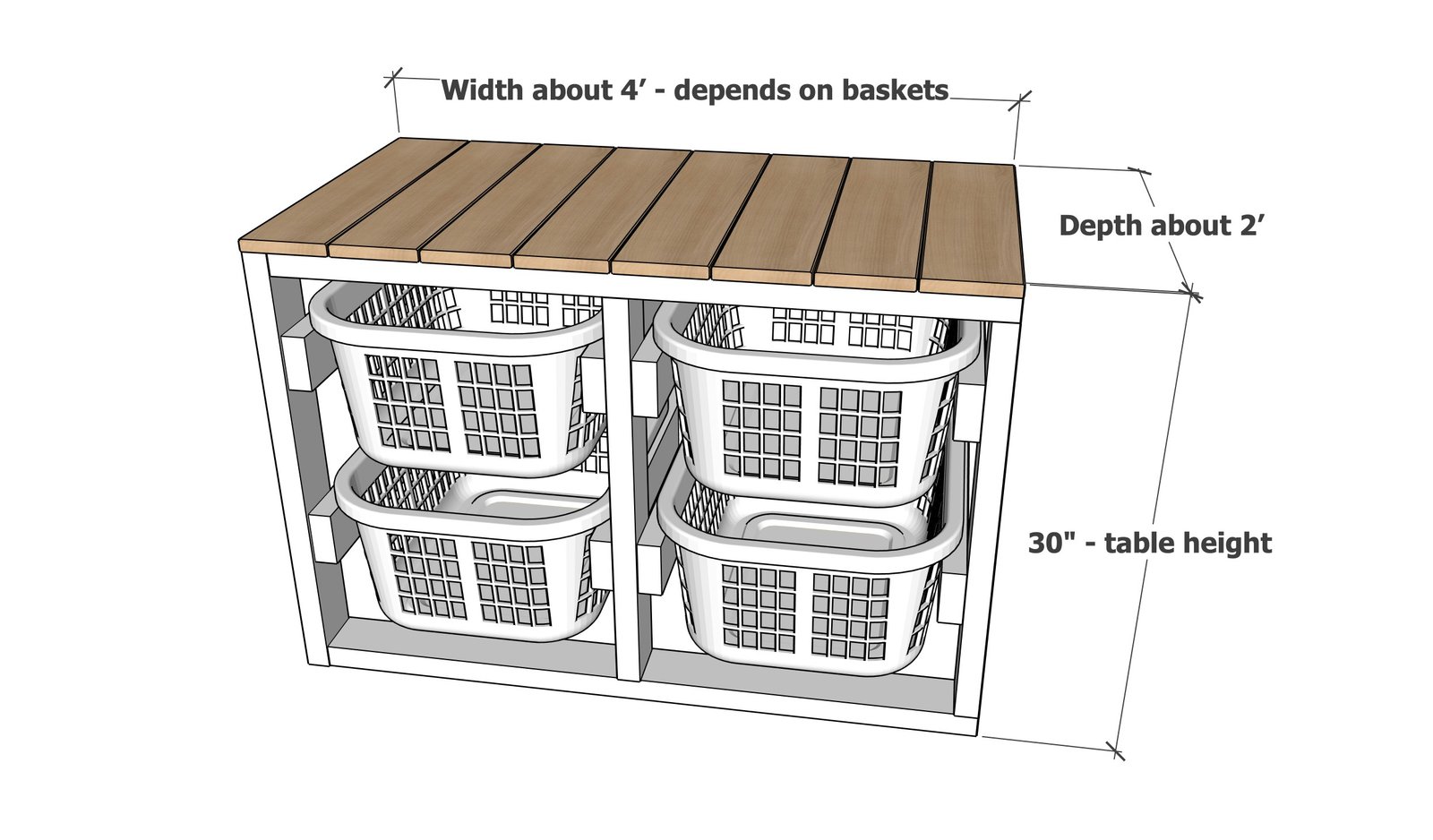

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 6 - 2x4 @ 8 feet long (approximate)
- 2 - 1x6 @ 8 feet long (approximate)
- 4 - 1.5 bushel laundry baskets, measuring about 17" wide x 24" deep x 10" tall
- 2-1/2" self tapping wood screws
- 1-3/4" self tapping wood screws
Cut List
- 4 - 2x4 @ 29-1/4" - legs
- 2 - 2x4 @ 26-1/4" - center frame
- 4 - 2x4 @ (under lip measurement + 3") x 2, then add 1-1/2" (should be about 48") - top and bottom frame
- 8 - 2x4 @ depth of baskets (about 24") - runners/cleats*
- 8 - 1x6 @ depth of baskets (about 24" - top*
*to conserve materials, a cut length of 23-7/8" for both of these boards will maximize cuts on 8' boards
Tools
- measuring tape
- square
- safety glasses
- drill
- compound miter saw
- sander
Step-by-step Instructions
Step 1

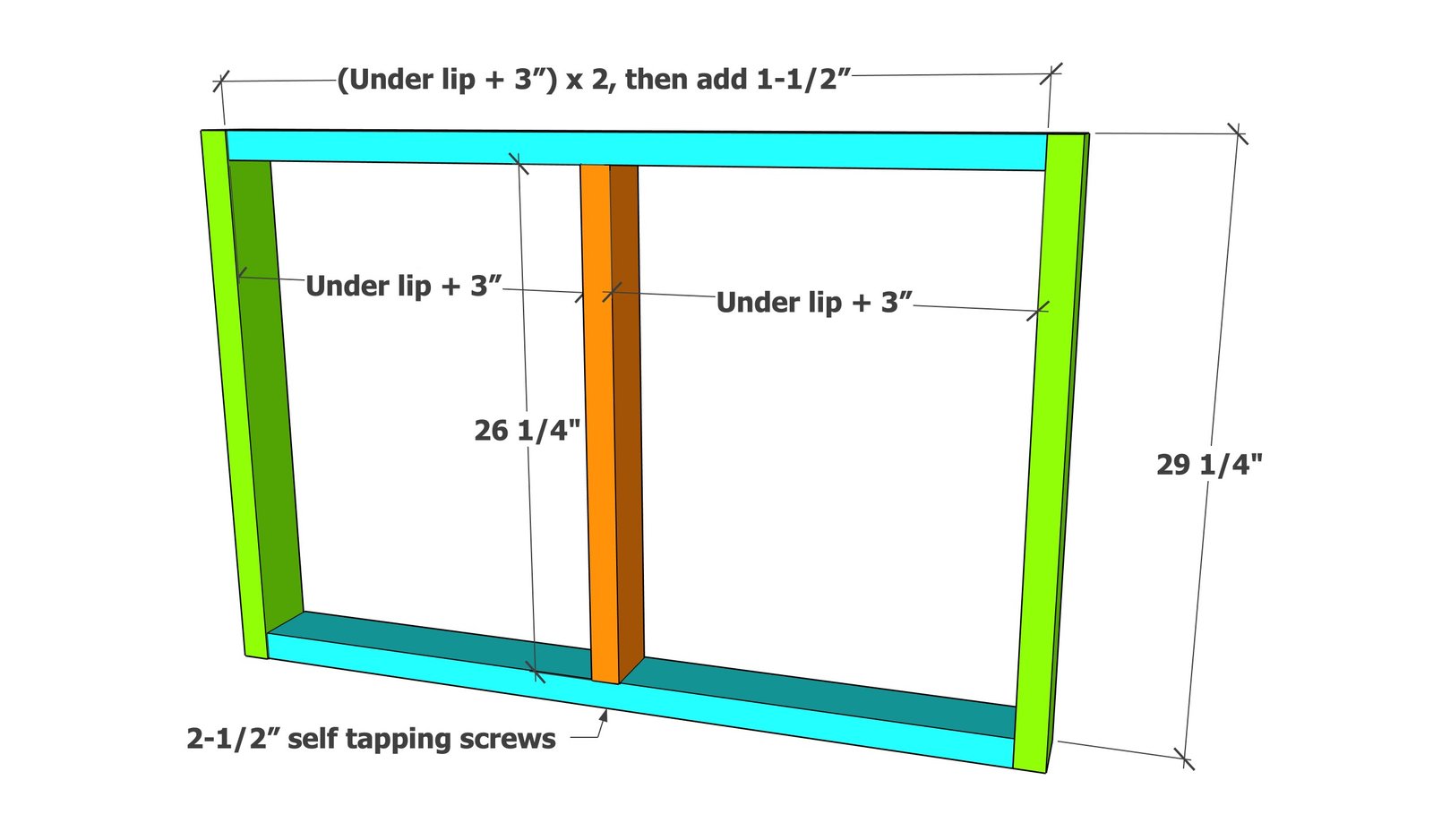

Build two identical frames as shown, using the 2-1/2" self tapping screws.
Step 2

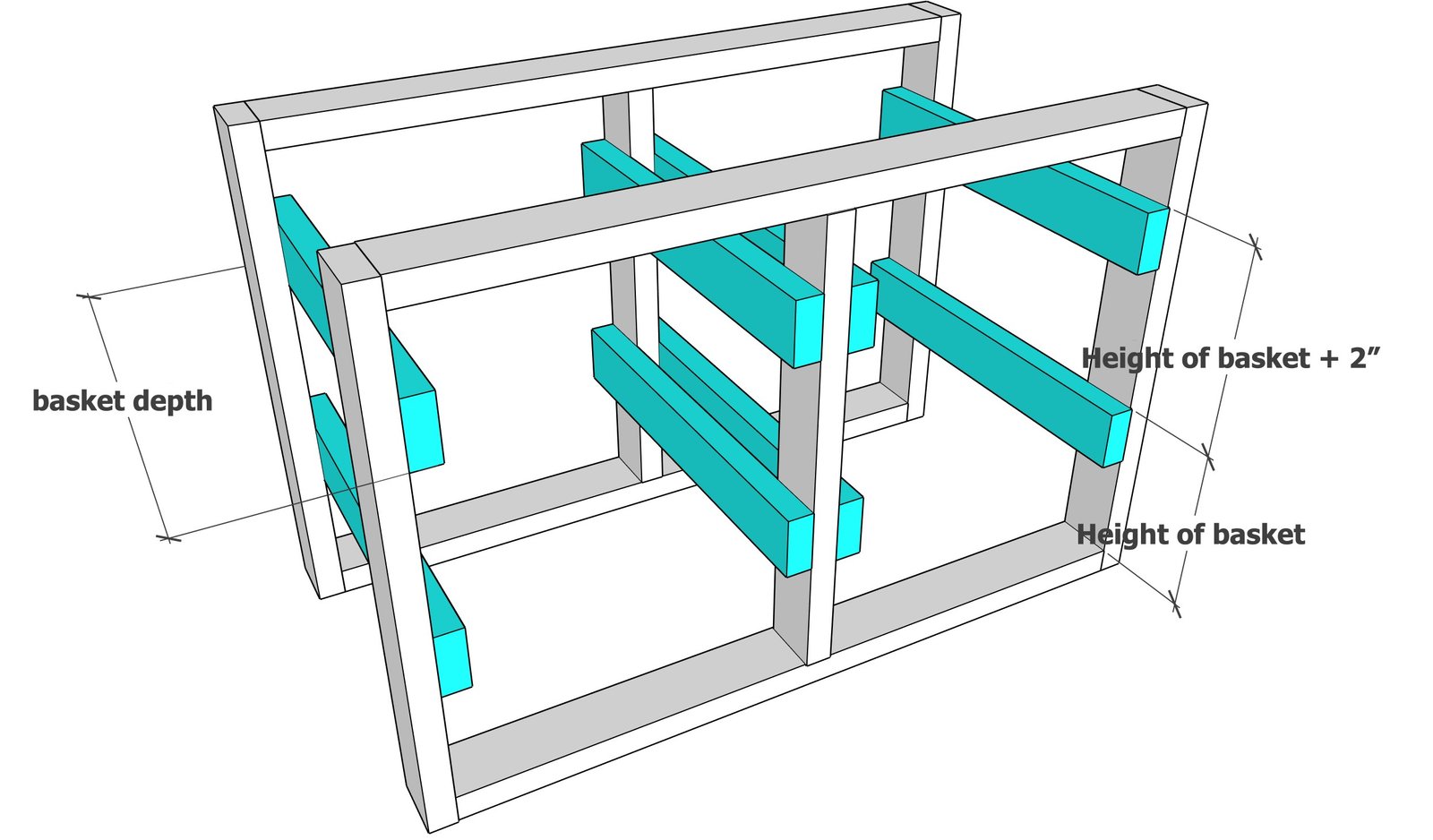

Add the cleats to connect the frames, making sure the project is square.
Step 3

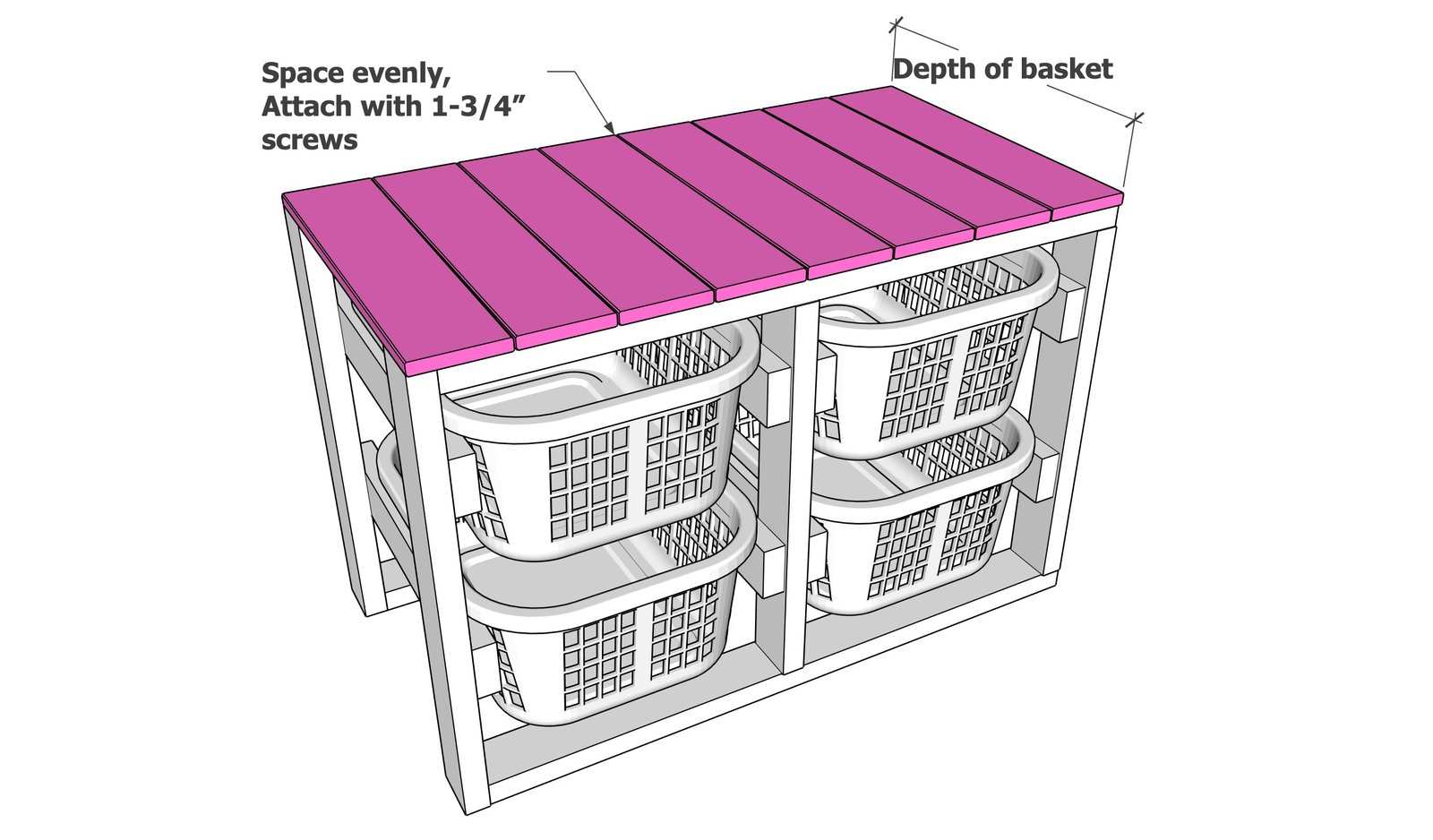

Attach the 1x6 to the tops of the frames to complete.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
