Double Wide Outdoor Table

Build your own double wide outdoor table, featuring extra seating for large gatherings and parties, and diagrams, cut list and shopping list from

Double Wide Outdoor Table

Specifications

Project typeOutdoor Seating, Lounging and Accents
RoomOutdoor
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

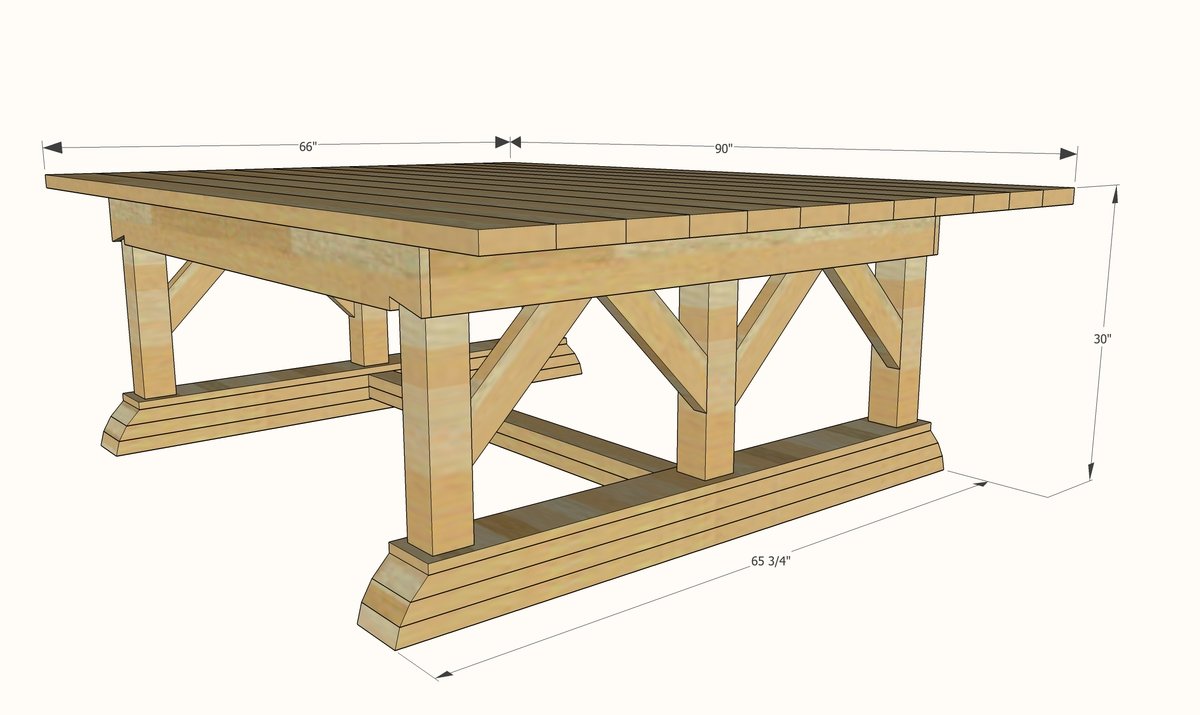

Double Wide Outdoor Table dimension diagram 1

Shopping List

  • 19 - 2x6x8
  • 6 - 1x6x8
  • 4 - 2x4x8
  • 2- 4x4x8
  • 2 - 1x3x6 (for added support - see Jaime's post)
  • 2" and 2-1/2" exterior screws
  • 2-1/2" pocket hole screws

Cut List

BASE

  • 6 - 4x4 @ 23"
  • 2 - 1x6 @ 58"
  • 2 - 1x6 @ 60"
  • 2 - 2x6 @ 60" - shortest point measurement - both ends BEVELED at 45 degrees off square, ends NOT parallel
  • 2 - 2x6 @ 63" CUT TO FIT! - shortest point measurement - both ends BEVELED at 30 degrees off square, ends NOT parallel
  • 2 - 2x6 @ 64-7/8" CUT TO FIT! - shortest point measurement - both ends BEVELED at 15 degrees off square, ends NOT parallel
  • 8 - 2x4 @ 16-3/4" - both ends cut at 45 degrees off square, ends ARE parallel to each other, long point to short point measurement
  • 2 - 2x4 @ 55-1/2" (stretchers)
  • 2 - 2x6 @ 64-1/2"
  • 3 - 2x6 @ 48"
  • 2 - 1x6 @ 66"

Tabletop boards are 90" long - use less for spacing in between

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • jigsaw
  • compound miter saw
  • staple gun
  • countersink drill bit

Step-by-step Instructions

1

Step 1

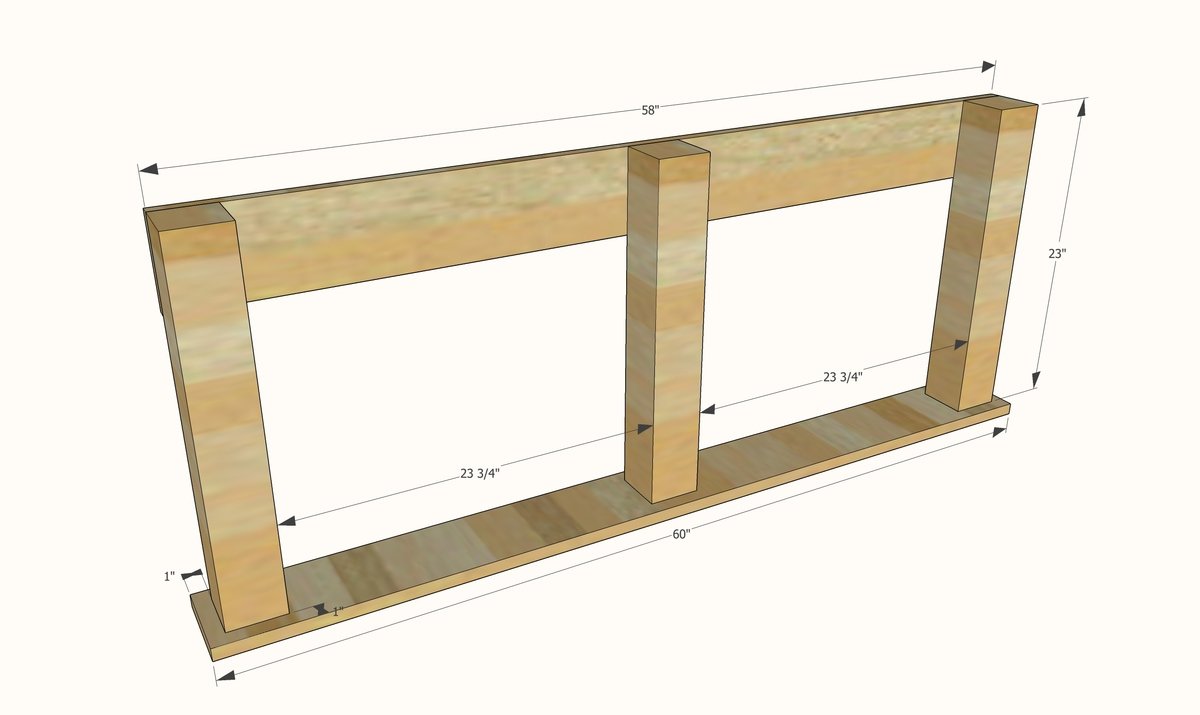

Attach three of the posts to the 1x6 end apron and the 1x6 for the bottom. Screws are recommended - use exterior screws for outdoor application. Predrill holes to prevent splitting. Screws must be at least 2" long but could be longer if you want to use the same screws as the rest of the assembly.

Double Wide Outdoor Table — step 1
2

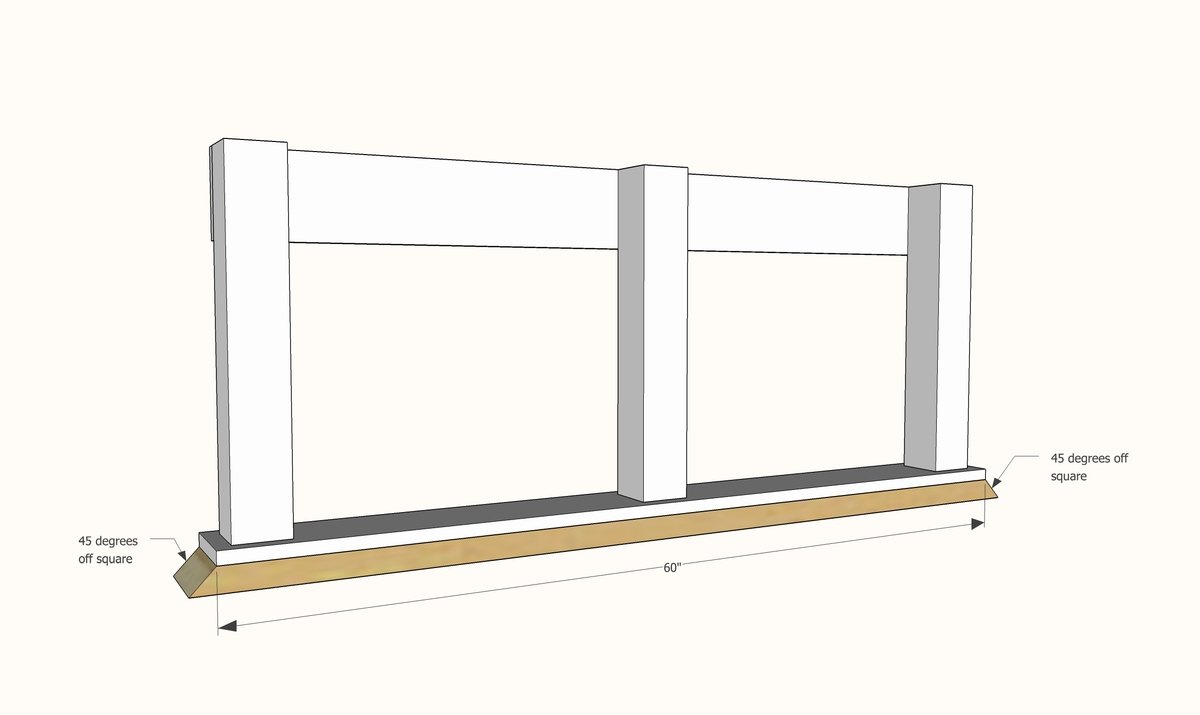

Step 2

Attach base to the first 2x6 board (ends cut at 45 degrees). To hide screws, attach from underside. 2" screws and glue are recommended here.

Double Wide Outdoor Table — step 2
3

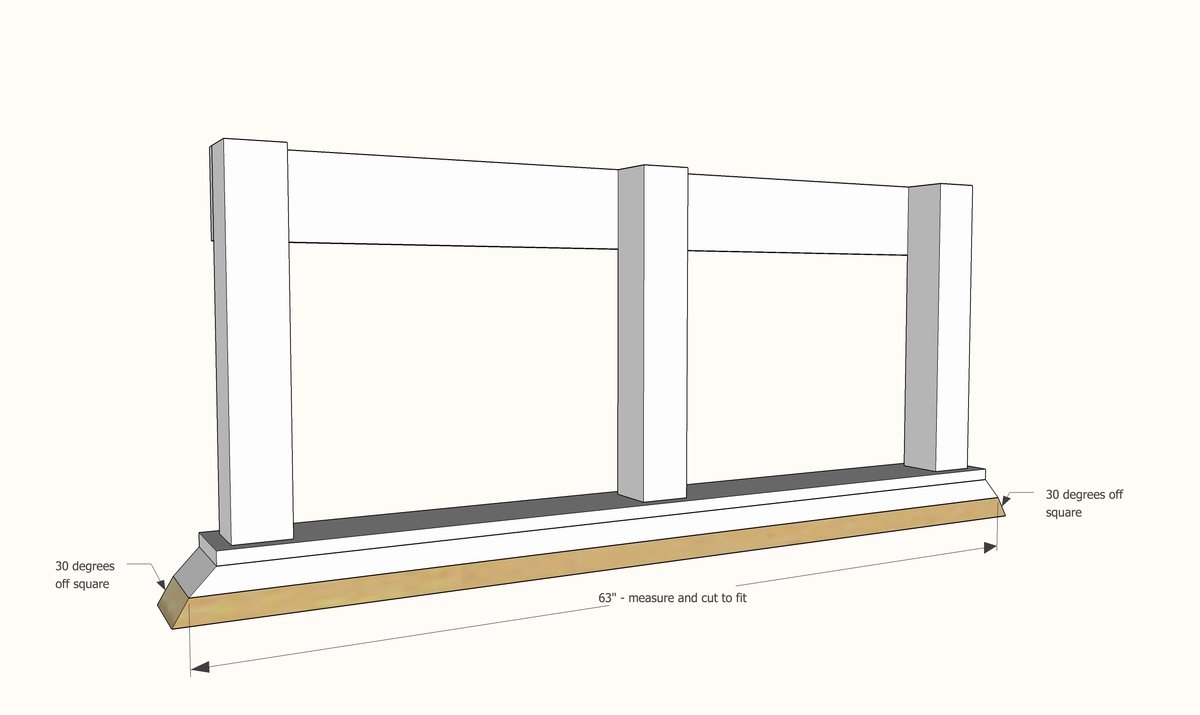

Step 3

Attach next layer of 2x6 under the previous 2x6. Measure and cut to ensure perfect fit. Use 2-1/2" screws here.

Double Wide Outdoor Table — step 3
4

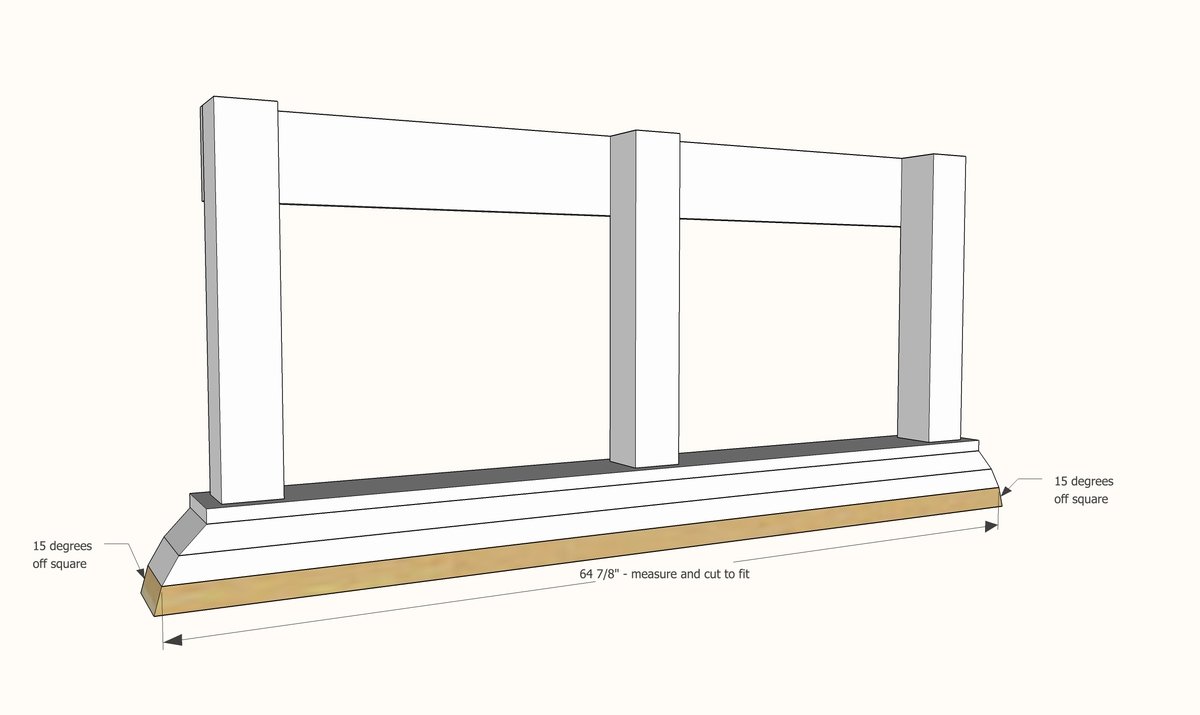

Step 4

Add the final bottom 2x6 same as the previous one.

Double Wide Outdoor Table — step 4
5

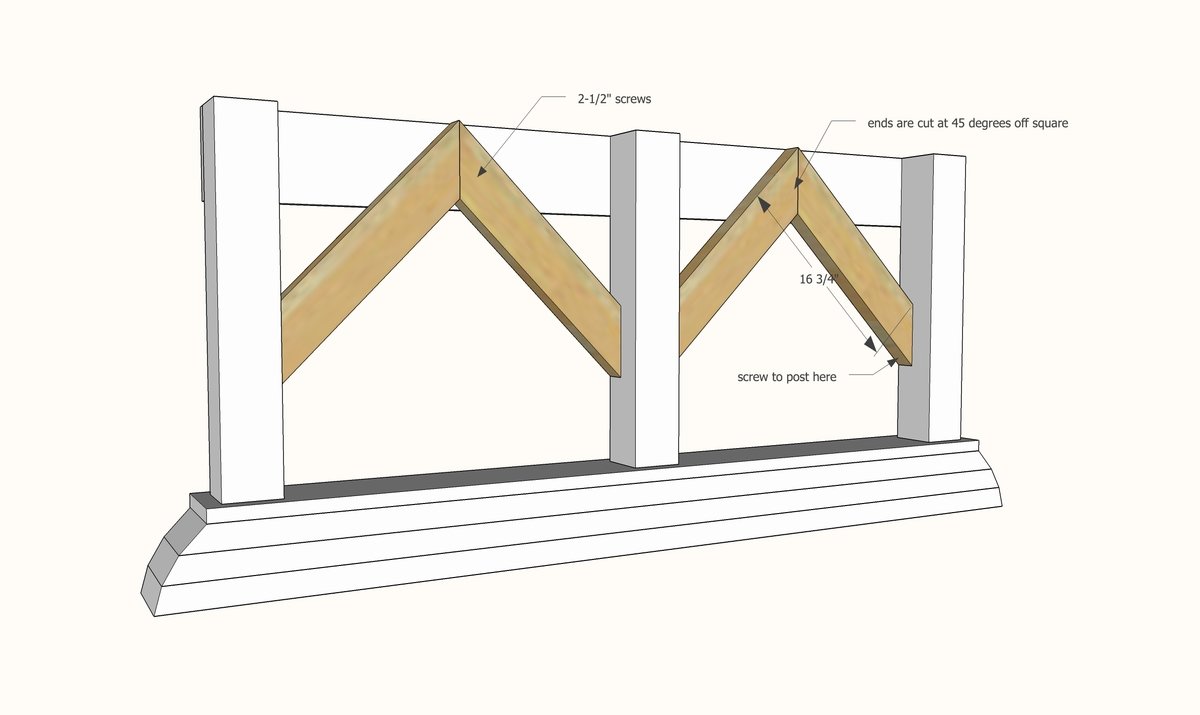

Step 5

Double Wide Outdoor Table — step 5
6

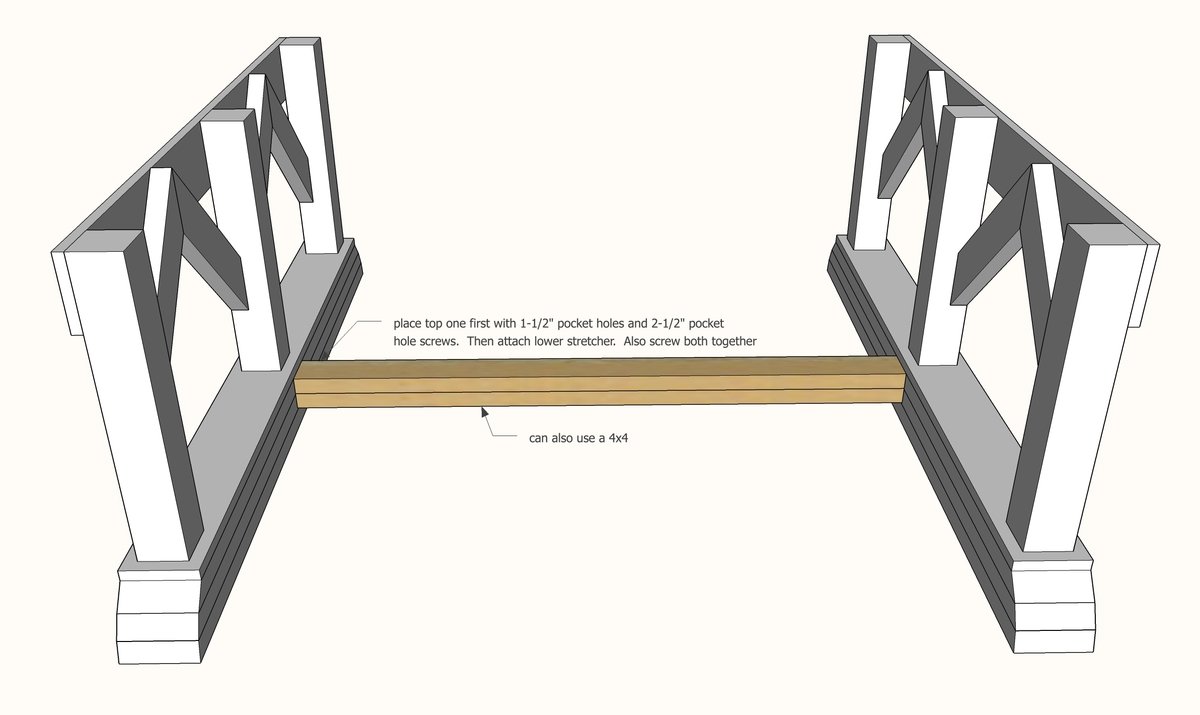

Step 6

Attach stretchers to base.

Double Wide Outdoor Table — step 6
7

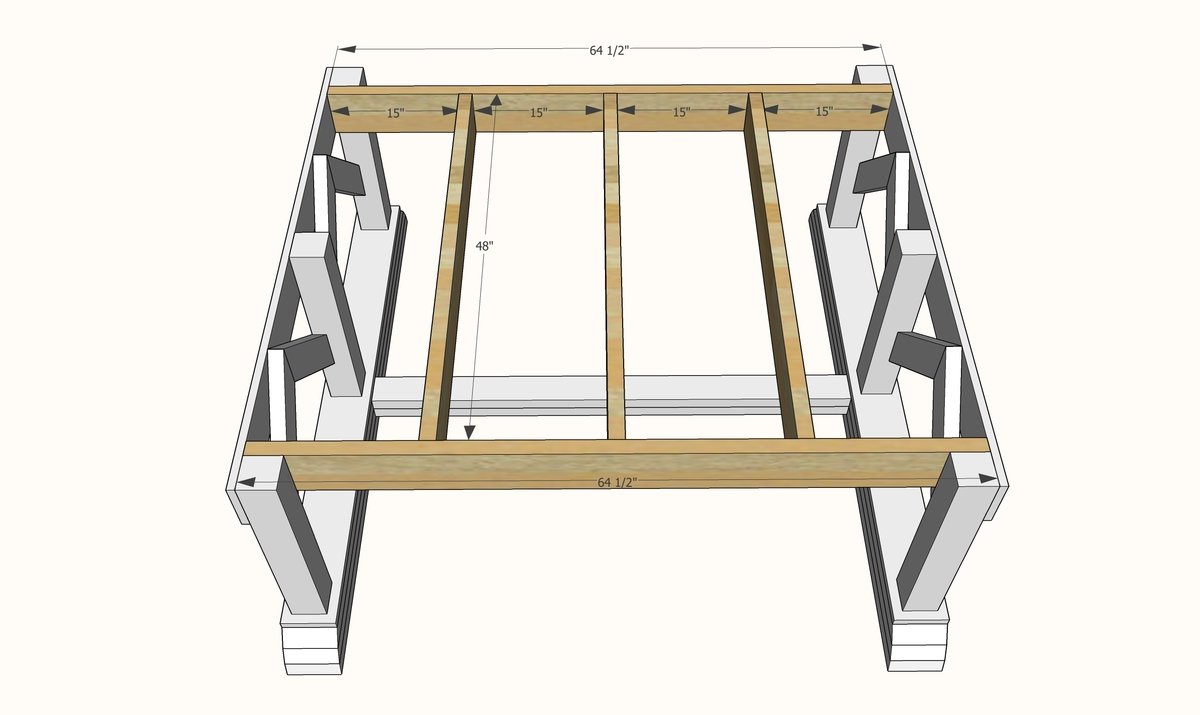

Step 7

Use 2-1/2" screws to attach aprons to legs. Then attach joist to the 2x6 aprons. You'll need these for attaching the tabletop board to.

Double Wide Outdoor Table — step 7
8

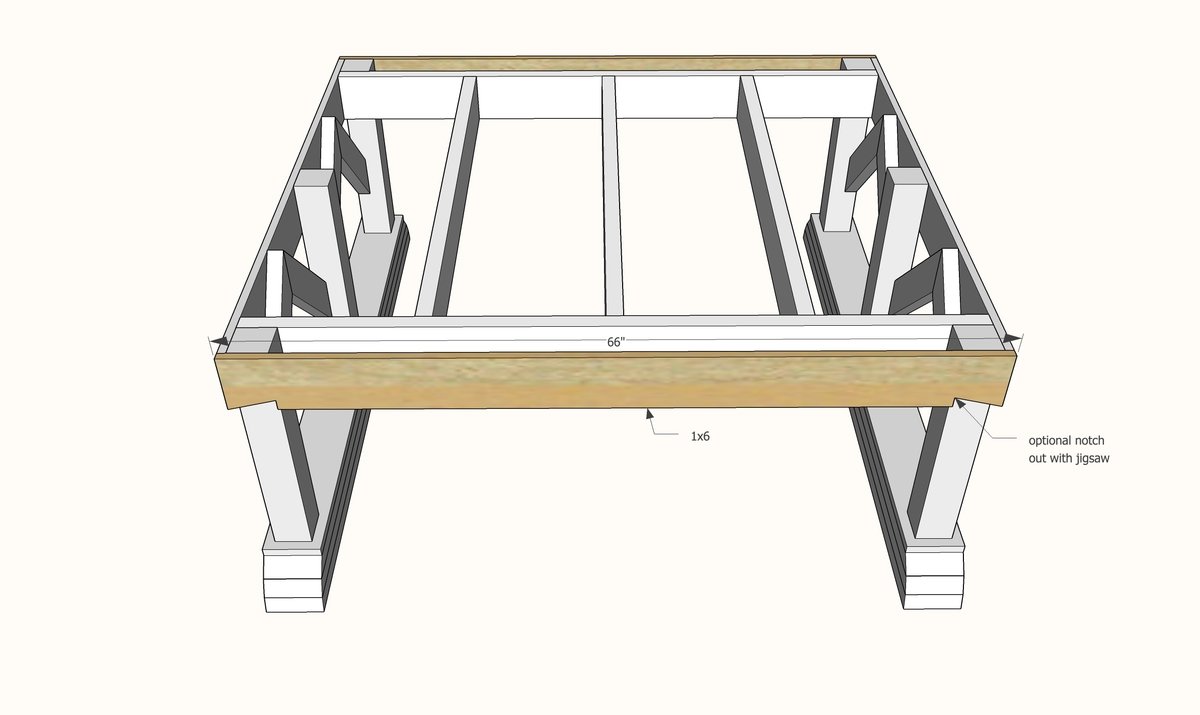

Step 8

Attach outer aprons to the outsides of the 4x4 legs. Use 2" screws and glue.

Double Wide Outdoor Table — step 8
9

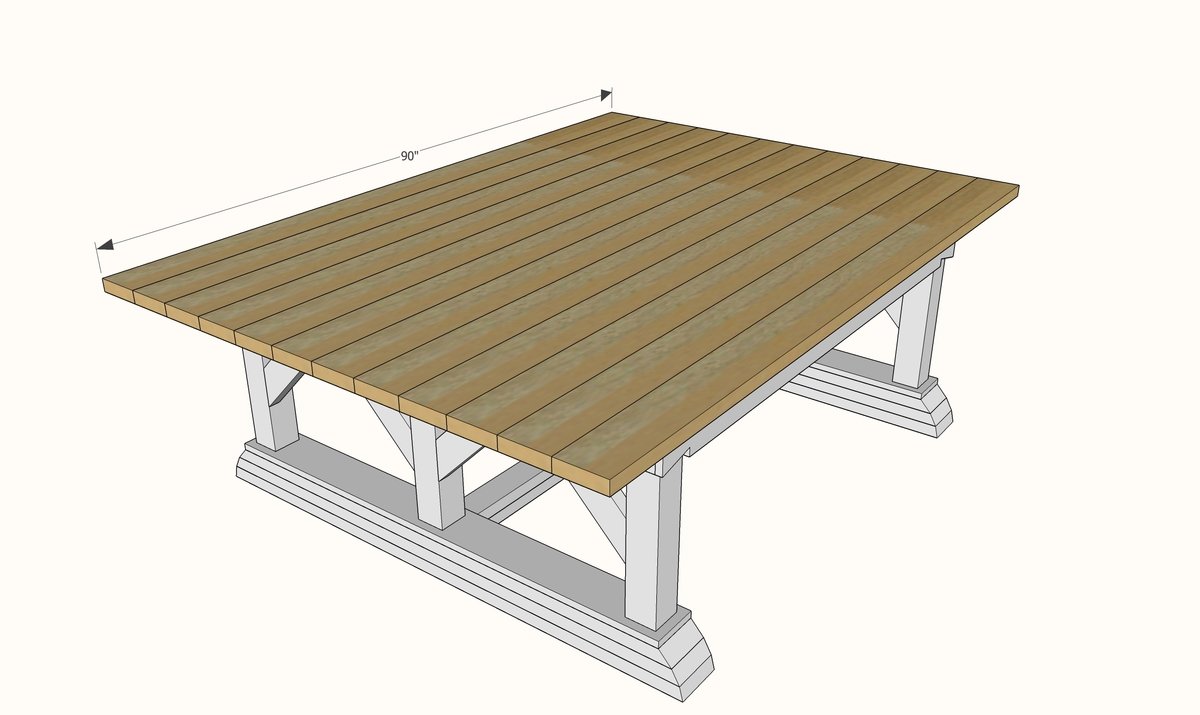

Step 9

Attach tabletop boards to joists and legs with 2-1/2" screws.

Double Wide Outdoor Table — step 9
10

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
