Easiest DIY Faux Mantle

Build your own faux mantle in no time with our free, easy DIY plans! Beautiful solid wood mantle can be painted or stained, add hooks for stockings at Christmas time. Sturdy and narrow for easy storage. Plans include step by step diagrams, shopping list, cut list and a real user video tutorial!

Easiest DIY Faux Mantle

Specifications

Project typeConsole Table Plans
Roomliving room
DifficultyBeginner Projects
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

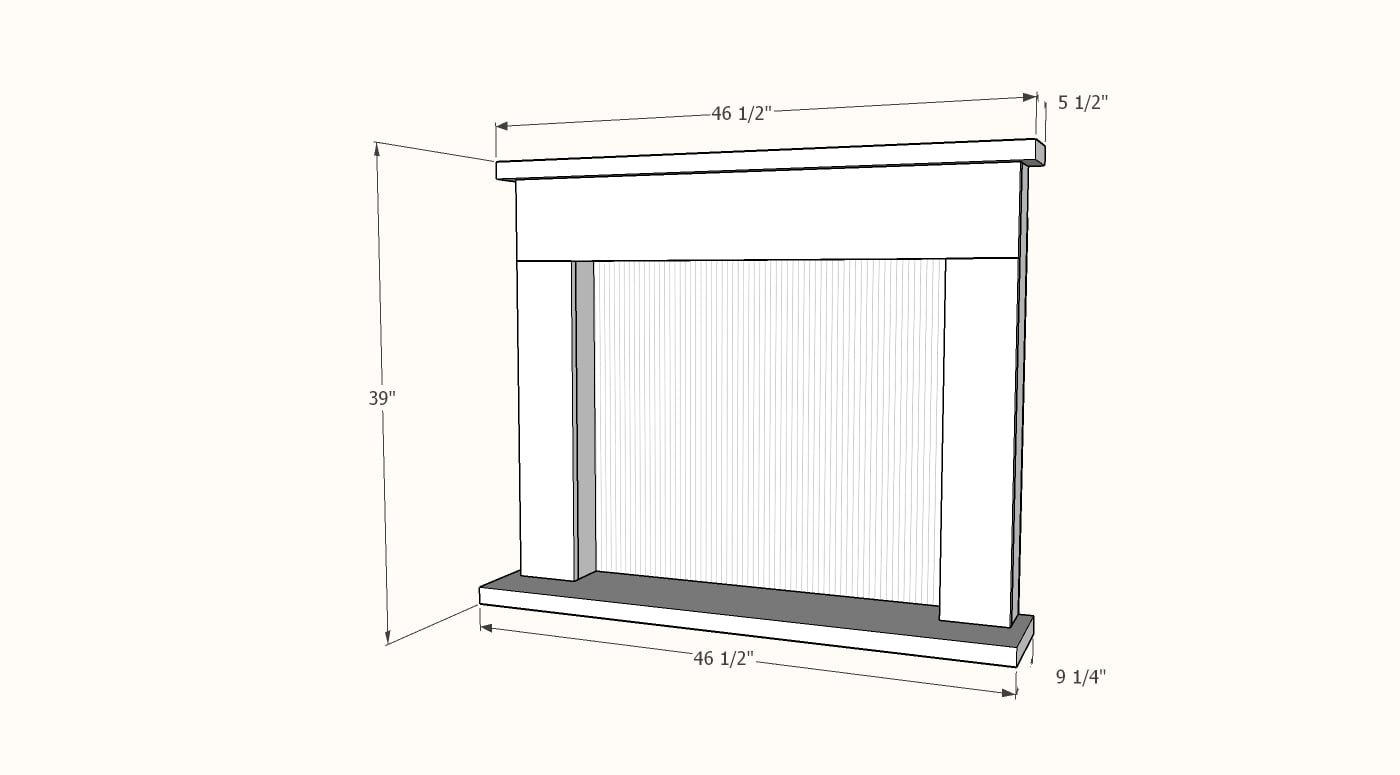

Easiest DIY Faux Mantle dimension diagram 1

Shopping List

  • 1 - 2x6x4 feet
  • 1 - 2x10x4 feet (can also use 2x8 or 2x10)
  • 1 - 2x4x12 feet (can be cut in half for transport)
  • 1 - 1x8x4 feet
  • 1 - 1x6x5 feet
  • 16 - 2-1/2" long self tapping star bit wood construction screws (#8 or #9)
  • 1-1/4" brad nails and wood glue

Cut List

1 - 2x6 @ 46-1/2" - top

1 - 2x10 @ 46-1/2" - base

4 - 2x4 @ 36" - side framing - can be cut shorter, just make sure all four pieces are the exact same length

1 - 1x8 @ ~44" - front top (cut to fit)

2 - 1x6 @ ~28-3/4" - front sides (cut to fit)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • drill
  • circular saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

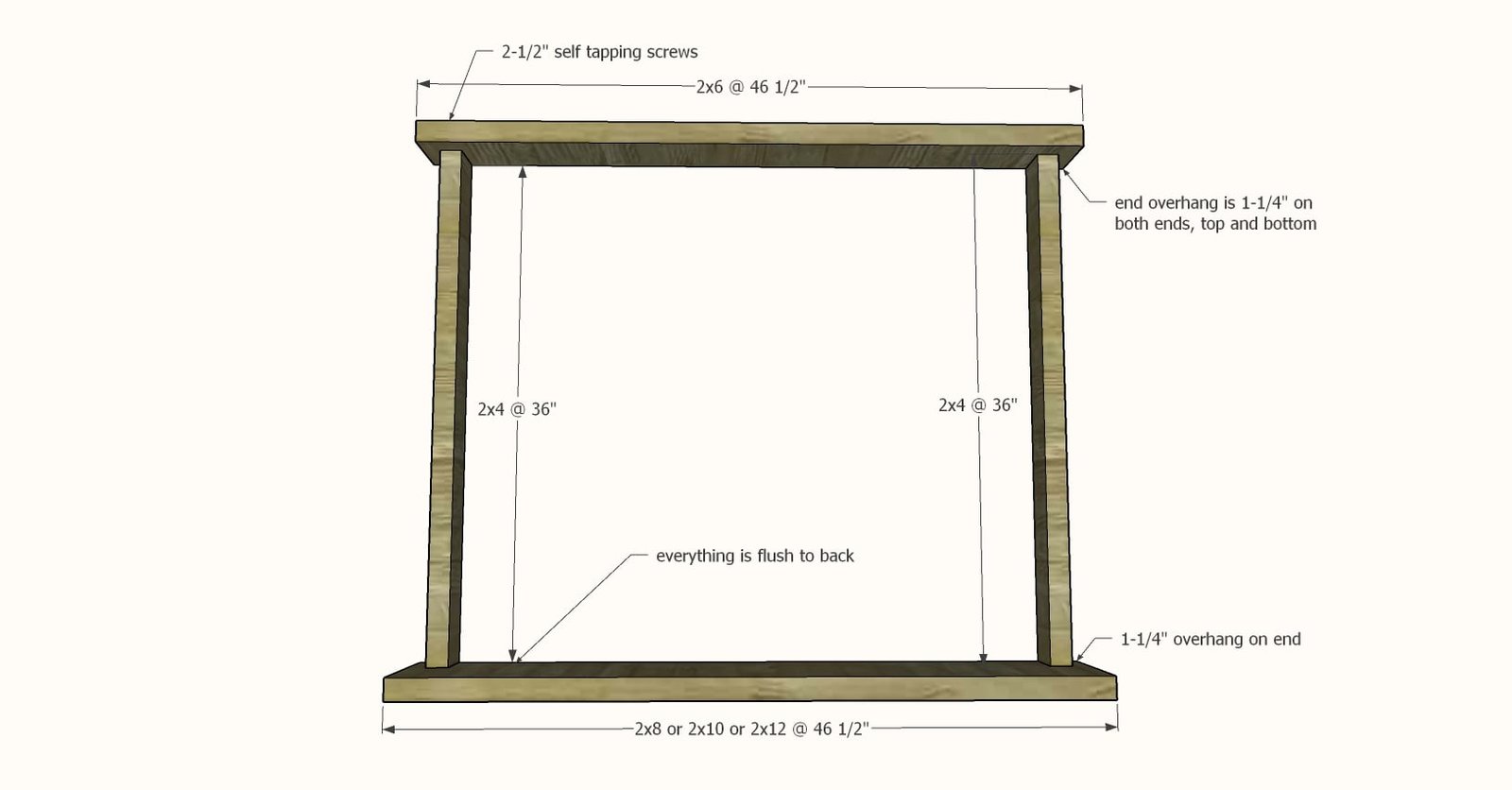

Attach the top and bottom to the outer 2x4s, with 1-1/4" space on outside, all edges are flush to the back. Use the 2-1/2" screws, two per joint.

Easiest DIY Faux Mantle — step 1
2

Step 2

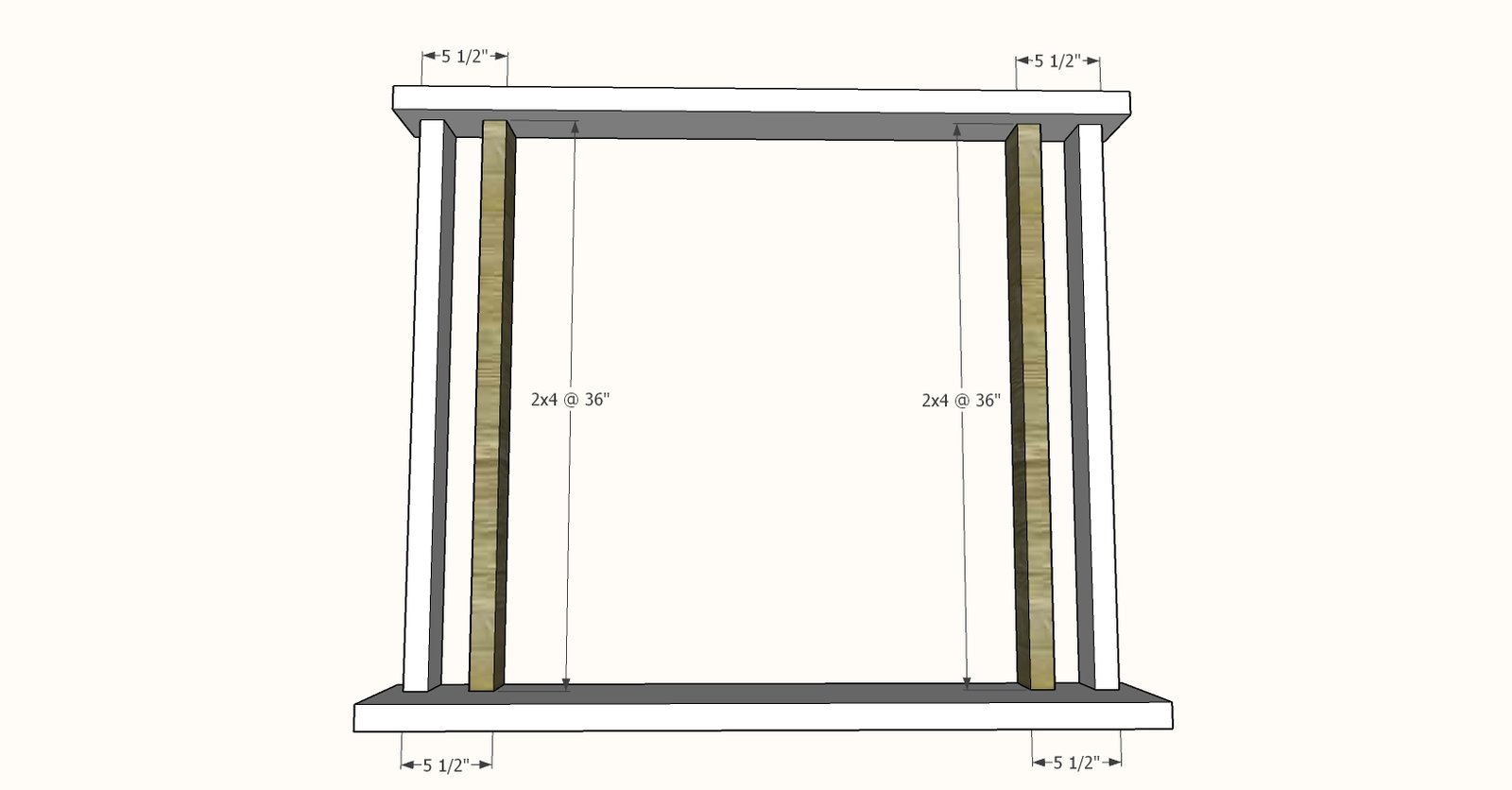

Measure over 5-1/2" (or use a scrap piece of 1x6 as a guide) and attach the second row of 2x4s on the inside, with the 2-1/2" screws.

Easiest DIY Faux Mantle — step 2
3

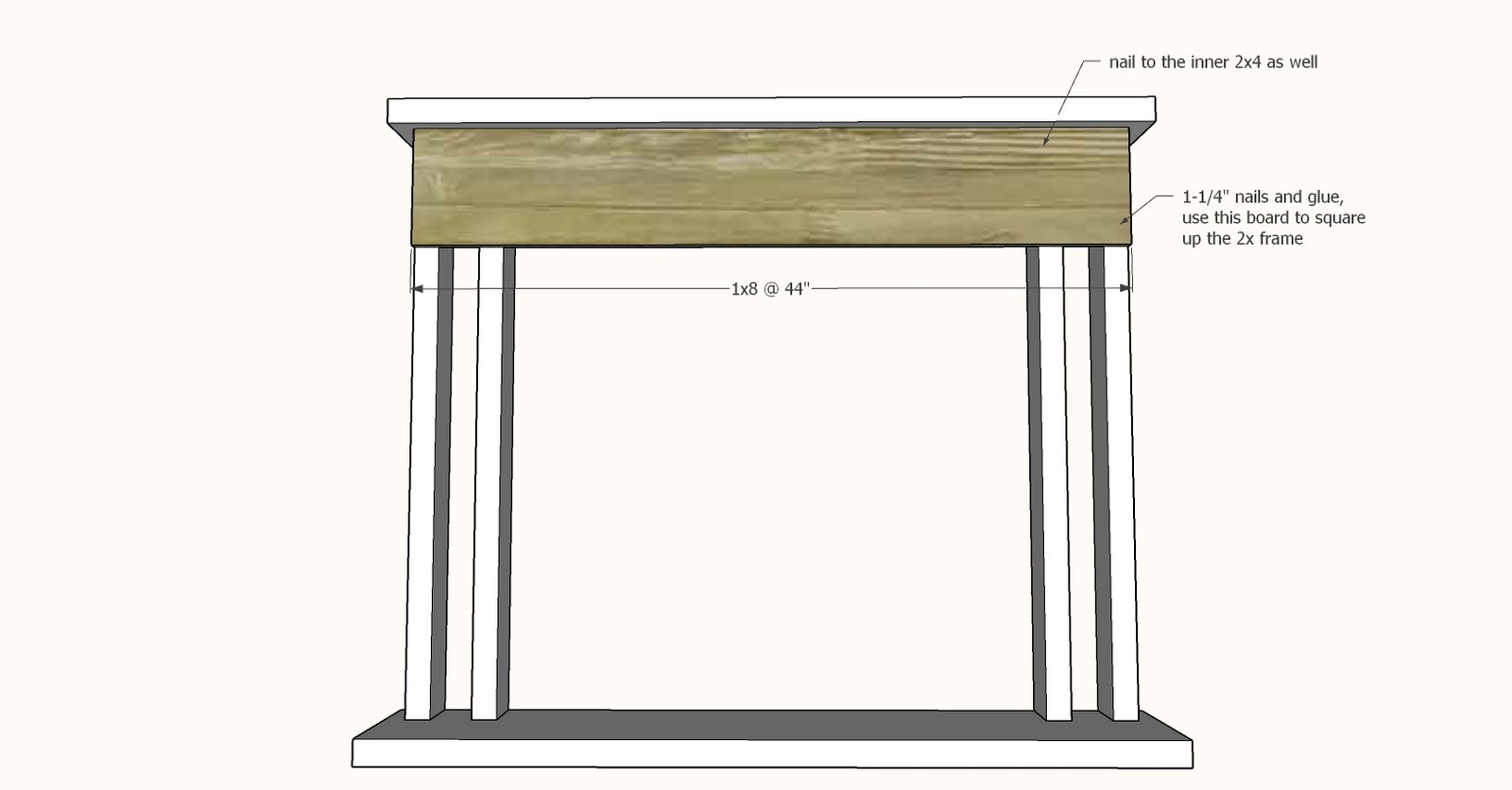

Measure and cut the 1x8 to fit across top.

Attach with 1-1/4" brad nails and wood glue. No nailer? You can also use self tapping construction screws, I recommend the 2" length.

Easiest DIY Faux Mantle — step 3
4

Step 4

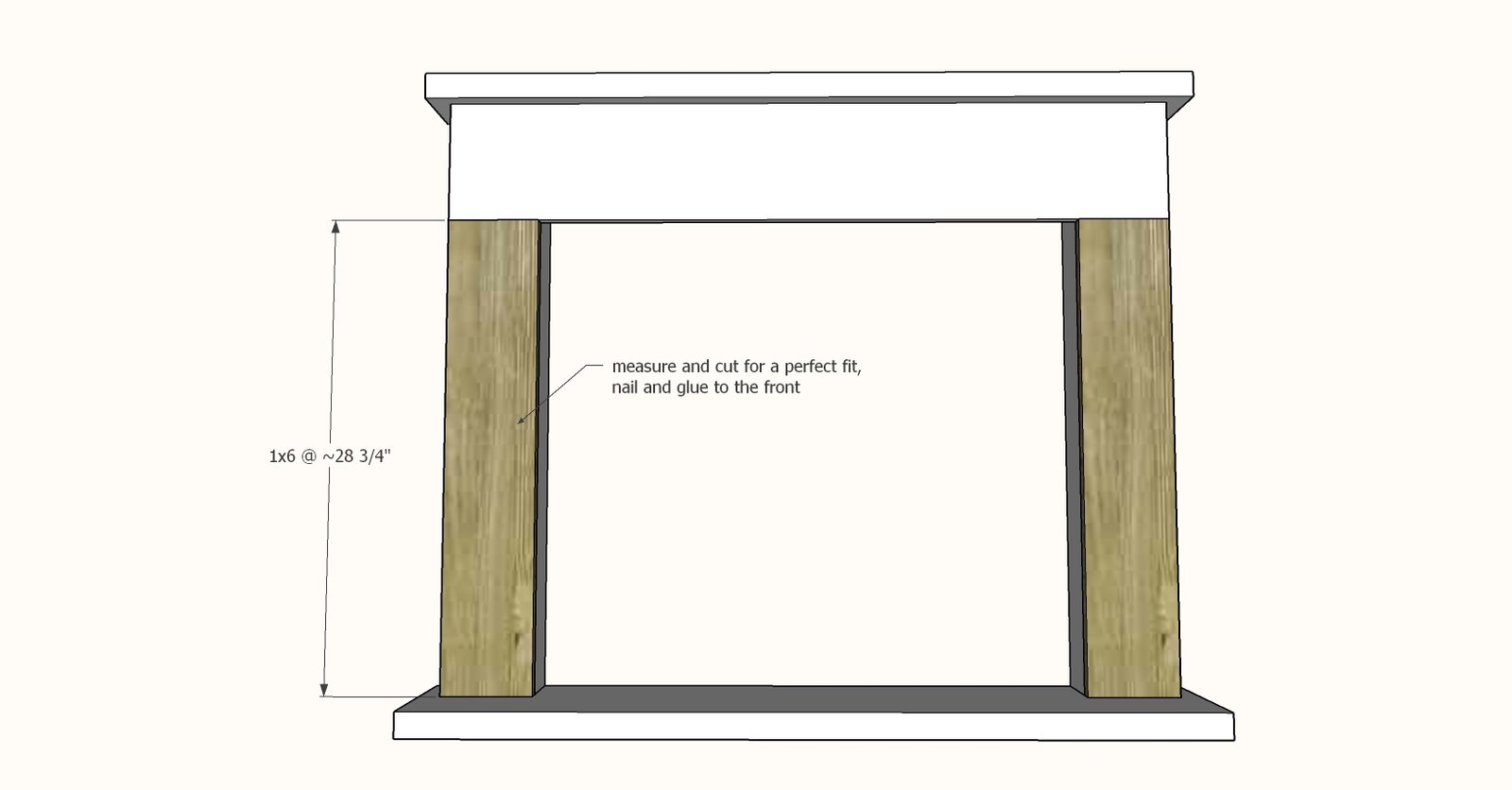

Repeat steps for the 1x6 front "legs".

Easiest DIY Faux Mantle — step 4
5

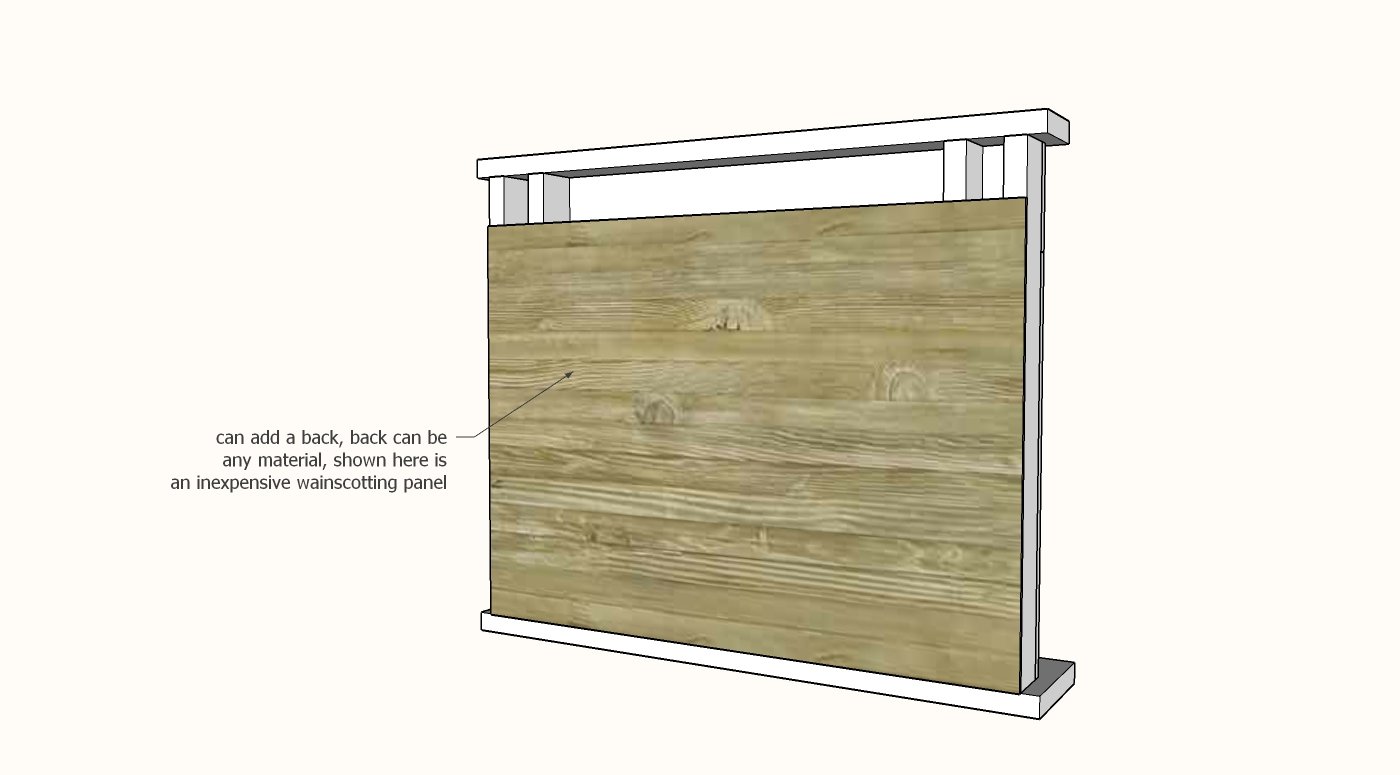

A back can be added for decor reasons.

Shown here is an inexpensive wainscotting panel.

Easiest DIY Faux Mantle — step 5
6

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
